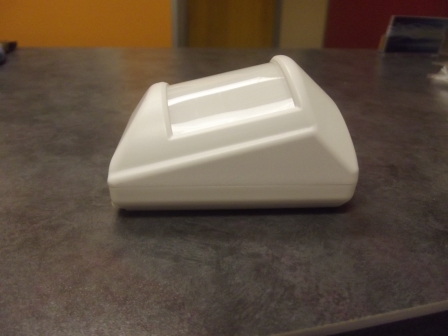

XQC-PIRZ1Z-WAVE WIRELESS MOTION DETECTOR

This sensor is a Z-Wave enabled device (interoperable, two-way RF mesh networking technology) and is fully compatible with any existing Z-Wave enabled network. The Z-Wave wireless communication protocol allows for Z-Wave devices from different manufacturers to operate in the same Z-Wave network. The sensor sends a Z-Wave message when motion is detected within its field of view. For indoor use only Operating Frequency: 908.42 MHz Operating Range: Up to 100 feet line-of-sight Operating Temperature: 0⁰C to 49⁰C Battery: CR123A Operating Principle: Passive infrared (PIR) technology Wireless Motion Sensor Installation & Operation Manual Introduction Product Specification Motion Sensor Coverage Pattern Solid regions in the pattern drawing represent positive detection capability of the sensor. Side View Top View Notice: If you are installing an entire Z-Wave network for the first time, please refer to the installation guide provided by the manufacturer of your Z-Wave controller before installing the motion sensor. 1. Release cover tab to open the cover. 2. Insert a 3 Volt CR123A Lithium Ion battery into the battery compartment. The LED will start to flash slowly, indicating that the sensor has not yet been included in a Z-Wave network. 3. Include the sensor device into your Z-Wave network (see the section titled Inclusion). 4. Using the provided adhesive tape, mount the sensor two meters (6.5 feet) above the floor. Angle the device to ensure widest angle of coverage (see the sensor coverage illustration). Inclusion: Inclusion is the process of adding a device to your Z-Wave network. To include the motion sensor in your Z-Wave network, put the controller unit into “inclusion mode” as described in the instruction manual for the controller. Then insert a paper clip or pin to press the program button (pictured above) on the back of the sensor case. The LED should now be off. If not, try again and make sure the button is pressed for at least one second. If the inclusion process continues to fail, it is possible that the sensor has already been included in a different Z-Wave network. In this case, follow the procedure in the section titled “Exclusion” to exclude the sensor. The inclusion process should work after the exclusion process has been completed. Exclusion: Exclusion is the process of removing a device from your Z-Wave network. To exclude the sensor from a Z-Wave network, follow the instructions for the controller and place it into “exclusion mode”. Now press the program button on the back of the sensor for at least one second. The LED will now begin to flash indicating that the device is not included in a network. 1. To trigger the motion sensor, walk in front of the lens. When motion is detected, a Z-Wave message (basic set 0xFF) is sent to the Z-Wave controller and the LED will flash once. Then, if no motion is detected for approximately 210 seconds, the unit will send a message (basic set 0x00) which means the device is returning to normal operation and is ready to detect motion again. 2. During normal operation (i.e. if no motion is detected) the LED will not flash. 3. The device is equipped with a tamper switch. If the sensor cover is removed, the sensor will send a tamper message (alarm report) to the Z-Wave controller and the LED may stay lit for up to ten seconds. 4. The sensor unit is programmed with two association groups. Group 1 can store the node ID of up to five controllers. Controllers will all receive a “basic set 0xFF” when motion is detected and “basic set 0x00” once the sensor starts monitoring for motion again. Group two stores the node IDs for up to 5 devices that respond when the motion sensor detects motion. Such devices include chimes, sirens, or light switches. Each device in group two listens for Z-Wave messages of type “basic set 0xFF”. 5. Z-Wave devices (especially those with a hardwired source of power) are often designed to rebroadcast any received Z-Wave messages. In this way, messages from a Z-Wave device can travel greater distances than what is possible through its own transmit capabilities. Being a battery powered device, this Z-Wave motion sensor does not listen for and rebroadcast messages from other Z-Wave devices. This significantly extends the sensor’s battery life. Installation Operation 6. The sensor enters sleep mode when not in use. However, the sensor must be “awake” to receive messages from the controller. To activate “stay-awake mode”, remove the front cover. This will wake up the sensor. Leave the cover off to enable the controller to query the sensor for device specific information and capabilities. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Ecolink Intelligent Technology, Inc. can void the users’ authority to operate the equipment. Federal Communications Commission Statement

Ecolink Intelligent Technology, Inc. 2055 Corte Del Nogal Carlsbad, CA 92011 (760) 431-8804 March 30,2012 Compliance Certifi cation Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concem: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certifu that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary affangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.9. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certihcation which the Certification Division may consider misleading or unauthorized; upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; use certification only to indicate the products are certified as being in conformity with specified standards; endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; keep a record of all complaints made known to the us relating to the product's compliance with requirements of the relevant standard and to make these records available to the Certihcation Division when requested; take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; document the actions taken. This authorizationis valid until further written notice from the applicant. Sincerely Yours, Jay Stone Director of Engineering Ecolink IntelligentTechnology, lnc. e) 0 s) h) i) i) k)

Antenna Specification PIRZWAVE1 Rev 1 The PIRZWAVE1 transmitter uses an internal PCB monopole antenna (-5 dBi) which is not replaceable by the user.

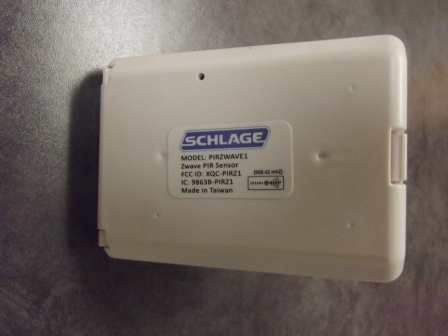

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR Z-WAVE WIRELESS MOTION DETECTOR MODEL NUMBER: PIRZWAVE1 FCC ID: XQC-PIRZ1 IC: 9863B-PIRZ1 REPORT NUMBER: 12U14241-1, Revision A ISSUE DATE: APRIL 06, 2012 Prepared for ECOLINK INTELLIGENT TECHNOLOGY, INC. 2055 CORTE DEL NOGAL CARLSBAD, CALIFORNIA 92011, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES (UL CCS) 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 12U14241-1A DATE: APRIL 06, 2012 FCC ID: XQC-PIRZ1 IC: 9863B-PIRZ1 Page 2 of 27 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By -- 02/08/12 Initial Issue F. Ibrahim A 04/06/12 Revised sections 2 and 8.1.2 F. Ibrahim REPORT NO: 12U14241-1A DATE: APRIL 06, 2012 FCC ID: XQC-PIRZ1 IC: 9863B-PIRZ1 Page 3 of 27 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION .................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 5 4.2. SAMPLE CALCULATION ............................................................................................... 5 4.3. MEASUREMENT UNCERTAINTY ................................................................................. 5 5. EQUIPMENT UNDER TEST ................................................................................................. 6 5.1. DESCRIPTION OF EUT ................................................................................................. 6 5.2. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 6 5.3. SOFTWARE AND FIRMWARE ...................................................................................... 6 5.4. WORST-CASE CONFIGURATION AND MODE ............................................................ 6 5.5. MODIFICATIONS ........................................................................................................... 6 5.6. DESCRIPTION OF TEST SETUP .................................................................................. 7 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................... 8 7. ANTENNA PORT TEST RESULTS ...................................................................................... 9 7.1. 20 dB AND 99% BW ....................................................................................................... 9 7.2. DUTY CYCLE ............................................................................................................... 13 7.3. TRANSMISSION TIME ................................................................................................. 15 8. RADIATED EMISSION TEST RESULTS ............................................................................ 16 8.1. TX RADIATED SPURIOUS EMISSION........................................................................ 16 8.1.1. FUNDAMENTAL AND TX SPURIOUS 30-1000 MHz ........................................... 19 8.1.2. HARMONICS AND TX SPURIOUS EMISSIONS ABOVE 1GHz .......................... 20 8.2. RX RADIATED SPURIOUS EMISSION ....................................................................... 21 9. SETUP PHOTOS ................................................................................................................. 24 REPORT NO: 12U14241-1A DATE: APRIL 06, 2012 FCC ID: XQC-PIRZ1 IC: 9863B-PIRZ1 Page 4 of 27 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: ECOLINK INTELLIGENT TECHNOLOGY, INC. 2055 CORTE DEL NOGAL CARLSBAD, CA 92011, U.S.A. EUT DESCRIPTION: Z-WAVE WIRELESS MOTION DETECTOR MODEL: PIRZWAVE1 SERIAL NUMBER: PIR-012 AND PIR-016 DATE TESTED: FEBRUARY 7, 2012 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Pass INDUSTRY CANADA RSS-210 Issue 8, Annex 1 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass Compliance Certification Services (UL CCS) tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL CCS based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL CCS and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL CCS will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of t…

Text truncated - open the document above for the full version.

REPORT NO: 12U14241-1A DATE: APRIL 06, 2012 FCC ID: XQC-PIRZ1 IC: 9863B-PIRZ1 Page 24 of 27 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 9. SETUP PHOTOS ANTENNA PORT ANTENNA PORT REPORT NO: 12U14241-1A DATE: APRIL 06, 2012 FCC ID: XQC-PIRZ1 IC: 9863B-PIRZ1 Page 25 of 27 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. RADIATED EMISSION FOR PORTABLE CONFIGURATION – X ORIENTATION RADIATED EMISSION FOR PORTABLE CONFIGURATION – X ORIENTATION REPORT NO: 12U14241-1A DATE: APRIL 06, 2012 FCC ID: XQC-PIRZ1 IC: 9863B-PIRZ1 Page 26 of 27 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. RADIATED EMISSION FOR PORTABLE CONFIGURATION – Y ORIENTATION RADIATED EMISSION FOR PORTABLE CONFIGURATION – Y ORIENTATION REPORT NO: 12U14241-1A DATE: APRIL 06, 2012 FCC ID: XQC-PIRZ1 IC: 9863B-PIRZ1 Page 27 of 27 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. RADIATED EMISSION FOR PORTABLE CONFIGURATION – Z ORIENTATION END OF REPORT RADIATED EMISSION FOR PORTABLE CONFIGURATION – Z ORIENTATION
