XQC-SS319WIRELESS SENSOR

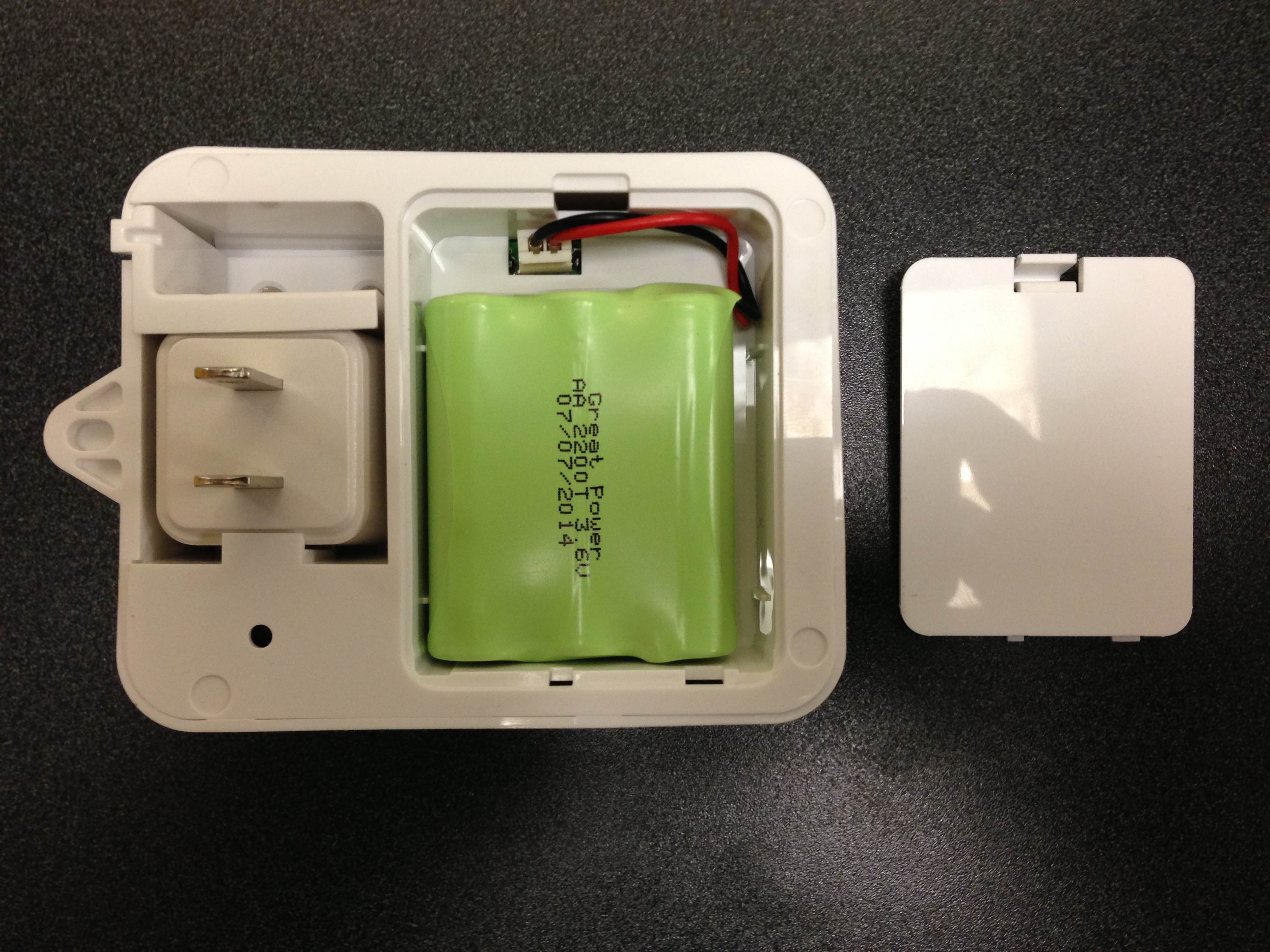

SS-319 Wireless Siren Specifications Frequency: 319.508MHz Operating Temperature: 32°-120°F (0°-49°C) Battery: 3.6V NiMH rechargeable 3 cell pack Operating Humidity: 5-95% RH non condensing Battery life upon power loss: 24 hours Compatible with UTC Interlogix panels Supervisory signal interval: 60 min(approx.) Installing the Wireless Siren Connect the Battery The Wireless Siren uses a NiMH rechargeable battery pack, included. Remove the battery cover on the back of the siren and insert the battery pack. Plug the battery pack connector to the two pin connector on the Siren. Reattach battery door. Mounting Plug Wireless Siren into constant power AC outlet. An optional screw mount is available to prevent easily unplugging the device. Using a screw driver or other tool, remove the thin layer of material in the center of the screw tab on the Siren. Next, remove the center screw of the wall plate on the AC outlet you are plugging the Siren into. You may either use that same screw you just removed from the AC outlet, or use the longer screw that is included in the Siren packaging. Place the cover plate of the AC outlet on, and then plug in the Siren WITH THE SCREW TAB POINTING TOWARDS THE FLOOR. Insert screw through the Siren screw tab and tighten Siren and wall plate so the Siren is tight to the wall plate. Enrolling To enroll the siren, set your panel into program mode, refer to your specific alarm panel manual for details on these menus. When prompted by the panel, trigger the siren by pressing the LEARN button on the side of the siren. If successfully enrolled, you will see the LED flash, and the alarm panel will BEEP. Enable/Disable Chime Feature Enable: • Make sure the chime feature has been turned on in the Interlogix panel first. • Simultaneously press the LEARN and TEST buttons on the side of the Siren for 2 seconds. • LED will remain on , and the siren module will BEEP, indicating the chime feature is ON Disable: • The chime function can be on or off in the Interlogix panel, this will not affect disabling Wireless Siren’s chime function. • Simultaneously press the LEARN and TEST buttons on the side of the Siren for 2 seconds. • LED will blink off, and the siren will not chirp, indicating the chime feature is Off. Range Test After the SS-319 Siren has been learned into the panel, an RF range test can be initiated. To do this, press the test button for one second. This will cause the siren to send 8 test packets to the panel, and the LED on the siren will blink each time a packet is sent. As the panel receives each of the 8 packets, it will send an acknowledgement packet back to the Siren. The Siren will chirp each time an acknowledgement is received. As an example, if the button is pressed for one second, and then 7 chirps are heard from the siren, that indicates that 7 out of 8 test packets were successfully received by the panel and acknowledged back to the siren. This means that either one packet was not received by the panel, or that the acknowledgement back from the panel was not received by the Siren. Factory Reset In case you want to return the Wireless Siren to a factory default state, press and hold BOTH buttons on the side of the Siren for 10 seconds. When successful, the LED will FLASH XXXX, and you will hear the Siren BEEP XXXX times. FCC Compliance Statement This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Re-orient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment to an outlet on a different circuit from the receiver • Consult the dealer or an experienced radio/TV contractor for help. Warning: Changes or modifications not expressly approved by Ecolink Intelligent Technology Inc. could void the user’s authority to operate the equipment. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. C’et appareil est conforme la norme d'Industrie Canada exempts de licence RSS. Son fonctionnement est soumis aux deux conditions suivantes: (1) c’et appareil ne peut pas provoquer d'interférences, et (2) c’et appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement de la dispositif. FCC ID:XQC-SS319 IC: 9863B-SS319 Warranty Ecolink Intelligent Technology Inc. warrants that for a period of 5 years from the date of purchase that this product is free from defects in material and workmanship. This warranty does not apply to damage caused by shipping or handling, or damage caused by accident, abuse, misuse, misapplication, ordinary wear, improper maintenance, failure to follow instructions or as a result of any unauthorized modifications. If there is a defect in materials and workmanship under normal use within the warranty period Ecolink Intelligent Technology Inc. shall, at its option, repair or replace the defective equipment upon return of the equipment to the original point of purchase. The foregoing warranty shall apply only to the original buyer, and is and shall be in lieu of any and all other…

Text truncated - open the document above for the full version.

Ecolink Intelligent Technology, Inc. Page 1 of 2 2055 Corte Del Nogal Carlsbad, CA 92011 October 27, 2014 UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner;

2055 Corte Del Nogal Carlsbad, CA 92011 (760) 431-8804 March 13, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: XQC-SS319 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request, for 180 days from date of equipment authorization, on the following attachments: Internal Photos External Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, Jay Stone Director of Engineering Ecolink Intelligent Technology, Inc. 3/13/2015

Model No. SS-319FCC ID: XQC - SS319 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condition s: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: XQC - SS319 IC:9863B-SS319 FCC Identification Label Location:

FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS 210 CERTIFICATION TEST REPORT FOR WIRELESS SENSOR MODEL NUMBER: SS-319 FCC ID: XQC-SS319 IC: 9863B-SS319 REPORT NUMBER: 14U19726 REVISION D ISSUE DATE: MARCH 19, 2015 Prepared for ECOLINK INTELLIGENT TECHNOLOGY, INC. 2055 CORTE DEL NOGAL CARLSBAD CA, 92011, U.S.A Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 14U19726D DATE: MARCH 19, 2015 FCC ID: XQC-SS319 IC: 9863B-SS319 Page 2 of 40 UL VERIFICATION SERVICES INC FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. Revision History Rev. Issue Date Revisions Revised By -- 2/24/15 Initial Issue P. ZHANG A 3/13/15 Update page 8&9 P. ZHANG B 3/16/15 Updated DCCF P. ZHANG C 3/17/15 Updated DCCF test plot with only one pulse width P. ZHANG D 3/19/15 Updated page 20; section 5.4; page 21; page 22 P. ZHANG REPORT NO: 14U19726D DATE: MARCH 19, 2015 FCC ID: XQC-SS319 IC: 9863B-SS319 Page 3 of 40 UL VERIFICATION SERVICES INC FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 5 4.2. SAMPLE CALCULATION ............................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 6 5. EQUIPMENT UNDER TEST ............................................................................................... 7 5.1. DESCRIPTION OF EUT .............................................................................................. 7 5.2. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 7 5.3. SOFTWARE AND FIRMWARE .................................................................................... 7 5.4. WORST-CASE CONFIGURATION AND MODE .......................................................... 7 5.5. MODIFICATIONS ........................................................................................................ 7 5.1. DESCRIPTION OF TEST SETUP ................................................................................ 8 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................10 7. ANTENNA PORT TEST RESULTS ...................................................................................11 7.1. 20 dB AND 99% BW ...................................................................................................11 7.2. DUTY CYCLE .............................................................................................................15 7.3. TRANSMISSION TIME ...............................................................................................19 8. RADIATED EMISSION TEST RESULTS...........................................................................20 8.1. TX RADIATED SPURIOUS EMISSION ......................................................................20 9. AC POWER LINE CONDUCTED EMISSIONS ..................................................................28 10. SETUP PHOTOS ...........................................................................................................31 REPORT NO: 14U19726D DATE: MARCH 19, 2015 FCC ID: XQC-SS319 IC: 9863B-SS319 Page 4 of 40 UL VERIFICATION SERVICES INC FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: ECOLINK INTELLIGENT TECHNOLOGY, INC. 2055 CORTE DEL NOGAL CARLSBAD, CA, 92011, U.S.A EUT DESCRIPTION: WIRELESS SENSOR MODEL: SS-319 SERIAL NUMBER: 2056552 DATE TESTED: FEB 17 - MAR 13, 2015 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Pass INDUSTRY CANADA RSS-210 Issue 8, Annex 1 Pass INDUSTRY CANADA RSS-GEN Issue 4 Pass UL Verification Services Inc tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL Verification Se…

Text truncated - open the document above for the full version.

REPORT NO: 14U19726D DATE: MARCH 19, 2015 FCC ID: XQC-SS319 IC: 9863B-SS319 Page 31 of 40 UL VERIFICATION SERVICES INC FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. 10. SETUP PHOTOS ANTENNA PORT ANTENNA PORT REPORT NO: 14U19726D DATE: MARCH 19, 2015 FCC ID: XQC-SS319 IC: 9863B-SS319 Page 32 of 40 UL VERIFICATION SERVICES INC FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. RADIATED EMISSION FOR PORTABLE CONFIGURATION – X ORIENTATION RADIATED EMISSION FOR PORTABLE CONFIGURATION – X ORIENTATION REPORT NO: 14U19726D DATE: MARCH 19, 2015 FCC ID: XQC-SS319 IC: 9863B-SS319 Page 33 of 40 UL VERIFICATION SERVICES INC FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. RADIATED EMISSION FOR PORTABLE CONFIGURATION – Y ORIENTATION RADIATED EMISSION FOR PORTABLE CONFIGURATION – Y ORIENTATION REPORT NO: 14U19726D DATE: MARCH 19, 2015 FCC ID: XQC-SS319 IC: 9863B-SS319 Page 34 of 40 UL VERIFICATION SERVICES INC FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. RADIATED EMISSION FOR PORTABLE CONFIGURATION – Z ORIENTATION RADIATED EMISSION FOR PORTABLE CONFIGURATION – Z ORIENTATION REPORT NO: 14U19726D DATE: MARCH 19, 2015 FCC ID: XQC-SS319 IC: 9863B-SS319 Page 35 of 40 UL VERIFICATION SERVICES INC FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. RADIATED EMISSION BELOW 30 MHz RADIATED EMISSIONS BELOW 30MHz (FRONT) REPORT NO: 14U19726D DATE: MARCH 19, 2015 FCC ID: XQC-SS319 IC: 9863B-SS319 Page 36 of 40 UL VERIFICATION SERVICES INC FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. RADIATED EMISSIONS BELOW 30MHz (BACK) REPORT NO: 14U19726D DATE: MARCH 19, 2015 FCC ID: XQC-SS319 IC: 9863B-SS319 Page 37 of 40 UL VERIFICATION SERVICES INC FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. RADIATED EMISSION ABOVE 30 MHz RADIATED EMISSIONS ABOVE 30 MHz (FRONT) REPORT NO: 14U19726D DATE: MARCH 19, 2015 FCC ID: XQC-SS319 IC: 9863B-SS319 Page 38 of 40 UL VERIFICATION SERVICES INC FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. RADIATED EMISSIONS ABOVE 30 MHz (BACK) RADIATED EMISSIONS ABOVE 1000 MHz (BACK) REPORT NO: 14U19726D DATE: MARCH 19, 2015 FCC ID: XQC-SS319 IC: 9863B-SS319 Page 39 of 40 UL VERIFICATION SERVICES INC FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. RADIATED EMISSIONS ABOVE 1000 MHz (FRONT) REPORT NO: 14U19726D DATE: MARCH 19, 2015 FCC ID: XQC-SS319 IC: 9863B-SS319 Page 40 of 40 UL VERIFICATION SERVICES INC FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP END OF REPORT LINE CONDUCTED FRONT PHOTO LINE CONDUCTED BACK PHOTO
