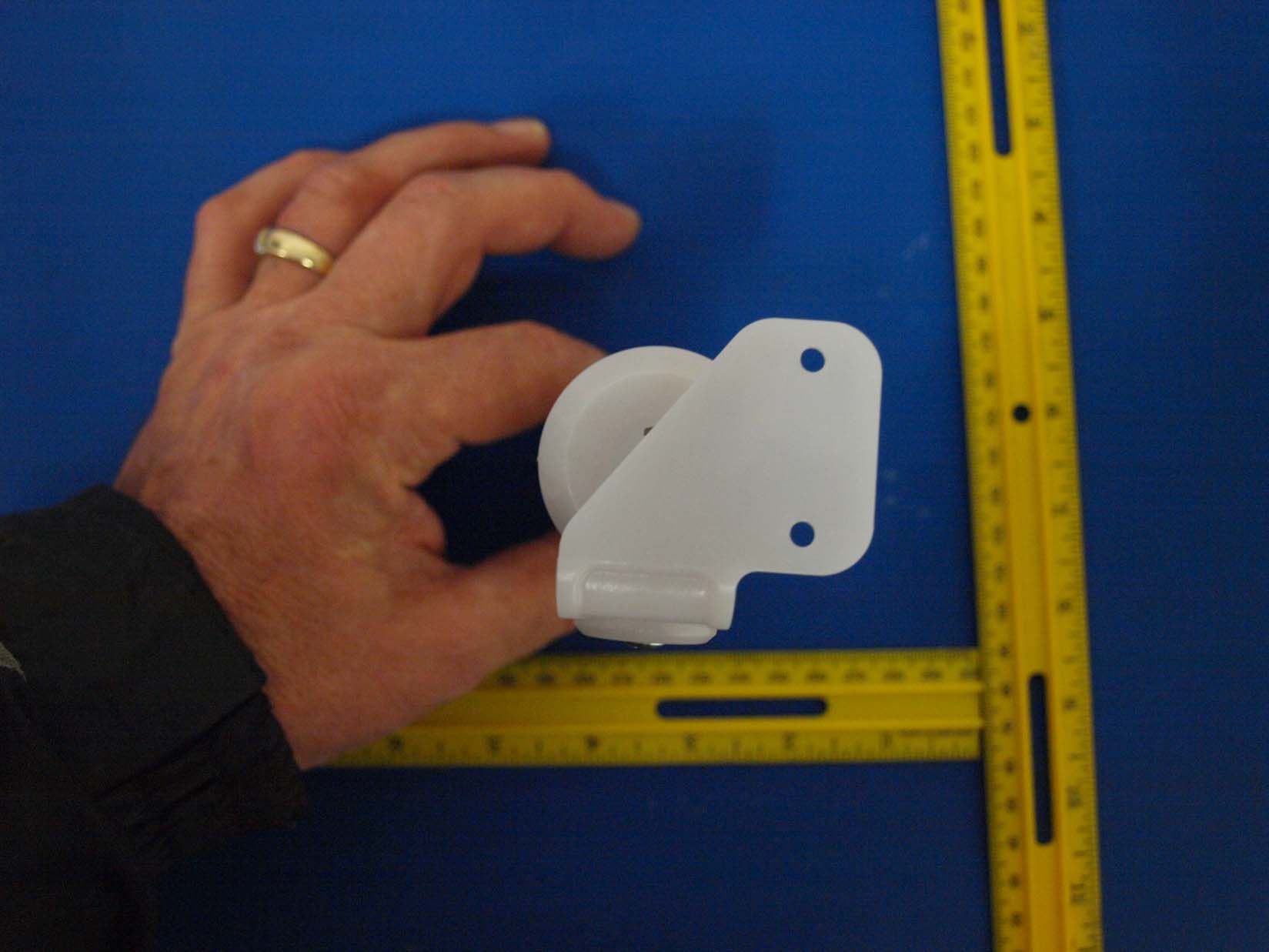

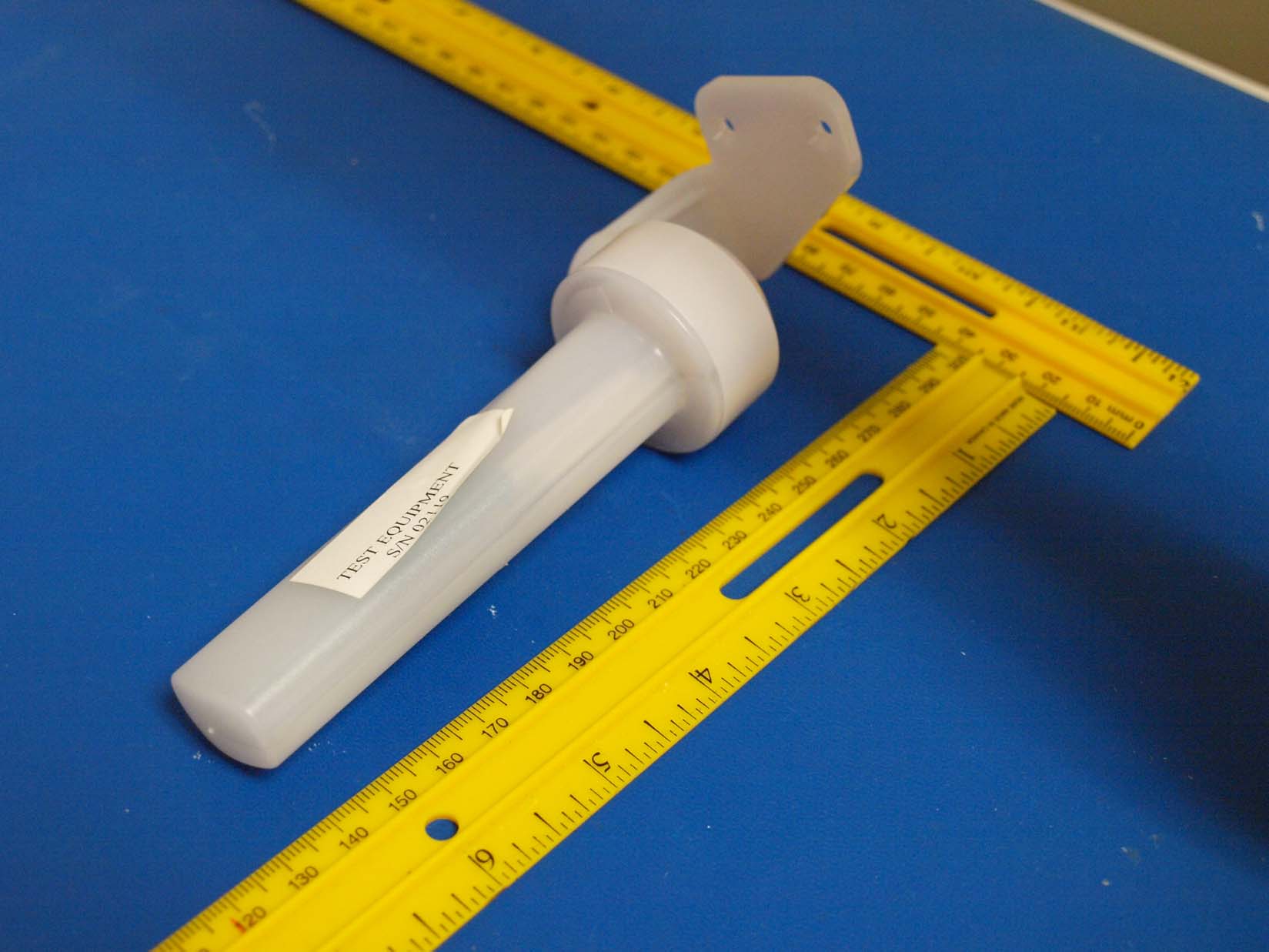

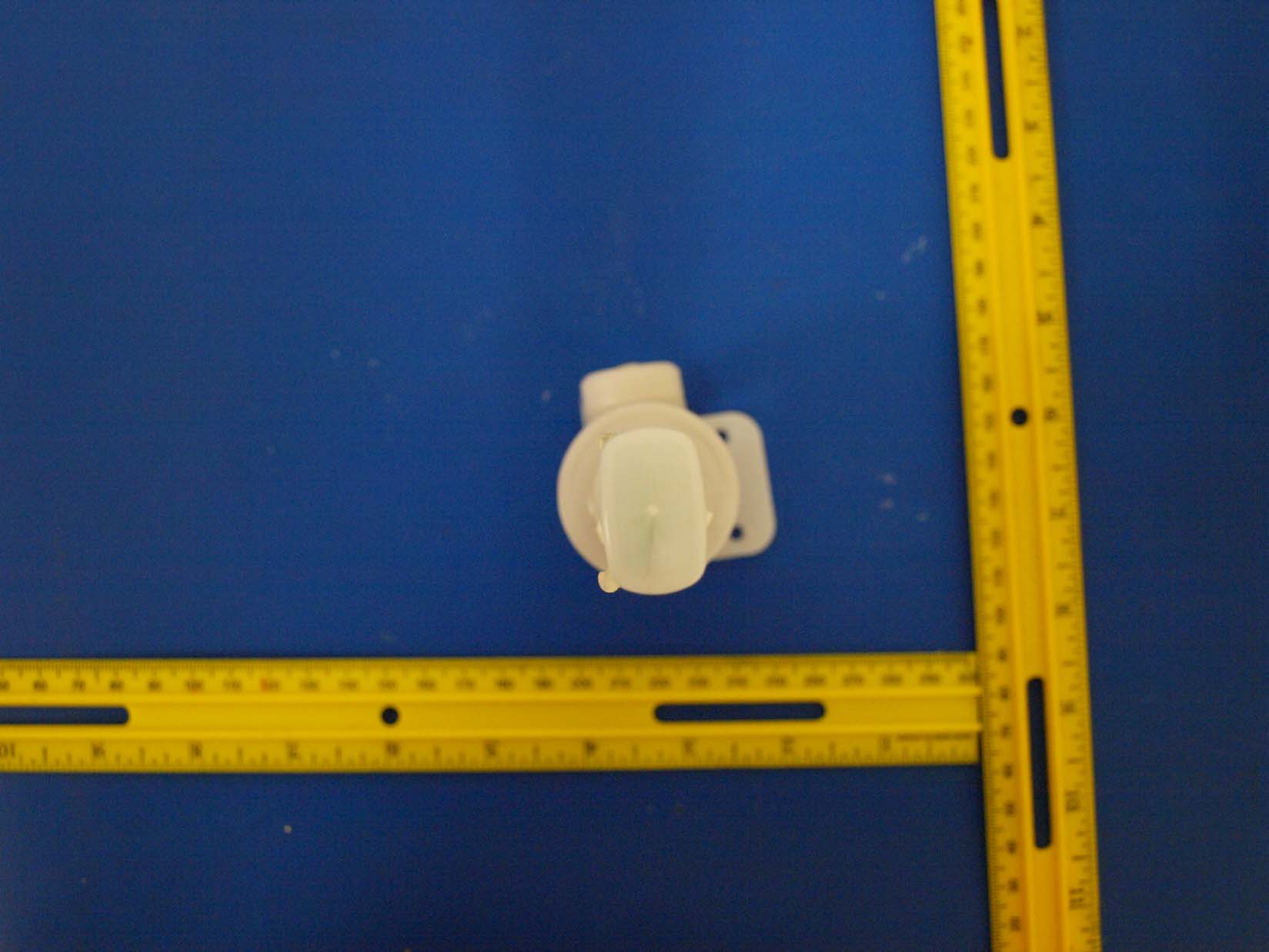

XQC-WLS100Wireless Light Sensor

SUNSET tm USER MANUAL WIRELESS SUNSET tm SYNCHRONIZATION Quick, easy installation with no wires required. SunSet tm is the first wireless light sensor that automatically synchronizes your entire landscape lighting system with the sun. On/off times are intelligently synchronized without the unreliable performance of photocells or timers, so the lights run when you need them. INSTALLATION OVERVIEW 1. Make sure to use the RED striped wires on Zone Control 2. Take the SunSet tm over to the Zone Control receiver. 3. Learn the SunSet tm into the Zone Control. 4. Place the SunSet tm where it will be able to detect sunlight. 5. Test the unit to make sure it operates correctly at the desired location. LEARNING THE SUNSET INTO A ZONE CONTROL 1. Put Zone Control Receiver in Learn Mode - Using a magnet, swipe the Zone Control REED #1. The Zone Control will start to click; it will receive a communication from the SunSet tm , stop clicking, and turn the lights on. The two devices are mated. 2. Put SunSet tm in Test Mode – When looking at the front of SunSet tm (the arrow forward), place the magnet on the left side about half way up to put SunSet tm into Test Mode. You should see a RED TEST MODE LIGHT, remove the magnet, and the red light will begin to flash. It will be in test mode for the less than 5 seconds, and then automatically exit test mode. 3. Once complete, place the SunSet tm in the desired location. PLACEMENT OF THE SUNSET Place the SunSet tm within 100 feet of the Zone Control and with a direct line of sight between the two for best results. The SunSet tm is capable of much longer distances but you must test each location to make sure if it is within the range based on your install parameters. The SunSet tm should ideally be placed with a relatively clear view of the western sky, the small arrow in front represents which way SunSet tm is facing. If that installation location is not available, it will still track light and dark with slight variations. The small arrow on the sensor case is the direction that the light sensor is orientated. More shaded locations will turn the lights on slightly earlier, and locations in more direct sunlight will turn the lights on slightly later. SUNSET TEST 1. Place the Sun Set in a location you want to test. If lights are already on turn them “Off” with the ZoneControl remote. 2. Put SunSet tm into test mode (Step #1 of Learning the SunSet tm into a Zone Control) 3. Lights should turn on - check to make sure. 4. Turn Test Mode off – Note: If you swipe the magnet again BEFORE the LED stops flashing the lights will turn off. 5. Lights should turn off - check to make sure. 6. If lights did not turn on and off repeat steps 1-5 in a location closer to the receiver unit. Magnet Reed #1 MUST USE RED STRIPED WIRES Magnet PROGRAMING TIMERS FOR USE WITH SUNSET EXAMPLE SCENARIOS: Ex. #1 Want the SunSet tm to turn on at sunset and the lights off at sunrise – No need to set timers, just learn the SunSet tm to the Zone Control Ex. #2 Want SunSet tm to turn the lights on and the timer to turn the lights off On time – Sunset (6:30pm) Off time – Zone 1 & 2 – 10:00pm, Zone 3 –11:30pm Programming Notes: - Both an on and an off time must be set for each zone that is enabled - The on timer should be set after sunset and before the timer turns the lights off - The off timers can vary. Read for further explanation: The SunSet tm will be turning the lights on at sunset and the timer will be turning the lights off at a user defined time. In this example the sun sets at 6:30pm, at that time the lights will turn on. The on timer is set for 8:00pm, the lights remain on. The customer wants Zones 1 and 2 to turn off at 10:00pm and Zone 3 to turn off at 11:30pm, the off timer in Zones 1 and 2 is set for 10:00pm, and the off time for Zone 3 is set for 11:30pm. It’s that simple. Technical support Toll-free: (888) 869-4737 in the US, including Alaska and Hawaii; Puerto Rico; Canada. Outside the toll-free area: Contact your local dealer. FCC compliance This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Sunset Zone 3 OFF Timer Zone 1 & 2 OFF Timer On Timer Zone 1 Zone 2 Zone 3 6:30pm 8:00pm 10:00pm 11:30pm

FCC Sticker Location Zonecontrol-Sunset Rev 12-31-09

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 7 CERTIFICATION TEST REPORT FOR WIRELESS LIGHT SENSOR MODEL NUMBER: WLS FCC ID: XQC-WLS100 REPORT NUMBER: 09U12846-1, Revision B ISSUE DATE: MARCH 30, 2010 Prepared for ECOLINK INTELLIGENT TECHNOLOGY 5817 DRYDEN PLACE. SUITE D CARLSBAD, CA 92008, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 09U12846-1B DATE: MARCH 30, 2010 EUT: WIRELESS LIGHT SENSOR FCC ID: XQC-WLS100 Page 2 of 27 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 11/03/09 Initial Issue T. Chan A 03/19/10 Revised Sections 5.1 “Description Of EUT” and 7.3 “Transmission Time” T. Chan B 03/30/10 Re-inserted Transmission Time Plot and Updated limits to 15.231(b) T. Chan REPORT NO: 09U12846-1B DATE: MARCH 30, 2010 EUT: WIRELESS LIGHT SENSOR FCC ID: XQC-WLS100 Page 3 of 27 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION.................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................... 5 4.2. SAMPLE CALCULATION.............................................................................................. 5 4.3. MEASUREMENT UNCERTAINTY................................................................................ 5 5. EQUIPMENT UNDER TEST ................................................................................................. 6 5.1. DESCRIPTION OF EUT................................................................................................ 6 5.2. DESCRIPTION OF AVAILABLE ANTENNAS............................................................... 6 5.3. SOFTWARE AND FIRMWARE..................................................................................... 6 5.4. WORST-CASE CONFIGURATION AND MODE .......................................................... 6 5.5. MODIFICATIONS.......................................................................................................... 6 5.6. DESCRIPTION OF TEST SETUP................................................................................. 7 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................... 8 7. ANTENNA PORT TEST RESULTS ...................................................................................... 9 7.1. 20 dB AND 99% BW ..................................................................................................... 9 7.2. DUTY CYCLE.............................................................................................................. 13 7.3. TRANSMISSION TIME ............................................................................................... 17 8. RADIATED EMISSION TEST RESULTS............................................................................ 18 8.1. TX RADIATED SPURIOUS EMISSION ...................................................................... 18 8.2. RX RADIATED SPURIOUS EMISSION...................................................................... 23 9. SETUP PHOTOS................................................................................................................. 24 REPORT NO: 09U12846-1B DATE: MARCH 30, 2010 EUT: WIRELESS LIGHT SENSOR FCC ID: XQC-WLS100 Page 4 of 27 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: ECOLINK INTELLIGENT TECHNOLOGY 5817 DRYDEN PLACE. SUITE D CARLSBAD, CA 92008 EUT DESCRIPTION: WIRELESS LIGHT SENSOR MODEL: WLS SERIAL NUMBER: 02119 DATE TESTED: OCTOBER 9 and NOVEMBER 03 - 04, 2009 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Pass INDUSTRY CANADA RSS-210 Issue 7, Annex 1 Pass INDUSTRY CANADA RSS-GEN Issue 2 Pass Compliance Certification Services, Inc. (CCS) tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by CCS based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by CCS and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by CCS will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For CCS By: Tested By: THU CHAN TOM CHEN EMC MANAGER EMC ENGINEER COMPLIANCE CERTIF…

Text truncated - open the document above for the full version.

REPORT NO: 09U12846-1A DATE: MARCH 19, 2010 EUT: WIRELESS LIGHT SENSOR FCC ID: XQC-WLS100 Page 24 of 27 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 9. SETUP PHOTOS ANTENNA PORT ANTENNA PORT REPORT NO: 09U12846-1A DATE: MARCH 19, 2010 EUT: WIRELESS LIGHT SENSOR FCC ID: XQC-WLS100 Page 25 of 27 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED EMISSION FOR PORTABLE CONFIGURATION – X ORIENTATION RADIATED EMISSION FOR PORTABLE CONFIGURATION – X ORIENTATION REPORT NO: 09U12846-1A DATE: MARCH 19, 2010 EUT: WIRELESS LIGHT SENSOR FCC ID: XQC-WLS100 Page 26 of 27 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED EMISSION FOR PORTABLE CONFIGURATION – Y ORIENTATION RADIATED EMISSION FOR PORTABLE CONFIGURATION – Y ORIENTATION REPORT NO: 09U12846-1A DATE: MARCH 19, 2010 EUT: WIRELESS LIGHT SENSOR FCC ID: XQC-WLS100 Page 27 of 27 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED EMISSION FOR PORTABLE CONFIGURATION – Z ORIENTATION END OF REPORT RADIATED EMISSION FOR PORTABLE CONFIGURATION – Z ORIENTATION
