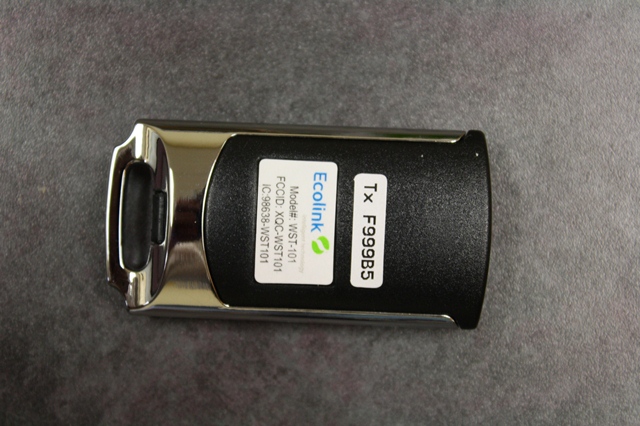

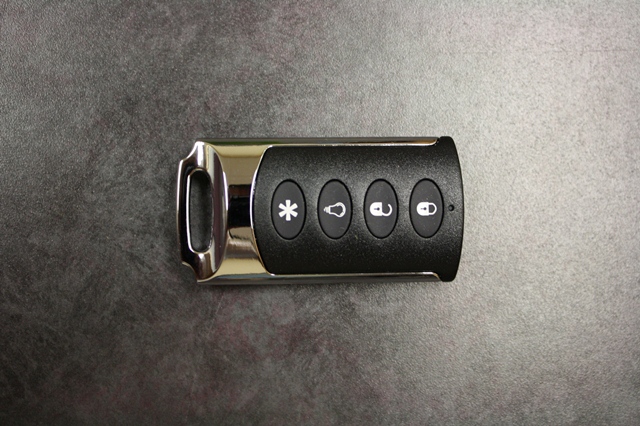

XQC-WST1014-BUTTON WIRELESS SECURITY REMOTE KEY FOB

WST-101 Four Button Wireless Remote Specifications Frequency: 319.5MHz Operating Temperature: 32°-120°F (0°-49°C) Battery: 3V lithium CR2032 Operating Humidity: 5-95% RH non condensing Battery life: 5 years Compatible with all GE/Interlogix receivers Enrolling Each remote in learned into a control panel as an unsupervised sensor and uses one available zone slot. For all Concord, Simon3 and Simon XT panels, use sensor group number 01, 03, 06 or 07. Please refer to your specific control panel installation manual for full instructions. Operation Panic or Aux: If the remote is programmed using a panic or portable auxiliary group number. Pressing the Lock and Unlock buttons simultaneously will activate an audible or silent alarm (depending on group number) and initiate reports to the central station. Replacing the Battery When the battery is low a signal will be send to the control panel, or when a button is pressed the LED will appear dim or will not turn on at all. Follow these simple steps to replace the battery 1. With a key or small screwdriver, press the black tab located at the bottom of the remote (fig.1) and slide the chrome trim off. 2. Carefully separate the front and back piece of plastic to reveal the battery 3. Replace with a CR2032 battery ensuring the + side of the battery faces up (fig.2) 4. Re-assemble the plastics and ensure they click together 5. Ensure the notch in the chrome trim is aligned with the back of the plastic. It will only go on one way. (fig.3) Figure 1 Figure 2 Figure 3 Lock Depending on your control panel: Press once to arm in Stay mode. Press twice to arm in Away mode. Press three times to activate the latchkey feature. Light For Network X panels, press this button to arm the system in Stay mode. For Concord, Simon 3 or XT it will turn system controlled lights on or off. Unlock Press this button to disarm your system. You do not have to enter your access code when you use this key to disarm the system. Star For Network X panels, this button will perform the same function as programed for the Star key on keypad. For Simon 3 or XT panels with X- 10 universal module, pressing this button will open/close the garage door. FCC Compliance Statement This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Re-orient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment to an outlet on a different circuit from the receiver • Consult the dealer or an experienced radio/TV contractor for help. Warning: Changes or modifications not expressly approved by Ecolink Intelligent Technology Inc. could void the user’s authority to operate the equipment. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. FCC ID:XQC-WST101 IC: 9863B-WST101 Warranty Ecolink Intelligent Technology Inc . warrants that for a period of 5 years from the date of purchase that this product is free from defects in material and workmanship. This warranty does not apply to damage caused by shipping or handling, or damage caused by accident, abuse, misuse, misapplication, ordinary wear, improper maintenance, failure to follow instructions or as a result of any unauthorized modifications. If there is a defect in materials and workmanship under normal use within the warranty period Ecolink Intelligent Technology Inc. shall, at its option, repair or replace the defective equipment upon return of the equipment to the original point of purchase. The foregoing warranty shall apply only to the original buyer, and is and shall be in lieu of any and all other warranties, whether expressed or implied and of all other obligations or liabilities on the part of Ecolink Intelligent Technology Inc. neither assumes responsibility for, nor authorizes any other person purporting to act on its behalf to modify or to change this warranty, nor to assume for it any other warranty or liability concerning this product. The maximum liability for Ecolink Intelligent Technology Inc. under all circumstances for any warranty issue shall be limited to a replacement of the defective product . It is recommended that the customer check their equipment on a regular basis for proper operation. © 2012 Ecolink Intelligent Technology Inc. PN WST101 R1.00 2055 Corte Del Nogal Carlsbad, California 92011 1-855-632-6546 www.discoverecolink.com

Ecolink Intelligent Technology, Inc. 2055 Corte Del Nogal Carlsbad, CA 92011 (760) 431-8804 March 30,2012 Compliance Certifi cation Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concem: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certifu that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary affangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.9. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certihcation which the Certification Division may consider misleading or unauthorized; upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; use certification only to indicate the products are certified as being in conformity with specified standards; endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; keep a record of all complaints made known to the us relating to the product's compliance with requirements of the relevant standard and to make these records available to the Certihcation Division when requested; take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; document the actions taken. This authorizationis valid until further written notice from the applicant. Sincerely Yours, Jay Stone Director of Engineering Ecolink IntelligentTechnology, lnc. e) 0 s) h) i) i) k)

Ecolink Intelligent Technology, Inc. 2055 Corte Del Nogal Carlsbad, CA 92011 (760) 431-8804 March 30, 2012 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized;

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR 4-BUTTON WIRELESS SECURITY REMOTE KEY FOB MODEL NUMBER: WST-101 FCC ID: XQC-WST101 IC: 9863B-WST101 REPORT NUMBER: 12U14731 ISSUE DATE: 2012-12-14 Prepared for ECOLINK INTELLIGENT TECHNOLOGY 2055 CORTE DEL NOGAL CARLSBAD CA 92011, USA Prepared by UL LLC 1285 WALT WHITMAN RD. MELVILLE, NY 11747, U.S.A. TEL: (631) 271-6200 FAX: (877) 854-3577 REPORT NO: 12U14731 DATE: 2012-12-14 FCC ID: XQC-WST101 IC: 9863B-WST101 Page 2 of 32 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. Revision History Rev. Issue Date Revisions Revised By -- 2012- 12-14 Initial Issue B. DeLisi REPORT NO: 12U14731 DATE: 2012-12-14 FCC ID: XQC-WST101 IC: 9863B-WST101 Page 3 of 32 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 5 4.2. SAMPLE CALCULATION ............................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 5 5. EQUIPMENT UNDER TEST ............................................................................................... 6 5.1. DESCRIPTION OF EUT .............................................................................................. 6 5.2. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 6 5.3. SOFTWARE AND FIRMWARE .................................................................................... 6 5.4. WORST-CASE CONFIGURATION AND MODE .......................................................... 6 5.5. MODIFICATIONS ........................................................................................................ 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 9 7. ANTENNA PORT TEST RESULTS ...................................................................................11 7.1. 20 dB AND 99% BW ...................................................................................................11 7.2. DUTY CYCLE .............................................................................................................15 7.3. TRANSMISSION TIME ...............................................................................................19 8. RADIATED EMISSION TEST RESULTS...........................................................................20 8.1. TX RADIATED SPURIOUS EMISSION ......................................................................20 9. SETUP PHOTOS ...............................................................................................................27 REPORT NO: 12U14731 DATE: 2012-12-14 FCC ID: XQC-WST101 IC: 9863B-WST101 Page 4 of 32 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Ecolink Intelligent Technology 2055 CORTE DEL NOGAL CARLSBAD CA 92011, USA EUT DESCRIPTION: 4-BUTTON WIRELESS SECURITY REMOTE KEY FOB MODEL: WST-101 SERIAL NUMBER: Non-serialized production unit DATE TESTED: 2012-12-12 through 2012-12-13 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Pass INDUSTRY CANADA RSS-210 Issue 8, Annex 1 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass UL LLC tested the above equipment in accordance with the requirements set forth in the above standards, using test results reported in the test report documents referenced below and/or documentation furnished by the applicant. All indications of Pass/Fail in this report are opinions expressed by UL LLC based on interpretations of these calculations. The results show that the equipment is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation, as described by the referenced documents. This document may not be altered or revised in any way unless done so by UL LLC and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL LLC will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL By: Tested By: Joseph Danisi Bob DeLisi WiSE Project Lead WiSE Principal Engineer UL LLC UL LLC REPORT NO: 12U14731 DATE: 2012-12-14 FCC ID: XQC-WST101 IC: 9863B-WST101 Page 5 of 32 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4…

Text truncated - open the document above for the full version.

REPORT NO: 12U14731 DATE: 2012-12-14 FCC ID: XQC-WST101 IC: 9863B-WST101 Page 27 of 32 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. 9. SETUP PHOTOS ANTENNA PORT ANTENNA PORT REPORT NO: 12U14731 DATE: 2012-12-14 FCC ID: XQC-WST101 IC: 9863B-WST101 Page 28 of 32 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. RADIATED EMISSION FOR PORTABLE CONFIGURATION – X ORIENTATION RADIATED EMISSION FOR PORTABLE CONFIGURATION – X ORIENTATION REPORT NO: 12U14731 DATE: 2012-12-14 FCC ID: XQC-WST101 IC: 9863B-WST101 Page 29 of 32 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. RADIATED EMISSION FOR PORTABLE CONFIGURATION – Y ORIENTATION RADIATED EMISSION FOR PORTABLE CONFIGURATION – Y ORIENTATION REPORT NO: 12U14731 DATE: 2012-12-14 FCC ID: XQC-WST101 IC: 9863B-WST101 Page 30 of 32 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. RADIATED EMISSION FOR PORTABLE CONFIGURATION – Z ORIENTATION RADIATED EMISSION FOR PORTABLE CONFIGURATION – Z ORIENTATION REPORT NO: 12U14731 DATE: 2012-12-14 FCC ID: XQC-WST101 IC: 9863B-WST101 Page 31 of 32 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. RADIATED EMISSION ABOVE 30 MHz RADIATED EMISSIONS ABOVE 30 MHz (FRONT) REPORT NO: 12U14731 DATE: 2012-12-14 FCC ID: XQC-WST101 IC: 9863B-WST101 Page 32 of 32 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. END OF REPORT RADIATED EMISSIONS ABOVE 30 MHz (BACK)
