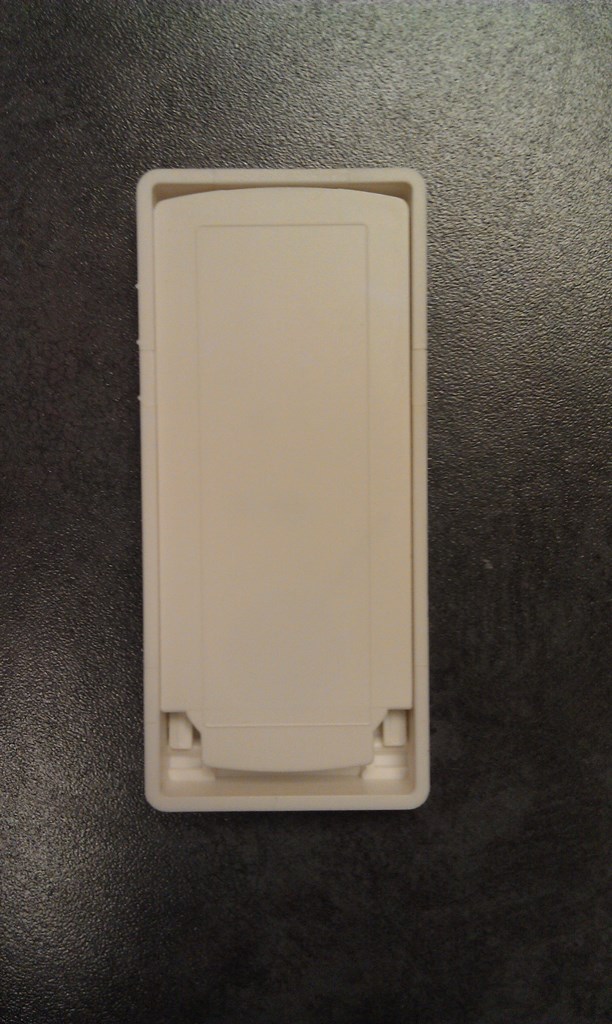

XQC-WST212Wireless Security Door/Window Sensor

WST-212 Wireless Contact with Local Bypass Specifications Frequency: 345MHz Operating Temperature: 32°-120°F (0°-49°C) Battery: 3V lithium CR2032 Operating Humidity: 5-95% RH non condensing Battery life: 5-8 years Compatible with Honeywell receivers Magnet gap: 5/8 th inch max Supervisory signal interval: 60 min(approx.) Enrolling To enroll the sensor, set your panel into program mode, refer to your specific alarm panel manual for details on these menus. When prompted by the panel, trigger the sensor by moving the magnet in and out of range of the sensor. The panel will beep when you have successfully learned in a sensor. Bypass Enable/Disable By default the bypass switch is disabled. To enable this feature, press and hold the bypass button while installing the battery. The LED will flash twice to indicate bypass is enabled. To disable the bypass, press and hold the button while installing the battery, the LED will flash once. Bypass Operation To bypass the sensor, the door or window being protected must be in the closed position. Press and hold the bypass button until the LED starts to flash, then open the door or window. The LED will flash once every 10 seconds to indicate that the sensor is in bypass mode. To remove the bypass and restore normal operation, simply close the door or window. Mounting Included with the contact is double sided tape for the contact and the magnet. For reliable bonding ensure the surface is clean and dry. Apply the tape to the sensor and then to the desired location. Apply firm pressure for several seconds. It is not recommended to mount the tape at temperatures below 50°F, although after 24 hours the bond will hold at low temperatures. One side of the sensor is marked with 3 lines; this indicates the location of the reed switch. The magnet should be mounted facing this side of the sensor, and it must be no further than 5/8 of an inch from the sensor. Interchangeable covers The contact comes from the factory assembled with a white cover, but included are optional brown covers. To change the cover, slide the front cover to disengage it from the sensor then remove. Replace with the brown cover ensuring the Top (as marked on the inside of the cover) points away from the battery. You should hear a click when the cover engages and disengages from the sensor. You do not need to replace the back plastic because once mounted the back is not visible. To replace the magnet cover you will need to gently pry the white cover off with a flat head screw driver and snap the brown cover in place. Replacing the Battery When the battery is low a signal will be sent to the control panel. To replace the battery: 1. Slide the top cover to disengage it from the sensor, then remove it to reveal the battery. 2. Replace with a CR2032 battery ensuring the + side of the battery faces towards you. 3. Re-attached the cover, ensure the Top (as marked on the inside of the cover) points away from the battery. You should hear a click when the cover engages properly. Note: Removing the cover will trigger a zone tamper signal to the control panel FCC Compliance Statement This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC Rules. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Re-orient or relocate the receiving antenna  Increase the separation between the equipment and receiver  Connect the equipment to an outlet on a different circuit from the receiver  Consult the dealer or an experienced radio/TV contractor for help. Warning: Changes or modifications not expressly approved by Ecolink Intelligent Technology Inc. could void the user’s authority to operate the equipment. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. C’et appareil est conforme la norme d'Industrie Canada exempts de licence RSS. Son fonctionnement est soumis aux deux conditions suivantes: (1) c’et appareil ne peut pas provoquer d'interférences, et (2) c’et appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement de la dispositif. FCC ID:XQC-WST212 IC: 9863B-WST212 Warranty Ecolink Intelligent Technology Inc. warrants that for a period of 5 years from the date of purchase that this product is free from defects in material and workmanship. This warranty does not apply to damage caused by shipping or handling, or damage caused by accident, abuse, misuse, misapplication, ordinary wear, improper maintenance, failure to follow instructions or as a result of any unauthorized modifications. If there is a defect in materials and workmanship under normal use within the warranty period Ecolink Intelligent Technology Inc. shall, at its option, repair or replace the defective equipment upon return of the equipment to the original point of purchase. The foregoing warranty shall apply only to th…

Text truncated - open the document above for the full version.

Ecolink Intelligent Technology, Inc. Page 1 of 2 2055 Corte Del Nogal Carlsbad, CA 92011 June 4, 2013 UL LLC Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL LLC to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL LLC on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL LLC as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner;

Antenna Specification WST-212 Rev 1 The WST-212 transmitter uses a loop antenna (-15 dBi). The loop antenna consists of copper-clad wire elevated slightly above the printed circuit board. The antenna is not replaceable by the user.

NVLAP Lab code: 100414-0 FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR Wireless Security Door/Window Sensor MODEL NUMBER: WST-212 FCC ID: XQC-WST212 IC: 9863B-WST212 REPORT NUMBER: 13U15254-1 ISSUE DATE: June 25, 2013 Prepared for Ecolink Intelligent Technology 2055 Corte Del Nogal Carlsbad, CA 92011 Prepared by UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 TEL: (847) 272-8800 Revision History REPORT NO: 13U15254-1 DATE: June 25, 2013 FCC ID: XQC-WS212 IC: 9863B-WST212 Page 2 of 30 UL LLC FORM NO: CCSUP4701G 333 Pfingsten Rd., Northbrook, IL 60062 TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC. Rev. Issue Date Revisions Revised By -- 06/25/13 Initial Issue M.Ferrer REPORT NO: 13U15254-1 DATE: June 25, 2013 FCC ID: XQC-WS212 IC: 9863B-WST212 Page 3 of 30 UL LLC FORM NO: CCSUP4701G 333 Pfingsten Rd., Northbrook, IL 60062 TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 5 4.2. SAMPLE CALCULATION ............................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 5 5. EQUIPMENT UNDER TEST ............................................................................................... 6 5.1. DESCRIPTION OF EUT .............................................................................................. 6 5.2. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 6 5.3. SOFTWARE AND FIRMWARE .................................................................................... 6 5.4. WORST-CASE CONFIGURATION AND MODE .......................................................... 6 5.5. MODIFICATIONS ........................................................................................................ 6 5.1. DESCRIPTION OF TEST SETUP ................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 9 7. TEST RESULTS ................................................................................................................10 7.1. 20 dB AND 99% BW ...................................................................................................10 7.2. DUTY CYCLE .............................................................................................................14 7.3. TRANSMISSION TIME ...............................................................................................18 8. RADIATED EMISSION TEST RESULTS...........................................................................19 8.1. TX RADIATED SPURIOUS EMISSION ......................................................................19 9. SETUP PHOTOS ...............................................................................................................25 REPORT NO: 13U15254-1 DATE: June 25, 2013 FCC ID: XQC-WS212 IC: 9863B-WST212 Page 4 of 30 UL LLC FORM NO: CCSUP4701G 333 Pfingsten Rd., Northbrook, IL 60062 TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Ecolink Intelligent Technology 2055 Corte Del Nogal Carlsbad, CA 92011 EUT DESCRIPTION: Wireless Security Door/Window Sensor MODEL: WST-212 SERIAL NUMBER: N/A DATE TESTED: June 11, 2013 – June 20, 2013 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Pass INDUSTRY CANADA RSS-210 Issue 8, Annex 1 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass UL Verification Services Inc tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL Verification Services Inc By: Tested By: BART MUCHA MICHAEL FERRER Staff Engineer Project Lead UL Verification Services Inc. UL Verification Services Inc. REPORT NO: 13U15254-1 DATE: June 25, 2013 FCC ID: XQC-WS212 IC: 9863B-WST212 Page 5 of 30 UL LLC FORM NO: CCSUP4701G 333 Pfingsten Rd., Northbrook, IL 60062 TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with…
