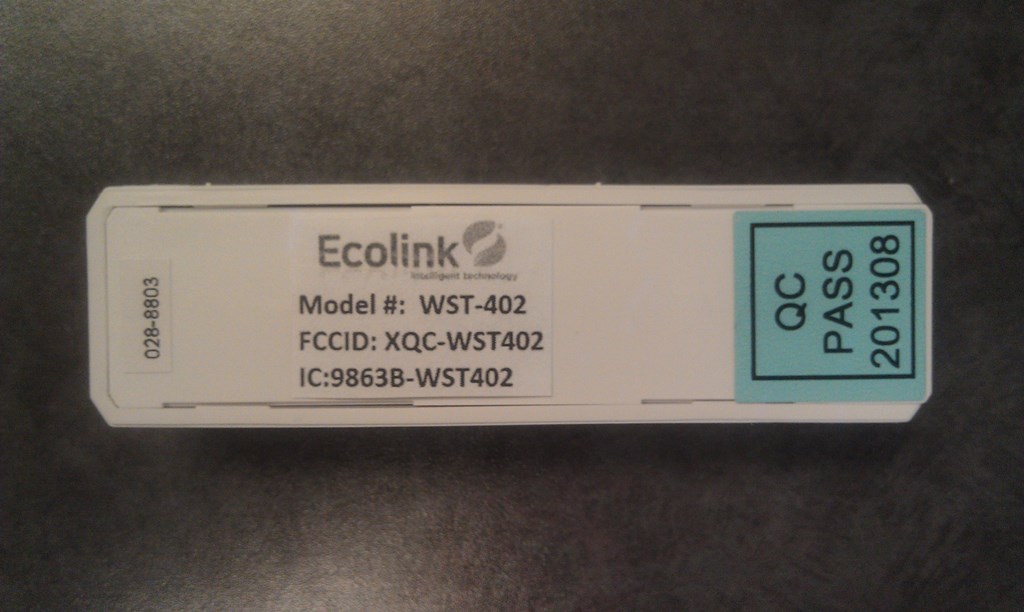

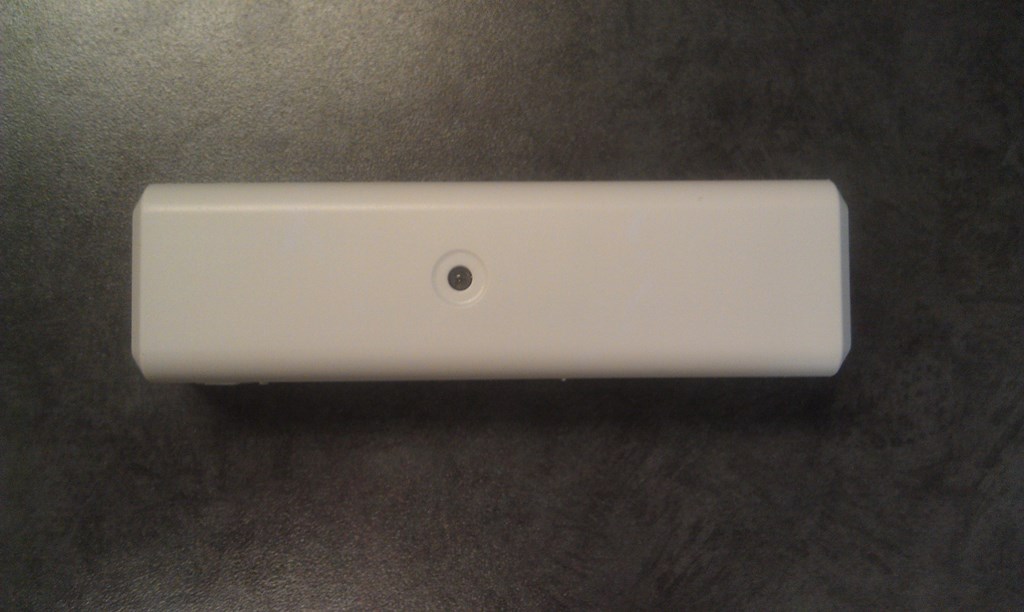

XQC-WST402DOOR OR WINDOW SENSOR

WST-402 Wireless Tilt Sensor Installation Instructions & User Guide Specifications Frequency: 345MHz Operating Temperature: 32°-120°F (0°-49°C) Battery: One 3Vdc lithium CR123A (1550 mAh) Operating Humidity: 5-95% RH non condensing Battery life: 5-8 years Compatible with 2GIG and Honeywell receivers Tilt Sensor Supervisory signal interval: 60 min (approx.) Normally closed contact input terminals Enrolling To enroll the sensor, set your panel into program mode, refer to your specific alarm panel manual for details on these menus. There are two triggers on this device and each uses a unique loop number. The tilt sensor is assigned to loop 2 and the external input is assigned to loop 1. Tilt Sensitivity The tilt sensor will activate when the device is approximately at a 45 degree angle. By moving the actual ball sensor up or down you can adjust this angle by a few degrees. Note that this device has a delay of approximately 1 second to eliminate false alarms cause by wind and vibration commonly subjected to a large garage door. Mounting Included with this device are mounting screws and double sided tape. For reliable bonding with the tape ensure the surface is clean and dry. Apply the tape to the sensor and then to the desired location. Apply firm pressure for several seconds. It is not recommended to mount the tape at temperatures below 50°F, although after 24 hours the bond will hold at low temperatures. © 2013 Ecolink Intelligent Technology Inc. PN WST402 R1.03 REV DATE: 7/19/2013 To auto enroll the tilt sensor, you must ensure the tilt is orientated in the up position (refer to picture and note location of arrow on the plastics). When prompted by the panel, move the device until its orientated in the horizontal position. To auto enroll the external contact input, trigger the sensor by closing the circuit between the two terminal inputs when prompted by the panel. This can be done with a piece of wire, or if using a hardwired contact, by applying the magnet to that contact. This serial number is printed on the device if manual enrollment is desired. The tilt sensor can operate as an “exit / entry” zone or a “perimeter zone”. Set the zone type for the wireless tilt sensor in your panel. Disclaimer: The external contact terminals, while fully functional, have not been submitted to UL / ETL laboratories for verification of compliance with applicable standards. Operation of the external contacts is outside of the scope of the ETL listing for this product. 2055 Corte Del Nogal Carlsbad, California 92011 1-855-632-6546 www.discoverecolink.com FCC Compliance Statement This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC Rules. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Re-orient or relocate the receiving antenna  Increase the separation between the equipment and receiver  Connect the equipment to an outlet on a different circuit from the receiver  Consult the dealer or an experienced radio/TV contractor for help. Warning: Changes or modifications not expressly approved by Ecolink Intelligent Technology Inc. could void the user’s authority to operate the equipment. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. C’et appareil est conforme la norme d'Industrie Canada exempts de licence RSS. Son fonctionnement est soumis aux deux conditions suivantes: (1) c’et appareil ne peut pas provoquer d'interférences, et (2) c’et appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement de la dispositif. FCC ID:XQC-WST402 IC: 9863B-WST402 Warranty Ecolink Intelligent Technology Inc . warrants that for a period of 5 years from the date of purchase that this product is free from defects in material and workmanship. This warranty does not apply to damage caused by shipping or handling, or damage caused by accident, abuse, misuse, misapplication, ordinary wear, improper maintenance, failure to follow instructions or as a result of any unauthorized modifications. If there is a defect in materials and workmanship under normal use within the warranty period Ecolink Intelligent Technology Inc. shall, at its option, repair or replace the defective equipment upon return of the equipment to the original point of purchase. The foregoing warranty shall apply only to the original buyer, and is and shall be in lieu of any and all other warranties, whether expressed or implied and of all other obligations or liabilities on the part of Ecolink Intelligent Technology Inc. neither assumes responsibility for, nor authorizes any other person purporting to act on its behalf to modify or to change this warranty, nor to assume for it any other warranty or liability concerning this product. The maximum liability for Ecolink Intelligent Technology Inc. under all circumstances for any w…

Text truncated - open the document above for the full version.

Ecolink Intelligent Technology, Inc. Page 1 of 2 2055 Corte Del Nogal Carlsbad, CA 92011 August 20, 2013 UL LLC Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL LLC to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL LLC on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL LLC as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner;

Antenna Specification WST - 402 Rev 1 Aug 20, 2013 The WST-402 transmitter uses a small loop antenna (-15 dBi). The loop is formed from a copper trace on the printed circuit board and a piece of copper-clad wire which is elevated above the circuit board. The antenna is not replaceable by the user.

NVLAP Lab code: 100414-0 FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR DOOR OR WINDOW SENSOR MODEL NUMBER: WST-402 FCC ID: XQC-WST402 IC: 9863B-WST402 REPORT NUMBER: 13U15815 ORDER NUMBER: 10046612 ISSUE DATE: SEPTEMBER 6, 2013 Prepared for ECOLINK INTELLIGENT TECHNOLOGY 2055 CORTE DEL NOGAL CARLSBAD, CA 92011 Prepared by UL LLC 333 PFINGSTEN RD NORTHBROOK, IL 60062 TEL: (847) 272-8800 REPORT NO: 13U15815 DATE: SEPTEMBER 6, 2013 FCC ID: XQC-WST402 IC: 9863B-WST402 Page 2 of 30 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd. Northbrook, Il 60062, USA TEL: (847)272-8800 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. Revision History Rev. Issue Date Revisions Revised By -- September 6, 2013 Initial Issue Dan Cieplik REPORT NO: 13U15815 DATE: SEPTEMBER 6, 2013 FCC ID: XQC-WST402 IC: 9863B-WST402 Page 3 of 30 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd. Northbrook, Il 60062, USA TEL: (847)272-8800 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 4 2. TEST METHODOLOGY .......................................................................................................... 5 3. FACILITIES AND ACCREDITATION ..................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................. 5 4.2. SAMPLE CALCULATION ................................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY .................................................................................. 5 5. EQUIPMENT UNDER TEST ................................................................................................... 6 5.1. DESCRIPTION OF EUT .................................................................................................. 6 5.3. SOFTWARE AND FIRMWARE ....................................................................................... 6 5.4. WORST-CASE CONFIGURATION AND MODE ............................................................ 6 5.5. MODIFICATIONS ............................................................................................................. 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................... 7 6. TEST AND MEASUREMENT EQUIPMENT .......................................................................... 8 7. TEST RESULTS ...................................................................................................................... 9 7.1. 20 dB AND 99% BW ........................................................................................................ 9 7.2. DUTY CYCLE ................................................................................................................. 13 7.1. TRANSMISSION TIME .................................................................................................. 17 8. RADIATED EMISSION TEST RESULTS ............................................................................. 19 8.1. TX RADIATED SPURIOUS EMISSION......................................................................... 19 9. SETUP PHOTOS .................................................................................................................. 25 REPORT NO: 13U15815 DATE: SEPTEMBER 6, 2013 FCC ID: XQC-WST402 IC: 9863B-WST402 Page 4 of 30 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd. Northbrook, Il 60062, USA TEL: (847)272-8800 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Ecolink 2055 Corte Del Nogal Carlsbad, CA 92011 EUT DESCRIPTION: Door and Window Sensor MODEL: WST-402 SERIAL NUMBER: 028-8803 DATE TESTED: Sept 3-4, 2013 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Pass INDUSTRY CANADA RSS-210 Issue 8, Annex 1 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass UL Verification Services Inc tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL Verification Services Inc By: Bart Mucha Tested By: Dan Cieplik WiSE Staff Engineer WiSE Project Lead UL Verification Services Inc. UL Verification Services Inc. REPORT NO: 13U15815 DATE: SEPTEMBER 6, 2013 FCC ID: XQC-WST402 IC: 9863B-WST402 Page 5 of 30 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd. Northbrook, Il 60062, USA TEL: (847)272-8800 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. 2. TEST METHOD…

Text truncated - open the document above for the full version.

NVLAP Lab code: 100414-0 FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR DOOR OR WINDOW SENSOR MODEL NUMBER: WST-402 FCC ID: XQC-WST402 IC: 9863B-WST402 REPORT NUMBER: 13U15815 ORDER NUMBER: 10046612 ISSUE DATE: SEPTEMBER 6, 2013 Prepared for ECOLINK INTELLIGENT TECHNOLOGY 2055 CORTE DEL NOGAL CARLSBAD, CA 92011 Prepared by UL LLC 333 PFINGSTEN RD NORTHBROOK, IL 60062 TEL: (847) 272-8800 REPORT NO: 13U15815 DATE: SEPTEMBER 6, 2013 FCC ID: XQC-WST402 IC: 9863B-WST402 Page 2 of 29 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd. Northbrook, Il 60062, USA TEL: (847)272-8800 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. Revision History Rev. Issue Date Revisions Revised By -- September 6, 2013 Initial Issue Dan Cieplik REPORT NO: 13U15815 DATE: SEPTEMBER 6, 2013 FCC ID: XQC-WST402 IC: 9863B-WST402 Page 3 of 29 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd. Northbrook, Il 60062, USA TEL: (847)272-8800 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 5 4.2. SAMPLE CALCULATION ............................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 5 5. EQUIPMENT UNDER TEST ............................................................................................... 6 5.1. DESCRIPTION OF EUT .............................................................................................. 6 5.3. SOFTWARE AND FIRMWARE .................................................................................... 6 5.4. WORST-CASE CONFIGURATION AND MODE .......................................................... 6 5.5. MODIFICATIONS ........................................................................................................ 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 8 7. TEST RESULTS ................................................................................................................. 9 7.1. 20 dB AND 99% BW .................................................................................................... 9 7.2. DUTY CYCLE .............................................................................................................13 7.1. TRANSMISSION TIME ...............................................................................................17 8. RADIATED EMISSION TEST RESULTS...........................................................................18 8.1. TX RADIATED SPURIOUS EMISSION ......................................................................18 9. SETUP PHOTOS ...............................................................................................................24 REPORT NO: 13U15815 DATE: SEPTEMBER 6, 2013 FCC ID: XQC-WST402 IC: 9863B-WST402 Page 4 of 29 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd. Northbrook, Il 60062, USA TEL: (847)272-8800 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Ecolink 2055 Corte Del Nogal Carlsbad, CA 92011 EUT DESCRIPTION: Door and Window Sensor MODEL: WST-402 SERIAL NUMBER: 028-8803 DATE TESTED: Sept 3-4, 2013 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Pass INDUSTRY CANADA RSS-210 Issue 8, Annex 1 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass UL Verification Services Inc tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL Verification Services Inc By: Bart Mucha Tested By: Dan Cieplik WiSE Staff Engineer WiSE Project Lead UL Verification Services Inc. UL Verification Services Inc. REPORT NO: 13U15815 DATE: SEPTEMBER 6, 2013 FCC ID: XQC-WST402 IC: 9863B-WST402 Page 5 of 29 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd. Northbrook, Il 60062, USA TEL: (847)272-8800 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI…

Text truncated - open the document above for the full version.
