WST-601 AUDIO DETECTOR patent pending Installation Manual & Users Guide SPECIFICATIONS Frequency: 319.5 MHz Operating Temperature: 32°-120°F (0°-49°C) Battery: One 3Vdc lithium CR123A (1550 mAh) Operating Humidity: 5-95% RH non condensing Battery life: 5 years Compatible with GE/Interlogix receivers Detection distance: 6 in max Supervisory signal interval: 64 min(approx.) Maximum current draw: 23mA during transmission OPERATION The audio detector sensor is designed to listen to the alarm sounder of any smoke detector. Once confirmed as an alarm, it will transmit a signal to the alarm control panel which if connected to a central monitoring station, will dispatch the fire department. WARNING: This audio detector is intended only for use with smoke detectors but it does not detect the presence of smoke, heat, or fire directly. ENROLLING (see IMAGE: 1) To enroll the sensor, set your panel into sensor learn mode. Refer to your specific alarm panel instruction manual for details on these menus. To trigger a transmission from the sensor, press the learn button or tamper switch on the detector when prompted by the panel. For some panels, you may need to manually enter the serial number, which is printed on the back of each unit. Program the zone to use sensor group 26 and ensure the Fire Verify reporting option is enabled. MOUNTING (see IMAGE: 2 & 3) Included with this device is a mounting bracket, hardware and double sided tape. To ensure proper operation ensure the side of the device with the small holes is directly facing the sounder holes on the smoke detector. Secure the mounting bracket to the wall or ceiling using the two mounting screws and double sided tape provided, then secure the audio detector to the mounting bracket using the small screw provided. The detector must be mounted within 6 inches of the detector for optimal operation. WARNING: Non-interconnected smoke detectors require an audio detector by each smoke detector sounder. This equipment should be installed in accordance with Chapter 2 of the National Fire Alarm Code, ANSI/NFPA 72, (National Fire Protection Association, Batterymarch Park, Quincy, MA 02269). Printed information describing proper installation, operation, testing, maintenance, evacuation planning, and repair service is to be provided with this equipment. Warning: Owner’s instruction notice: ’Not to be removed by anyone except occupant’. TESTING (see IMAGE: 1) To test the RF transmission from the mounted position you can either generate a tamper by removing the cover or press the learn button within the device. This will send a signal to the control panel. To test the audio detection, press and hold the smoke detector test button. If you have enabled the Fire Verify reporting option, the sensor will need to stay in alarm for at least one minute for the panel to verify it as an alarm and communicate to the central station. Ensure the cover is on during this test and that you wear hearing protection. NOTE: This system must be checked by a qualified technician at least once every three (3) years. Please test the unit once per week to ensure proper functionality. LED The detector is equipped with a multi-color LED. When a valid audio signal is heard the LED will turn yellow and flash in sequence to the smoke detector sounder. When the detector has determined the audio signal heard is a valid alarm, the LED will turn red to indicate it has transmitted to the panel. It will also turn red when the case is opened to indicate a tamper transmission to the control panel. On power up the LED will also flash red then green as part of its power up cycle. Insert Battery = One RED blink, then one GREEN blink In frequency sound detected = Flash YELLOW for the duration of that sound Fire Alarm detected = Solid RED for 3 seconds, then blink RED when tone detected Tamper = Solid RED for three second Learn button pressed = Solid GREEN for 3 seconds REPLACING THE BATTERY When the battery is low a signal will be sent to the control panel. To replace the battery: 1. Remove the top cover to reveal the battery. This will send a tamper signal to the control panel. 2. Replace with a Panasonic CR123A battery ensuring the + side of the battery faces as indicated on the device. 3. Re-attach the cover, you should hear a click when the cover engages properly. WARNING: While the audio detector monitors its own battery, it does not monitor the battery in the smoke detectors. Batteries should be changed as per the original smoke detector manufacturer’s instructions. Always test the audio detector and smoke alarms after battery installation to confirm proper operation LEARN BUTTON 6” MAX TAMPER SWITCH MARKINGS TO LINE UP WITH EXISTING SMOKE DETECTOR BATT IMAGE 1: ENROLLING / TEST / TAMPER BUTTON IMAGE 2: INSTALLATION DISTANCE IMAGE 3: SIDE MARKINGS FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Re-orient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment to an outlet on a different circuit from the receiver • Consult the dealer or an experienced radio/TV contractor for help. WARNING: Changes or modifications not expressly approved by Ecolink could void the user’s authority t…

Text truncated - open the document above for the full version.

Ecolink Intelligent Technology, Inc. Page 1 of 2 2055 Corte Del Nogal Carlsbad, CA 92011 October 27, 2014 UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner;

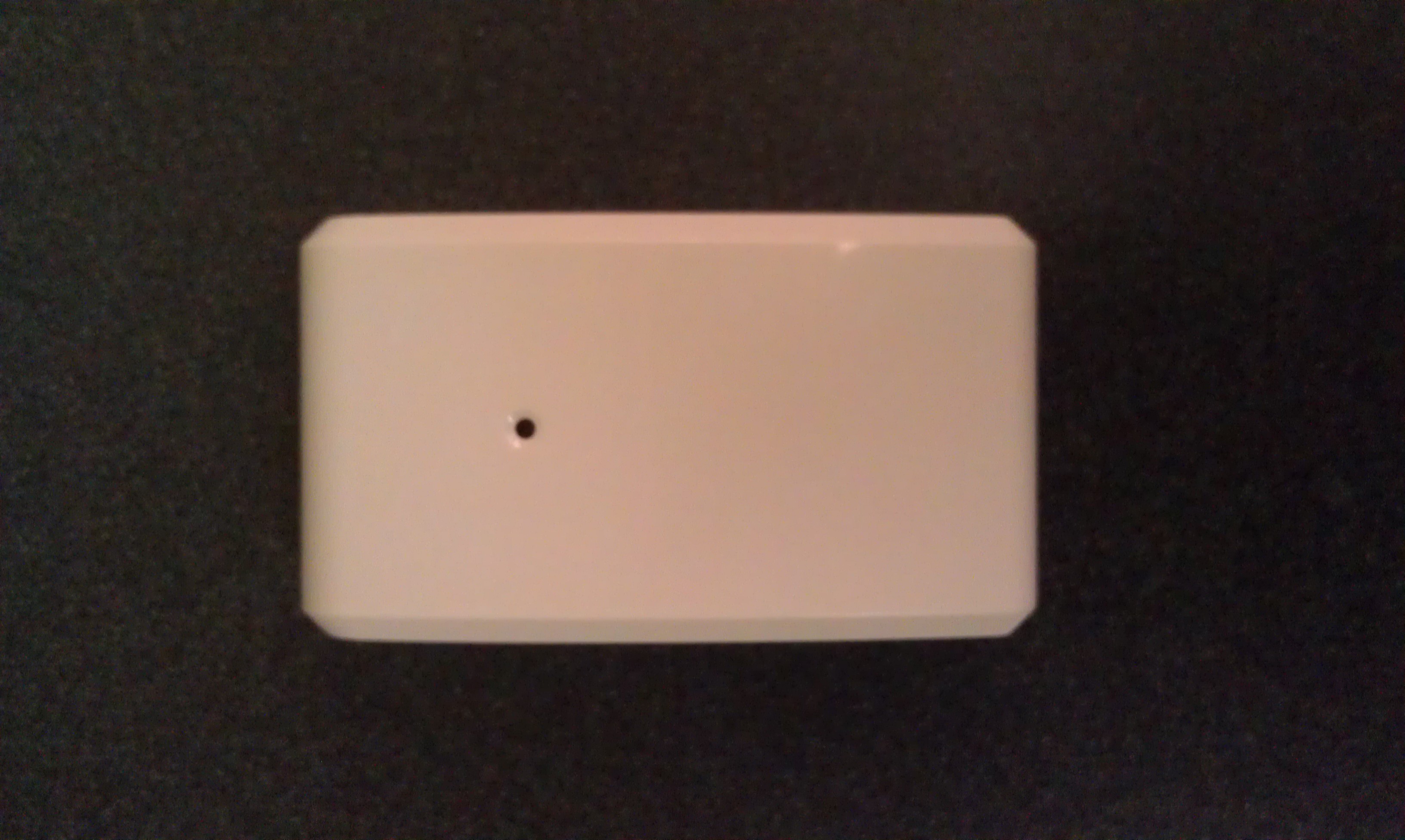

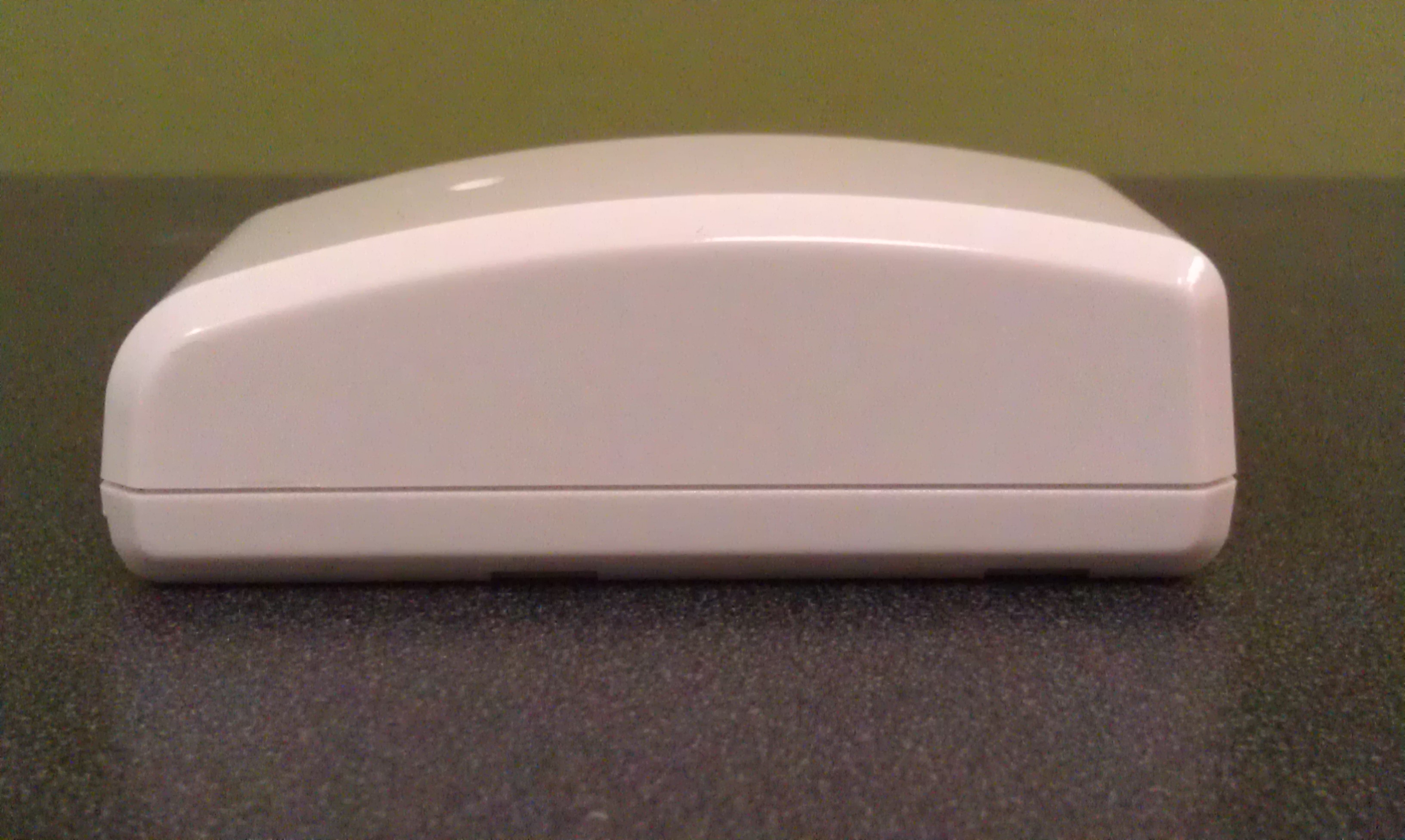

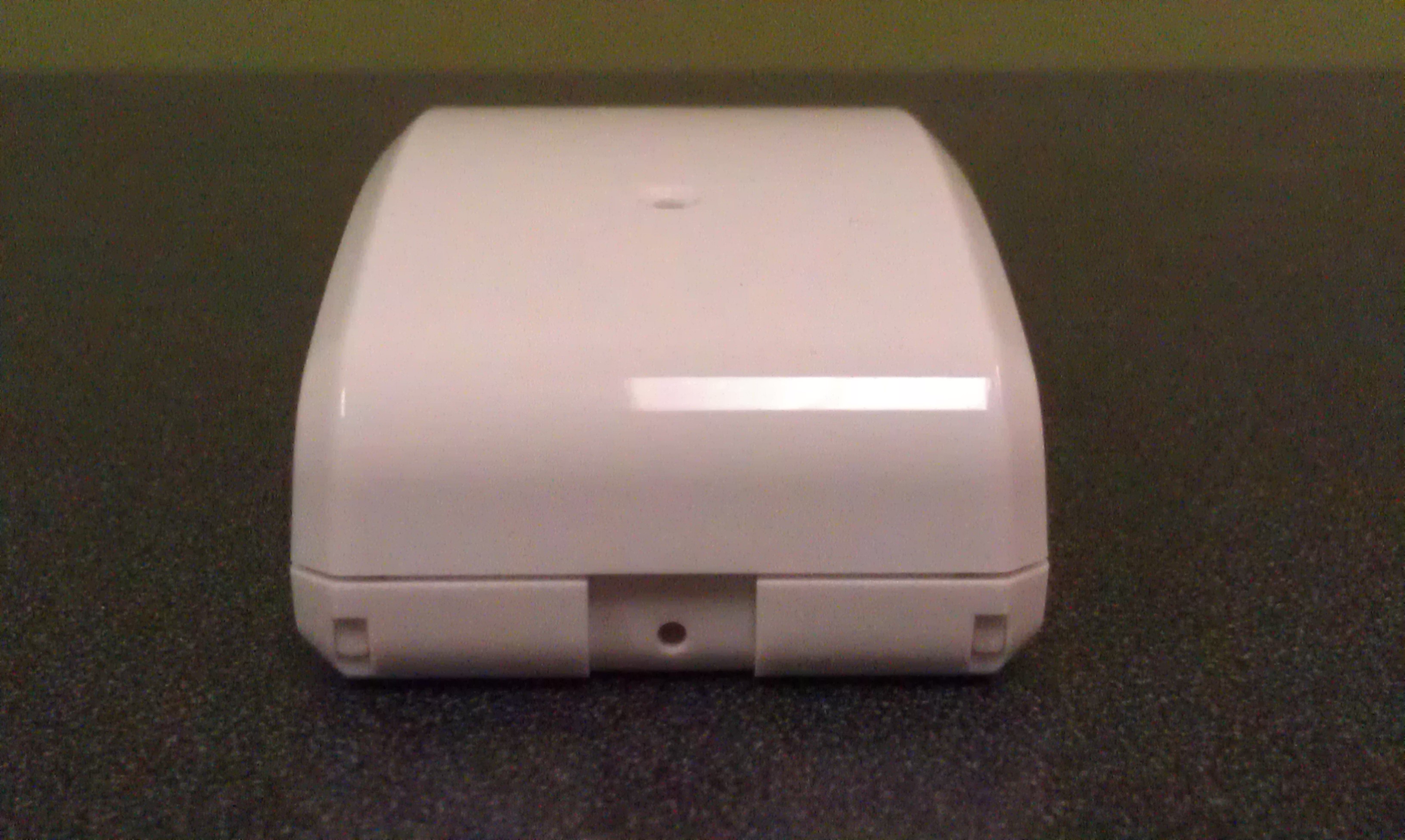

Ecolink WST-601 Product ID Label Model #: WST-601 FCC ID: XQC-WST601 IC:9863B-WST601 Device: External, back view Adhesive sticker

NVLAP Lab code: 100414-0 FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT FOR Audio Detector MODEL NUMBER: WST-601 FCC ID: XQC-WST601 REPORT NUMBER: 10400745B ISSUE DATE: Jun 25, 2015 Prepared for Ecolink Intelligent Technology 2055 Corte Del Nogal Carlsbad, CA 92011 Prepared by UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 TEL: (847) 272-8800 REPORT NO: 10726972B DATE: Jun 25, 2015 FCC ID: XQC-WST601 Page 2 of 35 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd., Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC Revision History Rev. Issue Date Revisions Revised By -- 05/21/15 Initial Issue M.Ferrer B 6/25/15 Update below 30MHz test result; Update page 22, 23, radiated test procedure. P. Zhang REPORT NO: 10726972B DATE: Jun 25, 2015 FCC ID: XQC-WST601 Page 3 of 35 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd., Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 5 4.2. SAMPLE CALCULATION ............................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 6 5. EQUIPMENT UNDER TEST ............................................................................................... 7 5.1. DESCRIPTION OF EUT .............................................................................................. 7 5.2. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 7 5.3. WORST-CASE CONFIGURATION AND MODE .......................................................... 7 5.4. MODIFICATIONS ........................................................................................................ 7 5.5. DESCRIPTION OF TEST SETUP ................................................................................ 8 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................10 7. ANTENNA PORT TEST RESULTS ...................................................................................11 7.1. 20 dB AND 99% BW ...................................................................................................11 7.2. DUTY CYCLE .............................................................................................................15 7.3. TRANSMISSION TIME ...............................................................................................21 8. RADIATED EMISSION TEST RESULTS...........................................................................22 8.1. TX RADIATED SPURIOUS EMISSION ......................................................................22 9. SETUP PHOTOS ...............................................................................................................30 REPORT NO: 10726972B DATE: Jun 25, 2015 FCC ID: XQC-WST601 Page 4 of 35 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd., Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Ecolink Intelligent Technology 2055 Corte Del Nogal Carlsbad, CA 92011 EUT DESCRIPTION: Audio Detector MODEL: WST-601 SERIAL NUMBER: Prototype DATE TESTED: January 5, 2015 – Jun 25, 2015 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Pass UL LLC tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL LLC based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL LLC and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL LLC will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL LLC By: Tested By: BART MUCHA MICHAEL FERRER Staff Engineer Program Manager UL LLC UL LLC REPORT NO: 10726972B DATE: Jun 25, 2015 FCC ID: XQC-WST601 Page 5 of 35 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd., Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4-2009, FCC CFR 47 Part 2, FCC CFR 47 Part 15. Testing deviation for Radiated Emissions above 1GHz was tested with EUT height at 1.5m. 3. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 333 Pfingsten Road, Northbrook, IL 60062 USA. UL NBK is accredited by NVLAP, Laboratory Code 100414-0. The full scope of accreditation can be viewed at http://ts.…

Text truncated - open the document above for the full version.

REPORT NO: 10726972B DATE: Jun 25, 2015 FCC ID: XQC-WST601 Page 30 of 35 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd., Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC 9. SETUP PHOTOS ANTENNA PORT ANTENNA PORT REPORT NO: 10726972B DATE: Jun 25, 2015 FCC ID: XQC-WST601 Page 31 of 35 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd., Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC RADIATED EMISSION FOR PORTABLE CONFIGURATION – X ORIENTATION RADIATED EMISSION FOR PORTABLE CONFIGURATION – X ORIENTATION REPORT NO: 10726972B DATE: Jun 25, 2015 FCC ID: XQC-WST601 Page 32 of 35 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd., Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC RADIATED EMISSION FOR PORTABLE CONFIGURATION – Y ORIENTATION RADIATED EMISSION FOR PORTABLE CONFIGURATION – Y ORIENTATION REPORT NO: 10726972B DATE: Jun 25, 2015 FCC ID: XQC-WST601 Page 33 of 35 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd., Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC RADIATED EMISSION FOR PORTABLE CONFIGURATION – Z ORIENTATION RADIATED EMISSION FOR PORTABLE CONFIGURATION – Z ORIENTATION REPORT NO: 10726972B DATE: Jun 25, 2015 FCC ID: XQC-WST601 Page 34 of 35 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd., Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC RADIATED EMISSION ABOVE 30 MHz RADIATED EMISSIONS ABOVE 30MHz (FRONT) REPORT NO: 10726972B DATE: Jun 25, 2015 FCC ID: XQC-WST601 Page 35 of 35 UL LLC FORM NO: CCSUP4701I 333 Pfingsten Rd., Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC RADIATED EMISSION ABOVE 1GHz END OF REPORT RADIATED EMISSIONS ABOVE 1GHz (FRONT)
