XQC-WST612Wireless Flood/Freeze Sensor

WST-612 Flood and Freeze Sensor patent pending Installation Manual & Users Guide SPECIFICATIONS Frequency: 345 MHz Operating Temperature: 32°-120°F (0°-49°C) Battery: One 3Vdc lithium CR2450 (620mAH) Operating Humidity: 5-95% RH non condensing Battery life: up to 10 years Compatible with Honeywell and 2GIG Detection of standing Water within 1 second Supervisory signal interval: 64 min(approx.) Across Gold probes Maximum current draw: 23mA during transmission Detect Freeze at 5C restores at 7C Water resistant to XXX OPERATION The WST-612 sensor is designed to detect water across the gold probes and will alert immediately when present. The Freeze sensor will trigger when temperature is below 5C and will send a restoral at 7C. ENROLLING To enroll the sensor, set your panel into sensor learn mode. Refer to your specific alarm panel instruction manual for details on these menus. On the WST-612, locate the vertical line on the side of the sensor. This indicates the location of the internal reed switch. To learn in the flood sensor, initiate a transmission by tapping the included magnet to this spot. Repeat as needed by the control panel. The flood sensor will enroll as Loop 1. To learn in the freeze sensor, initiate a transmission by holding the magnet to the reed for at least 2 seconds. The freeze sensors will enroll as Loop 2. You can also trigger the unit by placing a wet finger across the gold probes for a few seconds. Since the flood/freeze are two sensors in one, you will need to enroll them as TWO separate sensors if you desire to use them both. **CURRENT SAMPLES DO NOT SUPPORT 2 SECOND FREEZE ENROLLMENT, MUST BE ENROLLED BY MANUALLY ENTERING THE SERIAL NUMBER **** PLACEMENT Place the flood detector anywhere that you wish to detect a flood or freezing temperature. Under a sink, in or near a hot water heater, a basement or behind a washing machine. If you would like to make sure the flood does not move from its intended location you can use the provided sensor cover and mount it to the wall or floor Water Height Adjustment The Firefighter comes with 2 sets of rubber feet that can be used to adjust the height of the probes to either 3/16 th in or 3/8 th in. Place the rubber feet in the position shown below if you wish to raise the detection level of water Testing the unit By using the magnet you can send a Flood OR Freeze transmission. Place the magnet on the line on top of the case and remove it within 1 second, this will send a Flood transmission (Loop1), if you hold the magnet for 2 seconds, it will send a Freeze transmission (Loop2). Placing wet fingers on any two probes will also trigger a flood transmission. Draft Picture Placement of rubber feet DRAFT MANUAL- NOT for PRODUCTION REPLACING THE BATTERY When the battery is low a signal will be sent to the control panel. To replace the battery: 1. Carefully remove the white rubber feet on the bottom of the flood detector. 2. Remove the 3 screws and open the case. Replace battery with a Panasonic CR2450 Lithium Battery 3. Replace the screws and rubber feet FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Re-orient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment to an outlet on a different circuit from the receiver • Consult the dealer or an experienced radio/TV contractor for help. WARNING: Changes or modifications not expressly approved by Encore Controls could void the user’s authority to operate the equipment. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. C’et appareil est conforme la norme d'Industrie Canada exempts de licence RSS. Son fonctionnement est soumis aux deux conditions suivantes: (1) c’et appareil ne peut pas provoquer d'interférences, et (2) c’et appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement de la dispositif. FCC ID: XQC-WST612 IC:9863B-WST612 WARRANTY Ecolink warrants that for a period of 2 years from the date of purchase that this product is free from defects in material and workmanship. This warranty does not apply to damage caused by shipping or handling, or damage caused by accident, abuse, misuse, misapplication, ordinary wear, improper maintenance, failure to follow instructions or as a result of any unauthorized modifications. If there is a defect in materials and workmanship under normal use within the warranty period Ecolink shall, at its option, repair or replace the defective equipment upon return of the equipment to the original point of purchase. The foregoing warranty shall apply only to the original buyer, and is and shall be in lieu of any and all other warranties, whether expressed or implied and of all other obligations or liabilities on the part of Ecolink neither assumes responsibility for, nor authorizes any other person purporting to act on its behalf to modify or to change this warranty, nor to assume for it any other warranty or liability concerning this produ…

Text truncated - open the document above for the full version.

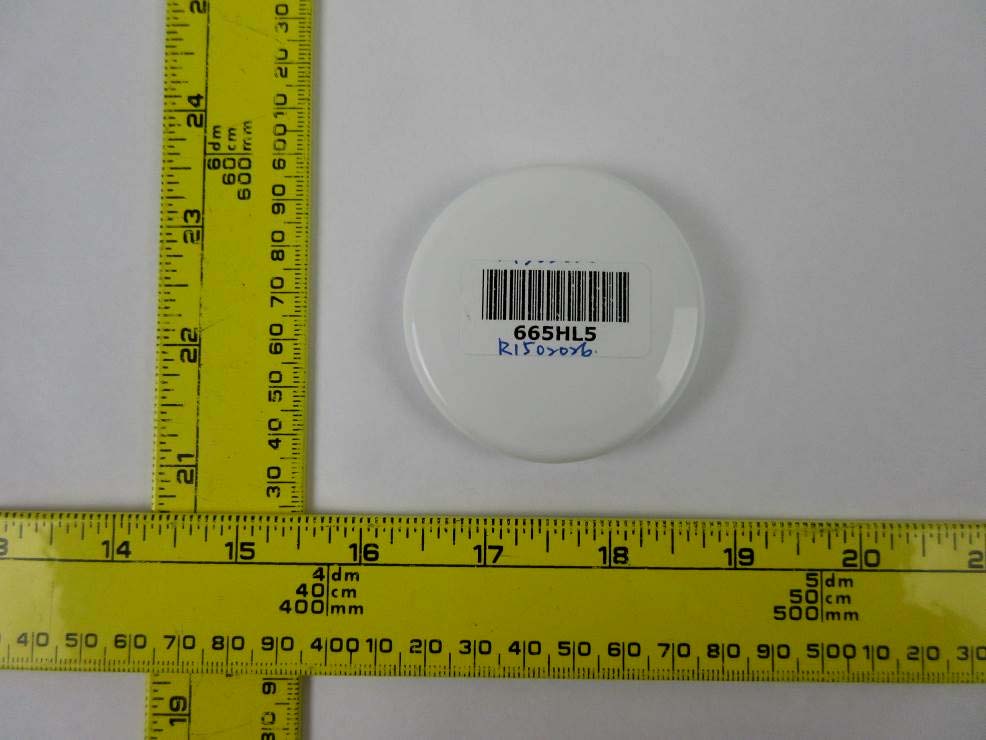

Ecolink Intelligent Technology, Inc. FCC ID: XQC-WST612; IC: 9863B-WST612 Report Number: R1502026-231 Page 26 of 28 FCC Part 15.231/IC RSS-210 Test Report 10 Exhibit C – EUT Photographs 10.1 EUT – Top View 10.2 EUT – Bottom View

Ecolink Intelligent Technology, Inc. FCC ID: XQC-WST612; IC: 9863B-WST612 Report Number: R1502026-231 Page 27 of 28 FCC Part 15.231/IC RSS-210 Test Report 10.3 EUT – Cover off View 10.4 EUT – PCB Board View 1 Ecolink Intelligent Technology, Inc. FCC ID: XQC-WST612; IC: 9863B-WST612 Report Number: R1502026-231 Page 28 of 28 FCC Part 15.231/IC RSS-210 Test Report 10.5 EUT – PCB Board View 2 --- END OF REPORT ---

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) FCC PART 15.231 IC RSS-210, ISSUE 8 TEST AND MEASUREMENT REPORT For Ecolink Intelligent Technology, Inc. 2055 Corte Del Nogal, Carlsbad, CA 92011, USA FCC ID: XQC-WST612 IC: 9863B-WST612 Report Type: Original Report Product Type: Wireless Flood/Freeze Detector Prepared By: Jerry Tong Test Engineer Report Number: R1502026-231 Report Date: 2015-02-26 Reviewed By: Bo Li RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 Ecolink Intelligent Technology, Inc. FCC ID: XQC-WST612; IC: 9863B-WST612 Report Number: R1502026-231 Page 2 of 28 FCC Part 15.231/IC RSS-210 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ..................................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ................................................................................ 5 1.2 MECHANICAL DESCRIPTION OF EUT ...................................................................................................................... 5 1.3 OBJECTIVE .............................................................................................................................................................. 5 1.4 RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 5 1.5 TEST METHODOLOGY ............................................................................................................................................. 5 1.6 MEASUREMENT UNCERTAINTY ............................................................................................................................... 5 1.7 TEST FACILITY ........................................................................................................................................................ 6 2 SYSTEM TEST CONFIGURATION ........................................................................................................................ 8 2.1 JUSTIFICATION ........................................................................................................................................................ 8 2.2 EUT EXERCISE SOFTWARE ..................................................................................................................................... 8 2.3 EQUIPMENT MODIFICATIONS .................................................................................................................................. 8 2.4 LOCAL SUPPORT EQUIPMENT.................................................................................................................................. 8 2.5 EUT INTERNAL CONFIGURATION DETAILS ............................................................................................................. 8 2.6 EXTERNAL I/O CABLING LIST AND DETAILS .......................................................................................................... 8 2.7 POWER SUPPLY LIST AND DETAILS......................................................................................................................... 8 3 SUMMARY OF TEST RESULTS ............................................................................................................................. 9 4 FCC §15.203 & IC RSS-GEN §8.3 – ANTENNA REQUIREMENTS .................................................................... 10 4.1 APPLICABLE STANDARD ....................................................................................................................................... 10 4.2 ANTENNA LIST ..................................................................................................................................................... 10 5 FCC §15.231(A) & IC RSS-210 §A1.1.1(B) – DEACTIVATION TIME ................................................................ 11 5.1 APPLICABLE STANDARDS ..................................................................................................................................... 11 5.2 MEASUREMENT PROCEDURE ................................................................................................................................ 11 5.3 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 11 5.4 TEST ENVIRONMENTAL CONDITIONS .................................................................................................................... 11 5.5 TEST RESULTS ...................................................................................................................................................... 11 6 FCC §15.209, §15.231 (B) & IC RSS-210 §A1.1 – RADIATED EMISSIONS ....................................................... 13 6.1 APPLICABLE STANDARDS ..................................................................................................................................... 13 6.2 TEST SETUP .......................................................................................................................................................... 14 6.3 TEST PROCEDURE ................................................................................................................................................. 14 6.4 TEST SETUP BLOCK DIAGRAM .......................................................................................…

Text truncated - open the document above for the full version.

Ecolink Intelligent Technology, Inc. FCC ID: XQC-WST612; IC: 9863B-WST612 Report Number: R1502026-231 Page 24 of 28 FCC Part 15.231/IC RSS-210 Test Report 9 Exhibit B – Test Setup Photographs 9.1 Radiated Emissions Below 1 GHz – Front View 9.2 Radiated Emissions Below 1 GHz – Rear View Ecolink Intelligent Technology, Inc. FCC ID: XQC-WST612; IC: 9863B-WST612 Report Number: R1502026-231 Page 25 of 28 FCC Part 15.231/IC RSS-210 Test Report 9.3 Radiated Emissions Above 1 GHz – Front View 9.4 Radiated Emissions Above 1 GHz – Rear View
