XQC-WST8028 Zone Wireless Transmitter

WST-802 8 Zone Wireless Transmitter Specifications Frequency: 345MHz Operating Temperature: 32°-120°F (0°-49°C) Battery: 2 x 3V lithium CR2032 Operating Humidity: 5-95% RH non condensing Battery life: 10 years Compatible with Honeywell 5800 receivers Case tamper Supervisory signal interval: 60 min(approx.) Operation The WST-802 is designed to take up to 8 normally closed hardwired contacts and convert them to 8 independent wireless zones. This product is ideal for panel take overs, or where contacts are prewired but not in an ideal location for the control panel. Since its 100% battery operated it can be placed virtually anywhere to simplify the installation. For devices that require power (i.e. motion detector) a separate power supply is required. It can be the existing control panel or a standalone power supply capable of providing the appropriate power. Enrolling The WST-802 has one serial number printed on the back of the unit. This serial number is for zone one. Then for each subsequent zone, simply add 1 to the last digit. For example if the serial number printed on the back is 033 4561, then that is the serial number for input 1, for input two it would be 033 4562, etc To enroll zones, put the control panel in learn mode and either enter the corresponding serial number, or trigger the desired zone by shorting and opening it twice when prompted by the control panel. Note: Zone one must be installed as that zone ID will be used to transmit the low battery and case tamper for the WST-802. If a supervisory fault exists each zone enrolled will report in a supervisory fault. Mounting Included with the device is hardware to mount the device on a wall. Choose a location that is ideal for both the hardwired contacts and that is within range of the new control panel. Replacing the Battery When the battery is low a signal will be sent using zone 1 serial number to the control panel . To replace the battery: 1. Remove the top cover reveal the battery. This will trigger a tamper signal at the control panel. 2. Replace both CR123A batteries ensuring correct polarity as show on the device. 3. Re-attached the cover. You should hear a click when the cover engages properly. 2055 Corte Del Nogal Carlsbad, California 92011 1-855-632-6546 www.discoverecolink.com Wiring Diagram FCC / Industry Canada Compliance Statement This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC Rules. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Re-orient or relocate the receiving antenna  Increase the separation between the equipment and receiver  Connect the equipment to an outlet on a different circuit from the receiver  Consult the dealer or an experienced radio/TV contractor for help. Warning: Changes or modifications not expressly approved by Ecolink Intelligent Technology Inc. could void the user’s authority to operate the equipment. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. C’et appareil est conforme la norme d'Industrie Canada exempts de licence RSS. Son fonctionnement est soumis aux deux conditions suivantes: (1) c’et appareil ne peut pas provoquer d'interférences, et (2) c’et appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement de la dispositif. FCC ID:XQC-WST802 IC: 9863B-WST802 Warranty Ecolink Intelligent Technology Inc. warrants that for a period of 5 years from the date of purchase that this product is free from defects in material and workmanship. This warranty does not apply to damage caused by shipping or handling, or damage caused by accident, abuse, misuse, misapplication, ordinary wear, improper maintenance, failure to follow instructions or as a result of any unauthorized modifications. If there is a defect in materials and workmanship under normal use within the warranty period Ecolink Intelligent Technology Inc. shall, at its option, repair or replace the defective equipment upon return of the equipment to the original point of purchase. The foregoing warranty shall apply only to the original buyer, and is and shall be in lieu of any and all other warranties, whether expressed or implied and of all other obligations or liabilities on the part of Ecolink Intelligent Technology Inc. neither assumes responsibility for, nor authorizes any other person purporting to act on its behalf to modify or to change this warranty, nor to assume for it any other warranty or liability concerning this product. The maximum liability for Ecolink Intelligent Technology Inc. under all circumstances for any warranty issue shall be limited to a replacement of the defective product . It is recommended that the customer check their equipment on a regular basis for proper operation. © 2014 Ecolink Intelligent Technology Inc. PN WST802 R0.01

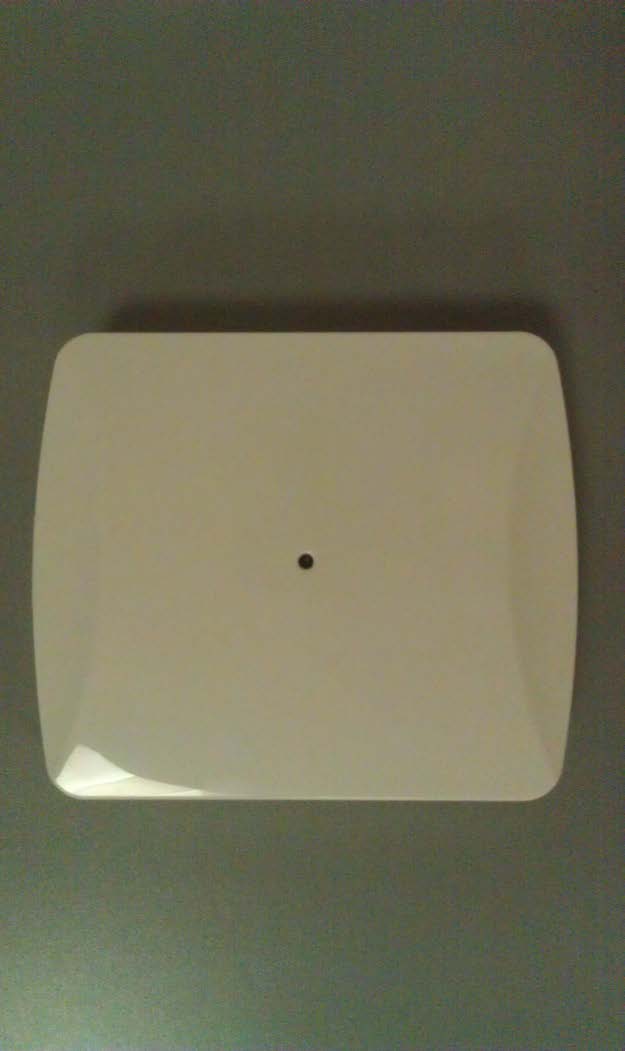

External Photographs FCC ID: XQC-WST802 IC: 9863B-WST802

Ecolink WST-802 Product ID Label Model #: WST-802 FCC ID: XQC-WST802 IC:9863B-WST802 Exterior, back view of device: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photographs FCC ID: XQC-WST802 IC: 9863B-WST802

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TEST REPORT Report Number: 101773309LAX-0 01c Project Number: G101773309 Report Issue Date: December 16, 2014 Product Designation: 8 Zone Hardwired to Wireless Model: WST-802 Standards: FCC ID: IC ID: FCC Part 15.231 Industry Canada RSS 210 Issue 8, December 2010 XQC-WST802 9863B-WST802 Tested by: Client: Intertek Testing Services NA, Inc. 25791 Commercentre Drive Lake Forest, CA 92630 USA Ecolink 2055 Corte Del Nogal Carlsbad, CA 92011 USA Report prepared by Report reviewed by Meak Nget EMC Engineering Supervisor Krishna K Vemuri EMC Senior Staff Engineer Intertek REPORT NUMBER: 101773309LAX-001c Issued: December 16, 2014 EMC Report for Ecolink, on 8 Zone Hardwired to Wireless, model: WST-802 Page 2 of 28 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Client Information ................................................................................................................................ 4 4 Description of Equipment Under Test ................................................................................................ 6 5 System setup including cable interconnection details, support equipment and simplified block diagram ........................................................................................................................................................ 7 6 Radiated Emissions (FCC Part 15.231) .............................................................................................. 8 7 AC Mains Conducted Emissions (FCC Part 15.207) ....................................................................... 25 8 Revision History ................................................................................................................................. 26 Intertek REPORT NUMBER: 101773309LAX-001c Issued: December 16, 2014 EMC Report for Ecolink, on 8 Zone Hardwired to Wireless, model: WST-802 Page 3 of 28 1 Introduction and Conclusion The tests indicated in section 2.0 were performed on the product constructed as described in section 3.0. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested found to comply with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. 2 Test Summary TEST FCC REFERENCE IC REFERENCE Test Date RESULTS Radiated Emission 15.231(b) RSS-210 A1.1.2 08/06/2014 to 08/20/2014 Complies Out of Band Radiated Emission 15.231(b) RSS-210 A1.1.2 08/06/2014 to 08/20/2014 Complies AC Conducted Emission 15.207 RSS-Gen (6.1) Not Applicable* Not Applicable* 20 dB / 99% Bandwidth 15.231(c) RSS-210 A1.1.3 08/07/2014 Complies Transmitter Deactivation Time 15.231(a) RSS-210 A1.1.1(a) 08/07/2014 Complies Antenna Requirement 15.203 - 08/07/2014 Complies (*) Test not applicable due to the EUT being battery operated. Intertek REPORT NUMBER: 101773309LAX-001c Issued: December 16, 2014 EMC Report for Ecolink, on 8 Zone Hardwired to Wireless, model: WST-802 Page 4 of 28 3 Client Information This EUT was tested at the request of: Company: Ecolink 2055 Corte Del Nogal Carlsbad, CA 92011 USA Contact Person: Mike Bailey Telephone: (877) 285-5448 Email: [email protected] 3.1 Overview of the EUT: Applicant: Ecolink Product Description: Model Number: 8 Zone Hardwired to Wireless WST-802 FCC Identifier: IC Identifier: XQC-WST802 9863B-WST802 Transmitter activation: Manually operated. Deactivates within 5 seconds of being released. Fundamental Frequency (MHz): 345 MHz Antenna Requirement: The EUT uses a permanently connected internal antenna. Manufacturer name & address: Ecolink 2055 Corte Del Nogal Carlsbad, CA 92011 USA 3.2 Environmental Conditions: During the measurement the environmental conditions were within the listed ranges: Temperature: 10-40 ° C Humidity: 10-90 % Atmospheric pressure: 86-106 kPa Intertek REPORT NUMBER: 101773309LAX-001c Issued: December 16, 2014 EMC Report for Ecolink, on 8 Zone Hardwired to Wireless, model: WST-802 Page 5 of 28 3.3 Measurement Uncertainty The measured value related to the corresponding limit will be used to decide whether the equipment meets the requirements. The measurement uncertainty figures were calculated and correspond to a coverage factor of k = 2, providing a confidence level of respectively 95% in the case where the distributions characterizing the actual measurement uncertainties are normal (Gaussian). The expanded uncertainty (k = 2) for radiated emissions from 30 to 1000 MHz has been determi…

Text truncated - open the document above for the full version.

Setup Photographs FCC ID: XQC-WST802 IC: 9863B-WST802 Radiated Emissions
