Sunday Electronics Technology Co., Ltd. S-KW425TG Ver. A1 Page 1 of 6 Model: S-KW425TG Wireless Keyboard with touchpad Installation& User’s Guide Sunday Electronics Technology Co., Ltd. S-KW425TG Ver. A1 Page 2 of 6 Version:A1 2013-11-16 Sunday Electronics Technology Co., Ltd. S-KW425TG Ver. A1 Page 3 of 6 1ˊOverview 2.4GHz Wireless Technology range up to 5-10M Mini keyboard with built-in high resolution touchpad Additional 4 web browsing and multimedia hot keys Click and Right Click buttons Exquisite mini USB receiver Plug and play with Windows 2000/ME/XP/NT/VISTA/7 2ˊPackage contents Wireless Touchpad Keyboard USB Wireless Receiver AAA Battery User's Manual 3ˊSystem Requirements Windows 2000/ME/XP/NT/VISTA/7 USB port 4ˊSpecifications Windows 2000/ME/XP/NT/VISTA/7 compatible Interface:USB 2.0 Dimension: 280(L)×112 (w)×17 (H)mm Weight: 280±20g Peak force: 55±10g Total Travel (mm): 2.0-2.5mm Switch Life:5million Cycles Accessary: 2 AAA batteries, USB Mini Receiver RF receiver: 41.5x15x7.5mm Operation Frequency: 2.4GHz RF Transmission Distance: 5-10 meters (depend on user environment) Hot keys: 4 hot keys,Touch pad, Click and right click keys Operation temperature:0 to 50 degrees Storage temperature:-20 to 70 degrees FCC,CE and RoHS Approval 2.402-2.480GHz Sunday Electronics Technology Co., Ltd. S-KW425TG Ver. A1 Page 4 of 6 5ˊInstallation 1.Insert the USB Receiver into an available USB port. 2.The Found New Hardware Wizard appears and the OS will install the driver automatically.No other steps are necessary. 3.Open the battery compartment located underneath the wireless keyboard and install the AAA battery.Turn on the power switch at the back of the keyboard.Note:Follow the polarity signs in the battery compartmnet to make sure the battery is installed correctly. 4.Please turn on the power switch. You are now ready to begin using your wireless keyboard If you don’t want to use it, please turn off the power switch and unplug the dongle Note:After 4 minutes non-operationm,the keyboard will go to sleep mode,Please press any key to work up. 6ˊMultimedia keys˖ Multimedia keysMultimedia keys Description Play/Pause Switches between Play and Pause of DVD/VCD/MP3/Audio media. Once Pause is pressed, pressing this button again resumes play. Mute Mutes the computer’s sound volume. Press it again to turn the system volume back on. V+ Increases the computer’s sound volume. Hold down to increase volume more quickly. V- Decreases the computer’s sound volume. Hold down to decrease volume more quickly. 7ˊMini keyboard mode Table below shows the original keys combined with Fn (Fn + original key) of Mini-keyboard. Function Key Usage: !Tubuvt! Go!! Ovn! Mpdl!! Go!! Ovn! Mpdl!! Go!! Ovn! Mpdl!! Go!! Ovn! Mpdl!! Lfz! Mpdbujpo! PGG!PGG!!PO!!PGG!!PGG!PO!!PO!!PO!! 8!!'8!!Ipnf!!8!!8!! 9!!+9!! Ė! 9!!9!! :!!):!!QhVq!!:!!:!! 1!!*1!!+!!+!!1!! V!!V!! ĕ! 5!!V!! J!!J!! ! 6!!J!! Sunday Electronics Technology Co., Ltd. S-KW425TG Ver. A1 Page 5 of 6 P!!P!! ė! 7!!P!! Q!!Q!!.!.!Q!! K!!K!!Foe!!2!!K!! L!!L!! Ę! 3!!L!! M!!M!!QhEo!!4!!M!! ;<!!;<!!,!!,!!;<!! N!!N!!Jot!!1!!N!! ?/!!?/!!Efm!!/!!?/!! @0!!@0!!0!!0!!@0!! Foufs!!Foufs!)M*!!Foufs)S*!!Foufs)S*!!Foufs)M*!! G20G22!!G2!!G22!!G2!!G22!! G30G23!!G3!!G23!!G3!!G23!! G210! TdsMpdl!! G21!!TdsMpdl!!G21!!TdsMpdl!! Ė0QhVq!! Ė! Qbhf!Vq!! Ė! Qbhf!Vq!! Ę0QhEo!! Ę! Qbhf!Epxo!! Ę! Qbhf!Epxo!! ĕ0Ipnf!! ĕ! Ipnf!! ĕ! Ipnf!! ė0Foe!! ė! Foe!! ė! Foe!! 8ˊUsing Touchpad Sunday Electronics Technology Co., Ltd. S-KW425TG Ver. A1 Page 6 of 6 9ˊDisposal If possible,dispose of the used appliance at a recycling centre. Do not dispose of the used appliance with the household waste. 10ˊSafety Never try to open or to repair this product yourself. Keep this appliance away from fluids,such as water. 11ˊCopyright Reproduction of this manual or any part of it is prohibited without permission from Sunday Electronics Technology co., Ltd.

Nov 29, 2013 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: XQLSD1115 101 Product Name: Wireless Receiver Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Nov 29, 2013 20 By: Judy Chu Signature Printed Title: Sales On behalf of : GUANGZHOU SUNDAY ELECTRONICS CO., LTD. . Telephone: +86-20-87071000

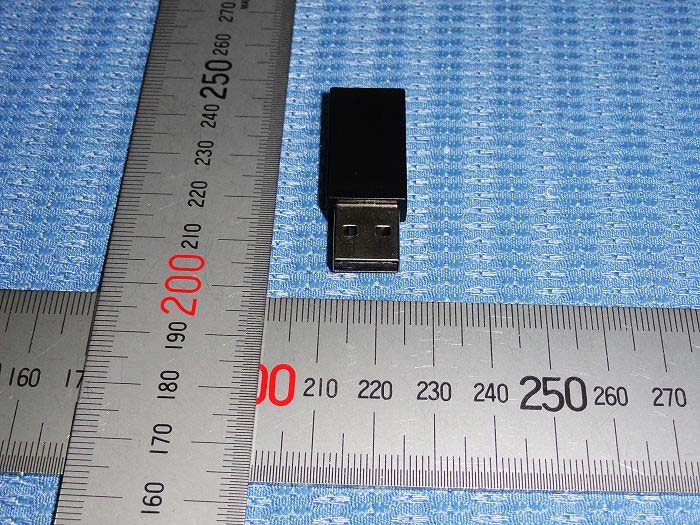

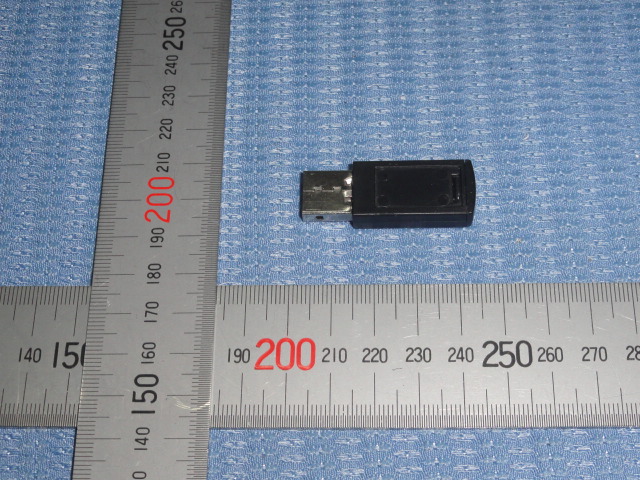

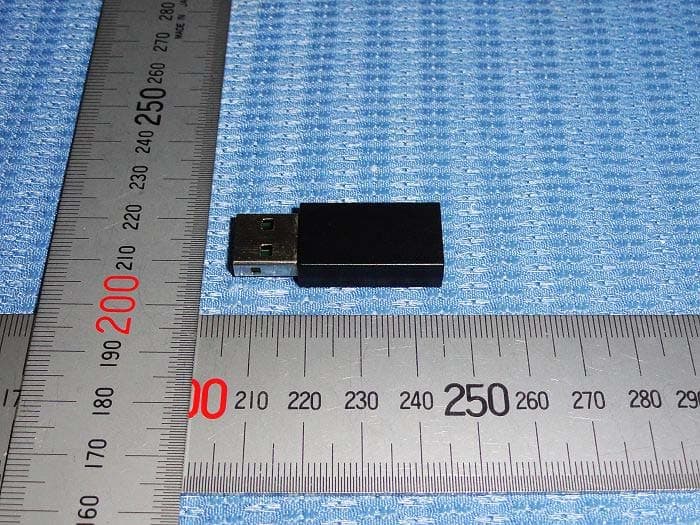

Outside View Photo for the EUT Outside View

FCC ID Label Location

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05r01 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength =91.89dBuV/m @3m Ant gain =0dBi So pt={ [10 (91.89/20) /10 6 x3] 2 /30x1 }x1000 mW = 0.46mW So ( 0.46 mW/5mm)x √2.402 = 0.14 <3 Then SAR evaluation is not required

ISO/IEC17025 Accredited Lab. Report No: FCC1311053-01 File reference No: 2013-11-29 Applicant: Guangzhou Sunday Electronics Co., Ltd. Product: Wireless Receiver Model No: RX101 Brand Name: Sunday Test Standards: FCC Part 15 Subpart C, Paragraph 15.249 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.249 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: November 29, 2013 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO., LTD East 5/Block 4, Anhua Industrial Zone, No.8,Tairan Rd. CheGongMiao, FuTian District, Shenzhen, CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 1311053-01 Page 2 of 35 Date: 2013-11-29 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement˖ The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 899988. IC-Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration IC No.: 5205A-02. Report No: 1311053-01 Page 3 of 35 Date: 2013-11-29 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 4 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 5 3.0 Technical Details............................................................................................. 6 3.1 Summary of Test Results..................................................................................... 6 3.2 Test Standards.................................................................................................. 6 4.0 EUT Modification............................................................................................. 6 5.0 Power Line Conducted Emission Test...................................................................... 7 5.1 Schematics of the Test........................................................................................ 7 5.2 Test Method and Test Procedure............................................................................ 7 5.3 Configuration of the EUT.................................................................................... 7 5.4 EUT Operating Condition......................................…
