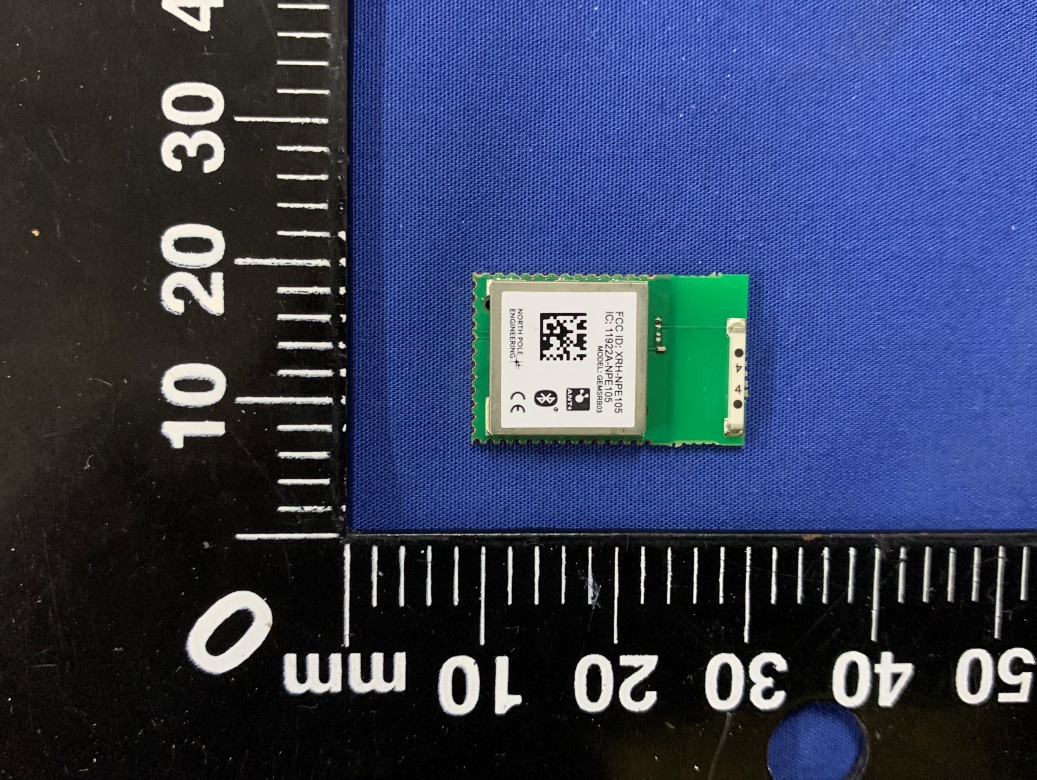

XRH-NPE105GEM3

GEM3 Dual Band Bluetooth and ANT+ Module Hardware Integration Guide Version 0.1 January 9, 20 North Pole Engineering 221 N 1st St, Minneapolis, MN 55401 www.npe-inc.com 612.305.0440 © North Pole Engineering Inc. 2018 GEM3 Module Hardware Integration Guide Version 0.1 North Pole Engineering 221 N 1st St, Minneapolis, MN 55401 www.npe-inc.com 612.305.0440 Revision History Version Revision Date Change History 0.1 07/27/2019 Initial Draft GEM3 Module Hardware Integration Guide Version 0.1 North Pole Engineering 221 N 1st St, Minneapolis, MN 55401 www.npe-inc.com 612.305.0440 CONTENTS 1 OVERVIEW AND KEY FEATURES ..................................................................................................... 4 1.1 FEATURES.............................................................................................................................................. 4 2 SPECIFICATION .................................................................................................................................... 5 2.1 SPECIFICATION SUMMARY .................................................................................................................... 5 3 HARDWARE SPECIFICATIONS .......................................................................................................... 7 3.1 BLOCK DIAGRAMS AND PINOUT ........................................................................................................... 7 3.2 PIN DEFINITIONS .................................................................................................................................. 8 3.3 ELECTRICAL SPECIFICATIONS .............................................................................................................10 3.3.1 ABSOLUTE MAXIMUM RATINGS................................................................................................................................. 10 3.3.2 RECOMMENDED OPERATING PARAMETERS .......................................................................................................... 10 4 DESIGN CONSIDERATIONS ..............................................................................................................10 4.1 HARDWARE .........................................................................................................................................10 4.1.1 VDD_NRF ....................................................................................................................................................................... 10 4.1.2 UPDATING MODULE FIRMWARE ............................................................................................................................... 10 4.1.3 UART HOST ................................................................................................................................................................... 11 4.1.4 USB .................................................................................................................................................................................. 11 4.1.5 NFC .................................................................................................................................................................................. 12 4.1.6 RESET ............................................................................................................................................................................... 12 5 MODULE LAYOUT CONSIDERATIONS ...........................................................................................13 6 MECHANICAL INFORMATION .........................................................................................................15 7 SOLDERING GUIDELINES .................................................................................................................15 8 REGULATORY & STANDARDS INFORMATION ...........................................................................15 8.1 FCC & INDUSTRY CANADA..................................................................................................................15 8.1.1 FEDERAL COMMUNICATION COMMISSION (FCC) RADIATION EXPOSURE STATEMENT: ........................ 15 8.1.2 FCC/IC LABELING REQUIREMENTS ........................................................................................................................ 15 8.1.3 FCC WARNING: ............................................................................................................................................................. 16 8.1.4 INDUSTRY CANADA (IC) WARNING: ....................................................................................................................... 16 8.2 CE ........................................................................................................................................................17 8.3 BLUETOOTH QUALIFICATION .............................................................................................................19 9 ORDERING DETAILS .........................................................................................................................19 10 FURTHER ASSISTANCE ..................................................................................................................19 GEM3 Module Hardware Integration Guide Version 0.1 North Pole Engineering 221 N 1st St, Minneapolis, MN 55401 www.npe-inc.com 612.305.0440 1 OVERVIEW AND KEY FEATURES The GEM3 module has been designed to allow OEMs to easily add Bluetooth and ANT+ wireless connectivity in their product offering. The GEM3 module incorporates North Pole Engineering software specifically designed to enable fitness machines such as treadmills, exercise bikes, ellipticals, rowers, stair climbers and step machines, etc. to wirelessly communicate exercise data with smart phones or tablets as well as leaderboard software systems. For applications other than fitness machines, developer’s can use Nordic Semiconductor’s SDK to cre…

Text truncated - open the document above for the full version.

North Pole Engineering, Inc. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: XRH-NPE105 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanently confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operational Description Operational Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, (Signature) (Rick Gibbs) Rev 11/20/07

Applicant/Grantee NORTH POLE ENGINEERING, INC. FCC ID: XRH-NPE105 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply（Y/N） Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Refer to the external photo Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with modular approval requirements under conditions of excessive data rates or over- modulation. All input to the modules are buffered through microprocessor inputs. Y 3 The modular transmitter must have its own power supply regulation. Internal power regulators Refer to the Block-diagram Y 4 The modular transmitter must comply with the antenna and transmission system requirements. Refer to the internal photo Y 5 The modular transmitter must be tested in a stand- alone configuration, i.e., the module must not be inside another device during testing. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length ty pical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testin g shall be unmodified and commercially available (see Section 15.31(i)). The EUT was tested in a standalone configuration via a SD extension cable Refer to the test setup photo Y 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Refer to the label and label location Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Refer to the user manual Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Refer to the RF exposure statement for more details. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured. Name and Title of the Applicant: Rick Gibbs/VP Engineering Date： 2020.03.06 Signature：

LABEL AND LABEL LOCATION Label Label Location

North Pole Engineering Confidential 2020/3/4Page 1 of 1 Bill of Materials <Parameter Owner not found><Parameter Revision not found> Project:GEMSRB03.PcbDoc Source Data From:GEMSRB03.PcbDoc Variant:None BOM Report Generated: 2019/10/212:41:46 PM Last Project Modification Date: 10/21/2019 #QuantityDesignatorMFG_NAME01MFG_PN01DNP 12 C1, C2MurataGRM0335C1E120GA01J 22 C3, C4 Johanson Technology Inc.250R05L1R2BV4T 34 C5, C7, C8, C12YageoCC0201KRX5R6BB104 44 C6, C19, C20, C21SamsungCL05A475KP5NRNC 51 C9Taiyo YudenTMK063CG821JT-F 60 C10, C13YageoCC0201KRX5R6BB104DNP 71 C11KEMETC0201C101J3GACTU 82 C14, C15SamsungCL03A105KP3NSNC 91 C16 MurataGRM033R61C473ME84D 101 C17Johanson Technology Inc.250R05L1R8BV4T 111 E1YageoANT8010LL04R2400A 121 L1Johanson Technology Inc.L-05B3N9SV6T 132 L2, L4Taiyo YudenLBMF1608T100K 141 L3Taiyo YudenHK100515NJ-T 151 L5Johanson Technology Inc.L-05B1N8SV6T 161 SHLD1 NPENPE 171 U1Nordic SemiconductorNRF52840-QIAA 181 X1ECS Inc.ECS-320-8-47-CKM-TR 190 Z3KEMETCBR02C159B3GACDNP 27 FIXED IND 1.8NH 300MA 220 MOHM GEMV3 RF SHIELD Multi-protocol Bluetooth Low Energy, IEEE 802.15.4, ANT and CRYSTAL 32MHZ 8PF SMD CAP CER 1.8PF 25V C0G/NP0 0201 CHIP ANTENNA 2.4GHZ FIXED IND 3.9NH 300MA 450 MOHM Inductor, 80mA, ±10% Inductor, 320mA, ±5% Revision: Total Components: NotesApproved NPE BOM Template Rev 2.3 Description CAP CER 12PF 25V NP0 0201 CAP CER 1.2PF 25V C0G/NP0 0201 CAP CER 1.5PF 25V C0G/NP0 0201 CAP CER 0.1UF 10V X5R 0201 CAP CER 4.7UF 10V X5R 0402 CAP CER 820PF 25V C0G/NP0 0201 CAP CER 0.1UF 10V X5R 0201 CAP CER 100PF 25V C0G/NP0 0201 CAP CER 1UF 10V X5R 0201 CAP CER 0.047UF 16V X5R 0201

CTC Laboratories, Inc. Add: 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, P.R.C. Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.com.cn CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ct c. org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn Maximum Permissible Exposure Evaluation FCC ID: XRH-NPE105 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) EUT Specification Product Name GEM3 Model GEMSRB03 Listed Model N/A Frequency band (Operating) ANT+: 2457MHz, 2472MHz BLE: 2.402GHz ~ 2.480GHz WLAN: 2.412GHz ~ 2.462GHz RLAN: 5.190GHz ~ 5.230GHz RLAN: 5.745GHz ~ 5.825GHz Others: Device category Portable (<20cm separation) Mobile (>20cm separation) fixed (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S=5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Antenna gain (Max) 5.46dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Page 2 of 2 Report No.: CTC20200069E03 CTC Laboratories, Inc. Add: 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, P.R.C. Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Friis transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout= output power to antenna in mW G= gain of antenna in linear scale Pi= 3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result ANT+ Type Channel frequency (MHz) Max. Measured Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Antenna Gain (dBi) Power density at 20cm (mW/cm 2 ) Power density Limits (mW/cm 2 ) ANT+ 2457 0.16 1 1 5.46 0.0009 1 2472 0.72 1 1 5.46 0.0009 1 BLE/4.2 Type Channel frequency (MHz) Max. Measured Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Antenna Gain (dBi) Power density at 20cm (mW/cm 2 ) Power density Limits (mW/cm 2 ) GFSK 2402 1.56 2 2 5.46 0.0011 1 2440 0.51 1 1 5.46 0.0009 1 2480 -0.9 0 0 5.46 0.0007 1 Note For a more detailed features description, please refer to the RF Test Report. **********************THE END**********************

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, P.R.C. Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.com.cn TEST REPORT Report No. ··························: CTC20200069E01 FCC ID································: XRH-NPE105 IC ······································: 11922A-NPE105 Applicant····························: North Pole Engineering Address·······························: 221 North First Street, Suite 310 Minneapolis, MN 55401, United States Manufacturer························: North Pole Engineering Address·······························: 221 North First Street, Suite 310 Minneapolis, MN 55401, United States Product Name······················: GEM3 Trade Mark···························: N/A Model/Type reference·············: GEMSRB03 Listed Model(s) ·····················: N/A Standard·····························: FCC CFR Title 47 Part 15 Subpart C Section 15.247 RSS 247 Issue 2 Date of receipt of test sample...: Jan. 17, 2020 Date of testing.......................: Jan. 18, 2020 to Feb. 23, 2020 Date of issue.........................: Feb. 26, 2020 Result.................................: PASS Compiled by: (Printed name+signature) Terry Su Supervised by: (Printed name+signature) Miller Ma Approved by: (Printed name+signature) Walter Chen Testing Laboratory Name......: CTC Laboratories, Inc. Address...............................: 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, P.R.C. This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. Page 2 of 39 Report No.: CTC20200069E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, P.R.C. Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Table of Contents Page 1. TEST SUMMARY ....................................................................................................................................................... 3 1.1. TEST STANDARDS .......................................................................................................................................................... 3 1.2. REPORT VERSION .......................................................................................................................................................... 3 1.3. TEST DESCRIPTION ........................................................................................................................................................ 4 1.4. TEST FACILITY .............................................................................................................................................................. 5 1.5. MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 1.6. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2. GENERAL INFORMATION .......................................................................................................................................... 7 2.1. CLIENT INFORMATION ................................................................................................................................................... 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. OP E R AT I O N S TAT E ......................................................................................................................................................... 8 2.4. ACCESSORY EQUIPMENT INFORMATION ............................................................................................................................ 9 2.5. MEASUREMENT INSTRUMENTS LIST ............................................................................................................................... 10 3. TEST ITEM AND RESULTS ........................................................................................................................................ 12 3.1. CONDUCTED EMISSION ................................................................................................................................................ 12 3.2. RADIATED EMISSION ................................................................................................................................................... 15 3.3. BAND EDGE EMISSIONS ............................................................................................................................................... 23 3.4. BANDWIDTH .............................................................................................................................................................. 29 3.5. PEAK OUTPUT POWER ................................................................................................................................................ 32 3.6. POWER SPECTRAL DENSITY .......................................................................................................................................…

Text truncated - open the document above for the full version.

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, P.R.C. Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.com.cn TEST REPORT Report No. ··························: CTC20200069E02 FCC ID································: XRH-NPE105 IC ······································: 11922A-NPE105 Applicant····························: North Pole Engineering Address·······························: 221 North First Street, Suite 310 Minneapolis, MN 55401, United States Manufacturer························: North Pole Engineering Address·······························: 221 North First Street, Suite 310 Minneapolis, MN 55401, United States Product Name······················: GEM3 Trade Mark···························: N/A Model/Type reference·············: GEMSRB03 Listed Model(s) ·····················: N/A Standard·····························: FCC CFR Title 47 Part 15 Subpart C Section 15.247 RSS 247 Issue 2 Date of receipt of test sample...: Jan. 17, 2020 Date of testing.......................: Jan. 18, 2020 to Feb. 23, 2020 Date of issue.........................: Feb. 26, 2020 Result.................................: PASS Compiled by: (Printed name+signature) Terry Su Supervised by: (Printed name+signature) Miller Ma Approved by: (Printed name+signature) Walter Chen Testing Laboratory Name......: CTC Laboratories, Inc. Address...............................: 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, P.R.C. This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. Page 2 of 39 Report No.: CTC20200069E02 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, P.R.C. Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ct c. org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Table of Contents Page 1. TEST SUMMARY ....................................................................................................................................................... 3 1.1. TEST STANDARDS .......................................................................................................................................................... 3 1.2. REPORT VERSION .......................................................................................................................................................... 3 1.3. TEST DESCRIPTION ........................................................................................................................................................ 4 1.4. TEST FACILITY .............................................................................................................................................................. 5 1.5. MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 1.6. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2. GENERAL INFORMATION .......................................................................................................................................... 7 2.1. CLIENT INFORMATION ................................................................................................................................................... 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. OP E R AT I O N S TAT E ......................................................................................................................................................... 8 2.4. ACCESSORY EQUIPMENT INFORMATION ............................................................................................................................ 9 2.5. MEASUREMENT INSTRUMENTS LIST ............................................................................................................................... 10 3. TEST ITEM AND RESULTS ........................................................................................................................................ 12 3.1. CONDUCTED EMISSION ................................................................................................................................................ 12 3.2. RADIATED EMISSION ................................................................................................................................................... 15 3.3. BAND EDGE EMISSIONS ............................................................................................................................................... 23 3.4. BANDWIDTH .............................................................................................................................................................. 29 3.5. PEAK OUTPUT POWER ................................................................................................................................................ 32 3.6. POWER SPECTRAL DENSITY .....................................................................................................................................…

Text truncated - open the document above for the full version.

EUT TEST PHOTOS Conducted Emission Radiated Measurements Below 1GHz Above1GHz
