XS5-CAPH8171926ERA Repeater for cellular systems

CommScope ERA® High Power Carrier Access Point Installation Guide • M0201AKG_uc • February 2021 DISCLAIMER This document has been developed by CommScope, and is intended for the use of its customers and customer support personnel. The information in this document is subject to change without notice. While every effort has been made to eliminate errors, CommScope disclaims liability for any difficulties arising from the interpretation of the information contained herein. The information contained herein does not claim to cover all details or variations in equipment, nor to provide for every possible incident to be met in connection with installation, operation, or maintenance. This document describes the performance of the product under the defined operational conditions and does not cover the performance under adverse or disturbed conditions. Should further information be desired, or should particular problems arise which are not covered sufficiently for the purchaser's purposes, contact CommScope. CommScope reserves the right to change all hardware and software characteristics without notice. ERA ® and ION-E ® ERA is an extension of the hardware and software architecture that CommScope originally introduced as ION-E. Going forward, all new systems are ERA. Since ION-E and ERA share the same hardware modules, system software and management systems, existing ION-E systems can be updated and expanded using ERA components. COPYRIGHT © 2021 CommScope, Inc. All Rights Reserved. This document is protected by copyright. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical photocopying, recording, or otherwise without the prior written permission of CommScope. For patents see www.cs-pat.com. TRADEMARKS All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. Names of other products mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies. Andrew Wireless Systems GmbH, January 2021 M0201AKG_ucCommScope ERA ® High Power Carrier Access Point Installation Guide © February 2021 CommScope, Inc.Page iii TABLE OF CONTENTS Document Overview..................................................................................................................................................................................1 Document Revision History..............................................................................................................................................................................1 Document Cautions and Notes.........................................................................................................................................................................2 Abbreviations Used in this Guide.....................................................................................................................................................................2 ERA System Overview................................................................................................................................................................................4 CAPH Overview.........................................................................................................................................................................................5 CAPHConnectors and Status LED....................................................................................................................................................................6 Connectors and Status LED on Models with One Antenna........................................................................................................................6 Connectors and Status LED on Models with Two Antenna Connectors.....................................................................................................9 Connectors and Status LED on Models with Three Antenna Connectors................................................................................................12 CAPH Accessory Options................................................................................................................................................................................14 Mounting Kits...........................................................................................................................................................................................14 OCTIS™ Kits...............................................................................................................................................................................................15 OCTIS Kit Instructions...............................................................................................................................................................................15 OCTIS SFP+ Reverse Lever Assembly Instructions..............................................................................................................................15 Safely Working with a CAPH....................................................................................................................................................................18 RF Safety Cautions....................................................................................................................................................................................18 Health and Safety Precautions.................................................................................................................................................................18 Property Damage Warnings.....................................................................................................................................................................19 Guard Against Damage from Electro-Static Discharge.............................…

Text truncated - open the document above for the full version.

Installation Instruction The Remote Unit, Extension Unit or Master Unit must be mounted by proffessionel / special trained installer. 1.1. MECHANICAL INSTALLATION 1.1.1. Health and Safety for Mechanical Installation Read and observe chapter 1.3 Health and Safety. 1.2. ELECTRICAL INSTALLATION 1.2.1. Health and Safety for Electrical Installation Read and observe chapter 1.3 Health and Safety. 1.3. HEALTH AND SAFETY

To whom it may concern According to KDB 935210 D02, INDUSTRIAL (PART 20) SIGNAL BOOSTER, we as manufacturer, Andrew Wireless Systems GmbH, Buchdorf declare that the warning below: and the warning according to RSS-131 Issue 3 or a combined, from FCC and ISED accepted warning Label can be seen at: - Product itself as label - Packaging as label - manual - data sheet - sales brochure - all other electronic media where customer has access Buchdorf, 21. Sept. 2020 _____________________ AWS GmbH F.Futter Specialist Reliability Compliance

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 02.01.2012 Datum: 00.00.0000 Seite 1 von 1 Long/Short-term Confidentiality Request PHOENIX TESTLAB GmbH Date: 11.Feb.2021 Product Certification Königswinkel 10 D 32825 Blomberg FCC ID: XS5-CAPH8171926 To Whom it may concerns, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby requests long-term confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagram Tune-Up Info Operational Description In addition we hereby request the following exhibits contained in this application to be temporarily (short-term confidentilality) withheld from the public disclosure for an initial period of 180 days until: not applicable External Photos Test Setup Photos Internal Photos Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Thank you for your attention in this matter. Applicant’s Company Andrew Wireless Systems GmbH address : Industriering 10 86675 Buchdorf Signature : _____________________(F.Futter) Job Title and Dept. : Specialist Reliability Compliance

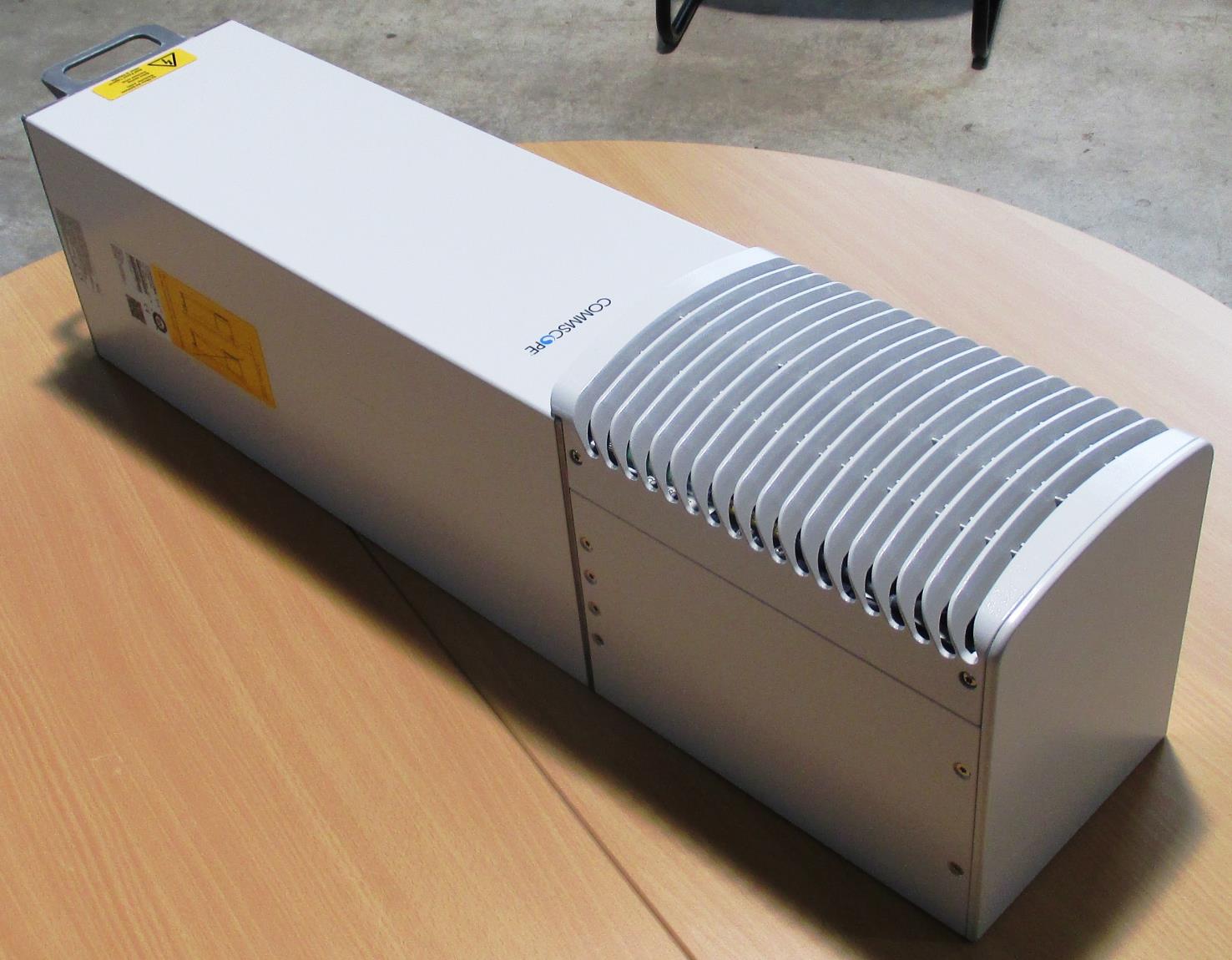

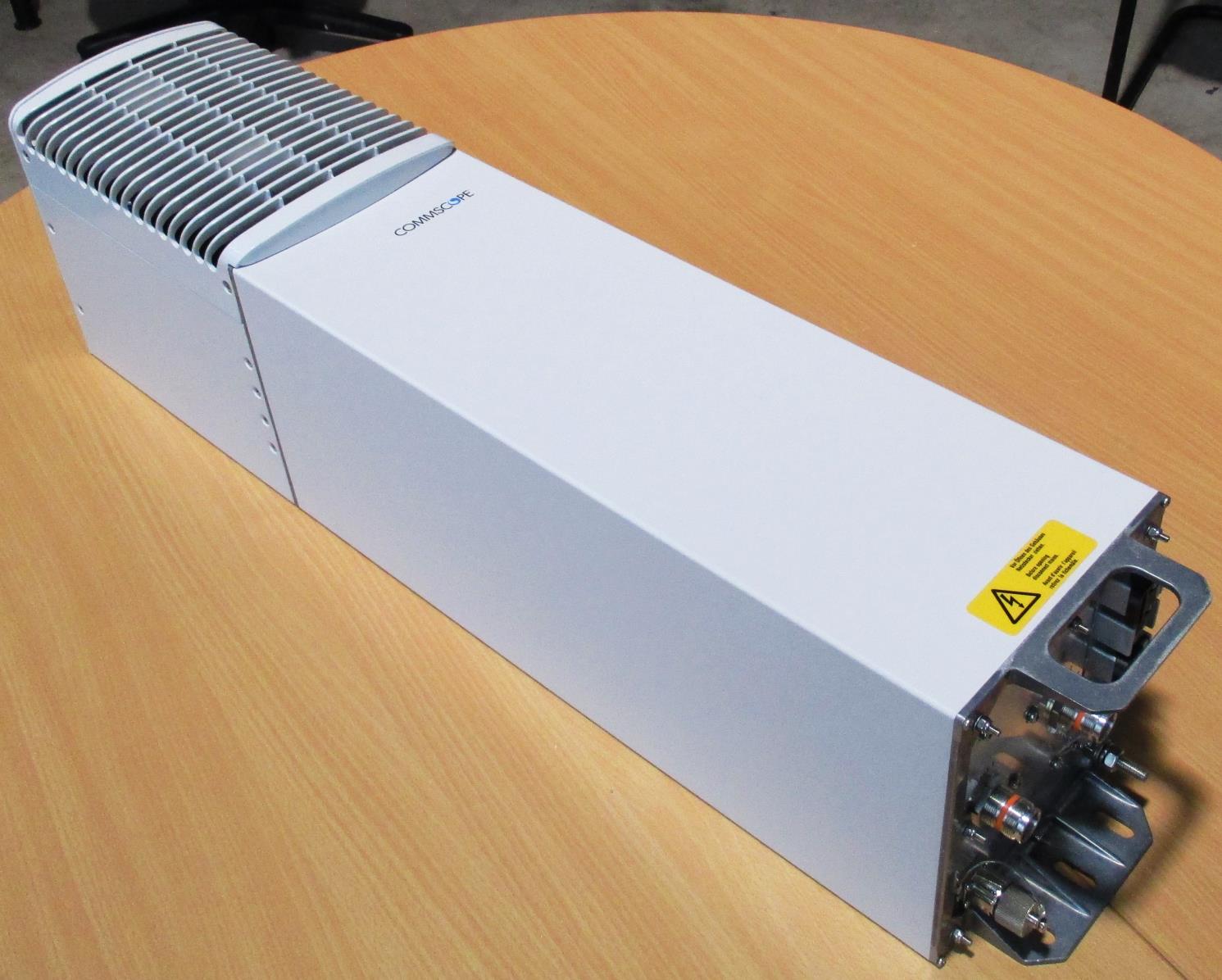

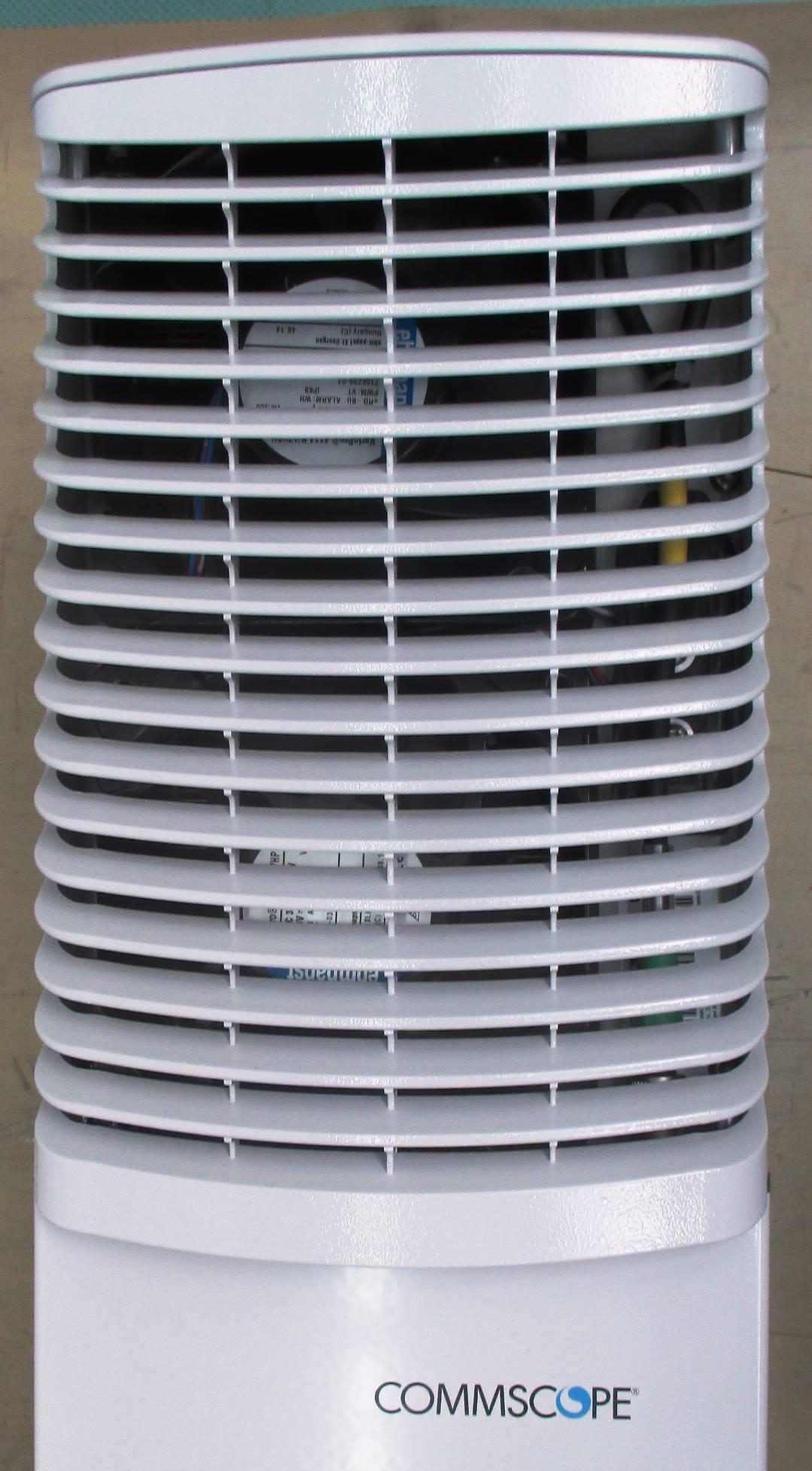

External Photos CAP H 80-85/17E/19/26

Label Location 5cm 6,5cm

Internal CAP H 80-85/17E/19/26 (7841153-xxxx) Amplifier Section Fan Section Duplexer SPM (Signal Processing Modul) & RFM (Radio Frequency Modul) PSU DC in 28V Power Supply Unit Heat Sink Duplexer Front Flange 7 SPM F1/C1 7773756-00 RFM UL2/DL2 7820103-01 Fin.Ampl.851-894 43dB 7624304-02 Fin.Ampl.2110-2180 43dB 7713118-01 Fin.Ampl.1930-1995 43dB 7624289-03 Fin.Ampl.2620-2690 43dB 7624308-03 Power Supply Unit DC IN 28V 30W PoE 7773758-00 PCB P3683 Fan Unit Board M2-Cab 7659273-01 PCB P3700 PA-AddrLineAdaptBrd 7661367-00

RF Exposure Info / MPE Sample Calculation Model: CAP H 80-85/17E/19/26 FCC-ID: XS5-CAPH8171926 INTRODUCTION The ERA product is a digital distribution system with focus on flexibility, easy installing, commissioning, and reliable operation. The system is designed in a way to satisfy all of today’s needs as well as unknown future standards and requirements. The ERA system comprises of two main parts. A base station interface (Master or Head End Unit) that takes RF signals as well as digital signals from the base stations, conditions the signals for the given application and assigns them to the ezones. The coverage side is built of one or more Remote Units. The “Remote Unit” (hereinafter referred to as “RU”) is connected via a 10GBASE SFP+ fiber optical link to the ERA Master Unit. This link gives a total RF bandwidth of up to 320 MHz. For higher bandwidth requirements, a secondary 10G link can be used in parallel. RF signals between Master Unit and Remote Units are sent digitally over the fiber optical link. At the receiver side these signals are converted back to analog and amplified up to appropriate transmit levels. The ERA high power RU is primarily intended for outdoor use, but can also be used indoors, while the master unit mainly operates in indoor environments. Although this is not a rule especially in cases where master unit components are used together with air-conditioned outdoor racks. The specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B). S = power density limit [W/m] P = power [W] R = distance [m] 2 4 n nn n R GP S π = => n nn n S GP R π4 = (to calculate the distance at one frequency) If we have more bands, than we have to calculated as a percentage: The additional of the terms have to be lower than 1. 1 4 .... 4 44 1.... 2 3 2 3 33 2 2 2 2 2 1 2 1 1 1 ln 3 3 2 2 1 1 <++++ <++++ n n nn n cacalcalcal S R GP S R GP S R GP S R GP S S S S S S S S ππ ππ We are looking for a distance of ensures that the formula is satisfied. n RRRR====... 32 1 1 4 ... 444 2 3 2 33 2 2 22 1 2 11 <++++ n nn SR GP SR GP SR GP SR GP ππππ R S GP S GP S GP S GP R S GP S GP S GP S GP n nn n nn <++++ <++++ ππππ ππ ππ 4 ... 444 4 ... 444 3 33 2 22 1 11 2 3 33 2 22 1 11 With n nn n S GP R π4 = => n nn n S GP R π4 2 = RRRRR n <++++ 22 3 2 2 2 1 ... What you have to do for calculate the minimum distance were the power density limit is met: 1) If you have one path, you have to put your special values in the following formula. n nn n S GP R π4 = (Distance for one carrier) Limits for General Population / Uncontrolled Exposures Frequency Range (MHz) Power Density (mW/cm 2 ) 300 – 1500 S = f/1500 1550 – 100000 S = 1 2) If you have more than one path, you must add the individual terms quadratic. n nn n S G P R π4 = (Distance for individual carrier) RRRRR n <++++ 22 3 2 2 2 1 ... (See previous page) For example: The EUT operates in 4 frequency bands: DL Frequency Bands are: Band Freq. DL 80 862-869 MHz 85 869-894 MHz 17E 2110-2180 MHz 19 1930-1995 MHz 26 2620-2690 MHz The max conducted output power of a single frequency band is 42.5 dBm (17.8W) per antenna port. Calculation for every path with maximum allowed antenna gain and without cable loss: Frequency [MHz] Output Power [dBm] Antenna Gain [dBi] Calculated Distance [m] 862 42.5 9 1.399 2110 42.5 9 1.060 1930 42.5 9 1.060 2620 41.7 9 0.967 The worst case would be if all bands were active: RRRR R n <++++ 2 2 3 2 2 2 1 ... R all > 2.267 m  ~2.3m = 90.55 inches (see previous page for derivation) For more accurate calculation, the cable loss and actual antenna gain have to be included in the final system. The antenna(s) used with device must be fixed-mounted on permanent structures with a distance to any human body to comply with the RF Exposure limit.

The test results relates only to the tested item. The sample has been provided by the client. Without the written consent of Burau Veritas Consumer Products Services Germany GmbH excerpts of this report shall not be reproduced. Bureau Veritas Consumer Products Services Germany GmbH www.bureauveritas.de/cps Phone: +49 (0)40 – 740 41 – 0 Schwerin Wilhelm-Hennemann-Str. 8, 19061 Schwerin [email protected] Tuerkheim Businesspark A96, 86842 Tuerkheim [email protected] Managing Directors: Sebastian Doose, Stefan Kischka Reg.No.: Schwerin HRB 3564 Hamburg Oehleckerring 40, 22419 Hamburg [email protected] Nuremberg Thurn-und-Taxis-Str. 18, 90411 Nuremberg [email protected] Page 1 of 73 ECL-TA Test Report No.: 20-020 Designation: CAP H 80-85_17E_19_26 F-AC-F1-APE, Band 5 Manufacturer: Andrew Serial No(s): BGCHIA2043001 ID No. 7841153-0001 Test Specification(s): ANSI 63.26:2015 FCC Rules and Regulations as listed in 47 CFR, Part 20:2019-10-01 Test Plan: Measurement of Band 5, downlink. Test Result: Passed Date of issue: 2021-01-27 Signature: Version: 01 Technical Reviewer: Date of delivery: 2020-12 Performance date: 2020-12-14. – Report Reviewer: 2021-01-07 ECL-TA-20-020-V01.00 TA tests on Andrew, CAP H 80-85_17E_19_26 F-AC- F1-APE, Band 5 Page 2 of 71 Client: Commscope Andrew Wireless System GmbH Industriering 10 86675 Buchdorf Germany Test Laboratory: Bureau Veritas Consumer Products Services Germany GmbH Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 40 74041 0 Fax: +49 40 74041-2755 Versions management: V01.00 Initial release ECL-TA-20-020-V01.00 TA tests on Andrew, CAP H 80-85_17E_19_26 F-AC- F1-APE, Band 5 Page 3 of 71 Table of Contents 1 APPLIED STANDARDS AND TEST SUMMARY ............................................................................ 4 1.1 APPLIED STANDARDS ............................................................................................................... 4 1.2 FCC-ISED CORRELATION TABLE ........................................................................................... 5 1.3 MEASUREMENT SUMMARY/SIGNATURES .......................................................................... 6 2 ADMINISTRATIVE DATA ................................................................................................................... 9 2.1 TESTING LABORATORY ............................................................................................................. 9 2.2 APPLICANT DATA ........................................................................................................................ 9 2.3 MANUFACTURER DATA ............................................................................................................. 9 3 TEST OBJECT DATA .......................................................................................................................... 10 3.1 GENERAL EUT DESCRIPTION ............................................................................................... 10 3.2 EUT MAIN COMPONENTS ....................................................................................................... 11 3.3 ANCILLARY EQUIPMENT ......................................................................................................... 11 3.4 AUXILIARY EQUIPMENT .......................................................................................................... 12 3.5 EUT SETUPS ................................................................................................................................ 13 3.6 PRODUCT LABELLING .............................................................................................................. 14 4 TEST RESULTS ................................................................................................................................... 15 4.1 EFFECTIVE RADIATED POWER, MEAN OUTPUT POWER AND ZONE ENHANCER GAIN 15 4.2 PEAK TO AVERAGE RATIO ..................................................................................................... 24 4.3 OCCUPIED BANDWIDTH/INPUT-VERSUS-OUTPUT SPECTRUM ............................... 28 4.4 CONDUCTED SPURIOUS EMISSIONS AT ANTENNA TERMINALS ............................ 35 4.5 OUT-OF-BAND EMISSION LIMITS ...................................................................................... 43 4.6 OUT-OF-BAND REJECTION .................................................................................................... 55 4.7 FIELD STRENGTH OF SPURIOUS RADIATION ................................................................ 57 5 TEST EQUIPMENT.............................................................................................................................. 66 6 ANTENNA FACTORS, CABLE LOSS AND SAMPLE CALCULATIONS ................................. 67 6.1 ANTENNA CHASE CBL 6111C (30 MHZ – 1 GHZ) ........................................................ 67 6.2 ANTENNA ROHDE & SCHWARZ HL 025 (1 GHZ – 18 GHZ) ..................................... 68 7 MEASUREMENT UNCERTAINTIES ................................................................................................ 69 ANNEX A: ACCREDITATION CERTIFICATE (FOR INFORMATION) .......................................... 70 ANNEX B: ADDITIONAL INFORMATION PROVIDED BY CLIENT .............................................. 71 ANNEX C: PHOTO REPORT ...................................................................................................................... 1 ECL-TA-20-020-V01.00 TA tests on Andrew, CAP H 80-85_17E_19_26 F-AC- F1-APE, Band 5 Page 4 of 71 1 APPLIED STANDARDS AND TEST SUMMARY 1.1 APPLIED STANDARDS Type of Authorization Certification for an Industrial Signal Booster. Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 2, 20 and 22. The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorizat…

Text truncated - open the document above for the full version.

The test results relates only to the tested item. The sample has been provided by the client. Without the written consent of Burau Veritas Consumer Products Services Germany GmbH excerpts of this report shall not be reproduced. Bureau Veritas Consumer Products Services Germany GmbH www.bureauveritas.de/cps Phone: +49 (0)40 – 740 41 – 0 Schwerin Wilhelm-Hennemann-Str. 8, 19061 Schwerin [email protected] Tuerkheim Businesspark A96, 86842 Tuerkheim [email protected] Managing Directors: Sebastian Doose, Stefan Kischka Reg.No.: Schwerin HRB 3564 Hamburg Oehleckerring 40, 22419 Hamburg [email protected] Nuremberg Thurn-und-Taxis-Str. 18, 90411 Nuremberg [email protected] Page 1 of 81 ECL-TA Test Report No.: 20-023 Designation: CAP H 80-85_17E_19_26 F-AC-F1-APE, Band 7 Manufacturer: Andrew Serial No(s): BGCHIA2043001 ID No. 7841153-0001 Test Specification(s): ANSI 63.26:2015 FCC Rules and Regulations as listed in 47 CFR, Part 20:2019-10-01 Test Plan: Measurement of Band 7, downlink. Test Result: Passed Date of issue: 2021-01-27 Signature: Version: 01 Technical Reviewer: Date of delivery: 2020-12 Performance date: 2020-12-14. – Report Reviewer: 2021-01-19 ECL-TA-20-023-V01.00 TA tests on Andrew, CAP H 80-85_17E_19_26 F-AC- F1-APE, Band 7 Page 2 of 78 Client: Commscope Andrew Wireless System GmbH Industriering 10 86675 Buchdorf Germany Test Laboratory: Bureau Veritas Consumer Products Services Germany GmbH Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 40 74041 0 Fax: +49 40 74041-2755 Versions management: V01.00 Initial release ECL-TA-20-023-V01.00 TA tests on Andrew, CAP H 80-85_17E_19_26 F-AC- F1-APE, Band 7 Page 3 of 78 Table of Contents 1 APPLIED STANDARDS AND TEST SUMMARY ............................................................................ 4 1.1 APPLIED STANDARDS ............................................................................................................... 4 1.2 FCC-ISED CORRELATION TABLE ........................................................................................... 5 1.3 MEASUREMENT SUMMARY/SIGNATURES .......................................................................... 6 2 ADMINISTRATIVE DATA ................................................................................................................... 9 2.1 TESTING LABORATORY ............................................................................................................. 9 2.2 APPLICANT DATA ........................................................................................................................ 9 2.3 MANUFACTURER DATA ............................................................................................................. 9 3 TEST OBJECT DATA .......................................................................................................................... 10 3.1 GENERAL EUT DESCRIPTION ............................................................................................... 10 3.2 EUT MAIN COMPONENTS ....................................................................................................... 11 3.3 ANCILLARY EQUIPMENT ......................................................................................................... 11 3.4 AUXILIARY EQUIPMENT .......................................................................................................... 12 3.5 EUT SETUPS ................................................................................................................................ 13 3.6 PRODUCT LABELLING .............................................................................................................. 14 4 TEST RESULTS ................................................................................................................................... 15 4.1 EFFECTIVE RADIATED POWER, MEAN OUTPUT POWER AND ZONE ENHANCER GAIN 15 4.2 PEAK TO AVERAGE RATIO ..................................................................................................... 25 4.3 OCCUPIED BANDWIDTH/INPUT-VERSUS-OUTPUT SPECTRUM ............................... 29 4.4 CONDUCTED SPURIOUS EMISSIONS AT ANTENNA TERMINALS ............................ 36 4.5 OUT-OF-BAND EMISSION LIMITS ...................................................................................... 46 4.6 OUT-OF-BAND REJECTION .................................................................................................... 59 4.7 FIELD STRENGTH OF SPURIOUS RADIATION ................................................................ 61 5 TEST EQUIPMENT.............................................................................................................................. 72 6 ANTENNA FACTORS. CABLE LOSS AND SAMPLE CALCULATIONS ................................. 73 6.1 ANTENNA CHASE CBL 6111C (30 MHZ – 1 GHZ) ........................................................ 73 6.2 ANTENNA ROHDE & SCHWARZ HL 025 (1 GHZ – 18 GHZ) ..................................... 74 6.3 ANTENNA ARA INC. MWH-1826-B (18 GHZ – 26.5 GHZ) PARTIALLY IN CONJUNCTION WITH PRE-AMPLIFIER MITEQ JS43-1800-4000: THE USE OF THE PRE-AMPLIFIER IS DEPENDENT FROM THE FIELD STRENGTH ........................................... 75 7 MEASUREMENT UNCERTAINTIES ................................................................................................ 76 ANNEX A: ACCREDITATION CERTIFICATE (FOR INFORMATION) .......................................... 77 ANNEX B: ADDITIONAL INFORMATION PROVIDED BY CLIENT .............................................. 78 ANNEX C: PHOTO REPORT ...................................................................................................................... 1 ECL-TA-20-023-V01.00 TA tests on Andrew, CAP H 80-85_17E_19_26 F-AC- F1-APE, Band 7 Page 4 of 78 1 APPLIED STANDARDS AND TEST SUMMARY 1.1 APPLIED STANDARDS Type of Authorization Certification for an Industrial Signal Booster. Applicable FCC Rules Pr…

Text truncated - open the document above for the full version.

The test results relates only to the tested item. The sample has been provided by the client. Without the written consent of Burau Veritas Consumer Products Services Germany GmbH excerpts of this report shall not be reproduced. Bureau Veritas Consumer Products Services Germany GmbH www.bureauveritas.de/cps Phone: +49 (0)40 – 740 41 – 0 Schwerin Wilhelm-Hennemann-Str. 8, 19061 Schwerin [email protected] Tuerkheim Businesspark A96, 86842 Tuerkheim [email protected] Managing Directors: Sebastian Doose, Stefan Kischka Reg.No.: Schwerin HRB 3564 Hamburg Oehleckerring 40, 22419 Hamburg [email protected] Nuremberg Thurn-und-Taxis-Str. 18, 90411 Nuremberg [email protected] Page 1 of 82 ECL-TA Test Report No.: 20-022 Designation: CAP H 80-85_17E_19_26 F-AC-F1-APE, Band 25 Manufacturer: Andrew Serial No(s): BGCHIA2043001 ID No. 7841153-0001 Test Specification(s): ANSI 63.26:2015 FCC Rules and Regulations as listed in 47 CFR, Part 20:2019-10-01 Test Plan: Measurement of Band 25, downlink. Test Result: Passed Date of issue: 2021-01-27 Signature: Version: 01 Technical Reviewer: Date of delivery: 2020-12 Performance date: 2020-12-16. – Report Reviewer: 2021-01-19 ECL-TA-20-022-V01.00 TA tests on Andrew, CAP H 80-85_17E_19_26 F-AC- F1-APE, Band 25 Page 2 of 79 Client: Commscope Andrew Wireless System GmbH Industriering 10 86675 Buchdorf Germany Test Laboratory: Bureau Veritas Consumer Products Services Germany GmbH Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 40 74041 0 Fax: +49 40 74041-2755 Versions management: V01.00 Initial release ECL-TA-20-022-V01.00 TA tests on Andrew, CAP H 80-85_17E_19_26 F-AC- F1-APE, Band 25 Page 3 of 79 Table of Contents 1 APPLIED STANDARDS AND TEST SUMMARY ............................................................................ 4 1.1 APPLIED STANDARDS ............................................................................................................... 4 1.2 FCC-ISED CORRELATION TABLE ........................................................................................... 5 1.3 MEASUREMENT SUMMARY/SIGNATURES .......................................................................... 6 2 ADMINISTRATIVE DATA ................................................................................................................... 9 2.1 TESTING LABORATORY ............................................................................................................. 9 2.2 APPLICANT DATA ........................................................................................................................ 9 2.3 MANUFACTURER DATA ............................................................................................................. 9 3 TEST OBJECT DATA .......................................................................................................................... 10 3.1 GENERAL EUT DESCRIPTION ............................................................................................... 10 3.2 EUT MAIN COMPONENTS ....................................................................................................... 11 3.3 ANCILLARY EQUIPMENT ......................................................................................................... 11 3.4 AUXILIARY EQUIPMENT .......................................................................................................... 12 3.5 EUT SETUPS ................................................................................................................................ 13 3.6 PRODUCT LABELLING .............................................................................................................. 14 4 TEST RESULTS ................................................................................................................................... 15 4.1 EFFECTIVE RADIATED POWER, MEAN OUTPUT POWER AND ZONE ENHANCER GAIN 15 4.2 PEAK TO AVERAGE RATIO ..................................................................................................... 26 4.3 OCCUPIED BANDWIDTH/INPUT-VERSUS-OUTPUT SPECTRUM ............................... 30 4.4 CONDUCTED SPURIOUS EMISSIONS AT ANTENNA TERMINALS ............................ 37 4.5 OUT-OF-BAND EMISSION LIMITS ...................................................................................... 47 4.6 OUT-OF-BAND REJECTION .................................................................................................... 60 4.7 FIELD STRENGTH OF SPURIOUS RADIATION ................................................................ 62 5 TEST EQUIPMENT.............................................................................................................................. 73 6 ANTENNA FACTORS, CABLE LOSS AND SAMPLE CALCULATIONS ................................. 74 6.1 ANTENNA CHASE CBL 611…

Text truncated - open the document above for the full version.
