XS5-ION-M19P19HPOptical ION M remote unit

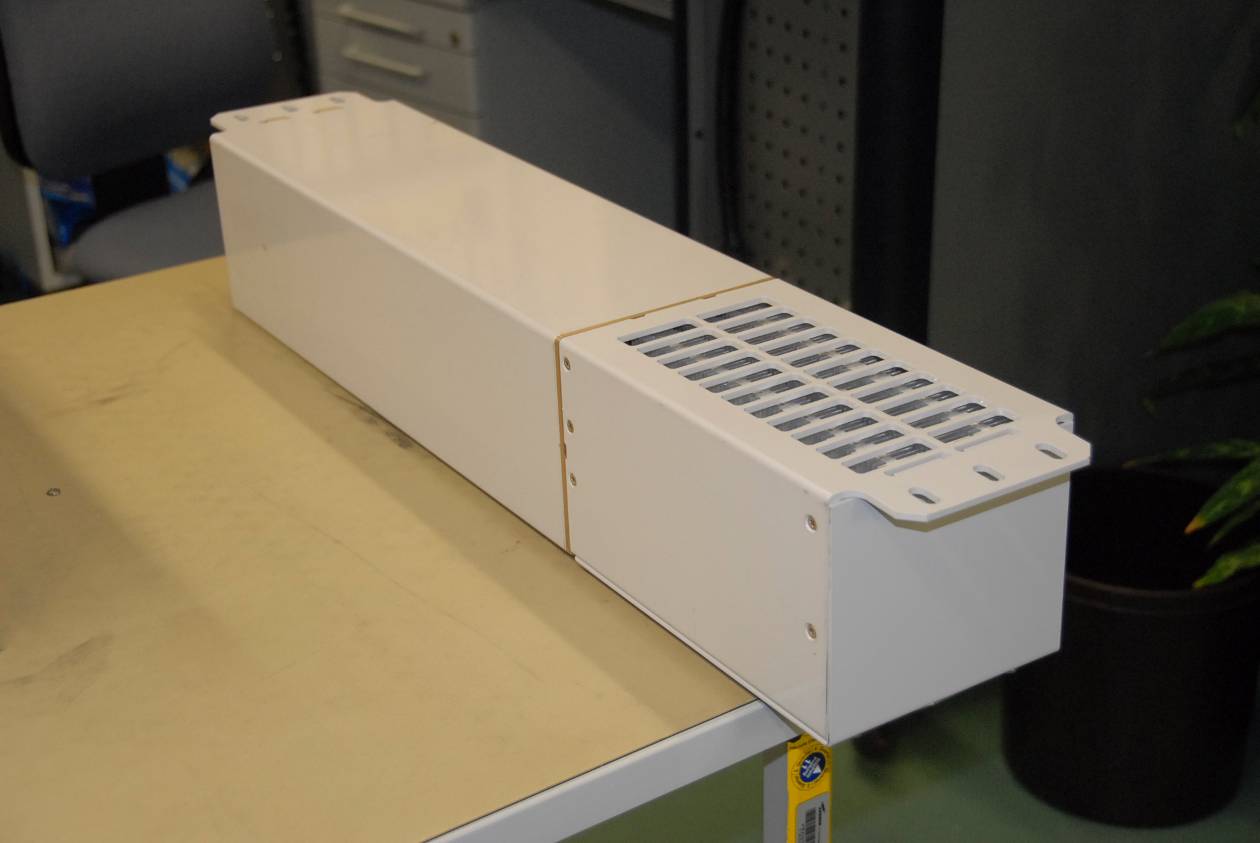

External Pictures

Label Location

RF Exposure Info / MPE Sample Calculation ION-B Series Booster for 1900 MHz Commercial Band Model: ION-M19P/19HP FCC ID: XS5-ION-M19P19HP The ION-M19P/19HP is a fibre optic based RF repeater for wireless applications. A RF signal is converted to an optical signal by directly modulating a laser. There is no frequency conversion in this system. The optical signal is converted back to RF at the ION-M remote unit, amplified and broadcast from an antenna or into a passive RF distribution system, such as radiating cable. This specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B) Limits for General Population / Uncontrolled Exposures) Frequency Range (MHz) Power Density (mW/cm²) 1500-15000MHz 1mW/cm² The Repeater operates in the frequency range of 1975 to 1990 MHz and1930 to 1945MHz, so that the Power Density Limit is 1mW/cm². The max measured conducted output power is: - max composite output power based on one carrier (rated) per path: 39.8W (46.0 dBm) The maximum permitted level is to be calculated using the general equation: S = P*G / 4 R² P = 39,8W; G = antenna-cable attenuation to be defined (numeric gain); = 3,1416 The min separation distance between the antenna and any human body is to be calculated (solving for R in cm) with the final actual antenna gain/cable attenuation where the limit of 1mW/cm² is kept. The antenna(s) used with this device must be fixed-mounted on outdoor permanent structures with a sufficient distance to any human body to comply with the RF Exposure limit.

EMC Test Report No.: 10-278 Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full ECL-TAL Test Report No.: 10-278 Equipment under test: ION-M19P/19HP Block A XS5-ION-M19P19HP FCC ID: FCC 47 CFR Part 24 Subpart E Broadband PCS Type of test: Measurement Procedures: 47 CFR Parts 2 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), 24 (Broadband PCS), ANSI/TIA-603-C (2004), Test result: Passed Date of issue: 11.11.2010 Signature: Issue-No.: 01 Author: G. Weinfurtner Test engineer Date of delivery: 02.11.10 Checked: M. Lehmann Head of the EMC Lab Test date: 02.11.10 without the written approval of the testing laboratory. ECL-EMC-TR-10-278-V01.00 Page 1 of 42 EMC Test Report No.: 10-278 FCC ID: XS5-ION-M19P19HP ANDREW Wireless Systems GmbH Manufacturer: Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 0911 59835 923 Fax: +49 0911 59835 90 General: General: The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 24 E of the Code of Federal Regulations title 47. The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 24 E of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-278-V01.00 Page 2 of 42 EMC Test Report No.: 10-278 FCC ID: XS5-ION-M19P19HP The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-278-V01.00 Page 3 of 42 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 SYSTEM DIAGRAM OF EUT .........................................................................................................7 2.1.5 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS..............................................................8 3 TEST SITE (ANDREW BUCHDORF) ....................................................................................................9 3.1 TEST ENVIRONMENT..........................................................................................................................9 3.2 TEST EQUIPMENT..............................................................................................................................9 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................9 3.4 MEASUREMENT UNCERTAINTY............................................................................................................9 4 TEST SITE (TEMPTON SERVICE PLUS GMBH) ...............................................................................10 5 RF POWER OUT: §24.232, §2.1046 ...................................................................................................11 5.1 LIMIT...............................................................................................................................................11 5.2 TEST METHOD.................................................................................................................................11 5.3 TEST RESULTS................................................................................................................................12 5.3.1 DOWNLINK...............................................................................................................................13 5.3.1.1 GSM................................................................................................................................14 5.3.1.2 GSM EDGE ....................................................................................................................14 5.3.1.3 CDMA .............................................................................................................................15 5.3.1.4 W-CDMA.........................................................................................................................15 5.3.1.5 LTE .................................................................................................................................16 5.3.2 UPLINK....................................................................................................................................16 5.4 SUMMARY TEST RESULT...................................................................................................................16 6 OCCUPIED BANDWIDTH: §2.1049 ....................................................................................................17 6.1 LIMIT..................................…

Text truncated - open the document above for the full version.

EMC Test Report No.: 10-279 Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-TAL-TR-09-PNR-V01.00 Page 1 of 42 Date of issue: 11.11.2010 Signature: Issue-No.: 01 Author: G. Weinfurtner Test engineer Date of delivery: 02.11.10 Checked: M. Lehmann Head of the EMC Lab Test dates: 02.11.10 ECL-TAL Test Report No.: 10-279 Equipment under test: ION-M19P/19HP Block C XS5-ION-M19P19HP FCC ID: FCC 47 CFR Part 24 Subpart E Broadband PCS Type of test: Measurement Procedures: 47 CFR Parts 2 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), 24 E (Broadband PCS), ANSI/TIA-603-C (2004), Test result: Passed EMC Test Report No.: 10-279 FCC ID: XS5-ION-M19P19HP ANDREW Wireless Systems GmbH Manufacturer: Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: HERBERG Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 0911 59835 923 Fax: +49 0911 59835 90 General: General: The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 24 E of the Code of Federal Regulations title 47. The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 24 E of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-279-V01.00 Page 2 of 42 EMC Test Report No.: 10-279 FCC ID: XS5-ION-M19P19HP The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-279-V01.00 Page 3 of 42 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 SYSTEM DIAGRAM OF EUT .........................................................................................................7 2.1.5 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS..............................................................8 3 TEST SITE (ANDREW BUCHDORF) ....................................................................................................9 3.1 TEST ENVIRONMENT..........................................................................................................................9 3.2 TEST EQUIPMENT..............................................................................................................................9 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................9 3.4 MEASUREMENT UNCERTAINTY............................................................................................................9 4 TEST SITE (TEMPTON SERVICE PLUS GMBH) ...............................................................................10 5 RF POWER OUT: §24.232, §2.1046 ...................................................................................................11 5.1 LIMIT...............................................................................................................................................11 5.2 TEST METHOD.................................................................................................................................11 5.3 TEST RESULTS................................................................................................................................12 5.3.1 DOWNLINK...............................................................................................................................13 5.3.1.1 GSM................................................................................................................................14 5.3.1.2 GSM EDGE ....................................................................................................................14 5.3.1.3 CDMA .............................................................................................................................15 5.3.1.4 W-CDMA.........................................................................................................................15 5.3.1.5 LTE .................................................................................................................................16 5.3.2 UPLINK....................................................................................................................................16 5.4 SUMMARY TEST RESULT...................................................................................................................16 6 OCCUPIED BANDWIDTH: §2.1049 ....................................................................................................17 6.1 LIMIT...............................…

Text truncated - open the document above for the full version.

Testsetup RF Measurement equipment: set-up conducted RF set-up >1GHz radiated @3m FAC set-up <1GHz radiated @3m FAC
