XS5-ION-M19PEUION M Remote Unit

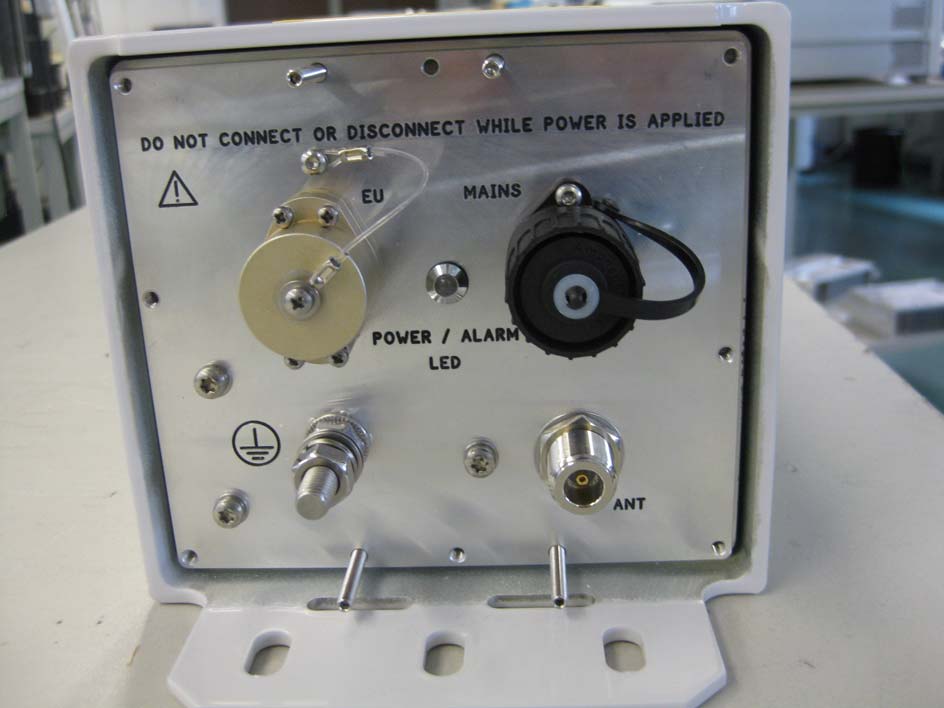

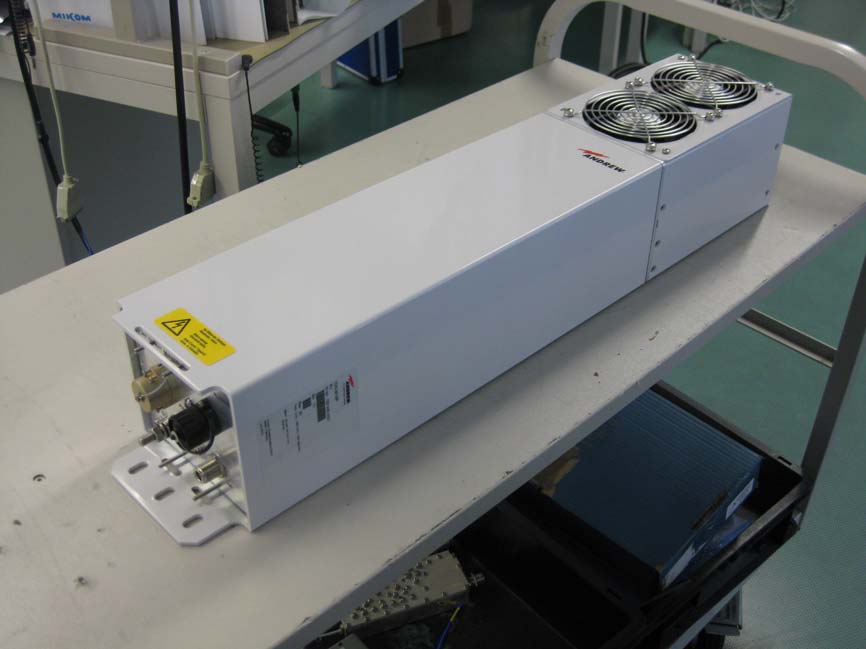

External pictures

RF Exposure Info / MPE Sample Calculation ION-B Series Booster for 800/850 MHz Commercial Band Model: ION-M 80-85HP/19P FCC ID: XS5-ION-M19PEU The ION-M 80-85HP/19P is a fibre optic based RF repeater for wireless applications. A RF signal is converted to an optical signal by directly modulating a laser. There is no frequency conversion in this system. The optical signal is converted back to RF at the ION-B remote unit, amplified and broadcast from an antenna or into a passive RF distribution system, such as radiating cable. This specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B) Limits for General Population / Uncontrolled Exposures) Frequency Range (MHz) Power Density (mW/cm²) >1500 1mW/ cm² The Repeater operates in the frequency range of 1930 - 1995 MHz, so that the Power Density Limit is 1mW/cm² The max measured conducted output power is: - max composite output power based on one carrier (rated) per path: 20W (43.0 dBm) The maximum permitted level is to be calculated using the general equation: S = P*G / 4 R² P = 20W; G = antenna-cable attenuation to be defined (numeric gain); = 3,1416 The min separation distance between the antenna and any human body is to be calculated (solving for R in cm) with the final actual antenna gain/cable attenuation where the limit of 1 mW/cm² is kept. The antenna(s) used with this device must be fixed-mounted on outdoor permanent structures with a sufficient distance to any human body to comply with the RF Exposure limit.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-208-V01.00 Page 1 of 38 Date of issue: 31.08.10 Signature: Issue-No.: 01 Author: M. Lehmann Test engineer Date of delivery: 14.07.10 Checked: M. Grytz Operational manager Test dates: 15.07. – 05.08.10 Pages: 38 ECL-EMC Test Report No.: 10-208 Equipment under test: ION M 19P EU FCC ID: XS5-ION-M19PEU IC ID: 2237E- IONM19PEU Type of test: FCC 47 CFR Part 24 Subpart E Broadband PCS RSS-Gen:2007, RSS-131:2003 2 GHz Personal Communications Services Measurement Procedures: 47 CFR Parts 2 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), 24 (Broadband PCS), ANSI/TIA-603-C (2004), Land Mobile FM or PM Communications Equipment Measurement and Performance Standards IC-GEN General Requirements and Information for the Certification of Radiocommunication Equipment Test result: Passed EMC Test Report No.: 10-208 FCC ID: XS5-ION-M19PEU The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-ECL-TR-10-208-V01.00 Page 2 of 38 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 0911 59835 0 Fax: +49 0911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for unlicensed devices operating under section 24E of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. EMC Test Report No.: 10-208 FCC ID: XS5-ION-M19PEU The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-ECL-TR-10-208-V01.00 Page 3 of 38 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 SYSTEM DIAGRAMS....................................................................................................................7 2.1.5 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS..............................................................8 3 TEST SITE (ANDREW BUCHDORF) ....................................................................................................9 3.1 TEST ENVIRONMENT..........................................................................................................................9 3.2 TEST EQUIPMENT..............................................................................................................................9 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................9 3.4 MEASUREMENT UNCERTAINTY............................................................................................................9 4 TEST SITE (TEMPTON SERVICE PLUS GMBH) ...............................................................................10 4.1 TEST ENVIRONMENT........................................................................................................................10 5 RF POWER OUT: §24.232, §2.1046; RSS-133, RSS-GEN ................................................................11 5.1 LIMIT...............................................................................................................................................11 5.2 TEST METHOD.................................................................................................................................11 5.3 TEST RESULTS................................................................................................................................12 5.3.1 DOWNLINK...............................................................................................................................13 5.3.1.1 CDMA .............................................................................................................................14 5.3.1.2 W-CDMA.........................................................................................................................14 5.3.1.3 GSM................................................................................................................................15 5.3.1.4 GSM-EDGE ....................................................................................................................15 5.3.2 UPLINK....................................................................................................................................16 5.4 SUMMARY TEST RESULT...................................................................................................................16 6 OCCUPIED BANDWIDTH: §2.1049; RSS-GEN ..................................................................................17 6.1 LIMIT...............................................................................................................................................17 6.2 TEST METHOD..............…

Text truncated - open the document above for the full version.

Test-set-up photos RE<1GHz @3m FAC RE>1GHz @3m FAC
