Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

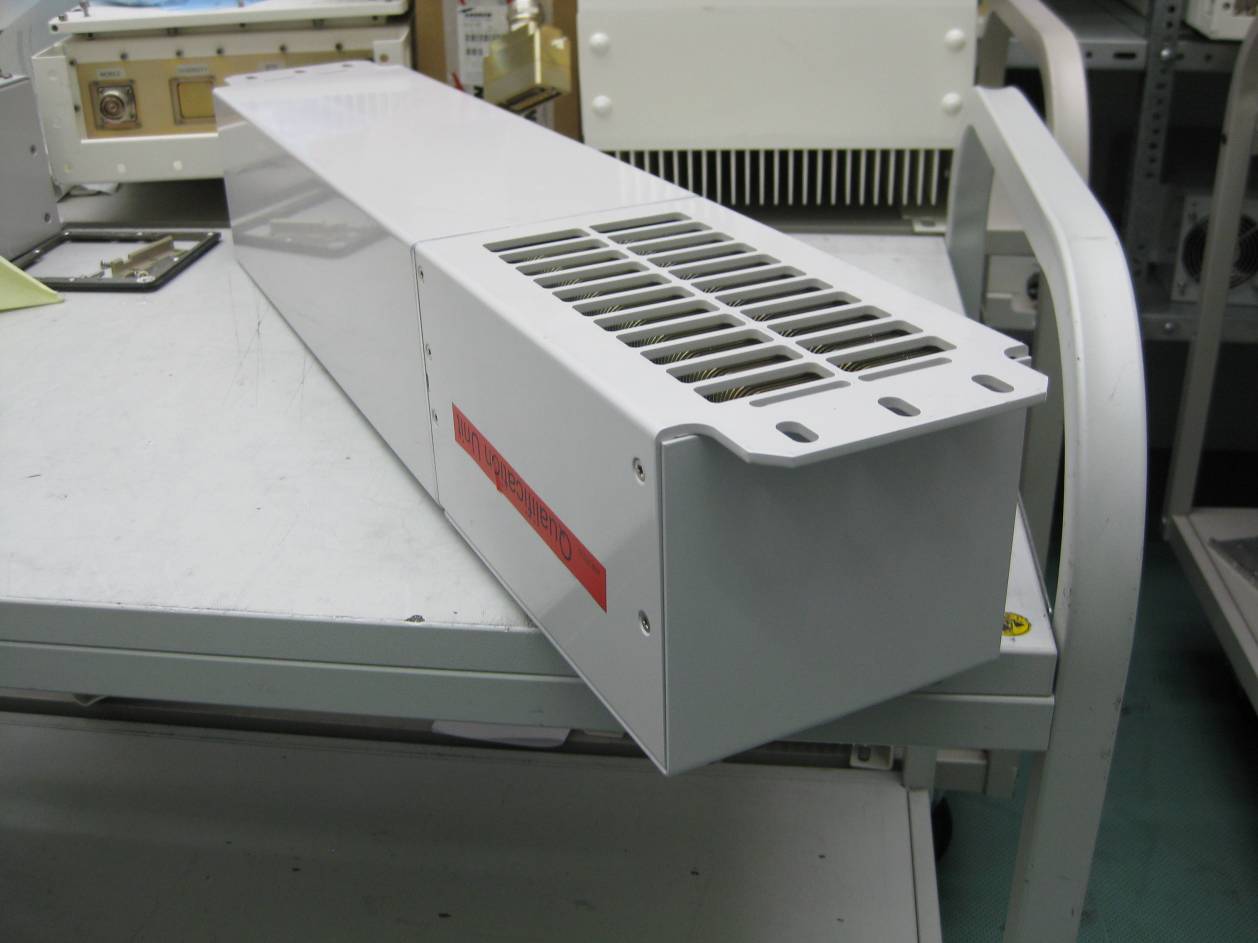

External Pictures
Label Location
RF Exposure Info / MPE Sample Calculation Model: ION‐M7P/7P EU 2x 700MHz Path FCC‐ID: XS5‐ION‐M77PEU The ION‐M7P/7P EU (Extension Unit) is a fibre optic based RF repeater for wireless applications. A RF signal is converted to an optical signal by directly modulation a laser. The optical signal is converted back to RF at a Main Unit, for example the ION‐M85HP/19HP (which is not part of this FCC certification), afterwards transmitted through an RF cable to the ION‐M7P/7P EU, converted, amplified and broadcast from an antenna or into a passive RF distribution system, such as radiating cable. The System includes a single frequency conversion through a conversion module. The specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B). Limits for General Population / Uncontrolled Exposures Frequency Range (MHz) Power Density (mW/cm 2 ) 300 – 1500 f/1500 The Repeater operates in the frequency range of 728 – 757 MHz, so that the Power Density Limit is 728/1500 = 0,48533 The max measured conducted output power is: ‐ max composite output power based on one carrier (rated) per path: 20W (43.0dBm) The maximum permitted level is to be calcul ated using general equation: S = P*G/4πR 2 P = 20W; G = antenna‐cable attenuation to be defined (numeric gain); π = 3,1416 The min separation distance between the antenna and any human body is to be calculated (solving for R in cm) with the final actual antenna gain/cable attenuation where the limit of 0,48533 mW/cm 2 is kept. The antenna(s) used with device must be fixed‐mounted on outdoor permanent structures with a distance to any human body to comply with the RF Exposure limit.
Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-11-015-V01.00 Page 1 of 31 Date of issue: 24.01.11 Signature: Issue-No.: 01 Author: Tom Zahlmann Test engineer Date of delivery: 25.01.11 Checked: G. Weinfurtner Test engineer Test dates: 6.12.10 – 20.01.11 Pages: 31 ECL-EMC Test Report No.: 11-015 Equipment under test: ION-M7P/7P EU 2x 700MHz Path XS5-ION-M77PEU FCC ID: 2237E-IONM77PEU IC ID: Type of test: FCC 47 CFR Part 27 Subpart H, F, :2009 Miscellaneous Wireless Communication Services IC RSS-131:2003 Zone Enhancers for the Land Mobile Service Measurement Procedures: 47 CFR Parts 2:2009 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), Part 27:2009 (Miscellaneous Wireless Communication Services), ANSI/TIA-603-C:2004, Land Mobile FM or PM Communications Equipment Measurement and Performance Standards IC-GEN:2007 General Requirements and Information for the Certification of Radiocommunication Equipment Test result: Passed Test Report No.: 11-015 FCC ID: XS5-ION-M77PEU IC ID: 2237E-IONM77PEU The test report shall not be reproduced except in full ANDREW Wireless Systems GmbH Manufacturer: Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 (0) 911 59835 0 Fax: +49 (0) 911 59835 90 General: General: The purpose of this report is to show compliance to the FCC regulations for devices operating under Part 27 of the Code of Federal Regulations title 47. The purpose of this report is to show compliance to the FCC regulations for devices operating under Part 27 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. without the written approval of the testing laboratory. ECL-EMC-TR-11-015-V01.00 Page 2 of 31 Test Report No.: 11-015 FCC ID: XS5-ION-M77PEU IC ID: 2237E-IONM77PEU The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-11-015-V01.00 Page 3 of 31 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 SYSTEM DIAGRAM OF EUT .........................................................................................................7 2.1.5 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS..............................................................8 3 TEST SITE (ANDREW BUCHDORF) ....................................................................................................8 3.1 TEST ENVIRONMENT..........................................................................................................................8 3.2 TEST EQUIPMENT..............................................................................................................................8 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................8 3.4 MEASUREMENT UNCERTAINTY............................................................................................................9 4 TEST SITE (TEMPTON) ........................................................................................................................9 5 RF POWER OUT: §27.50, §2.1046; RSS-131, RSS-GEN ..................................................................10 5.1 LIMIT...............................................................................................................................................10 5.2 TEST METHOD.................................................................................................................................10 5.3 TEST RESULTS................................................................................................................................11 5.3.1 DOWNLINK...............................................................................................................................11 5.3.1.1 LTE 728 – 746MHz, MIMO.............................................................................................12 5.3.1.2 LTE 746 – 757MHz, MIMO.............................................................................................12 5.3.2 UPLINK....................................................................................................................................13 5.4 SUMMARY TEST RESULT...................................................................................................................13 6 OCCUPIED BANDWIDTH: §90.210, §2.1049; RSS-GEN...................................................................14 6.1 LIMIT.......................................................................................................................................…
Text truncated - open the document above for the full version.
Test Report No.: 11-015 FCC ID: XS5-ION-M77PEU 2237E-ION-M77PEU The test report shall not be reproduced except in full 8 Radiated Spurious Emissions at the ECL (TEMPTON): §27.53, §2.1053, RSS-Gen, RSS-131 picture 8.1: Test setup: Field Strength Emission <1 GHz @3m in the FAC without the written approval of the testing laboratory. ECL-EMC-TR-11-015-V01.00 Page 24 of 31 Test Report No.: 11-015 FCC ID: XS5-ION-M77PEU 2237E-ION-M77PEU The test report shall not be reproduced except in full picture 8.2: Test setup: Field Strength Emission >1 GHz @3m in the FAC without the written approval of the testing laboratory. ECL-EMC-TR-11-015-V01.00 Page 25 of 31
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 2 | 27 | 746 MHz - 757 MHz | 20 W | F9W | Amp |
