ION™-M7P/8P S (Q cabinet) Optical Remote Unit User's Manual MF0132APA User’s Manual for ION-M7P/8P S Page 2 MF0132APA.doc © Copyright 2010 CommScope, Inc. All rights reserved. Andrew Solutions is a trademark of CommScope, Inc. All information contained in this manual has been revised thoroughly. Yet Andrew Solutions accepts no liability for any omissions or faults. Andrew Solutions reserves the right to change all hard- and software characteristics without notice. Names of products mentioned herein are used for identification purposes only and may be trademarks and / or registered trademarks of their respective companies. No parts of this publication may be reproduced, stored in a retrieval system, transmitted in any form or by any means, electronical, mechanical photocopying, recording or otherwise, without prior written permission of the publisher. Andrew Wireless Systems GmbH, 12-April-2010 Page 3 TABLE OF CONTENTS 1. GENERAL 7 1.1. USED ABBREVIATIONS 7 1.2. HEALTH AND SAFETY WARNINGS 9 1.3. ABOUT ANDREW SOLUTIONS 11 1.4. INTERNATIONAL CONTACT ADDRESSES FOR WIG CUSTOMER SUPPORT 12 2. INTRODUCTION 15 2.1. PURPOSE 15 2.2. THE ION-M7P/8P S (INTELLIGENT OPTICAL NETWORK; MMR) 15 3. FUNCTIONAL DESCRIPTION 17 3.1. GENERAL 17 3.2. COMPONENTS OF THE ION-M7P/8P S REMOTE UNIT 18 3.3. OPTIONAL EQUIPMENT - RELAY ALARM CONNECTING BOARD 18 4. COMMISSIONING 19 4.1. MECHANICAL INSTALLATION 19 4.1.1. General 19 4.1.2. Wall and Pole Mounting 20 4.2. ELECTRICAL INSTALLATION 21 4.2.1. General 21 4.2.2. Connections 22 4.2.3. Grounding 22 4.2.4. Power Connection 23 4.3. CONNECTION OF THE ANTENNA CABLES 24 4.4. CONNECTION OF THE RF CABLES MAIN UNIT TO COMBINING UNIT 24 4.5. OPTICAL-FIBRE-CABLE CONNECTION - RULES 25 4.5.1. Protective Plug 26 4.5.2. Protective-Tube Kit 28 4.6. COMMISSIONING 30 User’s Manual for ION-M7P/8P S Page 4 MF0132APA.doc 5. ALARMS 33 5.1. BITE AND ALARMS 33 5.2. HANDLING OF ALARMS 33 5.3. ALARM STATUS 33 5.4. STATUS LED ALARMS 33 5.5. RELAY ALARM CONNECTING BOARD 35 5.5.1. External-Alarm Inputs and Outputs 35 5.5.2. Layout and Connector Description 36 5.6. REDUNDANCY RELAY CONFIGURATION 37 5.7. TROUBLESHOOTING 38 6. MAINTENANCE 39 6.1. GENERAL 39 6.2. OPENING AND CLOSING OF THE CABINET 40 6.3. REPLACEMENT OF POWER SUPPLY 41 6.4. REPLACEMENT OF FAN UNIT 42 7. APPENDIX 43 7.1. LAYOUT 43 7.2. SPECIFICATIONS 44 8. INDEX 45 Page 5 FIGURES AND TABLES figure 3-1 Configuration of an ION-M7P/ 8P S.......................................................... 17 figure 3-2 ION-M7P/8P S, lid .................................................................................... 18 figure 3-3 ION-M7P/8P S, base ................................................................................ 18 figure 4-1 Wall mounting........................................................................................... 20 figure 4-2 Pole mounting .......................................................................................... 20 figure 4-3 ION-M7P/8P S, connector flange, exemplary ........................................... 22 figure 4-4 Grounding bolt .......................................................................................... 22 figure 4-5 AC mains plug .......................................................................................... 23 figure 4-6 DC mains plug .......................................................................................... 23 figure 4-7 Protective-plug assembly ......................................................................... 26 figure 4-8 Tube-kit installation................................................................................... 29 figure 5-1 Alarm triggering ........................................................................................ 34 figure 5-2 Relay alarm connecting board, description of connectors ........................ 36 figure 5-3 Alarm-output contacts, alarm condition .................................................... 37 figure 5-4 Redundancy connection, cabling.............................................................. 37 figure 5-5 Redundancy RF relay............................................................................... 37 figure 5-6 Redundancy connectors, Main Unit and Substitute Unit........................... 37 figure 6-1 Locker with key......................................................................................... 40 figure 6-2 Front and top cover screws ...................................................................... 40 figure 6-3 Power supply screws................................................................................ 41 figure 6-4 Fan unit screws ........................................................................................ 42 figure 6-5 Fan-connector cable................................................................................. 42 figure 7-1 Layout of ION-M7P/8P S, lid.................................................................... 43 figure 7-2 Layout of ION-M7P/8P S, base ................................................................ 44 table 1-1 List of international contact addresses....................................................... 13 table 5-1 Status LED alarms..................................................................................... 34 table 5-2 Relay alarm connecting board connectors, pin assignment....................... 36 table 6-1 Specified torques for various screw types ................................................. 39 User’s Manual for ION-M7P/8P S Page 6 MF0132APA.doc For your notes: 1 General Page 7 1. GENERAL 1.1. USED ABBREVIATIONS ALC Automatic Level Control AMPS American Mobile Phone System or Advanced Mobile Phone System APAC Automatic Power Adjustment Circuit AWS Advanced Wireless Services BBU Battery Backup Unit BCCH Broadcast Control Channel BITE Built-In Test Equipment BTS Base Transceiver Station CDMA Code Division Multiple Access CEPT Conférénce Européenne des Postes et Télécommunications C…

Text truncated - open the document above for the full version.

PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg RE: Certification Application FCC ID: XS5-ION-M7P8PS TC# 405853 Please be advised that the Grantee will supersede the following document for the above-referenced equipment.  Letter Request for Confidentiality. The Grantee changed the Letter, the Parts List will be held confidential. Thank you for your attention in this matter.

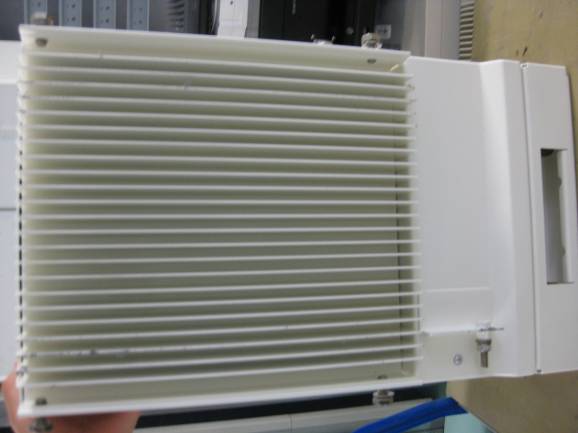

External Pictures Top Bottom Front Bottom Left Right

Label location

Internal Pictures OTRx Top OTRx Bottom Controlboard Top Controlboard Bottom Miniboard Top Miniboard Bottom Amplifier Top Amplifier Bottom

ION-M4/8 19”Operation Description The ION-M7P/8P S is a fibre optic based RF repeater for wireless applications. A RF signal is converted to an optical signal by directly modulating a laser. There is no frequency conversion in this system. The optical signal is converted back to RF at the ION-M remote unit, amplified and broadcast from an antenna or into a passive RF distribution system, such as radiating cable. The RF gain in the system is maintained at a constant level throughout the system via AGC and the user does not need to adjust the gain of the system. The user would inject a RF signal to produce the appropriate RF output power from the ION-M remote unit. The receive path will always terminate in a RF source, such as a base station or repeater, and will not be directly connected to any antenna. PRODUCT SPECIFICATION base stations to a remote location over the same fiber. The ION optical distribution system is a cost-effective coverage solution for dense urban areas, tunnels, subway, airports, convention centers, high-rise buildings and other locations where physical structures increase path loss. It has been specifically designed to reduce zoning problems and to pro- vide homogeneous coverage. The compact, mechanical design is specifi- cally architected to mount at poles or along side structures in such a way that it has a minimum visual impact. The ION-M7P/8P S performance is available both in single or multi-band configuration supporting 700 MHz, and 800 MHz in parallel. It has been specifically tested and optimized for TDMA, CDMA2000, and WCDMA. Furthermore it is provisioned for future improvements to modulations (e.g. HSPA, EV-DO and OFDM) and fre- quency bands. In addition it is back- wards compatible to legacy standards such as Analog. The ION is easily set-up and super- vised via a graphical user interface (GUI). Remote units can be commis- sioned through the use of built-in test equipment. An auto leveling function Multi-operator Remote Optical System ION™-M7P/8P S compensates for the optical link loss making installation easy and quick. The entire system may be monitored remotely via an Andrew OMC. This is a comprehensive management platform with SNMP protocol and X.733 standard implemented. Should a sophisticated interface not be re- quired, the master unit can be directly connected to the alarm interface of a base station via relay alarming. • Multi-band, multi-operator support • Reduced visual impact form factor • High, efficient power amplifier • Single fiber for multiple bands and multiple remotes • Comprehensive operations and management system for configura- tion and alarming • OMC with SNMP according to X.733 standard • Easy installation and commissioning • Redundancy configuration option Andrew ION-M7P/8P S is a multi- operator remote unit with various extension units. It is used in conjunction with a master unit in the ION optical distribution system. This system trans- ports the entire 700 MHz public safety and 800 MHz LMR frequency bands simultaneously, providing a cost-effi- cient solution for distributing capacity from one or more base stations. The ION-M7P/8P S transports signals on the RF layer in a very inexpensive manner. This means that multiple operators and multiple technologies are moved simultaneously from a cluster of PRODUCT SPECIFICATION ION TM is the unified platform for all conceivable optical distribution scenarios. The ION optical distribution system leads the industry in flexibility while minimizing the overall deployment cost. ION TM Series SPECIFICATIONS ION-M7P/8P S - Product Specification Electrical Power Supply Mains power, Vac . . . . . . . .. . . . . . . . . . . . . . . . . . 85 to 264 . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . 115 or 230 Power consumption, watts . . . . . . . . . . . . . . . . . . 550* Optical Connectors. . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . E2000/APC 8° Optical return loss, dB . . . .. . . . . . . . . . . . . . . . . . 45 minimum Fiber type,mm . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . Single mode E9/125 Optical link budget, dB . . .. . . . . . . . . . . . . . . . . . 0 to 10 Composite input power @ OTRx master side, dBm . . . . . . . . . . . . . . . .700 MHz. . . . . . . . . . . . . 4.0 composite . . . . . . . . . . . . . . . .800 MHz. . . . . . . . . . . . . 4.0 composite Interface BTS Side Number of connectors . . . . . . . . . . . . . . . .700 MHz. . . . . . . . . . . . . 4 . . . . . . . . . . . . . . . .800 MHz. . . . . . . . . . . . . 4 System optimized for BTS power, dBm . . . . . . . . . . . . . .33 . . . . . . . . . . . . . .43 Antenna Port Connector . . . . . . . . . . . . N Female Output power . . . . . . . . . . . . See band specification Return loss, dB . . . . . . . . . . . . 15 700 MHz Frequency range, MHz Uplink . . . . . . . . . . . . . . . . 778 to 806 Downlink . . . . . . . . . . . . . . . . 763 to 775 Output power per carrier**, dBm Number of Carriers. . . . . . . . . . . 1 2 .4 . 8 Analog. . . . . . . . . . . . . 44 41 . .38 . . 35 TDMA/EDGE . . . . . . . . . . 44 41 . .38 . . 35 CDMA/EV-DO. . . . . . . . . . 44 41 . .38 . . 35 WCDMA/HSPA . . . . . . . . . 43 40 . .37 . . 34 Spurious emission . . . . . . . . . . . . <-13 dBm / 1 MHz DL output tolerance over frequency, dB . . . . . . . ±1 DL output tolerance over temperature, dB. . . . . . ±0.5*** Input ICP3, dBm ICP3 optimized. . . . . . . . . -11 Noise figure optimized . . . . . -18 Noise figure, dB ICP3 optimized. . . . . . . . . 10 Noise figure optimized . . . . . 6 800 MHz Frequency range, MHz Uplink . . . . . . . . . . . . . . . . 806 to 824 Downlink . . . . . . . . . . . . . . . . 851 to 869 Output power per carrier**, dBm Number of Carriers. . . . . . . . . . . 1 2 .4 . 8 Analog. . . . . . . . . . . . . 44 41 . .38 . . 35 TDMA/EDGE . . . . . . . . . . 44 41 . .38 . . 35 CDMA/EV-DO. . . . . . . . . . 44 41 . .38 . . 35 WCDMA/HSPA . . . . . . . . . 43 40 . .37 . . 34 Spuri…

Text truncated - open the document above for the full version.

ION-M7P/8P S Tune-Up Procedure Gain for the ION-M7P/8P S is set at the factory and no provisions are made for user accessible controls. Output power is a function of the input power and the fixed gain of the ION-M7P/9P S. The user should provide an input signal that will produce an output power not exceeding the levels included in the product data sheet for the ION-M7P/8P S remote.

MPE Calculation / RF Exposure Info FCC ID: XS5-ION-M7P8PS The EUT is a multi-band, multi-operator remote unit with various extension units. It is used in conjunction with a master unit in the ION optic al distribution system (Uplink 778 – 806 MHz; Downlink 763 – 775 MHz and Uplink 806 – 824 MHz; Downlink 851 – 869 MHz). This specific device will be professionally installed. The antenna used with this device must be fixed-mounted on indoor or outdoor permanent structures with a sufficient distance to any human body to comply with the RF Exposure limit. Hereby the a ntenna gain and cable attenuation will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). As specified in Table 1B of 47 CFR 1.1310 – Limits for Maximum P ermissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure Frequency range (MHz) Power density (mW/cm²) 300 – 1,500 f/1500 1,500 – 100,000 1.0 the maximum permissible exposure limit is (frequency 869 MHz): 0.579 mW/cm² (general / uncontrolled exposures) The min separation distance between the antenna and any human body is to be calculated (solving for R in cm) with the final actual antenna gain/cable attenuation where the limit of 0.579 m W /cm² is kept using the general equation: S = P*G / 4πR² S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of intere st relative to an isotropic radiator R = distance to the centre of radiation of the antenna Sample Calculation: Maximum output power at antenna input terminal: 44. 05 dBm Maximum ant enna gain (including cable loss) according to maximum output power: 15.95 d B d The minimum separation distance: 3.71 Meter (37 0.7 3 cm)

Test Report No.: 10-032 FCC ID: XS5- ION-M7P8PS IC ID: 2237E-IONM7P8PS The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-032-V01.00 Page 2 of 53 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 0911 59835 0 Fax: +49 0911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 90 of the Code of Federal Regulations title 47. This report informs about the results of the RF tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Test Report No.: 10-032 FCC ID: XS5- ION-M7P8PS IC ID: 2237E-IONM7P8PS The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-032-V01.00 Page 3 of 53 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 SYSTEM DIAGRAMS....................................................................................................................7 2.1.5 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS.............................................................8 3 TEST SITE (ANDREW BUCHDORF) ....................................................................................................9 3.1 TEST ENVIRONMENT..........................................................................................................................9 3.2 TEST EQUIPMENT..............................................................................................................................9 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................9 3.4 MEASUREMENT UNCERTAINTY............................................................................................................9 4 TEST SITE (TEMPTON SERVICE PLUS GMBH) ...............................................................................10 5 RF POWER OUT: §90.635, §2.1046; IC RSS-131 ..............................................................................11 5.1 LIMIT...............................................................................................................................................11 5.1.1 FCC CFR47 ...........................................................................................................................11 5.1.2 RSS-131 ................................................................................................................................11 5.2 TEST METHOD.................................................................................................................................11 5.2.1 FCC CFR47 ...........................................................................................................................11 5.2.2 IC RSS-GEN ..........................................................................................................................12 5.3 TEST RESULTS................................................................................................................................13 5.3.1 DOWNLINK...............................................................................................................................14 5.3.1.1 Analog.............................................................................................................................15 5.3.1.2 TDMA..............................................................................................................................15 5.3.1.3 EDGE..............................................................................................................................16 5.3.1.4 CDMA .............................................................................................................................16 5.3.1.5 EV-DO ............................................................................................................................17 5.3.1.6 WCDMA..........................................................................................................................17 5.3.1.7 HSPA ..............................................................................................................................18 5.3.2 UPLINK....................................................................................................................................18 5.4 SUMMARY TEST RESULT...................................................................................................................18 6 OCCUPIED BANDWIDTH: §90.210, §2.1049; RSS-GEN...................................................................19 6.1 LIMIT...............................................................................................................................................19 6.2 TEST METHOD......................................................................................................................…

Text truncated - open the document above for the full version.

Test Report No.: 10-062 FCC ID: XS5- ION-M7P8PS IC ID: 2237E-IONM7P8PS The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-062-V01.00 Page 2 of 55 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 0911 59835 0 Fax: +49 0911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 90 of the Code of Federal Regulations title 47. This report informs about the results of the RF tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Test Report No.: 10-062 FCC ID: XS5- ION-M7P8PS IC ID: 2237E-IONM7P8PS The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-062-V01.00 Page 3 of 55 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 SYSTEM DIAGRAMS....................................................................................................................7 2.1.5 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS.............................................................8 3 TEST SITE (ANDREW BUCHDORF) ....................................................................................................9 3.1 TEST ENVIRONMENT..........................................................................................................................9 3.2 TEST EQUIPMENT..............................................................................................................................9 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................9 3.4 MEASUREMENT UNCERTAINTY............................................................................................................9 4 TEST SITE (HERBERG) ......................................................................................................................10 5 RF POWER OUT: §90.635, §2.1046; IC RSS-131 ..............................................................................11 5.1 LIMIT...............................................................................................................................................11 5.1.1 FCC CFR47 ...........................................................................................................................11 5.1.2 RSS-131 ................................................................................................................................11 5.2 TEST METHOD.................................................................................................................................11 5.2.1 FCC CFR47 ...........................................................................................................................11 5.2.2 IC RSS-GEN ..........................................................................................................................12 5.3 TEST RESULTS................................................................................................................................13 5.3.1 DOWNLINK...............................................................................................................................14 5.3.1.1 Analog.............................................................................................................................15 5.3.1.2 TDMA..............................................................................................................................15 5.3.1.3 EDGE..............................................................................................................................16 5.3.1.4 CDMA .............................................................................................................................16 5.3.1.5 EV-DO ............................................................................................................................17 5.3.1.6 WCDMA..........................................................................................................................17 5.3.1.7 HSPA ..............................................................................................................................18 5.3.2 UPLINK....................................................................................................................................18 5.4 SUMMARY TEST RESULT...................................................................................................................18 6 OCCUPIED BANDWIDTH: §90.210, §2.1049; RSS-GEN...................................................................19 6.1 LIMIT...............................................................................................................................................19 6.2 TEST METHOD.................................................................................................…

Text truncated - open the document above for the full version.

Test setup photos of radiated spurious emission Test setup >1 GHz @3m distance Test setup <1 GHz @10m distance
