XS5-ION-M8085HPION M Remote Unit

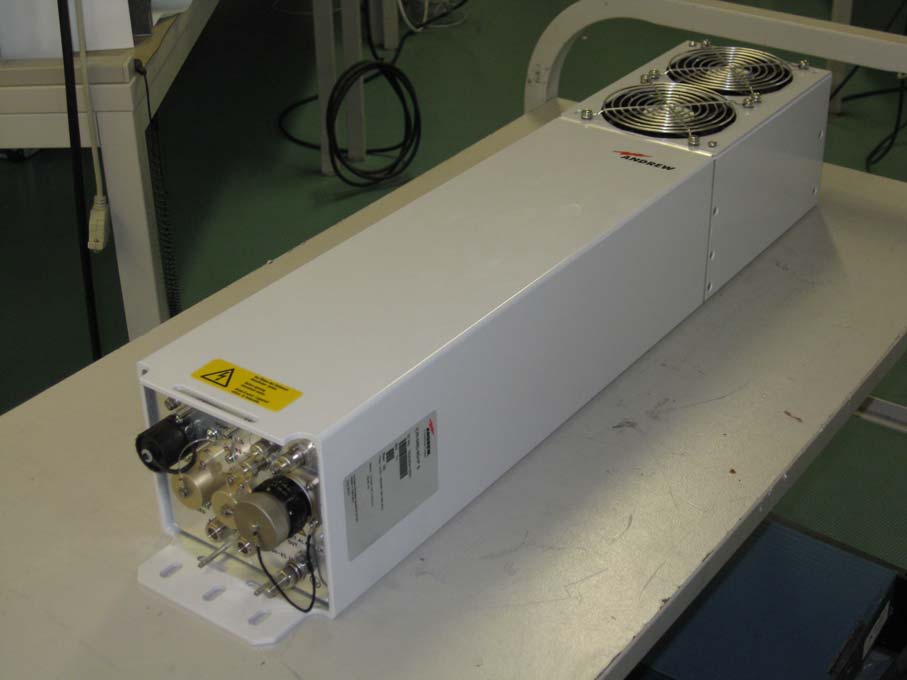

External pictures

Label location IC: 2237E‐IONM8085HP FCC ID: XS5‐ION‐M8085HP

RF Exposure Info / MPE Sample Calculation ION-B Series Booster for 800/850 MHz Commercial Band Model: ION-M 80-85HP/19P FCC ID: XS5-ION- M8085HP The ION-M 80-85HP/19P is a fibre optic based RF repeater for wireless applications. A RF signal is converted to an optical signal by directly modulating a laser. There is no frequency conversion in this system. The optical signal is converted back to RF at the ION-B remote unit, amplified and broadcast from an antenna or into a passive RF distribution system, such as radiating cable. This specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B) Limits for General Population / Uncontrolled Exposures) Frequency Range (MHz) Power Density (mW/cm²) 300 – 1500 f/1500 The Repeater operates in the frequency range of 851 – 894 MHz, so that the Power Density Limit is 851/1500 ~ 0.57 mW/cm² The max measured conducted output power is: - max composite output power based on one carrier (rated) per path: 40W (46.0 dBm) The maximum permitted level is to be calculated using the general equation: S = P*G / 4 R² P = 400 mW; G = antenna-cable attenuation to be defined (numeric gain); = 3,1416 The min separation distance between the antenna and any human body is to be calculated (solving for R in cm) with the final actual antenna gain/cable attenuation where the limit of 0.57 mW/cm² is kept. The antenna(s) used with this device must be fixed-mounted on outdoor permanent structures with a sufficient distance to any human body to comply with the RF Exposure limit.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-207-V01.00 Page 1 of 30 Date of issue: 31.08.10 Signature: Issue-No.: 01 Author: M. Lehmann Test engineer Date of delivery: 14.07.10 Checked: M. Grytz Operational manager Test dates: 14.07. – 05.08.10 Pages: 30 ECL-EMC Test Report No.: 10-207 Equipment under test: ION-M 80-85HP/19P (850MHz Path) FCC ID: XS5-ION-M8085HP IC ID: IC:2237E-IONM8085HP: Type of test: FCC 47 CFR Part 22 Subpart H:2009 Cellular Radiotelephone Service RSS-Gen:2007, RSS-131:2003 Zone Enhancers for the Land Mobile Service Measurement Procedures: 47 CFR Parts 2:2009 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), Part 22:2009 (Cellular Radiotelephone Service), ANSI/TIA-603-C:2004, Land Mobile FM or PM Communications Equipment Measurement and Performance Standards IC-GEN:2007 General Requirements and Information for the Certification of Radio communication Equipment Test result: Passed EMC Test Report No.: 10-207 Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-207-V01.00 Page 2 of 30 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 (0)911 59835 -0 Fax: +49 (0)911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for unlicensed devices operating under section 22H of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. EMC Test Report No.: 10-207 Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-207-V01.00 Page 3 of 30 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 SYSTEM DIAGRAM OF EUT .........................................................................................................7 2.1.5 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS..............................................................8 3 TEST SITE .............................................................................................................................................9 3.1 TEST ENVIRONMENT..........................................................................................................................9 3.2 TEST EQUIPMENT..............................................................................................................................9 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................9 3.4 MEASUREMENT UNCERTAINTY............................................................................................................9 4 TEST SITE (TEMPTON SERVICE PLUS GMBH) ...............................................................................10 5 RF POWER OUT: §22.913, §2.1046 ...................................................................................................11 5.1 LIMIT...............................................................................................................................................11 5.2 TEST METHOD.................................................................................................................................11 5.3 TEST RESULTS................................................................................................................................12 5.3.1 DOWNLINK...............................................................................................................................13 5.3.1.1 CDMA .............................................................................................................................14 5.3.1.2 W-CDMA.........................................................................................................................14 5.3.2 UPLINK....................................................................................................................................15 5.4 SUMMARY TEST RESULT...................................................................................................................15 6 OCCUPIED BANDWIDTH: §2.1049; RSS-GEN ..................................................................................16 6.1 LIMIT...............................................................................................................................................16 6.2 TEST METHOD.................................................................................................................................16 6.3 TEST RESULTS......................................................................................…

Text truncated - open the document above for the full version.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-209-V01.00 Page 1 of 30 Date of issue: 24.03.10 Signature: Issue-No.: 01 Author: M. Lehmann Test engineer Date of delivery: 16.02.10 Checked: M. Grytz Operational manager Test dates: 14.07 – 05.08.10 Pages: 30 ECL-EMC Test Report No.: 10-209 Equipment under test: ION-M 80-85HP/19P (800MHz Path) FCC ID: XS5-ION-M8085HP IC ID: IC:2237E-IONM8085HP: Type of test: FCC 47 CFR Part 90 Subpart S:2009 Private Land Mobile Repeater IC RSS-GEN:2007, RSS-131:2003 Zone Enhancers for the Land Mobile Service Measurement Procedures: 47 CFR Parts 2 :2009 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), 90 (Private Land Mobile), ANSI/TIA-603-C (2004), Land Mobile FM or PM Communications Equipment Measurement and Performance Standards IC-RSS-GEN General Requirements and Information for the Certification of Radiocommunication Equipment Test result: Passed Test Report No.: 10-209 FCC ID: XS5-ION-M8085HP IC ID: 2237E-IONM8085HP The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-209-V01.00 Page 2 of 30 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 0911 59835 0 Fax: +49 0911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 90S of the Code of Federal Regulations title 47. This report informs about the results of the RF tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Test Report No.: 10-209 FCC ID: XS5-ION-M8085HP IC ID: 2237E-IONM8085HP The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-209-V01.00 Page 3 of 30 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 SYSTEM DIAGRAMS....................................................................................................................7 2.1.5 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS.............................................................8 3 TEST SITE (ANDREW BUCHDORF) ....................................................................................................9 3.1 TEST ENVIRONMENT..........................................................................................................................9 3.2 TEST EQUIPMENT..............................................................................................................................9 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................9 3.4 MEASUREMENT UNCERTAINTY............................................................................................................9 4 TEST SITE (HERBERG) ......................................................................................................................10 5 RF POWER OUT: §90.635, §2.1046; IC RSS-131 ..............................................................................11 5.1 LIMIT...............................................................................................................................................11 5.2 TEST METHOD.................................................................................................................................11 5.3 TEST RESULTS................................................................................................................................12 5.3.1 DOWNLINK...............................................................................................................................12 5.3.1.1 Analog.............................................................................................................................13 5.3.1.2 iDEN ...............................................................................................................................13 5.3.2 UPLINK....................................................................................................................................14 5.4 SUMMARY TEST RESULT...................................................................................................................14 6 OCCUPIED BANDWIDTH: §90.210, §2.1049; RSS-GEN...................................................................15 6.1 LIMIT...............................................................................................................................................15 6.2 TEST METHOD.................................................................................................................................15 6.3 TEST RESULTS................................................................................................................................15 6.3.1 DOWNLINK..........…

Text truncated - open the document above for the full version.

Test-set-up photos RE<1GHz @3m FAC RE>1GHz @3m FAC
