XS5-ION-M851719HPOptical ION M remote unit for cellular networks

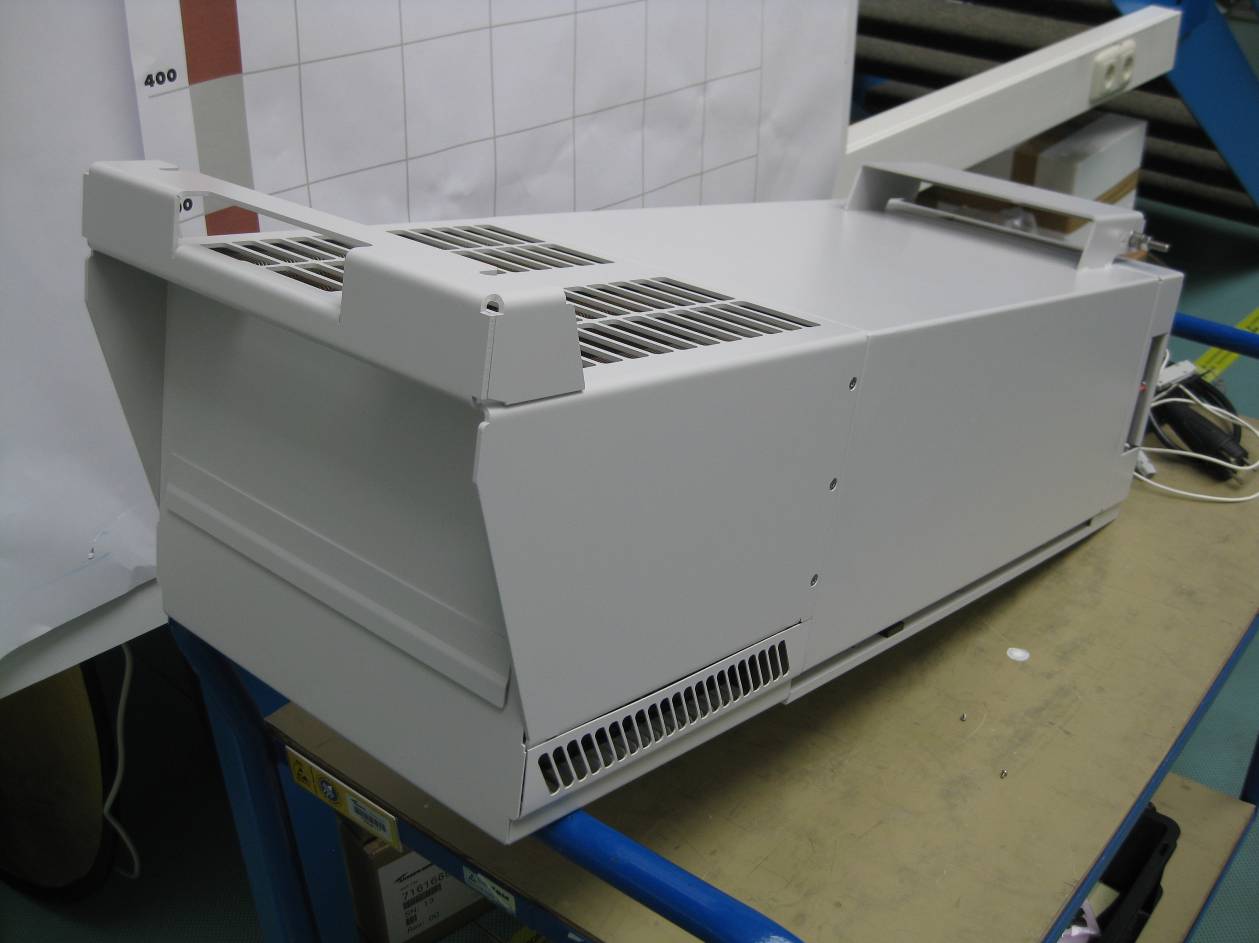

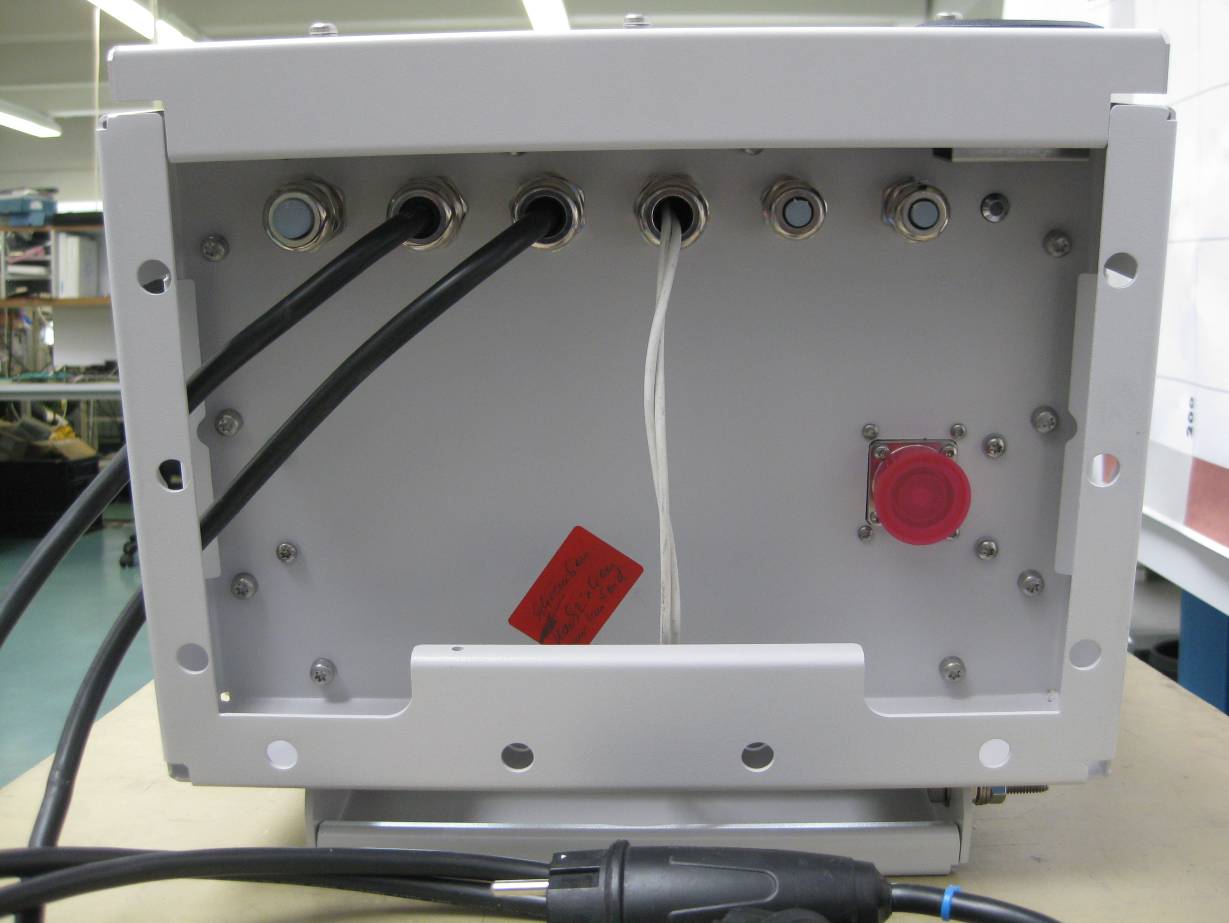

External Pictures

Label location IC: 2237E‐IONM851719HP FCC ID: XS5‐ION‐M851719HP

RF Exposure Info / MPE Sample Calculation ION-M Series Model: ION-M85HP/17HP/19HP FCC ID: XS5-ION-M851719HP The ION-M 85HP/17HP/19HP is a fibre opti c based RF repeater for wireless applications. A RF sign al is conver ted to an optical signal by directly modulating a laser. There is no frequency conversion in this system. The optical signal is converted back to RF at the ION-M remote unit, amplified and broadcast from an antenna or into a passive RF distribution system, such as radiating cable. This specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B) Limits for General Population / Uncontrolled Exposures) Frequency Range (MHz) Power Density (mW/cm²) 300 – 1500 f/1500 The Repeater operates in the frequency range of 869 – 894 MHz, so that the Power Density Limit is 869/1500 ~ 0.579 mW/cm² The max measured c onducted output power is: - max composite output power based on one carrier (rated) per path: 40W (46.0 dBm) The maximum permitted level is to be calculated using the general equation: S = P*G / 4 R² P = 40000 mW; G = antenna-cable attenuation to be defined (numeric gain); = 3,1416 The min separation distance between the antenna and any human body is to be calculated (solving for R in cm) with the final actual antenna gain/cable attenuation where the limit of 0.579 mW/cm² is kept. The antenna(s) used with this device must be fixed-mounted on outdoor permanent structures with a sufficient distance to any human body to comply with the RF Exposure limit.

Test Site: FCC Test Site No,: lC OATS No.: 96997 lc2237E ECL-EMC Test Report No.: 10-221 Equipment under test: FCC ID: tc tD: Type of test: Cellular Radiotelephone Service RSS-Ge n:2007, RSS-1 31 :2003 Zone Enhancers for the Land Mobile Service Measurement Procedures: 47 CFR Parts 2 (Frequency Allocations and Radio Treaty Matters; General Ru/es and Regulaúions), 90 (Private Land Mobile), ANSI/T|A-603-C (2004), Land Mobile FM or PM Communications Equipment Measurement and Performance Sfandards lC-RSS-GEN General Requirements and lnformation for the Certification of Radiocommunication Equipment Test result: Passed ION-M85HP I 17HP l19H P (850MHz Path) xss-toN-M851719HP 22378-tONM851719HP FCC 47 CFR Part 22 Subpart H:2009 G.Weinfurtner Test Engineer 19.07.2010 M. Lehmann Representative Head EMC 19.07. - 03.08.2010 The test report shall not be reproduced except in full without the written approval of the testing laboratory ECL-EMC-TR- 1 0-221 -V 01 00 Page 1 of 39 Test Report No.: 10-121 FCC ID: XS5-ION-M851719HP IC ID: 2237E-IONM851719HP The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-221-V01.00 Page 2 of 39 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 0911 59835 0 Fax: +49 0911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 22 of the Code of Federal Regulations title 47. This report informs about the results of the RF tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Test Report No.: 10-121 FCC ID: XS5-ION-M851719HP IC ID: 2237E-IONM851719HP The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-221-V01.00 Page 3 of 39 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 SYSTEM DIAGRAMS....................................................................................................................7 2.1.5 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS.............................................................8 3 TEST SITE (ANDREW BUCHDORF) ....................................................................................................9 3.1 TEST ENVIRONMENT..........................................................................................................................9 3.2 TEST EQUIPMENT..............................................................................................................................9 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................9 3.4 MEASUREMENT UNCERTAINTY............................................................................................................9 4 TEST SITE (TEMPTON SERVICE PLUS GMBH) ...............................................................................10 5 RF POWER OUT: §22.913, §2.1046; IC RSS-131 ..............................................................................11 5.1 LIMIT...............................................................................................................................................11 5.2 TEST METHOD.................................................................................................................................11 5.3 TEST RESULTS................................................................................................................................12 5.3.1 DOWNLINK...............................................................................................................................13 5.3.1.1 GSM................................................................................................................................14 5.3.1.2 EDGE..............................................................................................................................14 5.3.1.3 CDMA .............................................................................................................................15 5.3.1.4 WCDMA..........................................................................................................................15 5.3.2 UPLINK....................................................................................................................................16 5.4 SUMMARY TEST RESULT...................................................................................................................16 6 OCCUPIED BANDWIDTH: §2.1049; RSS-GEN ..................................................................................17 6.1 LIMIT...............................................................................................................................................17 6.2 TEST METHOD.........................................................................................................................…

Text truncated - open the document above for the full version.

Test Site: FCG Test Site No.: lC OATS No.: 96997 ac2237E ECL-EMC Test Report No. i 10-222 Equipment under test: FGC ID: IC ID: Type of test: ION-M8SHP/1 7HP l19HP (1 700MHz Path) xss-toN-M851719HP 2237E-IONM8517t 9HP FCC 47 CFR Part 27 Subpart C: 2009 Miscellaneous Wireless Communication Services RSS-Geni2007 , RSS-131 :2005 Measurement Procedures: 47 CFR Parts 2:2009 (Frequency Allocations and Radio Treaty Matters; General Ru/es and Regulafions), P ar1 27 :2009 (M iscel I a n eo u s Wi re I ess C o m m u n i cati o n Services), ANSI/T|A-603-C (2004), Land Mobile FM or PM Communications Equipment Measurement and Pefformance Standards lC-GEN:2007 General Requirements and lnformation for the Certification of Radio communication Equipment Test result: Passed 19.07.2010M. Lehmann Representative Head EMC 19.07. - 03.08.2010 The test report shall not be reproduced except in full without the written approval of the testing laboratory ECL-EMC-TR- 1 0-222-V 01 .00Page 1 of4l EMC Test Report No.: 10-222 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-ECL-TR-10-222-V01.00 Page 2 of 41 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 0911 59835 0 Fax: +49 0911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 27 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. EMC Test Report No.: 10-222 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-ECL-TR-10-222-V01.00 Page 3 of 41 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 SYSTEM DIAGRAMS....................................................................................................................7 2.1.5 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS..............................................................8 3 TEST SITE (ANDREW BUCHDORF) ....................................................................................................9 3.1 TEST ENVIRONMENT..........................................................................................................................9 3.2 TEST EQUIPMENT..............................................................................................................................9 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................9 3.4 MEASUREMENT UNCERTAINTY............................................................................................................9 4 TEST SITE (TEMPTON SERVICE PLUS GMBH) ...............................................................................10 5 RF POWER OUT: §24.232, §2.1046; RSS-131, RSS-GEN ................................................................11 5.1 LIMIT...............................................................................................................................................11 5.2 TEST METHOD.................................................................................................................................11 5.3 TEST RESULTS................................................................................................................................12 5.3.1 DOWNLINK...............................................................................................................................13 5.3.1.1 CDMA .............................................................................................................................14 5.3.1.2 W-CDMA.........................................................................................................................14 5.3.1.3 GSM................................................................................................................................15 5.3.1.4 GSM-EDGE ....................................................................................................................15 5.3.2 UPLINK....................................................................................................................................16 5.4 SUMMARY TEST RESULT...................................................................................................................16 6 OCCUPIED BANDWIDTH: §2.1049; RSS-GEN ..................................................................................17 6.1 LIMIT...............................................................................................................................................17 6.2 TEST METHOD.................................................................................................................................17 6.3 TEST RESULTS..........................................................................…

Text truncated - open the document above for the full version.

EMC Test Report No.: 10-223 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-223-V01.00 Page 2 of 39 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 0911 59835 0 Fax: +49 0911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 24 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. EMC Test Report No.: 10-223 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-223-V01.00 Page 3 of 39 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS..............................................................8 3 TEST SITE (ANDREW BUCHDORF) ....................................................................................................9 3.1 TEST ENVIRONMENT..........................................................................................................................9 3.2 TEST EQUIPMENT..............................................................................................................................9 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................9 3.4 MEASUREMENT UNCERTAINTY............................................................................................................9 4 TEST SITE (TEMPTON SERVICE PLUS GMBH) ...............................................................................10 5 RF POWER OUT: §24.232, §2.1046; RSS-131, RSS-GEN ................................................................11 5.1 LIMIT...............................................................................................................................................11 5.2 TEST METHOD.................................................................................................................................11 5.3 TEST RESULTS................................................................................................................................12 5.3.1 DOWNLINK...............................................................................................................................13 5.3.1.1 CDMA .............................................................................................................................14 5.3.1.2 W-CDMA.........................................................................................................................14 5.3.1.3 GSM................................................................................................................................15 5.3.1.4 GSM-EDGE ....................................................................................................................15 5.3.2 UPLINK....................................................................................................................................16 5.4 SUMMARY TEST RESULT...................................................................................................................16 6 OCCUPIED BANDWIDTH: §2.1049; RSS-GEN ..................................................................................17 6.1 LIMIT...............................................................................................................................................17 6.2 TEST METHOD.................................................................................................................................17 6.3 TEST RESULTS................................................................................................................................18 6.3.1 DOWNLINK...............................................................................................................................18 6.3.1.1 CDMA .............................................................................................................................19 6.3.1.2 W-CDMA.........................................................................................................................20 6.3.1.3 GSM................................................................................................................................21 6.3.1.4 GSM-EDGE ....................................................................................................................22 6.3.2 UPLINK....................................................................................................................................23 6.4 SUMMARY TEST RESULT...................................................................................................................23 7 SPURIOUS EMISSIONS AT ANTENNA TERMINALS: §24.238, §2.1051; RSS-131, RSS-…

Text truncated - open the document above for the full version.

Test Set-Up Photos XS5-ION-M851719MP picture 1: Test setup: Field Strength Emission 1GHz to 20GHz @3m in the FAC picture 2: Test setup: Field Strength Emission <1 GHz @3m in the FAC picture 3: Test setup: Field Strength Emission >20 GHz @3m in the FAC with Absorber material
