XS5-IONM8PSION-M Remote Unit for cellular systems

Installation Instruction The Remote Unit, Extension Unit or Master Unit has to be mounted by proffessionel / special trained installer. 1.1. MECHANICAL INSTALLATION 1.1.1. General Read the health and safety warnings in chapter 1.3 Health and Safety Warnings. 1. Do not ins tall the unit in a way or at a place where the specifications outlined in the Environmental and Safety Specifications leaflet of the manufacturer are not met. 2. It is strongly recommended to install the unit vertically. If a different installation of the remote unit is required, please contact customer service for further information. 3. It is recommended only to use the mounting hardware delivered by the manufacturer. If different mounting hardware is used, the specifications for stationary use of the remote unit must not be exceeded.  Note: Exceeding the specified load limits may cause the loss of warranty! 4. The unit is considerably heavy. Make sure that a suitable mounting surface is used. Ensure there is adequate manpower to handle the weight of the system. 5. Due to power dissipation, the remote unit may reach a very high temperature. Ensure sufficient airflow for ventilation. Above and below the unit a minimum distance of 300 mm to ceiling, floor, etc. has to be kept. Also observe the instructions in the individual mounting procedures. 6. For outdoor installations, the pre-mounted front cover must be installed. 7. For indoor installations where the ambient temperature can reach above 40°C, the cover has to be removed. 8. When connecting and mounting the cables (RF, optical, mains, ...) ensure no water can penetrate into the unit through these cables. If any different or additional mounting material is used, ensure that the mounting remains as safe as the mounting designed by the manufacturer. Ensure that the static and dynamic strengths are adequate for the environmental conditions of the site. The mounting itself must not vibrate, swing or move in any way that might cause damage to the remote unit. 1.2. ELECTRICAL INSTALLATION 1.2.1. General Read the health and safety warnings in chapter 1.3 Health and Safety Warnings. 1. This unit contains dangerous voltages. Loss of life, severe personal injury or property dam age can be the result if the instructions contained in this manual are not followed. 2. It is com pulsory to ground the unit before connecting power supply. A grounding bolt is provided on the cabinet to connect the ground-bonding cable. 3. Although the Remote Unit is internally protected against overvoltage, it is strongly recommended to earth the antenna cables close to the antenna connectors of the Remote Unit for protection against atmospheric discharge. In areas with strong lightning it is strongly recommended to insert additional lightning protection. 4. If the power supply connector of the Remote Unit is not easily accessible, a disconnect device in the power circuit must be provided within easy reach. 5. Before connecting or disconnecting the power supply connector at the Remote Unit, ensure that power supply is disconnected. 6. Make sure that an appropriate circuit breaker and an overcurrent limiting device are connected between power supply and Remote Unit. 7. A connection of power supply to a power socket requires the power socket to be nearby the Remote Unit. 8. Incorrectly wired connections can destroy electrical and electronic components. 9. To avoid corrosion at the connectors caused by electrochemical processes, the material of the cable connectors must not cause a higher potential difference than 0.6 V (see electrochemical contact series). 10. It is sufficient to tighten the N-antenna connector hand-screwed. Any use of a tool (e.g. pair of pliers) might cause damage to the connector and thus lead to malfunctioning of the Remote Unit. 11. For unstabilized electric networks which frequently generate spikes, it is advised to use a voltage limiting device. 12. The unit complies with the surge requirement according to EN 61000-4-5 (fine protection); however, it is recommended to install an additional medium (via local supply connection) and/or coarse protection (external surge protection) depending on the individual application in order to avoid damage caused by overcurrent. 13. Observe the labels on the front panels before connecting or disconnecting any cables. 1.3. HEALTH AND SAFETY WARNINGS 1. Only suitably qualified personnel is allowed to work on this unit and only after becom ing familiar with all safety notices, installation, operation and maintenance procedures contained in this manual. 2. Read and obey all th e warning labels attached to the unit. Make sure that the warning labels are kept in a legible condition and replace any missing or damaged labels. 3. Obey all general and regional installation and safety regulations relating to work on high voltage installations, as well as regulations covering correct use of tools and personal protective equipment. 4. Keep operating instructions within easy reach and make them available to all users. 5. It is the responsibility of the network provider to implement prevention measures to avoid health hazards which may be associated to radiation from the antenna(s) connected to the unit. 6. Please note for a Class A digital device or peripheral: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. 7. Make sure, access is restricted to qualified…

Text truncated - open the document above for the full version.

Optical Remote Unit ION™-M8P S Manual MF0132APB © Copyright 2012 CommScope, Inc. All rights reserved. Andrew Solutions is a trademark of CommScope, Inc. All information contained in this manual has been revised thoroughly. Yet Andrew Solutions accepts no liability for any omissions or faults. Andrew Solutions reserves the right to change all hard- and software characteristics without notice. Names of products mentioned herein are used for identification purposes only and may be trademarks and / or registered trademarks of their respective companies. No parts of this publication may be reproduced, stored in a retrieval system, transmitted in any form or by any means, electronical, mechanical photocopying, recording or otherwise, without prior written permission of the publisher. Andrew Wireless Systems GmbH, 13-February-2012 2 of 42 TABLE OF CONTENTS 1. GENERAL 6 1.1. USED ABBREVIATIONS 6 1.2. HEALTH AND SAFETY WARNINGS 8 1.3. ABOUT ANDREW SOLUTIONS 10 1.4. INTERNATIONAL CONTACT ADDRESSES FOR CUSTOMER SUPPORT 11 2. INTRODUCTION 13 2.1. PURPOSE 13 2.2. THE ION-M8P S (INTELLIGENT OPTICAL NETWORK; MMR) 13 2.3. OPTIONAL EQUIPMENT - RELAY ALARM CONNECTING BOARD 14 3. COMMISSIONING 15 3.1. MECHANICAL INSTALLATION 15 3.1.1. General 15 3.1.2. Wall and Pole Mounting 16 3.2. ELECTRICAL INSTALLATION 17 3.2.1. General 17 3.2.2. Connections 18 3.2.3. Grounding 18 3.2.4. Power Connection 19 3.3. CONNECTION OF THE ANTENNA CABLES 20 3.4. CONNECTION OF THE RF CABLES MAIN UNIT TO COMBINING UNIT 20 3.5. OPTICAL-FIBRE-CABLE CONNECTION - RULES 21 3.5.1. Protective Plug 22 3.5.2. Protective-Tube Kit 24 3.6. COMMISSIONING 26 4. ALARMS 29 4.1. BITE AND ALARMS 29 4.2. HANDLING OF ALARMS 29 4.3. ALARM STATUS 29 4.4. STATUS LED ALARMS 29 4.5. RELAY ALARM CONNECTING BOARD 31 4.5.1. External-Alarm Inputs and Outputs 31 3 of 42 4.5.2. Layout and Connector Description 32 4.6. REDUNDANCY RELAY CONFIGURATION 33 4.7. TROUBLESHOOTING 34 5. MAINTENANCE 35 5.1. GENERAL 35 5.2. OPENING AND CLOSING OF THE CABINET 36 5.3. REPLACEMENT OF POWER SUPPLY (AC & DC TYPES) 37 5.4. REPLACEMENT OF FAN UNIT 38 6. SPECIFICATIONS 39 6.1.1. Electrical Specifications 39 6.1.2. Mechanical Specifications 39 6.1.3. Environmental and Safety Specifications 39 6.2. SPARE PARTS LIST 40 7. INDEX 41 8. LIST OF CHANGES 42 4 of 42 FIGURES AND TABLES figure 3-1 Wall mounting........................................................................................... 16 figure 3-2 Pole mounting .......................................................................................... 16 figure 3-3 ION-M8P S, connector flange, exemplary ................................................ 18 figure 3-4 Grounding bolt .......................................................................................... 18 figure 3-5 AC mains plug .......................................................................................... 19 figure 3-6 DC mains plug .......................................................................................... 19 figure 3-7 Protective-plug assembly ......................................................................... 22 figure 3-8 Tube-kit installation................................................................................... 25 figure 4-1 Alarm triggering ........................................................................................ 30 figure 4-2 Relay alarm connecting board, description of connectors ........................ 32 figure 4-3 Alarm-output contacts, alarm condition .................................................... 33 figure 4-4 Redundancy connection, cabling.............................................................. 33 figure 4-5 Redundancy RF relay............................................................................... 33 figure 4-6 Redundancy connectors, Main Unit and Substitute Unit........................... 33 figure 5-1 Locker with key......................................................................................... 36 figure 5-2 Front and top cover screws ...................................................................... 36 figure 5-3 Screws of PSU AC ................................................................................... 37 figure 5-4 Screws of optional PSU DC...................................................................... 37 figure 5-5 Fan unit screws ........................................................................................ 38 figure 5-6 Fan-connector cable................................................................................. 38 table 1-1 List of international contact addresses....................................................... 12 table 4-1 Status LED alarms..................................................................................... 30 table 4-2 Relay alarm connecting board connectors, pin assignment....................... 32 table 5-1 Specified torques for various screw types ................................................. 35 5 of 42 1. GENERAL 1.1. USED ABBREVIATIONS 3GPP 3 rd Generation Partnership Project 4G 4 th Generation ALC Automatic Level Control AMPS American Mobile Phone System or Advanced Mobile Phone System AWS Advanced Wireless Services BBU Battery Backup Unit BCCH Broadcast Control Channel BITE Built-In Test Equipment BTS Base Transceiver Station CDMA Code Division Multiple Access CEPT Conférénce Européenne des Postes et Télécommunications CF Center Frequency CFO Center Frequency Offset CPD Channel Power Detection DL Downlink DoC Declaration of Conformity EDGE Enhanced Data Rates for GSM Evolution ESD Electrostatic Discharge ETS European Telecommunication Standard ETSI European Telecommunication Standards Institute FCC Federal Communications Commission FRU Field Replaceable Unit FSK Frequency Shift Keying GSM Global System for Mobile Communication GUI Graphical User Interface I 2 C-Bus Inter Integrated Circuit Bus (Philips) ID No Identification Number IF Intermediate Frequency LMT Local Maint…

Text truncated - open the document above for the full version.

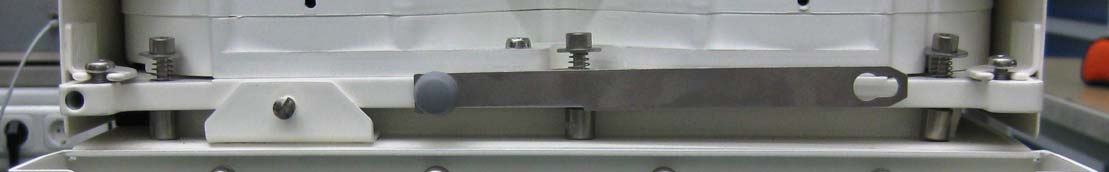

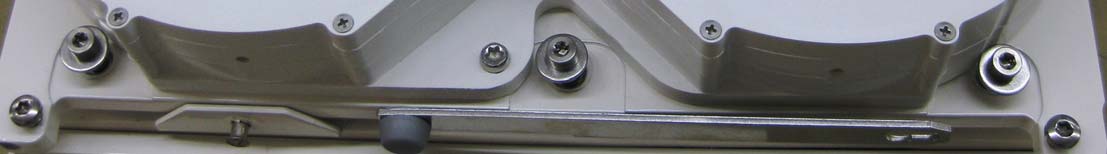

External Photos

Label Location 6,5cm 11,5cm

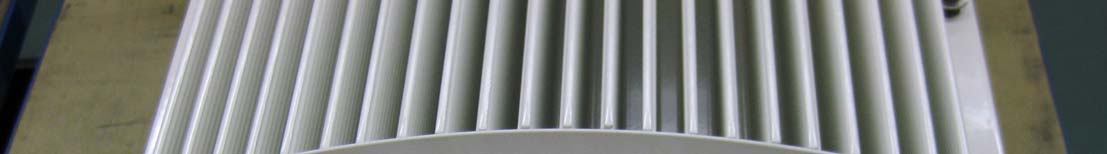

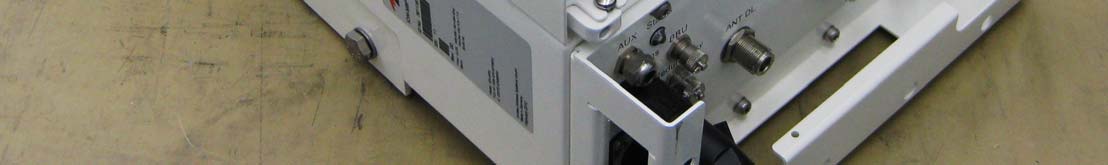

Internal Photos

RF Exposure Info / MPE Sample Calculation Model: ION‐M8P S FCC‐ID: XS5‐M8PS The Andrew ION‐M8P S is a multi‐operator remote unit with various extension units. It is used in conjunction with a master unit in the ION optical distribution system. This system transports the entire 800 MHz LMR frequency band, providing a cost‐efficient solution for distributing capacity from one or more base stations. The ION‐M8P S transports signals on the RF layer in a very inexpensive manner. This means that multiple operators and multiple technologies are moved simultaneously from a cluster of base stations to a remote location over the same fiber. The ION optical distribution system is a coverage solution for dense urban areas, tunnels, subway, airports, convention centers, high‐rise buildings and other locations where physical structures increase path loss. It has been specifically designed to reduce zoning problems and to provide homogeneous coverage. The compact, mechanical design is specifically architected to mount at poles or along side structures in such a way that it has a minimum visual impact. The ION‐M8P S performance is available both in single or multi‐band configuration (ION‐ M7P/8P S) supporting 700 MHz, and 800 MHz in parallel. It has been specifically tested and optimized for TDMA, CDMA2000, and WCDMA. Furthermore it is provisioned for future improvements to modulations (e.g. HSPA, EV‐DO and OFDM) and frequency bands. In addition it is backwards compatible to legacy standards such as Analog. The ION is easily set‐up and supervised via a graphical user interface (GUI). Remote units can be commissioned through the use of built‐in test equipment. An auto leveling function compensates for the optical link loss making installation easy and quick. The entire system may be monitored remotely via an Andrew OMC. This is a comprehensive management platform with SNMP protocol and X.733 standard implemented. Should a sophisticated interface not be required, the master unit can be directly connected to the alarm interface of a base station via relay alarming. The specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B). S = power density limit [W/m] P = power [W] R = distance [m] 2 4 n nn n R GP S   => n nn n S GP R 4  (to calculate the distance at one frequency) If we have more bands, than we have to calculated as a percentage: The additional of the terms have to be lower than 1. 1 4 .... 4 44 1.... 2 3 2 3 33 2 2 2 22 1 2 1 11 ln 3 3 2 2 1 1   n n nn n cacalcalcal S R GP S R GP S R GP S R GP S S S S S S S S   We are looking for a distance of ensures that the formula is satisfied. n RRRR... 321 1 4 ... 444 2 3 2 33 2 2 22 1 2 11  n nn SR GP SR GP SR GP SR GP  R S GP S GP S GP S GP R S GP S GP S GP S GP n nn n nn     4 ... 444 4 ... 444 3 33 2 22 1 11 2 3 33 2 22 1 11 With n nn n S GP R 4  => n nn n S GP R 4 2  RRRRR n  22 3 2 2 2 1 ... What you have to do for calculate the minimum distance were the power density limit is met: 1) If you have one path, you have to put you special values in the following formula. n nn n S GP R 4  (Distance for one carrier) Limits for General Population / Uncontrolled Exposures Frequency Range (MHz) Power Density (mW/cm 2 ) 300 – 1500 S = f/1500 1550 – 100,000 S = 1 2) If you have more than one path , you must add the individual terms quadratic. n nn n S GP R 4  (Distance for individual carrier) RRRRR n  22 3 2 2 2 1 ... (See previous page) For example: The EUT operates at one frequency band: 851 ‐ 869 MHz. The max measured conducted output power is 44.0 dBm (25.1 W). Calculation with maximum possible antenna gain and without cable loss: Frequency [MHz] Max Power out [dBm] Max. possible Antenna gain, without cable loss [dBi] Max. Distance [m] 851 44 18.15 4.7971 R min > 4.797 m For more accurate calculation, the cable loss and actual antenna gain have to be included in the finally system. The antenna(s) used with device must be fixed‐mounted on permanent structures with a distance to any human body to comply with the RF Exposure limit.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-046-V01.00 Page 1 of 57 Date of issue: 11.04.2012 Signature: Issue-No.: 01 Author: Date of delivery: 23.02.2012 Checked: Test dates: 14.02.12 – 13.03.12 Pages: 57 ECL-EMC Test Report No.: 12-046 Equipment under test: ION-M8P S FCC ID: XS5-IONM8PS IC ID: 2237E-IONM8PS Type of test: FCC 47 CFR Part 90 Subpart S:2009 Private Land Mobile Repeater RSS-Gen:2007, RSS-131:2005 Cellular Telephones Employing New Technologies Operating in the Bands 806-824 MHz and 851-869 MHz Measurement Procedures: 47 CFR Parts 2:2009 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), Part 90:2009 (Private Land Mobile), ANSI/TIA-603-C (2004), Land Mobile FM or PM Communications Equipment Measurement and Performance Standards IC-RSS-GEN:2007 General Requirements and Information for the Certification of Radiocommunication Equipment Test result: Passed Test Report No.: 10-062 FCC ID: XS5-IONM8PS IC ID: 2237E-IONM8PS The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-046-V01.00 Page 2 of 57 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 0911 59835 0 Fax: +49 0911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 90 of the Code of Federal Regulations title 47. This report informs about the results of the RF tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Test Report No.: 10-062 FCC ID: XS5-IONM8PS IC ID: 2237E-IONM8PS The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-046-V01.00 Page 3 of 57 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................6 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................7 2.1 DESCRIPTION....................................................................................................................................7 2.1.1 DOWNLINK.................................................................................................................................7 2.1.2 UPLINK......................................................................................................................................7 2.1.3 DESCRIPTION OF EUT ................................................................................................................7 2.1.4 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS..............................................................8 2.1.5 DOWNLINK SYSTEM GAIN AND OUTPUT POWER...........................................................................8 3 TEST SITE (ANDREW BUCHDORF) ....................................................................................................9 3.1 TEST ENVIRONMENT..........................................................................................................................9 3.2 TEST EQUIPMENT..............................................................................................................................9 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................9 3.4 MEASUREMENT UNCERTAINTY............................................................................................................9 4 TEST SITE (TEMPTON SERVICE PLUS GMBH) ...............................................................................10 5 RF POWER OUT: §90.635, §2.1046 ...................................................................................................11 5.1 LIMIT...............................................................................................................................................11 5.2 TEST METHOD.................................................................................................................................11 5.3 TEST RESULTS................................................................................................................................12 5.3.1 DOWNLINK...............................................................................................................................13 5.3.1.1 Analog.............................................................................................................................14 5.3.1.2 TDMA..............................................................................................................................14 5.3.1.3 EDGE..............................................................................................................................15 5.3.1.4 CDMA .............................................................................................................................15 5.3.1.5 EV-DO ............................................................................................................................16 5.3.1.6 WCDMA..........................................................................................................................16 5.3.1.7 HSPA ..............................................................................................................................17 5.3.2 UPLINK....................................................................................................................................17 5.4 SUMMARY TEST RESULT..................................................................…

Text truncated - open the document above for the full version.

Test setup Figure 1. DUT ION-M8P S Figure 2. Measurement Equipment
