XS5-M1719PADVION-M Remote Unit for cellular systems

Installation Instruction The Remote Unit, Extension Unit or Master Unit has to be mounted by proffessionel / special trained installer. 1.1. MECHANICAL INSTALLATION 1.1.1. Health and Safety for Mechanical Installation Read and observe chapter 1.3 Health and Safety 1. Caution: Risk of injury by the considerable weight of the unit falling. Ensure there is adequate manpower to handle the weight of the system. 2. Caution: Risk of serious personal injury by equipment falling due to improper installation. The installer must verify that the supporting surface will safely support the combined load of the electronic equipment and all attached hardware and components. The screws and dowels (wall anchors) used should also be appropriate for the structure of the supporting wall. 1.1.2. Property Damage Warnings for Mechanical Installation 1. Attention: Do not install the unit in a way or at a place where the specifications outlined in the Environmental and Safety Specifications leaflet of the supplier are not met. 2. Attention: Due to power dissipation, the Remote Unit may reach a very high temperature. Ensure sufficient airflow for ventilation. 3. Notice: Exceeding the specified load limits may cause the loss of warranty. 4. Notice: When connecting and mounting the cables (RF, optical, mains, ...) ensure that no water can penetrate into the unit through these cables. 5. Notice: Also observe all additional rules or restrictions regarding mounting that depend on the type of Remote Unit. For details refer to section 7.2.2 Mechanical Specification. Install the unit vertically with the fan unit at the top. A maximum tilt angle of 25° from a vertical position must be kept, as in the following illustrations: 6. Notice: A spacing of 40 mm (1.58 inch) around the unit is required. 7. Notice: To ensure sufficient airflow when mounting the unit in enclosed spaces, two lid openings (one for the air inlet and the other for the air outlet) must be provided. Do not block these air inlets and outlets when mounting the Remote Unit. The size of each opening must equal at least 16 x 16 cm (>250 cm 2 ). Ensure that there is no thermal short circuit between the air inlet and air outlet. Make sure free airflow is not deflected or otherwise obstructed. 8. Notice: Depending on the installation type (wall or pole), the corresponding mounting kits must be ordered from the manufacturer. If any different or additional mounting material is used, ensure that the mounting remains as safe as the mounting designed by the manufacturer. The specifications for stationary use of the Remote Unit must not be exceeded. Ensure that the static and dynamic strengths are adequate for the environmental conditions of the site. The mounting itself must not vibrate, swing or move in any way that might cause damage to the Remote Unit. 9. Notice: To avoid damage when mounting the unit, always make sure that the M8 washers (DIN9021 or DIN125 depending on the mounting kit) are placed behind and in front of the mounting drillings of the unit. Specified torques have to be observed for certain mounting procedures according to the following table: Type Tallow-drop screws Hex nuts Spacing bolts PG (plastic) PG (aluminium) Thread M 4 M 8 M 4 M 8 PG 13.5 PG 29 Specified torques 3.3 N-m 27 N-m 2.3 N-m 27 N-m3.75 N-m 10 N-m Specified torques The mounting procedures for a stand-alone Remote Unit without optional accessories are described and illustrated in the following sections. For further information regarding special mounting procedures including mounting of accessory equipment, please see separate manual. 1.2. ELECTRICAL INSTALLATION 1.2.1. Health and Safety for Electrical Installation Read and observe chapter 1.3 Health and Safety Danger: Electrical hazard. Danger of death or fatal injury from electrical current. Obey all general and regional installation and safety regulations relating to work on high voltage installations, as well as regulations covering correct use of tools and personal protective equipment. 1.2.2. Property Damage Warnings for Electrical Installation 1. Attention: It is compulsory to ground (earth) the unit before connecting the power supply. Grounding bolts are provided on the cabinet to connect the ground-bonding cable. 2. Attention: If the mains connector of the Remote Unit is not easily accessible, a disconnect device in the mains power circuit must be provided within easy reach. 3. Attention: A connection of the mains supply to a power socket requires the power socket to be nearby the Remote Unit. 4. Attention: Before connecting or disconnecting the mains connector at the Remote Unit, ensure that mains power supply is disconnected. 5. Attention: Make sure that an appropriate circuit breaker acting as a disconnect device (as required by IEC/EN60950-1) and an overcurrent limiting device are connected between mains power and the Remote Unit. 6. Attention: Incorrectly wired connections can destroy electrical and electronic components. 7. Notice: Although the Remote Unit is internally protected against overvoltage, it is strongly recommended to ground (earth) the antenna cables close to the antenna connectors of the Remote Unit for protection against atmospheric discharge. In areas with strong lightning, it is strongly recommended to install additional lightning protection. 8. Notice: To avoid corrosion at the connectors caused by electrochemical processes, the material of the cable connectors must not cause a higher potential difference than 0.6 V (see electrochemical contact series). 9. Notice: Use an appropriate torque wrench for the coupling torque of the 4.3-10 type connector: 5 N-m (44 in lb) with 22 mm (7/8) in opening. Do NOT use your hands or any other tool (e.g. a pair of pliers). This might cause damage to the connector and lead to a malfunction of the Remote Unit. 10. Notice: For unstabilized electric networks, which frequently generate spikes, the 11. Notice: Observe the labels on the front panels before connecting or disc…

Text truncated - open the document above for the full version.

ION ® -M17P/19P Advanced Optical Remote Unit (M-Cabinet) Manual MF0145AXA Page 2 Manual MF0145AXA.doc Manual for ION-M17P/19P Advanced DISCLAIMER: This document has been developed by CommScope, and is intended for the use of its customers and customer support personnel. The information in this document is subject to change without notice. While every effort has been made to eliminate errors, CommScope disclaims liability for any difficulties arising from the interpretation of the information contained herein. The information contained herein does not claim to cover all details or variations in equipment, nor to provide for every possible incident to be met in connection with installation, operation, or maintenance. This document describes the performance of the product under the defined operational conditions and does not cover the performance under adverse or disturbed conditions. Should further information be desired, or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, contact CommScope. CommScope reserves the right to change all hardware and software characteristics without notice. COPYRIGHT: © Copyright 2015 CommScope Inc. All Rights Reserved. This document is protected by copyright. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical photocopying, recording, or otherwise without the prior written permission of CommScope. TRADEMARKS All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope. Names of products mentioned herein are used for identification purposes only and may be trademarks and / or registered trademarks of their respective companies. Andrew Wireless Systems GmbH, 02-July-2015 Table of Contents Manual MF0145AXA.doc Manual for ION-M17P/19P Advanced Page 3 TABLE OF CONTENTS 1. GENERAL 5 1.1. USED ABBREVIATIONS 5 1.2. HEALTH AND SAFETY 6 1.3. PROPERTY DAMAGE WARNINGS 6 1.4. COMPLIANCE 7 1.5. ABOUT COMMSCOPE 10 1.6. INTERNATIONAL CONTACT ADDRESSES FOR CUSTOMER SUPPORT 11 2. INTRODUCTION 13 2.1. PURPOSE 13 2.2. THE ION-M17P/19P ADVANCED 13 3. FUNCTIONAL DESCRIPTION 14 3.1. ACCESSORY EQUIPMENT 14 3.1.1. Fan-Protection Kit 14 3.1.2. Accessories 14 4. COMMISSIONING 15 4.1. MECHANICAL INSTALLATION 15 4.1.1. Health and Safety for Mechanical Installation 15 4.1.2. Property Damage Warnings for Mechanical Installation 15 4.1.3. Wall-Mounting Procedure 17 4.1.4. Pole Mounting 18 4.1.5. Mounting of Fan Protection 20 4.2. ELECTRICAL INSTALLATION 21 4.2.1. Health and Safety for Electrical Installation 21 4.2.2. Property Damage Warnings for Electrical Installation 21 4.2.3. Connections 22 4.2.4. Grounding (Earthing) 23 4.2.5. Connection of the Antenna Cables 24 4.2.6. Cleaning Procedure for RF Cable Connectors 25 4.2.7. Antenna Cable Connector Assembly 28 4.2.8. Optical-Fiber-Cable Connection - Rules 29 4.2.9. Protective Plug 31 4.2.10. Protective-Tube Kit 33 4.2.11. External-Alarm Inputs and Outputs 35 4.2.12. Power Connection 37 4.2.13. Commisioning Flowchart 38 5. ALARMS AND TROUBLESHOOTING 40 Figures and Tables Page 4 Manual MF0145AXA.doc Manual for ION-M17P/19P Advanced 6. MAINTENANCE 41 6.1. GENERAL 41 6.2. REPLACING THE FAN UNIT 42 6.3. CLEANING THE HEAT SINK 44 7. APPENDIX 45 7.1. ILLUSTRATIONS 45 7.2. SPECIFICATIONS 46 7.2.1. Electrical Specifications 46 7.2.2. Environmental and Safety Specifications 46 7.2.3. Mechanical Specifications 46 7.3. SPARE PARTS 47 8. INDEX 48 FIGURES AND TABLES figure 4-1 Wall mounting, (metric dimensions) ........................................................... 17 figure 4-2 Pole-mounting kit ........................................................................................ 18 figure 4-3 Pole mounting (metric dimensions) ............................................................ 19 figure 4-4 Mounting procedure for fan protection, (metric dimensions) ..................... 20 figure 4-5 Connector flange of ION-M17P/19P Advanced ......................................... 22 figure 4-6 Grounding bolt (left) and schematic view (right) ........................................ 23 figure 4-7 Protective-plug assembly ........................................................................... 31 figure 4-8 Tube-kit installation .................................................................................... 34 figure 4-9 Flange connector, 5 poles .......................................................................... 35 figure 4-10 Alarm inputs (optocoupler) ....................................................................... 35 figure 4-11 Alarm outputs (optocoupler) ..................................................................... 36 figure 4-12 Flange connector, 7 poles ........................................................................ 36 figure 4-13 Power supply cables (AC) ........................................................................ 37 figure 4-14 Power supply cable (DC) ......................................................................... 37 figure 7-1 Cabinet drawing ......................................................................................... 45 table 1-1 List of international contact addresses ........................................................ 12 table 4-1 Specified torques ......................................................................................... 16 table 5-1 Status LED alarms ....................................................................................... 40 1. General Manual MF0145AXA.doc Manual for ION-M17P/19P Advanced Page 5 1. General 1.1. Used Abbreviations 3GPP 3 rd Generation Partnership Project AC/DC Alternating current / Direct Current AIMOS Andrew Integrated Management and Operating System ALC Automatic Level Control BITE Built-In Test Equipment BTS Base Transceiver Station CE "Conformité Européenne" ("European Conformity") CD Compact Disk CFR Code of Federal Regulations …

Text truncated - open the document above for the full version.

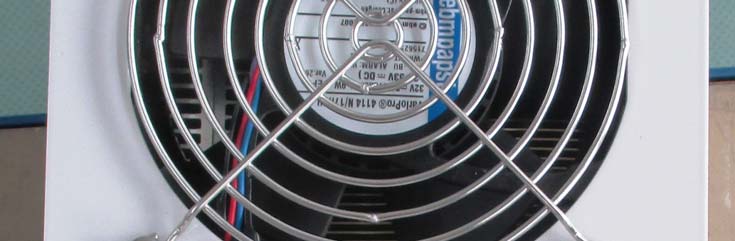

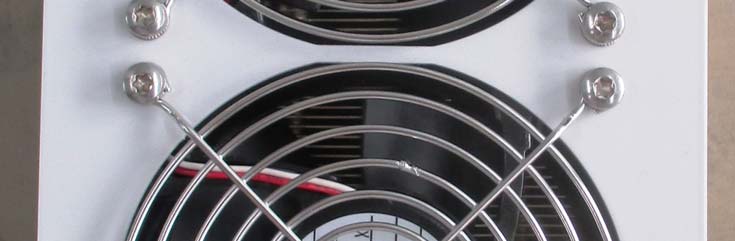

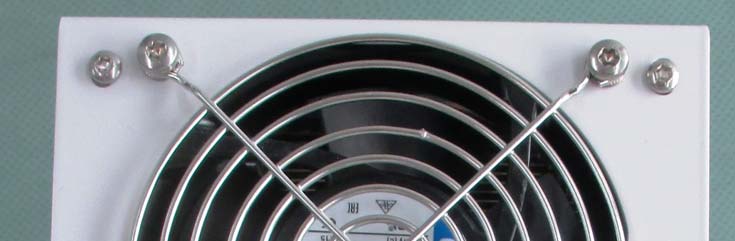

External Photos ION-M17P/19P Advanced

Label Location 11,5cm 6,5cm

Internal Photos ION-M17P/19P Advanced sV Duplexer Controller OTRx Amplifier Power Supply Fans Heat Sink Front Flange OTRx 70-85/90/17-21 RU-LS 7604302-04 Fin.Ampl.1970-1990 43dB 7707270-00 Fin.Ampl.2110-2130 43dB 7703404-00 Control Unit RCM161 7163693-04

RF Exposure Info / MPE Sample Calculation Model: ION-M17P/19P Advanced sV FCC-ID: XS5-M1719PADV CommScope’s ION-M17P/19P Advanced is a LTE, CDMA, and W-CDMA multioperator, multi- band remote unit. It is used in conjunction with a master unit in the ION optical distribution system. This system transports multiple 1900 MHz and 1700/2100 MHz signals simultaneously, providing a cost-effective solution for distributing capacity from one or more base stations. The ION-M17P/19P Advanced transports signals on the RF layer in a very inexpensive manner. This means that multiple operators and multiple technologies are moved simultaneously from a cluster of base stations to a remote location over the same fiber. The ION optical distribution system is a cost-effective coverage solution for dense urban areas, tunnels, subway, airports, convention centers, high-rise buildings and other locations where physical structures increase path loss. It has been specifically designed to reduce zoning problems and to provide homogeneous coverage. The compact, mechanical design is specifically architected to mount inside of poles or along side structures in such a way that it has a minimal visual impact. The ION-M17P/19P Advanced is available in single- or multi-band configuration supporting 1900 MHz and 1700/2100 MHz in parallel. It has been specifically tested and optimized for LTE, CDMA, and WCDMA signals. The ION is easily set-up and supervised via a graphical user interface (GUI). Remote units can be commissioned through the use of built-in test equipment. An autolevelling function compensates for the optical link loss making installation easy and quick. The entire system as well as complete network of systems can be managed remotely most efficient by Commscope`s A.I.M.O.S which includes alarm monitoring, task automation, statistics, inventory management and many more features. Should a sophisticated interface not be required, the master unit can be directly connected to the alarm interface of a base station via its contact relay. The specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B). S = power density limit [W/m] P = power [W] R = distance [m] 2 4 n nn n R GP S   => n nn n S GP R 4  (to calculate the distance at one frequency) If we have more bands, than we have to calculated as a percentage: The additional of the terms have to be lower than 1. 1 4 .... 4 44 1.... 2 3 2 3 33 2 2 2 22 1 2 1 11 ln 3 3 2 2 1 1   n n nn n cacalcalcal S R GP S R GP S R GP S R GP S S S S S S S S   We are looking for a distance of ensures that the formula is satisfied. n RRRR... 321 1 4 ... 444 2 3 2 33 2 2 22 1 2 11  n nn SR GP SR GP SR GP SR GP  R S GP S GP S GP S GP R S GP S GP S GP S GP n nn n nn     4 ... 444 4 ... 444 3 33 2 22 1 11 2 3 33 2 22 1 11 With n nn n S GP R 4  => n nn n S GP R 4 2  RRRRR n  22 3 2 2 2 1 ... What you have to do for calculate the minimum distance were the power density limit is met: 1) If you have one path, you have to put you special values in the following formula. n nn n S GP R 4  (Distance for one carrier) Limits for General Population / Uncontrolled Exposures Frequency Range (MHz) Power Density (mW/cm 2 ) 300 – 1500 S = f/1500 1550 – 100,000 S = 1 2) If you have more than one path, you must add the individual terms quadratic. n nn n S GP R 4  (Distance for individual carrier) RRRRR n  22 3 2 2 2 1 ... (See previous page) For example: The EUT operates in the 2 frequency bands: 1970 - 1990 and 2110 - 2140 MHz. The max measured conducted output power is 44.7 dBm (29.5 W). Calculation for every path with maximum allowed antenna gain and without cable loss: Frequency [MHz] Max Power out [dBm] Max. allowed antenna gain, without cable loss [dBi] Max. Distance [m] 1970 44.5 17.35 3.572 2110 44.5 17.35 3.572 The worst case would be if all bands were active: RRRRR n  22 3 2 2 2 1 ... R all > 5.051 m (see previous page for derivation) For more accurate calculation, the cable loss and actual antenna gain have to be included in the finally system. The antenna(s) used with device must be fixed-mounted on permanent structures with a distance to any human body to comply with the RF Exposure limit.
