XS5-M4ION-M ENW Optical Remote Unit

Installation Instruction The Remote Unit, Extension Unit or Master Unit has to be mounted by proffessionel / special trained installer. 1.1. MECHANICAL INSTALLATION 1.1.1. General Read the health and safety warnings in section 1.3. 1. Do not install the unit in a way or at a place where the specifications outlined in the Environmental and Safety Specifications leaflet of the supplier are not met. 2. It is strongly recommended to install the unit vertically. 3. When mounting the Remote Unit, the connector flange with the cables must point to the ground. A maximum tilt angle of 25° to the horizontal position of the connector flange must be kept in each mounting direction. If a different installation of the Remote Unit is required, please contact customer service for further information. 4. It is recommended only to use the mounting hardware delivered by the supplier. If different mounting hardware is used, the specifications for stationary use of the Remote Unit must not be exceeded.  Note: Exceeding the specified load limits may cause the loss of warranty! 5. The unit is considerably heavy. Make sure that a suitable mounting surface is used. Ensure there is adequate manpower to handle the weight of the system. 6. Due to power dissipation, the Remote Unit may reach a very high temperature. Ensure sufficient airflow for ventilation. A minimum distance of 300 mm to ceiling, floor, etc. must be maintained above and below the unit. Also, observe the instructions in the individual mounting procedures 7. For outdoor installations, the pre-mounted front cover must be installed. 8. For indoor installations where the ambient temperature can reach above 40°C, the cover must be removed. 9. When connecting and mounting the cables (RF, optical, mains, ...) ensure no water can penetrate into the unit through these cables. If any different or additional mounting material is used, ensure that the mounting remains as safe as the mounting designed by the manufacturer. Ensure that the static and dynamic strengths are adequate for the environmental conditions of the site. The mounting itself must not vibrate, swing or move in any way that might cause damage to the Remote Unit. 1.2. ELECTRICAL INSTALLATION 1.2.1. General Read the health and safety warnings in section 1.3. This unit contains dangerous voltages. Loss of life, severe personal injury, or property damage can be the result if the instructions contained in this manual are not followed. 1. It is compulsory to ground (earth) the unit before connecting the power supply. A grounding bolt is provided on the cabinet to connect the ground-bonding cable. 2. Although the Remote Unit is internally protected against overvoltage, it is strongly recommended to ground (earth) the antenna cables close to the antenna connectors of the Remote Unit for protection against atmospheric discharge. In areas with strong lightning, it is strongly recommended to install additional lightning protection. 3. If the mains connector of the Remote Unit is not easily accessible, a disconnect device in the mains power circuit must be provided within easy reach. 4. Before connecting or disconnecting the mains connector at the Remote Unit, ensure that mains power supply is disconnected. 5. Make sure that an appropriate circuit breaker acting as a disconnect device (as required by IEC/EN60950-1) and an overcurrent limiting device are connected between mains power and the Remote Unit. 6. A connection of the mains supply to a power socket requires the power socket to be nearby the Remote Unit. 7. Incorrectly wired connections can destroy electrical and electronic components. 8. To avoid corrosion at the connectors caused by electrochemical processes, the material of the cable connectors must not cause a higher potential difference than 0.6 V (see electrochemical contact series). 9. Use an appropriate torque wrench for the coupling torque (25 N-m / 19 ft lb) of 7/16-DIN connectors with 1 ¼-inch opening to tighten the 7/16-type antenna connectors. For example, use torque wrench item no. 244377 available from the Andrew e-catalog. Do NOT use your hands or any other tool (e.g. a pair of pliers)! This might cause damage to the connector and lead to a malfunction of the Remote Unit. 10. For unstabilized electric networks, which frequently generate spikes, the use of a voltage limiting device is advised. 11. The unit complies with the surge requirement according to EN 61000-4-5 (fine protection); however, installation of an additional medium (via local supply connection) and/or coarse protection (external surge protection) is recommended depending on the individual application in order to avoid damage caused by overcurrent. 12. Observe the labels on the front panels before connecting or disconnecting any cables. 1.3. HEALTH AND SAFETY WARNINGS 1. Only suitably qualified personnel are allowed to work on this unit and only after becoming familiar with all safety notices, installation, operation and maintenance procedures contained in this manual. 2. Read and obey all the warning labels attached to the unit. Make sure that the warning labels are kept in a legible condition and replace any missing or damaged labels. 3. Obey all general and regional installation and safety regulations relating to work on high voltage installations, as well as regulations covering correct use of tools and personal protective equipment. 4. Keep operating instructions within easy reach and make them available to all users. 5. It is the responsibility of the network provider to implement prevention measures to avoid health hazards which may be associated to radiation from the antenna(s) connected to the unit. 6. Laser radiation! Do not stare into the beam; do not view it directly or with optical instruments. 7. For installations which have to comply with FCC RF exposure requirements, the antenna selection and installation must be completed in a way to ensure compliance with those FCC requirements. Depending on the RF fr…

Text truncated - open the document above for the full version.

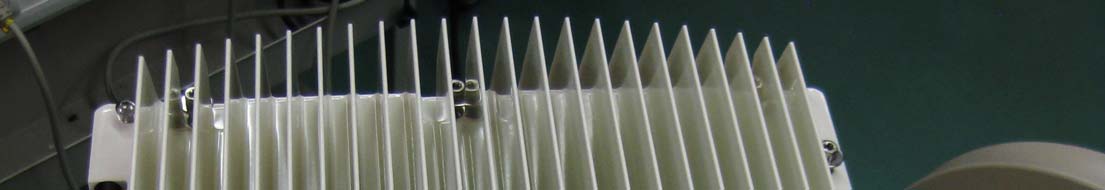

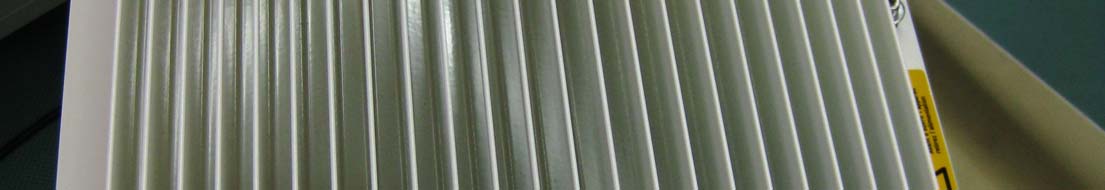

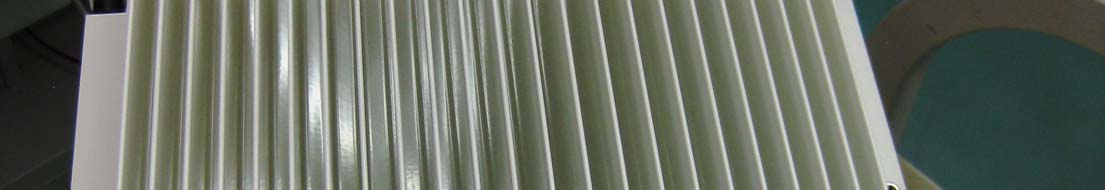

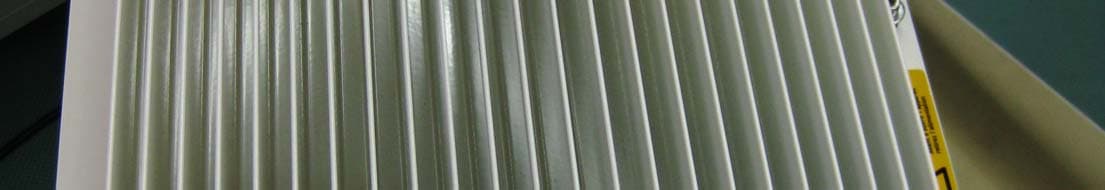

External Photos

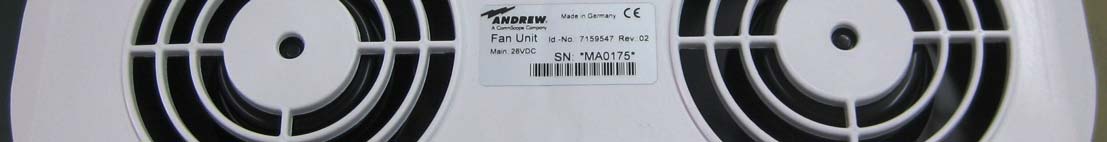

Label Location 6,5cm 11,5cm

Internal Photos OTRX 4/9 RU-LS Amplifier 450-490MHz Control Unit RCM161 Distribution / Control Board

RF Exposure Info / MPE Sample Calculation Model: ION-M4 ENW FCC-ID: XS5-M4 The ION-M4 ENW is a robust, intelligent optical Remote Unit to meet designer’s requirements for high reliability and dual-band capability. The ION-M4 ENW is a multi- operator dual-band Remote Unit used in conjunction with a Master Unit in the ION optical distribution system. This system transports LMR400 signals within the 400 MHz frequency range. The ION system transports signals on the RF layer in a very inexpensive manner, enabling coverage driven roll-out. The ION optical distribution system is a costefficient coverage solution for dense urban areas, tunnels, subways, railways, roadways, airports, convention centers and other locations where physical structures increase path loss. The ION has been specifically designed to reduce zoning problems. The compact mechanical design is architected to mount alongside structures in such a way that it has a minimal visual impact. The ION can be easily set-up and supervised by a graphical user interface (GUI). An auto leveling function compensates for the optical link loss making installation easy. The entire system can be monitored remotely by the Andrew OMC. The AndrewOMC uses SNMP protocol and is compliant to X.733 standard. Should a sophisticated management interface not be required, the Master Unit can be directly connected to the alarm interface of a base station via alarm relay contacts. The specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B). S = power density limit [W/m] P = power [W] R = distance [m] 2 4 n nn n R GP S   => n nn n S GP R 4  (to calculate the distance at one frequency) If we have more bands, than we have to calculated as a percentage: The additional of the terms have to be lower than 1. 1 4 .... 4 44 1.... 2 3 2 3 33 2 2 2 22 1 2 1 11 ln 3 3 2 2 1 1   n n nn n cacalcalcal S R GP S R GP S R GP S R GP S S S S S S S S   We are looking for a distance of ensures that the formula is satisfied. n RRRR... 321 1 4 ... 444 2 3 2 33 2 2 22 1 2 11  n nn SR GP SR GP SR GP SR GP  R S GP S GP S GP S GP R S GP S GP S GP S GP n nn n nn     4 ... 444 4 ... 444 3 33 2 22 1 11 2 3 33 2 22 1 11 With n nn n S GP R 4  => n nn n S GP R 4 2  RRRRR n  22 3 2 2 2 1 ... What you have to do for calculate the minimum distance were the power density limit is met: 1) If you have one path, you have to put you special values in the following formula. n nn n S GP R 4  (Distance for one carrier) Limits for General Population / Uncontrolled Exposures Frequency Range (MHz) Power Density (mW/cm 2 ) 300 – 1500 S = f/1500 1550 – 100,000 S = 1 2) If you have more than one path, you must add the individual terms quadratic. n nn n S GP R 4  (Distance for individual carrier) RRRRR n  22 3 2 2 2 1 ... (See previous page) For example: The EUT operates with one frequency band: Calculation with maximum possible antenna gain and without cable loss (worst case): Frequency [MHz] Max Power out [dBm] Max. possible Antenna gain, without cable loss [dBi] Max. Distance [m] 451 38 21 4.585 For more accurate calculation, the cable loss and actual antenna gain have to be included in the finally system. The antenna(s) used with device must be fixed-mounted on permanent structures with a distance to any human body to comply with the RF Exposure limit.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-193-V01.00 Page 1 of 34 Date of issue: 24.10.12 Signature: Issue-No.: 01 Author: Date of delivery: 22.10.12 Checked: Test dates: 16.10. – 23.10.12 Pages: 34 ECL-EMC Test Report No.: 12-193 Equipment under test: ION-M4 FCC ID: XS5-M4 Type of test: FCC 47 CFR Part 90 Subpart I:2012 Private Land Mobile Repeater Measurement Procedures: 47 CFR Parts 2 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), 90 (Private Land Mobile), ANSI/TIA-603-C (2004), Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Test result: Passed Test Report No.: 12-193 FCC ID: XS5-ML7851719P IC ID: 2237E-ML7851719P The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-193-V01.00 Page 2 of 34 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: Bureau Veritas Consumer Product Services Germany GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 40 74041 0 Fax: +49 40 74041-2755 General: The purpose of this report is to show compliance to the FCC regulations for devices operating under Part 27 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Test Report No.: 12-193 FCC ID: XS5-ML7851719P IC ID: 2237E-ML7851719P The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-193-V01.00 Page 3 of 34 Table of contents 1 TEST RESULTS SUMMARY ................................................................................................................. 5 2 EQUIPMENT UNDER TEST (E.U.T.) .................................................................................................... 6 2.1 DESCRIPTION .................................................................................................................................... 6 2.1.1 DOWNLINK ................................................................................................................................. 6 2.1.2 UPLINK ...................................................................................................................................... 6 2.1.3 DESCRIPTION OF EUT ................................................................................................................ 6 2.1.4 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS .............................................................. 7 2.1.5 DOWNLINK SYSTEM GAIN AND OUTPUT POWER ........................................................................... 7 3 TEST SITE (ANDREW BUCHDORF) .................................................................................................... 8 3.1 TEST ENVIRONMENT .......................................................................................................................... 8 3.2 TEST EQUIPMENT .............................................................................................................................. 8 3.3 INPUT AND OUTPUT LOSSES ............................................................................................................... 8 3.4 MEASUREMENT UNCERTAINTY ............................................................................................................ 8 4 TEST SITE (BUREAU VERITAS) .......................................................................................................... 9 5 RF POWER OUT: §90.205, §2.1046 ................................................................................................... 10 5.1 LIMIT............................................................................................................................................... 10 5.2 TEST METHOD ................................................................................................................................. 10 5.3 TEST RESULTS ................................................................................................................................ 11 5.3.1 DOWNLINK ............................................................................................................................... 11 5.3.1.1 Analog 451.0625 – 452.6500 MHz ................................................................................. 12 5.3.1.2 Analog 461.4500 MHz- 461.8750 MHz .......................................................................... 12 5.3.2 UPLINK .................................................................................................................................... 13 5.4 SUMMARY TEST RESULT ................................................................................................................... 13 6 OCCUPIED BANDWIDTH: §90.210, §2.1049 ..................................................................................... 14 6.1 LIMIT............................................................................................................................................... 14 6.2 TEST METHOD ................................................................................................................................. 14 6.3 TEST RESULTS ................................................................................................................................ 14 6.3.1 DOWNLINK ............................................................................................................................... 14 6.3.1.1 Analog 451.0625 – 452.6500 MHz ................................................................................. 15 6.3.1.2 Analog 461.4500 MHz- 461.8750 MHz .…

Text truncated - open the document above for the full version.

Test setup Measurement Equipment EUT ION-M4 ENW TTest Setup forr spurious raddiated emissioon
