XS5-M71719POptical ION-M Remote Unit for cellular systems

Installation Instruction The Remote Unit, Extension Unit or Master Unit has to be mounted by proffessionel / special trained installer. 1.1. MECHANICAL INSTALLATION 1.1.1. General Read the health and safety warnings in chapter 1.3 Health and Safety Warnings. 1. Do not ins tall the unit in a way or at a place where the specifications outlined in the Environmental and Safety Specifications leaflet of the supplier are not met. 2. It is recommended only to use the mounting hardware delivered by the supplier. If different mounting hardware is used, the specifications for stationary use of the Remote Unit must not be exceeded.  Note: Exceeding the specified load limits may cause the loss of warranty! 3. The unit is considerably heavy. Make sure that a suitable mounting surface is used. Ensure there is adequate manpower to handle the weight of the system. 4. Due to power dissipation, the Remote Unit may reach a very high temperature. Ensure sufficient airflow for ventilation as specified in the individual mounting procedures. 5. When connecting and mounting the cables (RF, optical, power supply, ...) ensure no water can penetrate into the unit through these cables. 6. Also observe all additional rules or restrictions regarding mounting that depend on the type of Remote Unit. Install the unit vertically with the fan unit at the top. A maximum tilt angle of 25° from a vertical position must be kept, as in the following illustrations: A spacing of 40 mm (1.58 inch) around the unit is required. 7. To ensure sufficient airflow when mounting the unit in enclosed spaces, two lid openings (one for the air inlet and the other for the air outlet) have to be provided. Do not block these air inlets and outlets when mounting the Remote Unit. The size of each opening must equal at least 17 x 17 cm (290 cm 2 ). Make sure, too, there is no thermal short circuit between the air inlet and air outlet. If any different or additional mounting material is used, ensure that the mounting remains as safe as the mounting designed by the manufacturer. Ensure that the static and dynamic strengths are adequate for the environmental conditions of the site. The mounting itself must not vibrate, swing or move in any way that might cause damage to the Remote Unit. Specified torques have to be observed for certain mounting procedures according to the following table: Type Lens head screws Hex nuts Spacing bolts PG (plastic) PG (aluminium) Thread M 4 M 8 M 4 M 8 PG 13.5 PG 29 Specified torques 3.3 Nm 27 Nm 2.3 Nm 27 Nm 3.75 Nm 10 Nm Specified torques  Note: To avoid damage when mounting the unit, always make sure that the M8 washers (DIN9021 or DIN125 depending on the mounting kit) are placed behind and in front of the mounting drillings of the unit. The mounting procedures for a stand-alone Remote Unit without optional accessories are described and illustrated in the following sections. For further information regarding special mounting procedures including mounting of accessory equipment, please see separate manual. 1.2. ELECTRICAL INSTALLATION 1.2.1. General Read the health and safety warnings in chapter 1.3 Health and Safety Warnings. 1. This unit contains dangerous voltages. Loss of life, severe personal injury or property dam age can be the result if the instructions contained in this manual are not followed. 2. It is com pulsory to ground the unit before connecting power supply. A grounding bolt is provided on the cabinet to connect the ground-bonding cable. 3. Although the Remote Unit is internally protected against overvoltage, it is strongly recommended to earth the antenna cables close to the antenna connectors of the Remote Unit for protection against atmospheric discharge. In areas with strong lightning it is strongly recommended to insert additional lightning protection. 4. If the power supply connector of the Remote Unit is not easily accessible, a disconnect device in the power circuit must be provided within easy reach. 5. Before connecting or disconnecting the power supply connector at the Remote Unit, ensure that power supply is disconnected. 6. Make sure that an appropriate circuit breaker and an overcurrent limiting device are connected between power supply and Remote Unit. 7. A connection of power supply to a power socket requires the power socket to be nearby the Remote Unit. 8. Incorrectly wired connections can destroy electrical and electronic components. 9. To avoid corrosion at the connectors caused by electrochemical processes, the material of the cable connectors must not cause a higher potential difference than 0.6 V (see electrochemical contact series). 10. It is sufficient to tighten the N-antenna connector hand-screwed. Any use of a tool (e.g. pair of pliers) might cause damage to the connector and thus lead to malfunctioning of the Remote Unit. 11. For unstabilized electric networks which frequently generate spikes, it is advised to use a voltage limiting device. 12. The unit complies with the surge requirement according to EN 61000-4-5 (fine protection); however, it is recommended to install an additional medium (via local supply connection) and/or coarse protection (external surge protection) depending on the individual application in order to avoid damage caused by overcurrent. 13. Observe the labels on the front panels before connecting or disconnecting any cables. 1.3. HEALTH AND SAFETY WARNINGS 1. Only suitably qualified personnel is allowed to work on this unit and only after becom ing familiar with all safety notices, installation, operation and maintenance procedures contained in this manual. 2. Read and obey all th e warning labels attached to the unit. Make sure that the warning labels are kept in a legible condition and replace any missing or damaged labels. 3. Obey all general and regional installation and safety regulations relating to work on high voltage installations, as well as regulations covering correct use of tools and personal protective equipment. 4. Keep operating inst…

Text truncated - open the document above for the full version.

Manual valid for ION™-M7P/85P/17P/19P and subassemblies (ML-Cabinet) Manual MF0143AUB Manual for ION™-M7P/85P/17P/19P (ML-cab) & subassemblies Page 2 MF0143AUB.doc © Copyright 2012 CommScope, Inc. All rights reserved. Andrew Solutions is a trademark of CommScope, Inc. All information contained in this manual has been revised thoroughly. Yet Andrew Solutions accepts no liability for any omissions or faults. Andrew Solutions reserves the right to change all hard- and software characteristics without notice. Names of products mentioned herein are used for identification purposes only and may be trademarks and / or registered trademarks of their respective companies. No parts of this publication may be reproduced, stored in a retrieval system, transmitted in any form or by any means, electronical, mechanical photocopying, recording or otherwise, without prior written permission of the publisher. Andrew Wireless Systems GmbH, 16-January-2012 Page 3 TABLE OF CONTENTS 1. GENERAL 7 1.1. USED ABBREVIATIONS 7 1.2. HEALTH AND SAFETY WARNINGS 8 1.3. ABOUT ANDREW SOLUTIONS 10 1.4. INTERNATIONAL CONTACT ADDRESSES FOR CUSTOMER SUPPORT 11 2. INTRODUCTION 13 2.1. PURPOSE 13 2.2. THE ION™-M7P/85P/17P/19P (INTELLIGENT OPTICAL NETWORK; MMR) 13 3. COMMISSIONING 15 3.1. MECHANICAL INSTALLATION 15 3.1.1. General 15 3.1.2. Wall-Mounting Procedure 17 3.1.3. Pole-Mounting Procedure 18 3.2. ELECTRICAL INSTALLATION 19 3.2.1. General 19 3.2.2. Connections 20 3.2.3. Grounding 21 3.3. CONNECTION OF THE ANTENNA CABLES 22 3.4. POWER CONNECTION 23 3.5. OPTICAL-FIBER-CABLE CONNECTION - RULES 24 3.5.1. Protective Plug 26 3.5.2. Protective-Tube Kit 28 3.6. COMMISSIONING 30 3.7. BITE AND ALARMS 33 3.8. HANDLING OF ALARMS 33 3.9. ALARM STATUS 33 3.10. STATUS LED ALARMS 33 3.11. EXTERNAL ALARM INPUTS AND OUTPUTS 35 3.12. TROUBLESHOOTING 36 Manual for ION™-M7P/85P/17P/19P (ML-cab) & subassemblies Page 4 MF0143AUB.doc 4. MAINTENANCE 37 4.1. GENERAL 37 4.2. REPLACING THE FAN UNIT 38 4.3. CLEANING THE HEAT SINK 39 5. APPENDIX 40 5.1. ILLUSTRATIONS 40 5.2. SPECIFICATIONS 41 5.2.1. Electrical Specifications 41 5.2.2. Mechanical Specifications 41 5.2.3. Environmental and Safety Specifications 41 5.3. SPARE PARTS 42 6. INDEX 43 LIST OF CHANGES 44 Page 5 FIGURES AND TABLES figure 3-1 Mounting bracket installation.................................................................... 17 figure 3-2 RU mounting ............................................................................................ 17 figure 3-3 Pole-mounting kit...................................................................................... 18 figure 3-4 Connector flange of ION-M7P/85P/17P/19P ............................................ 20 figure 3-5 RS485 connector...................................................................................... 21 figure 3-6 Grounding bolt .......................................................................................... 21 figure 3-7 Grounding bolt, schematic view................................................................ 21 figure 3-8 AC power supply plug............................................................................... 23 figure 3-9 Protective-plug assembly ......................................................................... 26 figure 3-10 Tube-kit installation................................................................................. 29 figure 4-1 Flange connector, 5 poles........................................................................ 35 figure 4-2 Flange connector, 7 poles........................................................................ 35 figure 4-3 Alarm inputs and outputs, standard .......................................................... 36 figure 5-1 Fan unit and heat sink .............................................................................. 38 figure 6-1 Cabinet drawing........................................................................................ 40 table 1-1 List of international contact addresses....................................................... 12 table 3-1 Specified torques ....................................................................................... 16 table 3-2 RS485 connector, pin assignment............................................................. 21 table 4-1 Status LED alarms..................................................................................... 34 Manual for ION™-M7P/85P/17P/19P (ML-cab) & subassemblies Page 6 MF0143AUB.doc For your notes: Page 7 MF0143AUB.doc 1. GENERAL 1.1. USED ABBREVIATIONS 3GPP 3 rd Generation Partnership Project AC/DC Alternating current / Direct Current AIMOS Andrew Integrated Management and Operating System ALC Automatic Level Control BITE Built-In Test Equipment BTS Base Transceiver Station CE "Conformité Européenne" ("European Conformity") CD Compact Disk CPD Channel Power Detection DL Downlink DoC Declaration of Conformity EDGE Enhanced Data Rates for GSM Evolution EN European Norm EP Extension Port ESD Electrostatic Discharge ETS European Telecommunication Standard EU Extension Unit GSM Global System for Mobile Communication GND Ground GUI Graphical User Interface ICP3 Intercept Point 3 rd order ID No Identification Number ION Intelligent Optical Network IP Ingress Protection ISO International Organization for Standardization LED Light Emitting Diode LMT Local Maintenance Terminal LTE Long Term Evolution MIMO Multiple Input Multiple Output MS Mobile Station MU Main Unit NF Noise Figure OTRx Optical Transceiver = SRMU (Subrack Master Unit) PDU Power Distribution Unit PG Packing Gland PIM Passive Intermodulation R&TTE Radio & Telecommunications Terminal Equipment Rev Revision RF Radio Frequency RU Remote Unit RX Receiver SNMP Simple Network Management Protocol TS Technical Specification TX Transmitter UL Uplink UMTS Universal Mobile Telecommunication System UPS Uninterruptible Power Supply VSWR Voltage Standing Wave Ratio WCDMA Wideband Code Division Multiple Access WDM Wa…

Text truncated - open the document above for the full version.

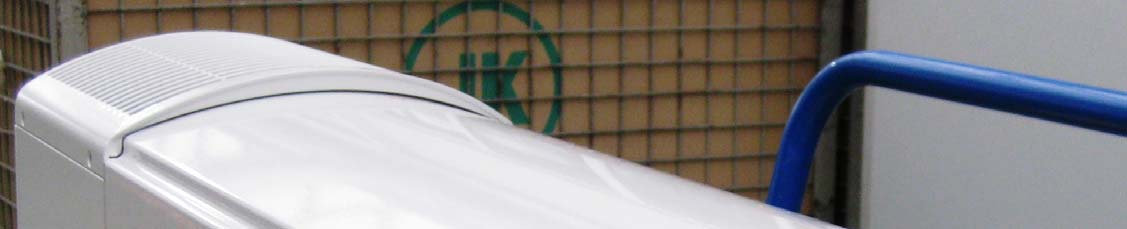

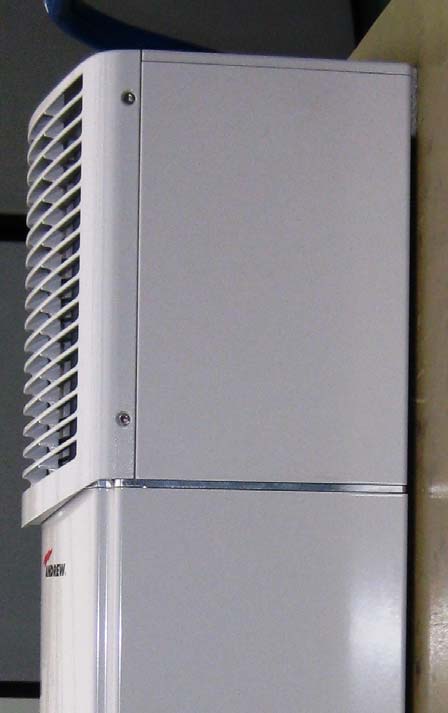

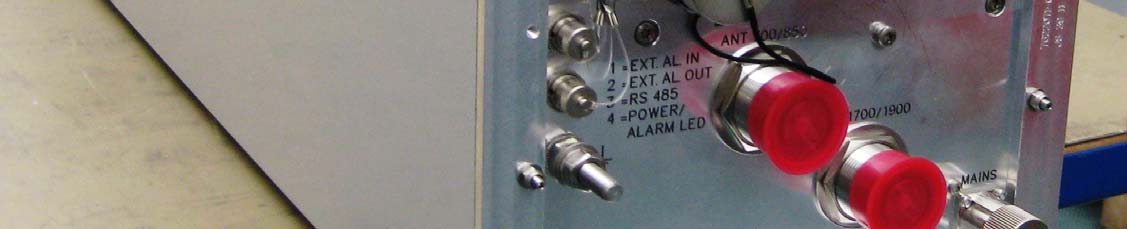

External Photos

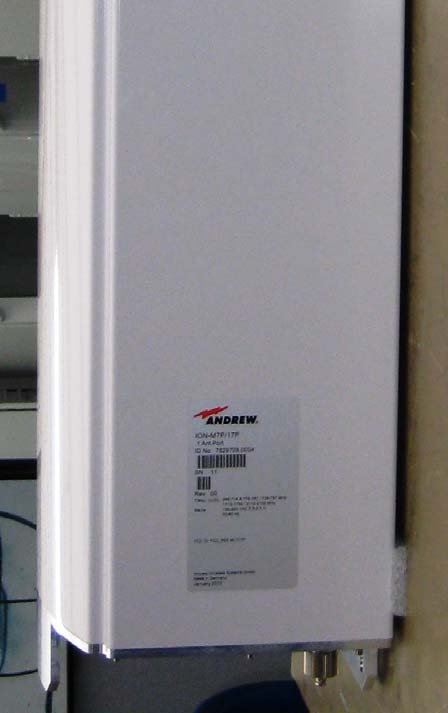

Label Location 6,5cm 11,5cm

Internal Photos 7601520-02 7542238-01 7542601-02

RF Exposure Info / MPE Sample Calculation Model: ION‐M7P/17P/19P FCC‐ID: XS5‐M71719P ION™ is the unified platform for all conceivable optical distribution scenarios. The ION optical distribution system leads the industry in flexibility while minimizing overall deployment cost. Andrew Solutions ION‐M7P/17P/19P is a multi‐band, multi‐operator remote unit configuration used in conjunction with a master unit in the ION optical distribution system. This system transports up to three frequency bands simultaneously (700 MHz, 1900 MHz and 1700/2100 MHz), providing a cost‐effective solution for distributing capacity from one or more base stations. The ION system transports signals on the RF layer in a very cost‐effective manner enabling multiple operators to use multiple technologies and move their signals simultaneously from a cluster of base station to a number of remote locations over the same fiber. The ION‐M optical distribution system is a cost‐effective coverage solution for dense urban areas, tunnels, subways, airports, convention centers, high‐rise buildings and other locations where physical structures increase path loss. The combination of these units gives maximum flexibility while providing a scalable solution. The system is optimized for GMSK, EDGE, WCDMA, HSPA+, and OFDM modulation in the 700 MHz, 1900 MHz and 1700/2100 MHz bands. Furthermore it is provisioned for future modulation and frequency bands. The ION can be easily set‐up and supervised from a graphical user interface (GUI). Remote units are commissioned through the use of built‐in test equipment. An auto levelling function compensates for the optical link loss making installation easy and quick. The entire system can be monitored remotely by the Andrew OMC. This platform uses SNMP protocol and is compliant to X.733 standard. Should a sophisticated interface not be required, the master unit can be directly connected to the alarm interface of a base station via its contact relay. The specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B). S = power density limit [W/m] P = power [W] R = distance [m] 2 4 n nn n R GP S   => n nn n S GP R 4  (to calculate the distance at one frequency) If we have more bands, than we have to calculated as a percentage: The additional of the terms have to be lower than 1. 1 4 .... 4 44 1.... 2 3 2 3 33 2 2 2 22 1 2 1 11 ln 3 3 2 2 1 1   n n nn n cacalcalcal S R GP S R GP S R GP S R GP S S S S S S S S   We are looking for a distance of ensures that the formula is satisfied. n RRRR... 321 1 4 ... 444 2 3 2 33 2 2 22 1 2 11  n nn SR GP SR GP SR GP SR GP  R S GP S GP S GP S GP R S GP S GP S GP S GP n nn n nn     4 ... 444 4 ... 444 3 33 2 22 1 11 2 3 33 2 22 1 11 With n nn n S GP R 4  => n nn n S GP R 4 2  RRRRR n  22 3 2 2 2 1 ... What you have to do for calculate the minimum distance were the power density limit is met: 1) If you have one path, you have to put you special values in the following formula. n nn n S GP R 4  (Distance for one carrier) Limits for General Population / Uncontrolled Exposures Frequency Range (MHz) Power Density (mW/cm 2 ) 300 – 1500 S = f/1500 1550 – 100,000 S = 1 2) If you have more than one path , you must add the individual terms quadratic. n nn n S GP R 4  (Distance for individual carrier) RRRRR n  22 3 2 2 2 1 ... (See previous page) For example: The EUT operates in the 4 frequency bands: 728‐746, 746‐757, 869‐894 and 1850‐1915 MHz. The max measured conducted output power is 43.0 dBm (20 W) at the all frequency paths. Calculation for every path with maximum possible antenna gain and without cable loss: Frequency [MHz] Max Power out [dBm] Max. possible Antenna gain, without cable loss [dBi] Max. Distance [m] 747 43.4 18.75 5.1201 1930 43.34 18.75 3.5884 2110 43.14 19.05 3.6299 The worst case would be if all bands were active: RRRRR n  22 3 2 2 2 1 ... R all > 7.230 m (see previous page for formula) For more accurate calculation, the cable loss and actual antenna gain have to be included in the finally system. The antenna(s) used with device must be fixed‐mounted on permanent structures with a distance to any human body to comply with the RF Exposure limit.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-145-V01.00 Page 1 of 46 Date of issue: 09.08.12 Signature: Issue-No.: 01 Author: Date of delivery: 06.08.12 Checked: Test dates: 1.04.11 – 06.08.12 Pages: 46 ECL-EMC Test Report No.: 12-145 Equipment under test: ION-M7P/17P/19P 700MHz Path FCC ID: XS5-M71719P IC ID: 2237E-M71719P Type of test: FCC 47 CFR Part 27 Subpart H, F:2012 Miscellaneous Wireless Communication Services IC RSS-131:2003 Zone Enhancers for the Land Mobile Service Measurement Procedures: 47 CFR Parts 2:2012 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), Part 27:2012 (Miscellaneous Wireless Communication Services), ANSI/TIA-603-C:2004, Land Mobile FM or PM Communications Equipment Measurement and Performance Standards IC-GEN:2007 General Requirements and Information for the Certification of Radiocommunication Equipment Test result: Passed Test Report No.: 12-145 FCC ID: XS5-M71719P IC ID: 2237E-M71719P The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-145-V01.00 Page 2 of 46 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 (0) 911 59835 0 Fax: +49 (0) 911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for devices operating under Part 27 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Test Report No.: 12-145 FCC ID: XS5-M71719P IC ID: 2237E-M71719P The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-145-V01.00 Page 3 of 46 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................6 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................7 2.1 DESCRIPTION....................................................................................................................................7 2.1.1 DOWNLINK.................................................................................................................................7 2.1.2 UPLINK......................................................................................................................................7 2.1.3 DESCRIPTION OF EUT ................................................................................................................7 2.1.4 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS..............................................................8 2.1.5 DOWNLINK SYSTEM GAIN AND OUTPUT POWER...........................................................................8 3 TEST SITE (ANDREW BUCHDORF) ....................................................................................................9 3.1 TEST ENVIRONMENT..........................................................................................................................9 3.2 TEST EQUIPMENT..............................................................................................................................9 3.3 INPUT AND OUTPUT LOSSES.............................................................................................................10 3.4 MEASUREMENT UNCERTAINTY..........................................................................................................10 4 TEST SITE (TEMPTON) ......................................................................................................................11 5 RF POWER OUT: §27.50, §2.1046 .....................................................................................................12 5.1 LIMIT...............................................................................................................................................12 5.2 TEST METHOD.................................................................................................................................12 5.3 TEST RESULTS................................................................................................................................13 5.3.1 DOWNLINK...............................................................................................................................13 5.3.1.1 LTE 728 – 746MHz,........................................................................................................14 5.3.1.2 LTE 746 – 757MHz,........................................................................................................15 5.3.2 UPLINK....................................................................................................................................15 5.4 SUMMARY TEST RESULT...................................................................................................................15 6 OCCUPIED BANDWIDTH: §90.210, §2.1049.....................................................................................16 6.1 LIMIT...............................................................................................................................................16 6.2 TEST METHOD.................................................................................................................................16 6.3 TEST RESULTS................................................................................................................................16 6.3.1 DOWNLINK...............................................................................…

Text truncated - open the document above for the full version.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-146-V01.00 Page 1 of 53 Date of issue: 10.08.12 Signature: Issue-No.: 01 Author: Date of delivery: Checked: Test dates: 04.01.11 – 06.08.12 Pages: 53 ECL-EMC Test Report No.: 12-146 Equipment under test: ION-M7P/17P/19P 1900MHz Path FCC ID: XS5-M71719P IC ID: 2237E-M71719P Type of test: FCC 47 CFR Part 24 Subpart E: 2012 Broadband PCS IC RSS-131:2003 Zone Enhancers for the Land Mobile Service Measurement Procedures: 47 CFR Parts 2: 2012(Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), 24 (Broadband PCS), ANSI/TIA-603-C (2004), Land Mobile FM or PM Communications Equipment Measurement and Performance Standards IC-GEN General Requirements and Information for the Certification of Radiocommunication Equipment Test result: Passed Test Report No.: 12-146 FCC ID: XS5-M71719P IC ID: 2237E-M71719P The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-146-V01.00 Page 2 of 53 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 0911 59835 23 Fax: +49 0911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for unlicensed devices operating under section 15.249 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Test Report No.: 12-146 FCC ID: XS5-M71719P IC ID: 2237E-M71719P The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-146-V01.00 Page 3 of 53 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS..............................................................7 2.1.5 DOWNLINK SYSTEM GAIN AND OUTPUT POWER...........................................................................7 3 TEST SITE (ANDREW BUCHDORF) ....................................................................................................8 3.1 TEST ENVIRONMENT..........................................................................................................................8 3.2 TEST EQUIPMENT..............................................................................................................................8 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................9 3.4 MEASUREMENT UNCERTAINTY............................................................................................................9 4 TEST SITE (TEMPTON SERVICE PLUS GMBH) ...............................................................................10 5 RF POWER OUT: §24.232, §2.1046 ...................................................................................................11 5.1 LIMIT...............................................................................................................................................11 5.2 TEST METHOD.................................................................................................................................11 5.3 TEST RESULTS................................................................................................................................12 5.3.1 DOWNLINK...............................................................................................................................13 5.3.1.1 GSM................................................................................................................................14 5.3.1.2 GSM-EDGE ....................................................................................................................14 5.3.1.3 CDMA .............................................................................................................................15 5.3.1.4 W-CDMA.........................................................................................................................15 5.3.1.5 LTE .................................................................................................................................16 5.3.2 UPLINK....................................................................................................................................17 5.4 SUMMARY TEST RESULT...................................................................................................................17 6 OCCUPIED BANDWIDTH: §2.1049 ....................................................................................................18 6.1 LIMIT...............................................................................................................................................18 6.2 TEST METHOD.....................…

Text truncated - open the document above for the full version.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-147-V01.00 Page 1 of 42 Date of issue: 09.08.12 Signature: Issue-No.: 01 Author: Date of delivery: 06.08.12 Checked: Test dates: 1.04.11 – 06.08.12 Pages: 42 ECL-EMC Test Report No.: 12-147 Equipment under test: ION-M7P/17P/19P 1700MHz Path FCC ID: XS5-M71719P IC ID: 2237E-M71719P Type of test: FCC 47 CFR Part 27 Subpart C: 2012 Miscellaneous Wireless Communication Services IC RSS-139:2009 Advanced Wireless Services Equipment Operating in the Bands 1710-1755 MHz and 2110-2155 MHz Measurement Procedures: 47 CFR Parts 2 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), Part 27:2012 (Miscellaneous Wireless Communication Services), ANSI/TIA-603-C (2004), Land Mobile FM or PM Communications Equipment Measurement and Performance Standards IC-GEN General Requirements and Information for the Certification of Radiocommunication Equipment Test result: Passed Test Report No.: 12-147 FCC ID: XS5-M71719P IC ID: 2237E-M71719P The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-147-V01.00 Page 2 of 42 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: T…
