Installation Instruction The Remote Unit, Extension Unit or Master Unit has to be mounted by proffessionel / special trained installer. 1.1. MECHANICAL INSTALLATION 1.1.1. Health and Safety for Mechanical Installation Read and observe chapter 1.3 Health and Safety 1. Caution: Risk of injury by the considerable weight of the unit falling. Ensure there is adequate manpower to handle the weight of the system. 2. Caution: Risk of serious personal injury by equipment falling due to improper installation. The installer must verify that the supporting surface will safely support the combined load of the electronic equipment and all attached hardware and components. The screws and dowels (wall anchors) used should also be appropriate for the structure of the supporting wall. 1.1.2. Property Damage Warnings for Mechanical Installation 1. Attention: Do not install the unit in a way or at a place where the specifications outlined in the Environmental and Safety Specifications leaflet of the supplier are not met. 2. Attention: Due to power dissipation, the Remote Unit may reach a very high temperature. Ensure sufficient airflow for ventilation. 3. Notice: Exceeding the specified load limits may cause the loss of warranty. 4. Notice: When connecting and mounting the cables (RF, optical, mains, ...) ensure that no water can penetrate into the unit through these cables. 5. Notice: Also observe all additional rules or restrictions regarding mounting that depend on the type of Remote Unit. For details refer to section 7.2.2 Mechanical Specification. Install the unit vertically with the fan unit at the top. A maximum tilt angle of 25° from a vertical position must be kept, as in the following illustrations: 6. Notice: A spacing of 40 mm (1.58 inch) around the unit is required. 7. Notice: To ensure sufficient airflow when mounting the unit in enclosed spaces, two lid openings (one for the air inlet and the other for the air outlet) must be provided. Do not block these air inlets and outlets when mounting the Remote Unit. The size of each opening must equal at least 16 x 16 cm (>250 cm 2 ). Ensure that there is no thermal short circuit between the air inlet and air outlet. Make sure free airflow is not deflected or otherwise obstructed. 8. Notice: Depending on the installation type (wall or pole), the corresponding mounting kits must be ordered from the manufacturer. If any different or additional mounting material is used, ensure that the mounting remains as safe as the mounting designed by the manufacturer. The specifications for stationary use of the Remote Unit must not be exceeded. Ensure that the static and dynamic strengths are adequate for the environmental conditions of the site. The mounting itself must not vibrate, swing or move in any way that might cause damage to the Remote Unit. 9. Notice: To avoid damage when mounting the unit, always make sure that the M8 washers (DIN9021 or DIN125 depending on the mounting kit) are placed behind and in front of the mounting drillings of the unit. Specified torques have to be observed for certain mounting procedures according to the following table: Type Tallow-drop screws Hex nuts Spacing bolts PG (plastic) PG (aluminium) Thread M 4 M 8 M 4 M 8 PG 13.5 PG 29 Specified torques 3.3 N-m 27 N-m 2.3 N-m 27 N-m3.75 N-m 10 N-m table Fehler! Kein Text mit angegebener Formatvorlage im Dokument.-1 Specified torques The mounting procedures for a stand-alone Remote Unit without optional accessories are described and illustrated in the following sections. For further information regarding special mounting procedures including mounting of accessory equipment, please see separate manual. 1.2. ELECTRICAL INSTALLATION 1.2.1. Health and Safety for Electrical Installation Read and observe chapter 1.3 Health and Safety Danger: Electrical hazard. Danger of death or fatal injury from electrical current. Obey all general and regional installation and safety regulations relating to work on high voltage installations, as well as regulations covering correct use of tools and personal protective equipment. 1.2.2. Property Damage Warnings for Electrical Installation 1. Attention: It is compulsory to ground (earth) the unit before connecting the power supply. Grounding bolts are provided on the cabinet to connect the ground-bonding cable. 2. Attention: If the mains connector of the Remote Unit is not easily accessible, a disconnect device in the mains power circuit must be provided within easy reach. 3. Attention: A connection of the mains supply to a power socket requires the power socket to be nearby the Remote Unit. 4. Attention: Before connecting or disconnecting the mains connector at the Remote Unit, ensure that mains power supply is disconnected. 5. Attention: Make sure that an appropriate circuit breaker acting as a disconnect device (as required by IEC/EN60950-1) and an overcurrent limiting device are connected between mains power and the Remote Unit. 6. Attention: Incorrectly wired connections can destroy electrical and electronic components. 7. Notice: Although the Remote Unit is internally protected against overvoltage, it is strongly recommended to ground (earth) the antenna cables close to the antenna connectors of the Remote Unit for protection against atmospheric discharge. In areas with strong lightning, it is strongly recommended to install additional lightning protection. 8. Notice: To avoid corrosion at the connectors caused by electrochemical processes, the material of the cable connectors must not cause a higher potential difference than 0.6 V (see electrochemical contact series). 9. Notice: Use an appropriate torque wrench for the coupling torques: - for N-type connectors (2 N-m / 20 in lb) with 13/16 in opening, e. g. item no. 244379 available from the CommScope e-catalog - for 7/16 DIN-type (25 N-m / 19 ft lb) with 1 ¼ in opening, e. g. item no. 244377 available from the CommScope e-catalog Do NOT use your hands or any other tool (e.g. a pair of pliers). This …

Text truncated - open the document above for the full version.

ION ® -M7P/7P/17P Optical Remote Unit (M-Cabinet) Manual MF0145AUA Page 2 MF0145AUA.doc Manual for ION ® -M7P/7P/17P DISCLAIMER: This document has been developed by CommScope, and is intended for the use of its customers and customer support personnel. The information in this document is subject to change without notice. While every effort has been made to eliminate errors, CommScope disclaims liability for any difficulties arising from the interpretation of the information contained herein. The information contained herein does not claim to cover all details or variations in equipment, nor to provide for every possible incident to be met in connection with installation, operation, or maintenance. This document describes the performance of the product under the defined operational conditions and does not cover the performance under adverse or disturbed conditions. Should further information be desired, or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, contact CommScope. CommScope reserves the right to change all hardware and software characteristics without notice. COPYRIGHT: © Copyright 2014 CommScope Inc. All Rights Reserved. This document is protected by copyright. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical photocopying, recording, or otherwise without the prior written permission of CommScope. TRADEMARKS All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope. Names of products mentioned herein are used for identification purposes only and may be trademarks and / or registered trademarks of their respective companies. Andrew Wireless Systems GmbH, 04-August-2014 Table of Contents MF0145AUA.doc Manual for ION ® -M7P/7P/17P Page 3 TABLE OF CONTENTS 1. GENERAL 6 1.1. USED ABBREVIATIONS 6 1.2. HEALTH AND SAFETY 7 1.3. PROPERTY DAMAGE WARNINGS 7 1.4. COMPLIANCE 8 1.5. ABOUT COMMSCOPE 11 1.6. INTERNATIONAL CONTACT ADDRESSES FOR CUSTOMER SUPPORT 12 2. INTRODUCTION 14 2.1. PURPOSE 14 2.2. THE ION-M7P/7P/17P 14 3. FUNCTIONAL DESCRIPTION 16 3.1. ACCESSORY EQUIPMENT 16 3.1.1. Fan-Protection Kit 16 3.1.2. Accessories 16 4. COMMISSIONING 17 4.1. MECHANICAL INSTALLATION 17 4.1.1. Health and Safety for Mechanical Installation 17 4.1.2. Property Damage Warnings for Mechanical Installation 17 4.1.3. Wall-Mounting Procedure 19 4.1.4. Pole Mounting 20 4.1.5. Mounting of Fan Protection 22 4.2. ELECTRICAL INSTALLATION 23 4.2.1. Health and Safety for Electrical Installation 23 4.2.2. Property Damage Warnings for Electrical Installation 23 4.2.3. Connections 24 4.2.4. Grounding (Earthing) 25 4.2.5. Connection of the Antenna Cables 26 4.2.6. Cleaning Procedure for RF Cable Connectors 27 4.2.7. Antenna Cable Connector Assembly 30 4.2.8. Optical-Fiber-Cable Connection - Rules 31 4.2.9. Protective Plug 33 4.2.10. Protective-Tube Kit 35 4.2.11. External-Alarm Inputs and Outputs 37 4.2.12. Power Connection 39 4.2.13. Commisioning Flowchart 40 5. ALARMS AND TROUBLESHOOTING 42 Table of Contents Page 4 MF0145AUA.doc Manual for ION ® -M7P/7P/17P 6. MAINTENANCE 44 6.1. GENERAL 44 6.2. REPLACING THE FAN UNIT 45 6.3. CLEANING THE HEAT SINK 46 7. APPENDIX 47 7.1. ILLUSTRATIONS 47 7.2. SPECIFICATIONS 48 7.2.1. Electrical Specifications 48 7.2.2. Environmental and Safety Specifications 48 7.2.3. Mechanical Specifications 48 7.3. SPARE PARTS 49 8. INDEX 50 Figures and Tables MF0145AUA.doc Manual for ION ® -M7P/7P/17P Page 5 FIGURES AND TABLES figure 4-1 Wall mounting, (metric dimensions) ........................................................... 19 figure 4-2 Pole-mounting kit ........................................................................................ 20 figure 4-3 Pole mounting (metric dimensions) ............................................................ 21 figure 4-4 Mounting procedure for fan protection, (metric dimensions) ..................... 22 figure 4-5 Connector flange of ION-M7P/7P/17P ....................................................... 24 figure 4-6 Grounding bolt with loosened hex nut (left) and schematic view (right) .... 25 figure 4-7 Torque wrench for tightening ..................................................................... 26 figure 4-8 Protective-plug assembly ........................................................................... 33 figure 4-9 Tube-kit installation .................................................................................... 36 figure 4-10 Flange connector, 5 poles ........................................................................ 37 figure 4-11 Alarm inputs (optocoupler) ....................................................................... 37 figure 4-12 Alarm outputs (optocoupler) ..................................................................... 38 figure 4-13 Flange connector, 7 poles ........................................................................ 38 figure 4-14 AC mains plug .......................................................................................... 39 figure 4-15 DC mains plug .......................................................................................... 39 figure 7-1 Cabinet Drawing ......................................................................................... 47 table 1-1 List of international contact addresses ........................................................ 13 table 4-1 Specified torques ......................................................................................... 18 table 5-1 Status LED alarms ....................................................................................... 42 1. General Page 6 MF0145AUA.doc Manual for ION ® -M7P/7P/17P 1. General 1.1. Used Abbreviations 3GPP 3 rd Generation Partnership Project AC/DC Alternating current / Direct Current AIMOS Andrew Integrated Management and Operating System ALC Automatic Level Control BITE Built-In Test Equipme…

Text truncated - open the document above for the full version.

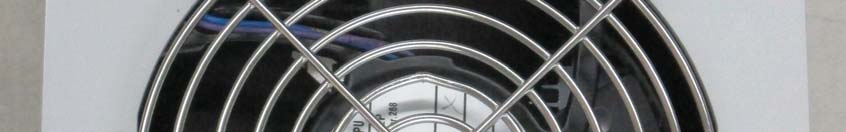

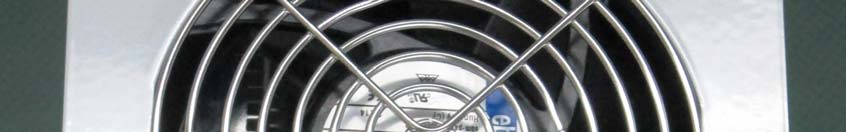

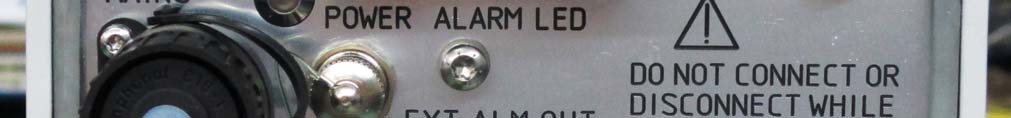

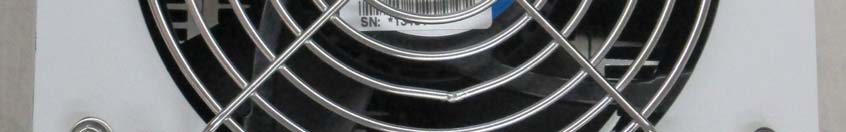

External Photos ION-M 7P/7P/17P

Label Location 11,5cm 6,5cm

Internal Photos ION-M7P/7P/17P Duplexer OTRX RCM161 Controller Amplifier FCM (Frequenz Conversion Module) Power Supply Fans Heat Sink Front Flange OTRX 70-85/90/17-21 FCM RCM161 Control Unit Final Amplifier Fin.Ampl.728-757MHz Fin.Ampl.2110-2170MHz

RF Exposure Info / MPE Sample Calculation Model: ION-M7P/7P/17P FCC-ID: XS5-M7717P The ION optical distribution system is a cost-effective coverage solution for dense urban areas, tunnels, subway, airports, convention centers, high-rise buildings and other locations where physical structures increase path loss. It has been specifically designed to reduce zoning problems and to provide homogeneous coverage. The compact, mechanical design is specifically architected to mount inside of poles or alongside structures in such a way that it has a minimal visual impact. The ION-M7P/7P/17P is a LTE 700 MHz MIMO, 1700/2100 MHz CDMA, WCDMA, and LTE multi-operator Remote Unit. It is used in conjunction with a Master Unit in the ION optical distribution system. This system transports multiple LTE channels, and 1700/2100 MHz wideband signals simultaneously, providing a cost-effective solution for distributing capacity from one or more base stations. The ION-M7P/7P/17P transports signals on the RF layer in a very inexpensive manner. This means that multiple operators and multiple technologies are moved simultaneously from a cluster of base stations to a remote location over the same fiber. The ION-M7P/7P/17P is available in single (SISO) or multi-channel (MIMO) configuration supporting 700 MHz, and 1700/2100 MHz in parallel. It has been specifically tested and optimized for LTE, CDMA, and WCDMA signals. The ION is easily set-up and supervised via a graphical user interface (GUI). Remote units can be commissioned through the use of built-in test equipment. An autoleveling function compensates for the optical link loss making installation easy and quick. The entire system may be monitored remotely via an Andrew OMC. This platform uses SNMP protocol and is compliant to X.733 standard. The specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B). S = power density limit [W/m] P = power [W] R = distance [m] 2 4 n nn n R GP S   => n nn n S GP R 4  (to calculate the distance at one frequency) If we have more bands, than we have to calculated as a percentage: The additional of the terms have to be lower than 1. 1 4 .... 4 44 1.... 2 3 2 3 33 2 2 2 22 1 2 1 11 ln 3 3 2 2 1 1   n n nn n cacalcalcal S R GP S R GP S R GP S R GP S S S S S S S S   We are looking for a distance of ensures that the formula is satisfied. n RRRR... 321 1 4 ... 444 2 3 2 33 2 2 22 1 2 11  n nn SR GP SR GP SR GP SR GP  R S GP S GP S GP S GP R S GP S GP S GP S GP n nn n nn     4 ... 444 4 ... 444 3 33 2 22 1 11 2 3 33 2 22 1 11 With n nn n S GP R 4  => n nn n S GP R 4 2  RRRRR n  22 3 2 2 2 1 ... What you have to do for calculate the minimum distance were the power density limit is met: 1) If you have one path, you have to put you special values in the following formula. n nn n S GP R 4  (Distance for one carrier) Limits for General Population / Uncontrolled Exposures Frequency Range (MHz) Power Density (mW/cm 2 ) 300 – 1500 S = f/1500 1550 – 100,000 S = 1 2) If you have more than one path, you must add the individual terms quadratic. n nn n S GP R 4  (Distance for individual carrier) RRRRR n  22 3 2 2 2 1 ... (See previous page) For example: The EUT operates in the 4 frequency bands: 728-746, 746-757, 869-894 and 1850-1915 MHz. The max measured conducted output power is 43.0 dBm (20 W) at the all frequency paths. Calculation for every path with maximum possible antenna gain and without cable loss: Frequency [MHz] Max Power out [dBm] Max. possible Antenna gain, without cable loss [dBi] Max. Distance [m] 728 43 19.15 5.1865 747 43 19.15 5.1201 2110 43 19 3.5514 The worst case would be if all bands were active: RRRRR n  22 3 2 2 2 1 ... R all > 8.107 m (see previous page for formula) For more accurate calculation, the cable loss and actual antenna gain have to be included in the finally system. The antenna(s) used with device must be fixed-mounted on permanent structures with a distance to any human body to comply with the RF Exposure limit.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-14-183-V01.00 Page 1 of 40 Date of issue: 05.09.14 Signature: Issue-No.: 01 Author: Date of delivery: 15.08.14 Checked: Test dates: 05.08. – 15.08.14 Pages: 40 ECL-EMC Test Report No.: 14-183 Equipment under test: ION-M7P/7P/17P 700MHz main path FCC ID: XS5-M7717P Type of test: FCC 47 CFR Part 27 Subpart H, F: 2014 Miscellaneous Wireless Communication Services Measurement Procedures: 47 CFR Parts 2: 2014 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), Part 27: 2014 (Miscellaneous Wireless Communication Services), ANSI/TIA-603-C:2004, Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Test result: Passed Test Report No.: 14-183 FCC ID: XS5-M7717P The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-14-183-V01.00 Page 2 of 40 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: Bureau Veritas Consumer Products Services Germany GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 40 74041 0 Fax: +49 40 74041-2755 General: The purpose of this report is to show compliance to the FCC regulations for devices operating under Part 27 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Test Report No.: 14-183 FCC ID: XS5-M7717P The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-14-183-V01.00 Page 3 of 40 Table of contents 1 TEST RESULTS SUMMARY ................................................................................................................. 5 2 EQUIPMENT UNDER TEST (E.U.T.) .................................................................................................... 6 2.1 DESCRIPTION .................................................................................................................................... 6 2.1.1 DOWNLINK ................................................................................................................................. 6 2.1.2 UPLINK ...................................................................................................................................... 6 2.1.3 DESCRIPTION OF EUT ................................................................................................................ 6 2.1.4 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS ............................................................. 7 2.1.5 DOWNLINK SYSTEM GAIN AND OUTPUT POWER ........................................................................... 7 3 TEST SITE (ANDREW BUCHDORF) .................................................................................................... 8 3.1 TEST ENVIRONMENT .......................................................................................................................... 8 3.2 TEST EQUIPMENT .............................................................................................................................. 8 3.3 INPUT AND OUTPUT LOSSES ............................................................................................................... 9 3.4 MEASUREMENT UNCERTAINTY ............................................................................................................ 9 4 TEST SITE ((BUREAU VERITAS CONSUMER PRODUCTS SERVICES)) ......................................... 9 5 RF POWER OUT: §27.50, §2.1046 ..................................................................................................... 10 5.1 LIMIT............................................................................................................................................... 10 5.2 TEST METHOD ................................................................................................................................. 10 5.3 TEST RESULTS ................................................................................................................................ 11 5.3.1 DOWNLINK ............................................................................................................................... 11 5.3.1.1 LTE 728 – 746MHz ......................................................................................................... 12 5.3.1.2 LTE 746 – 757MHz ......................................................................................................... 12 5.3.2 UPLINK .................................................................................................................................... 13 5.4 SUMMARY TEST RESULT ................................................................................................................... 13 6 OCCUPIED BANDWIDTH: §90.210, §2.1049 ..................................................................................... 14 6.1 LIMIT............................................................................................................................................... 14 6.2 TEST METHOD ................................................................................................................................. 14 6.3 TEST RESULTS ................................................................................................................................ 14 6.3.1 DOWNLINK ............................................................................................................................... 14 6.3.1.1 LTE 728 – 746MHz ......................................................................................................... 15 6.3.1.2 L…

Text truncated - open the document above for the full version.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-14-184-V01.00 Page 1 of 38 Date of issue: 05.09.14 Signature: Issue-No.: 01 Author: Date of delivery: 15.08.14 Checked: Test dates: 05.08. – 15.08.14 Pages: 38 ECL-EMC Test Report No.: 14-184 Equipment under test: ION-M7P/7P/17P 1700MHz Path FCC ID: XS5-M7717P Type of test: FCC 47 CFR Part 27 Subpart C: 2014 Miscellaneous Wireless Communication Services Measurement Procedures: 47 CFR Parts 2 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), Part 27:2014 (Miscellaneous Wireless Communication Services), ANSI/TIA-603-C (2004), Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Test result: Passed Test Report No.: 14-184 FCC ID: XS5-M7717P The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-14-184-V01.00 Page 2 of 38 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: Bureau Veritas Consumer Products Services Germany GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 40 74041 0 Fax: +49 40 74041-2755 General: The purpose of this report is to show compliance to the FCC regulations for devices operating under Part N 22,N°27 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Test Report No.: 14-184 FCC ID: XS5-M7717P The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-14-184-V01.00 Page 3 of 38 Table of contents 1 TEST RESULTS SUMMARY ................................................................................................................. 5 2 EQUIPMENT UNDER TEST (E.U.T.) .................................................................................................... 6 2.1 DESCRIPTION .................................................................................................................................... 6 2.1.1 DOWNLINK ................................................................................................................................. 6 2.1.2 UPLINK ...................................................................................................................................... 6 2.1.3 DESCRIPTION OF EUT ................................................................................................................ 6 2.1.4 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS .............................................................. 7 2.1.5 DOWNLINK SYSTEM GAIN AND OUTPUT POWER ........................................................................... 7 3 TEST SITE (ANDREW BUCHDORF) .................................................................................................... 8 3.1 TEST ENVIRONMENT .......................................................................................................................... 8 3.2 TEST EQUIPMENT .............................................................................................................................. 8 3.3 INPUT AND OUTPUT LOSSES ............................................................................................................... 9 3.4 MEASUREMENT UNCERTAINTY ............................................................................................................ 9 4 TEST SITE (BUREAU VERITAS CONSUMER PRODUCTS SERVICES) ........................................... 9 5 RF POWER OUT: §27.50, §2.1046 ..................................................................................................... 10 5.1 LIMIT............................................................................................................................................... 10 5.2 TEST METHOD ................................................................................................................................. 10 5.3 TEST RESULTS ................................................................................................................................ 11 5.3.1 DOWNLINK ............................................................................................................................... 11 5.3.1.1 CDMA ............................................................................................................................. 12 5.3.1.2 W-CDMA......................................................................................................................... 12 5.3.1.3 LTE ................................................................................................................................. 13 5.3.2 UPLINK .................................................................................................................................... 13 5.4 SUMMARY TEST RESULT ................................................................................................................... 13 6 OCCUPIED BANDWIDTH: §2.1049 .................................................................................................... 14 6.1 LIMIT............................................................................................................................................... 14 6.2 TEST METHOD ................................................................................................................................. 14 6.3 TEST RESULTS ................................................................................................................................ 15 6.3.1 DOWNLINK ..................................................................................................................…

Text truncated - open the document above for the full version.

Test setup DUT ION-M7P/7P/17P Measurement Equipment
