ION ® -M7HP/85HP EU Extension Unit (ML-Cabinet) Manual MF0145ASA Page 2 MF0145ASA.docx User’s Manual for ION ® -M7HP/85HP EU DISCLAIMER: This document has been developed by CommScope, and is intended for the use of its customers and customer support personnel. The information in this document is subject to change without notice. While every effort has been made to eliminate errors, CommScope disclaims liability for any difficulties arising from the interpretation of the information contained herein. The information contained herein does not claim to cover all details or variations in equipment, nor to provide for every possible incident to be met in connection with installation, operation, or maintenance. This document describes the performance of the product under the defined operational conditions and does not cover the performance under adverse or disturbed conditions. Should further information be desired, or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, contact CommScope. CommScope reserves the right to change all hardware and software characteristics without notice. COPYRIGHT: © Copyright 2014 CommScope Inc. All Rights Reserved. This document is protected by copyright. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical photocopying, recording, or otherwise without the prior written permission of CommScope. TRADEMARKS All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope. Names of products mentioned herein are used for identification purposes only and may be trademarks and / or registered trademarks of their respective companies. Andrew Wireless Systems GmbH, 04-June-2014 Table of Contents MF0145ASA.docx User’s Manual for ION ® -M7HP/85HP EU Page 3 TABLE OF CONTENTS 1. GENERAL 6 1.1. ABBREVIATIONS 6 1.2. HEALTH AND SAFETY 7 1.3. PROPERTY DAMAGE WARNINGS 7 1.4. COMPLIANCE 8 1.5. ABOUT COMMSCOPE 10 1.6. INTERNATIONAL CONTACT ADDRESSES FOR CUSTOMER SUPPORT 11 2. INTRODUCTION 13 2.1. PURPOSE 13 2.2. THE ION-M7HP/85HP EU 13 3. COMMISSIONING 15 3.1. MECHANICAL INSTALLATION 15 3.1.1. Health and Safety for Mechanical Installation 15 3.1.2. Property Damage Warnings for Mechanical Installation 15 3.1.3. Mounting Distance between RU and EU 17 3.1.4. Wall-Mounting Procedure 18 3.1.5. Pole Mounting 19 3.1.6. Mounting of DC Box 21 3.2. ELECTRICAL INSTALLATION 22 3.2.1. Health and Safety for Electrical Installation 22 3.2.2. Property Damage Warnings for Electrical Installation 22 3.2.3. Connections 23 3.2.4. Grounding (Earthing) 24 3.2.5. Connection of the Antenna Cables 24 3.2.6. Cleaning Procedure for RF Cable Connectors 25 3.2.7. Antenna Cable Connector Assembly 28 3.2.8. Power Connection 29 3.2.8.1. AC Power Connection 29 3.2.8.2. DC Power Connection 30 3.2.9. Connection Extension Unit to the Main Unit 31 3.2.10. Flowchart 32 4. ALARMS AND TROUBLESHOOTING 34 5. MAINTENANCE 35 5.1. GENERAL 35 5.2. REPLACING THE FAN UNIT 36 Table of Contents Page 4 MF0145ASA.docx User’s Manual for ION ® -M7HP/85HP EU 5.3. CLEANING THE HEAT SINK 37 6. APPENDIX 38 6.1. ILLUSTRATIONS 38 6.2. SPECIFICATIONS 40 6.2.1. Electrical Specifications 40 6.2.2. Mechanical Specifications 40 6.2.3. Environmental and Safety Specifications 40 6.3. SPARE PARTS 41 7. INDEX 42 Figures and Tables MF0145ASA.docx User’s Manual for ION ® -M7HP/85HP EU Page 5 FIGURES AND TABLES figure 3-1 Maximum distance between RU and EU ................................................... 17 figure 3-2 Mounting bracket installation ...................................................................... 18 figure 3-3 RU wall mounting ....................................................................................... 18 figure 3-4 Pole-mounting kit ........................................................................................ 19 figure 3-5 Pole-mounting, ML-cabinet, assembly drawing ......................................... 20 figure 3-6 Pole mounting of RU, finished .................................................................... 20 figure 3-7 Mounting of DC Box ................................................................................... 21 figure 3-8 Mounting of DC Box, finished ..................................................................... 21 figure 3-9 Connector flange of ION-M7HP/85HP without DC Box ............................. 23 figure 3-10 Grounding bolt .......................................................................................... 24 figure 3-11 Grounding bolt, schematic view ............................................................... 24 figure 3-12 Mains connector ....................................................................................... 29 figure 3-13 Power supply plug to RU Mains connector .............................................. 30 figure 5-1 Fan unit and heat sink ................................................................................ 36 figure 6-1 Cabinet drawing (without DC Box) ............................................................. 38 figure 6-2 Cabinet drawing (with DC Box) .................................................................. 39 table 3-1 Specified torques ......................................................................................... 16 table 4-1 Status LED alarms ....................................................................................... 34 1. General Page 6 MF0145ASA.docx User’s Manual for ION ® -M7HP/85HP EU 1. General 1.1. Abbreviations 3GPP 3 rd Generation Partnership Project AC/DC Alternating current / Direct Current ALC Automatic Level Control BITE Built-In Test Equipment BTS Base Transceiver Station CE "Conformité Européenne" ("European Conformity") CD Compact Disk DL Downlink EDGE Enhanced Data Rates for GSM Evolution EN European Norm EP Extension Port ESD Electrostatic Discharge ETS European Telecommunication Standard …

Text truncated - open the document above for the full version.

Installation Instruction The Remote Unit, Extension Unit or Master Unit has to be mounted by proffessionel / special trained installer. 1.1. MECHANICAL INSTALLATION The wall and pole mounting illustrations in the following all show units without DC Box. The installation of the DC Box is explained separately. 1.1.1. Health and Safety for Mechanical Installation 1. Caution: Risk of injury by the considerable weight of the unit falling. Ensure there is adequate manpower to handle the weight of the system. 2. Caution: Risk of serious personal injury by equipment falling due to improper installation. The installer must verify that the supporting surface will safely support the combined load of the electronic equipment and all attached hardware and components. The screws and dowels (wall anchors) used should also be appropriate for the structure of the supporting wall. 1.1.2. Property Damage Warnings for Mechanical Installation 1. Attention: Do not install the unit in a way or at a place where the specifications outlined in the Environmental and Safety Specifications leaflet of the supplier are not met. 2. Attention: Due to power dissipation, the unit may reach a very high temperature. Ensure sufficient airflow for ventilation. 3. Notice: Exceeding the specified load limits may cause the loss of warranty. 4. Notice: When connecting and mounting the cables (RF, optical, mains, ...) ensure that no water can penetrate into the unit through these cables. 5. Notice: Also observe all additional rules or restrictions regarding mounting that depend on the type of unit. For details refer to section 7.2.2 Mechanical Specification. Install the unit vertically with the fan unit at the top. A maximum tilt angle of 25° from a vertical position must be kept, as in the following illustrations: 6. Notice: A spacing of 40 mm (1.58 inch) around the unit is required. 7. Notice: To ensure sufficient airflow when mounting the unit in enclosed spaces, two lid openings (one for the air inlet and the other for the air outlet) must be provided. Do not block these air inlets and outlets when mounting the unit. The size of each opening must equal at least 18 x 18 cm (>300 cm 2 ). Make sure, too, there is no thermal short circuit between the air inlet and air outlet. 8. Notice: Depending on the installation type (wall or pole), the corresponding mounting kits must be ordered from the manufacturer. If any different or additional mounting material is used, ensure that the mounting remains as safe as the mounting designed by the manufacturer. The specifications for stationary use of the unit must not be exceeded. Ensure that the static and dynamic strengths are adequate for the environmental conditions of the site. The mounting itself must not vibrate, swing or move in any way that might cause damage to the unit. 9. Notice: To avoid damage when mounting the unit, always make sure that the M8 washers (DIN9021 or DIN125 depending on the mounting kit) are placed behind and in front of the mounting drillings of the unit. Specified torques have to be observed for certain mounting procedures according to the following table: Type Lens head screws Hex nuts Spacing bolts PG (plastic) PG (alu- minum) Thread M 4 M 8 M 4 M 8 PG 13.5 PG 29 Specified torques 3.3 N-m 27 N-m 2.3 N-m 27 N-m 3.75 N-m 10 N-m table Fehler! Kein Text mit angegebener Formatvorlage im Dokument.-1 Specified torques  Note: To avoid damage when mounting the unit, always make sure that the M8 washers (DIN9021 or DIN125 depending on the mounting kit) are placed behind and in front of the mounting drillings of the unit. The mounting procedures for a stand-alone unit without optional accessories are described and illustrated in the following sections. For further information regarding special mounting procedures including mounting of accessory equipment, please see separate manual. 1.2. ELECTRICAL INSTALLATION 1.2.1. Health and Safety for Electrical Installation Read and observe observe chapter 1.3 Health and Safety. 1. Danger: Electrical hazard. Danger of death or fatal injury from electrical current. Obey all general and regional installation and safety regulations relating to work on high voltage installations, as well as regulations covering correct use of tools and personal protective equipment. 1.2.2. Property Damage Warnings for Electrical Installation 1. Attention: It is compulsory to ground (earth) the unit before connecting the power supply. Grounding bolts are provided on the cabinet to connect the ground-bonding cable. 2. Attention: If the mains connector of the unit is not easily accessible, a disconnect device in the mains power circuit must be provided within easy reach. 3. Attention: A connection of the mains supply to a power socket requires the power socket to be nearby the unit. 4. Attention: Before connecting or disconnecting the mains connector at the unit, ensure that mains power supply is disconnected. 5. Attention: Make sure that an appropriate circuit breaker acting as a disconnect device (as required by IEC/EN60950-1) and an overcurrent limiting device are connected between mains power and the unit. 6. Attention: Incorrectly wired connections can destroy electrical and electronic components. 7. Notice: Although the unit is internally protected against overvoltage, it is strongly recommended to ground (earth) the antenna cables close to the antenna connectors of the unit for protection against atmospheric discharge. In areas with strong lightning, it is strongly recommended to install additional lightning protection. 8. Notice: To avoid corrosion at the connectors caused by electrochemical processes, the material of the cable connectors must not cause a higher potential difference than 0.6 V (see electrochemical contact series). 9. Notice: Use an appropriate torque wrench for the coupling torques: - for N-type connectors (2 N-m / 20 in lb) with 13/16 in opening, e. g. item no. 244379 available from the CommScope e-catalog - for 7/16 DIN-type (2…

Text truncated - open the document above for the full version.

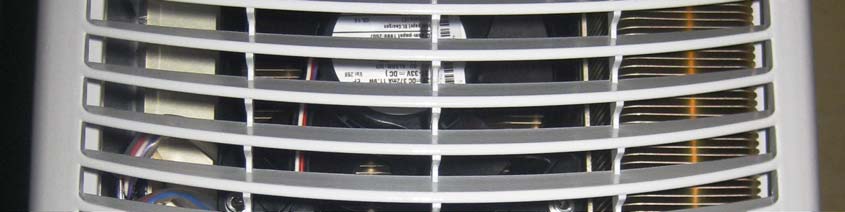

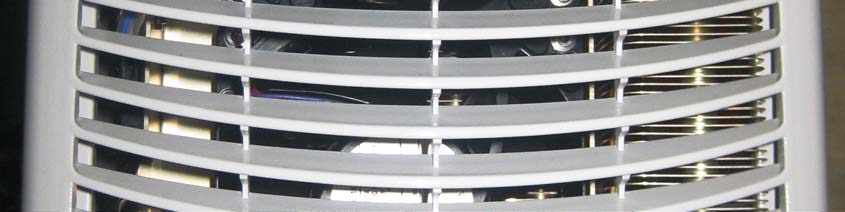

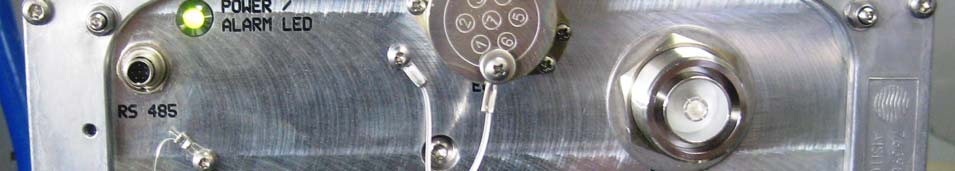

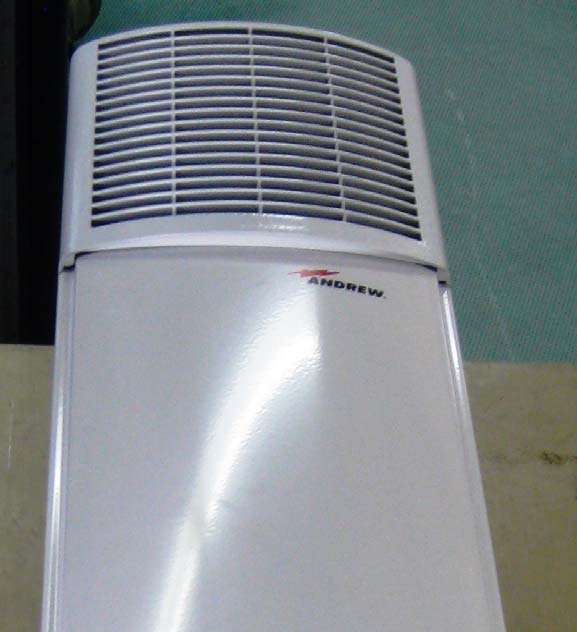

External Photos ION-M 7HP/85HP EU

Label Location 11,5cm 6,5cm

Internal Photos ION-M7HP/85HP EU Duplexer Amplifier & Power Supply Final Amplifier 716 - 757MHz Final Amplifier 851 – 894MHz PCB P3504 PCB P3129

RF Exposure Info / MPE Sample Calculation Model: ION-M7HP/85HP EU FCC-ID: XS5-M785HPEU The ION-M7HP/85HP EU is an LTE CDMA/WCDMA multi-operator, multi-band Extension Unit. It is used in conjunction with the main unit ION-M17HP/19HP. This extension system transports multiple LTE700 channels and 850 MHz wide-band signals simultaneously, providing a cost-effective solution for distribution capacity from one or more base stations. The ION-M7HP/85HP EU transports signals on the RF layer in a very inexpensive manner. This means that multiple operators and multiple technologies are moved simultaneously from a cluster of base stations to a remote location over the same fiber. The ION optical distribution system is a cost-effective coverage solution for dense urban areas, tunnels, subway, airports, convention centers, high-rise buildings and other locations where physical structures increase path loss. It has been specifically designed to reduce zoning problems and to provide homogeneous coverage. The compact, mechanical design is specifically architected to mount alongside structures in such a way that it has a minimal visual impact. The ION-M7HP/85HP EU supports 700 MHz and 850 MHz. It has been specifically tested and optimized for LTE, OFDM, CDMA, and WCDMA signals. The ION is easily set-up and supervised via a graphical user interface (GUI). Remote units can be commissioned through the use of built-in test equipment. An autoleveling function compensates for the optical link loss making installation easy and quick. The entire system may be monitored remotely via an Andrew OMC. This platform uses SNMP protocol and is compliant to X.733 standard. Should a sophisticated interface not be required, the Master Unit can be directly connected to the alarm interface of a base station via its contact relay. The specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B). S = power density limit [W/m] P = power [W] R = distance [m] 2 4 n nn n R GP S   => n nn n S GP R 4  (to calculate the distance at one frequency) If we have more bands, than we have to calculated as a percentage: The additional of the terms have to be lower than 1. 1 4 .... 4 44 1.... 2 3 2 3 33 2 2 2 22 1 2 1 11 ln 3 3 2 2 1 1   n n nn n cacalcalcal S R GP S R GP S R GP S R GP S S S S S S S S   We are looking for a distance of ensures that the formula is satisfied. n RRRR... 321 1 4 ... 444 2 3 2 33 2 2 22 1 2 11  n nn SR GP SR GP SR GP SR GP  R S GP S GP S GP S GP R S GP S GP S GP S GP n nn n nn     4 ... 444 4 ... 444 3 33 2 22 1 11 2 3 33 2 22 1 11 With n nn n S GP R 4  => n nn n S GP R 4 2  RRRRR n  22 3 2 2 2 1 ... What you have to do for calculate the minimum distance were the power density limit is met: 1) If you have one path, you have to put you special values in the following formula. n nn n S GP R 4  (Distance for one carrier) Limits for General Population / Uncontrolled Exposures Frequency Range (MHz) Power Density (mW/cm 2 ) 300 – 1500 S = f/1500 1550 – 100,000 S = 1 2) If you have more than one path, you must add the individual terms quadratic. n nn n S GP R 4  (Distance for individual carrier) RRRRR n  22 3 2 2 2 1 ... (See previous page) For example: The EUT operates in the 2 frequency bands: 728-757 and 869-894 Calculation for every path with maximum possible antenna gain and without cable loss: Frequency [MHz] Max Power out [dBm] Max. possible Antenna gain, without cable loss [dBi] Max. Distance [m] 728 45.5 16.65 5.1865 881 44.5 14.65 3.3377 The worst case would be if all bands were active: RRRRR n  22 3 2 2 2 1 ... R all > 6.168 m (see previous page for formula) For more accurate calculation, the cable loss and actual antenna gain have to be included in the finally system. The antenna(s) used with device must be fixed-mounted on permanent structures with a distance to any human body to comply with the RF Exposure limit.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-14-144-V01.00 Page 1 of 40 Date of issue: 21.07.14 Signature: Issue-No.: 01 Author: Date of delivery: 14.06.14 Checked: Test dates: 03.06. – 21.07.14 Pages: 40 ECL-EMC Test Report No.: 14-144 Equipment under test: ION-M7HP/85HP 700MHz path FCC ID: XS5-M785HPEU IC ID: Type of test: FCC 47 CFR Part 27 Subpart H, F: 2014 Miscellaneous Wireless Communication Services Measurement Procedures: 47 CFR Parts 2: 2014 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), Part 27: 2014 (Miscellaneous Wireless Communication Services), ANSI/TIA-603-C:2004, Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Test result: Passed Test Report No.: 14-144 FCC ID: XS5-M785HPEU The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-14-144-V01.00 Page 2 of 40 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: Bureau Veritas Consumer Products Services Germany GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 40 74041 0 Fax: +49 40 74041-2755 General: The purpose of this report is to show compliance to the FCC regulations for devices operating under Part 27 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Test Report No.: 14-144 FCC ID: XS5-M785HPEU The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-14-144-V01.00 Page 3 of 40 Table of contents 1 TEST RESULTS SUMMARY ................................................................................................................. 5 2 EQUIPMENT UNDER TEST (E.U.T.) .................................................................................................... 6 2.1 DESCRIPTION .................................................................................................................................... 6 2.1.1 DOWNLINK ................................................................................................................................. 6 2.1.2 UPLINK ...................................................................................................................................... 6 2.1.3 DESCRIPTION OF EUT ................................................................................................................ 6 2.1.4 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS ............................................................. 7 2.1.5 DOWNLINK SYSTEM GAIN AND OUTPUT POWER ........................................................................... 7 3 TEST SITE (ANDREW BUCHDORF) .................................................................................................... 8 3.1 TEST ENVIRONMENT .......................................................................................................................... 8 3.2 TEST EQUIPMENT .............................................................................................................................. 8 3.3 INPUT AND OUTPUT LOSSES ............................................................................................................... 9 3.4 MEASUREMENT UNCERTAINTY ............................................................................................................ 9 4 TEST SITE ((BUREAU VERITAS CONSUMER PRODUCTS SERVICES)) ......................................... 9 5 RF POWER OUT: §27.50, §2.1046 ..................................................................................................... 10 5.1 LIMIT............................................................................................................................................... 10 5.2 TEST METHOD ................................................................................................................................. 10 5.3 TEST RESULTS ................................................................................................................................ 11 5.3.1 DOWNLINK ............................................................................................................................... 11 5.3.1.1 LTE 728 – 746MHz ......................................................................................................... 12 5.3.1.2 LTE 746 – 757MHz ......................................................................................................... 12 5.3.2 UPLINK .................................................................................................................................... 13 5.4 SUMMARY TEST RESULT ................................................................................................................... 13 6 OCCUPIED BANDWIDTH: §90.210, §2.1049 ..................................................................................... 14 6.1 LIMIT............................................................................................................................................... 14 6.2 TEST METHOD ................................................................................................................................. 14 6.3 TEST RESULTS ................................................................................................................................ 14 6.3.1 DOWNLINK ............................................................................................................................... 14 6.3.1.1 LTE 728 – 746MHz ......................................................................................................... 15 6.…

Text truncated - open the document above for the full version.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-14-145-V01.00 Page 1 of 51 Date of issue: 21.07.14 Signature: Issue-No.: 01 Author: Date of delivery: 14.06.14 Checked: Test dates: 03.06. – 21.07.14 Pages: 51 ECL-EMC Test Report No.: 14-145 Equipment under test: ION-M7HP/85HP EU 850MHz Path FCC ID: XS5-M785HPEU IC ID: Type of test: FCC 47 CFR Part 22 Subpart H:2014 Cellular Radiotelephone Service Measurement Procedures: 47 CFR Parts 2: 2014 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), Part 22: 2014 (Cellular Radiotelephone Service), ANSI/TIA-603-C (2004), Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Test result: Passed Test Report No.: 14-145 FCC ID: XS5-M785HPEU The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-14-145-V01.00 Page 2 of 51 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: Bureau Veritas Consumer Products Services Germany GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 40 74041 0 Fax: +49 40 74041-2755 General: The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 22 of the Code of Federal Regulations title 47. This report informs about the results of the RF tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Test Report No.: 14-145 FCC ID: XS5-M785HPEU The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-14-145-V01.00 Page 3 of 51 Table of contents 1 TEST RESULTS SUMMARY ................................................................................................................. 5 2 EQUIPMENT UNDER TEST (E.U.T.) .................................................................................................... 6 2.1 DESCRIPTION .................................................................................................................................... 6 2.1.1 DOWNLINK ................................................................................................................................. 6 2.1.2 UPLINK ...................................................................................................................................... 6 2.1.3 DESCRIPTION OF EUT ................................................................................................................ 7 2.1.4 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS .............................................................. 8 2.1.5 DOWNLINK SYSTEM GAIN AND OUTPUT POWER ........................................................................... 8 3 TEST SITE (ANDREW BUCHDORF) .................................................................................................... 9 3.1 TEST ENVIRONMENT .......................................................................................................................... 9 3.2 TEST EQUIPMENT .............................................................................................................................. 9 3.3 INPUT AND OUTPUT LOSSES ............................................................................................................. 10 3.4 MEASUREMENT UNCERTAINTY .......................................................................................................... 10 4 TEST SITE (BUREAU VERITAS CONSUMER PRODUCTS SERVICES) ......................................... 10 5 RF POWER OUT: §22.913, §2.1046; IC RSS-131 .............................................................................. 11 5.1 LIMIT............................................................................................................................................... 11 5.2 TEST METHOD ................................................................................................................................. 11 5.3 TEST RESULTS ................................................................................................................................ 12 5.3.1 DOWNLINK ............................................................................................................................... 13 5.3.1.1 Analog............................................................................................................................. 14 5.3.1.2 GSM ................................................................................................................................ 14 5.3.1.3 EDGE .............................................................................................................................. 15 5.3.1.4 CDMA ............................................................................................................................. 15 5.3.1.5 WCDMA .......................................................................................................................... 16 5.3.1.6 LTE ................................................................................................................................. 16 5.3.2 UPLINK .................................................................................................................................... 17 5.4 SUMMARY TEST RESULT ................................................................................................................... 17 6 OCCUPIED BANDWIDTH: §2.1049; RSS-GEN .................................................................................. 18 6.1 LIMIT............................................................................................................................................... 18 6.2 TEST METHOD ......…

Text truncated - open the document above for the full version.

1 Field Strength of Spurious Emissions: §22.917, §2.1053 picture 8.1: label picture 8.2: Test setup: Field Strength Emission <1 GHz @3m in the FAC 17.07.2014 [email protected] Seite 1 / 2 Testphotos - radiated emission.doc / Zahlmann picture 8.3: Test setup: Field Strength Emission >1 GHz @3m in the FAC 17.07.2014 [email protected] Seite 2 / 2 Testphotos - radiated emission.doc / Zahlmann Test setup DUT ION-M7HP/85HP EU Measurement Equipment
