XS5-ML717PION-M Remote Unit for cellular systems

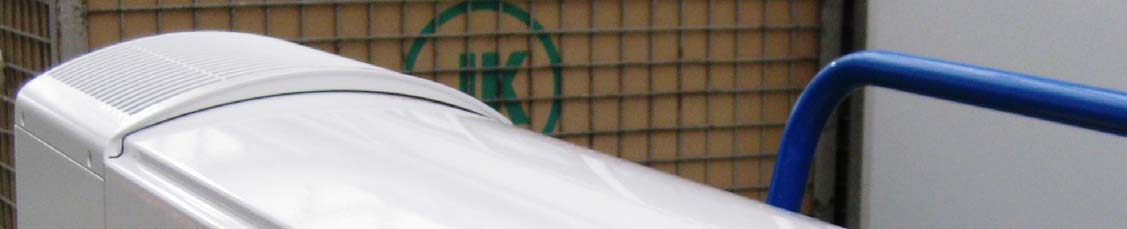

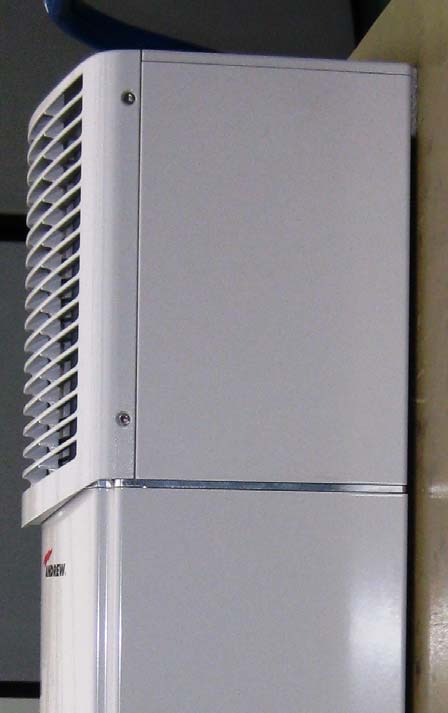

External Photos

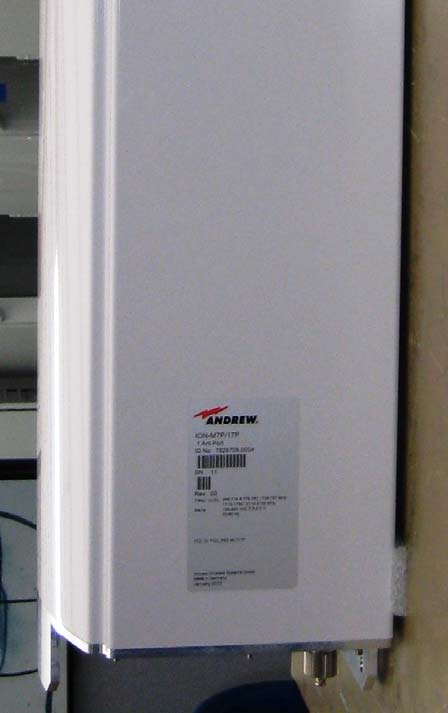

Label Location 6,5cm 11,5cm

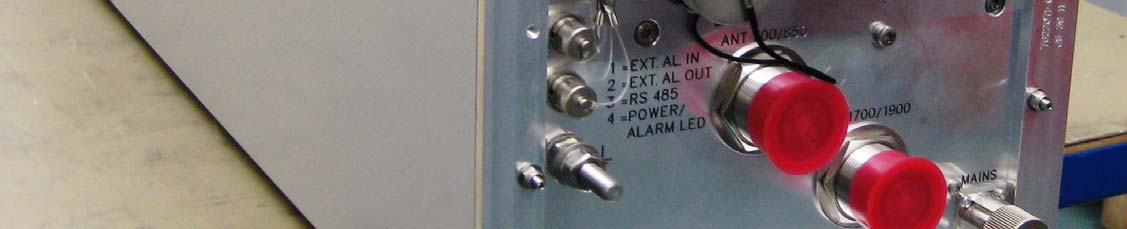

Internal Photos 7601520-00 7542601-01

RF Exposure Info / MPE Sample Calculation Model: ION‐M7P/17P FCC‐ID: XS5‐ML717P THE ION‐M7P/17P IS A SUBPOPULATION OF ION™‐M7P/85P/17P/19P The ION‐M7P/85P/17P/19P transports signals on the RF layer in a way that multiple operators and multiple technologies are moved simultaneously from a cluster of base stations to a remote location over the same fiber. The ION optical distribution system provides a coverage solution for dense urban areas, tunnels, subway, airports, convention centers, high‐rise buildings and other locations where physical structures increase path loss. It has been specifically designed to reduce zoning problems and to provide homogeneous coverage. The compact, mechanical design is specifically architected to mount inside of poles or along side structures in such a way that it has a minimal visual impact. The ION‐M7P/85P/17P/19P is available in single or multi‐band configuration supporting 700 MHz, 850 MHz, 1700 MHz/ 2100 MHz and 1900 MHz in parallel. It has been specifically tested and optimized for LTE, iDEN, GSM, EDGE, CDMA2000, EV‐DO, WCDMA, HSPA+, and OFDMA. Furthermore, it is provisioned for future improvements to the modulation and frequency bands. In addition it is backwards compatible to legacy standards such as TDMA and Analog. The ION is easily set‐up and supervised via a graphical user interface (GUI). Remote units can be commissioned through the use of built‐in test equipment. An auto‐leveling function compensates for the optical link loss making installation easy and quick. The entire system may be monitored remotely via an Andrew OMC. This platform uses SNMP protocol and is compliant to X.733 standard. Should a sophisticated interface not be required, the Master Unit can be directly connected to the alarm interface of a base station via its contact relay. The specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B). S = power density limit [W/m] P = power [W] R = distance [m] 2 4 n nn n R GP S   => n nn n S GP R 4  (to calculate the distance at one frequency) If we have more bands, than we have to calculated as a percentage: The additional of the terms have to be lower than 1. We are looking for a distance of ensures that the formula is satisfied. n RRRR... 321 1 4 ... 444 2 3 2 33 2 2 22 1 2 11  n nn SR GP SR GP SR GP SR GP  R S GP S GP S GP S GP R S GP S GP S GP S GP n nn n nn     4 ... 444 4 ... 444 3 33 2 22 1 11 2 3 33 2 22 1 11 With n nn n S GP R 4  => n nn n S GP R 4 2  1 4 .... 4 44 1.... 2 3 2 3 33 2 2 2 22 1 2 1 11 ln 3 3 2 2 1 1   n n nn n cacalcalcal S R GP S R GP S R GP S R GP S S S S S S S S   RRRRR n  22 3 2 2 2 1 ... What you have to do for calculate the minimum distance were the power density limit is met: 1) If you have one path, you have to put you special values in the following formula. n nn n S GP R 4  (Distance for one carrier) Limits for General Population / Uncontrolled Exposures Frequency Range (MHz) Power Density (mW/cm 2 ) 300 – 1500 S = f/1500 1550 – 100,000 S = 1 2) If you have more than one path, you must add the individual terms quadratic. n nn n S GP R 4  (Distance for individual carrier) RRRRR n  22 3 2 2 2 1 ... (See previous page) For example: The EUT operates in the 3 frequency bands: 728‐746, 746‐757 and 2110‐2155 MHz. The max measured conducted output power is 43.31 / 43.37 /43.14 dBm. Calculation for every path with maximum possible antenna gain and without cable loss: Frequency [MHz] Max Power out [dBm] Max. possible Antenna gain, without cable loss [dBi] Max. Distance [m] 728 43.31 18.8 5.1627 747 43.37 18.8 5.1319 2110 43.14 19 3.6091 The worst case would be if all bands were active: RRRRR n  22 3 2 2 2 1 ... R all > 8.125 m (see previous page for formula) For more accurate calculation, the cable loss and actual antenna gain have to be included in the finally system. The antenna(s) used with device must be fixed‐mounted on permanent structures with a distance to any human body to comply with the RF Exposure limit.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-007-V01.00 Page 1 of 37 Date of issue: 26.01.12 Signature: Issue-No.: 01 Author: Date of delivery: 24.01.12 Checked: Test dates: 01.04.11 – 24.01.12 Pages: 37 ECL-EMC Test Report No.: 12-007 Equipment under test: ION-M7P/17P 700MHz Path FCC ID: XS5-ML717P Type of test: FCC 47 CFR Part 27 Subpart H, F:2011 Miscellaneous Wireless Communication Services IC RSS-131:2003 Zone Enhancers for the Land Mobile Service Measurement Procedures: 47 CFR Parts 2:2011 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), Part 27:2009 (Miscellaneous Wireless Communication Services), ANSI/TIA-603-C:2004, Land Mobile FM or PM Communications Equipment Measurement and Performance Standards IC-GEN:2007 General Requirements and Information for the Certification of Radiocommunication Equipment Test result: Passed Test Report No.: 12-007 FCC ID: XS5-ML717P The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-007-V01.00 Page 2 of 37 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 (0) 911 59835 0 Fax: +49 (0) 911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for devices operating under Part 27 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Test Report No.: 12-007 FCC ID: XS5-ML717P The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-007-V01.00 Page 3 of 37 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS..............................................................7 3 TEST SITE (ANDREW BUCHDORF) ....................................................................................................8 3.1 TEST ENVIRONMENT..........................................................................................................................8 3.2 TEST EQUIPMENT..............................................................................................................................8 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................8 3.4 MEASUREMENT UNCERTAINTY............................................................................................................8 4 TEST SITE (TEMPTON) ........................................................................................................................9 5 RF POWER OUT: §27.50, §2.1046; RSS-131, RSS-GEN ..................................................................10 5.1 LIMIT...............................................................................................................................................10 5.2 TEST METHOD.................................................................................................................................10 5.3 TEST RESULTS................................................................................................................................11 5.3.1 DOWNLINK...............................................................................................................................11 5.3.1.1 LTE 728 – 746MHz,........................................................................................................12 5.3.1.2 LTE 746 – 757MHz,........................................................................................................12 5.3.2 UPLINK....................................................................................................................................13 5.4 SUMMARY TEST RESULT...................................................................................................................13 6 OCCUPIED BANDWIDTH: §90.210, §2.1049; RSS-GEN...................................................................14 6.1 LIMIT...............................................................................................................................................14 6.2 TEST METHOD.................................................................................................................................14 6.3 TEST RESULTS................................................................................................................................14 6.3.1 DOWNLINK...............................................................................................................................14 6.3.1.1 LTE 728 – 746MHz.........................................................................................................15 6.3.1.2 LTE 746 – 757MHz.....…

Text truncated - open the document above for the full version.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-008-V01.00 Page 1 of 35 Date of issue: 26.01.12 Signature: Issue-No.: 01 Author: Date of delivery: 24.01.12 Checked: Test dates: 01.04.11 – 24.01.12 Pages: 35 ECL-EMC Test Report No.: 12-008 Equipment under test: ION-M7P/17P 1700MHz Path FCC ID: XS5-ML717P Type of test: FCC 47 CFR Part 27 Subpart C: 2011 Miscellaneous Wireless Communication Services IC RSS-139:2009 Advanced Wireless Services Equipment Operating in the Bands 1710-1755 MHz and 2110-2155 MHz Measurement Procedures: 47 CFR Parts 2 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), Part 27:2011 (Miscellaneous Wireless Communication Services), ANSI/TIA-603-C (2004), Land Mobile FM or PM Communications Equipment Measurement and Performance Standards IC-GEN General Requirements and Information for the Certification of Radiocommunication Equipment Test result: Passed Test Report No.: 11-095 FCC ID: XS5-ML717P The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-008-V01.00 Page 2 of 35 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 (0) 911 59835 0 Fax: +49 (0) 911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for devices operating under Part N 22,N°27 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Test Report No.: 11-095 FCC ID: XS5-ML717P The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-12-008-V01.00 Page 3 of 35 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS..............................................................7 3 TEST SITE (ANDREW BUCHDORF) ....................................................................................................8 3.1 TEST ENVIRONMENT..........................................................................................................................8 3.2 TEST EQUIPMENT..............................................................................................................................8 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................8 3.4 MEASUREMENT UNCERTAINTY............................................................................................................8 4 TEST SITE (TEMPTON SERVICE PLUS GMBH) .................................................................................9 5 RF POWER OUT: §27.50, §2.1046; RSS-139, RSS-GEN ..................................................................10 5.1 LIMIT...............................................................................................................................................10 5.2 TEST METHOD.................................................................................................................................10 5.3 TEST RESULTS................................................................................................................................11 5.3.1 DOWNLINK...............................................................................................................................11 5.3.1.1 CDMA .............................................................................................................................12 5.3.1.2 W-CDMA.........................................................................................................................12 5.3.1.3 LTE .................................................................................................................................13 5.3.2 UPLINK....................................................................................................................................13 5.4 SUMMARY TEST RESULT...................................................................................................................13 6 OCCUPIED BANDWIDTH: §2.1049; RSS-GEN ..................................................................................14 6.1 LIMIT...............................................................................................................................................14 6.2 TEST METHOD.................................................................................................................................14 6.3 TEST RESULTS................................................................................................................................14 6.3.1 DOWNLINK...................................................................................................…

Text truncated - open the document above for the full version.

Test setup Figure 1. DUT ION-M7P/17P Figure 2. Measurement Equipment
