XS5-MR801919MR8018/1918/1918 Repeater

mini Repeater MRx18/x18 & MRx18/x18/x18 & MRx18/y18/y18 & MRx18/y18 Dual- / Triple-Segment and Dual-Band User's Manual M0139ACC User’s Manual for MRx18 Dual-/ Triple-Segment and Dual-Band Page 2 M0139ACC_FCC Manual.doc © Copyright 2009 CommScope, Inc. All rights reserved. Andrew Solutions is a trademark of CommScope, Inc. All information contained in this manual has been revised thoroughly. Yet Andrew Solutions accepts no liability for any omissions or faults. Andrew Solutions reserves the right to change all hard- and software characteristics without notice. Names of products mentioned herein are used for identification purposes only and may be trademarks and / or registered trademarks of their respective companies. No parts of this publication may be reproduced, stored in a retrieval system, transmitted in any form or by any means, electronical, mechanical photocopying, recording or otherwise, without prior written permission of the publisher. Andrew Wireless Systems GmbH, 11-November-2009 Page 3 TABLE OF CONTENTS 1. GENERAL 5 1.1. USED ABBREVIATIONS 5 1.2. HEALTH AND SAFETY WARNINGS 7 1.3. ABOUT ANDREW SOLUTIONS 8 1.4. INTERNATIONAL CONTACT ADDRESSES FOR WIG CUSTOMER SUPPORT 9 2. INTRODUCTION 11 2.1. PURPOSE 11 2.2. THE MRX18 MINIREPEATER 11 3. FUNCTIONAL DESCRIPTION 13 3.1. DESIGN AND CONNECTORS 13 4. INSTALLATION AND COMISSIONING 15 4.1. MECHANICAL INSTALLATION 15 4.2. ELECTRICAL INSTALLATION 16 5. SOFTWARE SETUP 18 5.1. LOGIN 18 5.2. STATUS 18 5.3. SETTINGS 19 5.3.1. Settings - Radio Frequency 19 5.3.2. Settings - Alarms 20 6. ALARMING AND SUPERVISION 21 6.1. ALARM LEDS 21 User’s Manual for MRx18 Dual-/ Triple-Segment and Dual-Band Page 4 M0139ACC_FCC Manual.doc FIGURES AND TABLES figure 3-1 Connectors of MRx18....................................................................................13 figure 4-1 Wall-mounting bracket ...................................................................................15 figure 4-2 Wall mounting procedure...............................................................................15 figure 4-3 Power connection of DC connector with MRx18............................................16 table 1-1 List of international contact addresses............................................................10 table 5-1 Radio Frequency – Power ..............................................................................19 table 5-2 Radio Frequency - General ............................................................................19 table 5-3 Radio Frequency - Auto Gain .........................................................................19 table 6-1 Alarm LEDs ....................................................................................................21 1 General Page 5 1. GENERAL 1.1. USED ABBREVIATIONS 3GPP 3 rd Generation Partnership Project ALC Automatic Level Control AMPS American Mobile Phone System or Advanced Mobile Phone System APAC Automatic Power Adjustment Circuit BCCH Broadcast Control Channel BITE Built-In Test Equipment BTS Base Transceiver Station CDMA Code Division Multiple Access CEPT Conférénce Européenne des Postes et Télécommunications CF Center Frequency CFO Center Frequency Offset DL Downlink EDGE Enhanced Data Rates for GSM Evolution ESD Electrostatic Discharge ETACS Enhanced TACS ETS European Telecommunication Standard ETSI European Telecommunication Standards Institute FSK Frequency Shift Keying GSM Global System for Mobile Communication I 2 C-Bus Inter-Integrated Circuit Bus (Philips) ID No Identification Number IF Intermediate Frequency LED Light Emitting Diode LMT Local Maintenance Terminal LNA Low Noise Amplifier MCC Mobile Country Code MNC Mobile Network Code MOR Microwave Optical Repeater MR Microwave Repeater MS Mobile Station MTBF Mean Time Between Failure OIP-3 Output Intercept Point of the 3 rd order OMC Operation and Maintenance Center PA Power Amplifier PCMCIA Personal Computer Modem Communication International Association PCS Personal Communication System PSTN Public Switched Telephone Network PSU Power Supply Unit Rev Revision RF Radio Frequency RLP Radio Link Protocol RSSI Receive Signal Strength Indication RTC Real-Time Clock RX Receiver User’s Manual for MRx18 Dual-/ Triple-Segment and Dual-Band Page 6 M0139ACC_FCC Manual.doc SCL Serial Clock SDA Serial Data SMSC Short Message Service Center TACS Total Access Communication System TCH Traffic Channel TDMA Time Division Multiple Access TX Transmitter UE User Equipment UL Uplink UMTS Universal Mobile Telecommunication System UPS Uninterruptable Power Supply URL Uniform Resource Locutor VSWR Voltage Standing Wave Ratio WCDMA Wide Code Division Multiple Access WIG Wireless Innovations Group 1 General Page 7 1.2. HEALTH AND SAFETY WARNINGS 1. Only suitably qualified personnel is allowed to work on this unit and only after becoming familiar with all safety notices, installation, operation and maintenance procedures contained in this manual. 2. Read and obey all the warning labels attached to the unit. Make sure that the warning labels are kept in a legible condition and replace any missing or damaged labels. 3. Obey all general and regional installation and safety regulations relating to work on high voltage installations, as well as regulations covering correct use of tools and personal protective equipment. 4. Keep operating instructions within easy reach and make them available to all users. 5. It is the responsibility of the network provider to implement prevention measures to avoid health hazards which may be associated to radiation from the antenna(s) connected to the unit. 6. The antennas of the repeater (integrated and / or external) have to be installed in a way that the regional and national RF exposure compliance requirements are met. 7. Make sure access is restricted to qualified personnel. 8. Only licence holders for the respective frequency range are allowed to operate this unit. 9. Use this equipment only for the purpose specified by the man…

Text truncated - open the document above for the full version.

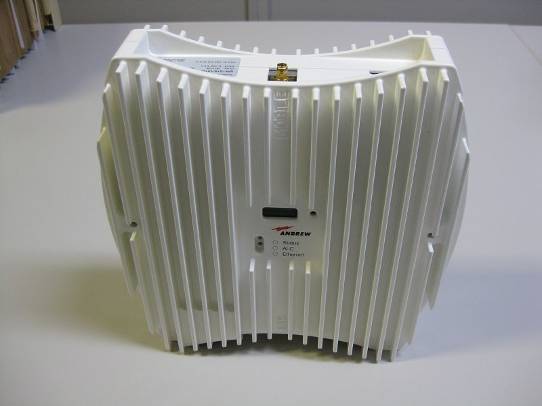

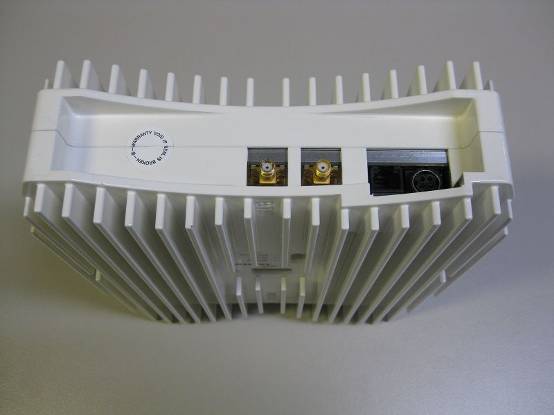

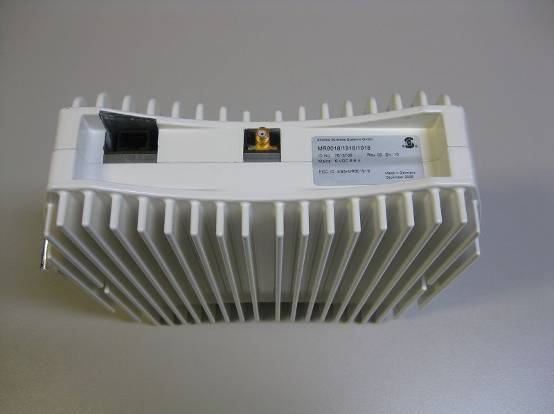

External Photos - 1 - Housing Front Back External Photos - 2 - Bottom Top

Label 50mm 25 mm

Internal Photos - 1 - Main Unit front Ext. Unit front Main Unit back Ext. Unit back Internal Photos - 2 - PCB Main front PCB Main back Internal Photos - 3 - PCB Extension front PCB Extension back

miniRepeater Functional Description The MRx18 miniRepeater a bi-directional amplifier used to enhance signals between a mobile and a base station in a mobile network. It has been designed to increase signal strength in small and medium sized areas such as offices, shops, and basements. By boosting the signal level the MRx18 increases indoor coverage and allows high data rate connectivity. If weak signal transmissions occur within the coverage area due to indoor applications, topological conditions or distance from the transmitter, a repeater is used to extend transmission range. In the downlink path, the repeater picks up the signals from a donor antenna of a BTS/ Node B, amplifies and re-transmits it into the required dark spot. In the uplink path the signal picks up the signals from a mobile/ User Equipment (UE) and re- transmits it to the BTS/ Node B. Andrew MRx18 miniRepeater gives designers a simple tool to solve their small area coverage and performance issues. The MRx18 is easy to install. Also a web-based GUI simplifies commissioning and configuring the equipment. The RF link (donor) towards the base station is typically fed from an outdoor antenna while the coverage area is fed by an indoor antenna. The opportunity to adjust the passband of repeater helps to cover any specific segment or frequency band. Due to modular design, the single-varia version MRx18 may be available as a dual-/ triple- varia segment or a dual-band-varia version in one cabinet. The dual-/ triple-segment MRx18/x18(/x18) is able to transmit two or three variable segments within one frequency band. The dual-band MRx18/y18(/y18) supports two frequency bands, while one variable segment is amplified in one frequency band and up to two variable segments are dedicated for the other frequency band. Auto Gain functionality enables automatic gain adjustment in order to maximize the performance, however gain may be set manually if desired. An alarm interface with a display and LEDs indicates the status of the equipment locally. Moreover, the status and alarms of the MRx18 can be queried via the web-based GUI. M R x18/y18/y18 MRx18/y18 Dual Band Indoor Coverage for Almost all Mobile Network Combinations MRx18 miniRepeater The MRx18 dual band amplifies up to three variable band segments allocated in two frequency bands. One variable bandwidth filter is dedicated for one frequency band and up to two variable bandwidth filters dedicated for the other frequency band. The variable bandwidth of all segments makes the MRx18 miniRepeater a highly flexible, tailored tool satisfying wireless operator’s demands. Regardless of the frequency band to be supported, the dual band MRx18 miniRepeater is basically available for the same frequency/standards as MRx18 single band model. Due to modular design, the MRx18 is able to carry up to three variable frequency segments in one cabinet. Key Features • Multi-functional capabilities and modular design • Continuously monitors and adapts to the RF environment via Autogain feature • Lightweight and compact footprint for easy installation • Easy commissioning and setup via web-based browser • LEDs for local alarm indicators • LCD display for RSSI, Gain, Output Power, and Status Indication • Optional remote control via SMS • Remote alarming through SNMP alarm traps • Connection to LAN • Compliant with all regulatory agencies • Up to 3 variable band segments • Independent autogain adjustment per segment • Integrated combiner, crossband coupler and common antenna ports for all segments and frequency bands www.commscope.com/andrew Visit our Web site or contact your local Andrew Solutions representative for more information. © 2009 CommScope, Inc. All rights reserved. Andrew Solutions is a trademark of CommScope. All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope. This document is for planning purposes only and is not intended to modify or supplement any specifications or warranties relating to Andrew Solutions products or services. BR-103363-EN (8/09) Status, Setting, and Maintenance interfaces make for easy configuration * Please see values listed below. Further dual bands available upon request Bandwidth, MHz up to three segments, each variable in steps of 10 kHz 1 to 25 MHz Ext. Cab MR8018MR8518MR918MR1718MR1818MR1918MR2118 MR8018 X MR8518 X MR918 MR1718 X* MR1818 X MR1918 MR2118 X Basic Cab Electrical The electrical specifications of the dual MRx18 are basically identical to the ones of the MRx18 single band. Deviations are stated in this document. Existing combinations beyond carry one variable segment in the basic cabinet and up to two variable segments in the extension cabinet. CombinationsCombinations marked with * Noise figure UL & DL MRx18 single Noise Figure + 1dB MRx18 single Noise Figure + 3.5dB Gain UL & DLMRx18 single GainMRx18 single Gain - 7dB Pout UL & DLMRx18 single PoutMRx18 single Pout - 3.5dB ICP3 UL & DLMRx18 single ICP3MRx18 single ICP3 - 3.5dB P-1dBc UL & DLMRx18 single P-1dBcMRx18 single P-1dBc - 3.5dB Power Supply Mains Power, Vac ......100 to 240 Local Power, Vdc.......6 Power consumption, watts** Two segments ........40 Three segments .......50 Antenna port Connector ..........SMA Female Return loss, dB........10 Indoor Multiband Antenna ................Optional Antenna Gain, dBi ................2.0 System Supervision and Control Alarms (per band and segment)............Temperature, Current, ALC Options .............................Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .via SMS, heartbeat Environmental Operating temperature range, °C...........+5 to +40 Ingress protection ......................IP30 Mechanical Height, width, depth, mm (in)..............240 x 240 x 70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(9.5 x 9.5 x 2.8) Weight, kg (lb)........................3.0 (6.6) ** without PSU Al…

Text truncated - open the document above for the full version.

MR8018/1918/1918 Tune-Up Procedure The MR80718/1918/1918 does not have a tune-up procedure and all tune-up is controlled at the factory. The product will be completely tuned and tested before it is shipped to customers.

EMC Test Report No.:10-091 FCC ID: XS5- MR801919 IC ID: 2237E-MR801919 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-091-V01.00 Page 2 of 75 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 0911 59835 923 Fax: +49 0911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 90 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. EMC Test Report No.:10-091 FCC ID: XS5- MR801919 IC ID: 2237E-MR801919 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-091-V01.00 Page 3 of 75 Table of contents 1 TEST RESULTS SUMMARY................................................................................................................. 5 2 EQUIPMENT UNDER TEST (E.U.T.) .................................................................................................... 6 2.1 DESCRIPTION.................................................................................................................................... 6 2.1.1 DOWNLINK................................................................................................................................. 6 2.1.2 UPLINK...................................................................................................................................... 6 2.1.3 DESCRIPTION OF EUT................................................................................................................ 6 2.1.4 SYSTEM DIAGRAMS.................................................................................................................... 7 2.1.5 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS.............................................................. 8 3 TEST SITE (ANDREW BUCHDORF) .................................................................................................... 9 3.1 TEST ENVIRONMENT.......................................................................................................................... 9 3.2 TEST EQUIPMENT.............................................................................................................................. 9 3.3 INPUT AND OUTPUT LOSSES............................................................................................................... 9 3.4 MEASUREMENT UNCERTAINTY........................................................................................................... 9 4 TEST SITE (HERBERG)...................................................................................................................... 10 5 RF POWER OUT: §90.635, §2.1046; RSS-131, RSS-GEN................................................................ 11 5.1 LIMIT.............................................................................................................................................. 11 5.1.1 FCC CFR47 ........................................................................................................................... 11 5.2 TEST METHOD................................................................................................................................. 11 5.2.1 FCC CFR47 ........................................................................................................................... 11 5.2.2 IC RSS-GEN .......................................................................................................................... 11 5.3 TEST RESULTS................................................................................................................................ 12 5.3.1 DOWNLINK............................................................................................................................... 13 5.3.1.1 CDMA ............................................................................................................................. 14 5.3.1.2 W-CDMA ........................................................................................................................ 15 5.3.1.3 GSM ............................................................................................................................... 17 5.3.1.4 GSM-EDGE.................................................................................................................... 18 5.3.2 UPLINK.................................................................................................................................... 20 5.3.2.1 CDMA ............................................................................................................................. 21 5.3.2.2 W-CDMA ........................................................................................................................ 22 5.3.2.3 GSM ............................................................................................................................... 24 5.3.2.4 GSM-EDGE.................................................................................................................... 25 5.4 SUMMARY TEST RESULT.................................................................................................................. 27 6 OCCUPIED BANDWIDTH: §90.210 §2.1049; RSS-GEN ................................................................... 28 6.1 LIMIT.............................................................................................................................................. 28 6.2 TEST METHOD..............................................................................................…

Text truncated - open the document above for the full version.

EMC Test Report No.: 10-036 FCC ID: XS5- MR801919 IC ID: 2237E-MR801919 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-036-V01.00 Page 2 of 80 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 0911 59835 923 Fax: +49 0911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 24 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. EMC Test Report No.: 10-036 FCC ID: XS5- MR801919 IC ID: 2237E-MR801919 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-036-V01.00 Page 3 of 80 Table of contents 1 TEST RESULTS SUMMARY................................................................................................................. 6 2 EQUIPMENT UNDER TEST (E.U.T.) .................................................................................................... 7 2.1 DESCRIPTION.................................................................................................................................... 7 2.1.1 DOWNLINK................................................................................................................................. 7 2.1.2 UPLINK...................................................................................................................................... 7 2.1.3 DESCRIPTION OF EUT................................................................................................................ 7 2.1.4 SYSTEM DIAGRAMS.................................................................................................................... 8 2.1.5 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS.............................................................. 9 3 TEST SITE (ANDREW BUCHDORF) .................................................................................................. 10 3.1 TEST ENVIRONMENT........................................................................................................................ 10 3.2 TEST EQUIPMENT............................................................................................................................ 10 3.3 INPUT AND OUTPUT LOSSES............................................................................................................. 10 3.4 MEASUREMENT UNCERTAINTY......................................................................................................... 10 4 TEST SITE (TEMPTON)...................................................................................................................... 11 5 RF POWER OUT: §24.232, §2.1046; RSS-133, RSS-GEN................................................................ 12 5.1 LIMIT.............................................................................................................................................. 12 5.1.1 FCC CFR47 ........................................................................................................................... 12 5.1.2 IC RSS-133............................................................................................................................ 12 5.2 TEST METHOD................................................................................................................................. 13 5.2.1 FCC CFR47 ........................................................................................................................... 13 5.2.2 IC RSS-GEN .......................................................................................................................... 13 5.3 TEST RESULTS................................................................................................................................ 14 5.3.1 DOWNLINK............................................................................................................................... 14 5.3.1.1 CDMA ............................................................................................................................. 16 5.3.1.2 W-CDMA ........................................................................................................................ 17 5.3.1.3 GSM ............................................................................................................................... 19 5.3.1.4 GSM-EDGE.................................................................................................................... 20 5.3.2 UPLINK.................................................................................................................................... 22 5.3.2.1 CDMA ............................................................................................................................. 23 5.3.2.2 W-CDMA ........................................................................................................................ 24 5.3.2.3 GSM ............................................................................................................................... 26 5.3.2.4 GSM-EDGE.................................................................................................................... 27 5.4 SUMMARY TEST RESULT.................................................................................................................. 29 6 OCCUPIED BANDWIDTH: §2.1049; RSS-GEN.................................................................................. 30 6.1 LIMIT............................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos picture 8.1: Test setup: Field Strength Emission >1 GHz @3m in the FAC picture 8.2: Test setup: Field Strength Emission <1 GHz @10m in the SAC picture 8.3: Test setup: Field Strength Emission >20 GHz @3m in the SAC with Absorber material
