XS5-NCM843Repeater for Cellular Networks

Repeaters Node M and Node C Network Elements User's Manual M0121A4A User’s Manual for Node M and Node C Network Elements Page 2 M0121A4A.doc © Copyright 2010 CommScope, Inc. All rights reserved. Andrew Solutions is a trademark of CommScope, Inc. All information contained in this manual has been revised thoroughly. Yet Andrew Solutions accepts no liability for any omissions or faults. Andrew Solutions reserves the right to change all hard- and software characteristics without notice. Names of products mentioned herein are used for identification purposes only and may be trademarks and / or registered trademarks of their respective companies. No parts of this publication may be reproduced, stored in a retrieval system, transmitted in any form or by any means, electronical, mechanical photocopying, recording or otherwise, without prior written permission of the publisher. Andrew Wireless Systems GmbH, 05-February -2010 Page 3 TABLE OF CONTENTS 1. GENERAL 7 1.1. USED ABBREVIATIONS 7 1.2. HEALTH AND SAFETY WARNINGS 9 1.3. ABOUT ANDREW SOLUTIONS 11 1.4. INTERNATIONAL CONTACT ADDRESSES FOR WIG CUSTOMER SUPPORT 12 2. INTRODUCTION 15 2.1. PURPOSE 15 2.2. THE NODE M AND NODE C (NODE M/C) NETWORK ELEMENT 15 2.3. QUICK START CHECKLIST 16 3. CONNECTION SETUP 19 3.1. SETTING UP A LOCAL / LAN CONNECTION FROM LAPTOP / PC 19 3.2. SETTING UP NODE M/C REPEATER TO RUN AS A LAN ELEMENT 20 3.2.1. Prerequisites 20 3.2.2. Procedure 20 3.3. SETTING UP A REMOTE CONNECTION 21 4. INSTALLATION 23 4.1. MECHANICAL INSTALLATION 23 4.1.1. General 23 4.1.2. Wall Mounting Procedure 24 4.1.3. Pole Mounting Procedure 26 4.2. ELECTRICAL INSTALLATION 29 4.2.1. General 29 4.2.2. Grounding 30 4.2.3. Power Connection 31 4.2.4. Connection of the Antenna Cables 33 4.2.5. Opening the Cabinet - Mains Power Switch 34 User’s Manual for Node M and Node C Network Elements Page 4 M0121A4A.doc 5. FUNCTIONAL DESCRIPTION 37 5.1. DIGITAL ARCHITECTURE 37 5.2. FEATURES 39 5.2.1. Filters Node M 39 5.2.2. Filters Node C 39 5.2.3. Digital ICE (Digital Interference Cancellation Equipment) 40 5.2.4. VSWR (Voltage Standing Wave Ratio) 40 5.2.5. RSSI (Receive Signal Strength Indication) 41 5.2.6. Alarm Forwarding 41 5.2.7. Downlink Final Amplifier 42 5.2.8. Power Supply Unit 44 5.2.9. Modems 45 5.2.10. Digital Channel Module (DCM) 48 5.2.11. External Alarm Controller - EAC-Board 49 5.2.12. Battery Pack - Battery On/Off 55 5.2.13. UL and DL Duplexer 57 6. MAINTENANCE AND REPLACEMENT 59 7. ILLUSTRATIONS 59 7.1. CABINET DRAWING 59 7.2. LAYOUT OF THE NODE M/C 843 60 8. INDEX 61 Page 5 FIGURES AND TABLES figure 3-1 Ethernet connector RJ45 19 figure 3-2 Pin connection 20 figure 3-3 Cable gland position 20 figure 4-1 Positions of drilling holes 24 figure 4-2 Wall mounting procedure 25 figure 4-3 Pole mounted units 26 figure 4-4 Back-to-back pole mounting 27 figure 4-5 Grounding bolt 30 figure 4-6 Power supply plug 31 figure 4-7 Mains connector of a Node M, exemplary 31 figure 4-8 Mains connector and antenna connections of a Node C, exemplary 31 figure 4-9 Front view of antenna connections from Node C, exemplary 33 figure 4-10 Front and top cover screws 34 figure 4-11 Position of mains power switch 35 figure 5-1 Configuration of a network element 37 figure 5-2 RF path of a Node C 843, exemplary 38 figure 5-3 Node M/C x37 MCPA DL final amplifier 42 figure 5-4 Node M 2143 and Node M 1943 MCPA DL final amplifier 42 figure 5-5 Node M/C 843 DL final amplifier 43 figure 5-6 Power supply, Node M/C x37 44 figure 5-7 Power supply, Node M/C x43 44 figure 5-8 Modem MC35 45 figure 5-9 Redwing modem (CDMA) 45 figure 5-10 Modem AnyDATA iPORT EMIII Dual / EM IV Dual 46 figure 5-11 Modem Raven XT 46 figure 5-12 Modem MTCBA-C-N9 46 figure 5-13 Cable from modem to donor duplexer 47 figure 5-14 Cable from modem to external modem antenna port; Node M 47 figure 5-15 Digital channel module, DL part 48 figure 5-16 Digital channel module, UL part 48 figure 5-17 EAC-board, installed 49 figure 5-18 Function of LEDs on the EAC-board 51 figure 5-19 Pin assignment 52 User’s Manual for Node M and Node C Network Elements Page 6 M0121A4A.doc figure 5-20 External alarm clamps, installed 52 figure 5-21 Configuration of external alarm clamps 53 figure 5-22 External cable glands 53 figure 5-23 Summary alarm relay 54 figure 5-24 Relay contacts, alarm condition 54 figure 5-25 Battery pack, exemplary 55 figure 5-26 Battery pack installed and its connection to DCM 55 figure 5-27 Position of the battery disconnect button on the EAC-board 56 figure 5-28 Duplexer, UL IN 57 figure 5-29 Duplexer, DL IN 57 figure 5-30 Duplexers installed 57 figure 5-31 Duplexers installed, ceramic duplexer DL IN 58 figure 7-1 Cabinet of a Node M, respective Node C, exemplary 59 figure 7-2 Layout of the Node M/C 843, exemplary 60 table 1-1 List of international contact addresses....................................................... 13 table 4-1 Required length of thread-bolts................................................................. 26 table 4-2 Components of pole mounting kit .............................................................. 27 table 4-3 Pin assignment of mains connector........................................................... 32 table 5-1 Pin assignment of relay contacts ............................................................... 54 1 General Page 7 1. GENERAL 1.1. USED ABBREVIATIONS A/D Analogue to Digital Converter AGC Automatic Gain Control ALC Automatic Level Control ARFCN Absolute Radio Frequency Channel Number BCCH Broadcast Control Channel BTS Base Transceiver Station CDMA Code Division Multiple Access D/A Digital to Analogue Converter DAS Distributed Antenna System DCM Digital Channel Module DHCP Dynamic Host Configuration Protocol D-ICE Digital Interference Cancellation Equipment DL Downlink DSP Digital Signal Processor EAC External Alarm Controller EDGE Enhanced Data Rates for GSM Evolution ESD Electrostatic Discharge ETS European Telecommunication Standard ETSI European Telecommuni…

Text truncated - open the document above for the full version.

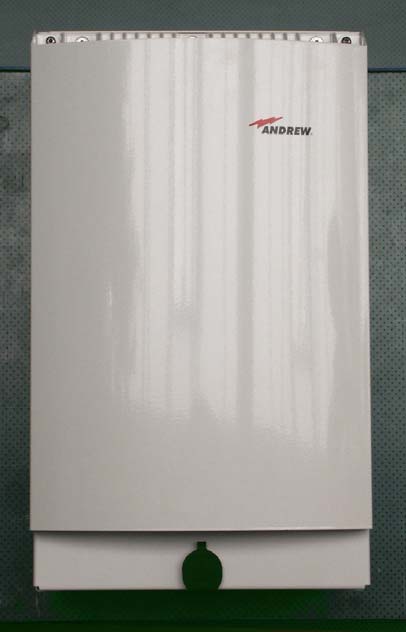

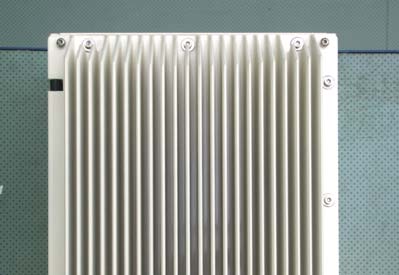

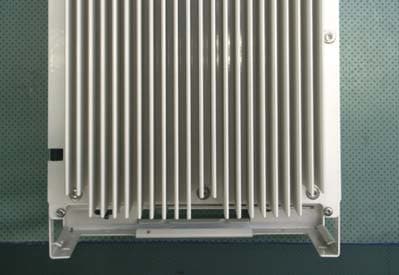

05.02.10 S:\Allgemein\Projects\E_Projects_Documents\800606 Node M C Variation\QA\Documents_for_FCC_IC_NodeM_C843\pictures\External_Photos.doc Page 1 of 4 External Photos System view Node C 843 Node M 843 Exterior, right side view x Exterior, label position, left side view x 05.02.10 S:\Allgemein\Projects\E_Projects_Documents\800606 Node M C Variation\QA\Documents_for_FCC_IC_NodeM_C843\pictures\External_Photos.doc Page 2 of 4 System view Node C 843 Node M 843 Exterior, front view x Exterior, front view w/o cover x 05.02.10 S:\Allgemein\Projects\E_Projects_Documents\800606 Node M C Variation\QA\Documents_for_FCC_IC_NodeM_C843\pictures\External_Photos.doc Page 3 of 4 System view Node C 843 Node M 843 Exterior, Bottom view x Exterior, Bottom view w/o cover x 05.02.10 S:\Allgemein\Projects\E_Projects_Documents\800606 Node M C Variation\QA\Documents_for_FCC_IC_NodeM_C843\pictures\External_Photos.doc Page 4 of 4 System view Node C 843 Node M 843 Exterior, Top view x Exterior, backside view x

24.03.2010 LABEL LOCATION Node C843, Node M843 Label material polyester silver 95mm 65mm

05.02.10 S:\Allgemein\Projects\E_Projects_Documents\800606 Node M C Variation\QA\Documents_for_FCC_IC_NodeM_C843\pictures\Internal_Photos.doc Page 1 of 10 Internal Photos System view Node C 843 Node M 843 Interior system x PSU DPX UL-active EAC board DCM DL Final Amplifier DCM UL DPX DL-active Memory board 05.02.10 S:\Allgemein\Projects\E_Projects_Documents\800606 Node M C Variation\QA\Documents_for_FCC_IC_NodeM_C843\pictures\Internal_Photos.doc Page 2 of 10 System view Node C 843 Node M 843 Interior chassis x Interior door x 05.02.10 S:\Allgemein\Projects\E_Projects_Documents\800606 Node M C Variation\QA\Documents_for_FCC_IC_NodeM_C843\pictures\Internal_Photos.doc Page 3 of 10 Picture, RF sub component System implementation Component, Board view ID No. Node C 843 Node M 843 Final Amplifier DL 7599238-00 x Main pcb Control pcb 05.02.10 S:\Allgemein\Projects\E_Projects_Documents\800606 Node M C Variation\QA\Documents_for_FCC_IC_NodeM_C843\pictures\Internal_Photos.doc Page 4 of 10 Picture, RF sub component System implementation Component, Board view ID No. Node C 843 Node M 843 Duplexer DL-active 824-849 869-894 7588140-00 x DPX/LNA board, top side DPX/LNA board, bottom side 05.02.10 S:\Allgemein\Projects\E_Projects_Documents\800606 Node M C Variation\QA\Documents_for_FCC_IC_NodeM_C843\pictures\Internal_Photos.doc Page 5 of 10 Picture, RF sub component System implementation Component, Board view ID No. Node C 843 Node M 843 Digital Channel Module UL 7164342-01 x RF-board Top side RF-board Bottom side Logic-board Top side 05.02.10 S:\Allgemein\Projects\E_Projects_Documents\800606 Node M C Variation\QA\Documents_for_FCC_IC_NodeM_C843\pictures\Internal_Photos.doc Page 6 of 10 Picture, RF sub component System implementation Component, Board view ID No. Node C 843 Node M 843 Logic-board Bottom side UL Amplifier top side 05.02.10 S:\Allgemein\Projects\E_Projects_Documents\800606 Node M C Variation\QA\Documents_for_FCC_IC_NodeM_C843\pictures\Internal_Photos.doc Page 7 of 10 Picture, RF sub component System implementation Component, Board view ID No. Node C 843 Node M 843 Digital Channel Module DL 7164343-01 x RF-board Top side RF-board Bottom side Logic-board Top side Logic-board Bottom side 05.02.10 S:\Allgemein\Projects\E_Projects_Documents\800606 Node M C Variation\QA\Documents_for_FCC_IC_NodeM_C843\pictures\Internal_Photos.doc Page 8 of 10 Picture, RF sub component System implementation Component, Board view ID No. Node C 843 Node M 843 Memory Board 7501235 x Top side Bottom side 05.02.10 S:\Allgemein\Projects\E_Projects_Documents\800606 Node M C Variation\QA\Documents_for_FCC_IC_NodeM_C843\pictures\Internal_Photos.doc Page 9 of 10 Picture, RF sub component System implementation Component, Board view ID No. Node C 843 Node M 843 EAC board 7513790-00 x Top side Bottom side 05.02.10 S:\Allgemein\Projects\E_Projects_Documents\800606 Node M C Variation\QA\Documents_for_FCC_IC_NodeM_C843\pictures\Internal_Photos.doc Page 10 of 10 Picture, RF sub component System implementation Component, Board view ID No. Node C 843 Node M 843 Power Supply 100-240Vac 7518884-01 x Top side Bottom side

S:\Allgemein\Projects\E_Projects_Documents\800606 Node M C Variation\QA\Documents_for_FCC_IC_NodeM_C843\Operational_Description.doc Page 1 of 1 05.02.10 General Operational Description Node C843 and Node M843 The Node M/C is designed to amplify signals between multiple UEs and a Base Tranceiver Station in a CDMA system. The unit consists of a filter and amplifier chain in the downlink and one or two filters and amplifier chains in the uplink (primary and diversity). The uplink and downlink paths are connected via a duplexer on both ends of each path. In the primary uplink path, a signal originating from the UE is separated from the downlink signal via the primary UL IN duplexer. It is then amplified by an integrated low noise amplifier (LNA) and forwarded to the uplink Digital Channel Module (DCM). The DCM down-converts the signal to base-band, digitally filters it, amplifies it and then up-converts it. In addition the interference cancellation technology is implemented in the DCM. Finally, the signal is sent to the final amplifier and combined with the downlink input signal in the DL IN duplexer. The optional diversity uplink path (via a second filter) is identical except signals enter via the diversity UL IN duplexer and are combined in the DCM with the primary path. In the downlink path, a signal originating from the Base Tranceiver Station is separated from the uplink signal in the DL IN duplexer. It is then amplified by an integrated low noise amplifier (LNA) and forwarded to the downlink digital channel module (DCM). The DCM down-converts the signal to base-band, digitally filters it amplifies it and then up-converts it. In addition the interference cancellation technology is implemented in the DCM. Finally, the signal is sent to the final amplifier and combined with the uplink input signal in the primary UL IN duplexer. The downlink DCM is also responsible for communication and control of the entire unit. PRODUCT SPECIFICATION primary function is to increase signal strength between a mobile and a base station in areas where high-qual- ity voice or high-speed data service is not available, it also enhances air- interface capacity and increases the network data rate. The Node M is a dedicated UMTS device. It requires no additional hardware upgrades as a network migrates from UMTS to HSPA and beyond. The programmable radio may be up-graded locally through an Ethernet- based web connection or remotely via a wireless modem, and the modem may be circuit switch or packet data based. This provides the network management system with on-demand, alarm generated, or heartbeat monitor- ing via the always-connected packet features. Features and functions may be locally or remotely monitored and changed via a web browser. In addi- tion, Andrew provides A.I.M.O.S., a dedicated OMC and has imple- mented a standard SNMP based MIB that can easily integrated into any 3rd An excellent choice for any area, from the urban core to rural highway Node M 843 RF Enhancer party OMC platform. The graphical browser provides an intuitive setup menu, including a wizard that allows users, regardless of skill level, to cor- rectly setup the equipment without any additional equipment. The Andrew Node M 843 is self- diagnosing, self-adaptive, and virtually maintenance free. It is designed to provide more than 10 years of service under virtually any condition. • Auto wizard setup for easy installation • Digital filtering for multiple sub-band selection • Uniform phase and magnitude amplification • Automatic interference cancellation for decreased isolation requirements • Virtual test instruments • UMTS quality diagnostics • HSPA approved • SNMP and web-based GUI Now designers of UMTS systems can get an RF enhancer with intelligence and performance. The Andrew Node M 843 is an RF enhancer for UMTS systems with up to 4 adjacent carriers. This primary network element is ideal for the first phase of the network rollout and for any subsequent phase where cost, coverage, and quality need to be opti- mized. Although the Node M’s Large Area Coverage, Capacity, and High Speed Data for 850 MHz UMTS Networks SPECIFICATIONS Node M 843 RF Enhancer – Product Specifications Electrical Frequency range, MHz . . . . . . . . . . . . . . . .Uplink . . . . . . . . . . . . . . 824 to 849 . . . . . . . . . . . . . . . .Downlink. . . . . . . . . . . . . 869 to 894 UMTS carriers . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . 1-4 Maximum downlink output power, dBm . . . . . . . . . . . . (WCDMA and HSPA with PAR 8.5 dB). . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 carrier . . . . . . . . . . . . . +43.0 . . . . . . . . . . . . . . . .2 carriers. . . . . . . . . . . . . +40.0 . . . . . . . . . . . . . . . .4 carriers. . . . . . . . . . . . . +37.0 Maximum uplink composite output power, dBm . . . . . . .. . . . . . . . . . . . . . . . . . +23 Output power step size, dB . . . . . . . . . . . . . . . . . 1 Output power accuracy over all conditions, dB . . . .. . . . . . . . . . . . . . . . . . ±2 Maximum downlink input power at full output power, dBm. . . . . . . . . . . . . . . . . . . -60 Maximum input power without damage, dBm . . . .. . . . . . . . . . . . . . . . . . +20 Maximum input power without overdrive, dBm . . .. . . . . . . . . . . . . . . . . . -30 Minimum antenna isolation for maximum gain, dB . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . 83 Uplink noise figure, dB. . . .. . . . . . . . . . . . . . . . . . 3.5 Delay, μs . . . . . . . . . . . . . . . .Standard filter . . . . . . . . . . 6.4 . . . . . . . . . . . . . . . .High rejection filter. . . . . . . . 8.0 Maximum gain (automatic setting), dB . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . 103 Gain adjust range, dB . . . .. . . . . . . . . . . . . . . . . . 50 in steps of 1 Return loss, dB. . . . . . . . . . . .. . . . . . . . . . . . . . . . . . 15 Adjacent channel leakage, dBc . . . . . . . . . . . . . . . .1st adj…

Text truncated - open the document above for the full version.

MPE Calculation / RF Exposure Info FCC ID: XS5-NCM843 The EUT is designed to amplify signals between multiple UEs and a Base Transceiver Station in a CDMA system. (Uplink 824 – 849 MHz; Downlink 869 – 894 MHz) This specific device will be professionally installed. The antenna used with this device must be fixed-mounted on outdoor permanent structures with a sufficient distance to any human body to comply with the RF Exposure limit. Hereby the antenna gain and cable attenuation will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). As specified in Table 1B of 47 CFR 1.1310 – Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure Frequency range (MHz) Power density (mW/cm²) 300 – 1,500 f/1500 1,500 – 100,000 1.0 the maximum permissible exposure limit is (frequency 894 MHz): 0.596 mW/cm² (general / uncontrolled exposures) The min separation distance between the antenna and any human body is to be calculated (solving for R in cm) with the final actual antenna gain/cable attenuation where the limit of 0.596 mW/cm² is kept using the general equation: S = P*G / 4πR² S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Sample Calculation: Maximum ERP of base transmitters and cellular repeaters (§22.913): 57 dBm Maximum peak output power at antenna input terminal: 43 dBm Maximum antenna gain (including cable loss) according to maximum ERP: 14 dBd The minimum separation distance: 2.6 Meter (258.38 cm)

EMC Test Report No.: 10-031 Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-TAL-TR-10-031-V01.00 Page 2 of 62 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 0911 59835 -0 Fax: +49 0911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for unlicensed devices operating under section 22H of the Code of Federal Regulations title 47 and RSS-Gen with RSS-132. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. EMC Test Report No.: 10-031 Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-TAL-TR-10-031-V01.00 Page 3 of 62 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 SYSTEM DIAGRAM OF EUT .........................................................................................................7 3 TEST SITE .............................................................................................................................................9 3.1 TEST ENVIRONMENT..........................................................................................................................9 3.2 TEST EQUIPMENT..............................................................................................................................9 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................9 4 RF POWER OUT: §22.913, §2.1046 ...................................................................................................10 4.1 LIMIT...............................................................................................................................................10 4.2 TEST METHOD.................................................................................................................................10 4.3 TEST RESULTS................................................................................................................................11 4.3.1 DOWNLINK...............................................................................................................................11 4.3.2 UPLINK....................................................................................................................................12 4.3.3 DOWNLINK...............................................................................................................................13 4.3.3.1 CDMA .............................................................................................................................13 4.3.3.2 W-CDMA.........................................................................................................................14 4.3.4 UPLINK....................................................................................................................................16 4.3.4.1 CDMA .............................................................................................................................16 4.3.4.2 W-CDMA.........................................................................................................................17 4.4 SUMMARY TEST RESULT...................................................................................................................19 5 OCCUPIED BANDWIDTH: §2.1049 ....................................................................................................20 5.1 LIMIT...............................................................................................................................................20 5.2 TEST METHOD.................................................................................................................................20 5.3 TEST RESULTS................................................................................................................................21 5.3.1 DOWNLINK...............................................................................................................................22 5.3.1.1 CDMA .............................................................................................................................22 5.3.1.2 W-CDMA.........................................................................................................................23 5.3.2 UPLINK....................................................................................................................................24 5.3.2.1 CDMA .............................................................................................................................24 5.3.2.2 W-CDMA.........................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos XS5-NCM843 picture 7.1: Test setup: Field Strength Emission >1 GHz @3m in the FAC picture 7.2: Test setup: Field Strength Emission <1 GHz @10m in the SAC Testsetup RF Front: measurement equipment: Back: measurement equipment: Front: EUT
