XS5-PSR78APublic Safety Repeater

User’s Manual Public Safety Repeaters PSR 700/800 MF0123A1F Page 2 MF0123A1F_FCC_uc Manual for PSR 700/800 MHz DISCLAIMER: This document has been developed by CommScope and is intended for the use of its customers and customer support personnel. The information in this document is subject to change without notice. While every effort has been made to eliminate errors, CommScope disclaims liability for any difficulties arising from the interpretation of the information contained herein. The information contained herein does not claim to cover all details or variations in equipment, nor to provide for every possible incident to be met in connection with installation, operation, or maintenance. This document describes the performance of the product under the defined operational conditions and does not cover the performance under adverse or disturbed conditions. Should further information be desired, or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, contact CommScope. CommScope reserves the right to change all hardware and software characteristics without notice. COPYRIGHT: © Copyright 2021 CommScope Inc. All Rights Reserved. This document is protected by copyright. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical photocopying, recording, or otherwise without the prior written permission of CommScope. TRADEMARKS All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope. Names of products mentioned herein are used for identification purposes only and may be trademarks and / or registered trademarks of their respective companies. Andrew Wireless Systems GmbH, 15-April-2021 Table of Contents MF0123A1F_FCC_uc Manual for PSR 700/800 MHz Page 3 TABLE OF CONTENTS 1. GENERAL 6 1.1. USED ABBREVIATIONS 6 1.2. HEALTH AND SAFETY 7 1.3. PROPERTY DAMAGE WARNINGS 7 1.4. COMPLIANCE 8 1.5. ABOUT COMMSCOPE 12 1.6. CONTACTING COMMSCOPE 13 1.6.1. CommScope Mobility Solutions (CMS) Technical Support 13 1.6.2. Accessing DCCS User Documentation 13 1.6.3. Technical Training 13 2. INTRODUCTION 14 2.1. PURPOSE 14 2.2. PSR 700/800 MHZ 0.5/2W 14 3. FUNCTIONAL DESCRIPTION 15 4. COMMISSIONING 17 4.1. MECHANICAL INSTALLATION 17 4.1.1. Health and Safety for Mechanical Installation 17 4.1.2. Property Damage Warnings for Mechanical Installation 18 4.1.3. Wall Mounting Procedure 19 4.2. ELECTRICAL INSTALLATION 22 4.2.1. Health and Safety for Electrical Installation 22 4.2.2. Property Damage Warnings for Electrical Installation 22 4.2.3. Connections 23 4.2.4. Grounding (Earthing) 23 4.2.5. Connection of the Antenna Cables 24 4.2.6. Cleaning Procedure for RF Cable Connectors 25 4.2.7. Antenna Cable Connector Assembly 27 4.2.8. PSR Alarms Connection 29 4.2.9. LAN Connection 31 4.2.10. Power Connection 32 5. SETTING UP THE WEB GUI 34 5.1. LAN SETTINGS AT LOCAL PC 34 5.2. NETWORK MANAGEMENT REQUIREMENTS 35 5.3. EULA ACCEPTANCE PAGE 35 5.4. LOGIN PAGE 36 5.5. MAIN PAGE 36 Table of Contents Page 4 MF0123A1F_FCC_uc Manual for PSR 700/800 MHz 5.6. SYSTEM SETTINGS 37 5.6.1. License Upgrade 37 5.6.2. Software Upgrade 38 5.6.3. Restore Factory Defaults 39 5.6.4. My Account Management 40 5.6.5. IP Settings 41 5.6.6. OMC Connection 42 5.6.7. Alarm Settings 43 5.6.8. General RF Setting 44 5.6.9. Channelized ALC (Class A Only) 45 5.6.10. 700 MHz Channels (Class A Only) 45 5.6.11. 800 MHz Channels (Class A Only) 46 5.6.12. Digital Channels (Class B mode) 47 5.6.13. Site Location 48 5.6.14. Time and Date 48 5.6.15. Summary 49 5.7. SYSTEM OPERATION 50 5.7.1. Active Alarm 50 5.7.2. Alarm History 51 5.7.3. Event History 52 5.7.4. Antenna Isolation Check 53 5.7.5. VSWR Check and Donor Calibration 53 5.7.6. 700MHz Band Overview 54 5.7.7. 800MHz Band Overview 54 6. STATUS LEDS, PSR ALARMS, AND TROUBLESHOOTING 55 7. MAINTENANCE 56 7.1. GENERAL 56 7.2. RESET TO FACTORY DEFAULTS 57 7.3. CLEANING THE HEAT SINK 58 8. APPENDIX 59 8.1. BBU/UPS REQUIREMENTS 59 8.2. ILLUSTRATIONS 59 8.3. SPECIFICATIONS 62 8.3.1. RF Performance 62 8.3.2. Mechanical Specifications 64 8.3.3. Power Specifications 64 8.3.4. Environmental and Safety Specifications 65 8.4. AVAILABLE CONFIGURATIONS AND SW FEATURE KEYS 65 8.5. SPARE PARTS 66 9. LIST OF CHANGES 67 10. INDEX 68 Figures and Tables MF0123A1F_FCC_uc Manual for PSR 700/800 MHz Page 5 FIGURES AND TABLES figure 3-1 System overview example of a PSR 700/800 MHz .................................. 15 figure 3-2 Configuration of a PSR 700/800 MHz 0.5/2W, analogue variant .............. 16 figure 3-3 Configuration of a PSR 700/800 MHz 0.5/2W, digital variant ................... 16 figure 4-1 Connectors of PSR 700/800 MHz ............................................................. 23 figure 4-2 Grounding bolt (left) and schematic view (right) ....................................... 23 figure 4-3 PSR alarms cable ..................................................................................... 29 figure 4-4 AC wires, installation example .................................................................. 32 figure 4-5 DC wires, installed .................................................................................... 33 figure 7-1 Location of Control Board ......................................................................... 57 figure 7-2 Reset button on Control Board ................................................................. 57 figure 8-1 External configuration ............................................................................... 59 figure 8-2 Cabinet measurements ............................................................................ 60 figure 8-3 Cabling plan (with BBU for DC installations) ............................................ 61 table 1-1 Required antenna distances ...................................................................... 10 table 4-1 Specified torques ....................................…

Text truncated - open the document above for the full version.

Installation Instruction The Remote Unit, Extension Unit or Master Unit must be mounted by proffessionel / special trained installer. 1.1. MECHANICAL INSTALLATION 1.1.1. Health and Safety for Mechanical Installation 1. Caution: Risk of injury by the considerable weight of the unit falling. Ensure there is adequate manpower to handle the weight of the system. 2. Caution: Risk of serious personal injury by equipment falling due to improper installation. The installer must verify that the supporting surface will safely support the combined load of the electronic equipment and all attached hardware and components. The screws and dowels (wall anchors) used should also be appropriate for the structure of the supporting wall. 3. Caution: Explosive atmospheres. To avoid explosion or fire, do not operate this equipment in the presence of flammable gases or fumes. 4. Caution: Lightning danger. Do not install or make adjustments to this equipment during an electrical storm. 1.1.2. Property Damage Warnings for Mechanical Installation 1. Attention: Do not install the unit in a way or at a place where the specifications outlined in the Environmental and Safety Specifications leaflet of the supplier are not met. Otherwise, the lifespan and performance of the repeater may be reduced. 2. Attention: Due to power dissipation, the unit may reach a very high temperature. Ensure sufficient airflow for ventilation. 3. Attention: The repeater must be installed in a vertical position. 4. Notice: Exceeding the specified load limits may cause the loss of warranty. 5. Notice: Do not place cables or tools that may damage the repeater in close proximity to it. 6. Notice: Do not wear jewelry or metal accessories when installing this repeater. 7. Notice: When connecting and mounting the cables (RF, optical, mains, ...) ensure that no water can penetrate into the unit through these cables. 8. Notice: Check all cables for shorts and opens. Verify that there are no cables with loose or poor connections. RF leakage could cause oscillation to occur under some conditions. 9. Notice: If any different or additional mounting material is used, ensure that the mounting remains as safe as the mounting designed by the manufacturer. The specifications for stationary use of the Unit must not be exceeded. Ensure that the static and dynamic strengths are adequate for the environmental conditions of the site. The mounting itself must not vibrate, swing or move in any way that might cause damage to the Unit. 10. Notice: A spacing of 40 mm (1.58 inch) around the unit is required. Specified torques must be observed for certain mounting procedures according to the following table: Type Pins Hex nuts Screws Thread M 6 M 6 M6 Specified torques 3.3 Nm 3.3 Nm 3.3 Nm table Specified torques 1.2. ELECTRICAL INSTALLATION 1.2.1. Health and Safety for Electrical Installation Read and observe chapter 1.3 Health and Safety. 1. Danger: Electrical hazard. Danger of death or fatal injury from electrical current. Obey all general and regional installation and safety regulations relating to work on high voltage installations, as well as regulations covering correct use of tools and personal protective equipment. 2. Danger: Electrical hazard. Danger of death or fatal injury from electrical current inside the unit in operation. Before opening the unit, disconnect mains power. 1.2.2. Property Damage Warnings for Electrical Installation 1. Attention: It is compulsory to ground (earth) the unit before connecting the power supply. A grounding bolt is provided on the cabinet to connect the ground-bonding cable. 2. Attention: If the mains connector of the PSR is not easily accessible, a disconnect device in the mains power circuit must be provided within easy reach. 3. Attention: A connection of the mains supply to a power socket requires the power socket to be nearby the PSR. 4. Attention: Before connecting or disconnecting the mains connector at the PSR, ensure that mains power supply is disconnected. 5. Attention: Make sure that an appropriate circuit breaker acting as a disconnect device (as required by IEC/EN60950-1) and an overcurrent limiting device are connected between mains power and the PSR. 6. Attention: Incorrectly wired connections can destroy electrical and electronic components. 7. Notice: To avoid corrosion at the connectors caused by electrochemical processes, the material of the cable connectors must not cause a higher potential difference than 0.6 V (see electrochemical contact series). 8. Notice: Use an appropriate torque wrench for the coupling torques: for 4.3-10 type connectors (5 Nm, 44 in lb) with 22mm (7/8) in opening, e.g. item no. TW-4310 Do NOT use your hands or any other tool (e.g. a pair of pliers). This might cause damage to the connector and lead to a malfunction of the PSR. 9. Notice: For unstabilized electric networks, which frequently generate spikes, the use of a voltage limiting device is advised. 10. Notice: Observe the labels on the front panels before connecting or disconnecting any cables. 11. Notice: Unused connectors must be closed with their protective covers to ensure water tightness. 1.3. HEALTH AND SAFETY 1. Danger: Electrical hazard. Danger of death or fatal injury from electrical current. Obey all general and regional installation and safety regulations relating to work on high voltage installations, as well as regulations covering correct use of tools and personal protective equipment. 2. Danger: Electrical hazard. Danger of death or fatal injury from electrical current inside the unit in operation. Before opening the unit, disconnect mains power. 3. Caution: High frequency radiation in operation. Risk of health hazards associated with radiation from the unit’s inner conductor of the antenna port(s). Disconnect mains before connecting or replacing antenna cables. 4. Caution: High frequency radiation in operation. Risk of health hazards associated with radiation from the antenna(s) connected to the unit. Implement…

Text truncated - open the document above for the full version.

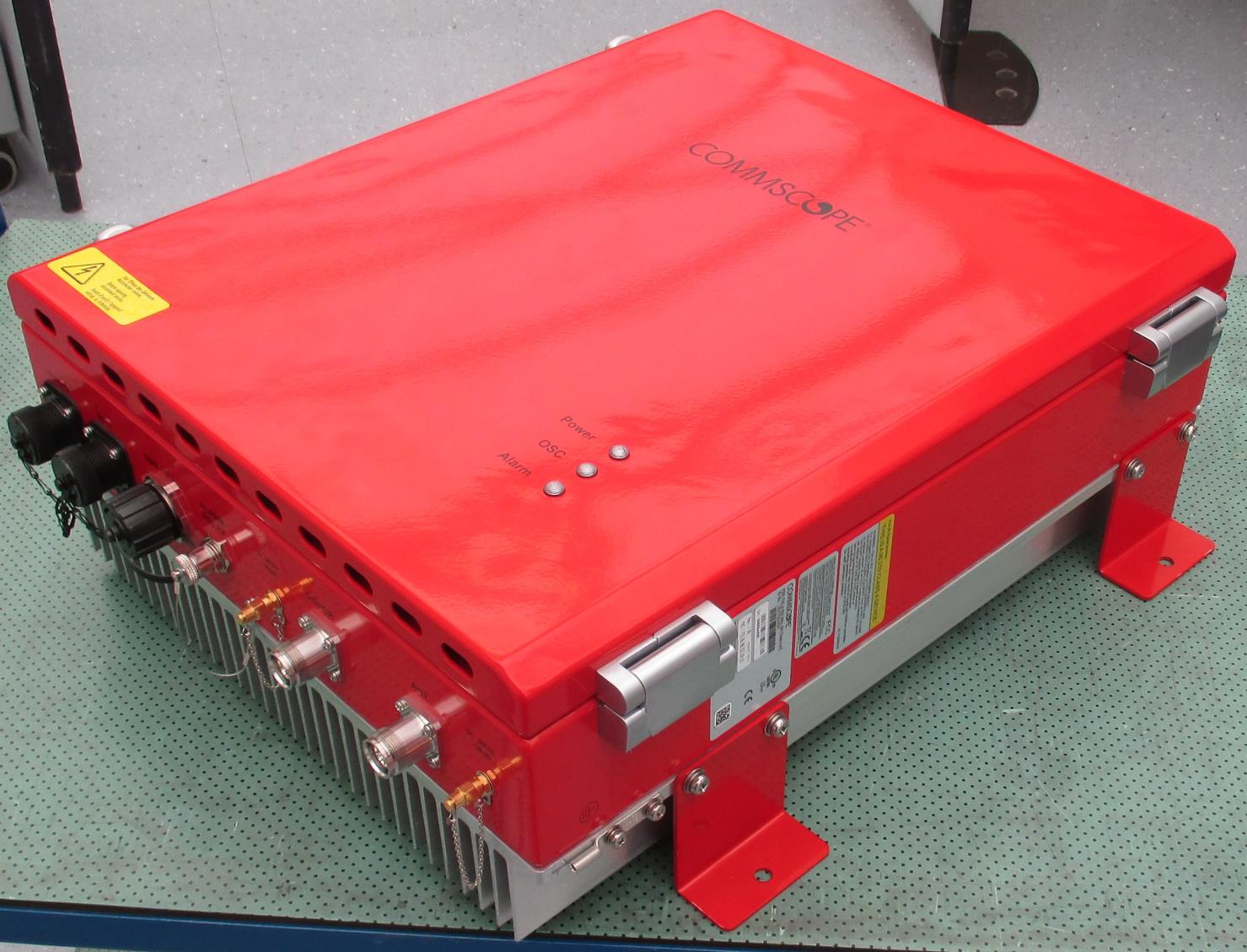

External Photos PSR 700/800 Class A (Digital) 7831758-xxxx

Label Location

Internal Photos PSR 700/800 Class A (Digital) 7831758-xxxx DC-DC Converter Power Supply RF-Module Control Board Digital Signal Processing Module LED Board RF Module Control Board DSP Board DC-DC Converter LED Board

RF Exposure Info / MPE Sample Calculation Model: PSR 700/800 Class A FCC-ID: XS5-PSR78A INTRODUCTION This pick-up repeater comes in two variants, one is a digital, channelized class A repeater and the second as an analog class B repeater. Both can be used stand-alone or in combination with an Era™ system. They are designed to cover the 700 and 800 MHz public safety bands and can be used to establish a wireless connection between a BTS and a passive or active DAS. Via feature keys, this repeater can be configured as a single- or dual-band version with an output power of 0.5 W or 2 W per band. With its battery backup support, NEMA 4x housing, dry alarm contacts and its integrated oscillation detection and healing mechanism a fully NFPA 72 and IFC compliance can be guaranteed. The implemented time-slot-based muting functionality prevents desensitization of the BTS by switching off UL channels without traffic. The class A supports up to 32 channels in a range between 12.5 kHz and 10 MHz, where every channel can be muted while no traffic is active. With the class B variant, the operator can choose between 3, 10 and 18 MHz pass band bandwidths, where every pass band can be muted while no traffic is active. This approval refers to the digital channelized class A Repeater only. The specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B). S = power density limit [W/m] P = power [W] R = distance [m] 2 4 n nn n R GP S  = => n nn n S GP R 4 = (to calculate the distance at one frequency) If we have more bands, than we have to calculated as a percentage: The additional of the terms have to be lower than 1. 1 4 .... 4 44 1.... 2 3 2 3 33 2 2 2 22 1 2 1 11 ln 3 3 2 2 1 1 ++++ ++++ n n nn n cacalcalcal S R GP S R GP S R GP S R GP S S S S S S S S   We are looking for a distance of ensures that the formula is satisfied. n RRRR====... 321 1 4 ... 444 2 3 2 33 2 2 22 1 2 11 ++++ n nn SR GP SR GP SR GP SR GP  R S GP S GP S GP S GP R S GP S GP S GP S GP n nn n nn ++++ ++++   4 ... 444 4 ... 444 3 33 2 22 1 11 2 3 33 2 22 1 11 With n nn n S GP R 4 = => n nn n S GP R 4 2 = RRRRR n ++++ 22 3 2 2 2 1 ... What you have to do for calculate the minimum distance where the power density limit is met: 1) If you have one path, you have to put your special values in the following formula. n nn n S GP R 4 = (Distance for one carrier) Limits for General Population / Uncontrolled Exposures Frequency Range (MHz) Power Density (mW/cm 2 ) 300 – 1500 S = f/1500 1550 – 100000 S = 1 2) If you have more than one path, you must add the individual terms quadratic. n nn n S GP R 4 = (Distance for individual carrier) RRRRR n ++++ 22 3 2 2 2 1 ... (See previous page) For example: The EUT operates in 2 frequency bands: DL Frequency Bands are 758-775 MHz and 851-869 MHz. The max conducted output power is 33 dBm (2W) per antenna port. Calculation for every path with maximum allowed antenna gain and without cable loss: Frequency [MHz] Max Power out [dBm] Max. allowed antenna gain, without cable loss [dBi] Min. Distance [m] 758 33 9 0,500 851 33 9 0,471 The worst case would be if all bands were active: RRRRR n ++++ 22 3 2 2 2 1 ... R all > 0,687m (see previous page for derivation) UL Frequency Bands are 788-805 MHz and 806-824 MHz. The max conducted output power is 27 dBm (0.5W) per antenna port. Calculation for every path with maximum allowed antenna gain and without cable loss: Frequency [MHz] Max Power out [dBm] Max. allowed antenna gain, without cable loss [dBi] Min. Distance [m] 788 27 9 0,246 806 27 9 0,243 The worst case would be if all bands were active: RRRRR n ++++ 22 3 2 2 2 1 ... R all > 0,345m (see previous page for derivation) For more accurate calculation, the cable loss and actual antenna gain have to be included in the finally system. The antenna(s) used with device must be fixed-mounted on permanent structures with a distance to any human body to comply with the RF Exposure limit.

The test results relates only to the tested item. The sample has been provided by the client. Without the written consent of Burau Veritas Consumer Products Services Germany GmbH excerpts of this report shall not be reproduced. Bureau Veritas Consumer Products Services Germany GmbH www.bureauveritas.de/cps Phone: +49 (0)40 – 740 41 – 0 Schwerin Wilhelm‐Hennemann‐Str. 8, 19061 Schwerin cps‐[email protected] Tuerkheim Businesspark A96, 86842 Tuerkheim cps‐[email protected] Managing Director: Sebastian Doose Reg.No.: Schwerin HRB 3564 Hamburg Oehleckerring 40, 22419 Hamburg cps‐[email protected] Nuremberg Thurn‐und‐Taxis‐Str. 18, 90411 Nuremberg cps‐[email protected] Page 1 of 96 ECL‐TA Test Report No.: 20‐018 Designation: PSR 7/8 A, ESMR Band Manufacturer: Andrew Serial No(s): 8 ID No. 7830127‐0001, Rev.: 00 Test Specification(s): ANSI 63.26:2015 FCC Rules and Regulations as listed in 47 CFR, Part 20:2019‐10‐01 Test Plan: Measurement of Band ESMR, downlink and uplink. Test Result: Passed Date of issue: 2020‐12‐18 Signature: Version: 01 Technical Reviewer: Date of delivery: 2020‐11 Performance date: 2020‐11‐21. – Report Reviewer: 2020‐12‐12 ECL-TA-20-018-V01.00 TA tests on Andrew PSR 7/8 A, ESMR Band Page 2 of 96 Client: Commscope Andrew Wireless System GmbH Industriering 10 86675 Buchdorf Germany Test Laboratory: Bureau Veritas Consumer Products Services Germany GmbH Thurn‐und‐Taxis‐Straße 18 D‐90411 Nürnberg Tel.: +49 40 74041 0 Fax: +49 40 74041‐2755 Versions management: V01.00 Initial release ECL-TA-20-018-V01.00 TA tests on Andrew PSR 7/8 A, ESMR Band Page 3 of 96 Table of Contents 1 APPLIED STANDARDS AND TEST SUMMARY ............................................................................ 4 1.1 APPLIED STANDARDS ............................................................................................................... 4 1.2 TABLE OF MEASUREMENT’S FCC REFERENCE ................................................................. 5 1.3 MEASUREMENT SUMMARY/SIGNATURES .......................................................................... 6 2 ADMINISTRATIVE DATA ................................................................................................................. 11 2.1 TESTING LABORATORY ........................................................................................................... 11 2.2 APPLICANT DATA ...................................................................................................................... 11 2.3 MANUFACTURER DATA ........................................................................................................... 11 3 TEST OBJECT DATA .......................................................................................................................... 12 3.1 GENERAL EUT DESCRIPTION ............................................................................................... 12 3.2 EUT MAIN COMPONENTS ....................................................................................................... 13 3.3 ANCILLARY EQUIPMENT ......................................................................................................... 13 3.4 AUXILIARY EQUIPMENT .......................................................................................................... 13 3.5 EUT SETUPS ................................................................................................................................ 14 3.6 PRODUCT LABELLING .............................................................................................................. 15 4 TEST RESULTS ................................................................................................................................... 16 4.1 EFFECTIVE RADIATED POWER, MEAN OUTPUT POWER AND ZONE ENHANCER GAIN 16 4.2 PEAK TO AVERAGE RATIO ..................................................................................................... 24 4.3 OCCUPIED BANDWIDTH/INPUT-VERSUS-OUTPUT SPECTRUM ............................... 30 4.4 CONDUCTED SPURIOUS EMISSIONS AT ANTENNA TERMINALS ............................ 41 4.5 OUT-OF-BAND EMISSION LIMITS ...................................................................................... 56 4.6 OUT-OF-BAND REJECTION .................................................................................................... 76 4.8 FIELD STRENGTH OF SPURIOUS RADIATION ................................................................ 79 5 TEST EQUIPMENT ............................................................................................................................. 90 6 ANTENNA FACTORS, CABLE LOSS AND SAMPLE CALCULATIONS ................................. 91 6.1 ANTENNA CHASE CBL 6111C (30 MHZ – 1 GHZ) ........................................................ 91 6.2 ANTENNA ROHDE & SCHWARZ HL 025 (1 GHZ – 18 GHZ) ..................................... 92 7 MEASUREMENT UNCERTAINTIES ................................................................................................ 93 8 Photo Report ........................................................................................................................................... 94 Annex A: Accreditation certificate (for information) ...................................................................................... 95 Annex B: Additional information provided by client ....................................................................................... 96 ECL-TA-20-018-V01.00 TA tests on Andrew PSR 7/8 A, ESMR Band Page 4 of 96 1 APPLIED STANDARDS AND TEST SUMMARY 1.1 APPLIED STANDARDS Type of Authorization Certification for an Industrial Signal Booster. Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 2, 20 and 90. The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures,…

Text truncated - open the document above for the full version.
