XS5-RML2B12-13-14ERA L2 Radio Module

CommScope ERA ® CAP L2 with Fiber Interface 2 nd Generation Low Power Carrier Access Point Installation Guide • M0203A9B_uc • August 2022 DISCLAIMER This document has been developed by CommScope, and is intended for the use of its customers and customer support personnel. The information in this document is subject to change without notice. While every effort has been made to eliminate errors, CommScope disclaims liability for any difficulties arising from the interpretation of the information contained herein. The information contained herein does not claim to cover all details or variations in equipment, nor to provide for every possible incident to be met in connection with installation, operation, or maintenance. This document describes the performance of the product under the defined operational conditions and does not cover the performance under adverse or disturbed conditions. Should further information be desired, or should particular problems arise which are not covered sufficiently for the purchaser's purposes, contact CommScope. CommScope reserves the right to change all hardware and software characteristics without notice. ERA ® and ION-E ® ERA is an extension of the hardware and software architecture that CommScope originally introduced as ION-E. Going forward, all new systems are ERA. Since ION-E and ERA share the same hardware modules, system software and management systems, existing ION-E systems can be updated and expanded using ERA components. COPYRIGHT © 2022 CommScope, Inc. All Rights Reserved. This document is protected by copyright. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical photocopying, recording, or otherwise without the prior written permission of CommScope. For patents see www.cs-pat.com. TRADEMARKS All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. Names of other products mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies. Andrew Wireless Systems GmbH, August 2022 M0203A9B_ucCommScope ERA ® CAP L2 with Fiber Interface © July 2022 CommScope, Inc.Page iii TABLE OF CONTENTS Document Overview..................................................................................................................................................................................1 Document Revision History..............................................................................................................................................................................1 Document Cautions and Notes.........................................................................................................................................................................1 Abbreviations Used in this Guide.....................................................................................................................................................................3 Safely Working with ERA Hardware..................................................................................................................................................................3 Health and Safety Precautions...................................................................................................................................................................3 Property Damage Warnings.......................................................................................................................................................................4 General Installation Safety Requirements.................................................................................................................................................4 Guard Against Damage from Electro-Static Discharge...............................................................................................................................4 Compliance.................................................................................................................................................................................................5 Equipment Symbols Used / Compliance....................................................................................................................................................7 Maximum Output Power Levels.................................................................................................................................................................8 Required Antenna Distances......................................................................................................................................................................8 Fiber CAPL2 Overview...............................................................................................................................................................................9 Connectors and LED for the Fiber CAPL2.........................................................................................................................................................9 CAPL2 Accessories and Options.....................................................................................................................................................................11 Mounting and Power Kits.........................................................................................................................................................................11 SFP+ Module Kits......................................................................................................................................................................................11 OCTIS™ Universal Lever Assembly Kits ....................................................................................................................................................13 OCTIS Universal Lever Assembly…

Text truncated - open the document above for the full version.

Andrew Wireless Systems GmbH Industriering 10 86675 Buchdorf Tel: +49 9099 – 69 0 Fax: +19 9099 – 69 930 2022-07-20 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT - FCC On our behalf, I appoint Nemko North America, Inc. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, Printed name: Jiri Cecka

Andrew Wireless Systems GmbH Industriering 10 86675 Buchdorf Germany Equipment Authorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: XS5-RML2B12-13-14 Product Name: Radio Module L2 B12+13+14 Request for Confidentiality Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby request long-term confidential treatment of information accompanying this application as outlined below: • Schematics • Block diagrams • Operation Description • Part list In addition, we hereby request the following exhibits contained in this application to be temporarily (short- term confidentiality) withheld from the public disclosure for an initial period of 180 days the documentation listed below: • Internal Photos • User’s Manual Dated this 20 Day of July 20 22 By: Jiri Cecka Signature Printed Title: Quality Manager On behalf of : Andrew Wireless Systems GmbH Telephone: +420 606 620 263

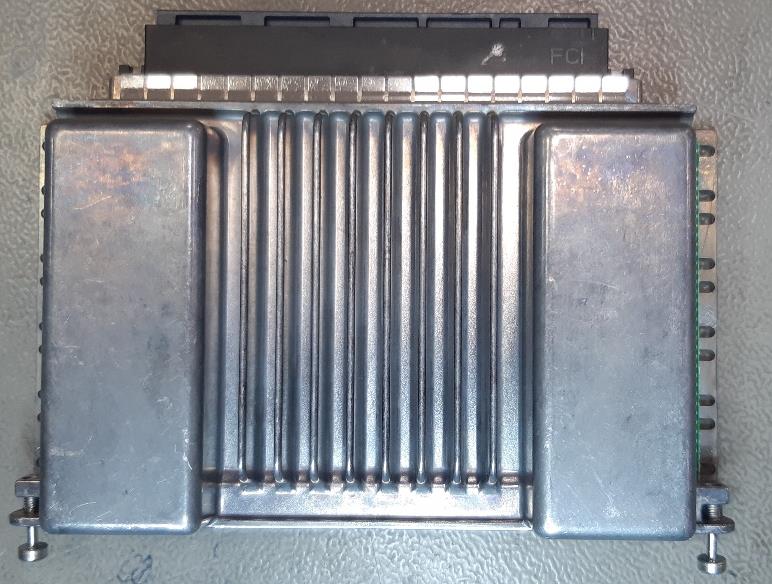

Radio Module L12+13+14 - External picture 7847627-xx and 7847610-xx TOP View BOTTOM View Connector side view Rear side View Left and Right side view

RM B12+13+14 – Radio Module 7847627-01- Label picture Accreditation Label dimension Accreditation Label Picture Accreditation Label Position Accreditation Label dimension (text as example) Accreditation Label picture Accreditation Label position

RM B12+13+14 – Assembled PCB 7843222-02- Internal picture TOP View BOTTOM View

Andrew Wireless Systems GmbH Industriering 10 86675 Buchdorf Germany FCC ID: XS5-RML2B12-13-14 Product Name: Radio Module L2 B12+13+14 Tune up Informations Radio Module L2 B12+13+14 is designed so that the switching range matches the alignment range. No tune up procedure is required by technicians or users after the equipment has left the factory to match its specifications on the working frequency. No manual trimmers or adjustments that can be manually done are implemented. Date: July 20, 2022 Company name: Andrew Wireless Systems GmbH Name and Surname: Jiri Cecka Position/Function: Quality Manager Signature________________________

Manufacturer: Andrew Wireless Systems Model: Radio Module L2 B12+13+14 FCC ID: XS5-RML2B12-13-14 IC: 2237E-RML2B121314 47 CFR 1.1310(e)(1) Maximum Permissible Exposure (M PE) - Limits for General Population/Uncontrolled Ex posure Frequency (f) Output power (P) Antenna Gain (G) Combiner Loss MIMO Factor Duty Cycle (DC) EIRP 1 EIRP Distance (R) Power Density (PD) 2 Power Density Limit Margin MHz dBm dBi dB dB % dBm mW cm mW/cm 2 mW/cm 2 dB B14 760,5 22,5 9,0 -3,00 3,00 100,0 31,5 1413 20 0,281 0,507 2,6 Canada RSS-102 Issue 5 (4. Exposure Limits) Table 4 : RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency (f) Output power (P) Antenna Gain (G) Combiner Loss MIMO Factor Duty Cycle (DC) EIRP 1 EIRP Distance (R) Power Density (PD) 2 Power Density Limit Margin Exemption Limit MHz dBm dBi dB dB % dBm W m W/m 2 W/m 2 dB W B14 760,5 22,5 9,0 -3,00 3,00 100,0 31,5 1,41 0,22 2,322 2,438 0,2 1,22 1 EIRP dBm = P + G + Combinar Loss + MIMO Factor + 10 Log (DC /100) 2 PD = EIRP/(4 πR 2 )

Choose Scandinavian trust RADIO TEST REPORT – 449947-9TRFWL Type of assessment: Transmitters co-location Applicant: Product: Andrew Wireless Systems Industriering 10, Buchdorf 86675 Germany ERA L2 Radio Module Model: Model variant(s): Radio Module L2 B12+13+14 -- FCC ID: IC Registration number: XS5-RML2B12-13-14 2237E-RML2B121314 Specifications:  FCC 47 CFR Part 90  RSS-130 Issue 2  RSS-131 Issue 3  RSS-140 Issue 1 Date of issue: February 9, 2022 P. Barbieri Tested by Signature D. Guarnone Reviewed by Signature Report reference ID: 449947-9TRFWL Page 2 of 113 Lab locations Company name Nemko Spa Address Via del Carroccio, 4 City Biassono Province MB Postal code 20853 Country Italy Telephone +39 039 220 12 01 Facsimile +39 039 220 12 21 Website www.nemko.com Site number 682159 and 9109A (10 m semi anechoic chamber) Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Spa ISO/IEC 17025 accreditation. Copyright notification Nemko Spa authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Spa accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Report reference ID: 449947-9TRFWL Page 3 of 113 Table of Contents Table of Contents ......................................................................................................................................................................................................... 3 Report summary ................................................................................................................................................................................. 4 1.1 Test specifications .................................................................................................................................................................................................... 4 1.2 Test methods ............................................................................................................................................................................................................ 4 1.3 Exclusions ................................................................................................................................................................................................................. 4 1.4 Statement of compliance .......................................................................................................................................................................................... 4 1.5 Test report revision history ....................................................................................................................................................................................... 4 Engineering considerations ................................................................................................................................................................. 5 2.1 Modifications incorporated in the EUT for compliance ............................................................................................................................................ 5 2.2 Technical judgment .................................................................................................................................................................................................. 5 2.3 Deviations from laboratory tests procedures ........................................................................................................................................................... 5 Test conditions ................................................................................................................................................................................... 6 3.1 Atmospheric conditions ............................................................................................................................................................................................ 6 3.2 Power supply range .................................................................................................................................................................................................. 6 Measurement uncertainty .................................................................................................................................................................. 7 4.1 Uncertainty of measurement ................................................................................................................................................................................... 7 Information provided by the applicant ................................................................................................................................................ 8 5.1 Disclaimer ................................................................................................................................................................................................................. 8 5.2 Applicant/Manufacture ............................................................................................................................................................................................ 8 5.3 EUT information ....................................................................................................................................................................................................... 8 5.4 T…

Text truncated - open the document above for the full version.

Section 8 Testing data Test name Out-of-band/out-of-block emissions conducted measurements Specification 935210 D05 Indus Booster Basic Meas v01r04 (4.7.2) Report reference ID: 449947-9TRFWL Page 59 of 113 Test data, continued Figure 8.5-15: Antenna port 2 single carrier lower block edge with input signal at AGC threshold Section 8 Testing data Test name Out-of-band/out-of-block emissions conducted measurements Specification 935210 D05 Indus Booster Basic Meas v01r04 (4.7.2) Report reference ID: 449947-9TRFWL Page 60 of 113 Test data, continued Figure 8.5-16: Antenna port 2 single carrier lower block edge with input signal at AGC threshold +3 dB Section 8 Testing data Test name Spurious emissions conducted measurements Specification 935210 D05 Indus Booster Basic Meas v01r04 (4.7.3) Report reference ID: 449947-9TRFWL Page 61 of 113 8.6 Spurious emissions conducted measurements 8.6.1 References, definitions and limits FCC §90.543(e) For operations in the 758-768 MHz and the 788-798 MHz bands, the power of any emission outside the licensee's frequency band(s) of operation shall be attenuated below the transmitter power (P) within the licensed band(s) of operation, measured in watts, in accordance with the following: (1) On all frequencies between 769-775 MHz and 799-805 MHz, by a factor not less than 76 + 10 log (P) dB in a 6.25 kHz band segment, for base and fixed stations. (2) On all frequencies between 769-775 MHz and 799-805 MHz, by a factor not less than 76 + 10 log (P) dB in a 6.25 kHz band segment, for base and fixed stations. (3) On any frequency between 775-788 MHz, above 805 MHz, and below 758 MHz, by at least 43 + 10 log (P) dB. (4) Compliance with the provisions of paragraphs (e)(1) and (2) of this section is based on the use of measurement instrumentation such that the reading taken with any resolution bandwidth setting should be adjusted to indicate spectral energy in a 6.25 kHz segment. (5) Compliance with the provisions of paragraph (e)(3) of this section is based on the use of measurement instrumentation employing a resolution bandwidth of 100 kHz or greater. However, in the 100 kHz bands immediately outside and adjacent to the frequency block, a resolution bandwidth of 30 kHz may be employed. FCC §90.219(e) (3) Spurious emissions from a signal booster must not exceed −13 dBm within any 100 kHz measurement bandwidth. RSS-131, Clause 5.2 Industrial Zone Enhancers, including DASs, shall employ a gain control feature and shall comply with all the requirements in the RSS which applies to the equipment with which the zone enhancer is to be used. In addition, the equipment shall comply with the requirements specified in this section. RSS-140, Clause 4.4 Transmitter unwanted emission limits The power of any unwanted emission outside the bands 758-768 MHz and 788-798 MHz shall be attenuated below the transmitter output power P in dBW as follows, where p is the transmitter output power in watts: (a) For any frequency between 769-775 MHz and 799-806 MHz: 76 + 10 log (p), dB in a 6.25 kHz band for fixed and base station equipment 65 + 10 log (p), dB in a 6.25 kHz band for mobile and portable/hand-held equipment (b) For any frequency between 775-788 MHz, above 806 MHz, and below 758 MHz: 43 + 10 log (p), dB in a bandwidth of 100 kHz or greater. However, in the 100 kHz bands immediately outside and adjacent to the frequency bands 758-768 MHz and 788-798 MHz, a resolution bandwidth of 30 kHz may be employed. In addition, the equivalent isotropically radiated power (e.i.r.p.) of all emissions, including harmonics in the band 1559-1610 MHz, shall not exceed −70 dBW/MHz for wideband emissions, and −80 dBW/kHz for discrete emissions of less than 700 Hz bandwidth. 8.6.2 Test summary Verdict Pass Tested by P. Barbieri Test date January 27, 2022 Section 8 Testing data Test name Spurious emissions conducted measurements Specification 935210 D05 Indus Booster Basic Meas v01r04 (4.7.3) Report reference ID: 449947-9TRFWL Page 62 of 113 8.6.3 Observations, settings and special notes The spectrum was searched from 9 kHz to the 10 th harmonic. All measurements were performed using peak detector according to note 4 of 935210 D05 Indus Booster Basic Meas v01r04 paragraph 3.6.3. Limit line (43 + 10 log 10 (P) or −13 dBm) was adjusted for MIMO operation by 3 dB*: −13 dBm – 3 dB = −16 dBm *MIMO correction factor for 2 antenna ports: 10 × Log 10 (2) = 3.01 dB Spectrum analyser settings: Resolution bandwidth: Reference bandwidth in the applicable rule section for the supported frequency band Video bandwidth: VBW ≥ 3 × RBW Detector mode: Peak Trace mode: Max Hold Input signal frequency Low channel 760.5 MHz Mid channel 763.0 MHz High channel 765.5 MHz 8.6.4 Test equipment used Equipment Manufacturer Model no. Asset no. Spectrum Analyzer Rohde & Schwarz FSW43 101767 RF Vector Signal Generator Rohde & Schwarz SMBV100A 263254 RF Vector Signal Generator Rohde & Schwarz SMBV100A 263397 Notes: NCR - no calibration required, VOU - verify on use Section 8 Testing data Test name Spurious emissions conducted measurements Specification 935210 D05 Indus Booster Basic Meas v01r04 (4.7.3) Report reference ID: 449947-9TRFWL Page 63 of 113 8.6.5 Test data Figure 8.6-1: Conducted spurious emissions of low channel, antenna port 1 Section 8 Testing data Test name Spurious emissions conducted measurements Specification 935210 D05 Indus Booster Basic Meas v01r04 (4.7.3) Report reference ID: 449947-9TRFWL Page 64 of 113 Test data, continued Figure 8.6-2: Conducted spurious emissions of mid channel, antenna port 1 Section 8 Testing data Test name Spurious emissions conducted measurements Specification 935210 D05 Indus Booster Basic Meas v01r04 (4.7.3) Report reference ID: 449947-9TRFWL Page 65 of 113 Test data, continued Figure 8.6-3: Conducted spurious emissions of high channel, antenna port 1 Section 8 Testing data Test name Spurious emissions conducted measurements Specification 935210 D05 Indus Booster Basic Meas v01r04 (4.7.3…

Text truncated - open the document above for the full version.

ONE WORLDOURAPPROVAL Setup photos 449947-7TRFWL, 449947-8TRFWL, 449947-9TRFWL Date of issue: February 9, 2022 Applicant: Andrew Wireless Systems Product name: ERA L2 Radio Module Model: Radio Module L2 B12+13+14 FCC ID: IC Registration number: XS5-RML2B12-13-14 2237E-RML2B121314 Report reference ID: 449947-7TRFWL, 449947-8TRFWL, 449947-9TRFWL Page 2 of 5 Section 1. Setup photos for Radiated emissions 1.1 Set-up for frequencies below 1 GHz Report reference ID: 449947-7TRFWL, 449947-8TRFWL, 449947-9TRFWL Page 3 of 5 1.2 Set-up for frequencies above 1 GHz Report reference ID: 449947-7TRFWL, 449947-8TRFWL, 449947-9TRFWL Page 4 of 5 Section 2. Setup photos for Antenna port 2.1 Antenna port testing set-up Report reference ID: 449947-7TRFWL, 449947-8TRFWL, 449947-9TRFWL Page 5 of 5 2.2 Antenna port testing set-up in climatic chamber
