XS5-RML2B66ERA L2 Radio Module

CommScope ERA ® CAP L2 with Fiber Interface 2 nd Generation Low Power Carrier Access Point Installation Guide • M0203A9B_uc • August 2022 DISCLAIMER This document has been developed by CommScope, and is intended for the use of its customers and customer support personnel. The information in this document is subject to change without notice. While every effort has been made to eliminate errors, CommScope disclaims liability for any difficulties arising from the interpretation of the information contained herein. The information contained herein does not claim to cover all details or variations in equipment, nor to provide for every possible incident to be met in connection with installation, operation, or maintenance. This document describes the performance of the product under the defined operational conditions and does not cover the performance under adverse or disturbed conditions. Should further information be desired, or should particular problems arise which are not covered sufficiently for the purchaser's purposes, contact CommScope. CommScope reserves the right to change all hardware and software characteristics without notice. ERA ® and ION-E ® ERA is an extension of the hardware and software architecture that CommScope originally introduced as ION-E. Going forward, all new systems are ERA. Since ION-E and ERA share the same hardware modules, system software and management systems, existing ION-E systems can be updated and expanded using ERA components. COPYRIGHT © 2022 CommScope, Inc. All Rights Reserved. This document is protected by copyright. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical photocopying, recording, or otherwise without the prior written permission of CommScope. For patents see www.cs-pat.com. TRADEMARKS All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. Names of other products mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies. Andrew Wireless Systems GmbH, August 2022 M0203A9B_ucCommScope ERA ® CAP L2 with Fiber Interface © July 2022 CommScope, Inc.Page iii TABLE OF CONTENTS Document Overview..................................................................................................................................................................................1 Document Revision History..............................................................................................................................................................................1 Document Cautions and Notes.........................................................................................................................................................................1 Abbreviations Used in this Guide.....................................................................................................................................................................3 Safely Working with ERA Hardware..................................................................................................................................................................3 Health and Safety Precautions...................................................................................................................................................................3 Property Damage Warnings.......................................................................................................................................................................4 General Installation Safety Requirements.................................................................................................................................................4 Guard Against Damage from Electro-Static Discharge...............................................................................................................................4 Compliance.................................................................................................................................................................................................5 Equipment Symbols Used / Compliance....................................................................................................................................................7 Maximum Output Power Levels.................................................................................................................................................................8 Required Antenna Distances......................................................................................................................................................................8 Fiber CAPL2 Overview...............................................................................................................................................................................9 Connectors and LED for the Fiber CAPL2.........................................................................................................................................................9 CAPL2 Accessories and Options.....................................................................................................................................................................11 Mounting and Power Kits.........................................................................................................................................................................11 SFP+ Module Kits......................................................................................................................................................................................11 OCTIS™ Universal Lever Assembly Kits ....................................................................................................................................................13 OCTIS Universal Lever Assembly…

Text truncated - open the document above for the full version.

Andrew Wireless Systems GmbH Industriering 10 86675 Buchdorf Tel: +49 9099 – 69 0 Fax: +19 9099 – 69 930 2022-07-20 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT - FCC On our behalf, I appoint Nemko North America, Inc. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, Printed name: Jiri Cecka

Andrew Wireless Systems GmbH Industriering 10 86675 Buchdorf Germany Equipment Authorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: XS5-RML2B66 Product Name: Radio Module L2 B66 Request for Confidentiality Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby request long-term confidential treatment of information accompanying this application as outlined below: • Schematics • Block diagrams • Operation Description • Part list In addition, we hereby request the following exhibits contained in this application to be temporarily (short- term confidentiality) withheld from the public disclosure for an initial period of 180 days the documentation listed below: • Internal Photos • User’s Manual Dated this 20 Day of July 20 By: Jiri Cecka Signature Printed Title: Quality Manager On behalf of : Andrew Wireless Systems GmbH Telephone: +420 606 620 263

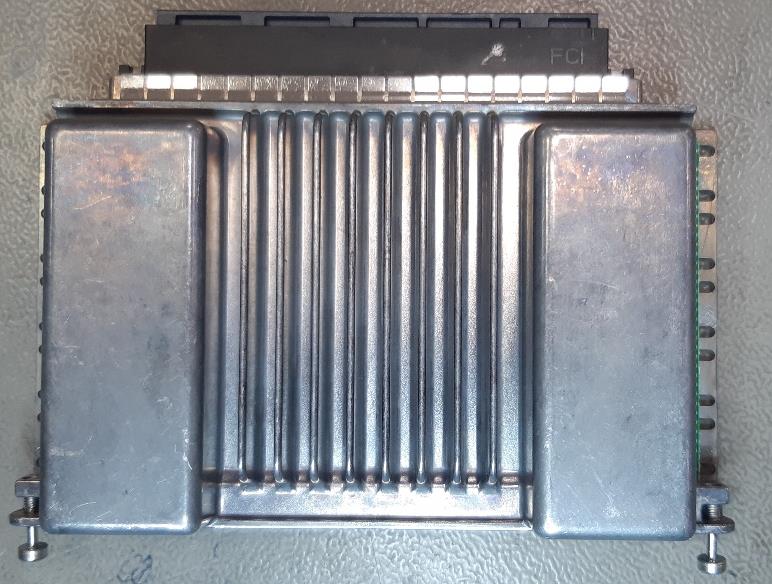

Radio Module B66 –External picture 7847637-xx and 7847598-xx TOP View BOTTOM View Connector side view Rear side View Left and Right side view

RM B66 – Radio Module 7847637-01- Label picture Accreditation Label dimension Accreditation Label Picture Accreditation Label Position Accreditation Label dimension (text as example) Accreditation Label picture Accreditation Label position

RM B66 – Assembled PCB 7843234-02- Internal picture TOP View BOTTOM View

Andrew Wireless Systems GmbH Industriering 10 86675 Buchdorf Germany FCC ID: XS5-RML2B66 Product Name: Radio Module L2 B66 Tune up Informations Radio Module L2 B66 is designed so that the switching range matches the alignment range. No tune up procedure is required by technicians or users after the equipment has left the factory to match its specifications on the working frequency. No manual trimmers or adjustments that can be manually done are implemented. Date July 20, 2022 Company name: Andrew Wireless Systems GmbH Name and Surname: Jiri Cecka Position/Function: Quality Manager Signature________________________

Manufacturer: Andrew Wireless Systems Model: Radio Module L2 B66 FCC ID: XS5-RML2B66 IC: 2237E-RML2B66 47 CFR 1.1310(e)(1) Maximum Permissible Exposure (MPE) - Limits for General Population/Uncontrolled Exposure Frequency (f) Output power (P) Antenna Gain (G) Combiner Loss MIMO Factor Duty Cycle (DC) EIRP 1 EIRP Distance (R) Power Density (PD) 2 Power Density Limit Margin MHz dBm dBi dB dB % dBm mW cm mW/cm 2 mW/cm 2 dB 2112,5 24,0 9,0 -3,00 3,00 100,0 33,0 1995 20 0,397 1 4,0 Canada RSS-102 Issue 5 (4. Exposure Limits) Table 4: RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency (f) Output power (P) Antenna Gain (G) Combiner Loss MIMO Factor Duty Cycle (DC) EIRP 1 EIRP Distance (R) Power Density (PD) 2 Power Density Limit Margin Exemption Limit MHz dBm dBi dB dB % dBm W m W/m 2 W/m 2 dB W 2112,5 24,0 9,0 -3,00 3,00 100,0 33,0 2,00 0,2 3,969 4,901 0,9 2,45 1 EIRP dBm = P + G + Combinar Loss + MIMO Factor + 10 Log (DC/100) 2 PD = EIRP/(4 πR 2 )

Choose Scandinavian trust RADIO TEST REPORT – 449947-1TRFWL Type of assessment: Final product testing Applicant: Product: Andrew Wireless Systems Industriering 10, Buchdorf 86675 Germany ERA L2 Radio Module Model: Model variant(s): Radio Module L2 B66 -- FCC ID: IC Registration number: XS5-RML2B66 2237E-RML2B66 Specifications:  FCC 47 CFR Part 27  RSS-131 Issue 3  RSS-139 Issue 3 Date of issue: February 9, 2022 P. Barbieri Tested by Signature D. Guarnone Reviewed by Signature Report reference ID: 449947-1TRFWL Page 2 of 98 Lab locations Company name Nemko Spa Address Via del Carroccio, 4 City Biassono Province MB Postal code 20853 Country Italy Telephone +39 039 220 12 01 Facsimile +39 039 220 12 21 Website www.nemko.com Site number 682159 and 9109A (10 m semi anechoic chamber) Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Spa ISO/IEC 17025 accreditation. Copyright notification Nemko Spa authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Spa accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Report reference ID: 449947-1TRFWL Page 3 of 98 Table of Contents Table of Contents ......................................................................................................................................................................................................... 3 Report summary ................................................................................................................................................................................. 4 1.1 Test specifications .................................................................................................................................................................................................... 4 1.2 Test methods ............................................................................................................................................................................................................ 4 1.3 Exclusions ................................................................................................................................................................................................................. 4 1.4 Statement of compliance .......................................................................................................................................................................................... 4 1.5 Test report revision history ....................................................................................................................................................................................... 4 Engineering considerations ................................................................................................................................................................. 5 2.1 Modifications incorporated in the EUT for compliance ............................................................................................................................................ 5 2.2 Technical judgment .................................................................................................................................................................................................. 5 2.3 Deviations from laboratory tests procedures ........................................................................................................................................................... 5 Test conditions ................................................................................................................................................................................... 6 3.1 Atmospheric conditions ............................................................................................................................................................................................ 6 3.2 Power supply range .................................................................................................................................................................................................. 6 Measurement uncertainty .................................................................................................................................................................. 7 4.1 Uncertainty of measurement ................................................................................................................................................................................... 7 Information provided by the applicant ................................................................................................................................................ 8 5.1 Disclaimer ................................................................................................................................................................................................................. 8 5.2 Applicant/Manufacture ............................................................................................................................................................................................ 8 5.3 EUT information ....................................................................................................................................................................................................... 8 5.4 Technical information ..................…

Text truncated - open the document above for the full version.

Section 8 Testing data Test name Out-of-band/out-of-block emissions conducted measurements Specification 935210 D05 Indus Booster Basic Meas v01r04 (3.6.2) Report reference ID: 449947-1TRFWL Page 62 of 98 Test data, continued Figure 8.5-15: Antenna port 2 single carrier lower block edge with input signal at AGC threshold Section 8 Testing data Test name Out-of-band/out-of-block emissions conducted measurements Specification 935210 D05 Indus Booster Basic Meas v01r04 (3.6.2) Report reference ID: 449947-1TRFWL Page 63 of 98 Test data, continued Figure 8.5-16: Antenna port 2 single carrier lower block edge with input signal at AGC threshold +3 dB Section 8 Testing data Test name Spurious emissions conducted measurements Specification 935210 D05 Indus Booster Basic Meas v01r04 (3.6.3) Report reference ID: 449947-1TRFWL Page 64 of 98 8.6 Spurious emissions conducted measurements 8.6.1 References, definitions and limits FCC §27.53(h): AWS emission limits (1) General protection levels. Except as otherwise specified below, for operations in the 1695-1710 MHz, 1710-1755 MHz, 1755-1780 MHz, 1915-1920 MHz, 1995-2000 MHz, 2000-2020 MHz, 2110-2155 MHz, 2155-2180 MHz, and 2180-2200 bands, the power of any emission outside a licensee's frequency block shall be attenuated below the transmitter power (P) in watts by at least 43 + 10 log10 (P) dB. (2) Additional protection levels. Notwithstanding the foregoing paragraph (h)(1) of this section: (i) Operations in the 2180-2200 MHz band are subject to the out-of-band emission requirements set forth in § 27.1134 for the protection of federal government operations operating in the 2200-2290 MHz band. (ii) For operations in the 2000-2020 MHz band, the power of any emissions below 2000 MHz shall be attenuated below the transmitter power (P) in watts by at least 70 + 10 log10(P) dB. (iii) For operations in the 1915-1920 MHz band, the power of any emission between 1930-1995 MHz shall be attenuated below the transmitter power (P) in watts by at least 70 + 10 log10(P) dB. (iv) For operations in the 1995-2000 MHz band, the power of any emission between 2005-2020 MHz shall be attenuated below the transmitter power (P) in watts by at least 70 + 10 log10(P) dB (3) Measurement procedure (i) Compliance with this provision is based on the use of measurement instrumentation employing a resolution bandwidth of 1 megahertz or greater. However, in the 1 megahertz bands immediately outside and adjacent to the licensee's frequency block, a resolution bandwidth of at least one percent of the emission bandwidth of the fundamental emission of the transmitter may be employed. The emission bandwidth is defined as the width of the signal between two points, one below the carrier center frequency and one above the carrier center frequency, outside of which all emissions are attenuated at least 26 dB below the transmitter power. (ii) When measuring the emission limits, the nominal carrier frequency shall be adjusted as close to the licensee's frequency block edges, both upper and lower, as the design permits. (iii) The measurements of emission power can be expressed in peak or average values, provided they are expressed in the same parameters as the transmitter power. (4) Private agreements. (i) For AWS operations in the 2000-2020 MHz and 2180-2200 MHz bands, to the extent a licensee establishes unified operations across the AWS blocks, that licensee may choose not to observe the emission limit specified in paragraph (h)(1), above, strictly between its adjacent block licenses in a geographic area, so long as it complies with other Commission rules and is not adversely affecting the operations of other parties by virtue of exceeding the emission limit. (ii) For AWS operations in the 2000-2020 MHz band, a licensee may enter into private agreements with all licensees operating between 1995 and 2000 MHz to allow the 70 + 10 log10(P) dB limit to be exceeded within the 1995-2000 MHz band. (iii) An AWS licensee who is a party to a private agreement described in this section (4) must maintain a copy of the agreement in its station files and disclose it, upon request, to prospective AWS assignees, transferees, or spectrum lessees and to the Commission. RSS-131, Clause 5.2 Industrial zone enhancers Industrial Zone Enhancers, including DASs, shall employ a gain control feature and shall comply with all the requirements in the RSS which applies to the equipment with which the zone enhancer is to be used. In addition, the equipment shall comply with the requirements specified in this section. RSS-139, Clause 6.6 Transmitter Unwanted Emissions (i) In the first 1.0 MHz bands immediately outside and adjacent to the equipment’s smallest operating frequency block,2 which can contain the equipment’s occupied bandwidth, the emission power per any 1% of the emission bandwidth shall be attenuated below the transmitter output power P (in dBW) by at least 43 + 10 log10 p (watts) dB. (ii) After the first 1.0 MHz outside the equipment’s smallest operating frequency block, which can contain the equipment’s occupied bandwidth, the emission power in any 1 MHz bandwidth shall be attenuated below the transmitter output power P (in dBW) by at least 43 + 10 log10 p (watts) dB. Section 8 Testing data Test name Spurious emissions conducted measurements Specification 935210 D05 Indus Booster Basic Meas v01r04 (3.6.3) Report reference ID: 449947-1TRFWL Page 65 of 98 8.6.2 Test summary Verdict Pass Tested by P. Barbieri Test date February 2, 2022 8.6.3 Observations, settings and special notes The spectrum was searched from 9 kHz to the 10 th harmonic. All measurements were performed using peak detector according to note 4 of 935210 D05 Indus Booster Basic Meas v01r04 paragraph 3.6.3. Limit line (43 + 10 log 10 (P) or −13 dBm) was adjusted for MIMO operation by 3 dB*: −13 dBm – 3 dB = −16 dBm *MIMO correction factor for 2 antenna ports: 10 × Log 10 (2) = 3.01 dB Spectrum analyser settings: Resolution bandwidth: Reference ban…

Text truncated - open the document above for the full version.

ONE WORLDOURAPPROVAL Setup photos 449947-1TRFWL Date of issue: February 9, 2022 Applicant: Andrew Wireless Systems Product name: ERA L2 Radio Module Model: Radio Module L2 B66 FCC ID: IC Registration number: XS5-RML2B66 2237E-RML2B66 Report reference ID: 449947-1TRFWL Page 2 of 5 Section 1. Setup photos for Radiated emissions 1.1 Set-up for frequencies below 1 GHz Report reference ID: 449947-1TRFWL Page 3 of 5 1.2 Set-up for frequencies above 1 GHz Report reference ID: 449947-1TRFWL Page 4 of 5 Section 2. Setup photos for Antenna port 2.1 Antenna port testing set-up Report reference ID: 449947-1TRFWL Page 5 of 5 2.2 Antenna port testing set-up in climatic chamber
