XS5-TFAM851821Optical ION B remote unit for cellular networks

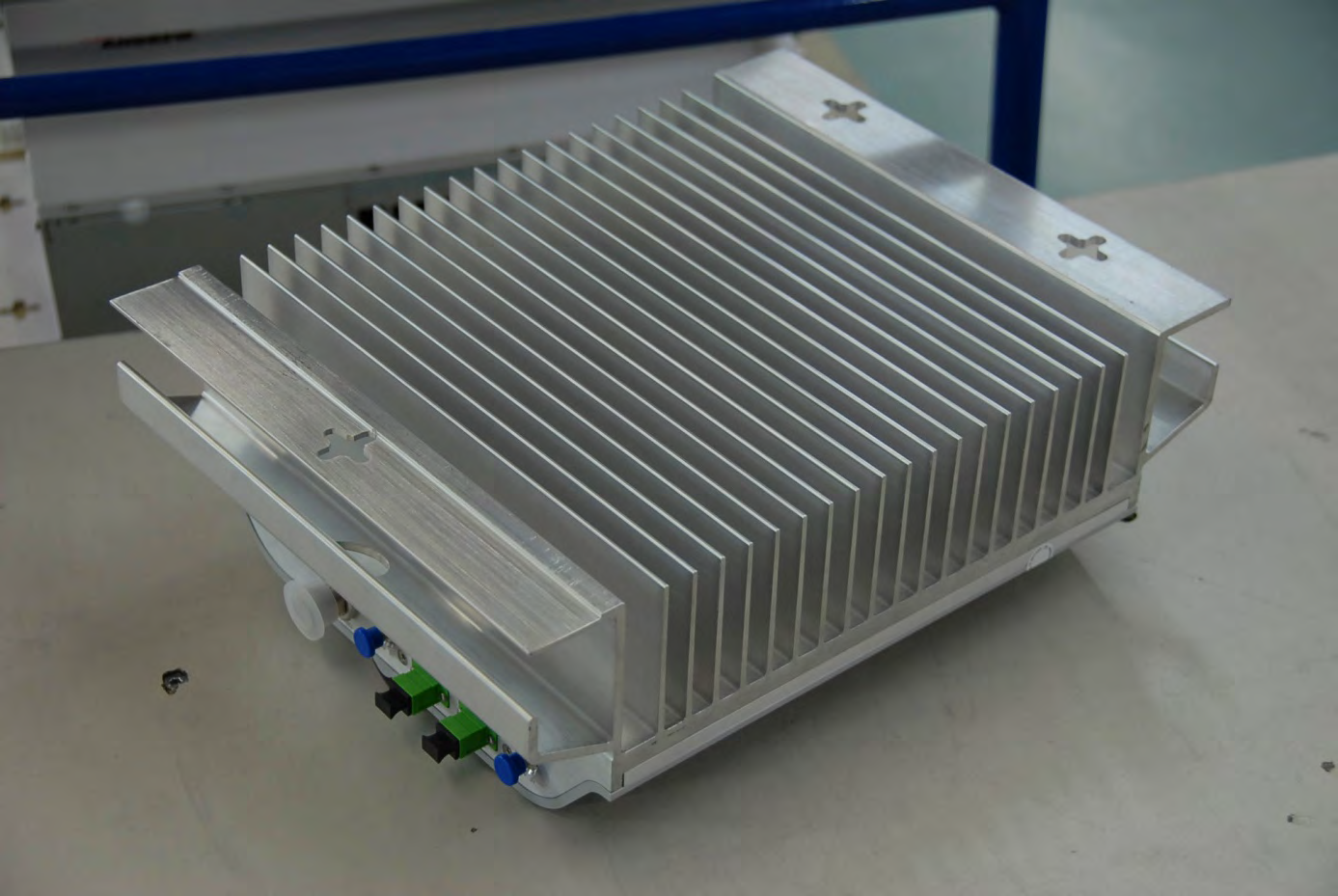

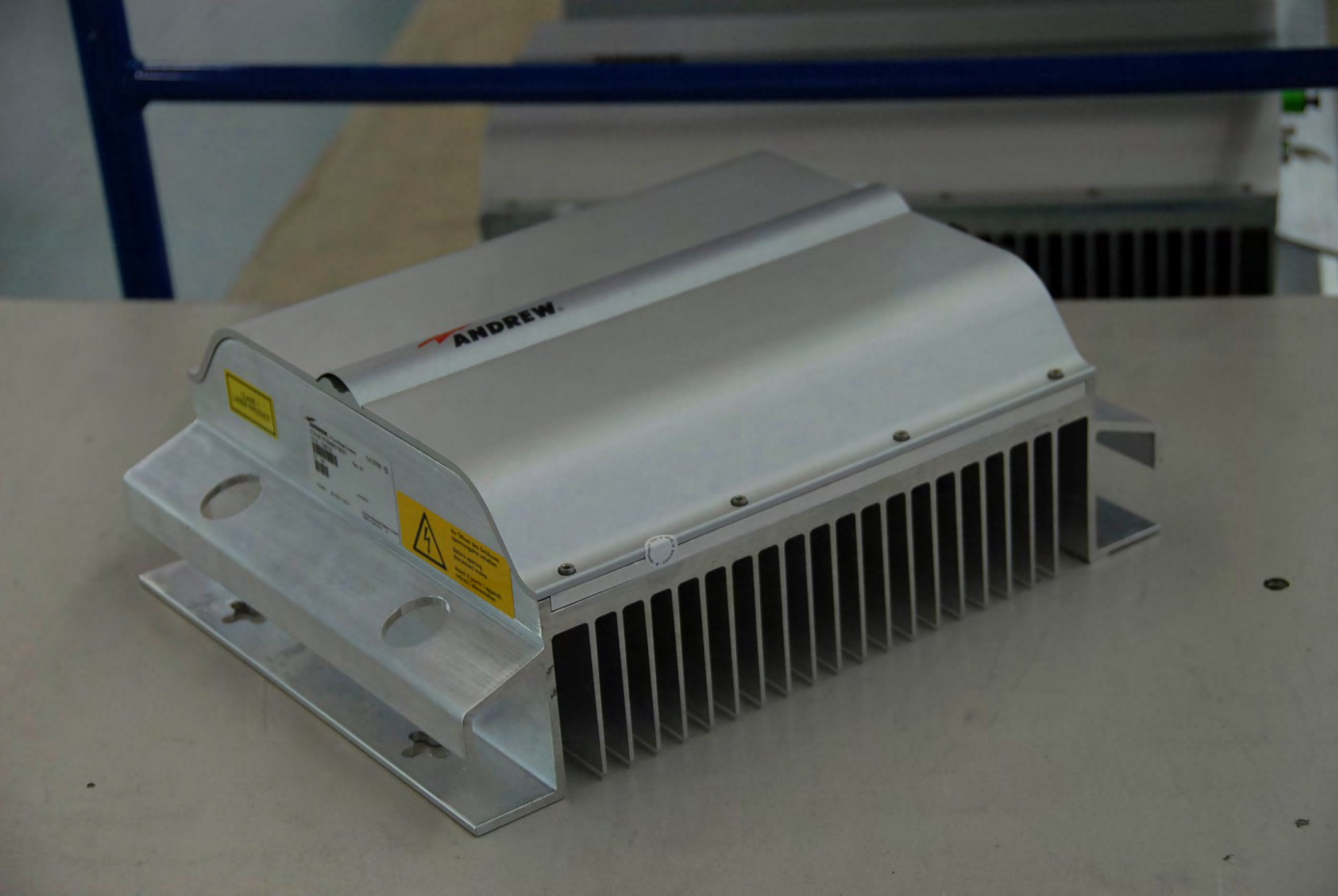

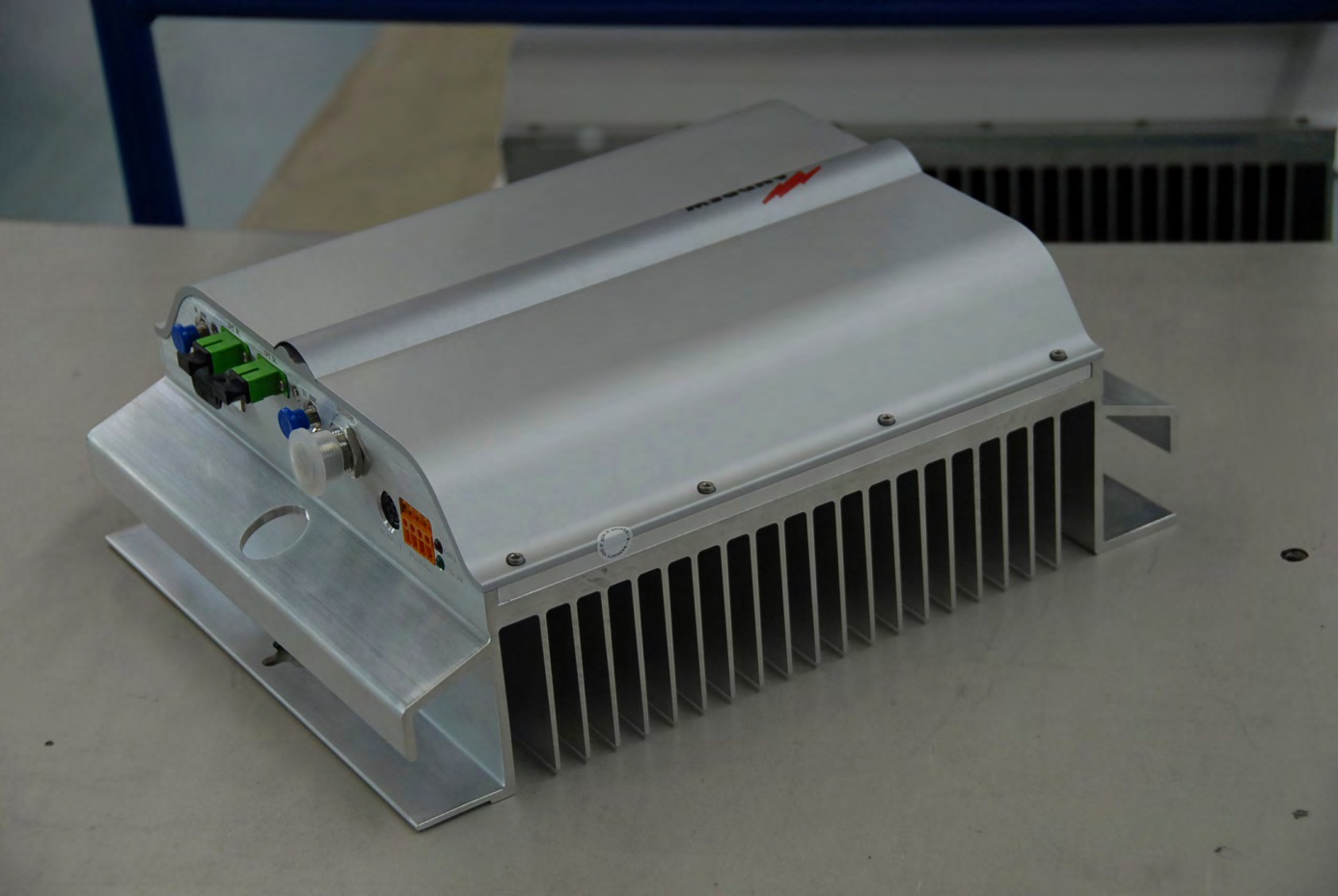

External photos

Label location FCC ID: XS5‐TFAM851821 IC: 2237E‐TFAM851821

RF Exposure Info / MPE Sample Calculation ION-B Series Booster for 850 MHz Commercial Band Model: ION-B-TFAM85/18/21 FCC ID: XS5-ION-BTFAM851821 The ION-B 85/18/21 is a fibre optic based RF repeater for wireless applications. A RF signal is converted to an optical signal by directly modulating a laser. There is no frequency conversion in this system. The optical signal is converted back to RF at the ION-B remote unit, amplified and broadcast from an antenna or into a passive RF distribution system, such as radiating cable. This specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B) Limits for General Population / Uncontrolled Exposures) Frequency Range (MHz) Power Density (mW/cm²) 300 – 1500 f/1500 T he Repeater operates in the frequency range of 869 – 894 MHz, so that the Power Density Limit is 869/1500 ~ 0.58 mW/cm² The max measured conducted output power is: - max output power based on one carrier (rated) per path: 0.4 W (26.0 dBm) The maximum permitted level is to be calculated using the general equation: S = P*G / 4π ππ πR² P = 400 mW; G = antenna-cable attenuation to be defined (numeric gain); π = 3,1416 The min separation distance between the antenna and any human body is to be calculated (solving for R in cm) with the final actual antenna gain/cable attenuation where the limit of 0.58 mW/cm² is kept. The antenna(s) used with this device must be fixed-mounted on outdoor permanent structures with a sufficient distance to any human body to comply with the RF Exposure limit.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-152-V01.00 Page 1 of 38 Date of issue: 07.07.2010 Signature: Issue-No.: 01 Author: M. Lehmann Test engineer Date of delivery: 22.06.10 Checked: M. Grytz Operational manager Test dates: 22.06.. – 07.07.10 Pages: 38 ECL-EMC Test Report No.: 10-152 ION-B TFAM85/18/21 850MHz Path Equipment under test: XS5-TFAM851821 FCC ID: IC:2237E-TFAM851821 IC ID: Type of test: FCC 47 CFR Part 22 Subpart H:2010 Cellular Radiotelephone Service RSS-Gen:2007, RSS-131:2005 Cellular Telephones Employing New Technologies Operating in the Bands 824-849 MHz and 869-894 MHz Measurement Procedures: 47 CFR Parts 2:2010 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), Part 22:2010 (Miscellaneous Wireless Communication Services), ANSI/TIA-603-C:2004, Land Mobile FM or PM Communications Equipment Measurement and Performance Standards IC-GEN:2007 General Requirements and Information for the Certification of Radiocommunication Equipment Passed Test result: EMC Test Report No.: 10-152 Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full ANDREW Wireless Systems GmbH Manufacturer: Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 TEMPTON Service Plus GmbH Test Location: European Compliance Laboratory (ECL) Thurn-und Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 (0)911 59835 -0 Fax: +49 (0)911 59835 90 General: General: The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 22 of the Code of Federal Regulations title 47. The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 22 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. without the written approval of the testing laboratory. ECL-EMC-TR-10-152-V01.00 Page 2 of 38 EMC Test Report No.: 10-152 Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-10-152-V01.00 Page 3 of 38 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 SYSTEM DIAGRAM OF EUT .........................................................................................................7 2.1.5 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS..............................................................7 3 TEST SITE .............................................................................................................................................8 3.1 TEST ENVIRONMENT..........................................................................................................................8 3.2 TEST EQUIPMENT..............................................................................................................................8 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................8 4 RF POWER OUT: §22.913, §2.1046 .....................................................................................................9 4.1 LIMIT.................................................................................................................................................9 4.2 TEST METHOD...................................................................................................................................9 4.3 TEST RESULTS................................................................................................................................10 4.3.1 DOWNLINK...............................................................................................................................11 4.3.1.1 TDMA GSM ....................................................................................................................12 4.3.1.2 GSM EDGE ....................................................................................................................12 4.3.1.3 CDMA .............................................................................................................................13 4.3.1.4 W-CDMA.........................................................................................................................13 4.3.2 UPLINK....................................................................................................................................14 4.4 SUMMARY TEST RESULT...................................................................................................................14 5 OCCUPIED BANDWIDTH: §2.1049 .............................................................…

Text truncated - open the document above for the full version.

Test set-up Photos Radiated spurious emission 30MHz to 1GHz @3m in the Fully anechoic chamber Radiated spurious emission 1GHz to 9GHz @3m in the Fully anechoic chamber . Testsetup RF Measurement equipment: EUT
