XS5-UEUH2323ION-U Extension Unit for cellular systems

ION ® -U EU H 23/23 Extension Unit User's Manual M0200ABA Page 2 M0200ABA_ION-U_EU_H_23_23 User’s Manual for ION ® -U DISCLAIMER: This document has been developed by CommScope, and is intended for the use of its customers and customer support personnel. The information in this document is subject to change without notice. While every effort has been made to eliminate errors, CommScope disclaims liability for any difficulties arising from the interpretation of the information contained herein. The information contained herein does not claim to cover all details or variations in equipment, nor to provide for every possible incident to be met in connection with installation, operation, or maintenance. This document describes the performance of the product under the defined operational conditions and does not cover the performance under adverse or disturbed conditions. Should further information be desired, or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, contact CommScope. CommScope reserves the right to change all hardware and software characteristics without notice. COPYRIGHT: © Copyright 2015 CommScope Inc. All Rights Reserved. This document is protected by copyright. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical photocopying, recording, or otherwise without the prior written permission of CommScope. TRADEMARKS All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope. Names of products mentioned herein are used for identification purposes only and may be trademarks and / or registered trademarks of their respective companies. Andrew Wireless Systems GmbH, 22-April-2015 Table of Contents M0200ABA_ION-U_EU_H_23_23 User’s Manual for ION ® -U Page 3 TABLE OF CONTENTS 1. GENERAL 6 1.1. USED ABBREVIATIONS 6 1.2. HEALTH AND SAFETY 7 1.3. PROPERTY DAMAGE WARNINGS 7 1.4. COMPLIANCE 8 1.5. ABOUT COMMSCOPE 11 1.6. INTERNATIONAL CONTACT ADDRESSES FOR CUSTOMER SUPPORT 12 2. INTRODUCTION 14 2.1. PURPOSE 14 2.2. ION-U HIGH POWER REMOTE AND EXTENSION UNITS 14 3. FUNCTIONAL DESCRIPTION 15 4. COMMISSIONING 16 4.1. GENERAL 16 4.2. HIGH POWER EU MECHANICAL INSTALLATION 16 4.2.1. Health and Safety for mechanical installation 16 4.2.2. Property Damage Warnings for mechanical installation 16 4.2.3. Mounting distance between RU and EU 18 4.2.4. Wall mounting procedure 19 4.2.5. Pole mounting procedure with screw bands 20 4.2.6. Pole mounting procedure with brackets 21 4.3. ELECTRICAL INSTALLATION 23 4.3.1. Health and Safety for electrical installation 23 4.3.2. Property Damage Warnings for electrical installation 23 4.3.3. Connections 25 4.3.4. Grounding (Earthing) 28 4.3.5. Connection of the antenna cables 28 4.3.5.1. Cleaning procedure for RF cable connectors 30 4.3.5.2. Antenna cable connector assembly 33 4.3.6. Mains power connection 34 4.3.6.1. Mains power connection AC 34 4.3.6.2. Mains power connection DC 36 4.3.7. Extension Unit port connections 38 4.3.8. Coupling Probe 39 4.4. COMMISSIONING FLOW-CHART 40 Table of Contents Page 4 M0200ABA_ION-U_EU_H_23_23 User’s Manual for ION ® -U 5. ALARMS 42 5.1. BITE AND ALARMS 42 5.2. TROUBLESHOOTING 42 5.3. STATUS LED ALARMS 42 6. MAINTENANCE 43 6.1. GENERAL 43 6.2. REPLACING THE FAN UNIT 44 6.3. CLEANING THE HEAT SINK 45 7. APPENDIX 46 7.1. ILLUSTRATIONS 46 7.2. SPECIFICATIONS 47 7.3. SPARE PARTS 47 8. INDEX 48 Figures and Tables M0200ABA_ION-U_EU_H_23_23 User’s Manual for ION ® -U Page 5 FIGURES AND TABLES figure 3-1 ION-U high power EU system overview ................................................... 15 figure 4-1 Maximum distance between RU to EU or EU to EU ................................. 18 figure 4-2 Wall mounting - pitches ............................................................................ 19 figure 4-3 Pole mounting - pitches ............................................................................ 20 figure 4-4 Pole mounting - screw bands ................................................................... 20 figure 4-5 Pole mounting - fasten EU ........................................................................ 20 figure 4-6 Pole mounting – max. diameter ................................................................ 21 figure 4-7 Pole mounting – with brackets .................................................................. 21 figure 4-8 Pole mounting - pitches ............................................................................ 22 figure 4-9 Pole mounting - brackets .......................................................................... 22 figure 4-10 Pole mounting - fasten EU ...................................................................... 22 figure 4-11 ION-U EU H 23/23 AC version connector flange .................................... 25 figure 4-12 ION-U EU H 23/23 DC version connector flange .................................... 27 figure 4-13 Grounding bolts ...................................................................................... 28 figure 4-14 Grounding bolt, schematic view .............................................................. 28 figure 4-15 Mains power connector .......................................................................... 35 figure 4-16 Mains power cable - AC ......................................................................... 35 figure 4-17 EU (Extension Unit) connector ............................................................... 38 figure 4-18 EU connector and cable bridge .............................................................. 38 figure 4-19 Mounting the EU cable bridge ................................................................ 39 figure 7-1 ION-U EU H 23/23 required space ........................................................... 46 table 4-1 Specified torques ....................................................................................... 17 table…

Text truncated - open the document above for the full version.

Installation Instruction The Remote Unit, Extension Unit or Master Unit has to be mounted by proffessionel / special trained installer. 1.1. HIGH POWER EU MECHANICAL INSTALLATION 1.1.1. Health and Safety for mechanical installation Read and observe chapter 1.3 Health and Safety. 1. Caution: Risk of injury by the considerable weight of the unit falling. Ensure there is adequate manpower to handle the weight of the system. 2. Caution: Risk of serious personal injury by equipment falling due to improper installation. The installer must verify that the supporting surface will safely support the combined load of the electronic equipment and all attached hardware and components. The screws and dowels (wall anchors) used should also be appropriate for the structure of the supporting wall. 1.1.2. Property Damage Warnings for mechanical installation 1. Attention: Do not install the unit in a way or at a place where the specifications outlined in the Environmental and Safety Specifications leaflet of the supplier are not met. 2. Attention: Due to power dissipation, the Extension Unit may reach a very high temperature. Ensure sufficient airflow for ventilation. 3. Notice: Exceeding the specified load limits may cause the loss of warranty. 4. Notice: When connecting and mounting the cables (RF, expansion, mains, ...) ensure that no water can penetrate into the unit through these cables. 5. Notice: Ensure that there is free access to the electrical connections as well as to the cabinet. The approved bending radius of the connected cables must not be exceeded. See chapter Fehler! Verweisquelle konnte nicht gefunden werden. for more details. 6. Notice: If any different or additional mounting material is used, ensure that the mounting remains as safe as the mounting designed by the manufacturer. The specifications for stationary use of the Extension Unit must not be exceeded. Ensure that the static and dynamic strengths are adequate for the environmental conditions of the site. The mounting itself must not vibrate, swing or move in any way that might cause damage to the Extension Unit. 7. Notice: Observe all additional rules or restrictions regarding mounting that apply to specific Extension Unit types. For details refer to the mechanical specifications in the data sheet for the unit. Install the unit vertically with the fan unit at the top. A maximum tilt angle of 25° from a vertical position must be maintained, as shown in the following illustrations: 8. Notice: A spacing of 40 mm (1.58 inch) around the unit is required. 9. Notice: To ensure sufficient airflow when mounting the unit in enclosed spaces, two lid openings (one for the air inlet and the other for the air outlet) must be provided. Do not block these air inlets and outlets when mounting the Extension Unit. The size of each opening must equal at least 18 x 18 cm (> 300 cm2). Ensure that there is no thermal short circuit between the air inlet and air outlet. Make sure free airflow is not deflected or otherwise obstructed. Specified torques must be observed for certain mounting procedures according to the following table: Type Tallow-drop screws Hex nuts Screw band lock Spacing bolts PG (plastic) PG (alum.) Thread M 4 M 8 M 4 M 8 PG 13.5 PG 29 Specified torques 3.3 N-m 27 N-m 6 N-m 2.3 N-m 27 N-m 3.75 N-m 10 N-m Specified torques 1.2. ELECTRICAL INSTALLATION 1.2.1. Health and Safety for electrical installation Read and observe the notices in chapter 1.3 Health and Safety. 1. Danger: Electrical hazard. Danger of death or fatal injury from electrical current. Obey all general and regional installation and safety regulations relating to work on high voltage installations, as well as regulations covering correct use of tools and personal protective equipment. 1.2.2. Property Damage Warnings for electrical installation 1. Attention: It is compulsory to ground (earth) the unit before connecting the power supply. A grounding bolt is provided on the cabinet to connect the ground-bonding cable. 2. Attention: If the mains connector of the Extension Unit is not easily accessible, a disconnect device in the mains power circuit must be provided within easy reach. 3. Attention: A connection of the mains supply to a power socket requires the power socket to be nearby the Extension Unit. 4. Attention: Before connecting or disconnecting the mains connector at the Extension Unit, ensure that mains power supply is disconnected. 5. Attention: Make sure that an appropriate circuit breaker acting as a disconnect device (as required by IEC/EN60950-1) and an overcurrent limiting device are connected between mains power and the Extension Unit. 6. Attention: Incorrectly wired connections can destroy electrical and electronic components. 7. Notice: Although the Extension Unit is internally protected against overvoltage, it is strongly recommended to ground (earth) the antenna cables close to the antenna connectors of the Remote Unit for protection against atmospheric discharge. In areas with strong lightning, it is strongly recommended to install additional lightning protection. 8. Notice: To avoid corrosion at the connectors caused by electrochemical processes, the material of the cable connectors must not cause a higher potential difference than 0.6 V (see electrochemical contact series). 9. Notice: Use an appropriate torque wrench for the coupling torques: - for N-type connectors (2 N-m / 20 in lb) with 13/16 in opening, e. g. item no. 244379 available from the CommScope e-catalog - for 7/16 DIN-type (25 N-m / 19 ft lb) with 1 ¼ in opening, e. g. item no. 244377 available from the CommScope e-catalog - for 4.3-10 type connectors (5 N-m, 44 in lb) with 22mm (7/8) in opening Do NOT use your hands or any other tool (e.g. a pair of pliers). This might cause damage to the connector and lead to a malfunction of the Extension Unit. 10. Notice: For unstabilized electric networks, which frequently generate spikes, the use of a voltage limiting device is advised. 11. Notice: O…

Text truncated - open the document above for the full version.

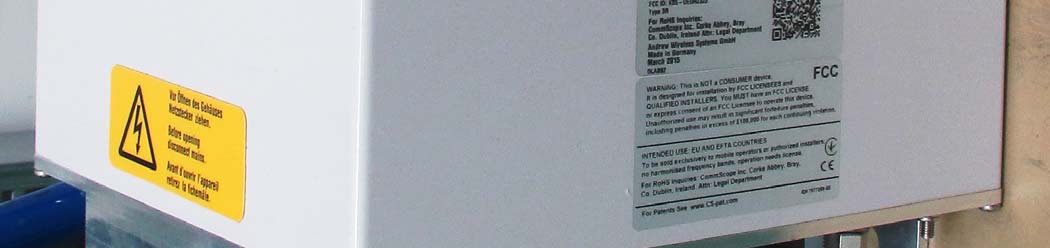

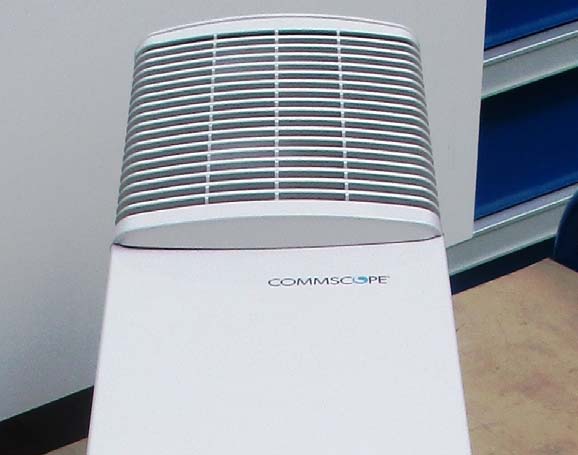

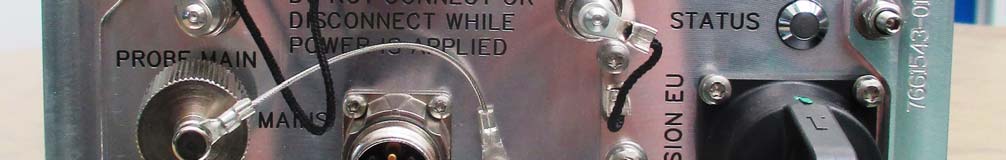

External Photos ION-U EU H 23/23

Internal Photos ION-U EU H 23/23 Duplexer FCM (Frequeny Conversion Module) eCPD+ & Controller Amplifier Power Supply Compensation Module Fans Heat Sink Front Flange FCM 7-9_17-21_23 RU 7698431-00 Compensation Module 23/23 7698432-00 Fin.Ampl.2345-2360 43dB 7698065-00 PCB P3683 FanUnitBoard M2-Cab 7659273-00 eCPD+ 7662189-01 (7692576-00) PCB P3686 EU Application board M2 Cab 7684675-01 PCB P3748 EU PIC board M2 Cabinet 7671630-00 PCB P3700 PA-AddrLineAdaptBrd 7661367-00

RF Exposure Info / MPE Sample Calculation Model: ION-U EU H 23/23 The ION-U is an optical fiber based DAS system that efficiently takes the outputs of multiple Base Transceiver Stations (BTS) sectors and converts those RF signals to optical to send them over fiber optic cables to Remote Units to provide coverage in indoor and outdoor locations. The system supports both low power and high power Remote Units and SISO and MIMO operation. The ION-U EU H 23/23 is a SISO or MIMO Extension Unit used in conjunction with a Remote Unit in the ION optical distribution system. This system transports up to two frequency bands simultaneously (WCS2300 MHz), providing a cost-effective solution for distributing capacity from one or more base stations. It has been specifically tested and optimized for UMTS, HSPA+, LTE, and OFDM modulations. Furthermore it is provisioned for future modulation scheme evolutions. These Remote and Extension Units feature independent downlink and uplink gain adjustments and an integrated channel power detector for in-band spectrum and PIM analysis and end-to-end auto leveling. The specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B). S = power density limit [W/m] P = power [W] R = distance [m] 2 4 n nn n R GP S   => n nn n S GP R 4  (to calculate the distance at one frequency) If we have more bands, than we have to calculated as a percentage: The additional of the terms have to be lower than 1. 1 4 .... 4 44 1.... 2 3 2 3 33 2 2 2 22 1 2 1 11 ln 3 3 2 2 1 1   n n nn n cacalcalcal S R GP S R GP S R GP S R GP S S S S S S S S   We are looking for a distance of ensures that the formula is satisfied. n RRRR... 321 1 4 ... 444 2 3 2 33 2 2 22 1 2 11  n nn SR GP SR GP SR GP SR GP  R S GP S GP S GP S GP R S GP S GP S GP S GP n nn n nn     4 ... 444 4 ... 444 3 33 2 22 1 11 2 3 33 2 22 1 11 With n nn n S GP R 4  => n nn n S GP R 4 2  RRRRR n  22 3 2 2 2 1 ... What you have to do for calculate the minimum distance were the power density limit is met: 1) If you have one path, you have to put you special values in the following formula. n nn n S GP R 4  (Distance for one carrier) Limits for General Population / Uncontrolled Exposures Frequency Range (MHz) Power Density (mW/cm 2 ) 300 – 1500 S = f/1500 1550 – 100,000 S = 1 2) If you have more than one path, you must add the individual terms quadratic. n nn n S GP R 4  (Distance for individual carrier) RRRRR n  22 3 2 2 2 1 ... (See previous page) For example: The EUT has one frequency band: 2350 – 2360 MHz The max measured conducted output power is 42.0 dBm. Frequency [MHz] Max Power out [dBm] Antenna gain f.e.[dBi] Max. Distance [m] 2355 45 9 1.414 The worst case would be if all bands were active (MIMO) => 42 dBm + 3 dBm = 45 dBm. For more accurate calculation, the cable loss and actual antenna gain have to be included in the finally system. The antenna(s) used with device must be fixed-mounted on permanent structures with a distance to any human body to comply with the RF Exposure limit. The product is to be marketed without antennas, RF exposure assessment, site evaluation will be conducted when applying for licensing.

Test Site: FCC Test Site No.: 96997 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-15-116-V01.00 Page 1 of 51 Date of issue: 11.09.15 Signature: Issue-No.: 01 Author: Date of delivery: 14.06.14 Checked: Test dates: 30.03. – 23.04.2015 Pages: 51 Equipment under test: ION-U EU H 23/23 -Vac-M2 FCC ID: XS5-UEUH2323 IC ID: Type of test: FCC 47 CFR Part 27 Subpart H, F: 2014 Miscellaneous Wireless Communication Services Measurement Procedures: 47 CFR Parts 2: 2014 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), Part 27: 2014 (Miscellaneous Wireless Communication Services), ANSI/TIA-603-C:2004, Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Test result: Passed ECL-EMC Test Report No.: 15-116 Test Report No.: 15-116 FCC ID: XS5-UEUH2323 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-15-116-V01.00 Page 2 of 51 General: The purpose of this report is to show compliance to the FCC regulations for devices operating under Part 27 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: Bureau Veritas Consumer Products Services Germany GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 40 74041 0 Fax: +49 40 74041-2755 Test Report No.: 15-116 FCC ID: XS5-UEUH2323 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-15-116-V01.00 Page 3 of 51 Table of contents 1 TEST RESULTS SUMMARY ................................................................................................................. 5 2 EQUIPMENT UNDER TEST (E.U.T.) .................................................................................................... 6 2.1 DESCRIPTION .................................................................................................................................... 6 2.1.1 DOWNLINK ................................................................................................................................. 6 2.1.2 UPLINK ...................................................................................................................................... 6 2.1.3 DESCRIPTION OF EUT ................................................................................................................ 7 2.1.4 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS ............................................................. 8 2.1.5 DOWNLINK SYSTEM GAIN AND OUTPUT POWER ........................................................................... 9 3 TEST SITE (ANDREW BUCHDORF) .................................................................................................. 10 3.1 TEST ENVIRONMENT ........................................................................................................................ 10 3.2 TEST EQUIPMENT ............................................................................................................................ 10 3.3 INPUT AND OUTPUT LOSSES ............................................................................................................. 11 3.4 MEASUREMENT UNCERTAINTY .......................................................................................................... 11 4 TEST SITE (BUREAU VERITAS CONSUMER PRODUCTS SERVICES) ......................................... 11 5 RF POWER OUT: §27.50, §2.1046 ..................................................................................................... 12 5.1 LIMIT............................................................................................................................................... 12 5.2 TEST METHOD ................................................................................................................................. 13 5.3 TEST RESULTS ................................................................................................................................ 13 5.3.1 DOWNLINK ............................................................................................................................... 13 5.3.1.1 LTE; 5 MHz signal .......................................................................................................... 14 5.3.1.2 LTE; 10 MHz signal ........................................................................................................ 15 5.3.2 UPLINK .................................................................................................................................... 16 5.4 SUMMARY TEST RESULT ................................................................................................................... 16 6 OCCUPIED BANDWIDTH: §2.1049 .................................................................................................... 17 6.1 LIMIT............................................................................................................................................... 17 6.2 TEST METHOD ................................................................................................................................. 17 6.3 TEST RESULTS ................................................................................................................................ 17 6.3.1 DOWNLINK ............................................................................................................................... 17 6.3.1.1 LTE; 5 MHz signal; OBW 99% ....................................................................................... 18 6.3.1.2 LTE; 5 MHz signal; OB…

Text truncated - open the document above for the full version.

ION-U Master Unit e o ION-U H 7P/80-85P/17P/19P ION-U EU H 23/23 Expansion RF1 7P/80-85P/17P/19P RF23 (1) e o e o e o RUEU RF1 7P/80-85P/17P/19P RF23 (1) RF1 +RF23(1) + RF23(2) (converted) RF23 (1) + RF23 (2) (converted) RF23 (2) RF23 (2) ION-U Master Unit e o ION-U H 7P/80-85P/17P/19P ION-U H EU 7P/80-85P/17P/19P ION-U H EU 23/23 Expansion Expansion EU RF 7P/80-85P/17P/19P RF 7P/80-85P/17P/19P/23 (1)RF 7P/80-85P/17P/19P/23 (2) RF 7P/80-85P/17P/19P e o e o e o RUEU EU The frequencies bands of the extension unit will be implemented on the master unit with a compensation frequency bands. About the optical fiber all frequencies will be forwarded to the RU. At the RU the optical signals will be converted into RF signals. The frequency bands, which were not changed will be filtered by the duplexer, then amplified and transmitted by the RU. The replaced frequency bands filtered out and forwarded via the Cable Bridge to the EU. These frequencies converted back by the conversion module (FCM) to their original frequencies band and then they were amplified and sent out. EUT Test setup for one band (test configuration 1) EUT Test setup for one band (test configuration 1)
