ION ® -U ION-U EU L 23/23 Manual MF0200AFA Page 2 7.Manual ION-U_EU_L_23_23 M0F200AFA.docx DISCLAIMER: This document has been developed by CommScope, and is intended for the use of its customers and customer support personnel. The information in this document is subject to change without notice. While every effort has been made to eliminate errors, CommScope disclaims liability for any difficulties arising from the interpretation of the information contained herein. The information contained herein does not claim to cover all details or variations in equipment, nor to provide for every possible incident to be met in connection with installation, operation, or maintenance. This document describes the performance of the product under the defined operational conditions and does not cover the performance under adverse or disturbed conditions. Should further information be desired, or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, contact CommScope. CommScope reserves the right to change all hardware and software characteristics without notice. COPYRIGHT: © Copyright 2015 CommScope Inc. All Rights Reserved. This document is protected by copyright. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical photocopying, recording, or otherwise without the prior written permission of CommScope. TRADEMARKS All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope. Names of products mentioned herein are used for identification purposes only and may be trademarks and / or registered trademarks of their respective companies. Andrew Wireless Systems GmbH, 07-July-2015 Table of Contents 7.Manual ION-U_EU_L_23_23 M0F200AFA.docx Page 3 TABLE OF CONTENTS 1. GENERAL 7 1.1. USED ABBREVIATIONS 7 1.2. HEALTH AND SAFETY 8 1.3. PROPERTY DAMAGE WARNINGS 8 1.4. COMPLIANCE 9 1.5. ABOUT COMMSCOPE 13 1.6. INTERNATIONAL CONTACT ADDRESSES FOR CUSTOMER SUPPORT 14 2. INTRODUCTION 16 2.1. PURPOSE 16 2.2. ION-U LOW POWER REMOTE/EXTENSION UNITS 16 3. FUNCTIONAL DESCRIPTION 17 3.1. SISO AND MIMO OPERATION 17 3.2. ION-U LOW POWER EU PORTS 19 4. COMMISSIONING 21 4.1. LOW POWER EU MECHANICAL INSTALLATION 21 4.1.1. Health and Safety for mechanical installation 21 4.1.2. Property Damage Warnings for mechanical installation 21 4.1.3. Mounting bracket 22 4.1.3.1. Mount to a wall 22 4.1.3.2. Mount to a pole 23 4.1.4. Threaded pins 25 4.1.5. Wall mounting procedure – Single Unit 26 4.1.6. Wall mounting procedure – Dual Units 28 4.1.7. Pole mounting procedure – single and dual 32 Table of Contents Page 4 7.Manual ION-U_EU_L_23_23 M0F200AFA.docx 4.2. LOW POWER EU ELECTRICAL INSTALLATION 33 4.2.1. Health and Safety for electrical installation 33 4.2.2. Property Damage Warnings for electrical installation 33 4.2.3. Connections 35 4.2.4. Grounding (Earthing) 36 4.2.5. Mains power connection 37 4.2.6. Antenna connection 40 4.2.6.1. Cleaning procedure for RF cable connectors 41 4.2.6.2. Antenna cable connector assembly 44 4.2.7. Expansion ports connections 46 4.2.8. Pwr/Ctrl port 47 4.2.9. Control connector RS-232 - Local Interface 47 4.3. LOW POWER EU ALARMS 47 4.3.1. Bite and alarms 47 4.3.2. Status LED alarms 48 4.4. EXTERNAL ALARM INPUTS 49 4.5. TROUBLESHOOTING 49 5. LOW POWER EU MAINTENANCE 50 5.1. GENERAL 50 5.2. EU POWER SUPPLY REPLACEMENT 51 6. APPENDIX 56 6.1. ILLUSTRATIONS 56 6.2. SPECIFICATIONS 58 7. LIST OF CHANGES 58 8. INDEX 59 Figures and Tables 7.Manual ION-U_EU_L_23_23 M0F200AFA.docx Page 5 FIGURES AND TABLES figure 3-1 Remote Unit, SISO ..................................................................................... 17 figure 3-2 Remote Unit, MIMO two units paired ......................................................... 17 figure 3-4 One RU one EU one antenna .................................................................... 17 figure 3-7 EU connectors and Status LEDs................................................................ 19 figure 4-1 Mounting bracket ........................................................................................ 22 figure 4-2 Pole-mounting kit 4" to 18" ......................................................................... 24 figure 4-3 Pole-mounting kit 40” ................................................................................. 24 figure 4-4 EU threaded pin power supply side ........................................................... 25 figure 4-5 EU threaded pin narrow side ...................................................................... 25 figure 4-6 Place EU onto wall mounting bracket – single mount ................................ 26 figure 4-7 Install M6x12 screws and washers for single mount ................................. 27 figure 4-8 Attach M6 nut to threaded pins for single mount ....................................... 27 figure 4-9 Completed single EU mount ...................................................................... 28 figure 4-10 1 st unit placed on wall mounting bracket .................................................. 29 figure 4-11 Install M6x12 screws and washers .......................................................... 29 figure 4-12 Attach M6 nut to threaded pins ................................................................ 30 figure 4-13 2 nd unit on wall mounting bracket ............................................................. 30 figure 4-14 Install M6x12 screws and washers 2 nd unit .............................................. 31 figure 4-15 Attach M6 nut to threaded pins for 2 nd unit .............................................. 31 figure 4-16 Completed dual unit mount ...................................................................... 32 figure 4-17 Grounding bolts ........................................................................................ 36 figure 4-18 Grounding bolt, schematic view ..............................…

Text truncated - open the document above for the full version.

Installation Instruction The Remote Unit, Extension Unit or Master Unit has to be mounted by proffessionel / special trained installer. 1.1. HIGH POWER EU MECHANICAL INSTALLATION 1.1.1. Health and Safety for mechanical installation Read and observe the notices in chapter 1.3 Health and Safety. 1. Caution: Risk of injury by the considerable weight of the unit falling. Ensure there is adequate manpower to handle the weight of the system. 2. Caution: Risk of serious personal injury by equipment falling due to improper installation. The installer must verify that the supporting surface will safely support the combined load of the electronic equipment and all attached hardware and components. The screws and dowels (wall anchors) used should also be appropriate for the structure of the supporting wall. 1.1.2. Property Damage Warnings for mechanical installation 1. Attention: Do not install the unit in a way or at a place where the specifications outlined in the Environmental and Safety Specifications leaflet of the supplier are not met. 2. Attention: Due to power dissipation, the unit may reach a very high temperature. Ensure sufficient airflow for ventilation. 3. Notice: Exceeding the specified load limits may cause the loss of warranty. 4. Notice: When connecting and mounting the cables (RF, optical, mains, ...) ensure that no water can penetrate into the unit through these cables. 5. Notice: If any different or additional mounting material is used, ensure that the mounting remains as safe as the mounting designed by the manufacturer. The specifications for stationary use of the Unit must not be exceeded. Ensure that the static and dynamic strengths are adequate for the environmental conditions of the site. The mounting itself must not vibrate, swing or move in any way that might cause damage to the Unit. Specified torques must be observed for certain mounting procedures according to the following table: Type Pins Hex nuts Screws Thread M 6 M 6 M6 Specified torques 3.3 N-m 3.3 N-m 3.3 N-m 1.2. ELECTRICAL INSTALLATION 1.2.1. Health and Safety for electrical installation Read and observe the notices in chapter 1.3 Health and Safety. 1. Danger: Electrical hazard. Danger of death or fatal injury from electrical current. Obey all general and regional installation and safety regulations relating to work on high voltage installations, as well as regulations covering correct use of tools and personal protective equipment. 2. Danger: Electrical hazard. Danger of death or fatal injury from electrical current inside the unit in operation. Before opening the unit, disconnect mains power. 1.2.2. Property Damage Warnings for electrical installation 1. Attention: It is compulsory to ground (earth) the unit before connecting the power supply. Grounding bolts are provided on the cabinet to connect the ground-bonding cable. 2. Attention: If the mains connector of the unit is not easily accessible, a disconnect device in the mains power circuit must be provided within easy reach. 3. Attention: A connection of the mains supply to a power socket requires the power socket to be nearby the unit. 4. Attention: Before connecting or disconnecting the mains connector at the unit, ensure that mains power supply is disconnected. 5. Attention: Make sure that an appropriate circuit breaker acting as a disconnect device (as required by IEC/EN60950-1) and an overcurrent limiting device are connected between mains power and the unit. 6. Attention: Incorrectly wired connections can destroy electrical and electronic components. 7. Notice: Although the unit is internally protected against overvoltage, it is strongly recommended to ground (earth) the antenna cables close to the antenna connectors of the unit for protection against atmospheric discharge. In areas with strong lightning, it is strongly recommended to install additional lightning protection. 8. Notice: To avoid corrosion at the connectors caused by electrochemical processes, the material of the cable connectors must not cause a higher potential difference than 0.6 V (see electrochemical contact series). 9. Notice: Use an appropriate torque wrench for the coupling torques: - for N-type connectors (2 N-m / 20 in lb) with 13/16 in opening, e. g. item no. 244379 available from the CommScope e-catalog - for 4.3-10 type connectors (5 N-m, 44 in lb) with 22mm (7/8) in opening Do NOT use your hands or any other tool (e.g. a pair of pliers). This might cause damage to the connector and lead to a malfunction of the unit. 10. Notice: For unstabilized electric networks, which frequently generate spikes, the use of a voltage limiting device is advised. 11. Notice: Observe the labels on the front panels before connecting or disconnecting any cables. 1.3. HEALTH AND SAFETY 1. Danger: Electrical hazard. Danger of death or fatal injury from electrical current. Obey all general and regional installation and safety regulations relating to work on high voltage installations, as well as regulations covering correct use of tools and personal protective equipment. 2. Danger: Electrical hazard. Danger of death or fatal injury from electrical current inside the unit in operation. Before opening the unit, disconnect mains power. 3. Caution: High frequency radiation in operation. Risk of health hazards associated with radiation from the unit’s inner conductor of the antenna port(s). Disconnect mains before connecting or replacing antenna cables. 4. Caution: High frequency radiation in operation. Risk of health hazards associated with radiation from the antenna(s) connected to the unit. Implement prevention measures to avoid the possibility of close proximity to the antenna(s) while in operation. 1.4. PROPERTY DAMAGE WARNINGS 1. Attention: Due to power dissipation, the Extension Unit may reach a very high temperature. Do not operate this equipment on or close to flammable materials. Use caution when servicing the unit. 2. Attention: Only authorized and trained personnel are allowed to open the…

Text truncated - open the document above for the full version.

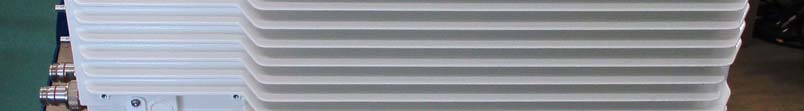

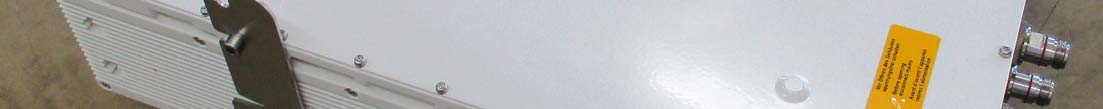

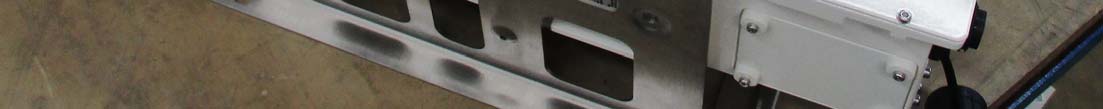

External Photos ION-U EU L 23/23

Label Location 5cm 6,5cm

Internal Photos ION-U EU L 23/23 Duplexer Power Supply Unit Amplification area ECPD+ area PCB Pop board P3945 ION-U EU L 23/23 (Top) 7699395-00 PCB Pop board P3945 ION-U EU L 23/23 (Bottom) 7699395-00

RF Exposure Info / MPE Sample Calculation Model: ION-U EB L 23/23 Vac FCC-ID: XS5-UEBL2323 THE MAIN TASKS OF THE TFBX BOOSTER Downlink (DL): • RF output power adjustment: to compensate the gain variation of the auxiliary channel • RF amplification: RF signal are boosted in order to maintain a good signal-to noise ratio • RF filtering: a proper filter rejects the spurious emissions • RF splitting: the boosted RF signal is conveyed to two antenna ports Uplink (UL): • Automatic Level Control (ALC): the RF signal level is adjusted according to blocking requirements • RF amplification: a low noise amplifier boosts the signal received from antennas in order to maintain a good signal-to-noise ratio • RF filtering: the boosted signal is cleaned of the spurious emissions FREQUENCY STABILITY For not converted paths: Frequency stability is given by: The system gets an electrical analog signal from the SS which is converted into an analog optical signal, transmitted by the optical link and then reconverted in the Remote Unit into an analog electrical signal. During this process happens no frequency change/modification, so input and output have same frequency. For converted paths: Frequency stability is given by: The system gets an electrical analog signal from the BSS which is converted in the Master Unit frequency conversion module (FCM), into 2 analog optical signals on 2 different frequencies. These signals are transmitted by one optical link and then reconverted in the Remote Unit FCM into 2 analog electrical signals with same frequency for each of the 2 transmitting sectors. During this process happens no modification, as the oscillator responsible for both conversions is the same, so input and output have same frequency. Duplexers and filters limits the frequency bands. A transmitting and receiving of signals outside the permitted limits is not possible. The level will be regulated by power down function at the BTS. The selection and managing of frequency bands is on responsibility of national US frequency administration which deal with licences. The specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B). S = power density limit [W/m] P = power [W] R = distance [m] 2 4 n nn n R GP S   => n nn n S GP R 4  (to calculate the distance at one frequency) If we have more bands, than we have to calculated as a percentage: The additional of the terms have to be lower than 1. 1 4 .... 4 44 1.... 2 3 2 3 33 2 2 2 22 1 2 1 11 ln 3 3 2 2 1 1   n n nn n cacalcalcal S R GP S R GP S R GP S R GP S S S S S S S S   We are looking for a distance of ensures that the formula is satisfied. n RRRR... 321 1 4 ... 444 2 3 2 33 2 2 22 1 2 11  n nn SR GP SR GP SR GP SR GP  R S GP S GP S GP S GP R S GP S GP S GP S GP n nn n nn     4 ... 444 4 ... 444 3 33 2 22 1 11 2 3 33 2 22 1 11 With n nn n S GP R 4  => n nn n S GP R 4 2  RRRRR n  22 3 2 2 2 1 ... What you have to do for calculate the minimum distance were the power density limit is met: 1) If you have one path, you have to put you special values in the following formula. n nn n S GP R 4  (Distance for one carrier) Limits for General Population / Uncontrolled Exposures Frequency Range (MHz) Power Density (mW/cm 2 ) 300 – 1500 S = f/1500 1550 – 100,000 S = 1 2) If you have more than one path, you must add the individual terms quadratic. n nn n S GP R 4  (Distance for individual carrier) RRRRR n  22 3 2 2 2 1 ... (See previous page) For example: The EUT operates in one frequency band in SISO operation and 6 bands in MIMO operation. The max measured conducted output power is 31 dBm (1.3 W). The worst case operation is the MIMO configuration. Calculation for every path with maximum allowed antenna gain and without cable loss: Frequency [MHz] Max Power out [dBm] Antenna gain, without cable loss [dBi] Max. Distance [m] 728 30 9 0.1017 851.5 30 9 0.0937 1930 30 9 0.1011 2110 30 9 0.1123 2355 31 9 0.1123 The worst case would be if all bands were active: RRRRR n  22 3 2 2 2 1 ... R all > 0.234 m (see previous page for derivation) For more accurate calculation, the cable loss and actual antenna gain have to be included in the finally system. The antenna(s) used with device must be fixed-mounted on permanent structures with a distance to any human body to comply with the RF Exposure limit.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-15-219-V01.00 Page 1 of 54 Date of issue: 21.10.15 Signature: Issue-No.: 01 Author: Date of delivery: 10.08.15 Checked: Test dates: 10.08. – 08.09.15 Pages: 54 Equipment under test: ION-U L EU 23/23 FCC ID: XS5-UEUL2323 IC ID: Type of test: FCC 47 CFR Part 27 Subpart H, F: 2015 Miscellaneous Wireless Communication Services Measurement Procedures: 47 CFR Parts 2: 2015 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), Part 27: 2015 (Miscellaneous Wireless Communication Services), ANSI/TIA-603-C:2004, Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Test result: Passed ECL-EMC Test Report No.: 15-219 Test Report No.: 15-219 FCC ID: XS5-UEUL2323 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-15-219-V01.00 Page 2 of 54 General: The purpose of this report is to show compliance to the FCC regulations for devices operating under Part 27 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: Bureau Veritas Consumer Products Services Germany GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 40 74041 0 Fax: +49 40 74041-2755 Test Report No.: 15-219 FCC ID: XS5-UEUL2323 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-15-219-V01.00 Page 3 of 54 Table of contents 1 TEST RESULTS SUMMARY ................................................................................................................. 5 2 EQUIPMENT UNDER TEST (E.U.T.) .................................................................................................... 6 2.1 DESCRIPTION .................................................................................................................................... 6 2.1.1 DOWNLINK ................................................................................................................................. 6 2.1.2 UPLINK ...................................................................................................................................... 6 2.1.3 DESCRIPTION OF EUT ................................................................................................................ 7 2.1.4 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS ............................................................. 8 2.1.5 DOWNLINK SYSTEM GAIN AND OUTPUT POWER ........................................................................... 9 3 TEST SITE (ANDREW BUCHDORF) .................................................................................................. 10 3.1 TEST ENVIRONMENT ........................................................................................................................ 10 3.2 TEST EQUIPMENT ............................................................................................................................ 10 3.3 INPUT AND OUTPUT LOSSES ............................................................................................................. 11 3.4 MEASUREMENT UNCERTAINTY .......................................................................................................... 11 4 TEST SITE (BUREAU VERITAS CONSUMER PRODUCTS SERVICES) ......................................... 11 5 RF POWER OUT: §27.50, §2.1046 ..................................................................................................... 12 5.1 LIMIT............................................................................................................................................... 12 5.2 TEST METHOD ................................................................................................................................. 12 5.3 TEST RESULTS ................................................................................................................................ 13 5.3.1 DOWNLINK ............................................................................................................................... 13 5.3.1.1 LTE; 5 MHz signal .......................................................................................................... 15 5.3.1.2 LTE; 10 MHz signal ........................................................................................................ 16 5.3.2 UPLINK .................................................................................................................................... 17 5.4 SUMMARY TEST RESULT ................................................................................................................... 17 6 OCCUPIED BANDWIDTH: §2.1049 .................................................................................................... 18 6.1 LIMIT............................................................................................................................................... 18 6.2 TEST METHOD ................................................................................................................................. 18 6.3 TEST RESULTS ................................................................................................................................ 18 6.3.1 DOWNLINK ............................................................................................................................... 18 6.3.1.1 LTE; 5 MHz signal; OBW 99% ....................................................................................... 20 6.3.1.2 LTE; 5 M…

Text truncated - open the document above for the full version.

Test setup SISO Application Measurements: EUT ION-U EU L 23/23 & Auxilary ION-U L 7/80-85/17P/19P FCC ID: XS5-UEUL2323 FCC ID: XS5-U7885L1719P EUT MIMO Application Measurements: 2 x Auxilary ION-U L 7/80-85/17P/19P & EUT ION-U EU L 23/23 FCC ID: XS5-U7885L1719P FCC ID: XS5-UEUL2323 EUT Measurement Equipment 2 x Auxilary ION-U L 7/80-85/17P/19P & EUT ION-U EU L 23/23 FCC ID: XS5-U7885L1719P FCC ID: XS5-UEUL2323 Test setup: Field Strength Emission
