XTE-ULPD100The ULP dNode is a wireless network module

On-Ramp Wireless Confidential and Proprietary. This document is not to be used, disclosed, or distributed to anyone without express written consent from On-Ramp Wireless. The recipient of this document shall respect the security of this document and maintain the confidentiality of the information it contains. The master copy of this document is stored in electronic format, therefore any hard or soft copy used for distribution purposes must be considered as uncontrolled. Reference should be made to On-Ramp Wireless to obtain the latest revision. dNode Integration Specification On-Ramp Wireless Incorporated 10920 Via Frontera, Suite 200 San Diego, CA 92127 U.S.A. Copyright © 2012 On-Ramp Wireless Incorporated. All Rights Reserved. The information disclosed in this document is proprietary to On-Ramp Wireless Inc., and is not to be used or disclosed to unauthorized persons without the written consent of On-Ramp Wireless. The recipient of this document shall respect the security of this document and maintain the confidentiality of the information it contains. The master copy of this document is stored in electronic format, therefore any hard or soft copy used for distribution purposes must be considered as uncontrolled. Reference should be made to On-Ramp Wireless to obtain the latest version. By accepting this material the recipient agrees that this material and the information contained therein is to be held in confidence and in trust and will not be used, copied, reproduced in whole or in part, nor its contents revealed in any manner to others without the express written permission of On-Ramp Wireless Incorporated. On-Ramp Wireless Incorporated reserves the right to make changes to the product(s) or information contained herein without notice. No liability is assumed for any damages arising directly or indirectly by their use or application. The information provided in this document is provided on an “as is” basis. This document contains On-Ramp Wireless proprietary information and must be shredded when discarded. This documentation and the software described in it are copyrighted with all rights reserved. This documentation and the software may not be copied, except as otherwise provided in your software license or as expressly permitted in writing by On-Ramp Wireless, Incorporated. Any sample code herein is provided for your convenience and has not been tested or designed to work on any particular system configuration. It is provided “AS IS” and your use of this sample code, whether as provided or with any modification, is at your own risk. On-Ramp Wireless undertakes no liability or responsibility with respect to the sample code, and disclaims all warranties, express and implied, including without limitation warranties on merchantability, fitness for a specified purpose, and infringement. On-Ramp Wireless reserves all rights in the sample code, and permits use of this sample code only for educational and reference purposes. This technology and technical data may be subject to U.S. and international export, re-export or transfer (“export”) laws. Diversion contrary to U.S. and international law is strictly prohibited. Ultra-Link Processing™ is a trademark of On-Ramp Wireless. Other product and brand names may be trademarks or registered trademarks of their respective owners. dNode Integration Specification 014-0038-00 Rev. B July 11, 2012 On-Ramp Wireless Confidential and Proprietary iii 014-0038-00 Rev. B Contents 1 Overview ................................................................................................................ 1 1.1 ULP Wireless Network ............................................................................................................... 1 1.2 dNode ......................................................................................................................................... 2 1.3 Referenced Documents ............................................................................................................. 3 2 DC and AC Characteristics .................................................................................. 4 2.1 Absolute Maximum Ratings ....................................................................................................... 4 2.2 Recommended Operating Conditions ........................................................................................ 4 2.3 Effects of Temperature and Voltage .......................................................................................... 6 3 Electrical Interface ................................................................................................ 9 3.1 Signal Connectors ...................................................................................................................... 9 3.2 Pin Descriptions ......................................................................................................................... 9 3.3 Signal Descriptions .................................................................................................................. 11 3.3.1 VBATT ............................................................................................................................ 11 3.3.2 RESET_N ....................................................................................................................... 11 3.3.3 MRQ ............................................................................................................................... 11 3.3.4 SRDY .............................................................................................................................. 11 3.3.5 SRQ ................................................................................................................................ 11 3.3.6 USTATUS ....................................................................................................................... 11 3.3.7 SPI System .......................................................…

Text truncated - open the document above for the full version.

On-Ramp Wireless, Inc 10920 Via Frontera, Suite 200 San Diego, CA 92127, USA +1 858 592 6008 : phone +1 858 592 6009 : fax [email protected] www.onrampwireless.com July 31, 2012 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Attention: Reviewing Agency or TCB ID: XTE-ULPD100 On behalf of On-Ramp Wireless, Inc., I certify that the submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the IC regulations, will have affixed to it a label identical to that submitted for approval with this application. Dated this _____31st______day of __July ___, 2012. Robert Boesel VP Engineering, On-Ramp Wireless, Inc. 10920 Via Frontera, Suite 200, San Diego, CA 92127 Phone: 858-312-8361, Fax: 858-592-6009 [email protected]

On-Ramp Wireless, Inc 10920 Via Frontera, Suite 200 San Diego, CA 92127, USA +1 858 592 6008 : phone +1 858 592 6009 : fax [email protected] www.onrampwireless.com On-Ramp Wireless, Inc. 1 July 31, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Single Modular Approval On-Ramp Wireless, Inc. FCC ID: XTE-ULPD100 FCC Part 15 Certification Dear Application Examiner , On-Ramp Wireless, Inc. module FCC ID: XTE-ULPD100 is seeking FCC authorization as a Single Modular transmitter. The requirements of the FCC Part 15.212 are met for all requirements listed below with the exceptions indicated. 1. The modular transmitter must have its own RF shielding The radio portion of this module has its own RF shielding. Please see the photos provided with the application. 2. The modular transmitter must have buffered modulation/data inputs The module has a memory management unit inside and buffers the data inputs from UART. 3. The modular transmitter must have its own power supply regulation The module contains its own voltage regulation. In case of changes in the supply voltage VCC (for example caused by temperature changes or other effects), the internal voltage will be stabilized. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c The ULPD100 has been tested to operate with a specific antenna that has a peak gain of 2 dBi or less and has a monopole construction (omnidirectional pattern). Operators are required to use this antenna. 5. The modular transmitter must be tested in a stand-alone configuration The module was tested in a stand-alone configuration and was fixed on a development board . Please see the test report provided with this application. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Please see the label provided with this application. That label will be affixed to all modules. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The module is compliant with all applicable FCC rules. Detailed instructions are provided in the product document entitled “dNode Integration Specification.” On-Ramp Wireless, Inc. 2 8. The modular transmitter must comply with any applicable RF exposure requirements. The device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This module is approved for use in products operating as a fixed or mobile transmitting device. Kind Regards, Robert Boesel VP Engineering, On-Ramp Wireless, Inc. 10920 Via Frontera, Suite 200, San Diego, CA 92127 Phone: 858-312-8361, Fax: 858-592-6009 [email protected]

On-Ramp Wireless, Inc 10920 Via Frontera, Suite 200 San Diego, CA 92127, USA +1 858 592 6008 : phone +1 858 592 6009 : fax [email protected] www.onrampwireless.com September 5, 2012 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Attn: Director of Certification RE: Confidentiality Request FCC ID: XTE-ULPD100 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, On-Ramp Wireless, Inc. hereby requests permanent confidential treatment of information accompanying this application as outlined below: • Schematics • Bill of Materials/Parts List and Placement • Block Diagrams • Operational Description On-Ramp Wireless, Inc. also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period until March 1, 2013. • Internal Photos • External Photos • User Manual • Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to On-Ramp Wireless, Inc. and provide unjustified benefits to its competitors. On-Ramp Wireless, Inc. understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Robert Boesel VP Engineering, On-Ramp Wireless, Inc. 10920 Via Frontera, Suite 200, San Diego, CA 92127 Phone: 858-312-8361, Fax: 858-592-6009 [email protected]

On-Ramp Wireless, Inc 10920 Via Frontera, Suite 200 San Diego, CA 92127, USA +1 858 592 6008 : phone +1 858 592 6009 : fax [email protected] www.onrampwireless.com July 31, 2012 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Attention: Director of Certification RE: Authority to Act as Agent FCC ID: XTE-ULPD100 Dear Sir or Madam, We, at On-Ramp Wireless, Inc., 10920 Via Frontera, Ste. 200, San Diego, CA 92127, hereby authorize Ferdinand S. Custodio, at TÜV SÜD America Inc., 10040 Mesa Rim Road, San Diego, CA 92121, Tel. 858-678-1400, to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on January 31, 2013. Sincerely, Robert Boesel VP Engineering, On-Ramp Wireless, Inc. 10920 Via Frontera, Suite 200, San Diego, CA 92127 Phone: 858-312-8361, Fax: 858-592-6009 [email protected]

On-Ramp Wireless, Inc 10920 Via Frontera, Suite 200 San Diego, CA 92127, USA +1 858 592 6008 : phone +1 858 592 6009 : fax [email protected] www.onrampwireless.com August 15, 2012 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD RE: Authority to Act as On-Ramp Wireless Agent/Main Contact IC ID: XTE-ULPD100 Dear Sir or Madam, I, Jason R. Wilson, at On-Ramp Wireless, Inc., 10920 Via Frontera, Ste. 200, San Diego, CA 92127, hereby authorize Robert W. Boesel, at On-Ramp Wireless, Inc., 10920 Via Frontera, Ste. 200, San Diego, CA 92127, Tel. 858-312- 8361, to act as On-Ramp Wireless’ agent/main contact in all matters relating to applications for equipment authorization and certification, including the signing of all documents relating to these matters. There is no expiration for this authorization. Sincerely, Jason Wilson VP Product Management, On-Ramp Wireless, Inc. 10920 Via Frontera, Suite 200, San Diego, CA 92127 Phone: 858-312-8356, Fax: 858-592-6009 [email protected]

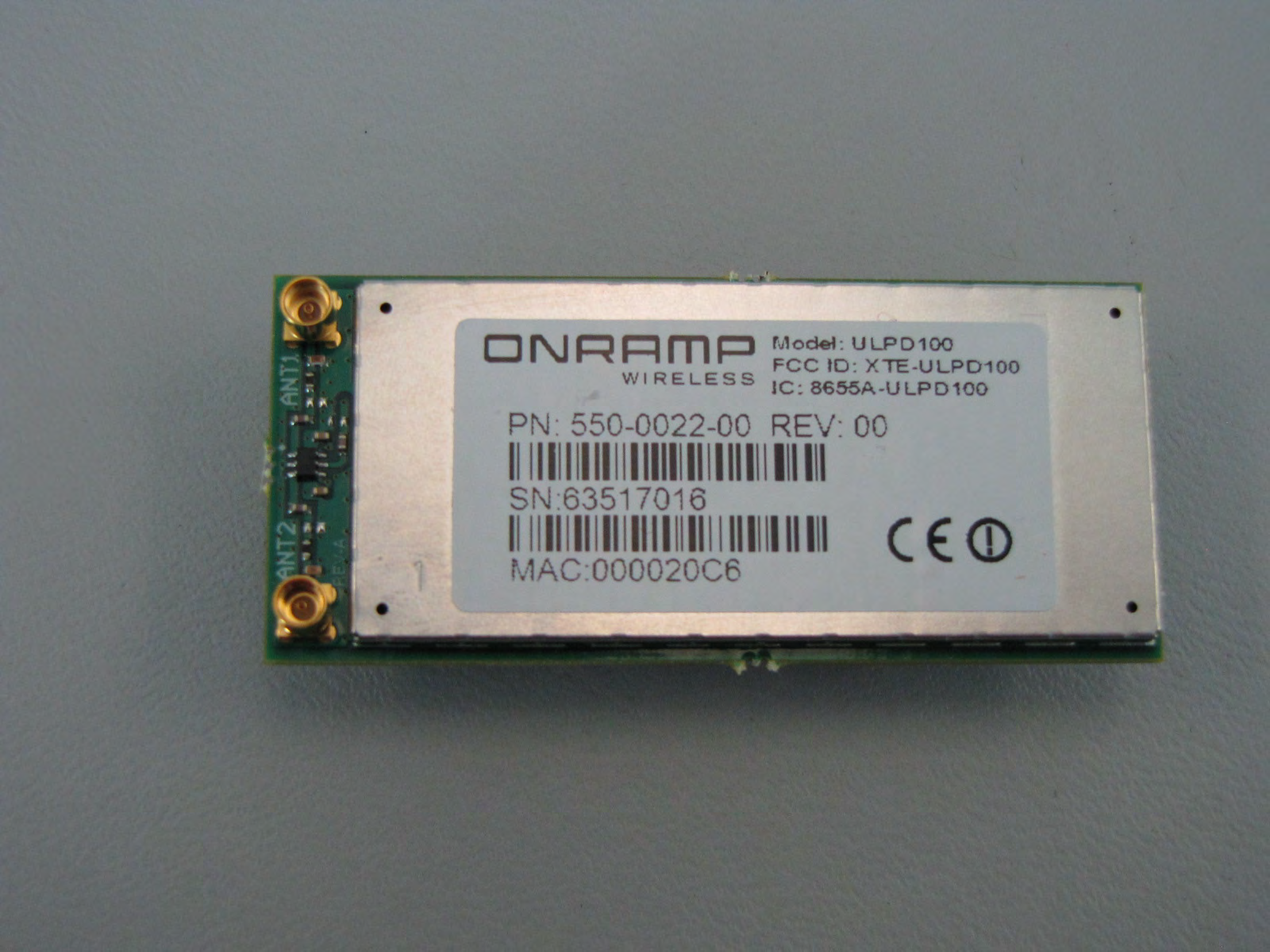

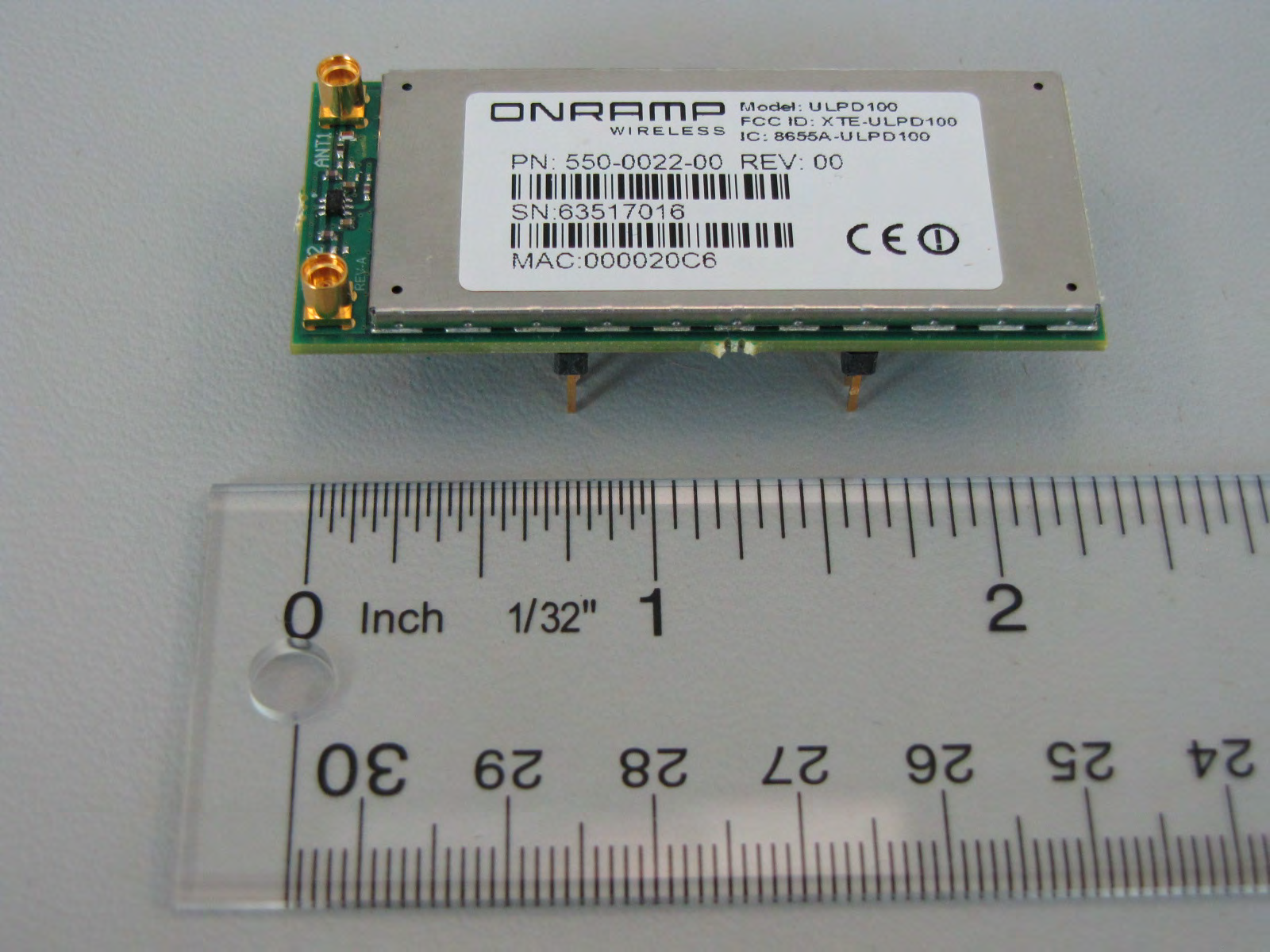

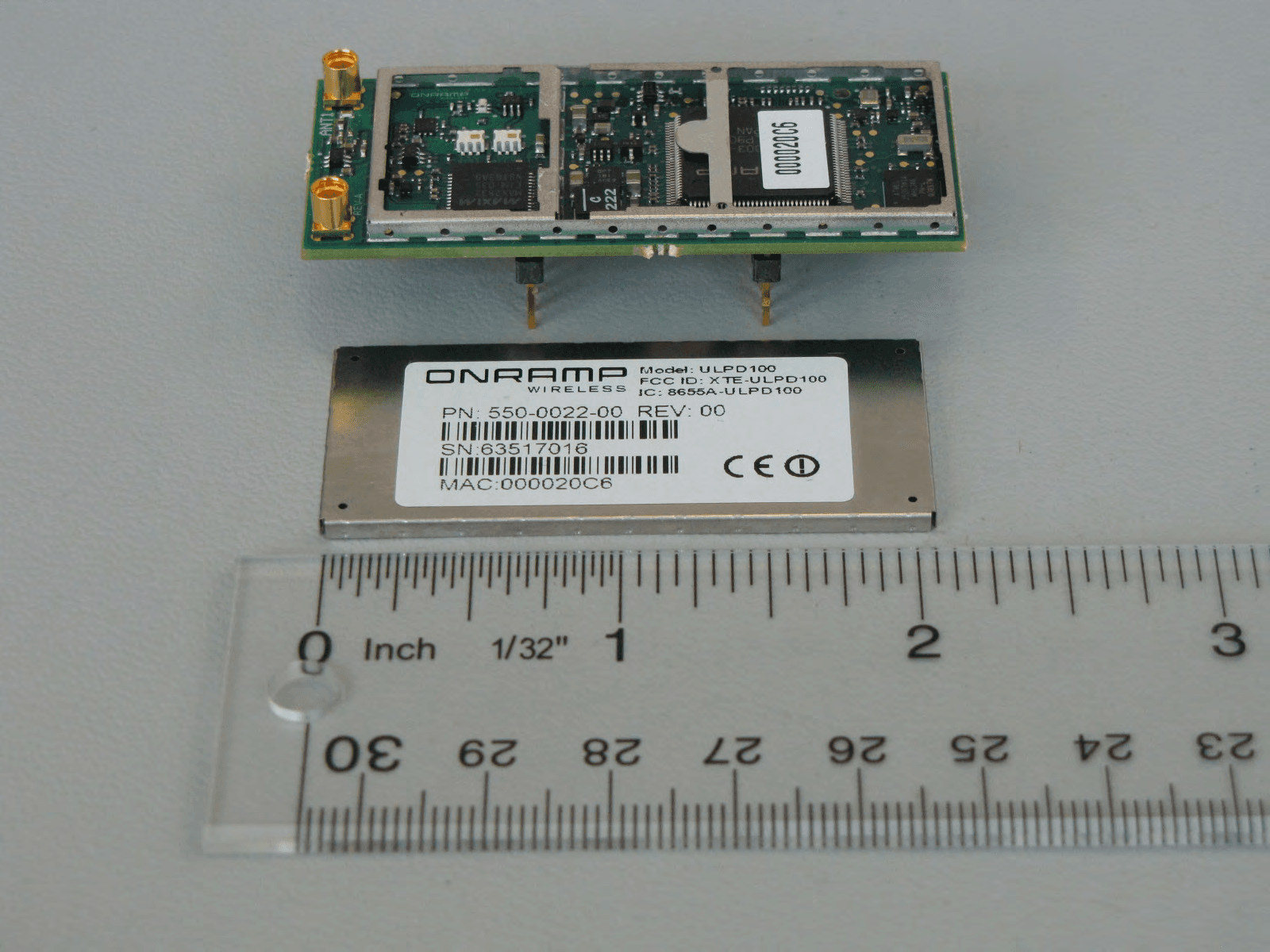

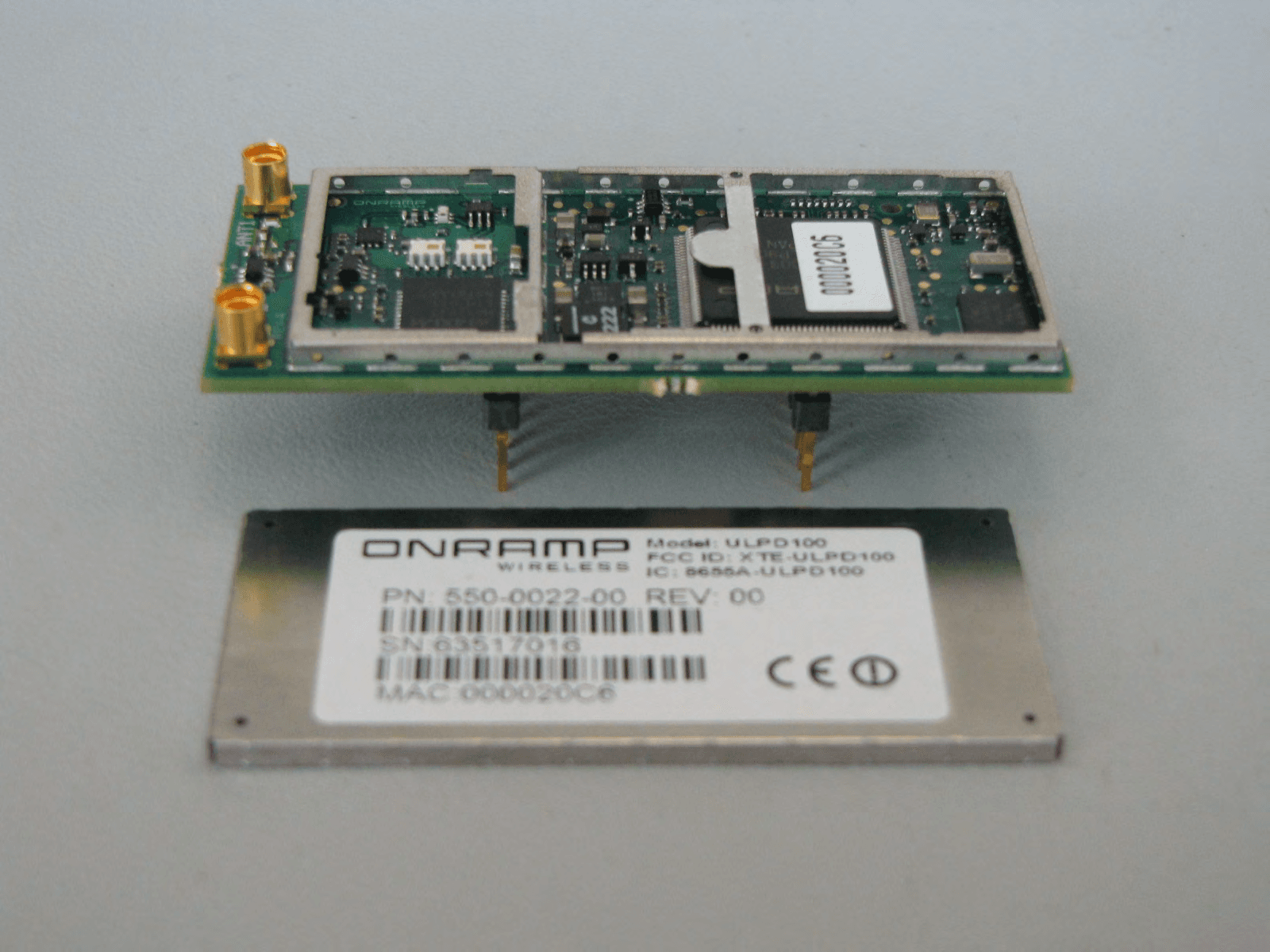

FCC ID XTE-ULPD100 IC: 8655A- ULPD100

TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 September 5, 2012 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Attention: Director of Certification RE: Prediction of MPE limit at a given distance IC: 8655A-ULPD100 FCC ID: XTE-ULPD100 Equation from page 18 of OET Bulletin 65, Edition 97-01 푺= 푷푮 ퟒ흅푹 where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to isotropic R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 20.89 (dBm) Maximum peak output power at antenna input terminal: 122.74 (mW) Antenna gain (typical): 2 (dBi) Maximum antenna gain: 1.585 (numeric) Prediction distance: 20 (cm) Source Based Time Average Duty Cycle: 100 (%) Prediction frequency: 2475.63 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.000 (mW/cm2) Power density at prediction frequency: 0.0387 (mW/cm2) Power density at prediction frequency: 0.387 (W/m2) Margin of Compliance: -14.12 (dB) Sincerely, Ferdie S. Custodio Name Authorized Signatory Title: EMC/Wireless Test Engineer

Report No. SC1205658 June 2012 America Report On Radio Testing of the On-Ramp Wireless dNode RF Module Model ULPD100 FCC Part 15 Subpart C §15.247 IC RSS-210 Issue 8 December 2010 FCC ID XTE-ULPD100 IC: 8655A-ULPD100 Report No. SC1205658 REPORT ON TEST REPORT NUMBER Radio Testing of the On-Ramp Wireless dNode RF Module SC1205658 June 2012 PREPARED FOR On-Ramp Wireless 10920 Via Frontera. San Diego, CA 92127 PREPARED BY Kathy MacKenzie Name Title: EMC Test Technician APPROVED BY Ferdinand S. Custodio Name Authorized Signatory Title: EMC/Wireless Test Engineer DATED June 8, 2012 FCC ID XTE-ULPD100 IC: 8655A-ULPD100 Report No. SC1205658 Page 3 of 65 CONTENTS Section Page No 1 REPORT SUMMARY ............................................................................................................................... 4 1.1 Introduction ................................................................................................................................................ 5 1.2 Brief Summary of Results ............................................................................................................................ 6 1.3 Product Information ................................................................................................................................... 7 1.4 EUT Test Configuration ............................................................................................................................. 10 1.5 Deviations From The Standard ................................................................................................................. 12 1.6 Modification Record ................................................................................................................................. 12 1.7 Test Methodology ..................................................................................................................................... 12 1.8 Test Facility ............................................................................................................................................... 12 2 TEST DETAILS ...................................................................................................................................... 13 2.1 Peak Output Power ................................................................................................................................... 14 2.2 Conducted Emissions ................................................................................................................................ 19 2.3 20 Db Bandwidth ...................................................................................................................................... 23 2.4 99% Emission Bandwidth .......................................................................................................................... 26 2.5 Minimum 6 Db Rf Bandwidth ................................................................................................................... 29 2.6 Out-Of-Band Emissions - Conducted ........................................................................................................ 32 2.7 Band-Edge Compliance Of Rf Conducted Emissions ................................................................................. 41 2.8 Spurious Radiated Emissions .................................................................................................................... 43 2.9 Power Spectral Density ............................................................................................................................. 52 3 TEST EQUIPMENT USED ...................................................................................................................... 57 3.1 Test Equipment Used ................................................................................................................................ 58 3.2 Measurement Uncertainty ....................................................................................................................... 59 4 DIAGRAM OF TEST SETUP ................................................................................................................... 60 4.1 Test Setup Diagram ................................................................................................................................... 61 5 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................................... 64 5.1 Accreditation, Disclaimers and Copyright ................................................................................................. 65 FCC ID XTE-ULPD100 IC: 8655A-ULPD100 Report No. SC1205658 Page 4 of 65 SECTION 1 REPORT SUMMARY Radio Testing of the On-Ramp Wireless dNode RF Module FCC ID XTE-ULPD100 IC: 8655A-ULPD100 Report No. SC1205658 Page 5 of 65 1.1 INTRODUCTION The information contained in this report is intended to show verification of the On-Ramp Wireless dNode RF Module to the requirements of FCC Part 15 Subpart C §15.247 and IC RSS-210 Issue 8 December 2010. Objective To perform Radio Testing to determine the Equipment Under Test's (EUT’s) compliance with the Test Specification, for the series of tests carried out. Manufacturer On-Ramp Wireless Model Number(s) ULPD100 FCC ID Number XTE-ULPD100 IC Number 8655A-ULPD100 Serial Number(s) 6351702D Number of Samples Tested 1 Test Specification/Issue/Date • FCC Part 15 Subpart C §15.247 (October 1, 2011). • RSS-210 - Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment (Issue 8, December 2010). • RSS-Gen - General Requirements and Information for the Certification of Radio Apparatus (Issue 3, December 2010). Start of Test May 21, 2012 Finish of Test May 23, 2012 Name of Engineer(s) Kathy MacKenzie, Lan Sayasane, Ferdie Custodio, Chip Fleury Related Document(s) None. Supporting documents for EUT certification are separate exhibits. FCC ID XTE-ULPD100 IC: 8655A-ULPD100 Report No. SC120 1.2 BRIEF SUMMARY …

Text truncated - open the document above for the full version.

FCC ID XTE-ULPD100 IC: 8655A- ULPD100 Radiated Emissions Test Setup Radiated Emissions Test Setup Conducted Emissions Test Setup Antenna Conducted Port Test Setup
