XTS-BT-523Bluetooth Dongle

1 BT-523 Dongle Specification <Product Descriptions> • The dongle fits for Motorola HT-1000 multi-pins radio. • The dongle is compatible with many Bluetooth headsets on the aftermarket. • Just one-time pairing with wireless headset/accessory <Specification> Type: Bluetooth Dongle for Portable Radio Temp: -20°C±2°C ~ 50°C±2°C Approx. Weight: 30g • Fully Qualified Bluetooth 5.0. • Echo cancellation, noise reduction, also extended features. • High-Quality DAC, Qualcomm CVC built-in. • 80MHz RISC MCU and 80MIPS Kalimba DSP. • No battery, no need charging. • RoHS compliant. • HSP / HFP / BLE profile support. • PTT function: built-in. • Talking Range: Bluetooth class 2, 10 meters. • Display LED: Blue and Red. • TX Current: 16 mA (Average). • Talk time based on radio. 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. FCC ID:XTS-BT-523 3 Uer Manual <Procedure for Pairing Bluetooth headset device to Dongle> (Note: The Bluetooth-PTT needs to switch off before performing the following steps if it has been connected to the dongle) 1. Switch the dongle power on while pressing and holding the PTT button at the same time for about 3 seconds. It will enter the pairing mode for the Bluetooth headset. The blue LED will flash twice per second. 2. Power on the Bluetooth headset and enter the pairing mode. (Please check the user manual of the Bluetooth headset) Then the Bluetooth headset will be paired and connected with the dongle automatically. And the blue LED on the dongle will flash once every 4 seconds. <Procedure for Pairing Bluetooth-PTT device to Dongle> (Note: The Bluetooth headset needs to switch off before performing the following steps if it has been connected to the Dongle) 1. Switch dongle power on while pressing and holding the PTT button at the same time for about 3 seconds. It will enter the pairing mode. The blue LED will flash twice per second. 2. Then short press the PTT button to enter the BLE pairing mode for the Bluetooth-PTT. The blue LED will flash 3 times per second. (Note: Switch off the original Bluetooth-PTT device if you are pairing with a new one.) 3. Power on the Bluetooth-PTT, and it will be paired and connected with the dongle automatically. The blue LED on the dongle will flash once every 4 seconds. Note: When you press the dongle PTT button. If the LED of dongle is not flash 3 times per second, go back to step 1. And make sure the Bluetooth headset is power OFF. After Bluetooth headset paired and Bluetooth PTT button paired, it’s ready to go.

DATE : 2021-Feb-05 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: XTS-BT-523 Product Name: Bluetooth Dongle Request for Confidentiality Pursuant to Sections §0.457(d) and §0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2021-Feb-05 Agency agreement expiration date: Usually Give 8 - 12 Months By: CC.Chuang Signature Printed Title: General Manager On behalf of : Mobility Sound Technology Ltd. Telephone: +886-2-2223-2377

DATE : 2021-02-05 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: XTS-BT-523 Product Name: Bluetooth Dongle Subject : Model series declaration To whom it may concern: We, Mobility Sound Technology Ltd., declare that the BT-523-EFJ is identical to the main test sample BT-523.For marketing reason, there are different model numbers and brand name. Sincerely Yours Dated this 2021-02-05 By: CC.Chuang Signature Printed Title: General Manager On behalf of : Mobility Sound Technology Ltd. Telephone: +886-2-2223-2377

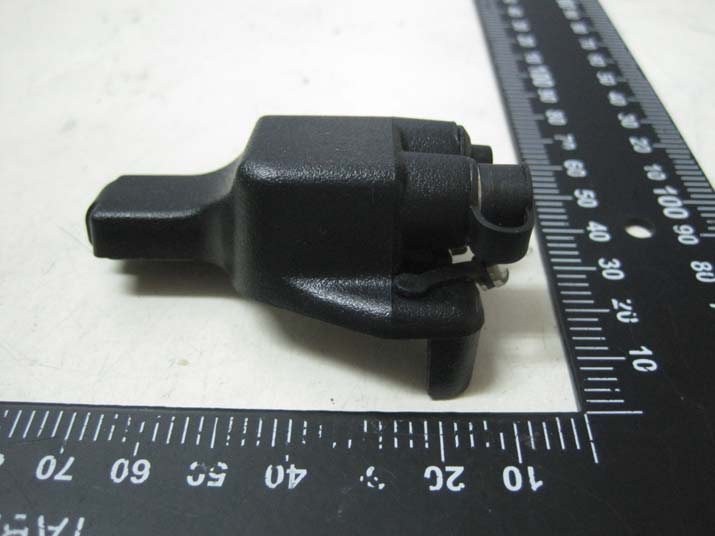

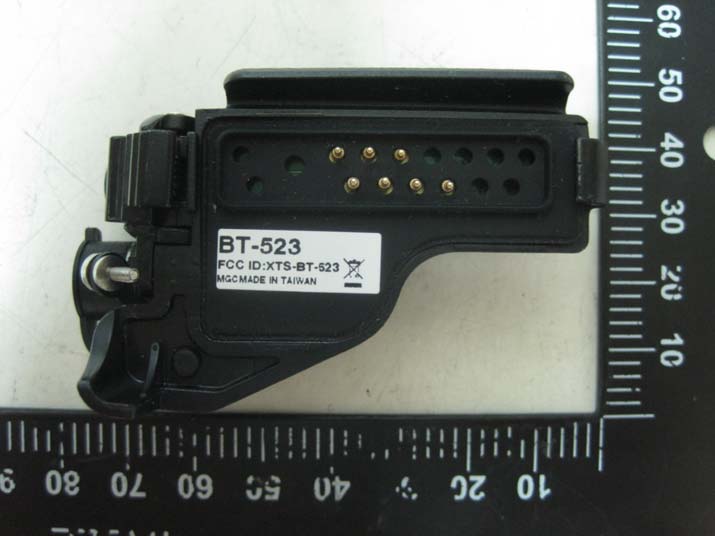

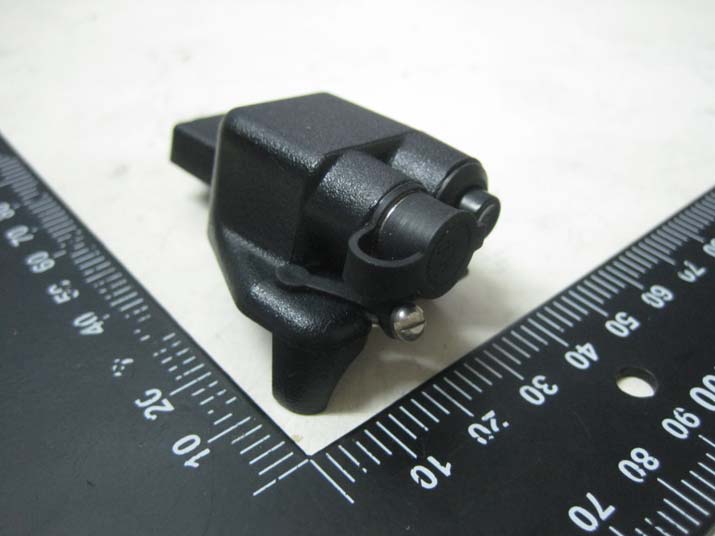

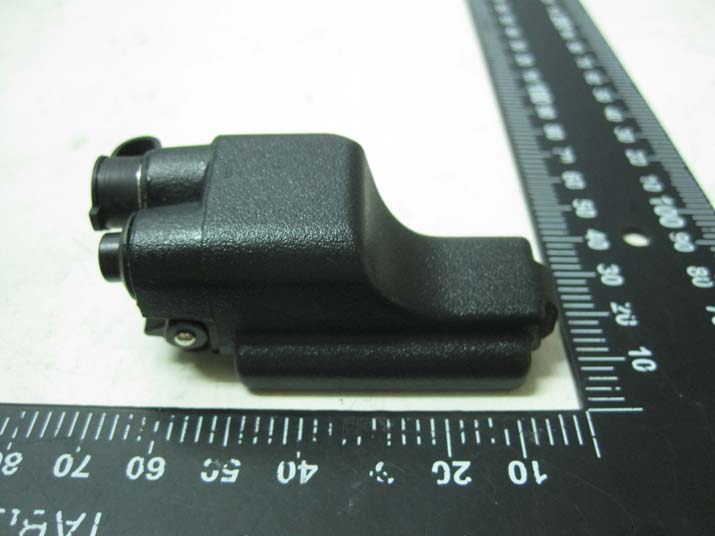

HongAn TECHNOLOGY CO., LTD. Report No.: HA201041-RA Report Version：V00 Page 85 of 92 8 Photographs of the EUT View of the EUT 1 View of the EUT 2 HongAn TECHNOLOGY CO., LTD. Report No.: HA201041-RA Report Version：V00 Page 86 of 92 View of the EUT 3 View of the EUT 4 HongAn TECHNOLOGY CO., LTD. Report No.: HA201041-RA Report Version：V00 Page 87 of 92 View of the EUT 5 View of the EUT 6 HongAn TECHNOLOGY CO., LTD. Report No.: HA201041-RA Report Version：V00 Page 88 of 92 View of the EUT 7 View of the EUT 8

Label & Location Label location 8mm 20 mm

HongAn TECHNOLOGY CO., LTD. Report No.: HA201041-RA Report Version：V00 Page 89 of 92 Inside View Closer View of the BT module Chip Antenna HongAn TECHNOLOGY CO., LTD. Report No.: HA201041-RA Report Version：V00 Page 90 of 92 Front View of PCB-1 Rear View of PCB-1

HongAn TECHNOLOGY CO., LTD. Report No.: HA201041-RA Report Version：V00 Page 1 of 92 Te s t i n g L a b o r a t o r y 1163 FCC COMPLIANCE TEST REPORT Technical Statement of Conformity in accordance with FCC Part 15 Subpart C The Product Equipment Under Test ： Bluetooth Dongle Model Number ： BT-523 Product Series ： BT-523-EFJ Report Number ： HA201041-RA Issue Date ： 03-Feb-2021 is produced by Mobility Sound Technology LTD. 5F, No.100, Jian 1 st Road, ZhongHe Dist., New Taipei City #23585, Taiwan HongAn TECHNOLOGY CO., LTD. HongAn TECHNOLOGY EMC Laboratory NO.15-1, CWEISHUH KENG, CWEIPIN VILLAGE, LINKOU DIST, NEW TAIPEI CITY, TAIWAN, R. O. C. TEL: +886-2-26030362 FAX: +886-2-26019259 E-mail: [email protected] BSMI Registration No.： SL2-IN-E-0023, SL2-A1-E-0023, FCC Designation No.：TW1071, TW1163 SL2-IS-E-0023, SL2-R1-E-0023, TAF Accreditation No.：1163 SL2-R2-E-0023, SL2-L1-E-0023 IC assigned Code：11226A-2 VCCI Registration No.： R-12156, C-12329, T-10219, G-10696 ISED CAB identifier: TW1163 Caution : This report sets forth our findings solely with respect to the test sample. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment. Please note that the measurement uncertainty are provided for informational purpose only and are not used in determining the Pass/Fail results. This test report shall not be reproduced written approval of HongAn TECHNOLOGY EMC Laboratory. The relevant information of the content of this test report is provided by the customer. For the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error, which will affect the validity of the results of this test report, the laboratory will not be liable Related responsibilities. HongAn TECHNOLOGY CO., LTD. Report No.: HA201041-RA Report Version：V00 Page 2 of 92 Contents General Description 7 1.1. Description of EUT 7 1.2. Test Instruments 9 1.3. Auxiliary Equipments 10 1.4. EUT SETUP 10 1.5. Identifying the Final Test Mode 10 1.6. Final Test Mode 11 1.7. Condition of Power Supply 11 1.8. EUT Configuration 12 1.9. Test Methodology 12 1.10. General Test Procedures 12 1.11. Modification 12 1.12. FCC Part 15.205 restricted bands of operations 13 2. Power line Conducted Emission Measurement 14 2.1. Test Instruments 14 2.2. Test Arrangement and Procedure 14 2.3. Limit (§ 15.207) 14 2.4. Test Result 14 3. Radiated Emission Test 15 3.1. Test Instruments 15 3.2. Test Arrangement and Procedure 15 3.3. Limit of Field Strength of Fundamental (§ 15.249) 16 3.4. Limit of Spurious Emission (§ 15.209) 16 3.5. Test Result 16 4. Out of Band Emission Test 53 4.1. Test Instruments 53 4.2. Test Arrangement and Procedure 53 4.3. Limit of Field Strength of Fundamental (§ 15.249(d)) 53 4.4. Test Result 53 5. 20 dB Bandwidth 70 5.1. Test Instruments 70 5.2. Test Arrangement and Procedure 70 5.3. Limit 70 5.4. Test Result 70 6. Antenna requirement 83 HongAn TECHNOLOGY CO., LTD. Report No.: HA201041-RA Report Version：V00 Page 3 of 92 6.1. Limit (§ 15.203) 83 6.2. Test Result 83 7. Photographs of the Tests 84 7.1. Radiated Disturbances Emission Test 84 8. Photographs of the EUT 85 HongAn TECHNOLOGY CO., LTD. Report No.: HA201041-RA Report Version：V00 Page 4 of 92 Release control Record Report Version Description Issued Date V00 Original release. 03-Feb-2021 HongAn TECHNOLOGY CO., LTD. Report No.: HA201041-RA Report Version：V00 Page 5 of 92 Test Result Certification Applicant ： Mobility Sound Technology LTD. Address of Applicant ： 5F, No.100, Jian 1 st Road, ZhongHe Dist., New Taipei City #23585, Taiwan Manufacturer ： Mobility Sound Technology LTD. Address of Manufacturer ： 5F, No.100, Jian 1 st Road, ZhongHe Dist., New Taipei City #23585, Taiwan Trade Name ： MobilitySound Equipment Under Test ： Bluetooth Dongle Model Number ： BT-523 Product Series ： BT-523-EFJ FCC ID ： XTS-BT-523 Filing Type ： Certification Sample Received Date ： 10-Dec-2020 Test Standard ： FCC Part 15 Subpart C §15.249 Deviations from standard test methods & any other specifications : NONE Remark: 1. This report details the results of the test carried out on one sample. 2. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in both ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.203, 15.207, 15.209, 15.249. 3. This report applies to the above sample only and shall not be reproduced in part without written approval of HongAn Technology Co., Ltd. 4. Test Location: HongAn Technology Co., Ltd., No.15-1 Cweishuh Keng, Cweipin Village, Linkou Dist., New Taipei City, Taiwan, R.O.C. FCC Designation No.: TW1071, TW1163. Tested by: 2021-01-25 Andrew Lin / ENG. Dept. Staff Approved by: Date: 2021-02-03 Eason Hsieh / Section Manager HongAn TECHNOLOGY CO., LTD. Report No.: HA201041-RA Report Version：V00 Page 6 of 92 Summary of Test Result Test Item Applicable Standard Test Result 1 Antenna Requirement FCC part 15 subpart C §203 Compliance 2 Conducted Emission FCC part 15 subpart C §207 N/A 3 Restricted Band of Operation FCC part 15 subpart C §205 Compliance 4 Radiated Emission FCC part 15 subpart C §209 Compliance 5 Field Strength FCC part 15 subpart C §249(a) Compliance 6 Out of Band Emission FCC part 15 subpart C §249(d) Compliance 7 20dB Bandwidth FCC part 15 subpart C §215(c) Compliance HongAn TECHNOLOGY CO., LTD. Report No.: HA201041-RA Report Version：V00 Page 7 of 92 General Description 1.1. Description of EUT Equipment Under Test : Bluetooth Dongle Model Number of EUT : BT-523 Product Series : BT-523-EFJ Power Suppl…
