XTX-100EZ CARE

User Manual User Operation 1. Make SOS emergency call : 1. at standby mode, press SOS button will call to preset SOS numbers. 2. the call is loop call : it will call to first number, if no answer or not available then call to second number, if still no answer or not available, then the third number... (upto 10 group number at most) ; if all no anwer or not available, then call first number again, then second number... ; until somebody answer the call. Any number’s answer will stop loop call. 3. If only setup one group SOS number, the device will keep call to it, until this number answer the call. 2. Cancel the current SOS emergency call 1. At calling status, user long press 3 seconds SOS button on the device will cancel the current SOS calling. 2. RF button don’t have this function. 3. Hung up: 1. The other side hung up the calling then our device will automatically hung up. 2. Or long press 3 seconds to hung up the calling or cancel a phone calling. 4. Fix‐time‐call function on/off: switch button can turn on/off the Fix‐time‐call function. setting 1. Set SOS phone number 1.1 Setting method: *0#number1*extension number#number2*extension number## 1.2 Description: 1.2.1 *0# means set SOS numbers 1.2.2 If the number have extension number, use * to divided; if no extension number then no * 1.2.3 SOS number can be one group or more(can be 10 group), use # to divide each group 1.2.4 After finish final group setting, it need input one more #; means “##” at the end 1.2.5 Each new setting will automatically delete old preset numbers. 2. Set fix‐time‐call phone number 2.1 Setting method:*1#*number1*extension number#number2*extension number## 2.2 Description: 2.2.1 *1#means set fix time call number; 2.2.2 If the number have extension number, use * to divided; if no extension number then no * 2.2.3 The number can be one group or more; use # to divide each group 2.2.4 After finish final group setting, it need input one more #; means “##” at the end 2.2.5 Each new setting will automatically delete old preset numbers. 2.2.6 The call is silence call for 10 seconds then hung up. 3. Calibrate telephone time 3.1 Setting method: *2#HHMMSS# 3.2 Description: 3.2.1 *2# means to set current time to calibrate telephone time 3.2.2 HH means hour (24 hours format); MM means minutes; SS means second 3.2.3 Each new setting will automatically delete old preset time. 4. Set the fix time to call 4.1 Setting method: *3#HHMM# 4.2 Description: 4.2.1 *3# means set the fix time to call 4.2.2 HH means hour (24 hours format); MM means minutes; SS means second 4.2.3 Each new setting will automatically delete old preset time. 5. RF button pair: press Pair button (the LED will light for 2 seconds) then press one RF button, the LED need blink 3 times means pair ok; then continue next RF button...(it can pair more than 10 pcs RF buttons) 6. Clear all the RF buttons paired: Input *4# to clear them; 7. DEL button: during input, if happen wrong input, press DEL button to clear current one input; 8. Set low battery alert call number 8.1 Setting method:*5#*number*extension number## 8.2 Description: 8.2.1 *5#means set low battery alert call number; 8.2.2 If the number have extension number, use * to divided; if no extension number then no * 8.2.3 The number only have one group. 8.2.4 After finish final group setting, it need input one more #; means “##” at the end 8.2.5 Each new setting will automatically delete old preset numbers. 8.2.6 The call is silence call for 10 seconds then automatically hung up. FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Customer Information 1. This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company. 2. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. 3. If this equipment [US: PNYAL02BXTX100] causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify…

Text truncated - open the document above for the full version.

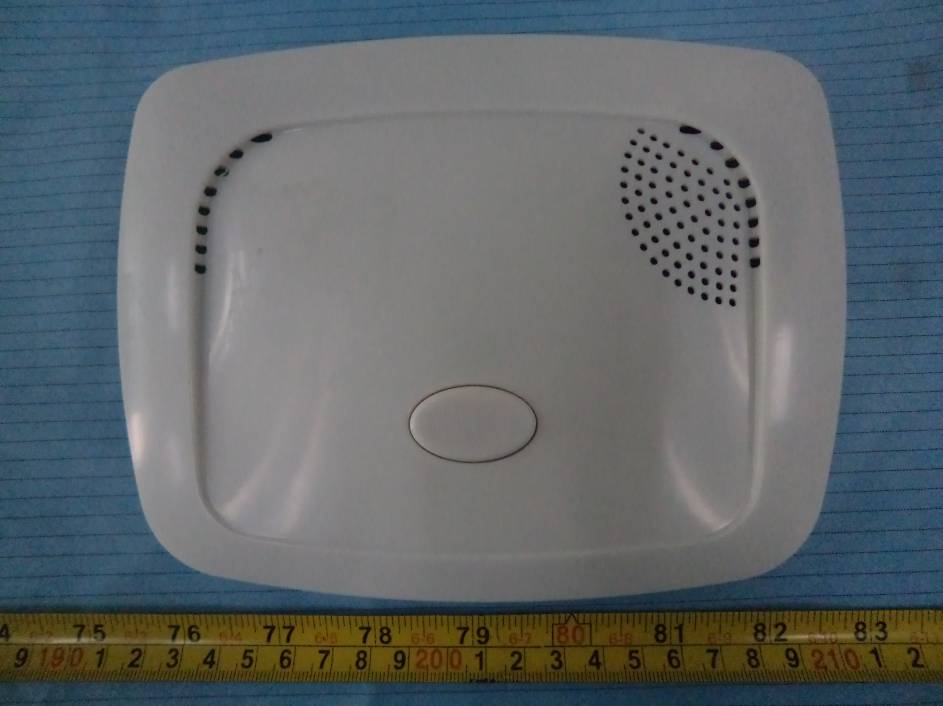

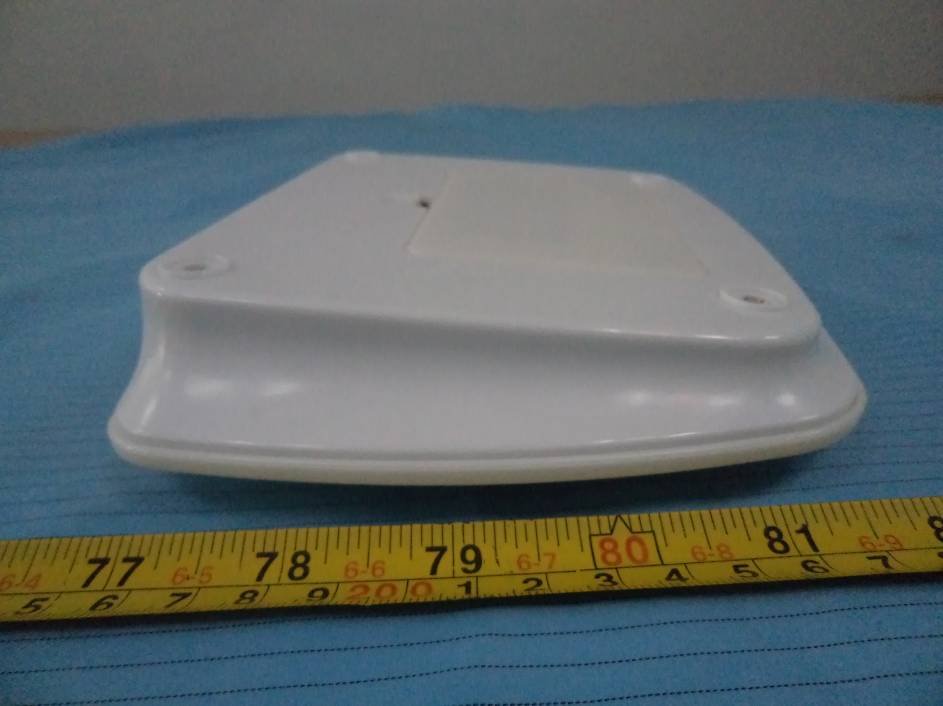

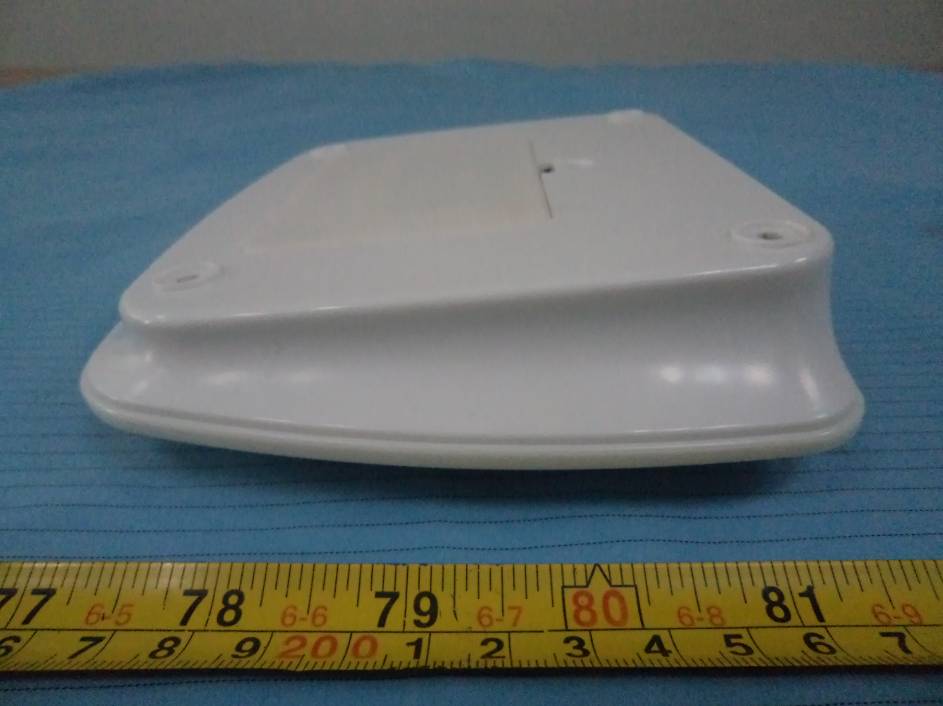

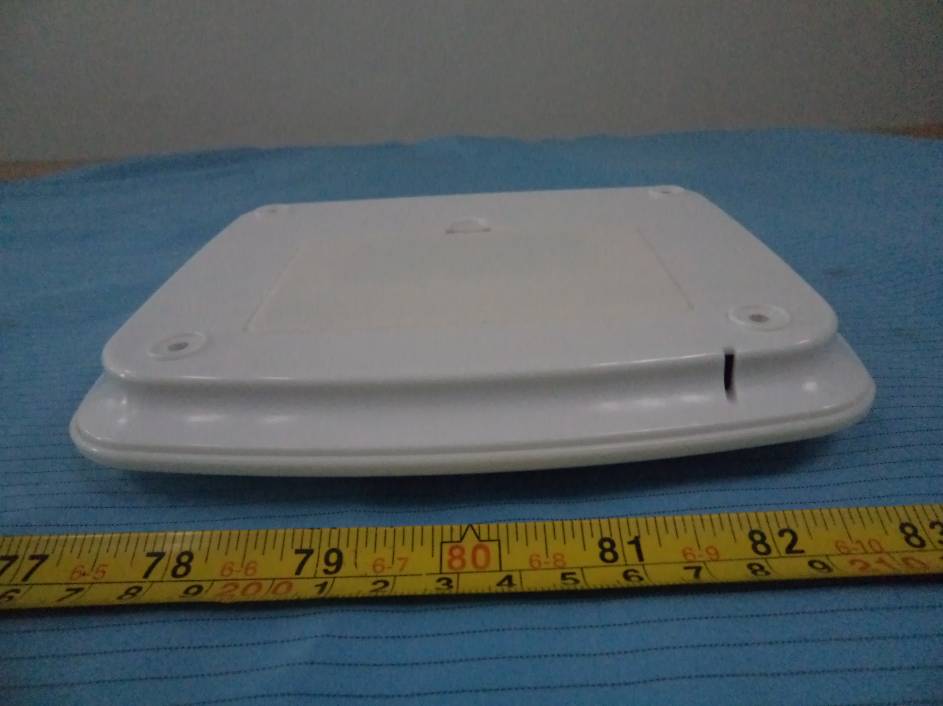

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT– Top View EUT – Bottom View EUT– Front View EUT– Rear View EUT– Left Side View EUT – Right Side View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View Antenna EUT – Main Board Top View EUT – Main Board Bottom View EUT – Key Board Top View EUT – Key Board Bottom View EUT – RF Module Top View EUT – RF Module Bottom View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” FCC PART 15B, CLASS B TEST REPORT For LiveFree Emergency Response, Inc. 3780 Woodhaven Lane, Idaho Falls, Idaho83404, United States FCC ID: XTX-100 Report Type: Original Report Product Type: EZ CARE Test Engineer: Henry Ding Report Number: RSZ130116002-00 Report Date: 2013-01-25 Reviewed By: Alvin Huang RF Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ130116002-00 FCC Part 15 B Page 2 of 13 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................4 EXTERNAL I/O CABLE..................................................................................................................................................4 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 FCC §15.107 – AC LINE CONDUCTED EMISSIONS .............................................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 EUT SETUP..................................................................................................................................................................7 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 CORRECTED FACTOR & MARGIN CALCULATION.........................................................................................................8 TEST RESULTS SUMMARY............................................................................................................................................8 TEST DATA..................................................................................................................................................................8 FCC §15.109 - RADIATED SPURIOUS EMISSIONS ............................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 EUT SETUP................................................................................................................................................................11 EMI TEST RECEIVER SETUP.......................................................................................................................................11 TEST PROCEDURE......................................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................12 TEST RESULTS SUMMARY..........................................................................................................................................12 TEST DATA...........................................................................................…
