XU8TEW635-657802.11N Wireless ADSL Router

i ii Table of Contents INTRODUCTION ..................................................................................................................... 1 Features .............................................................................................................................. 1 Package Contents .............................................................................................................. 3 Physical Details .................................................................................................................. 4 Wireless Performance Considerations ............................................................................ 6 PC CONFIGURATION ............................................................................................................ 7 Overview ............................................................................................................................ 7 Windows Clients ................................................................................................................ 7 Macintosh Clients ............................................................................................................ 17 Linux Clients .................................................................................................................... 17 Other Unix Systems ......................................................................................................... 17 Wireless Station Configuration ...................................................................................... 18 Wireless Configuration on Windows XP ....................................................................... 18 INSTALLATION .................................................................................................................... 27 Requirements ................................................................................................................... 27 Procedure ......................................................................................................................... 27 SETUP ...................................................................................................................................... 29 Overview .......................................................................................................................... 29 Configuration Program .................................................................................................. 30 Setup Wizard ................................................................................................................... 31 Home Screen .................................................................................................................... 34 LAN Screen ...................................................................................................................... 36 DHCP ............................................................................................................................... 37 Wireless Screen ................................................................................................................ 38 Wireless Security ............................................................................................................. 41 Trusted Wireless Stations ............................................................................................... 46 Password Screen .............................................................................................................. 48 Mode Screen ..................................................................................................................... 49 OPERATION AND STATUS ................................................................................................ 50 Operation - Router Mode ............................................................................................... 50 Status Screen .................................................................................................................... 50 Connection Status - PPPoE & PPPoA ........................................................................... 53 Connection Details - Dynamic IP Address .................................................................... 54 Connection Details - Fixed IP Address .......................................................................... 55 ADVANCED FEATURES ...................................................................................................... 56 Overview .......................................................................................................................... 56 Internet ............................................................................................................................. 56 Access Control ................................................................................................................. 59 Dynamic DNS (Domain Name Server) .......................................................................... 61 Options ............................................................................................................................. 63 Schedule............................................................................................................................ 64 Port Trigger ..................................................................................................................... 65 Port Forward ................................................................................................................... 67 Port Range Forward ....................................................................................................... 68 QoS ................................................................................................................................... 69 ADVANCED ADMINISTRATION ....................................................................................... 71 Overview .................................…

Text truncated - open the document above for the full version.

Password Screen The password screen allows you to assign a password to the Wireless ADSL Router. Old Password Enter the existing password in this field. New password Enter the new password here. Verify password Re-enter the new password here. You will be prompted for the password when you re-connect. The "User Name" is always admin and enter the new password applied. 48 Mode Screen Use this screen to change the mode between Router mode and Modem (Bridge) mode. Select the desired option, and click "Save". Router Both the ADSL Modem and the Router features are operational. In this mode, this device can provide shared Internet Access to all your LAN users. Also, by default, it acts a DHCP Server, providing an IP address and related information to all Wireless and LAN users. Modem Only the ADSL Modem component is operational. • All Router features are disabled. This device is "transparent" - it does not perform any operations or make any changes to the network traffic passing through it. • You need to have a DHCP Server on your LAN to provide IP addresses to the Wireless clients using this Access Point. • All traffic received on either the Wireless or LAN interface will be sent over the ADSL connection. Notes: • Generally, you should NOT use modem mode. Only select this mode if you are sure this is what you want. • After changing the mode, this device will restart, which will take a few seconds. The menu will also be changed, depending on the mode you are in. • The Wireless Access Point can function in either Router or Modem mode. But generally it is not a good idea to combine a Modem with an Access Point, because all data received from the wireless stations will be sent over the modem connection. (Since the modem is transparent, it does not examine the traffic to determine whether the traffic is for the LAN or the WAN.) • For details on using Modem Mode, see Chapter 8. Operation and Status Operation - Router Mode Once both the Wireless ADSL Router and the PCs are configured, operation is automatic. However, there are some situations where additional Internet configuration may be required. Refer to Chapter 6 - Advanced Features for further details. Status Screen Use the Status link on the main menu to view this screen. Data - Status Screen ADSL Modem Status This indicates the status of the ADSL modem component. DownStream Connection Speed Displays the speed for the DownStream Connection. 50 UpStream Connection Speed If connected, displays the speed for the Up Stream (upload) ADSL Connection. Internet Connection Method Displays the current connection method, as set in the Setup Wizard. Connection Status This indicates the current status of the Internet Connection • Active - Connection exists • Idle - No current connection, but no error has been detected. This condition normally arises when an idle connection is au- tomatically terminated. • Failed - The connection was terminated abnormally. This could be caused by Modem failure, or the loss of the connec- tion to the ISP's server. If there is an error, you can click the "Connection Details" button to find out more information. Internet IP Address This IP Address is allocated by the ISP (Internet Service Provid- er). If using a dynamic IP address, and no connection currently exists, this information is unavailable. WAN MAC Address It displays the MAC address for the WAN. Connection Details Click this button to open a sub-window and view a detailed description of the current connection. Depending on the type of connection, a "log" may also be available. LAN IP Address The IP Address of the Wireless ADSL Router. Network Mask The Network Mask (Subnet Mask) for the IP Address above. DHCP Server This shows the status of the DHCP Server function. The value will be "Enabled" or "Disabled". MAC Address This shows the MAC Address for the Wireless ADSL Router, as seen on the LAN interface. Wireless SSID 1 It displays the name of the SSID 1. MAC Address It displays the MAC address of the SSID 1. SSID 2 It displays the name of the SSID 2. MAC Address It displays the MAC address of the SSID 2. Region The current region, as set on the Wireless screen. Channel This shows the Channel currently used, as set on the Wireless screen. Wireless AP This indicates whether or not the Wireless Access Point feature is enabled. Broadcast Name This indicates whether or not the SSID is Broadcast. This setting is on the Wireless screen. 52 System Device Name The current name of the Router. This name is also the "hostname" for users with an "@Home" type connection. Firmware Version The version of the current firmware installed. Buttons Connection Details Click this button to open a sub-window and view a detailed description of the current connection. Attached Devices This will open a sub-window, showing all LAN and Wireless devices currently on the network. Refresh Screen Update the data displayed on screen. Connection Status - PPPoE & PPPoA If using PPPoE (PPP over Ethernet) or PPPoA (PPP over ATM), a screen like the following example will be displayed when the "Connection Details" button is clicked. Data - PPPoE/PPPoA Screen Connection Time This indicates how long the current connection has been estab- lished. PPPoE Link Status This indicates whether or not the connection is currently estab- lished. • If the connection does not exist, the "Connect" button can be used to establish a connection. • If the connection currently exists, the "Disconnect" button can be used to break the connection. Negotiation This indicates the status of the PPPoE Server login. IP Address The IP Address of this device, as seen by Internet users. This address is allocated by your ISP (Internet Service Provider). Network Mask The Network Mask associated with the IP Address above. Buttons Connect If not connected, establish a connection to your ISP. Disconnect If connected to your ISP, hang up the connection. Close Close this window. Connection Details - Dynamic IP Address If your access method is "…

Text truncated - open the document above for the full version.

ii Table of Contents INTRODUCTION ..................................................................................................................... 1 Features .............................................................................................................................. 1 Package Contents .............................................................................................................. 3 Physical Details .................................................................................................................. 4 Wireless Performance Considerations ............................................................................ 6 PC CONFIGURATION ............................................................................................................ 7 Overview ............................................................................................................................ 7 Windows Clients ................................................................................................................ 7 Macintosh Clients ............................................................................................................ 17 Linux Clients .................................................................................................................... 17 Other Unix Systems ......................................................................................................... 17 Wireless Station Configuration ...................................................................................... 18 Wireless Configuration on Windows XP ....................................................................... 18 INSTALLATION .................................................................................................................... 27 Requirements ................................................................................................................... 27 Procedure ......................................................................................................................... 27 SETUP ...................................................................................................................................... 29 Overview .......................................................................................................................... 29 Configuration Program .................................................................................................. 30 Setup Wizard ................................................................................................................... 31 Home Screen .................................................................................................................... 34 LAN Screen ...................................................................................................................... 36 DHCP ............................................................................................................................... 37 Wireless Screen ................................................................................................................ 38 Wireless Security ............................................................................................................. 42 Trusted Wireless Stations ............................................................................................... 47 Password Screen .............................................................................................................. 49 Mode Screen ..................................................................................................................... 50 OPERATION AND STATUS ................................................................................................ 51 Operation - Router Mode ............................................................................................... 51 Status Screen .................................................................................................................... 51 Connection Status - PPPoE & PPPoA ........................................................................... 54 Connection Details - Dynamic IP Address .................................................................... 55 Connection Details - Fixed IP Address .......................................................................... 56 ADVANCED FEATURES ...................................................................................................... 57 Overview .......................................................................................................................... 57 Internet ............................................................................................................................. 57 Access Control ................................................................................................................. 60 Dynamic DNS (Domain Name Server) .......................................................................... 62 Options ............................................................................................................................. 64 Schedule............................................................................................................................ 65 Port Trigger ..................................................................................................................... 66 Port Forward ................................................................................................................... 68 Port Range Forward ....................................................................................................... 69 QoS ................................................................................................................................... 70 ADVANCED ADMINISTRATION ....................................................................................... 72 Overview ...................................…

Text truncated - open the document above for the full version.

System Device Name The current name of the Router. This name is also the "hostname" for users with an "@Home" type connection. Firmware Version The version of the current firmware installed. Buttons Connection Details Click this button to open a sub-window and view a detailed description of the current connection. Attached Devices This will open a sub-window, showing all LAN and Wireless devices currently on the network. Refresh Screen Update the data displayed on screen. 35B Connection Status - PPPoE & PPPoA If using PPPoE (PPP over Ethernet) or PPPoA (PPP over ATM), a screen like the following example will be displayed when the "Connection Details" button is clicked. Data - PPPoE/PPPoA Screen Connection Time This indicates how long the current connection has been estab- lished. PPPoE Link Status This indicates whether or not the connection is currently estab- lished. • If the connection does not exist, the "Connect" button can be used to establish a connection. • If the connection currently exists, the "Disconnect" button can be used to break the connection. Negotiation This indicates the status of the PPPoE Server login. IP Address The IP Address of this device, as seen by Internet users. This address is allocated by your ISP (Internet Service Provider). Network Mask The Network Mask associated with the IP Address above. Buttons Connect If not connected, establish a connection to your ISP. Disconnect If connected to your ISP, hang up the connection. Close Close this window. 36B 54 Connection Details - Dynamic IP Address If your access method is "Direct" (no login), with a Dynamic IP address, a screen like the following example will be displayed when the "Connection Details" button is clicked. Data - Dynamic IP address Internet IP Address The current IP Address of this device, as seen by Internet users. This address is allocated by your ISP (Internet Service Provider). Network Mask The Network Mask associated with the IP Address above. Default Gateway The IP address of the remote Gateway or Router associated with the IP Address above. DHCP Server The IP address of your ISP's DHCP Server. DNS Server The IP address of the Domain Name Server which is currently used. Lease Obtained Lease Expires This indicates when the current IP address was obtained, and how long before this IP address allocation (the DCHP lease) expires. Buttons Release If an IP Address has been allocated to the Wireless ADSL Router (by the ISP's DHCP Server, clicking the "Release" button will break the connection and release the IP Address. Renew If the ISP's DHCP Server has NOT allocated an IP Address for the Wireless ADSL Router, clicking the "Renew" button will attempt to re-establish the connection and obtain an IP Address from the ISP's DHCP Server. Close Close this window. Connection Details - Fixed IP Address If your access method is "Direct" (no login), with a fixed IP address, a screen like the follow- ing example will be displayed when the "Connection Details" button is clicked. Data - Fixed IP address Screen Internet IP Address The IP Address of this device, as seen by Internet users. This address is allocated by your ISP (Internet Service Provider). Network Mask The Network Mask associated with the IP Address above. Default Gateway The IP Address of the remote Gateway or Router associated with the IP Address above. DNS Server The IP Address of the Domain Name Server which is currently used. 56 Advanced Features Overview The following advanced features are provided: • Internet: • DMZ • URL filter • Access Control • Dynamic DNS • Options • Schedule • Port Trigger • Port Forward • Port Range Forward • QoS Internet This screen provides access to the DMZ and URL Filter features. DMZ This feature, if enabled, allows the DMZ computer on your LAN to be exposed to all users on the Internet. 57 • This allows almost any application to be used on the "DMZ PC". • The "DMZ PC" will receive all "Unknown" connections and data. • If the DMZ feature is enabled, you must enter the IP address of the PC to be used as the "DMZ PC". The "DMZ PC" is effectively outside the Firewall, mak- ing it more vulnerable to attacks. For this reason, you should only enable the DMZ feature when required. URL Filter If you want to limit access to certain sites on the Internet, you can use this feature. The URL filter will check each Web site access. If the address, or part of the address, is included in the block site list, access will be denied. On the Advanced Internet screen, select the desired setting: • Disable - disable this feature. • Block Always - allow blocking all of the time, independent of the Schedule page. • Block By Schedule - block according to the settings on the Schedule page. Click the Configure URL Filter button to open the URL Filter screen, allowing you to create or modify the filter strings which determine which sites will be blocked. The URL Filter screen is displayed when the Configure URL Filter button on the Internet screen is clicked. 58 Data - URL Filter Screen Current Filter Strings Current Filter Strings The list contains the current list of items to block. • To add to the list, use the "Add" option below. • To delete an entry, select it and click Delete button. • To delete all entries, click the Delete All button. Add Filter String To add to the current list, type the word or domain name you want to block into the field provided, then click the Add button. Filter strings should be as specific as possible. Otherwise, you may block access to many more sites than intended. Trusted PC Allow this PC.. Enable this to allow one computer to have unrestricted access to the Internet. For this PC, the URL filter will be ignored. If enabled, you must select the PC to be the trusted PC. Trusted PC Select the PC to be the Trusted PC. Access Control This feature is accessed by the Access Control link on the Advanced menu. Overview The Access Control feature allows administrators to restrict the level of Internet Access avail- a…

Text truncated - open the document above for the full version.

TRENDnet, INC 20675 Manhattan Place, Torrance, CA 90501, U.S.A Date: Ma rc h 8, 20 I 0 S ubject : D oC declaratio n To Whom it may concern, We , as the grantee of this projec t FCC ID: XUSTEW635-657 , wo uld like to decla re that the composite porti on ca tego rized a s c omputer periphe ra l has been a uthorized under the D ecla ration o f Conformity proced ures. R egard s, Yours sincerely, Sonny Su / Di re r of Technology TRENDnet, INC 20675 Manhattan Place, Torrance, CA 90501, U.S.A TEL 1-310-961-5500 FAX 1-310-961-5511 E-Mail: [email protected]

TRENDnet, INC 20675 Manhattan Place, CA 90501, U.S.A Date:March 17, 2010 Subject: Ad Hoc Mode Function Declaration XU8TEW635-657 To Whom it may concern, This device is able to be operated on both master and client mode. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you.

TRENDnet, INC 20675 Manhattan Place, Torrance, CA 90501, U.S.A Date: M arch S, 20 I 0 Federal C ommunicatio ns Commissi on Autho rization a nd Eva lua tion Divis ion FCC!D : XUSTEW635-6 57 Conftdentiality Request Purs uant to Sections 0.457 a nd 0.459 of th e Commiss ion's Rules, the applicant hereby requests confidential treatme nt of information applied this applicatio n as o utlined below: 1. Block Diagram 2 . C irc uit Diagram 3. Ope ratio nal Description T he above mater ials contain trade secrets and proprietary infonnation not c ustomaril y released to the pUblic. The public di sclosure of these matters might be harmful to th e a pplicant and provide unjustified benefits to its compe titors. The Applicant understands that purs uant to Rule 0.457, disclosure of this Application and all accompanying do cume ntatio n wi ll not be made befo re the date of the Grant fo r t his application Yours sincerely, Sonny Su I Dire t r of Technology TRENDnet, INC 20675 Manhattan Place, Torrance, CA 90501 , U.S .A TEL 1-310-961-5500 FAX: 1-310-961-5511 E-Mail: [email protected]

TRENDnet, INC 20675 Manhattan Place, Torrance, CA 90501 , U.S.A Date: March 8, 20 I 0 Dear Sir, I here by have entrusted the following person to be a proxy re garding application for Type Certification. Compliance Certification Se rvices Inc. Address: No. II , Wugong 6 lh Rd., Wugu Towersh ip, Taipei County 2489 1, Taiw an Mr. Steven Wa ng Jo b T i tle : Sectio n Manager Email: applicatio n.20 IO@ccsrfcom I a m therefore r espo ns ible fo r the contents oflhe a pplication. Brand Name and Mode l Na me ofl he s pecifi e d radio equipme nt : Bra nd Name: T REND net Mode l Name: T EW-657BRM ; TE W- 635BRM FC C !D: X U8TEW635-657 Pro duc t Na me: 802.11 N Wireless ADS L Route r You rs sincerely, ""'--",.----,,/1 ~. .\ ~\ Sonny Su / Di rector f echnology TRENDnet, INC 20675 Manhattan Place , Torrance , CA 90501, U .S .A TEL 1-310-961-5500 FAX: 1-310-961 - 551 1 E-Mail: s.5u@trendne t.com

20675 Manhattan Place, Torrance, CA 90501, USA TEL.: (310)961-5500 FAX: (310)961-5511 Power of Authority Date: 2010‐03‐01 To whom it may concern: I, the undersigned Wen Tsai , hereby authorize the person listed below to act behalf of me to sign all related documents for FCC application. Name/title: Sonny Su / Directory of Technology TEL.: (310) 961‐5500 ext. 5480 FAX: (310) 961‐5511 E‐mail: [email protected] Name/title: Pei Huang / CEO TEL.: (310) 961‐5500 FAX: (310) 961‐5511 E‐mail: [email protected] If you have any questions regarding the declaration, please don’t hesitate to contact us. Thank you! ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Wen Tsai /Sr. Product Manager TRENDNET, Inc. TEL.: (310)961‐5500 ext.5474 FAX: (310)961‐5511 [email protected]

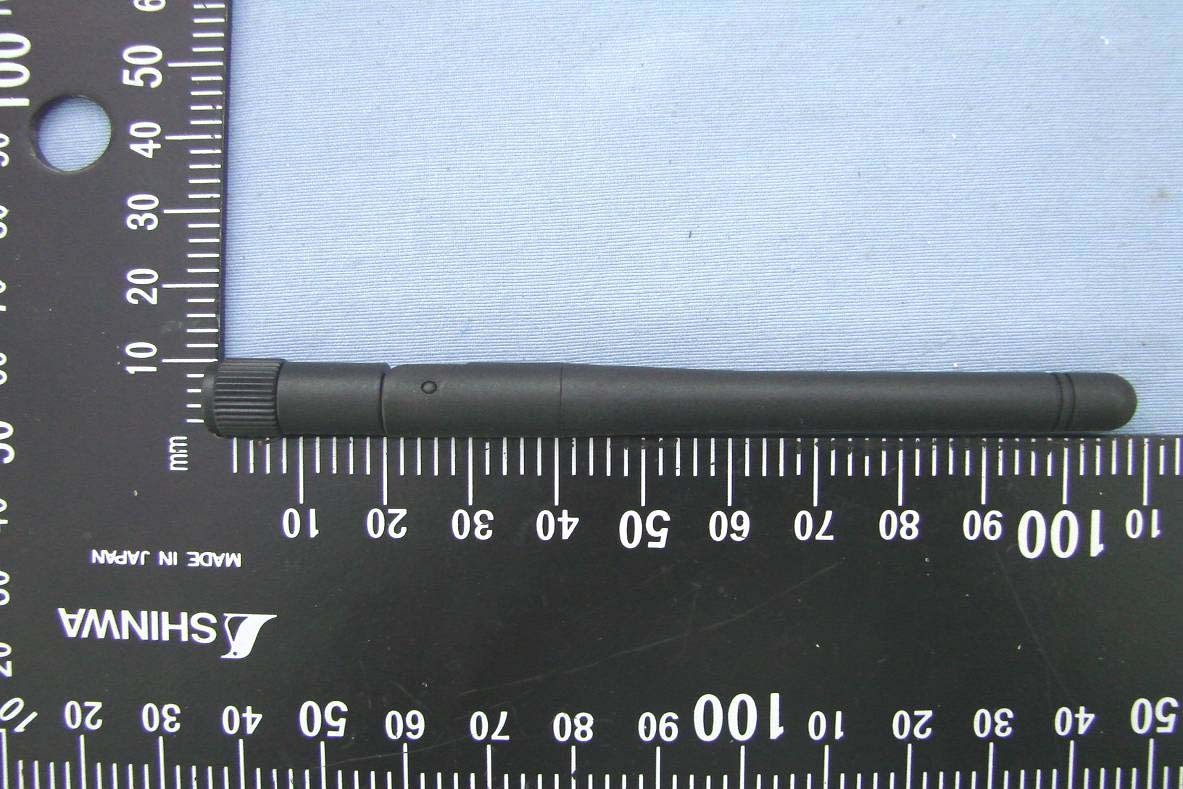

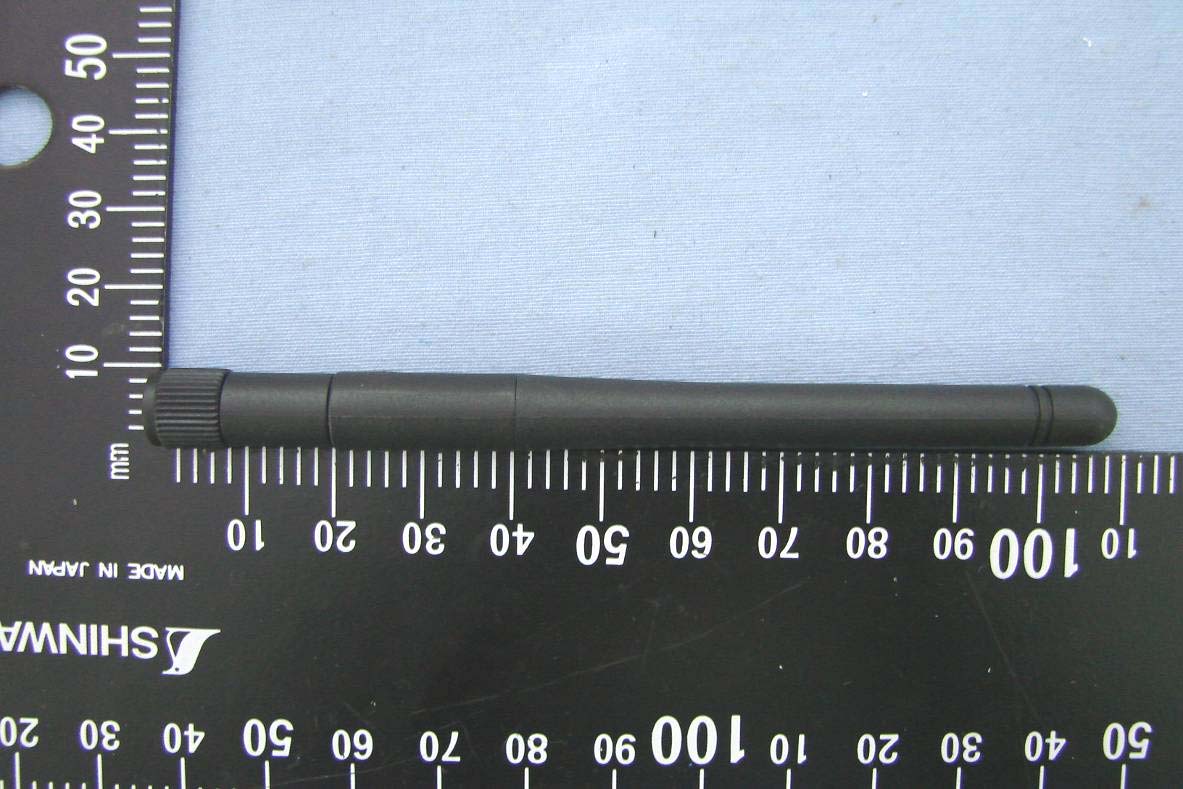

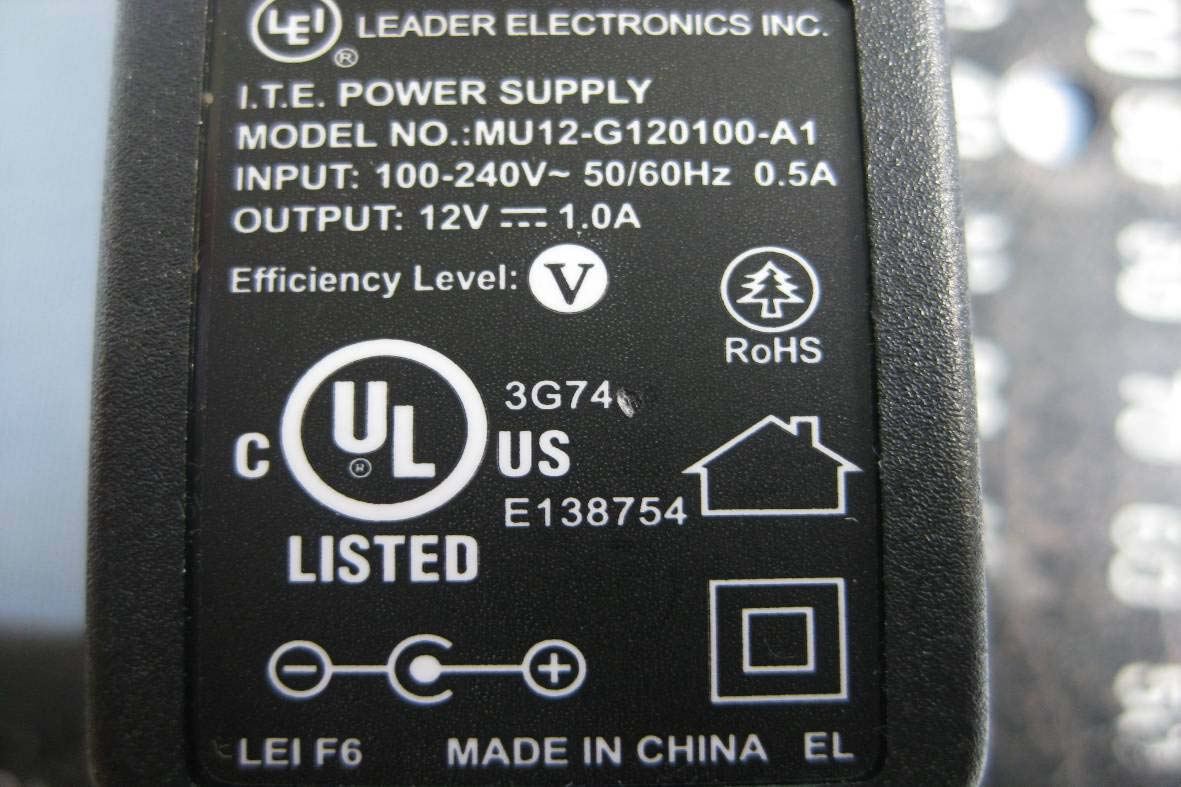

Compliance Certification Services Inc. Reference No.: 91029203 Report No.: T100301207 Date of Issue: March 4, 2010 Page 1 Total Page: 14 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT For TEW-635BRM (Twin Dipole antenna) Compliance Certification Services Inc. Reference No.: 91029203 Report No.: T100301207 Date of Issue: March 4, 2010 Page 2 Rev. 00 Compliance Certification Services Inc. Reference No.: 91029203 Report No.: T100301207 Date of Issue: March 4, 2010 Page 3 Rev. 00 Compliance Certification Services Inc. Reference No.: 91029203 Report No.: T100301207 Date of Issue: March 4, 2010 Page 4 Rev. 00 For TEW-657BRM (Single Dipole antenna) Compliance Certification Services Inc. Reference No.: 91029203 Report No.: T100301207 Date of Issue: March 4, 2010 Page 5 Rev. 00 Compliance Certification Services Inc. Reference No.: 91029203 Report No.: T100301207 Date of Issue: March 4, 2010 Page 6 Rev. 00

Black FCC ID: XU8TEW635-657 802.11N Wireless ADSL Router ⫳⫶ഄ೼ৄ☷ᰖ䂟ᬍ⚎0DGHLQ7DLZDQ Model No: MAC Address: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interferance that may cause undesired operations. Made in China Notes:1. ׷፦ :50# қՅ Mylar, ΢ᜦ P, ङᓸլΚጤ 2. Ёκ / ڇӑ : ӵკҢ 3.4. Ϧৡ :+/- 0.2mm ҁ਑ҹ٬Ҕβ׷਑໪಄ӝ RoHS US: TI1DL01BTEW635-657 Serial No: Input: 12VDC 1APolarity: 56.4 36.5 R 1.0 TEW-657BRM&TEW-635BRMv2.0 ⍜䫊啭 1 1 1 1 2009-12-14 932YSM0137 02 T E W - 6 35 BR M

Black FCC ID: XU8TEW635-657 802.11N Wireless ADSL Router ⫳⫶ഄ೼ৄ☷ᰖ䂟ᬍ⚎0DGHLQ7DLZDQ Model No: MAC Address: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interferance that may cause undesired operations. Made in China Notes:1. ׷፦ :50# қՅ Mylar, ΢ᜦ P, ङᓸլΚጤ 2. Ёκ / ڇӑ : ӵკҢ 3.4. Ϧৡ :+/- 0.2mm ҁ਑ҹ٬Ҕβ׷਑໪಄ӝ RoHS US: TI1DL01BTEW635-657 Serial No: Input: 12VDC 1APolarity: 56.4 36.5 R 1.0 TEW-657BRM&TEW-635BRMv2.0 ⍜䫊啭 1 1 1 1 2009-12-14 932YSM0137 02 T E W - 65 7BR M

Compliance Certification Services Inc. Reference No.: 91029203 Report No.: T100301207 Date of Issue: March 4, 2010 Page 7 Rev. 00 INT…
