XU8TEW637V3300MBPS WIRELESS N ACCESS POINT/300MBPS WIRELESS EASY-N-UPGRADER

Page 1 TEW-637AP User Manual Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. Page 2 European Union Notice: Radio products with the CE marking comply with the R&TTE Directive (1999/5/EC), the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms: z EN 60950 Product Safety z EN 300 328 Technical requirement for radio equipment z EN 301 489-1/-17 General EMC requirements for radio equipment Trademark recognition All product names used in this manual are the properties of their respective owners and are acknowledged. Page 3 Package Contents z TEW-637AP wireless n AP z CAT-5 Ethernet Cable (the TEW-638AP’s Ethernet ports is Auto-MDIX) z Power Adapter (12.0V, 1.0A) z CD-ROM with Manual & Wizard z Quick Installation Guide Using a power supply with a different voltage than the one included with your product will cause damage and void the warranty for this product. Minimum System Requirements Installation Requirements • Web Browser: Internet Explorer (6 or higher) Mozilla or Safari. • A computer with a network adapter or wireless adapter properly installed. • CD-ROM drive • A router with an available network LAN port. • A RJ-45 network cable. Page 4 Introduction The versatile 300Mbps Wireless Easy-N-Upgrader is designed to create a scalable high speed wireless n network or to connect a wired device to an existing wireless network. Use multiple 300Mbps Wireless Easy-N-Upgrader together to extend your network using Wireless Distribution System (WDS), Wireless Bridge and AP Client Modes. Expand a wireless network without running additional cabling with Wireless Distribution Service (WDS) technology by connecting multiple access points wirelessly. Use Wireless Bridge Mode to connect devices such as game consoles, printers and digital video recorders (DVR) to your wireless network. Advanced antenna technology (MIMO) increases wireless coverage and WPA / WPA2 encryption protects your wireless network. Features • Affordable 11n product for easily migrating current 11b/g network to 11n network with higher data rate benefit • Supports IEEE 802.11n & 11b/g 2.4GHz wireless Local Area Network (WLAN) application • 2.412 to 2.484GHz frequency band operation • Compliant with IEEE 802.3 & 3u standards • Support OFDM and CCK modulation • Data rates of 1,2.5.5,6,9,12,18,24,36,48,54Mbps and 802.11n offering up to 300Mbps • Support QoS with WMM for multimedia streaming • Support WPS button for easy of use • Support one LAN port • Support WEP, WPA & WPA2 security • Support two external antennas • Support Repeater Mode Page 5 Installation Considerations The TEW-637AP AP lets you access your network, using a wireless connection, from virtually anywhere within its operating range. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines: 1 Keep the number of walls and ceilings between the TEW-637AP and other network devices to a minimum - each wall or ceiling can reduce your wireless product’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized. 2 Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception. 3 Building Materials can impede the wireless sign…

Text truncated - open the document above for the full version.

TRENDnet, Inc. Feb. 25, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID烉XU8TEW637APV3 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/title: Wen Tsai / Sr. Product Manager Company Name: TRENDnet, Inc. Address: 20675 Manhattan Place Torrance, CA 90501 United States Tel: (310) 961-5500 5474 Fax烉(310) 961-5511 e-mail address: [email protected]

TRENDnet, Inc. ġ Company name: TRENDnet, Inc. Company address: 20675 Manhattan Place Torrance, CA 90501 United States March 4, 2011 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: XU8TEW637APV3 , would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, Signature Name/title: Wen Tsai / Sr. Product Manager Company Name: TRENDnet, Inc. Address: 20675 Manhattan Place Torrance, CA 90501 United States Tel: (310) 961-5500 5474 Fax烉(310) 961-5511 e-mail address: [email protected]

TRENDnet, Inc. March 4, 2011 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6 th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. Rex Lai Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: TRENDnet ; TEW-637AP/ TEW-638APB FCC ID: XU8TEW637APV3 Product Name: 300Mbps Wireless Easy-N-Upgrader / 300Mbps Wireless N Access Point Signature Name/title: Wen Tsai / Sr. Product Manager Company Name: TRENDnet, Inc. Address: 20675 Manhattan Place Torrance, CA 90501 United States Tel: (310) 961-5500 5474 Fax烉(310) 961-5511 e-mail address: [email protected]

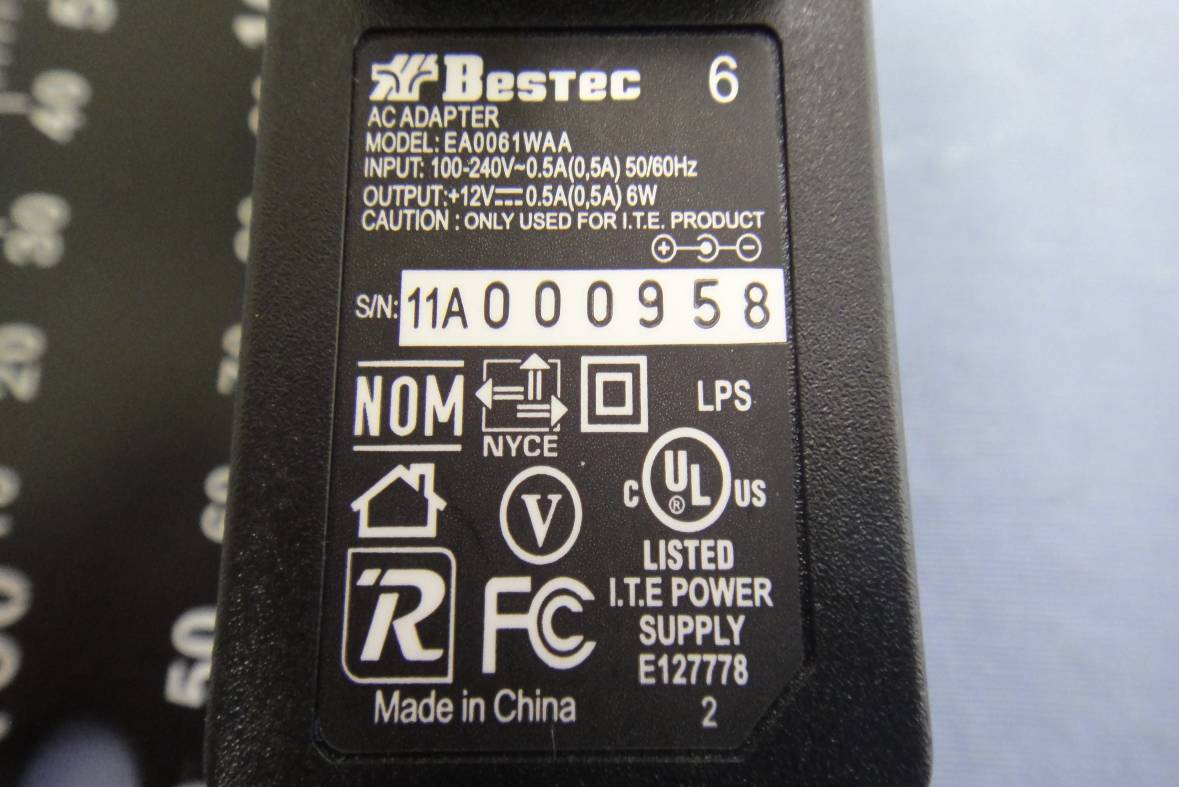

Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 1 Total Page: 20 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT For TEW-637AP Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 4 Rev. 00 For TEW-638APB Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 8 Rev. 00

TEW-637AP / A(HW:3.0R) FCC ID: XU8TEW637V3 and , S/N: UMXXXXXXXXXXX MAC: XXXXXXXXXXXX

TEW-638APB / A(HW:3.0R) 300Mbps Wireless N Access Point FCC ID: XU8TEW637V3 and , S/N: UMXXXXXXXXXXX MAC: XXXXXXXXXXXX

Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 9 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT For TEW-637AP Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 11 Rev. 00 Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 12 Rev. 00 Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 13 Rev. 00 Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 14 Rev. 00 Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 15 Rev. 00 For TEW-638APB Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 16 Rev. 00 Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 17 Rev. 00 Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 18 Rev. 00 Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 19 Rev. 00 Compliance Certification Services Inc. Report No.: T110224006 Date of Issue: March 17, 2011 A1 - 20 Rev. 00

Product Number: AN2400-48A12BX Product Name: Antenna COR/F-G-15b Specification For Approval Date: 2010 / 12 / 31 File No.: 101231004 Version: 1.0 CustomerΚ ڙཕጻຏैٝڶૻֆ׹ Customer P/NΚ / INVAX P/NΚ AN2400-48A12BX Description : Antenna Cortec Checked By: Customer Approved By: INVAX System Technology Corp. Cortec Technology Inc. 4F. No. 815.Chung Hsiao East Rd.,Sec.5 Xian-Xi Industrial, Sha-Tou Administration Zone, Taipei, TAIWAN Chang-An Town, Dong-Guan City, Guangdong Province, China TEL:886-2-2788-5218 FAX:886-2-2783-1658 TEL:86-769-85388261 FAX:86-769-85317869 http://www.invaxsystem.com http://www.cortec.com.cn 2010.12.31 R&D Dept Seagold Product Number: AN2400-48A12BX Product Name: Antenna Page 1 Version: 1.0 Issue Date: 2010-12-31 Index: 1. Specification / Page 2 2. Characteristics and Reliability Test / Page 3 3. Antenna - S Parameter Test Data / Page 4 4. Antenna - Radiation Pattern Test Data / Page 5 ~ 7 5. Mechanical and Packing Drawing / Page 8 ~ 9 6. Material Description and RoHS Test Report / Page 10 ~ end Product Number: AN2400-48A12BX Product Name: Antenna Page 2 Version: 1.0 Issue Date: 2010-12-31 1. Specification Sample Photo A. Electrical Characteristics Frequency 2400 ~ 2500 MHz S.W.R. <= 2.0 Antenna Gain 2dBi Polarization Linear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator Cu Material of Plastic Body: TPE Hinge: PC+ABS Holder: PC+ABS Cable Type O.D. 1.13mm Connector Type Mini Connector Connector Pull Test >= 1.0 Kg Connector Torque Test / C. Environmental Operation Temperature - 40 ̊C ~ + 65 ̊C Storage Temperature - 40 ̊C ~ + 80 ̊C (omni) Product Number: AN2400-48A12BX Product Name: Antenna Page 3 Version: 1.0 Issue Date: 2010-12-31 2. Characteristics and Reliability Test Test Items Test Condition and Procedure Requirements C1 S.W.R. Set DUT on Network Analyzer; make individual calibration to test Directive DUT specification C2 Antenna Gain Set DUT on Antenna Chamber; make individual calibration to test Directive DUT specification M1 Vibration MIL-STD-202G, 201A Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz 3 directions; 2 hours for each direction 1. No Visual Damage 2. Frequency Tol.<= 5% M2 Random Drop Height: 1.5 Meter; 3 directions; 1 time for each direction 1. No parts separated 2. Frequency Tol.<= 5% M3 Solderability MIL-STD-202G, 210F, cond. A Solder iron: 350±10°C; Duration: 5 seconds 1. Mounted on PCB 2. No Visual Damage M4 Terminal- Pull Test MIL-STD-202G, 211A, cond. A Holding with individual specification; force applied to axis of terminal 1. Directive DUT specification 2. Frequency Tol.<= 5% M5 Terminal- Torque Test MIL-STD-202G, 211A, cond. E Holding with individual specification; applied clockwise and counterclockwise to the axis of terminal 1. Directive DUT specification 2. Frequency Tol.<= 5% M6 Dimension Inspection of dimension, color, material, package, surface process Directive DUT specification E1 Salt Spray MIL-STD-202G, 101E, cond. B Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%; Time: 48 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E2 Humidity MIL-STD-202G, 103B, cond. B Temp: 40°C; RH: >= 95%; Time: 48 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E3 Thermal Shock 1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes) Cycles: 24 After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E4 Life (High Temp.) MIL-STD-202G, 108A, cond. A Temp: 85°C; Time: 96 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% R1 RoHS With Reference to IEC 62321:2008 with flow chart Directive RoHS 2002/95/EC R2 PFOS With Reference to USA EPA 3540C:1996 by LC/MS Directive RoHS 2006/122/EC R3 PFOA With Reference to USA EPA 3540C:1996 by LC/MS Directive RoHS 2006/122/EC Product Number: AN2400-48A12BX Product Name: Antenna Page 4 Version: 1.0 Issue Date: 2010-12-31 3. Antenna - S Parameter Test Data Product Number: AN2400-48A12BX Product Name: Antenna Page 5 Version: 1.0 Issue Date: 2010-12-31 4. Antenna - Radiation Pattern Test Data Testing Equipment Specification: Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent 5071B Received Antenna: 0.7 ~ 6.0 GHz for Gain Calibration Double Ridged Horn Antenna 5. Mechanical Drawing See attached files 6. Material Description and RoHS Test Report See attached files AN2400-48A12BX.dwg 2010.12.27 Simon 8 DESIGNED BYCHECKED BY A B C 123 4 DWG NAME:PART NO.: 6 DESCRIPTION E D 5 6 7 SIGNDATEAPPROVER ±0.15 ±0.30 ±3°X° X.X X.XX Tolerance APPROVED BY PART NAME: REVISION: A UNITS: mm SCALE: 1/1 D C B ANTENNA-2.4GHz-2dBi AN2400-48A12BX Fax:886-2-27831658 Tel :886-2-27885218 Invax System Group. Cortec Technology Inc. No. Part Number Description Material Finish Q'ty Note: 1. Dimension: Take * is the important dimension 2. Tolerance: Unmarked tolerance refer to the standard tolerance please 2010.12.27 Jack 2010.12.27 Grant Կ. SEALING FRONT SIDE ԫʳ. WITH THE ANT INTO THE PE BAG MADE IN CHINA C/NO ITEM NO: QTY: ### PCS N W: ### KGS G W: ### KGS MEAS: Բ. PACKING Revision : Customer : Name: Part Number : ข঴ץᇘ๵ᒤ PACKING CRITERION DESIGNED BY:CHECKED BYΚAPPROVED BYΚ Date: Page:1 of 1 UNITS: mm AN2400-48A12BX APANTENNA A ALL GrantJackSimon 2010.12.27 1000PCS / CARTON 10 PCS/PEBAG GP Ⴤ।Κழᣝ ຝ॰Κઔ࿇ຝ ៭೭Κ୉֮ CdPbHgCr(VI)PBBs PBDEs 1AN48A-01BBody1TPEN.D.N.D.N.D.N.D.N.D.N.D.RLSZC0007308200012010.11.11TPEE DUJ 2AN48A-05BBody2PC+ABSN.D.N.D.N.D.N.D.N.D.N.D.CANEC1001721801 2010.04.28PC/ABS ՕຬSGS 3R-AN3701-02ABody3PC+ABSN.D.N.D.N.D.N.D.N.D.N.D.CANEC1001721801 2010.04.28PC/ABS ՕຬSGS 4R-AN01-1213ZPINCU4529700N.D.NegativeCE/2010/202132010.02.06 GSFF!DVUUJOHፕקTHT 5R-AN94-02STubeCU4529700N.D.NegativeCE/2010/202132010.02.06 GSFF!DVUUJOHፕקTHT 6FEPN.D.N.D.N.D.N.D.N.D.N.D.SHR100420313410032010.04.24Coaxial-cable ՕຬCTI 7FEPN.D.N.D.N.D.N.D.N.D.N.D.SHR100420313410032010.04.24Coaxial-cable ՕຬCTI 8 ᝳᙔᎭᒵ N.D.N.D.N.D.NegativeSHR100420313410032010.04.24Coaxial-cable ՕຬCTI 9 ᝳᎬᎭᒵ N.D.N.D.N.D.N…

Text truncated - open the document above for the full version.

CUSTOMER:
JOYMAX MODEL NO.:
DESCRIPTION:




REV.:
DATE:                                               !"#" !"#" !"#" !"#" $$" $$"$$" $$"
CUSTOMER MODEL NO.: Item Page 1. Drawing 2. Test report Electrical test 3. Connector Reverse SMA Plug 4 . Packing Index. 1-1 2-1 3-1 002006/02/09 ContentDateRev. Modification History: Model.IWX-241XRSXX Test Report Electrical Test Return loss V.S.W.R. 2-1 Connector 3-1 Reverse SMA Plug This is a reverse SMA plug join on the antenna. 50 ohm 0~6 GHz 1.5 (Max.) 250 Vrms 670 Vrms 2000Megohm Center contact: 3.0 Milliohm (Max.) Outer contact: 2.0 Milliohm (Max.) 0.3 dB 1) Impedance 2) Frequency Range 3) V.S.W.R. 4) Working Voltage 5) Dielectric Withstanding 6)Voltage Insulation Resistance 7) Contact Resistance 8) Insertion Loss(2.4GHz) Electrical Properties 1) Recommended coupling nut torque 2) Coupling nut retention force 3) Contact captivation axial Mechanical Properties 4.0 in.lbs. 8.8 in.lbs. 50 lbs. 5lbs. Environmental Ratings 1) Operating Temperature 2) Thermal Shock 3) Corrosion 4) Shock 5) Vibration 6) Moisture Resistance 65165 MIL-STD-202, Method 107, Condition B MIL-STD-202, Method 101, Condition B MIL-STD-202, Method 213, Condition I MIL-STD-202, Method 204, Condition D MIL-STD-202, Method 106 Material Specifications 2) Pin 3) Insulator 1) Body Material Brass Phosphor Bronze Black Gold Plating Teflon or Delrin

Compliance Certification Services Inc. Report No.: T110224006-RP1 FCC ID: XU8TEW637V3 Date of Issue: March 16, 2011 Page 85 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 300Mbps Wireless Easy-N-Upgrader 300Mbps Wireless N Access Point Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 16.18 dBm (41.49 mW) IEEE 802.11g mode: 14.75 dBm (29.85 mW) IEEE 802.11n HT 20 MHz mode: 15.43 dBm (34.91 mW) IEEE 802.11n HT 40 MHz mode: 15.75 dBm (37.58 mW) 2.9 dBi (Numeric gain: 1.94) Antenna gain (Max) MIMO Mode: 2.9 dBi + 10 log (2) = 5.9 dBi (Numeric gain: 3.89) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 16.18 dBm (41.49 mW) at 2462 MHz (with 1.94 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No.: T110224006-RP1 FCC ID: XU8TEW637V3 Date of Issue: March 16, 2011 Page 86 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T110224006-RP1 FCC ID: XU8TEW637V3 Date of Issue: March 16, 2011 Page 87 Rev. 00 IEEE 802.11b mode: EUT output power = 41.49 mW Numeric Antenna gain = 1.94 Æ Power density = 0.016018 mW / cm2 IEEE 802.11g mode: EUT output power = 29.85 mW Numeric Antenna gain = 1.94 Æ Power density = 0.011524 mW / cm2 IEEE 802.11n HT 20 MHz mode: EUT output power =34.91 mW Numeric Antenna gain = 3.89 Æ Power density = 0.027024mW / cm2 IEEE 802.11n HT 40 MHz mode: EUT output power = 37.58mW Numeric Antenna gain = 3.89 Æ Power density = 0.029091 mW / cm2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: T110224006-RP1 FCC ID: XU8TEW637V3 Date of Issue: March 16, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 90 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 300Mbps Wireless Easy-N-Upgrader 300Mbps Wireless N Access Point Model: TEW-637AP, TEW-638APB Trade Name: TRENDnet Issued to TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T110224006-RP1 FCC ID: XU8TEW637V3 Date of Issue: March 16, 2011 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED .........................................................................................8 4.3 MEASUREMENT UNCERTAINTY ...............................................................................................9 5. FACILITIES AND ACCREDITATIONS ........................................................................................10 5.1 FACILITIES .......................................................................................................................................10 5.2 EQUIPMENT......................................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................11 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................12 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................12 6.2 SUPPORT EQUIPMENT ...............................................................................................................12 7. FCC PART 15.247 REQUIREMENTS.............................................................................................13 7.1 6DB BANDWIDTH.............................................................................................................................13 7.2 PEAK POWER....................................................................................................................................24 7.3 AVERAGE POWER............................................................................................................................26 7.4 BAND EDGES MEASUREMENT ................................................................................................28 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................37 7.6 SPURIOUS EMISSIONS.................................................................................................................52 7.7 RADIATED EMISSIONS ..............................................................................................................65 7.8 POWERLINE CONDUCTED EMISSIONS...............................................................................................82 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................85 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................88 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110224006-RP1 FCC ID: XU8TEW637V3 Date of Issue: March 16, 2011 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 Equipment Under Test: 300Mbps Wireless Easy-N-Upgrader 300Mbps Wireless N Access Point Tr a d e N a m e : TRENDnet Model: TEW-637AP, TEW-638APB Date of Test: March 8 ~ 11, 2011 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T110224006-RP1 FCC ID: XU8TEW637V3 Date of Issue: March 16, 2011 Page 88 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: T110224006-RP1 FCC ID: XU8TEW637V3 Date of Issue: March 16, 2011 Page 89 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Report No.: T110224006-RP1 FCC ID: XU8TEW637V3 Date of Issue: March 16, 2011 Page 90 Rev. 00 Powerline Conducted Emissions Setup Photos
