XU8TEW638PAP300Mbps PoE Wireless N Access Point

1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. 2 Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: - EN60950-1:2006 Safety of Information Technology Equipment - EN50385 : (2002-08) - Product standard to demonstrate the compliance of radio base stations and fixed terminal stations for wireless telecommunication systems with the basic restrictions or the reference levels related to human exposure to radio frequency electromagnetic fields (110MHz - 40 GHz) - General public - EN 300 328 V1.7.1: (2006-10) - Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive - EN 301 489-1 V1.8.1: (2008-04) - Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements - EN 301 489-17 V1.3.2 (2008-04) - Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment; Part 17: Specific conditions for 2,4 GHz wideband transmission systems, 5 GHz high performance RLAN equipment and 5,8 GHz Broadband Data Transmitting Systems - This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. 0560 3 4 5 Česky [Czech] TRENDware tímto prohlašuje, že tento TEW-638APB je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish] Undertegnede TRENDware erklærer herved, at følgende udstyr TEW-638APB overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt TRENDware dass sich das Gerät TEW-638APB in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab TRENDware seadme TEW-638APB vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, TRENDware, declares that this TEW-638APB is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente TRENDware declara que el TEW-637AP cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ TRENDware ΔΗΛΩΝΕΙ ΟΤΙ TEW-638APB ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ. Français [French] Par la présente TRENDware déclare que l'appareil TEW-638APB est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian] Con la presente TRENDware dichiara che questo TEW-638APB è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla…

Text truncated - open the document above for the full version.

1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. 2 European Union Notice: Radio products with the CE marking comply with the R&TTE Directive (1999/5/EC), the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms: z EN 60950 Product Safety z EN 300 328 Technical requirement for radio equipment z EN 301 489-1/-17 General EMC requirements for radio equipment Trademark recognition All product names used in this manual are the properties of their respective owners and are acknowledged. EUROPE – EU DECLARATION OF CONFORMITY This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: - EN60950-1:2006 Safety of Information Technology Equipment - EN50385 : (2002-08) - Product standard to demonstrate the compliance of radio base stations and fixed terminal stations for wireless telecommunication systems with the basic restrictions or the reference levels related to human exposure to radio frequency electromagnetic fields (110MHz - 40 GHz) - General public - EN 300 328 V1.7.1: (2006-10) - Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive - EN 301 489-1 V1.8.1: (2008-04) - Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements - EN 301 489-17 V1.3.2 (2008-04) - Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment; Part 17: Specific conditions for 2,4 GHz wideband transmission systems, 5 GHz high performance RLAN equipment and 5,8 GHz Broadband Data Transmitting Systems - This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. 3 In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. 0560 4 5 Česky [Czech] TRENDware tímto prohlašuje, že tento TEW-638PAP je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish] Undertegnede TRENDware erklærer herved, at følgende udstyr TEW-638PAP overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt TRENDware, dass sich das Gerät TEW-638PAP in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab TRENDware seadme TEW-638PAP vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, TRENDware, declares that this TEW-638PAP is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente TRENDware declara que el TEW-638PAP cumple con los requisitos esenciales y cualesqui…

Text truncated - open the document above for the full version.

Add Additional Wireless Network Name (SSID) To add additional Wireless Network Names simply add the name to the Multiple SSID field and click on apply at the bottom of the page. When finished, go to the Security section in this Users Guide for wireless security configuration. Multiple SSIDs Broadcast Network Name (SSID) This option allows you to hide your wireless network. When this option is set to enable, your wireless network name is broadcast to anyone within the range of your signal. If you're not using encryption then they could connect to your network. When this mode is disabled, you must enter the Wireless Network Name (SSID) on the client manually to connect to the network. Frequency (Channel) A wireless network uses specific channels in the wireless spectrum to handle communication between clients. Some channels in your area may have interference from other electronic devices. Choose the clearest channel to help optimize the performance and coverage of your wireless network. Page 31 WDS Mode When WDS is enabled, this access point functions as a wireless bridge and is able to wirelessly communicate with other access points via WDS links. A WDS link is bidirectional; both end points must support WDS and each access point must know the MAC Address of the other. Each access point will be configured with the remote access point’s MAC address and vice versa. Make sure all access points are configured with the same SSID, channel and wireless encryption settings. WDS configuration option enabled Operating Mode If you have both wireless g and wireless n client devices included on your wireless network at the same time, you should choose Mixed Mode. And if you only have wireless n client devices on your wireless network, you can choose Green Field to enjoy high throughput. Channel Bandwidth The "20/40” MHz option is usually best. The other option is available for special circumstances. Guard Interval Page 32 Using “Auto” option can increase throughput. However, it can also increase error rate in some installations, due to increased sensitivity to radio-frequency reflections. Select the option that works best for your installation. MCS The Modulation and Coding Scheme (MCS) is a value that determines the modulation, coding and number of spatial channels. This parameter represents transmission rate. By default (Auto) the fastest possible transmission rate will be selected. You have the option of selecting the speed if necessary. Fix MCS rate for HT rate 0-15 Reserve Direction Grant (RDG) Disable or enable reserve direction grant. Default is enabled. Extension Channel When 20/40 channel bandwidth has been chosen, you should select extension channel to get higher throughput. Page 33 Wireless Advanced Beacon Interval Beacons are packets sent by a wireless Access Point to synchronize wireless devices. Specify a Beacon Period value between 20 and 1000. The default value is set to 100 milliseconds. Data Beacon Rate (DTIM) A DTIM is a countdown informing clients of the next window for listening to broadcast and multicast messages. When the wireless Access Point has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. Wireless clients detect the beacons and awaken to receive the broadcast and multicast messages. The default value is 1. Valid settings are between 1 and 255. Fragment Threshold This setting should remain at its default value of 2346. Setting the Fragmentation value too low may result in poor performance. RTS Threshold Page 34 This setting should remain at its default value of 2347. If you encounter inconsistent data flow, only minor modifications to the value are recommended. Short Preamble Use to synchronize communication timing between devices on a network. Disable by default. Short Slot Enable or disable short slot. Default is enabled. Tx Burst Enable or disable Tx burst. Default is enabled. Pkt_Aggregate Enable or disable Pkt aggregate. Default is enabled. Wi-Fi Multimedia WMM Capable Enabling WMM can help control latency and jitter when transmitting multimedia content over a wireless connection. APSD Capable Enable or disable APSD (Adaptive power scheduling protocol ) capable. Default is enabled. *Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions Page 35 Wireless MAC Filter The MAC address filter section can be used to filter network access by machines based on the unique MAC addresses of their network adapter(s). It is most useful to prevent unauthorized wireless devices from connecting to your network. A MAC address is a unique ID assigned by the manufacturer of the network adapter. Policy Three policies can be selected - Disable, Allow All & Reject All. MAC Address Add MAC Address to follow Policy setting Page 36 Wireless Security SSID choice Choose the SSID which need to implement security. Security Mode You can disable security mode, or you can choose following modes to enable security – Disable, WEP-OPEN,WEP-SHARED ,WEP-AUTO, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA-PSK/WPA2-PSK,WPA/WPA2 Page 37 Wireless WPS You can setup security easily by choosing PIN or PBC method to do Wi-Fi Protected Setup. WPS mode Two WPS modes can be selected – PIN & PBC. If PIN is selected, you should enter PIN code of your wireless client device to get wireless connection with this AP. Page 38 Wireless Station List You can monitor stations which associated to this AP. Page 39 WIRELESS BASIC – AP CLIENT Select the AP Client option to use the TEW-638PAP as a wireless network adapter. Use this feature to connect other Ethernet devices and allow them to become wirelessly enabled. Select the option AP Client and apply the setting at the bottom of the window. AP Client allows Ethernet enabled devices to become wirelessly enabled. Page 40 Wireless settings View the current Link Sta…

Text truncated - open the document above for the full version.

TRENDNET, Inc. 20675 Manhattan Place, Torrance, CA 90501 FCC Declaration letter FCC ID: XU8TEW638PAP Date: 12.09.2009 To whom it may concern: We, the undersigned, declare that the TEW-638PAP, TEW-638APB, TEW-637AP doesn’t have“Ad Hoc on non-US frequencies” and/or “on DFS frequencies” Sincerely, ___________________________ Wen Tsai / Sr. Product Manager TRENDNET, Inc. TEL: 1-(310)-961-5474 FAX: 1-(310)-961-5511 E-mail: [email protected]

TRENDNET, Inc. 20675 Manhattan Place, Torrance, CA 90501 FCC ID: XU8TEW638PAP Date: 12.09.2009 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Wen Tsai / Sr. Product Manager TRENDNET, Inc. TEL: 1-(310)-961-5474 FAX: 1-(310)-961-5511 E-mail: [email protected]

TRENDNET, Inc. 20675 Manhattan Place, Torrance, CA 90501 AGENCY AUTHORIZATION LETTER FCC ID: XU8TEW638PAP Date: 12.09.2009 To whom it may concern: We, the undersigned, hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by BV CPS Taoyuan within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Wen Tsai / Sr. Product Manager TRENDNET, Inc. TEL: 1-(310)-961-5474 FAX: 1-(310)-961-5511 E-mail: [email protected]

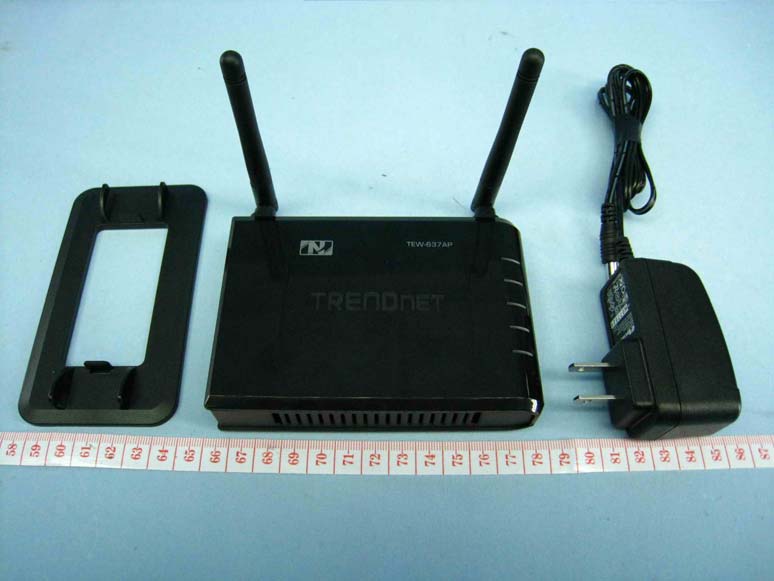

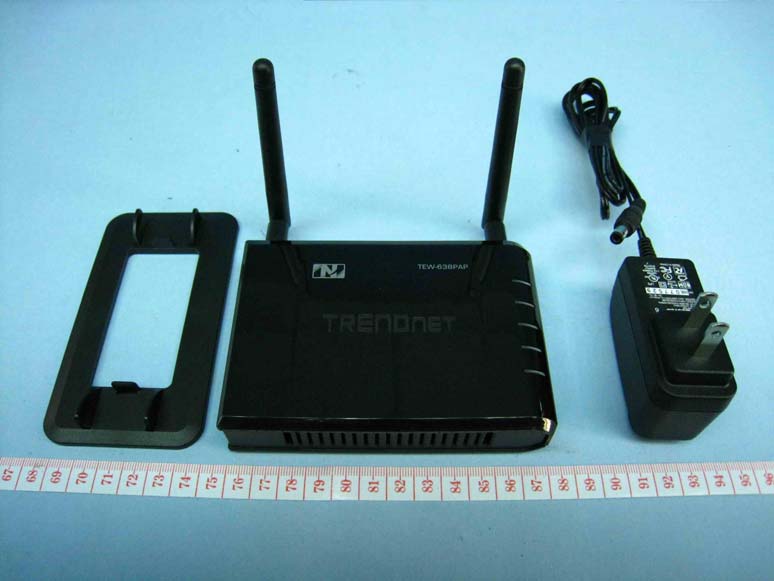

Page 1 CONSTRUCTION PHOTOS OF EUT Model No.: TEW-638PAP Page 2 Page 3 Model No.: TEW-638APB Page 4 Page 5 Page 6 Model No.: TEW-637AP Page 7 Page 8

TEW-638PAP FCC ID: XU8TEW638PAP and , / A (HW:X.XR) S/N: UMXXXXXXXXXXX MAC: XXXXXXXXXXXX 300Mbps PoE Wireless N Access Point TEW-638APB FCC ID: XU8TEW638PAP and , 300Mbps Wireless N Access Point TEW-637AP FCC ID: XU8TEW638PAP and ,

FCC ID .: XU8TEW638PAP TEW-638PAP Label Location TEW-638APB Label Location TEW-637AP Label Location

Page 1 CONSTRUCTION PHOTOS OF EUT Model No.: TEW-638PAP Page 2 Page 3 Page 4 Model No.: TEW-638APB Page 5 Page 6 Page 7 Model No.: TEW-637AP Page 8 Page 9 Page 10

FCC ID: XU8TEW638PAP Report No.: RF981109L05 OPERATIONAL DESCRIPTION This device is a 300Mbps PoE Wireless N Access Point, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise ratio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter or PoE. The antenna is dipole directional antenna with R-SMA & UFL antenna connector. For more detailed instruction, please take a look at the user’s manual.

Report No: SA981109L05 Report Format Version 3.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA981109L05 MODEL NO.: TEW-638PAP, TEW-638APB, TEW-637AP FCC ID: XU8TEW638PAP ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: TRENDNET, Inc. ADDRESS: 20675 Manhattan Place, Torrance, CA 90501 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. Report No: SA981109L05 Report Format Version 3.0.0 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 105.0 2 20 0.033 1.00

Report No.: RF981109L05 1 Report Format Version 3.0.0 FCC TEST REPORT REPORT NO.: RF981109L05 MODEL NO.: TEW-638PAP (Refer to item 3.1 for the more details) RECEIVED: Nov. 09, 2009 TESTED: Nov. 14 ~ Dec. 10, 2009 ISSUED: Dec. 14, 2009 APPLICANT: TRENDNET, Inc. ADDRESS: 20675 Manhattan Place, Torrance, CA 90501 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. This test report consists of 80 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981109L05 2 Report Format Version 3.0.0 TABLE OF CONTENTS 1. CERTIFICATION............................................................................................................4 2. SUMMARY OF TEST RESULTS ...................................................................................5 2.1 .MEASUREMENT UNCERTAINTY .................................................................................5 3. GENERAL INFORMATION ............................................................................................6 3.1 GENERAL DESCRIPTION OF EUT ..............................................................................6 3.2 DESCRIPTION OF TEST MODES ................................................................................8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...........................................................9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ..............................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................12 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................................13 4. TEST TYPES AND RESULTS .....................................................................................14 4.1 RADIATED EMISSION MEASUREMENT ...................................................................14 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................................14 4.1.2 TEST INSTRUMENTS.................................................................................................15 4.1.3 TEST PROCEDURES .................................................................................................16 4.1.4 DEVIATION FROM TEST STANDARD........................................................................16 4.1.5 TEST SETUP...............................................................................................................17 4.1.6 EUT OPERATING CONDITIONS ................................................................................17 4.1.7 TEST RESULTS ..........................................................................................................18 4.2 CONDUCTED EMISSION MEASUREMENT ..............................................................34 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................................34 4.2.2 TEST INSTRUMENTS.................................................................................................34 4.2.3 TEST PROCEDURES .................................................................................................35 4.2.4 DEVIATION FROM TEST STANDARD........................................................................35 4.2.5 TEST SETUP...............................................................................................................36 4.2.6 EUT OPERATING CONDITIONS ................................................................................36 4.2.7 TEST RESULTS ..........................................................................................................37 4.3 6dB BANDWIDTH MEASUREMENT...........................................................................45 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................................45 4.3.2 TEST INSTRUMENTS.................................................................................................45 4.3.3 TEST PROCEDURE....................................................................................................45 4.3.4 DEVIATION FROM TEST STANDARD........................................................................45 4.3.5 TEST SETUP...............................................................................................................46 4.3.6 EUT OPERATING CONDITIONS ................................................................................46 4.3.7 TEST RESULTS ..........................................................................................................47 4.4 MAXIMUM OUTPUT POWER .....................................................................................51 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT......................................51 4.4.2 INSTRUMENTS ...........................................................................................................51 4.4.3 TEST PROCEDURE....................................................................................................51 4.4.4 DEVIATION FROM TEST STANDARD........................................................................52 4.4.5 TEST SETUP...............................................................................................................52 4.4.6 EUT OPERATING CONDITIONS ................................................................................52 Report No.: RF981109L05 3 Report Format Version 3.0.0 4.4.7 TEST RESULTS ..........................................................................................................53 4.5 POWER SPECTRAL DENSITY MEASUREMENT ......................................................54 4…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST TEST MODE A 2 CONDUCTED EMISSION TEST TEST MODE B 3 CONDUCTED EMISSION TEST TEST MODE C 4 CONDUCTED EMISSION TEST TEST MODE D 5 RADIATED EMISSION TEST TEST MODE A 6 RADIATED EMISSION TEST TEST MODE B 7 RADIATED EMISSION TEST TEST MODE C 8 RADIATED EMISSION TEST TEST MODE D
