XU8TEW651BR150Mbps Wireless N Home Router

i ii Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. For Taiwan 警語 警語警語 警語 ： ：： ： 經型式認證合格之低功率射頻電機，非經許可，公司 、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之 特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方 得繼續使用。前項合法通信 ，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫 療用電波輻射性電機設備之干擾。 Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN60950-1: 2006 Safety of Information Technology Equipment EN 50385: 2002 Product standard to demonstrate the compliance of radio base stations and fixed terminal stations for wireless telecommunication systems with the basic restrictions or the reference levels related to human exposure to radio frequency electromagnetic fields (110MHz - 40 GHz) - General public EN 300 328 V1.7.1 (2006-10) Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive iii EN 301 489-1 V1.8.1 (2008-04) Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements EN 301 489-17 V1.3.2 (2008-04) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. 0560 Česky [Czech] TRENDnet tímto prohlašuje, že tento TEW-651BR je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish] Undertegnede TRENDnet erklærer herved, at følgende udstyr TEW-651BR overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt TRENDnet, dass sich das Gerät TEW-651BR in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab TRENDnet seadme TEW-651BR vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, TRENDnet, declares that this TEW-651BR is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente TRENDnet declara que el TEW-651BR cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ TRENDnet ΔΗΛΩΝΕΙ ΟΤΙ TEW-651BR ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ. Français [French] Par la présente TRENDnet déclare que l'appareil TEW-651BR est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian] Con la presen…

Text truncated - open the document above for the full version.

26 PPPoE If connected to the Internet using a PPPoE (Dial-up xDSL) Modem, the ISP will provide a Password and User Name, and then the ISP uses PPPoE. Choose this option and enter the required information. WAN IP: Select the WAN IP address Obtain from ISP automatically or enter the specified IP address. Server Name: Enter the server name provided by ISP (optional). User Name: Enter the user name provided by ISP. Password: Enter the password provided by ISP. Retype Password: Enter the password again. DNS: Enter the IP address of specified DNS server here, default value 0.0.0.0 is get the DNS settings from ISP. Auto-reconnect: Select the connection type for Always-on, Manual or Connect-on Demand connecting. Idle Time Out: Enter the idle time out for Connect on Daemon, when no Internet access during the idle time, the PPPoE connection will auto disconnect. 27 MTU: Enter the specified MTU (Maximum Transmission Unit). The default value is 1492 bytes. PPTP/L2TP with Dynamic IP If connected to the Internet using a PPTP/L2TP (Dial-up xDSL) with dynamic IP connection, enter the your Server IP, PPTP/L2TP Account and PPTP/L2TP Password, if your ISP has provided you with a DNS IP address, enter it in the DNS field, otherwise, leave it zero. PPTP/L2TP with Static IP If connected to the Internet using a PPTP/L2TP (Dial-up xDSL) with static IP connection, enter the your IP Address, Subnet Mask, Gateway IP address, DNS IP address, Server IP address, PPTP Account and PPTP Password. 28 BigPond Cable If your ISP is Big Pond Cable, the ISP will provide a User Name, Password, Authentication Server and Login Server IP (Optional). Choose this option and enter the required information. Password This screen enables users to set administrative and user passwords. These passwords are used to gain access to the WLAN Router interface. 29 Administrator: Type the password the Administrator will use to log into the system. The password must be typed again for confirmation. The Administrator can also authorize users the ability to configure the WLAN Router. User: Type the password the User will use to log in to the system. The password must be typed again for confirmation. 30 Time This screen enables users to set the time and date for the WLAN Router's real-time clock, select properly time zone, and enable or disable daylight saving. Local Time: Displays the local time and date. Time Zone: Select the time zone from the drop-down list. Synchronize the clock with: Select the clock adjustment method form the drop- down list. Automatic: Automatically adjust the system time from NTP Server. Manual: Manually adjust the system time when you press the Set Time button. Default NTP server: The Simple Network Time Protocol (SNTP) server allows the WLAN Router to synchronize the system clock to the global Internet through the SNTP Server. Specify the NTP domain name or IP address in the text box. Set the time: Manually setting the WLAN Router system time, press the Set Time button to update the system time. Daylight Saving: Enables users to enable or disable daylight saving time. When enabled, select the start and end date for daylight saving time. 31 Dynamic DNS This synchronizes the DDNS server with your current Public IP address when you are online. First, you need to register your preferred DNS with the DDNS provider. Then, please select the DDNS address in the Server Address and fill the related information in the below fields: Host Name, User Name and Password. Wireless This section enables users to configuration the wireless communications parameters for the WLAN Router. Basic This page allow user to enable and disable the wireless LAN function, create a SSID, and select the channel for wireless communications. 32 Enable/Disable: Enables or disables wireless LAN via the WLAN Router. SSID: Type an SSID in the text box. The SSID of any wireless device must match the SSID typed here in order for the wireless device to access the LAN and WAN via the WLAN Router. Channel: Select a transmission channel for wireless communications. The channel of any wireless device must match the channel selected here in order for the wireless device to access the LAN and WAN via the WLAN Router. 802.11 Mode: Select one of the following:
2.4Ghz 802.11b/g mixed mode - Select if you are using both 802.11b and 802.11g wireless clients.
2.4Ghz 802.11b/g/n mixed mode - Select if you are using a mix of 802.11n, 11g, and 11b wireless clients.
2.4Ghz 802.11n only - Select if you are using 802.11n wireless clients only. Channel Width: Select the Channel Width:
20MHz – This is the default setting. Select this option if you are not using any 802.11n wireless clients.
Auto 20/40 MHz - Select this option if you are using both 802.11n and non- 802.11n wireless devices. SSID Broadcast: While SSID Broadcast is enabled, all wireless clients will be able to view the WLAN Router’s SSID. WMM: Enable the Wi-Fi Multi-Media will offer Wi-Fi networks stable that improve the user experience for audio, video, and voice applications by prioritizing data traffic. 33 Security Authentication Type: The authentication type default is set to open system. There are four options: Disabled, WEP, WPA, WPA2 and WPA-Auto. WEP Encryption WPS Enabled WPS Disabled WEP: Open System and Shared Key requires the user to set a WEP key to exchange data with other wireless clients that have the same WEP key. Mode: Select the key type: ASCII or HEX WEP Key: Select the level of encryption from the drop-down list. The WLAN Router supports, 64 and 128-bit encryption. Key Length Hex ASCII Type characters 0-9, A-F, a-f alphanumeric format 64-bit 10 characters 5 characters 128-bit 26 characters 13 characters 34 Key 1: Enables users to create WEP keys with WPS enabled. Manually enter a set of values for Key 1. Key 1 ~ Key 4: Enables users to create up to 4 different WEP keys with WPS disabled. Manually enter a set of values for each key. Select a key to use by clicking the radio button next to the k…

Text truncated - open the document above for the full version.

2010-01-07 FCC ID: XU8TEW651BR Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ___________________________________ Wen Tsai /Sr. Product Manager TRENDNET, Inc. TEL.: (310)961-5500 ext.5474 FAX: (310)961-5511 [email protected] 20675 Manhattan Place, Torrance, CA 90501, USA TEL.: (310)961-5500 FAX: (310)961-5511

20675 Manhattan Place, Torrance, CA 90501, USA TEL.: (310)961-5500 FAX: (310)961-5511 Date: 2010-01-07 General Declaration We, TRENDNET, Inc . declares that the device does not have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies” while applying for the following product. Trademark: TRENDnet FCC ID: XU8TEW651BR If you have any questions regarding the declaration, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------- Wen Tsai /Sr. Product Manager TRENDNET, Inc. TEL.: (310)961-5500 ext.5474 FAX: (310)961-5511 [email protected]

20675 Manhattan Place, Torrance, CA 90501, USA TEL.: (310)961-5500 FAX: (310)961-5511 AUTHORIZATION LETTER 2010-01-07 To whom it may concern: We, the undersigned, TRENDNET, Inc. hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required FCC and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- Wen Tsai /Sr. Product Manager TRENDNET, Inc. TEL.: (310)961-5500 ext.5474 FAX: (310)961-5511 [email protected]

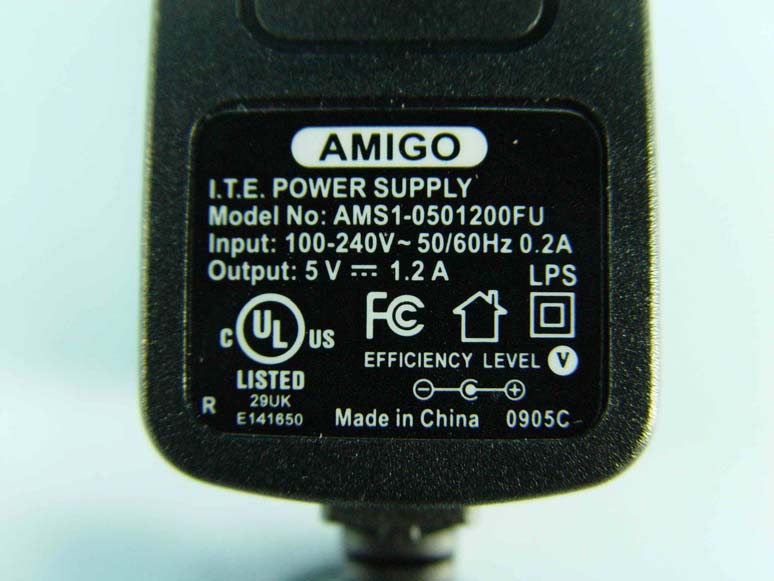

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID .: XU8TEW651BR Label Location

TEW-651BR H/W:V1.0R TRENDware P.S x: A, A/ B, UK/ E, EU/ G, AG/ N, AU/ MODEL : Q'TY: S/N: 20 PCS FROM C2YYWW51XXXXX TO CARTON OF NO. / MADE IN CHINA 1 5 2 . 0 0 m m 101.00 mm ( ) TEW-651BR/x H/W:V1.0R C2YYWW51XXXXX N.W.: KGS G.W.: KGS 0560 7610WLN22110xA1 Vicki UPC Code: 710931600681 x: Box Label 3 0 . 0 0 m m 0560 S/N:C2YYWW51XXXXX 35.00 mm TEW-651BR/x H/W:V1.0R MADE IN CHINA # A /FCC E /ETSI **** S/N:C2YYWW51XXXXX C2:() YY : , ex~09:2009 WW: , ex~06: 51: XXXXX: FCC ID: XU8TEW651BR IC:6337A-TEW651BR F/W Version F/W:ver1.00b13 2009.11.24 :Arial TRENDwareMAC ID FCC ID:XU8TEW651BR IC:6337A-TEW651BR Power Input: 5V1.2A F/W:ver1.00b13 1 0 . 0 0 m m 40.00 mm TEW-651BR H/W:V1.0R S/N:C2YYWW51XXXXX MADE IN CHINA 0560 Device Label 2 290503610000001 3 9 . 0 0 m m 59.00 mm This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference and (2)this device must accept any interference received, including interference that may cause undesired operation. LAN MAC: XXXXXXXXXXXX WAN MAC: XXXXXXXXXXXX/# F/W:ver1.00b13 FCC ID:XU8TEW651BR IC:6337A-TEW651BR "See Caution in Manual" 71 1093160068

Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: XU8TEW651BR Report No.: RF981029L09A OPERATIONAL DESCRIPTION This device is a 150Mbps Wireless N Home Router, which operates in the 2.4GHz frequency spectrum with throughput of up to 150Mbps which OFDM technique will be applied. If the signal to noise ratio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered from AC adapter. The antenna is dipole antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: XU8TEW651BR Report No: SA981029L09A Report Format Version 3.0.1 Reference No.: 981221L05 1 RF EXPOSURE REPORT REPORT NO.: SA981029L09A MODEL NO.: TEW-651BR ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: TRENDNET, Inc. ADDRESS: 20675 Manhattan Place, Torrance, CA 90501, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: XU8TEW651BR Report No: SA981029L09A Report Format Version 3.0.1 Reference No.: 981221L05 2 RF EXPOSURE MEASUREMENT 1. INTRODUCTION In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF EXPOSURE LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) (A)LIMITS FOR OCCUPATIONAL / CONTROL EXPOSURES 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: XU8TEW651BR Report No: SA981029L09A Report Format Version 3.0.1 Reference No.: 981221L05 3 3. FRIIS FORMULA Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT OPERATING CONDITION The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: XU8TEW651BR Report No: SA981029L09A Report Format Version 3.0.1 Reference No.: 981221L05 4 6. TEST RESULTS 6.1 ANTENNA GAIN The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.58(numeric). 6.2 MAXIMUN OUTPUT POWER INTO ANTENNA & RF EXPOSURE VALUE AT DISTANCE 20cm: PEAK POWER OUTPUT (dBm) TOTAL PEAK POWER (mW) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 25.2 331.1 0.104 1.000

Report No.: RF981029L09A 1 Report Format Version 3.0.1 Reference No.: 981221L05 FCC TEST REPORT REPORT NO.: RF981029L09A MODEL NO.: TEW-651BR RECEIVED: Aug. 06, 2009 TESTED: Aug. 06 ~ Nov. 03, 2009 ISSUED: Dec. 24, 2009 APPLICANT: TRENDNET, Inc. ADDRESS: 20675 Manhattan Place, Torrance, CA 90501, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 72 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981029L09A 2 Report Format Version 3.0.1 Reference No.: 981221L05 TABLE OF CONTENTS 1. CERTIFICATION........................................................................................................... 4 2. SUMMARY OF TEST RESULTS .................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY................................................................................ 5 3. GENERAL INFORMATION ........................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 6 3.2 DESCRIPTION OF TEST MODES ............................................................................... 8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................... 8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................... 9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 11 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 11 4. TEST TYPES AND RESULTS .................................................................................... 12 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 12 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................ 12 4.1.2 TEST INSTRUMENTS................................................................................................ 13 4.1.3 TEST PROCEDURES ................................................................................................ 14 4.1.4 DEVIATION FROM TEST STANDARD....................................................................... 14 4.1.5 TEST SETUP.............................................................................................................. 15 4.1.6 EUT OPERATING CONDITIONS ............................................................................... 15 4.1.7 TEST RESULTS ......................................................................................................... 16 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 30 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 30 4.2.2 TEST INSTRUMENTS................................................................................................ 30 4.2.3 TEST PROCEDURES ................................................................................................ 31 4.2.4 DEVIATION FROM TEST STANDARD....................................................................... 31 4.2.5 TEST SETUP.............................................................................................................. 32 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 32 4.2.7 TEST RESULTS ......................................................................................................... 33 4.3 6dB BANDWIDTH MEASUREMENT.......................................................................... 37 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................... 37 4.3.2 TEST INSTRUMENTS................................................................................................ 37 4.3.3 TEST PROCEDURE................................................................................................... 37 4.3.4 DEVIATION FROM TEST STANDARD....................................................................... 37 4.3.5 TEST SETUP.............................................................................................................. 38 4.3.6 EUT OPERATING CONDITIONS ............................................................................... 38 4.3.7 TEST RESULTS ......................................................................................................... 39 4.4 MAXIMUM OUTPUT POWER .................................................................................... 43 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT..................................... 43 4.4.2 INSTRUMENTS .......................................................................................................... 43 4.4.3 TEST PROCEDURE................................................................................................... 43 4.4.4 DEVIATION FROM TEST STANDARD....................................................................... 44 4.4.5 TEST SETUP.............................................................................................................. 44 4.4.6 EUT OPERATING CONDITIONS ............................................................................... 44 4.4.7 TEST RESULTS ......................................................................................................... 45 4.5 POWER SPECTRAL DENSITY MEAS…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Test Mode A 2 Test Mode B 3 RADIATED EMISSION TEST Test Mode A 4 Test Mode B
