TRENDnet, Inc. April 18, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID：XU8TEW684UB Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/title: Wen Tsai / Sr. Product Manager Company Name: TRENDnet, Inc. Address: 20675 Manhattan Place Torrance, CA 90501 United States Tel: (310) 961-5500 5474 Fax：(310) 961-5511 e-mail address: [email protected]

TRENDnet, Inc. Company name: TRENDnet, Inc. Company address: 20675 Manhattan Place Torrance, CA 90501 United States April 18, 2011 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: XU8TEW684UB , would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, Signature Name/title: Wen Tsai / Sr. Product Manager Company Name: TRENDnet, Inc. Address: 20675 Manhattan Place Torrance, CA 90501 United States Tel: (310) 961-5500 5474 Fax：(310) 961-5511 e-mail address: [email protected]

TRENDnet, Inc. April 18, 2011 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6 th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. Rex Lai Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: TRENDnet ; TEW-684UB FCC ID: XU8TEW684UB Product Name: 450Mbps Wireless N Dual Band USB Adapter Signature Name/title: Wen Tsai / Sr. Product Manager Company Name: TRENDnet, Inc. Address: 20675 Manhattan Place Torrance, CA 90501 United States Tel: (310) 961-5500 5474 Fax：(310) 961-5511 e-mail address: [email protected]

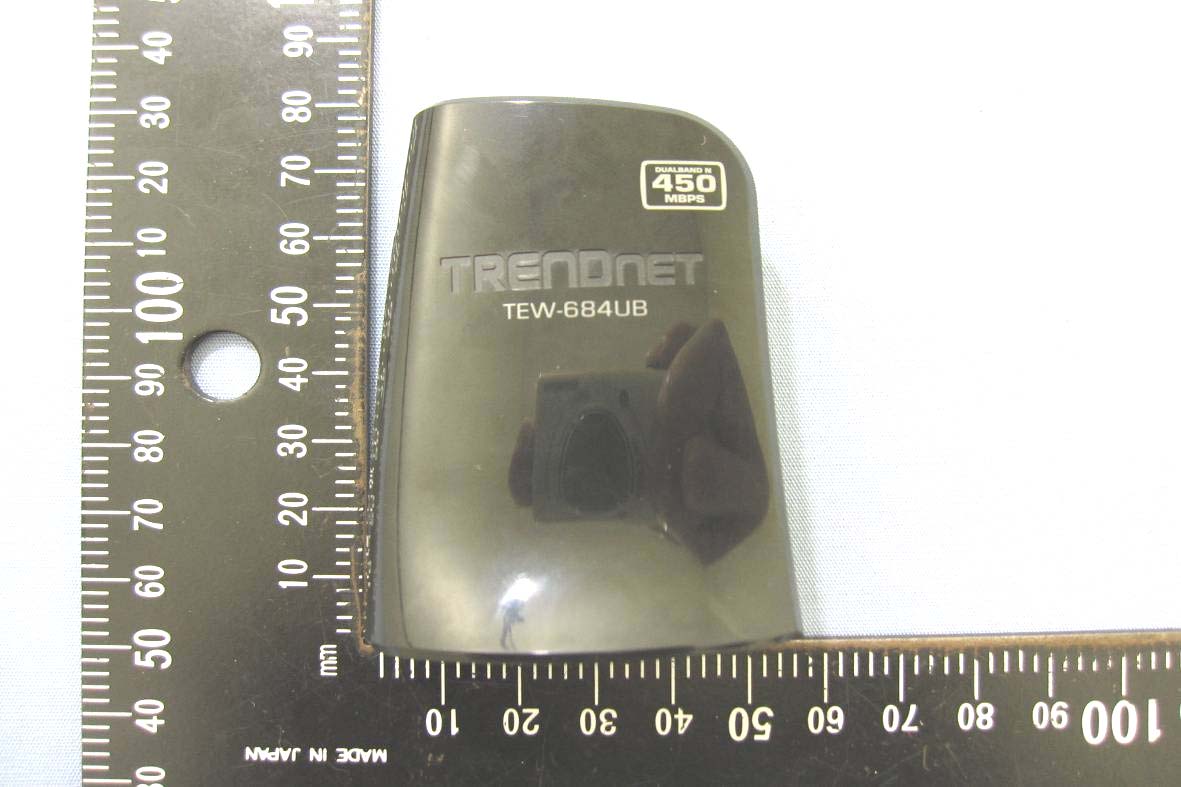

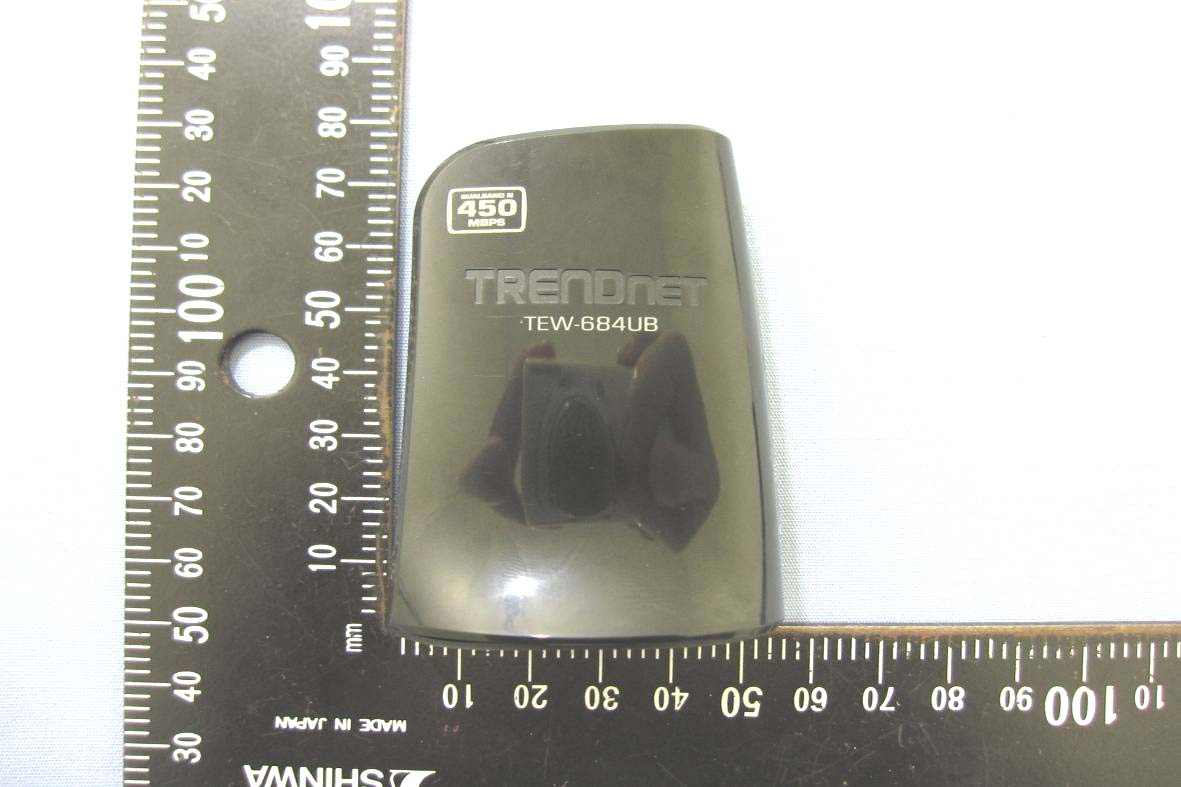

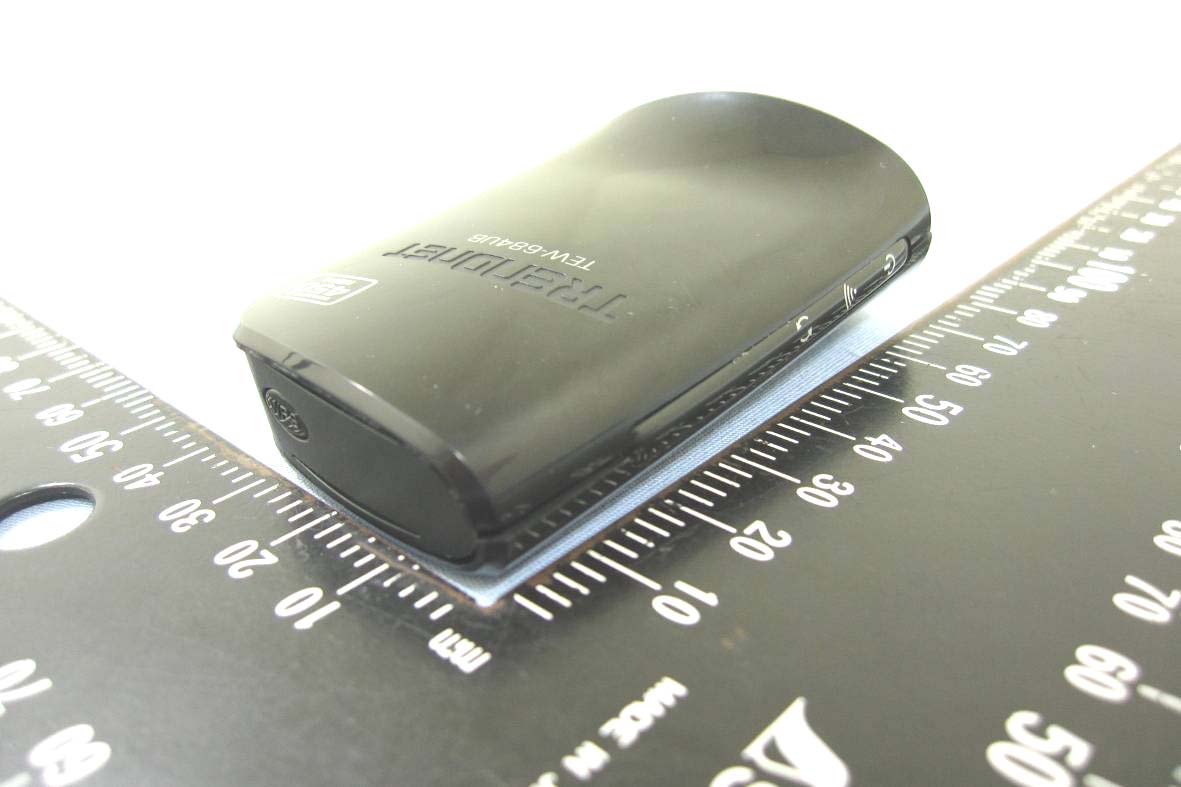

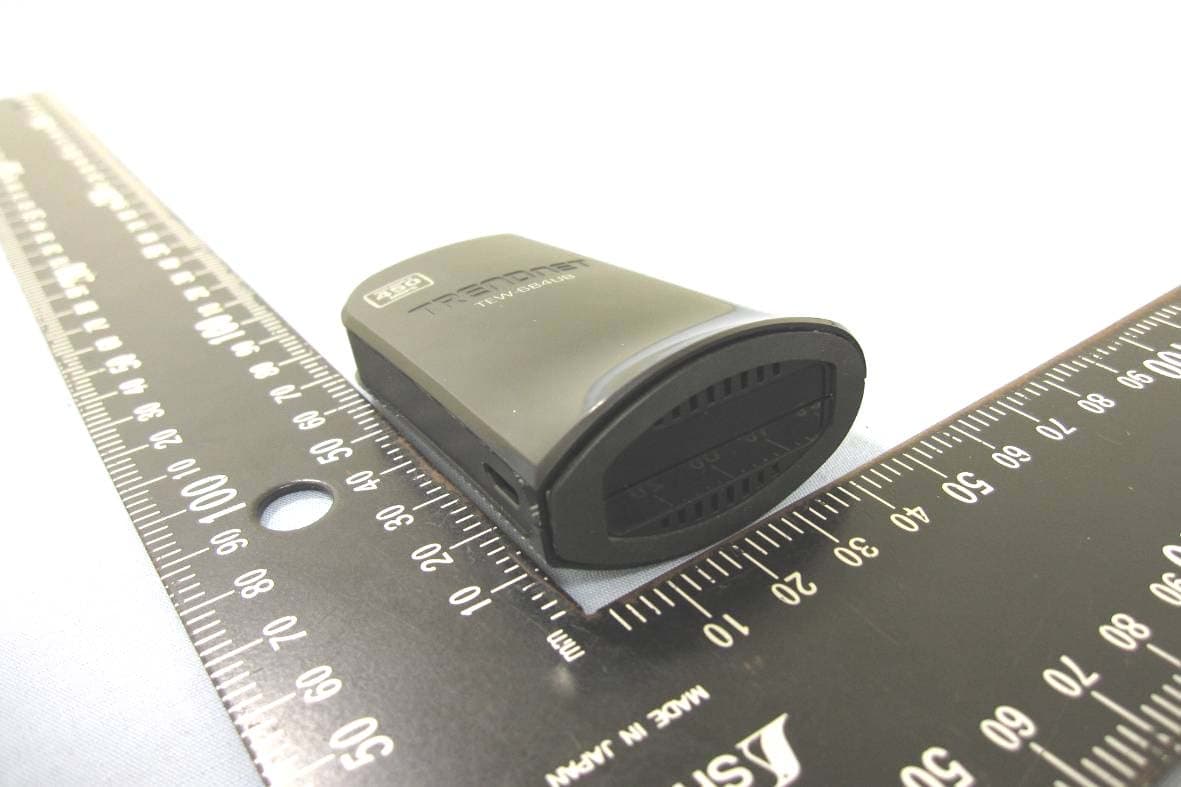

Compliance Certification Services Inc. Report No.: T110331005 Date of Issue: April 20, 2011 A1 - 1 Total Page: 13 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110331005 Date of Issue: April 20, 2011 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T110331005 Date of Issue: April 20, 2011 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T110331005 Date of Issue: April 20, 2011 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T110331005 Date of Issue: April 20, 2011 A1 - 5 Rev. 00

TEW-684UB /A (H/W: V1.0R) FCC ID: XU8TEW684UB Made in Taiwan 450Mbps Wireless N Dual Band USB Adapter S/N: UMXXXXXXXXXXX MAC: UMXXXXXXXXXX IMG_5072.JPG

Compliance Certification Services Inc. Report No.: T110331005 Date of Issue: April 20, 2011 A1 - 6 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110331005 Date of Issue: April 20, 2011 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T110331005 Date of Issue: April 20, 2011 A1 - 8 Rev. 00 PIFA Antenna Compliance Certification Services Inc. Report No.: T110331005 Date of Issue: April 20, 2011 A1 - 9 Rev. 00 PIFA Antenna PIFA Antenna Compliance Certification Services Inc. Report No.: T110331005 Date of Issue: April 20, 2011 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T110331005 Date of Issue: April 20, 2011 A1 - 11 Rev. 00 WLAN Module Compliance Certification Services Inc. Report No.: T110331005 Date of Issue: April 20, 2011 A1 - 12 Rev. 00 Compliance Certification Services Inc. Report No.: T110331005 Date of Issue: April 20, 2011 A1 - 13 Rev. 00

TEW‐684UB Antenna Specification 1) Frequency range : 2400M~2472MHz & 5180~ 5805MHz 2) Impedance : 50 ohm 3) VSWR : <= 2 4) Type : PCB Antenna 5) Gain: 2.4G/2dBi; 5G/1dBi 6) Polar: horizontal Configuration:

Compliance Certification Services Inc. Report No.: T110331005-RP2 FCC ID: XU8TEW684UB Date of Issue: April 18, 2011 Page 78 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 450Mbps Wireless N Dual Band USB Adapter Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz Others: Bluetooth: 2.402GHz ~ 2.480GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others: ______________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11a mode: 12.96 dBm (19.7697mW) IEEE 802.11n HT 20 MHz Channel mode: 12.76 dBm (18.8799mW) IEEE 802.11n HT 40 MHz mode: 12.74 dBm (18.7932mW) Antenna gain (Max) 1 dBi (Numeric gain: 1.25) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: The maximum output power is 12.96dBm (18.8799mW) at 5745MHz (with 1.25 numeric antenna gain.) TEST RESULTS No non-compliance noted. MPE EVALUATION No non-compliance noted Compliance Certification Services Inc. Report No.: T110331005-RP2 FCC ID: XU8TEW684UB Date of Issue: April 18, 2011 Page 79 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T110331005-RP2 FCC ID: XU8TEW684UB Date of Issue: April 18, 2011 Page 80 Rev. 00 IEEE 802.11a mode: EUT output power = 19.7697 mW Numeric Antenna gain = 1.25 Æ Power density = 0.0871 mW / cm 2 IEEE 802.11n HT 20 MHz mode: EUT output power = 18.8799 mW Numeric Antenna gain = 1.25 Æ Power density = 0.0886 mW / cm 2 IEEE 802.11n HT 40 MHz mode: EUT output power = 18.7932mW Numeric Antenna gain = 1.25 Æ Power density = 0.004917 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: T110331005-RP1 FCC ID: XU8TEW684UB Date of Issue: April 18, 2011 Page 137 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 450Mbps Wireless N Dual Band USB Adapter Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others: ______________________ Device category Portable (<20cm separation) Mobile (>20cm separation) Others: ______________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power EEE 802.11b mode: 18.03 dBm (63.5331mW) IEEE 802.11g mode: 15.09 dBm (32.2849mW) IEEE 802.11n HT 20 MHz mode: 14.89 dBm (30.8319mW) IEEE 802.11n HT 40 MHz mode: 14.76 dBm (29.9226mW) Antenna gain (Max) 2 dBi (Numeric gain: 1.58) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: The maximum output power is 18.03dBm (63.5331mW) at 2412MHz (with 1.58 numeric antenna gain.) TEST RESULTS No non-compliance noted. MPE EVALUATION No non-compliance noted Compliance Certification Services Inc. Report No.: T110331005-RP1 FCC ID: XU8TEW684UB Date of Issue: April 18, 2011 Page 138 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T110331005-RP1 FCC ID: XU8TEW684UB Date of Issue: April 18, 2011 Page 139 Rev. 00 IEEE 802.11b mode: EUT output power = 63.5331 mW Numeric Antenna gain = 1.58 Æ Power density = 0.1117 mW / cm 2 IEEE 802.11g mode: EUT output power = 32.2849 mW Numeric Antenna gain = 1.58 Æ Power density = 0.0871 mW / cm 2 IEEE 802.11n HT 20 MHz mode: EUT output power = 30.8319 mW Numeric Antenna gain = 1.58 Æ Power density = 0.0886 mW / cm 2 IEEE 802.11n HT 40 MHz mode: EUT output power = 29.9226 mW Numeric Antenna gain = 1.58 Æ Power density = 0.0199 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: T110331005-RP2 FCC ID: XU8TEW684UB Date of Issue: April 18, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 83 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 450Mbps Wireless N Dual Band USB Adapter Model: TEW-684UB Trade Name: TRENDnet Issued to TRENDnet, Inc. 20675 Manhattan Place,Torrance,CA 90501 Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T110331005-RP2 FCC ID: XU8TEW684UB Date of Issue: April 18, 2011 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED .........................................................................................8 4.3 MEASUREMENT UNCERTAINTY ...............................................................................................9 5. FACILITIES AND ACCREDITATIONS ........................................................................................10 5.1 FACILITIES .......................................................................................................................................10 5.2 EQUIPMENT......................................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................11 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................12 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................12 6.2 SUPPORT EQUIPMENT ...............................................................................................................12 7. FCC PART 15.247 REQUIREMENTS.............................................................................................13 7.1 6DB BANDWIDTH.............................................................................................................................13 7.2 PEAK POWER....................................................................................................................................26 7.3 AVERAGE POWER............................................................................................................................28 7.4 BAND EDGES MEASUREMENT ................................................................................................30 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................31 7.6 SPURIOUS EMISSIONS.................................................................................................................47 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................75 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................78 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................81 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110331005-RP2 FCC ID: XU8TEW684UB Date of Issue: April 18, 2011 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: TRENDnet, Inc. 20675 Manhattan Place,Torrance,CA 90501 Equipment Under Test: 450Mbps Wireless N Dual Band USB Adapter Tr a d e N a m e : TRENDnet Model: TEW-684UB Date of Test: April 7 ~ 18, 2011 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certificati…
