XU8TEW687GA450MBPS WIRELESS N GAMING ADAPTER

- 1 - 450Mbps Wireless N Gaming Adapter TEW-687GA User Manual Revision 0.1 Revision History Date Version Author Remark 12/17/2010 0.1 Rex Liu - 2 - Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. - 3 - Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: - EN60950-1:2006 Safety of Information Technology Equipment - EN 62311:2008 - Product standard to demonstrate the compliance of radio base stations and fixed terminal stations for wireless telecommunication systems with the basic restrictions or the reference levels related to human exposure to radio frequency electromagnetic fields (110MHz - 40 GHz) - General public - EN 300 328 V1.7.1: (2006-10) - Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive - EN 301 489-1 V1.8.1: (2008-04) - Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements - EN 301 489-17 V2.1.1:( 2009-05) - Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment; Part 17: Specific conditions for 2,4 GHz wideband transmission systems, 5 GHz high performance RLAN equipment and 5,8 GHz Broadband Data Transmitting Systems - This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF - 4 - output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. - 5 - Česky [Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish] Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ∆ΗΛΩΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ. Français [French] Par la présente [nom du fabricant] déclare que l'appareil [type…

Text truncated - open the document above for the full version.

TRENDnet, Inc. Dec. 7, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID：XU8TEW687GA Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/title: Wen Tsai / Sr. Product Manager Company Name: TRENDnet, Inc. Address: 20675 Manhattan Place Torrance, CA 90501 United States Tel: (310) 961-5500 5474 Fax：(310) 961-5511 e-mail address: [email protected]

TRENDnet, Inc. Company name: TRENDnet, Inc. Company address: 20675 Manhattan Place Torrance, CA 90501 United States Date: Dec 7, 2010 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: XU8TEW687GA, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, Signature Name/title: Wen Tsai / Sr. Product Manager Company Name: TRENDnet, Inc. Address: 20675 Manhattan Place Torrance, CA 90501 United States Tel: (310) 961-5500 5474 Fax：(310) 961-5511 e-mail address: [email protected]

TRENDnet, Inc. Dec 7, 2010 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6 th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. Rex Lai Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: TRENDnet / TEW-687GA FCC ID: XU8TEW687GA Product Name : 450Mbps Wireless N Gaming Adapter Signature Name/title: Wen Tsai / Sr. Product Manager Company Name: TRENDnet, Inc. Address: 20675 Manhattan Place Torrance, CA 90501 United States Tel: (310) 961-5500 5474 Fax：(310) 961-5511 e-mail address: [email protected]

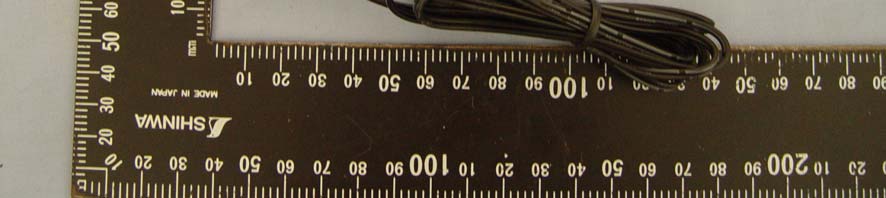

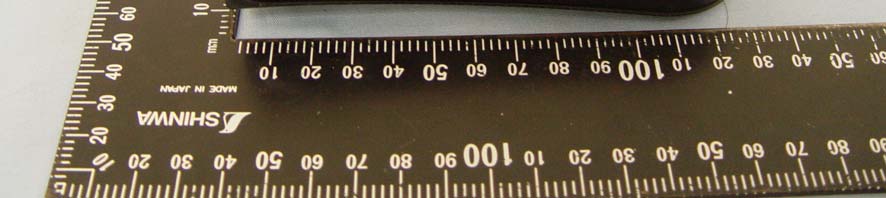

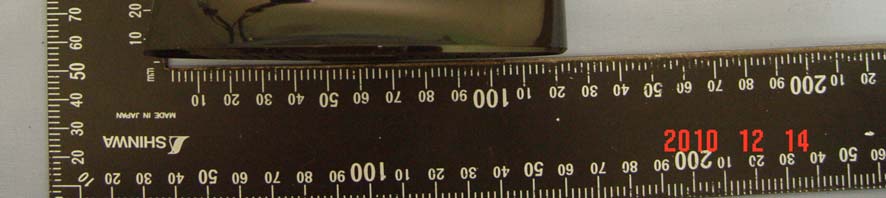

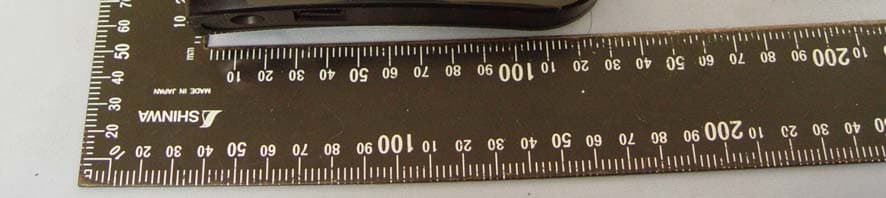

Compliance Certification Services Inc. Report No.: T101203003 Date of Issue: December 15, 2010 A1 - 1 Total Page: 8 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T101203003 Date of Issue: December 15, 2010 A1 - 2 Total Page: 8 Rev. 00 Compliance Certification Services Inc. Report No.: T101203003 Date of Issue: December 15, 2010 A1 - 3 Total Page: 8 Rev. 00 Compliance Certification Services Inc. Report No.: T101203003 Date of Issue: December 15, 2010 A1 - 4 Total Page: 8 Rev. 00 Compliance Certification Services Inc. Report No.: T101203003 Date of Issue: December 15, 2010 A1 - 5 Rev. 00

Made in Taiwan S/N: UMXXXXXXXXXXX MAC: XXXXXXXXXXXX FCC ID: XU8TEW687GA TEW-687GA / A (H/W: 1.0R) 450Mbps Wireless N Gaming Adapter

Compliance Certification Services Inc. Report No.: T101203003 Date of Issue: December 15, 2010 A1 - 6 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T101203003 Date of Issue: December 15, 2010 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T101203003 Date of Issue: December 15, 2010 A1 - 8 Rev. 00

WST‐391L PCB antenna Feature: Frequency range :2.412GHz~ 2.472GHz Impedance : 50 ohm VSWR : <=2 Gain : 3dBi/Ant1, 3.3dBm/Ant2, 2dBi/Ant3 Radiation: directly Type : printed Antenna ( PCB ) of FR4

Compliance Certification Services Inc. Report No.: T101203003-RP FCC ID: XU8TEW687GA Date of Issue: December 21, 2010 Page 109 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 450Mbps Wireless N Gaming Adapter Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 18.32 dBm(67.9204 mW) IEEE 802.11g mode: 15.44 dBm(34.9945 mW) IEEE 802.11n HT 20 MHz mode: 18.83 dBm(76.3836 mW) IEEE 802.11n HT 40 MHz mode: 17.71 dBm(59.0201 mW) Antenna gain (Max) 1. Gain: 3 dBi 2. Gain: 3.3 dBi 3. Gain: 2 dBi 3.3 dBi= 8.07 dBi (Numeric gain: 2.41) Antenna Calculation for Mimo Mode: 10*LOG(((10^(3/20)+10^(3.3/20)+10^(2/20))^2)/3)=7.56dBi(Numeric gain:5.70) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 18.83dBm (76.3836mW) at 2462MHz (with 5.70 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. MPE EVALUATION No non-compliance noted. Compliance Certification Services Inc. Report No.: T101203003-RP FCC ID: XU8TEW687GA Date of Issue: December 21, 2010 Page 110 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T101203003-RP FCC ID: XU8TEW687GA Date of Issue: December 21, 2010 Page 111 Rev. 00 IEEE 802.11b mode: EUT output power = 67.920 mW Numeric Antenna gain = 2.41 Æ Power density = 0.0325 mW / cm2 IEEE 802.11g mode: EUT output power = 34.9945 mW Numeric Antenna gain = 2.41 Æ Power density = 0.0167 mW / cm2 IEEE 802.11n HT 20 MHz mode: EUT output power = 76.3836 mW Numeric Antenna gain = 5.70 Æ Power density = 0.0866 mW / cm2 IEEE 802.11n HT 40 MHz mode: EUT output power = 59.0201mW Numeric Antenna gain = 5.70 Æ Power density = 0.0866 mW / cm2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: T101203003-RP FCC ID: XU8TEW687GA Date of Issue: December 21, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 114 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 450Mbps Wireless N Gaming Adapter Model: TEW-687GA Trade Name: TRENDnet Issued to TRENDnet, Inc. 20675 Manhattan Place,Torrance,CA 90501 Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T101203003-RP FCC ID: XU8TEW687GA Date of Issue: December 21, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED .........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .... ..................................................................................................................................10 5.2 EQUIPMENT......................................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................11 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................12 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................12 6.2 SUPPORT EQUIPMENT ...............................................................................................................12 7. FCC PART 15.247 REQUIREMENTS.............................................................................................13 7.1 6 DB BANDWIDTH.............................................................................................................................13 7.2 PEAK POWER....................................................................................................................................30 7.3 A VERAGE POWER............................................................................................................................32 7.4 BAND EDGES MEASUREMENT ................................................................................................34 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................51 7.6 SPURIOUS EMISSIONS.................................................................................................................71 7.7 RADIATED EMISSIONS ..............................................................................................................89 7.8 POWERLINE CONDUCTED EMISSIONS.............................................................................................106 APPENDIX I RADIO FREQUENCY EXPOSURE .............................................................................109 APPENDIX II PHOTOGRAPHS OF TEST SETUP ...........................................................................112 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T101203003-RP FCC ID: XU8TEW687GA Date of Issue: December 21, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: TRENDnet, Inc. 20675 Manhattan Place,Torrance,CA 90501 Equipment Under Test: 450Mbps Wireless N Gaming Adapter Tr a d e N a m e : TRENDnet Model Number: TEW-687GA Date of Test: December 7 ~ 21, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted Deviation from Applicable Standard N/A We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Complian…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T101203003-RP FCC ID: XU8TEW687GA Date of Issue: December 21, 2010 Page 112 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: T101203003-RP FCC ID: XU8TEW687GA Date of Issue: December 21, 2010 Page 113 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Report No.: T101203003-RP FCC ID: XU8TEW687GA Date of Issue: December 21, 2010 Page 114 Rev. 00 Powerline Conducted Emissions Setup Photos
