XU8TEW691GR450Mbps Wireless N Gigabit Router

1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: - EN60950-1:2006 Safety of Information Technology Equipment - EN50385 : (2002-08) - Product standard to demonstrate the compliance of radio base stations and fixed terminal stations for wireless telecommunication systems with the basic restrictions or the reference levels related to human exposure to radio frequency electromagnetic fields (110MHz - 40 GHz) - General public - EN 300 328 V1.7.1: (2006-10) - Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive 2 - EN 301 489-1 V1.8.1: (2008-04) - Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements - EN 301 489-17 V1.3.2 (2008-04) - Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment; Part 17: Specific conditions for 2,4 GHz wideband transmission systems, 5 GHz high performance RLAN equipment and 5,8 GHz Broadband Data Transmitting Systems - This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. 0560 Česky [Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish] Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ. Français [French] Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directi…

Text truncated - open the document above for the full version.

TRENDNET, Inc. 20675 Manhattan Place, Torrance, CA 90501 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC 10: XU8TEW691GR, would like to declare thatthe composite portion categorized as computer peripheral has been authorized under the Declaration ofConformity procedures. Regards, Signature~ ~ Name/Title: Sonny Su / Di ctor of Technology Applicant: TRENDNET, Inc. ADDRESS: 20675 Manhattan Place, Torrance, CA 90501 TEL: 1-(310)-961-5480 FAX: 1-(310)-961-5511 Email: [email protected]

20675 Manhattan Place, Torrance, CA 90501, USA TEL.: (310)961-5500 FAX: (310)961-5511 Power of Authority Date: 2010‐03‐01 To whom it may concern: I, the undersigned Wen Tsai , hereby authorize the person listed below to act behalf of me to sign all related documents for FCC application. Name/title: Sonny Su / Directory of Technology TEL.: (310) 961‐5500 ext. 5480 FAX: (310) 961‐5511 E‐mail: [email protected] Name/title: Pei Huang / CEO TEL.: (310) 961‐5500 FAX: (310) 961‐5511 E‐mail: [email protected] If you have any questions regarding the declaration, please don’t hesitate to contact us. Thank you! ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Wen Tsai /Sr. Product Manager TRENDNET, Inc. TEL.: (310)961‐5500 ext.5474 FAX: (310)961‐5511 [email protected]

TRENDNET, Inc. 20675 Manhattan Place, Torrance, CA 90501 APR. 27,2010 Federal Communications Commission Authorization and Evaluation Division FCC ID : XU8TEW691GR Confidential ity Request Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the appl icant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/Title: Sonny Su / Director ofTechnology Applicant: TRENDNET, Inc. ADDRESS: 20675 Manhattan Place, Torrance, CA 90501 TEL: 1-(310)-961-5480 FAX: 1-(310)-961-5511 Email: [email protected]

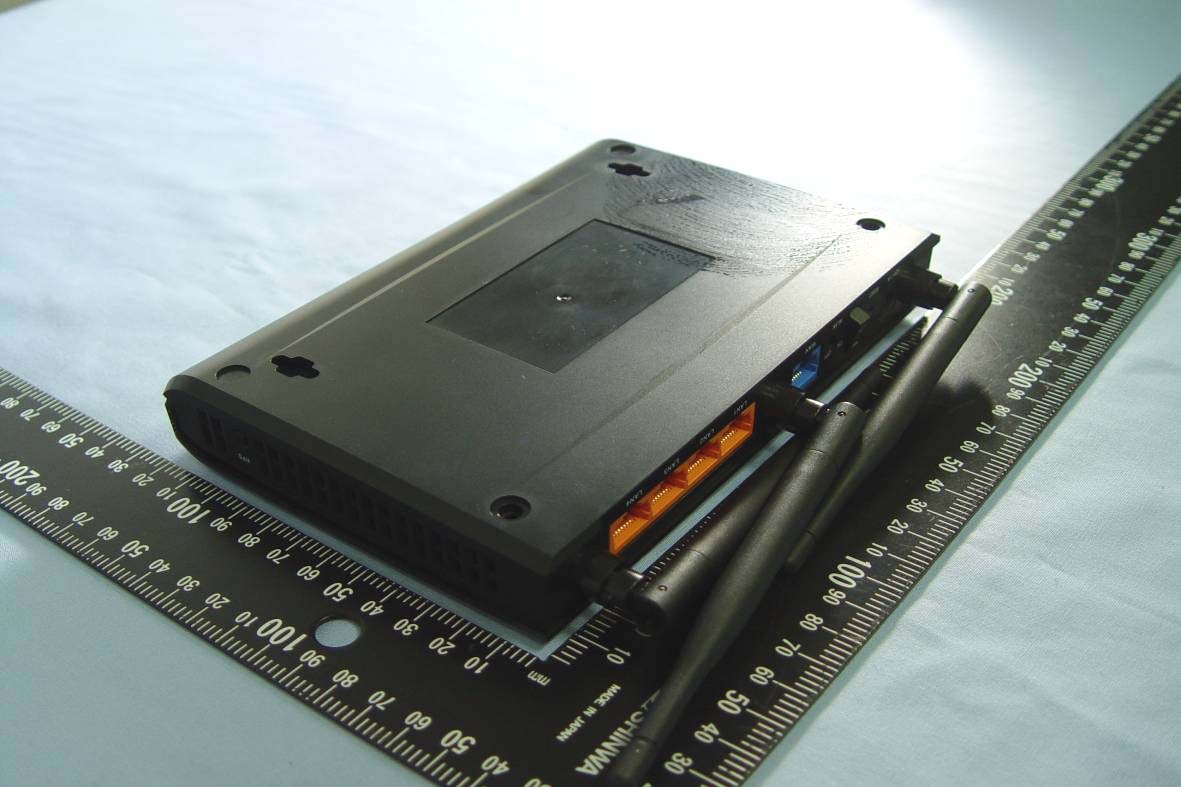

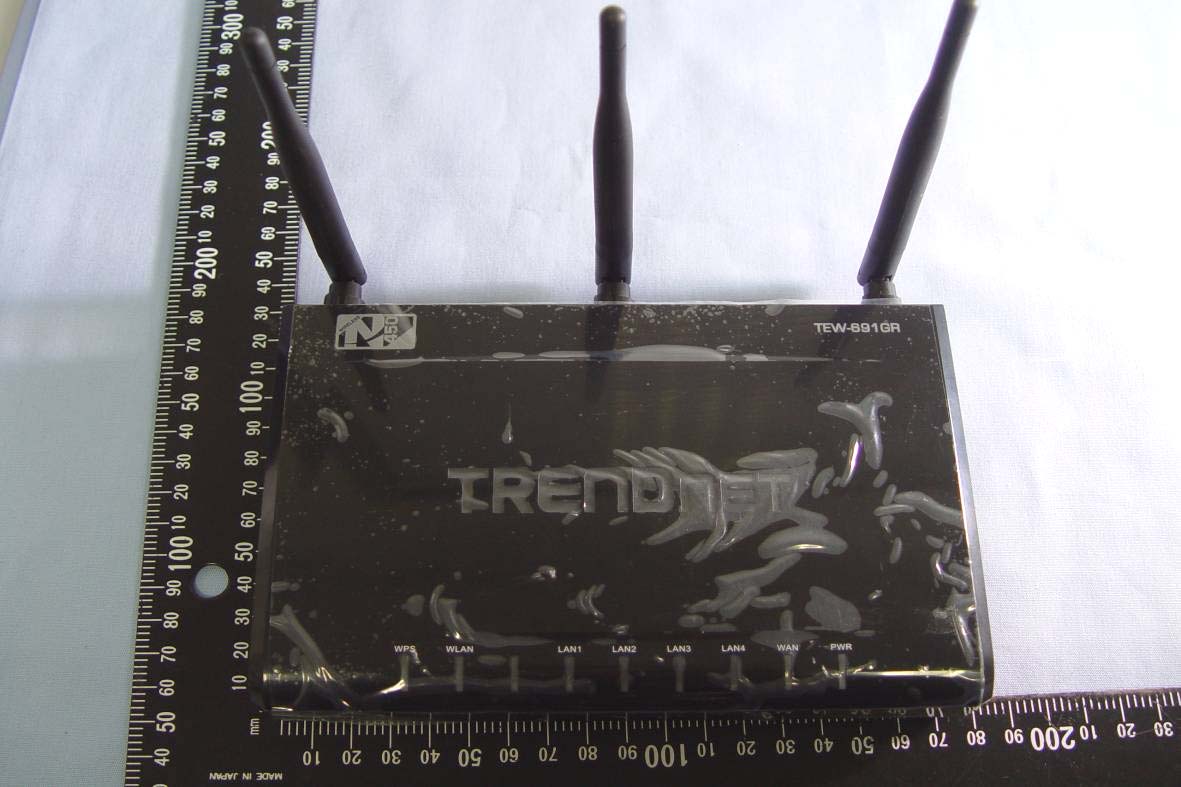

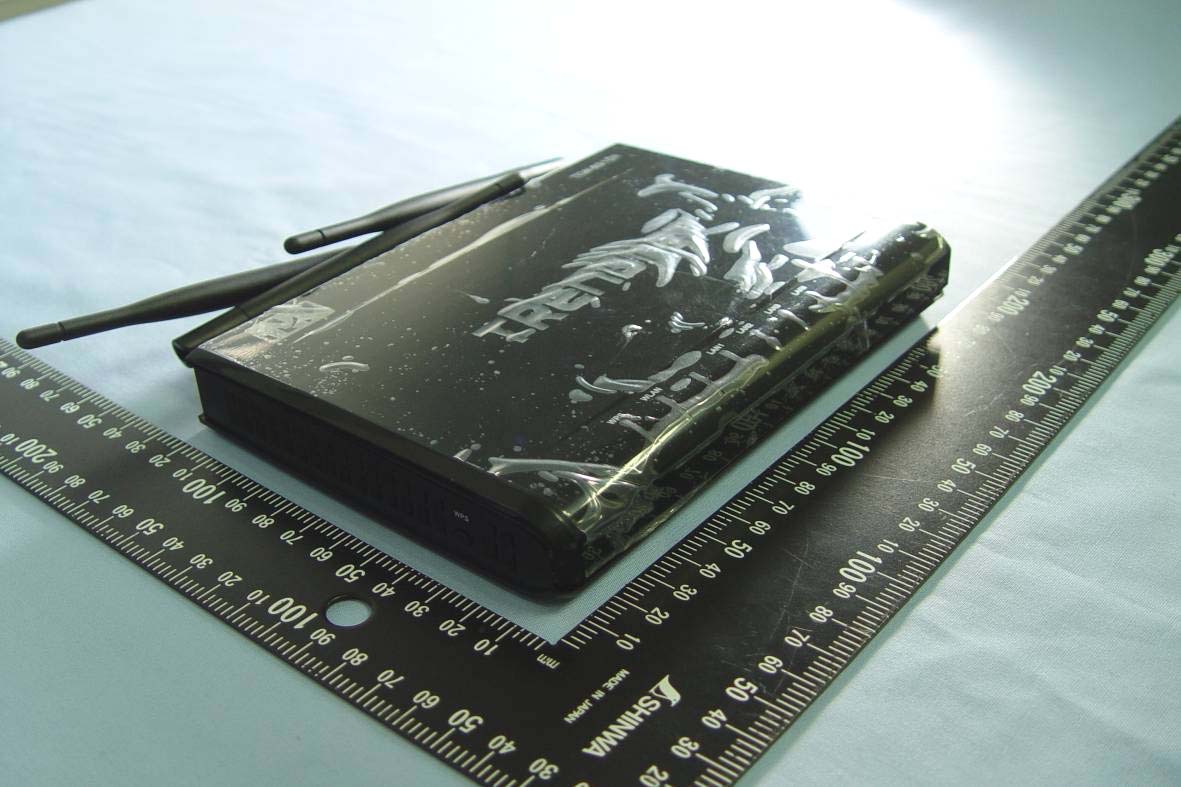

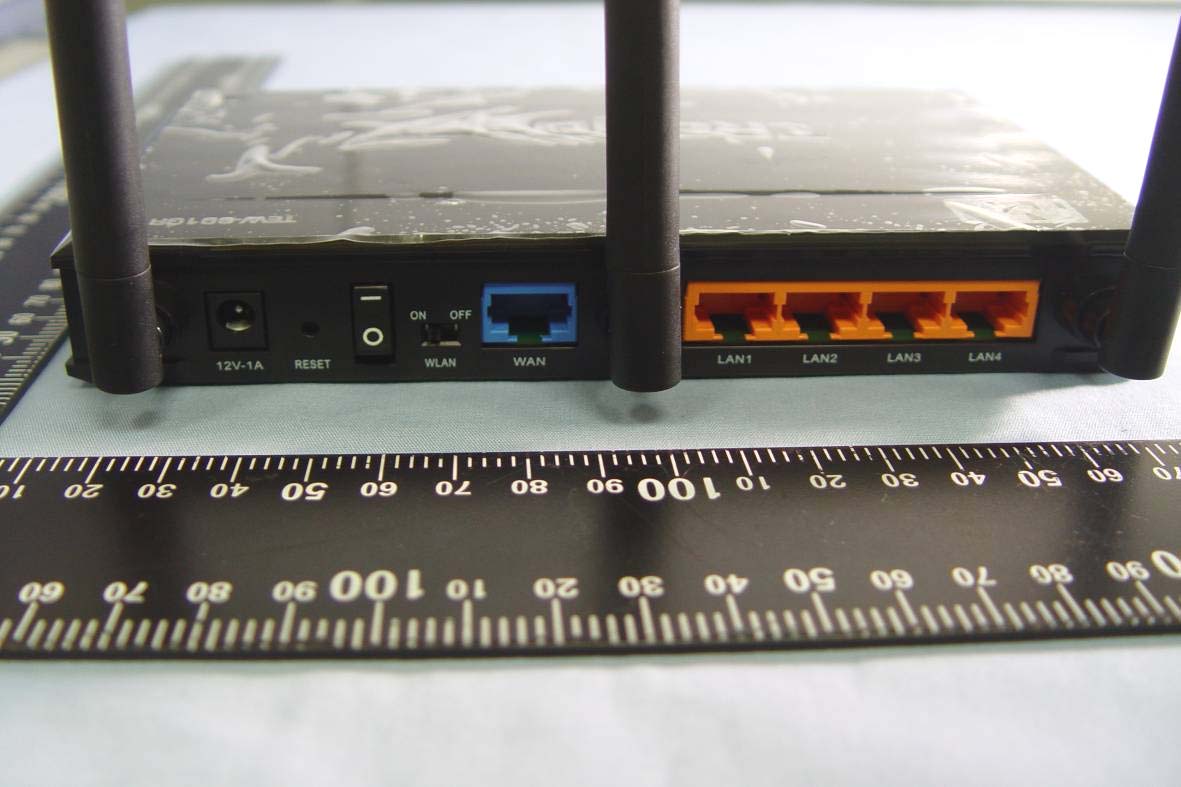

Compliance Certification Services Inc. Report No.: T100423005 Date of Issue: May 3, 2010 A1 - 1 Total Page: 8 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100423005 Date of Issue: May 3, 2010 A1 - 2 Rev. 00 Omni Antenna Compliance Certification Services Inc. Report No.: T100423005 Date of Issue: May 3, 2010 A1 - 3 Rev. 00

Compliance Certification Services Inc. Report No.: T100423005 Date of Issue: May 3, 2010 A1 - 4 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100423005 Date of Issue: May 3, 2010 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T100423005 Date of Issue: May 3, 2010 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T100423005 Date of Issue: May 3, 2010 A1 - 7 Rev. 00 WLAN Module Compliance Certification Services Inc. Report No.: T100423005 Date of Issue: May 3, 2010 A1 - 8 Rev. 00

CUSTOMER: JOYMAX MODEL NO.: DESCRIPTION : #152X Flying Lead Antenna REV.: DATE 2008/3/4 宇智網通股份有限公司 IWF-152XMPAX-711 00 CUSTOMER MODEL NO.: Index. Item 1. Drawing 2. Test report ．Electrical test 3. S pecification ．Cable ．Connector 4. Packin g ．PE Bag ．Carton Modification History: Rev.DateContent 2008/3/4 00 Model.IWF-152XMPAX-711 Return loss/V.S.W.R Test Report Return loss V.S.W.R. Cable 1.37 Connector Mini PCI Conn Connector Mini PCI Conn

Compliance Certification Services Inc. Report No.: T100423005-RP1 FCC ID: XU8TEW691GR Date of Issue: May 3, 2010 Page 132 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 450Mbps Wireless N Gigabit Router Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 18.87 dBm(77.1 mW) IEEE 802.11g mode: 15.37 dBm(34.4 mW) draft 802.11n Standard-20 MHz Channel mode: 18.91 dBm(77.7 mW) draft 802.11n Wide-40 MHz Channel mode: 18.70 dBm(74.2 mW) Antenna gain (Max) Gina: IEEE 802.11b/g: 4 dBi (Numeric gain: 2.51) Gina : MIMO: 4 dBi + 10 log (3) = 8.77 dBi (Numeric gain: 7.53) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 18.91dBm (77.7mW) at 2462MHz (with 7.53 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No.: T100423005-RP1 FCC ID: XU8TEW691GR Date of Issue: May 3, 2010 Page 133 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T100423005-RP1 FCC ID: XU8TEW691GR Date of Issue: May 3, 2010 Page 134 Rev. 00 IEEE 802.11b mode: EUT output power = 77.1mW Numeric Antenna gain = 2.51 Æ Power density = 0.0385 mW / cm 2 IEEE 802.11g mode: EUT output power = 34.4mW Numeric Antenna gain = 2.51 Æ Power density = 0.0172 mW / cm 2 draft 802.11n Standard-20 MHz Channel mode: EUT output power = 77.7mW Numeric Antenna gain = 7.53 Æ Power density = 0.1164 mW / cm 2 draft 802.11n Wide-40 MHz Channel mode: EUT output power = 74.2mW Numeric Antenna gain = 7.53 Æ Power density = 0.1112 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: T100423005-RP1 FCC ID: XU8TEW691GR Date of Issue: May 3, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 137 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 450Mbps Wireless N Gigabit Router Model: TEW-691GR Trade Name: TRENDnet Issued to TRENDNET, Inc. 20675 Manhattan Place, Torrance, CA 90501 Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100423005-RP1 FCC ID: XU8TEW691GR Date of Issue: May 3, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................... 3 2. EUT DESCRIPTION .......................................................................................................................... 4 3. TEST METHODOLOGY ................................................................................................................... 5 3.1 EUT CONFIGURATION....................................................................................................................... 5 3.2 EUT EXERCISE................................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES............................................................................................................ 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ....................................................... 6 3.5 DESCRIPTION OF TEST MODES.......................................................................................................... 7 4. INSTRUMENT CALIBRATION....................................................................................................... 8 4.1 MEASURING INSTRUMENT CALIBRATION..................................................................................... 8 4.2 MEASUREMENT EQUIPMENT USED ........................................................................................ 8 5. FACILITIES AND ACCREDITATIONS ......................................................................................... 9 5.1 FACILITIES .... ................................................................................................................................. 10 5.2 EQUIPMENT..................................................................................................................................... 10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.................................................................................... 11 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................................... 12 6.1 SETUP CONFIGURATION OF EUT...................................................................................................... 12 6.2 SUPPORT EQUIPMENT .............................................................................................................. 12 7. FCC PART 15.247 REQUIREMENTS............................................................................................ 13 7.1 6 DB BANDWIDTH............................................................................................................................ 13 7.2 PEAK POWER................................................................................................................................... 30 7.3 A VERAGE POWER........................................................................................................................... 45 7.4 BAND EDGES MEASUREMENT ............................................................................................... 61 7.5 PEAK POWER SPECTRAL DENSITY................................................................................................... 78 7.6 SPURIOUS EMISSIONS................................................................................................................ 94 7.7 RADIATED EMISSIONS ........................................................................................................... 112 7.8 POWERLINE CONDUCTED EMISSIONS............................................................................................ 129 APPENDIX I RADIO FREQUENCY EXPOSURE ............................................................................ 132 APPENDIX II PHOTOGRAPHS OF TEST SETUP .......................................................................... 135 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100423005-RP1 FCC ID: XU8TEW691GR Date of Issue: May 3, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: TRENDNET, Inc. 20675 Manhattan Place, Torrance, CA 90501 Equipment Under Test: 450Mbps Wireless N Gigabit Router Trade Name: TRENDnet Model Number: TEW-691GR Date of Test: April 23 ~ 27, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted Deviation from Applicable Standard N/A We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Serv…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100423005-RP1 FCC ID: XU8TEW691GR Date of Issue: May 3, 2010 Page 135 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: T100423005-RP1 FCC ID: XU8TEW691GR Date of Issue: May 3, 2010 Page 136 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Report No.: T100423005-RP1 FCC ID: XU8TEW691GR Date of Issue: May 3, 2010 Page 137 Rev. 00 Powerline Conducted Emissions Setup Photos
