XU8TEW713-714N150 Easy-N-Range Extender / Travel Router

TRENDnet User’s Guide Cover Page © Copyright 2013 TRENDnet. All Rights Reserved. TRENDnet User’s Guide Table of Contents i Contents Product Overview ............................................................................. 1 Package Contents .......................................................................................................... 1 Features ......................................................................................................................... 1 Product Hardware Features ........................................................................................... 2 Application Diagram ...................................................................................................... 3 Wireless Networking and Security .................................................... 4 Setting up TEW ‐ 713RE ...................................................................... 5 WPS connection ............................................................................................................. 5 Web Browser Configuration .......................................................................................... 5 Management .................................................................................... 6 Multi ‐ Language .............................................................................................................. 6 Network ......................................................................................................................... 6 LAN Setting ................................................................................................................ 6 IPv6 ............................................................................................................................ 6 Wireless ......................................................................................................................... 7 Site Survey ................................................................................................................. 7 Management ................................................................................................................. 7 Account ..................................................................................................................... 7 Upgrade Firmware .................................................................................................... 7 System ....................................................................................................................... 8 Status ........................................................................................................................ 8 Technical Specifications ................................................................... 9 Troubleshooting ............................................................................. 10 Appendix ....................................................................................... 11 © Copyright 2013 TRENDnet. All Rights Reserved. TRENDnet User’s Guide TEW ‐ 713RE 1 Product Overview TEW ‐ 713RE Package Contents  TEW ‐ 713RE  Multi ‐ Language Quick Installation Guide  CD ‐ ROM (User’s Guide) If any package contents are missing or damaged, please contact the retail store, online retailer, or reseller/distributor from which the product was purchased. Features TRENDnet’s compact N150 Easy ‐ N ‐ Range Extender, model TEW ‐ 713RE, extends the coverage of your existing wireless N network. Setup is easy with no drivers to install. Simply press the Wi ‐ Fi Protected Setup (WPS) button on your router or access point, then on the TEW ‐ 713RE and you’re done—the N150 Easy ‐ N ‐ Range Extender is now extending your wireless N network over a large area. The compact TEW ‐ 713RE conveniently plugs directly into an electrical outlet and the off white housing blends into the environment. An on / off switch is located on the side of the adapter and a LED indicator confirms wireless activity. Hardwire a computer, NAS drive, or printer to the LAN port on the bottom of the extender. The latest wireless encryption protects your network.  Compact wall plug design  Compact high performance wireless n range extender  Data rates of up to 150 Mbps based on IEEE 802.11n  Backward compatible with IEEE 802.11b/g devices  1x 10/100 Mbps Ethernet port  1x Wi ‐ Fi Protected Setup (WPS) button  1x Power on / off switch  IPv6 support  Supports up to WPA2 ‐ PSK wireless encryption  One ‐ touch wireless connection using the Wi ‐ Fi Protected Setup (WPS) button  Low interference and high susceptibility deliver reliable performance  3 ‐ year limited warranty *Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. © Copyright 2013 TRENDnet. All Rights Reserved. TRENDnet User’s Guide TEW ‐ 713RE 2 Product Hardware Features Side View  On/Off Power Switch – Push the On/Off button to turn your repeater “On” or “Off”  WPS (Wi ‐ Fi Protected Setup) – Push the WPS button for 1 second to activate WPS. The LED indicator will begin blinking green when WPS is activated.  Front View  LED Indicator – The LED indicator is will become solid green when your router is connected to a router/AP and WPS connection is established successfully o Flashing red when booting o Flashing amber when unable to connect to a device o Flashing green when initiating WPS connection  LAN Port – Connect an Ethernet cable (also known as a network cable) from your PC to the repeater when you want to setup the device manually, or use it to connect to a wired PC/laptop after the unit is connected to the wireless network  Reset Button – Use an item such as a paperclip to push and hold this button for 15 seconds and release to reset your repeater to its factory defaults. © Copyright 2013 TRENDnet. All Rights Reserved. TRENDnet User’s Guide TEW ‐ 713RE 3 A…

Text truncated - open the document above for the full version.

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 U.S.A. TEL No: 310-961-5500 FAX No.: 310-961-5511 Attestation for FCC Declaration of Conformity FCC ID: XU8TEW713-714 Data: Apr. 03, 2013 Please be notified that we, the undersigned, TRENDnet, Inc. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 134030R-RFUSP37V02 Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, ------------------------------------------------------------ Wen Tsai / Sr. Product Manager TRENDnet, Inc. Tel: 310-961-5500 Fax: 310-961-5511 Email: [email protected] TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 U.S.A. TEL No: 310-961-5500 FAX No.: 310-961-5511

FCC ID.: XU8TEW713-714 20675 Manhattan Place, Torrance m CA 90501 Tel : 310-961-5500 Federal Communications Commission Apr. 03, 2013 Authorization and Evaluation Division ATTESTATION FCC ID: XU8TEW713-714 Product: N150 Easy-N-Range Extender / Travel Router Model: TEW-713RE, TEW-714TRU We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ------------------------------------------------------ Wen Tsai / Sr. Product Manager Error! Reference source not found.

FCC ID.: XU8TEW713-714 20675 Manhattan Place, Torrance m CA 90501 Tel : 310-961-5500 Error! Reference source not found. 20675 Manhattan Place, Torrance m CA 90501 U.S. A. Tel : 310-961-5500 Fax: 310-961-5511 Federal Communications Commission Apr. 03, 2013 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (TEW-713RE) Schem Block Diagram: (TEW-713RE) BlkDia Operational Description: (TEW-713RE) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------- Wen Tsai / Sr. Product Manager Error! Reference source not found.net, Inc.

Declaration of Authorization We Name: TRENDNET, Inc Address: 20675 Manhattan Place City: Torrance Country: CA 91745 U.S.A. Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: N150 Easy-N-Range Extender / Travel Router Type designation: TEW-713RE, TEW-714TRU Trademark: TRENDnet on our behalf of TRENDnet. Signature _____________________ Wen Tsai/ Sr. Product Manage TRENDnet, Inc. Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

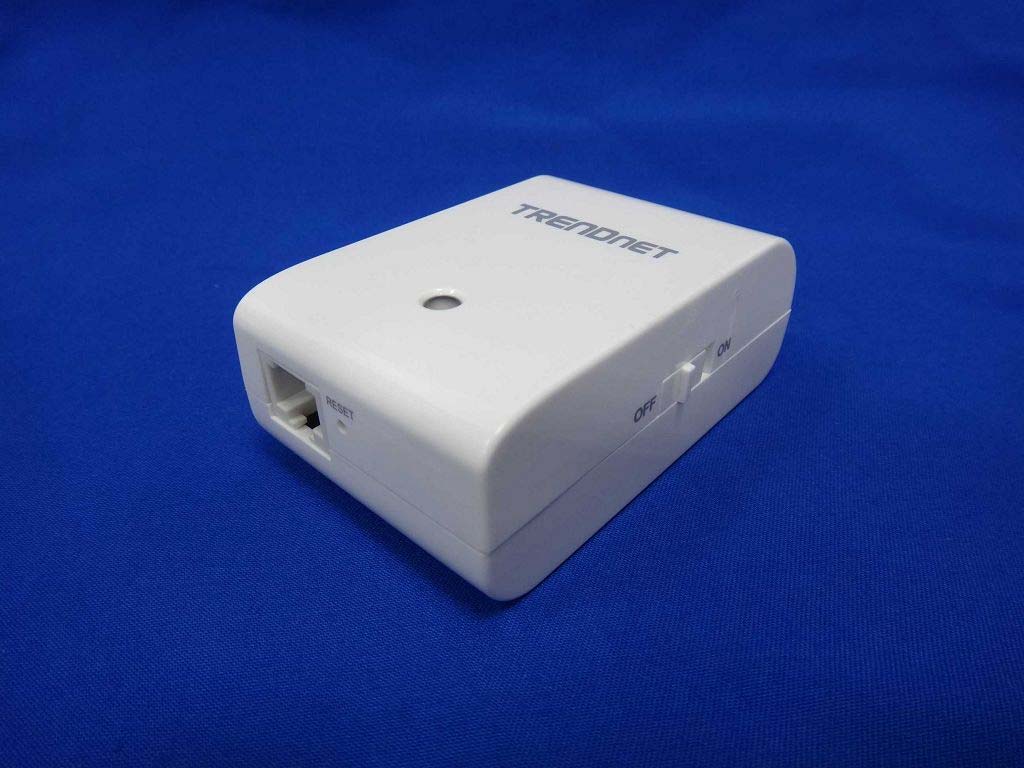

Report No.: 134030R-RFUSP42V01 Page : 1 of 17 Attachment 2 : EUT Detailed Photographs (1) EUT Photo – M/N: TEW-713RE (2) EUT Photo Report No.: 134030R-RFUSP42V01 Page : 2 of 17 (3) EUT Photo (4) EUT Photo Report No.: 134030R-RFUSP42V01 Page : 10 of 17 (19) EUT Photo – M/N: TEW-714TRU (20) EUT Photo Report No.: 134030R-RFUSP42V01 Page : 11 of 17 (21) EUT Photo (22) EUT Photo Report No.: 134030R-RFUSP42V01 Page : 12 of 17 (23) EUT Photo (24) EUT Photo

TRENDNET, Inc. FCC ID.: XU8TEW713-714 20675 Manhattan Place Torrance California United States 90501 Tel : 310-961-5500 FCC ID Label M/N: TEW-713RE M/N: TEW-714TRU

TRENDNET, Inc. FCC ID.: XU8TEW713-714 20675 Manhattan Place Torrance California United States 90501 Tel : 310-961-5500 The FCC ID and Doc Label will be placed on the equipment as shown in the photograph below.

Report No.: 134030R-RFUSP42V01 Page : 3 of 17 (5) EUT Photo (6) EUT Photo Report No.: 134030R-RFUSP42V01 Page : 4 of 17 (7) EUT Photo (8) EUT Photo Report No.: 134030R-RFUSP42V01 Page : 5 of 17 (9) EUT Photo (10) EUT Photo Report No.: 134030R-RFUSP42V01 Page : 6 of 17 (11) EUT Photo (12) EUT Photo Report No.: 134030R-RFUSP42V01 Page : 7 of 17 (13) EUT Photo (14) EUT Photo Report No.: 134030R-RFUSP42V01 Page : 8 of 17 (15) EUT Photo (16) EUT Photo Report No.: 134030R-RFUSP42V01 Page : 9 of 17 (17) EUT Photo (18) EUT Photo Report No.: 134030R-RFUSP42V01 Page : 12 of 17 (23) EUT Photo (24) EUT Photo Report No.: 134030R-RFUSP42V01 Page : 13 of 17 (25) EUT Photo (26) EUT Photo Report No.: 134030R-RFUSP42V01 Page : 14 of 17 (27) EUT Photo (28) EUT Photo Report No.: 134030R-RFUSP42V01 Page : 15 of 17 (29) EUT Photo (30) EUT Photo Report No.: 134030R-RFUSP42V01 Page : 16 of 17 (31) EUT Photo (32) EUT Photo Report No.: 134030R-RFUSP42V01 Page : 17 of 17 (33) EUT Photo

Report No.: 134030R-RFUSP42V01-A Page: 1 of 3 RF Exposure Evaluation declaration Product Name : N150 Easy-N-Range Extender / Travel Router Model No. : TEW-713RE, TEW-714TRU FCC ID : XU8TEW713-714 Applicant : TRENDNET, INC. Address : 20675 Manhattan Place , Torrance , CA90501 USA Date of Receipt : Nov. 15, 2012 Date of Declaration: Apr. 01, 2013 Report No. : 134030R-RFUSP42V01-A The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No.: 134030R-RFUSP42V01-A Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No.: 134030R-RFUSP42V01-A Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : N150 Easy-N-Range Extender / Travel Router Test Item : RF Exposure Evaluation Test Site : No.3 OATS Output Power Into Antenna & RF Exposure Evaluation Distance (2.12dBi): Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 250.0345 0.081046 Power density in column 4 is much lower than the limit (1 mW/cm2).

Report No. 134030R-RFUSP42V01 Page : 1 of 124 FCC Test Report Product Name N150 Easy-N-Range Extender / Travel Router Model No TEW-713RE, TEW-714TRU FCC ID. XU8TEW713-714 Applicant TRENDnet, Inc. Address 20675 Manhattan Place , Torrance , CA90501 USA Date of Receipt Nov. 15, 2012 Issue Date Apr. 01, 2013 Report No. 134030R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 134030R-RFUSP42V01 Page : 2 of 124 Test Report Certification Issue Date: Apr. 01, 2013 Report No.: 134030R-RFUSP42V01 Product Name N150 Easy-N-Range Extender / Travel Router Applicant TRENDnet, Inc. Address 20675 Manhattan Place , Torrance , CA90501 USA Manufacturer TRENDnet, Inc. Model No. TEW-713RE, TEW-714TRU FCC ID. XU8TEW713-714 EUT Rated Voltage AC 100-240V / 50-60Hz EUT Test Voltage AC 120V / 60Hz Trade Name TRENDnet Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2003, ANSI C63.10: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Jinn Chen ) Tested By : ( Engineer / Alan Chen ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 134030R-RFUSP42V01 Page : 3 of 124 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software ...............................................................................................................10 1.6. Test Facility .................................................................................................................................11 2. Conducted Emission..................................................................................................................12 2.1. Test Equipment............................................................................................................................12 2.2. Test Setup ....................................................................................................................................12 2.3. Limits ..........................................................................................................................................13 2.4. Test Procedure .............................................................................................................................13 2.5. Uncertainty ..................................................................................................................................13 2.6. Test Result of Conducted Emission.............................................................................................14 3. Peak Power Output ...................................................................................................................18 3.1. Test Equipment............................................................................................................................18 3.2. Test Setup ....................................................................................................................................18 3.3. Limits ..........................................................................................................................................18 3.4. Test Procedure .............................................................................................................................18 3.5. Uncertainty ..................................................................................................................................18 3.6. Test Result of Peak Power Output...............................................................................................19 4. Radiated Emission .....................................................................................................................27 4.1. Test Equipment............................................................................................................................27 4.2. Test Setup ....................................................................................................................................28 4.3. Limits ..........................................................................................................................................29 4.4. Test Procedure .............................................................................................................................30 4.5. Uncertainty ..................................................................................................................................30 4.6. Test Result of Radiated Emission................................................................................................31 5. RF antenna conducted test........................................................................................................51 5.1. Test Equipment..........................................................................................…

Text truncated - open the document above for the full version.

Report No.: 134030R-RFUSP42V01 Page : 1 of 6 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test – (M/N:TEW-713RE) Back View of Conducted Test – (M/N:TEW-713RE) Report No.: 134030R-RFUSP42V01 Page : 2 of 6 Front View of Radiated Test – (M/N:TEW-713RE) Back View of Radiated Test – (M/N:TEW-713RE) Report No.: 134030R-RFUSP42V01 Page : 3 of 6 Front View of Radiated Test (Horn) – (M/N:TEW-713RE) Back View of Radiated Test (Horn) – (M/N:TEW-713RE) Report No.: 134030R-RFUSP42V01 Page : 4 of 6 Front View of Conducted Test – (M/N:TEW-714TRU) Back View of Conducted Test – (M/N:TEW-714TRU) Report No.: 134030R-RFUSP42V01 Page : 5 of 6 Front View of Radiated Test – (M/N:TEW-714TRU) Back View of Radiated Test – (M/N:TEW-714TRU) Report No.: 134030R-RFUSP42V01 Page : 6 of 6 Front View of Radiated Test (Horn) – (M/N:TEW-714TRU) Back View of Radiated Test (Horn) – (M/N:TEW-714TRU)
