XU8TEW715APON150 Wireless Outdoor POE Access Point

TRENDnet User’s Guide Cover Page © Copyright 2012 TRENDnet. All Rights Reserved. TRENDnet User’s Guide Table of Contents i Contents Product Overview ........................................................................... 3 Package Contents .......................................................................................................... 3 Features ......................................................................................................................... 3 Product Hardware Features ............................................................. 4 Application Diagram ...................................................................................................... 5 Creating a Network ........................................................................................................ 6 Wireless Performance Considerations .......................................................................... 6 Getting Started ............................................................................... 7 Connect wireless devices to your access point .............................................................. 8 Steps to improve wireless connectivity ......................................................................... 8 Configuration .................................................................................. 9 Access the management page ....................................................................................... 9 System Modes .............................................................................. 10 Bridge Mode ................................................................................. 10 AP Mode ...................................................................................................................... 11 Wireless Client Mode................................................................................................... 13 Bridge Mode ................................................................................................................ 16 AP Repeater Mode....................................................................................................... 18 Router Mode................................................................................. 20 AP Mode ...................................................................................................................... 21 Wireless Client Mode................................................................................................... 23 Bridge Mode ................................................................................................................ 26 AP Repeater Mode....................................................................................................... 28 Wireless Networking and Security ................................................. 30 How to choose the type of security for your wireless network .................................. 30 Secure your wireless network ..................................................................................... 31 Wireless access control ............................................................................................... 33 Advance Settings .......................................................................... 33 Change your IP address ............................................................................................... 33 Configure your Internet connection ............................................................................ 34 Setting time ................................................................................................................. 35 Advance wireless settings ............................................................................................ 35 Change your login password ....................................................................................... 36 Access Control .............................................................................. 37 Source IP Filtering ........................................................................................................ 37 Destination IP Filtering ................................................................................................ 37 Source Port Filtering .................................................................................................... 37 Destination Port Filtering ............................................................................................ 38 Port Fordwarding ......................................................................................................... 38 Open a device on your network to the Internet .......................................................... 39 DMZ ......................................................................................................................... 39 UDP Pass through ........................................................................................................ 39 Configure your log ....................................................................................................... 39 View your log ............................................................................................................... 39 Ping Watchdog ............................................................................................................ 40 Ping Watchdog ........................................................................................................ 40 WDS Data Rate Test ..................................................................................................... 40 Antenna Alignment ...................................................................................................... 41 Speed Test ................................................................................................................... 41 Remote Mangement ................................................................................................... 41 Coovachi…

Text truncated - open the document above for the full version.

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 ,U.S.A Tel: (310)961 -5500 / Fax: (310)961 -5511 Confidential Letter Date: 2012/10/29 Federal Communications Commission Authorization and Evaluation Division FCC ID : XU8TEW715APO Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description 4. BOM List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant's company name Applicant's company address TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 ,U.S.A Signature Job Title and Dept. E-Mail Wen Tsai / Sr. Product Manager [email protected]

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 ,U.S.A Tel: (310)961-55007 Fax: (310)961-5511 Power of Attorney Date: 2012/9/24 Dear Sir, I hereby hav e ent rusted the following pe rson to be a proxy re garding applicat ion for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail: [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: TRENDnet / TEW-715APO FCC ID:XU8TEW715APO Product name: N150 Wireless Outdoor PoE Access Point FCC Grantee contact person information. AoDlicant's comnanv name : TRENDnet. Inc. Applicant's company address : 20675 Manhattan Place, Torrance, CA 90501 ,U.S.A Signature : Job Title and Dept. E-Mail : Tel.: Wen Tsai / Sr. Product Manager [email protected] (310)961-5500

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501,U.S.A Tel: (310)961-5500/Fax: (310)961-5511 DoC Attestation Letter Date: 2012/9/24 We, TRENDnet, Inc., as the grantee of this project (FCC ID: XU8TEW715APO / Brand Name: TRENDnet / Model No.: TEW-715APO), would like to declare that the composite oortion cateaorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sproton report No.: FD9O1410-15, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. Applicant's company name : TRENDnet, Inc. Applicant's company address : 20675 Manhattan Place, Torrance, CA 90501,U.S.A Signature : Job Title and Dept. E-Mail : Tel. : : Wen Tsai / Sr. Product Manager [email protected] (310)961-5500

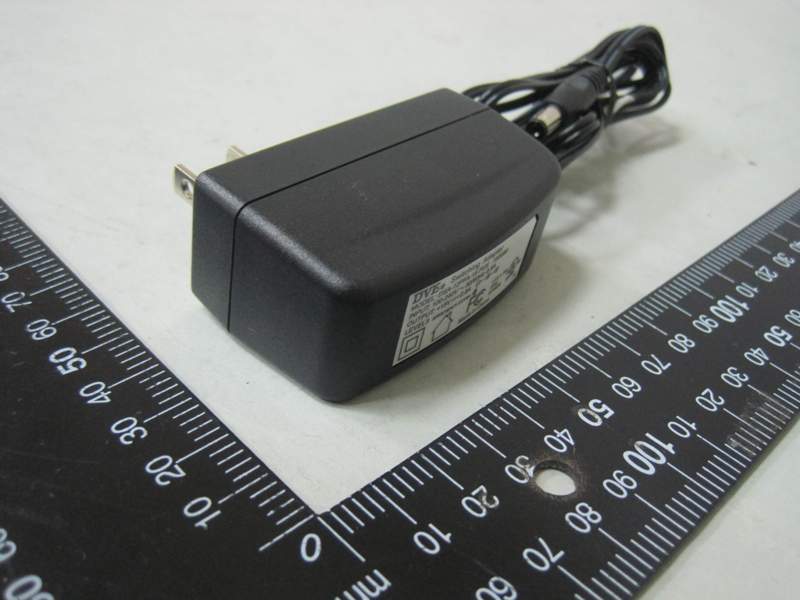

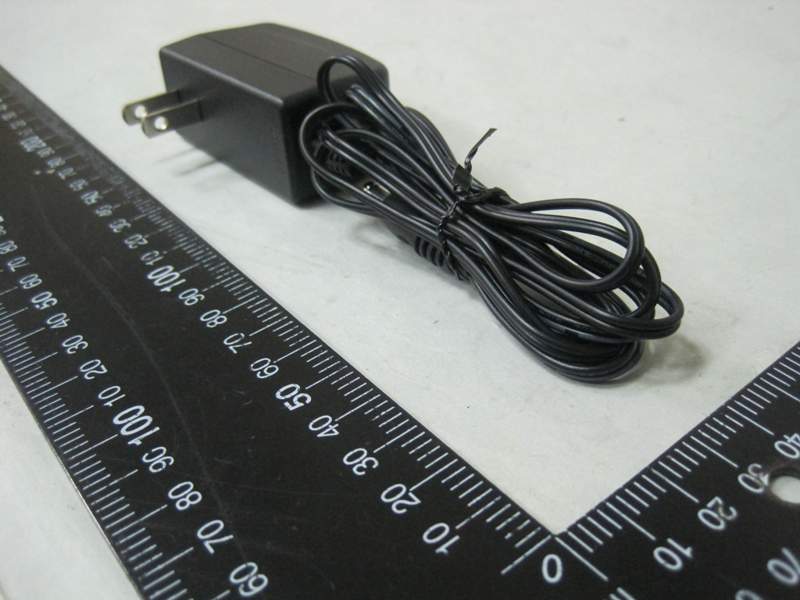

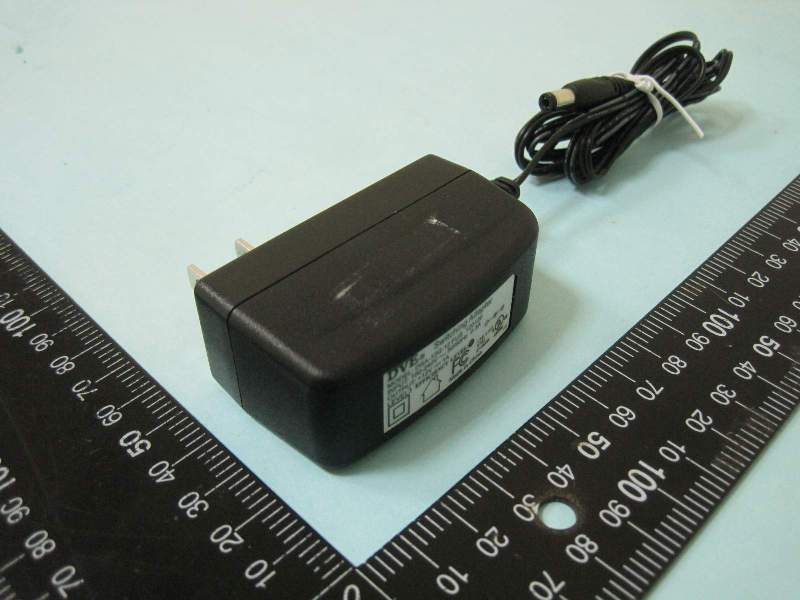

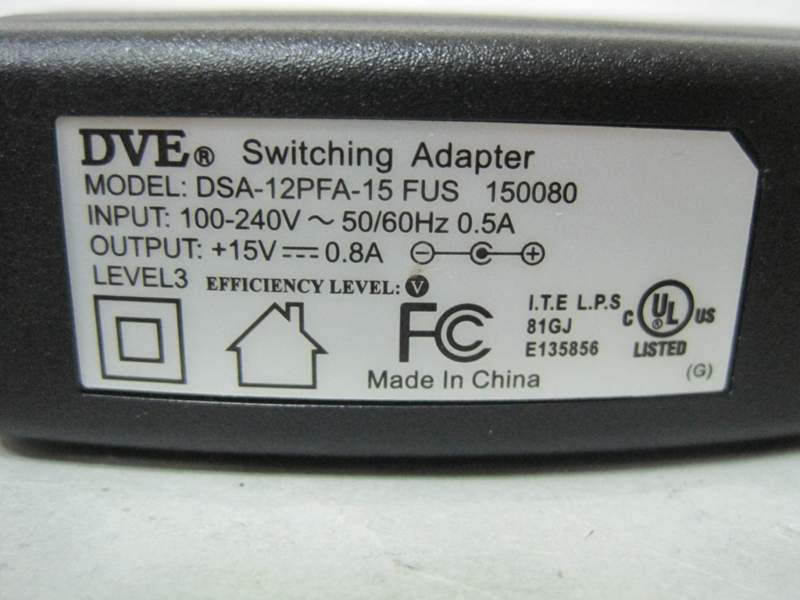

Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A1 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A2 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A3 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A4 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A5 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 Adapter 1 Brand Name: DVE Model No.: DSA-12G-12 FUS 120120 Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A6 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 Adapter 2 Brand Name: DVE Model No.: DSA-12PFA-15 FUS 150080 Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A7 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A8 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A9 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A10 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A11 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A12 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255

Label dimension: 35.8*29.3mm

Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A1 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A2 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A3 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A4 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A5 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A6 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A7 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A8 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255 Report No.:9O1410-15 SPORTON International Inc. PAGE NUMBER : A9 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 31, 2012 FAX : 886-2-2696-2255

Report No.: FR9O1410-15 FCC ID: XU8TEW715APO Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR9O1410-15 FCC ID: XU8TEW715APO Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=1m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR9O1410-15 FCC ID: XU8TEW715APO Page No. : C3 of C3 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11b Ant. A : 25.46 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 25.4600 351.5604 0.004436 1 Complies Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11b Ant. B : 24.29 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8.45 6.9984 24.2900 268.5344 0.014963 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company TRENDnet, Inc. Applicant Address 20675 Manhattan Place, Torrance, CA 90501,U.S.A FCC ID XU8TEW715APO Manufacturer’s company TRENDnet, Inc. Manufacturer Address 20675 Manhattan Place, Torrance, CA 90501,U.S.A Product Name N150 Wireless Outdoor PoE Access Point Brand Name TRENDnet Model Name TEW-715APO Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Oct. 12, 2009 Final Test Date Oct. 23, 2012 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR9O1410-15 Report Format Version: 01 Page No. : iof ii FCC ID: XU8TEW715APO Issued Date :Oct. 31, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION ..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 5 3.3. Table for Filed Antenna ............................................................................................................................................................................. 5 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 5 3.5. Table for Test Modes .................................................................................................................................................................................. 6 3.6. Table for Testing Locations........................................................................................................................................................................ 7 3.7. Table for Supporting Units ......................................................................................................................................................................... 7 3.8. Table for Parameters of Test Software Setting ....................................................................................................................................... 8 3.9. Test Configurations ................................................................................................................................................................................... 10 4. TEST RESULT ......................................................................................................................................................... 13 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 13 4.2. Maximum Conducted Output Power Measurement ......................................................................................................................... 17 4.3. Power Spectral Density Measurement .................................................................................................................................................. 34 4.4. 6dB Spectrum Bandwidth Measurement ............................................................................................................................................. 52 4.5. Radiated Emissions Measurement ......................................................................................................................................................... 69 4.6. Band Edge Emissions Measurement .................................................................................................................................................... 123 4.7. Antenna Requirements ......................................................................................................................................................................... 140 5. LIST OF MEASURING EQUIPMENTS .................................................................................................................. 141 6. TEST LOCATION ................................................................................................................................................ 145 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................ 146 APPENDIX A. PHOTOGRAPHS OF EUT ........................................................................................................ A1 ~ A20 APPENDIX B. TEST PHOTOS ............................................................................................................................ B1 ~ B4 APPE…

Text truncated - open the document above for the full version.

Report No.: FR9O1410-15 Report Format Version: 01 Page No. : 69 of 146 FCC ID: XU8TEW715APO Issued Date : Oct. 31, 2012 4.5. Radiated Emissions Measurement 4.5.1. Limit 20dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 4.5.2. Measuring Instruments and Setting Please refer to section 5 of equipments list in this report. The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Attenuation Auto Start Frequency 1000 MHz Stop Frequency 10th carrier harmonic RB / VB (Emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (Emission in non-restricted band) 1MHz / 1MHz for peak Receiver Parameter Setting Attenuation Auto Start ~ Stop Frequency 9kHz~150kHz / RB 200Hz for QP Start ~ Stop Frequency 150kHz~30MHz / RB 9kHz for QP Start ~ Stop Frequency 30MHz~1000MHz / RB 120kHz for QP Report No.: FR9O1410-15 Report Format Version: 01 Page No. : 70 of 146 FCC ID: XU8TEW715APO Issued Date : Oct. 31, 2012 4.5.3. Test Procedures 1. Configure the EUT according to ANSI C63.4. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 m to 4 m) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum value. 8. If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High – Low scan is not required in this case. Report No.: FR9O1410-15 Report Format Version: 01 Page No. : 71 of 146 FCC ID: XU8TEW715APO Issued Date : Oct. 31, 2012 4.5.4. Test Setup Layout For radiated emissions below 30MHz For radiated emissions above 30MHz Above 10 GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade form 3m to 1.5m. Distance extrapolation factor = 20 log (specific distanc [3m] / test distance [1.5m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [6 dB]. 4.5.5. Test Deviation There is no deviation with the original standard. 4.5.6. EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. 3 or 1.5m Report No.: FR9O1410-15 Report Format Version: 01 Page No. : 72 of 146 FCC ID: XU8TEW715APO Issued Date : Oct. 31, 2012 4.5.7. Results of Radiated Emissions (9kHz~30MHz) Temperature 26°C Humidity 60% Test Engineer Alan Huang Configurations Normal Link Freq. Level Over Limit Limit Line Remark (MHz) (dBuV) (dB) (dBuV) - - - - See Note Note: The amplitude of spurious emissions which are attenuated by more than 20 dB below the permissible value has no need to be reported. Distance extrapolation factor = 40 log (specific distance / test distance) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor. Report No.: FR9O1410-15 Report Format Version: 01 Page No. : 73 of 146 FCC ID: XU8TEW715APO Issued Date : Oct. 31, 2012 4.5.8. Results of Radiated Emissions (30MHz~1GHz) Temperature 26°C Humidity 60% Test Engineer Alan Huang Configurations Normal Link / Mode 3 Horizontal Report No.: FR9O1410-15 Report Format Version: 01 Page No. : 74 of 146 FCC ID: XU8TEW715APO Issued Date : Oct. 31, 2012 Vertical Note: The amplitude of spurious emissions which are attenuated by more than 20 dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR9O1410-15 Report Format Version: 01 Page No. : 75 of 146 FCC ID: XU8TEW715APO Issued Date : Oct. 31, 2012 4.5.9. Results for Radiated Emissions (…

Text truncated - open the document above for the full version.

Report No.: FR9O1410-15 FCC ID: XU8TEW715APO Page No. : B1 of B5 Appendix B. Test Photos Report No.: FR9O1410-15 FCC ID: XU8TEW715APO Page No. : B2 of B5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 3 FRONT VIEW REAR VIEW Report No.: FR9O1410-15 FCC ID: XU8TEW715APO Page No. : B3 of B5 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR9O1410-15 FCC ID: XU8TEW715APO Page No. : B4 of B5 <Mode for first additional test report: 9O1410-14> < 30MHZ~1GHz> Test Mode: Mode 3 FRONT VIEW REAR VIEW Report No.: FR9O1410-15 FCC ID: XU8TEW715APO Page No. : B5 of B5 Above 1GHz Test Mode: Mode 3 FRONT VIEW REAR VIEW
