RF_160, Issue 03 Declaration of Authorization We Name: TRENDnet , Inc. Address: 20675 Manhattan Place , City: Torrance , Country: CA 90501 , U.S.A. Declare that: Name Representative of agent: Daphne Liang Agent Company name: Compliance Certification Services Inc. Address: No.8, Jiucengling, Xinhua Dist., City: Tainan City 712, Country Taiwan, R.O.C is authorized to apply for Certification of the following product(s): Product description: N150 Wireless ADSL2/2+ Modem Router Type designation: TEW-718BRM5 , TEW-718BRM Trademark: TRENDnet on our behalf. Date: December 10, 2012 Signature: Name/Title: Wen Tsai / Sr. Product Manager Company Name: TRENDnet , Inc. Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

DECLARATION OF CONFORMITY (DoC) Equipment: N150 Wireless ADSL2/2+ Modem Router Trademark(s) and Model(s): TRENDnet / TEW-718BRM5 , TEW-718BRM Manufacturer: TRENDnet , Inc. FCC ID in case other parts of this equipment are subject to certification: XU8TEW718BRM This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number:Issue date: T121108N01-D November 15, 2012 Company name: TRENDnet , Inc. Name/Title (legal representative): Wen Tsai / Sr. Product Manager Address: 20675 Manhattan Place , Torrance , CA 90501 , U.S.A. E-mail: [email protected] Date: December 10, 2012 Signature:

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: TRENDnet , Inc. Address : 20675 Manhattan Place , City: Torrance , Country: CA 90501 , U.S.A. To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: XU8TEW718BRM Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2012-12-10 Name and signature of applicant: Wen Tsai Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

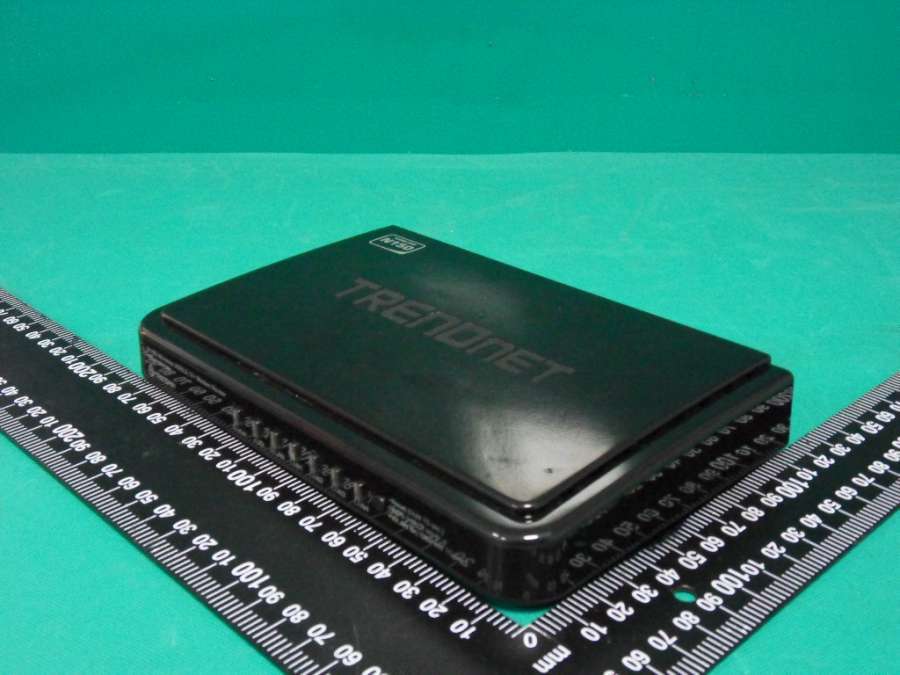

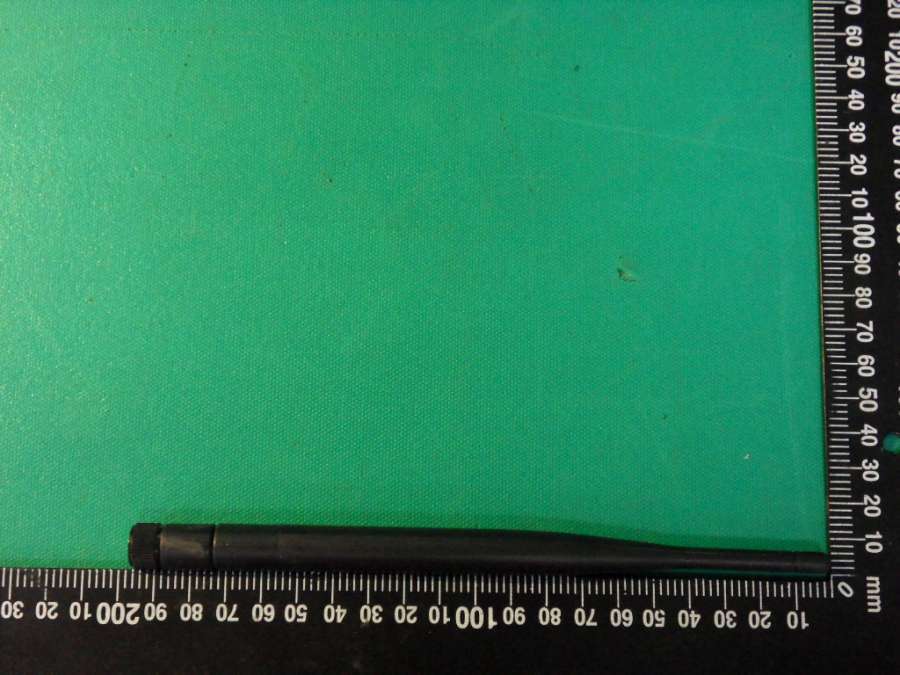

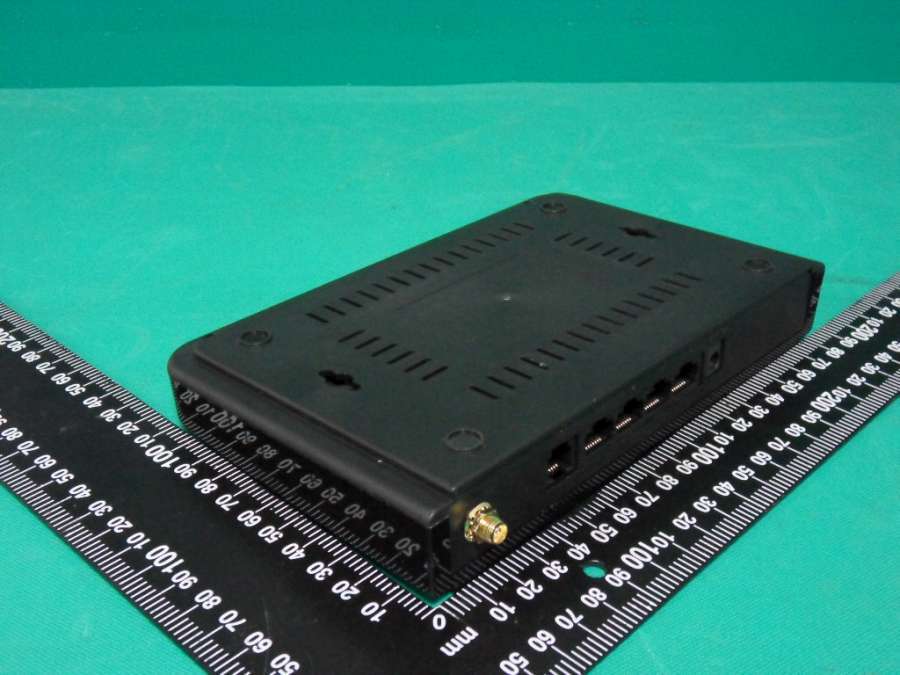

Compliance Certification Services Inc. Report No.：T120920N91-RP1 Page A1 / 7 External Photo (TEW-718BRM5 & TEW-718BRM) Compliance Certification Services Inc. Report No.：T120920N91-RP1 Page A2 / 7 Compliance Certification Services Inc. Report No.：T120920N91-RP1 Page A3 / 7 Antenna 1 (4.04 dBi) Antenna 2 (2.0 dBi) Compliance Certification Services Inc. Report No.：T120920N91-RP1 Page A4 / 7 External Photo (Adapter)

Diagram Label location

Compliance Certification Services Inc. Report No.：T120920N91-RP1 Page A5 / 7 Internal Photo Compliance Certification Services Inc. Report No.：T120920N91-RP1 Page A6 / 7 Compliance Certification Services Inc. Report No.：T120920N91-RP1 Page A7 / 7

Reference No: T120920N91-RP1 FCC ID：XU8TEW718BRM Report No.：T121108N01-RP1 Page 76 / 196 8.3 MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Reference No: T120920N91-RP1 FCC ID：XU8TEW718BRM Report No.：T121108N01-RP1 Page 77 / 196 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS No non-compliance noted. Antenna Gain 4.04 dBi () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Once Antenna Gain=4.04dBi=2.53512863mW IEEE 802.11b = 0.0796 * 91.6220 *2.53512863 ÷ 400 = 0.04622 IEEE 802.11g = 0.0796 * 134.2765 *2.53512863 ÷ 400 = 0.06774 IEEE 802.11n HT20 = 0.0796 * 145.2112 *2.53512863 ÷ 400 = 0.07326 IEEE 802.11n HT40 = 0.0796 * 164.8162 *2.53512863 ÷ 400 = 0.08315 Mode Minimum separation distance (cm) Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 20 19.62 91.62 4.04 1.00 0.046222 IEEE 802.11g 20 21.28 134.28 4.04 1.00 0.067741 IEEE 802.11n HT2020 21.62 145.21 4.04 1.00 0.073258 IEEE 802.11n HT4020 22.17 164.82 4.04 1.00 0.083148 REMARK: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. Reference No: T120920N91-RP1 FCC ID：XU8TEW718BRM Report No.：T121108N01-RP1 Page 78 / 196 Antenna Gain 2.0 dBi () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Once Antenna Gain=2.0dBi=1.58489319mW IEEE 802.11b = 0.0796 * 140.6048 *1.58489319 ÷ 400 = 0.04435 IEEE 802.11g = 0.0796 * 187.9317 *1.58489319 ÷ 400 = 0.05927 IEEE 802.11n HT20 = 0.0796 * 211.3489 *1.58489319 ÷ 400 = 0.06666 IEEE 802.11n HT40 = 0.0796 * 194.0886 *1.58489319 ÷ 400 = 0.06121 Mode Minimum separation distance (cm) Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 20 21.48 140.60 2.00 1.00 0.044346 IEEE 802.11g 20 22.74 187.93 2.00 1.00 0.059272 IEEE 802.11n HT2020 23.25 211.35 2.00 1.00 0.066658 IEEE 802.11n HT4020 22.88 194.09 2.00 1.00 0.061214 REMARK: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Reference No: T120920N91-RP1 FCC ID：XU8TEW718BRM Report No.：T121108N01-RP1 Page 1 / 196 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2003 TEST REPORT For N150 Wireless ADSL2/2+ Modem Router Model: TEW-718BRM5 Data Applies To: TEW-718BRM Brand: TRENDnet Issued for TRENDnet , Inc. 20675 Manhattan Place , Torrance , CA 90501 , U.S.A. Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Date of Issue: November 15, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Reference No: T120920N91-RP1 FCC ID：XU8TEW718BRM Report No.：T121108N01-RP1 Page 2 / 196 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 November 15, 2012 Initial Issue ALL Eva Lin Reference No: T120920N91-RP1 FCC ID：XU8TEW718BRM Report No.：T121108N01-RP1 Page 3 / 196 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION............................................................................................ 4 2. EUT DESCRIPTION.................................................................................................................... 5 3. DESCRIPTION OF TEST MODES........................................................................................... 7 4. TEST METHODOLOGY............................................................................................................. 8 5. FACILITIES AND ACCREDITATIONS.................................................................................... 8 5.1 FACILITIES............................................................................................................................................8 5.2 EQUIPMENT..........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS LISTINGS..............................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.............................................................................9 6. CALIBRATION AND UNCERTAINTY..................................................................................... 10 6.1 MEASURING INSTRUMENT CALIBRATION..................................................................................10 6.2 MEASUREMENT UNCERTAINTY.....................................................................................................10 7. SETUP OF EQUIPMENT UNDER TEST................................................................................. 11 7.1 SETUP CONFIGURATION OF EUT..................................................................................................11 7.2 SUPPORT EQUIPMENT.....................................................................................................................12 7.3 EUT OPERATING CONDITION.........................................................................................................13 8. APPLICABLE LIMITS AND TEST RESULTS........................................................................ 15 8.1 6DB BANDWIDTH................................................................................................................................15 8.2 MAXIMUM PEAK OUTPUT POWER.................................................................................................36 8.3 MAXIMUM PERMISSIBLE EXPOSURE...........................................................................................76 8.4 POWER SPECTRAL DENSITY..........................................................................................................79 8.5 CONDUCTED SPURIOUS EMISSION.............................................................................................98 8.6 RADIATED EMISSIONS......................................................................................................................123 8.7 POWERLINE CONDUCTED EMISSIONS........................................................................................186 9. ANTENNA REQUIREMENT...................................................................................................... 190 9.1 STANDARD APPLICABLE..................................................................................................................190 9.2 ANTENNA CONNECTED CONSTRUCTION...................................................................................190 APPENDIX SETUP PHOTOS........................................................................................................ 191 APPENDIX II PHOTOGRAPHS OF EUT.................................................................A1 Reference No: T120920N91-RP1 FCC ID：XU8TEW718BRM Report No.：T121108N01-RP1 Page 4 / 196 1. TEST REPORT CERTIFICATION Applicant TRENDnet , Inc. Address 20675 Manhattan Place , Torrance , CA 90501 , U.S.A. Equipment Under Test N150 Wireless ADSL2/2+ Modem Router Model TEW-718BRM5 Data Applies To TEW-718BRM Brand TRENDnet Date of Test September 21, 2012 ~ October 03, 2012 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Reference No: T120920N91-RP1 FCC ID：XU8TEW718BRM Report No.：T121108N01-RP1 Page 5 / 196 2. EUT DESCRIPTION Product Name N150 Wireless ADSL2/2+ Modem Router Model TEW-718BRM5 Data Applies To TEW-718BRM Brand TRENDnet Received Date September 20, 2012 Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS Band):2412MHz~2462MHz IEEE 802.11n HT40 (DTS Band):2422MHz~2452MHz Transmit Power (Antenna 1: 4.04 dBi) IEEE 802.11b Mode : 19.62dBm (DTS Band) (91.622mW) IEEE 802.11g Mode : 21.28dBm (DTS Band) (134.28mW) IEEE 802.11n HT20 Mode : 21.62dBm (DTS Band) (145.21mW)…
