i N300 Wireless Router TEW-732BR User’s Guide i Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. For Taiwan ᤞ፿Κ ᆖীڤᎁᢞٽ௑հפ܅෷୴᙮ሽᖲΔॺᆖ๺ױΔֆ׹Ε೸ᇆشࠌࢨृ݁լ൓ᖐ۞᧢ޓ᙮෷ΕףՕפ෷ࢨ᧢ޓ଺๻ૠհ ౨Ζפ֗ࢤ௽ פ܅෷୴᙮ሽᖲհشࠌլ൓ᐙ᥼ଆ౰֗٤ڜեឫٽऄຏॾΙᆖ࿇෼ڶեឫ෼ွழΔᚨܛمೖشΔޏࠀ࿳۟ྤեឫழֱ ൓ᤉᥛشࠌΖছႈٽऄຏॾΔਐࠉሽॾऄ๵܂ࡳᄐհྤᒵሽຏॾΖפ܅෷୴᙮ሽᖲႊٽ࠹ݴऄຏॾࢨՠᄐΕઝᖂ֗᠔ ᛭شሽंᘿ୴ࢤሽᖲ๻ໂհեឫΖ ii Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN60950-1: 2006/A11:2009/A1:2010 Safety of Information Technology Equipment EN 62311:2008 Product standard to demonstrate the compliance of radio base stations and fixed terminal stations for wireless telecommunication systems with the basic restrictions or the reference levels related to human exposure to radio frequency electromagnetic fields (110MHz - 40 GHz) - General public EN 300 328 V1.7.1 :2006 Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive EN 301 489-1 V1.9.2 2011-09 Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements EN 301 489-17 V2.2.1 2012-09 Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. iii ýesky [Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zaĜízení] je ve shodČ se základními požadavky a dalšími pĜíslušnými ustanoveními smČrnice 1999/5/ES. Dansk [Danish] Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. ǼȜȜȘȞȚțȒ [Greek] ȂǼ ȉǾȃ ȆǹȇȅȊȈǹ [name of manufacturer] ǻǾȁȍȃǼǿ ȅȉǿ [type of equipment] ȈȊȂȂȅȇĭȍȃǼȉǹǿ ȆȇȅȈ ȉǿȈ ȅȊȈǿȍǻǼǿȈ ǹȆǹǿȉǾȈǼǿȈ Ȁǹǿ ȉǿȈ ȁȅǿȆǼȈ ȈȋǼȉǿȀǼȈ ǻǿǹȉǹȄǼǿȈ ȉǾȈ ȅǻǾīǿǹȈ 1999/5/ǼȀ. Fr…

Text truncated - open the document above for the full version.

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 U.S.A Phone: (310)961-5500 Fax: (310)961-5511 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: December ,12, 2012 Subject: Request for Confidentiality FCC ID: XU8TEW732BR To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation ANT specification It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Sincerely yours, ___________________________ Name/Title: Wen Tsai / Sr. Product Manager Applicant: TRENDnet, Inc. ADDRESS: 20675 Manhattan Place, Torrance, CA 90501 U.S.A December ,12, 2012

TRENDnet, Inc. Date: December-12-2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr.Stan Lin / Section Manager of Compliance Certification Services Inc. and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr.Stan Lin / Section Manager of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Name/Title: Wen Tsai / Sr. Product Manager Company Name : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501 U.S.A REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

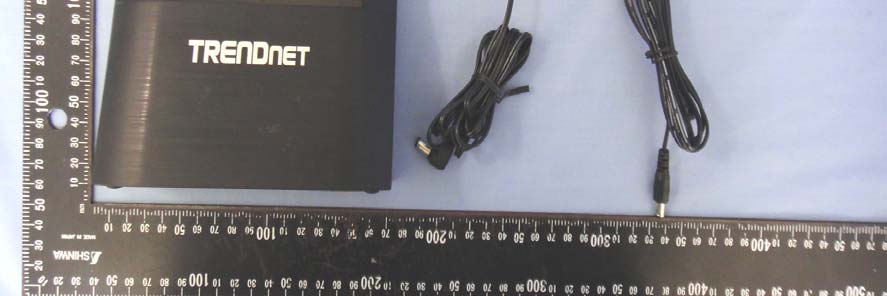

Report No: T121121W02 Page 1 / 13 Rev.00 EXTERNAL HOTOGRAPHS OF EUT Report No: T121121W02 Page 2 Rev.00 Report No: T121121W02 Page 3 Rev.00 Report No: T121121W02 Page 4 Rev.00 Report No: T121121W02 Page 5 Rev.00 Report No: T121121W02 Page 6 Rev.00 SHENZHEN FRECOM / F05W-050100SPAU Report No: T121121W02 Page 7 Rev.00 Report No: T121121W02 Page 8 Rev.00 AMIGO / AMS47-0501000FU Report No: T121121W02 Page 9 Rev.00

N300 Wireless Router TEW-732BR Lable Location

Report No: T121121W02 Page 10 Rev.00 INTERNAL HOTOGRAPHS OF EUT Report No: T121121W02 Page 11 Rev.00 Antenna Report No: T121121W02 Page 12 Rev.00 Report No: T121121W02 Page 13 Rev.00

Compliance Certification Services Inc. Report No.: T121121W02-RP1 FCC ID: XU8TEW732BR Date of Issue: January 11, 2013 Page 92 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 8. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT N300 Wireless Router Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 18.32 dBm (0.0679W) IEEE 802.11g mode: 21.11 dBm (0.1291W) IEEE 802.11n 20 MHz Channel mode: 23.33 dBm (0.2151W) IEEE 802.11n 40 MHz Channel mode: 22.90 dBm (0.1950W) Antenna gain (Max) 5.20dBi (including cable loss) (Numeric gain: 3.31) Evaluation applied MPE Evaluation SAR Evaluation N/A Remark: 1. The maximum output power is 23.33dBm (0.2151W) at 2462MHz (with 3.31numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No.: T121121W02-RP1 FCC ID: XU8TEW732BR Date of Issue: January 11, 2013 Page 93 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 215.1mW Numeric Antenna gain = 3.31 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.142 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

1 Chris Harvey From: [email protected] Sent: Friday, February 22, 2013 10:59 PM To: Chris Harvey Cc: [email protected]; [email protected]; Harvey, Christopher; Hoque, Claire; Briggs, Mark Subject: RE: RE: TRENDNET, Inc., //XU8TEW732BR //AN13T0043 Notice #4 Attachments: TEW-732BR-Test Report-20130223.pdf; TEW-732BR-Theroy of operation-20130223.pdf DearChris Please see my reply as below (Remark Red), thank you. Landy, thank you for your reply.I am afraid that my requests to you to provide additional information are not very clear as you are not providing the level of information needed to properly document the capabilities of this device and the compliance of those capabilities.Please providethe details about this Trendnet AP and not just the chipset or module inside of this device. The Test Report and Operational description need to be consistent otherwise we cannot tell if the correct tests were done or not. In your reply to me, please provide answers to each question right after the question so you are sure to answer all questions being asked. 1. Please provide a full Technical description for this Access Point device (not just the module information). The operational description needs to explain which modes support 2x2 and which do not. For the operational description we need something to explain how the device works and the relationship between the specification sheet for the module and the device. Include any otherinformation about the interfaces offered on this device. You have provided a detailed Technical Description of the Atheros Chip, but this chip apparently has capabilities that have not been used in the final Access Point device.It is only acceptableto provide the Chip Technical Description if the exhibit also indicates which specific capabilities of the chip have been used and which specific capabilities have not been used. Please provide a full Technical description for this Access Point device. {please enter answer #1 here and make sure the Operational Description exhibit is updated with this information} ---> Operational description is updated. This device is a 2x2 spatial multiplexing MIMO without CDD. 2. Does this device use Spatial Multiplexing MIMO?If yes, please make sure this is detailed in the updated Technical Description exhibit. (please note that the Operational Description exhibit still lists Beam Forming capability) {please enter answer #2 here and make sure the OperationalDescription exhibit is updated with this information} ---> Operational description is updated. This device is a 2x2 spatial multiplexing MIMO without CDD. (Modifies the report at page.8 and operatingdescription as below ) 2 3. As this is a MIMO device for 802.11n modes the report should reference the MIMO KDB.Was FCC KDB 662911 D01 v01r02 guidance followed for the testing of this MIMO device?If yes, please update the Test Report to indicate which portions of this KDB were used and make specific reference to the KDB and section numbers.If not, please indicate why. {please enter answer #3 here and provide updated Report} --->Please refer to Page 25.46.57.64.58.73.76. of test report 4.In the test report the antenna specifications are listed and the MIMO antenna gain is calculated. but there is no indicationof where this MIMO antenna gain is used.The latest MIMO test guidance from the FCC indicates that correlated signals for 802.11 modes supporting CDD (so MCS0-7 for the 802.11n modes) are only correlated over narrow bandwidths within the transmitted spectrum and array gain only needs to be considered for the power density measurements. {please enter answer #4 here and provide updated Report} --->EUT is not support CDD. Please refer to page 8 of test report. Best regards, ~感謝你~ ******************************************* 黃雅鈞/Landy Huang 程智科技股份有限公司 Compliance Certification Services Inc. Tel: 886-3-324-0332#57 Fax: 886-3-324-7460 E-Mail: [email protected] ******************************************* -----轉寄者Landy.Huang/ccsrf於2013/02/23上午11:00----- 寄件者:"Chris Harvey" <[email protected]> 收件者:<[email protected]> 副本抄送:<[email protected]>, "'Harvey, Christopher'" <[email protected]>, "'Hoque, Claire'" <[email protected]>, "'Briggs, Mark'" <[email protected]>, <[email protected]> 日期:2013/02/22上午02:53 主旨:RE: RE: TRENDNET, Inc., //XU8TEW732BR //AN13T0043 Notice #4 3 Landy, thank you for your reply.I am afraid that my requests to you to provide additional information are not very clear as you are not providing the level of information needed to properly document the capabilities of this device and the compliance of those capabilities.Please provide the details about this Trendnet AP and not just the chipset or module inside of this device. The Test Report and Operational description need to be consistent otherwise we cannot tell if the correct tests were done or not. In your reply to me, please provide answers to each question right after the question so you are sure to answer all questions being asked. 1. Please provide a full Technical description for this Access Point device (not just the module information). The operational description needs to explain which modes support 2x2 and which do not. Forthe operational description we need something to explain how the device works and the relationship between the specification sheet for the module and the device. Include any other information about the interfaces offered on this device. You have provided a detailed Technical Description of the Atheros Chip, but this chip apparently has capabilities that have not been used in the final Access Point device.It is only acceptable to provide the Chip Technical Description if the exhibit also indicates which specific capabilities of the chip have been used and which specific capabilities have not been used. Please provide a full Technical description for this Access Point device. {please enter answer #1 here and make sure the Operational Descriptionexhibit is updated with this informat…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T121121W02-RP1 FCC ID: XU8TEW732BR Date of Issue: January 11, 2013 Page 1 / 101 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For N300 Wireless Router Model: TEW-732BR Trade Name: TRENDnet Issued to TRENDNET, Inc. 20675 Manhattan Place, Torrance, CA 90501 U.S.A Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T121121W02-RP1 FCC ID: XU8TEW732BR Date of Issue: January 11, 2013 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 January 11, 2013 Initial Issue ALL Landy Huang Compliance Certification Services Inc. Report No.: T121121W02-RP1 FCC ID: XU8TEW732BR Date of Issue: January 11, 2013 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ...........................................................................................4 2. EUT DESCRIPTION................................................................................................................5 3. TEST METHODOLOGY..........................................................................................................6 3.1 EUT CONFIGURATION .....................................................................................................6 3.2 EUT EXERCISE .................................................................................................................6 3.3 GENERAL TEST PROCEDURES......................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ..........................................7 3.5 DESCRIPTION OF TEST MODES.....................................................................................8 4. INSTRUMENT CALIBRATION ...............................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION ....................................................................9 4.2 MEASUREMENT EQUIPMENT USED ..............................................................................9 4.3 MEASUREMENT UNCERTAINTY...................................................................................10 5. FACILITIES AND ACCREDITATIONS .................................................................................11 5.1 FACILTIES .......................................................................................................................11 5.2 EQUIPMENT....................................................................................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..............................................................12 6. SETUP OF EQUIPMENT UNDER TEST ..............................................................................13 6.1 SETUP CONFIGURATION OF EUT ................................................................................13 6.2 SUPPORT EQUIPMENT..................................................................................................13 7. FCC PART 15.247 REQUIREMENTS ..................................................................................14 7.1 6DB BANDWIDTH ............................................................................................................14 7.2 PEAK POWER .................................................................................................................25 7.3 AVERAGE POWER .........................................................................................................27 7.4 BAND EDGES MEASUREMENT .....................................................................................29 7.5 PEAK POWER SPECTRAL DENSITY .............................................................................46 7.6 SPURIOUS EMISSIONS..................................................................................................57 7.7 POWERLINE CONDUCTED EMISSIONS .......................................................................93 8. APPENDIX I RADIO FREQUENCY EXPOSURE .................................................................96 9. APPENDIX II PHOTOGRAPHS OF TEST SETUP...............................................................98 Compliance Certification Services Inc. Report No.: T121121W02-RP1 FCC ID: XU8TEW732BR Date of Issue: January 11, 2013 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Applicant: TRENDNET, Inc. 20675 Manhattan Place, Torrance, CA 90501 U.S.A Manufacturer: TRENDNET, Inc. 20675 Manhattan Place, Torrance, CA 90501 U.S.A Equipment Under Test: N300 Wireless Router Trade Name: TRENDnet Model: TEW-732BR Date of Test: November 26, 2012 ~ January 10, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T121121W02-RP1 FCC ID: XU8TEW732BR Date of Issue: January 11, 2013 Page 94 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 9. APPENDIX II PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Below 1GHz Compliance Certification Services Inc. Report No.: T121121W02-RP1 FCC ID: XU8TEW732BR Date of Issue: January 11, 2013 Page 95 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1GHz Compliance Certification Services Inc. Report No.: T121121W02-RP1 FCC ID: XU8TEW732BR Date of Issue: January 11, 2013 Page 96 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Conducted Emission Setup Photos Compliance Certification Services Inc. Report No.: T121121W02-RP1 FCC ID: XU8TEW732BR Date of Issue: January 11, 2013 Page 97 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Powerline Conducted Emissions Setup Photos
