XU8TEW806UBHAC600 High Gain Dual Band Wireless USB Adapter

TRENDnet User’s Guide Cover Page © Copyright 2014 TRENDnet. All Rights Reserved. TRENDnet User’s Guide Table of Contents i Contents Product Overview ........................................................................... 1 Package Contents .......................................................................................................... 1 Features ......................................................................................................................... 1 Product Hardware Features........................................................................................... 2 System Requirements .................................................................................................... 2 Application Diagram ...................................................................................................... 2 Installing your Wireless Adapter ...................................................... 3 Windows® OS Installation .............................................................................................. 3 MAC® OS Installation ..................................................................................................... 6 Using the Wireless Utility .............................................................. 10 Windows® OS............................................................................................................... 10 Wireless Utility Overview ........................................................................................ 11 Connect to your wireless network .......................................................................... 14 Connect to your wireless network using WPS......................................................... 15 Create or modify wireless network profiles ............................................................ 18 MAC® OS ...................................................................................................................... 20 Wireless Utility Overview ........................................................................................ 21 Connect to your wireless network .......................................................................... 27 Connect to your wireless network using WPS......................................................... 28 Create or modify wireless network profiles ............................................................ 31 Technical Specifications................................................................. 33 Troubleshooting ............................................................................ 34 Appendix ...................................................................................... 35 © Copyright 2014 TRENDnet. All Rights Reserved. TRENDnet User’s Guide TEW-806UBH 1 Product Overview TEW-806UBH Package Contents In addition to your wireless adapter, the package includes: • CD-ROM (Utility & Drivers) • Multi-La nguage Quick Installation Guide If any package contents are missing or damaged, please contact the retail store, online retailer, or reseller/distributor from which the product was purchased. Features TRENDnet's AC600 High Gain Dual Band Wireless USB Adapter, model TEW-806UBH, connects a Windows® or Mac® computer to a revolutionary Wireless AC network. Connect to a Wireless AC network at 433 Mbps or to a Wireless N network at up to 150 Mbps. This adapter features an adjustable high gain antenna which significantly increases wireless coverage. Ease of Use Easy Setup Get up and running in minutes with the intuitive guided setup Operating Systems Compatible with Windows® and Mac® operating systems One Touch Connection Securely connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button Performance High Gain Antenna An adjustable high gain antenna significantly increases wireless coverage Next Generation Wireless AC 802.11ac provides uninterrupted HD video streaming in a busy connected home Dual Band High speed 433 Mbps Wireless AC + 150 Mbps Wireless N bands Encrypted Wireless Supports the latest encryptions standards (up to WPA2) Backward Compatible Compatible with legacy wireless devices *For maximum performance connect to an 802.11ac wireless router or access point **Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. © Copyright 2014 TRENDnet. All Rights Reserved. TRENDnet User’s Guide TEW-806UBH 2 Product Hardware Features • USB Connector – The USB 2.0 Type A connector connects your adapter to one of the available USB 2.0 Type A ports on your computer. • WPS (Wi-Fi Protected Setup) Button / Activity LED Indicator – Push and hold the WPS button for 3 seconds to activate WPS. The LED will blink rapidly to indicate WPS has been activated. The LED will blink every 5 sec. when disconnected. When connected, the LED will blink rapidly during wireless data transmission. • High Gain Antenna – The high gain antenna can be rotated 180° at the base, 90° at the antenna, and 90° antenna tilt in order to optimize performance and connectivity. System Requirements • Windows® 8.1 (32/64), 8 (32/64), 7 (32/64), Vista (32-bit), or XP (32/64) • Mac OS® 10.6 - 10.9 • Available USB 2.0/3.0 Type A port on your computer. Note: Connecting the wireless adapter USB 1.1 Type A port will limit the speed capabilities of the wireless adapter. Please ensure to connect the adapter to at least USB 2.0 Type A port. • CD-ROM Drive (Utility and Driver Installation with included CD) Application Diagram The AC600 High Gain Dual Wireless USB Adapter can provide wireless AC or wireless N connectivity through the use of an available USB 2.0/3.0 port on your computer to a wireless AC/N network (router/access point). The adjustable high gain antenna can allow for wireless connectivity at longer distances. WPS Button Activity LED Indicator USB 2.0 Connector Adjustable High…

Text truncated - open the document above for the full version.

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 Tel: 1-310-961-5500 / Fax: 1-310-961-5511 Confidential Letter Date: 2013/10/2 Federal Communications Commission Authorization and Evaluation Division FCC ID：XU8TEW806UBH Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : TRENDnet, Inc. Applicant’s company address : 20675 Manhattan Place, Torrance, CA 90501 Signature : Name and Job Title : Wen Tsai / Sr. Product Manager E-Mail : [email protected] Tel. : 1-310-961-5500

Power of Attorney Date: 2014/1/15 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: TRENDnet / TEW-806UBH, TEW-806UBH/A FCC ID: XU8TEW806UBH Product name: AC600 High Gain Dual Band Wireless USB Adapter FCC Grantee contact person information. Applicant’s company name : TRENDnet, Inc. Applicant’s company address : 20675 Manhattan Place, Torrance, CA 90501 Signature : Name and Job Title : Wen Tsai / Sr. Product Manager E-Mail : [email protected] Tel. : 1-310-961-5500

Ad Hoc Mode Function Declaration Date: 2014/1/15 FCC ID：XU8TEW806UBH To Whom it may concern, We, the undersigned, declare that the EUT (Model Name: TEW-806UBH, TEW-806UBH/A) doesn’t have Ad Hoc function on “non-US/Canada frequencies”. Regards, FCC Grantee contact person information. Applicant’s company name : TRENDnet, Inc. Applicant’s company address : 20675 Manhattan Place, Torrance, CA 90501 Signature : Name and Job Title : Wen Tsai / Sr. Product Manager E-Mail : [email protected] Tel. : 1-310-961-5500

Report No.:370237-03 SPORTON International Inc. PAGE NUMBER : 1 OF 1 TEL : 886-3-327-3456 ISSUED DATE : May. 06, 2014 FAX : 886-3-327-0973 Photographs of EUT

Label location 銓鼎 M44-10423-100(上蓋).M44-10423-110(下蓋) M44-10421-100(上蓋).M44-10421-110(下蓋) AU7212/TEW-806UBH (PJTRADE-TRENDnet) LF AU7212/TEW-806UBH(PJTRADE-TRENDnet)黑色 LF Black PANTONE Cool Gray 2C 175.03 17.38 16.46 NOTES: 1. "O" ARE CRITICAL DIMENSIONS FOR INCOMING INSPECTION. 2. ALL PARTS TO BE FREE OF NOTICEABLE FLASH. 3. NO MOLDING DEFECTS ALLOWED WHICH AFFECT FUNCTION. 4. EXTERIOR SURFACE TO BE FREE OF SINK, WIRE LINE, EJECTOR MARKS AND OTHER VISUAL DEFECTS. 5. THE OUT SHAPE IS BASED UPON 3D DATA, DO NOT SCALE THE DRAWING. 6. REFER TO TOLERANCE TABLE UNLESS OTHERWISE SPECIFIED. 7. RoHS COMPLIANCE AND UL94HB FLAMMABILITY. 8. GATE NOT TO EXCECD 0.05MM. 9. FLATNESS TO BE UNDER 0.1MM. 10. BREAK ALL SHARP CORNERS TO BE NATURE RADIUS R0.15MM UNLESS OTHERWISE SPECIFIED. 11. GATING, P/L, EJECTOR LOCATIONS TO BE APPROVED BY DESIGNER. 12. GREASE, OIL AND DIRT REMOVE.

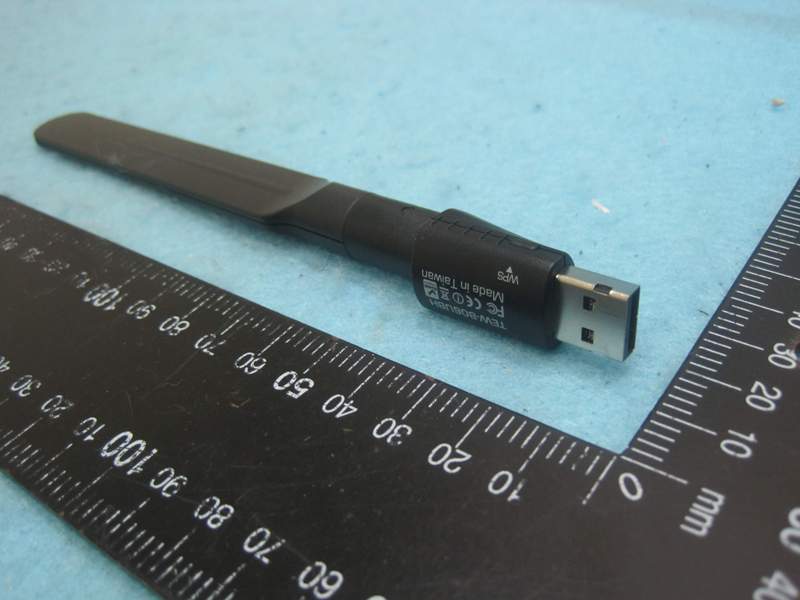

Report No.:370237-03 SPORTON International Inc. PAGE NUMBER : 1 OF 4 TEL : 886-3-327-3456 ISSUED DATE : May. 06, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:370237-03 SPORTON International Inc. PAGE NUMBER : 2 OF 4 TEL : 886-3-327-3456 ISSUED DATE : May. 06, 2014 FAX : 886-3-327-0973 Report No.:370237-03 SPORTON International Inc. PAGE NUMBER : 3 OF 4 TEL : 886-3-327-3456 ISSUED DATE : May. 06, 2014 FAX : 886-3-327-0973 Report No.:370237-03 SPORTON International Inc. PAGE NUMBER : 4 OF 4 TEL : 886-3-327-3456 ISSUED DATE : May. 06, 2014 FAX : 886-3-327-0973

SPORTON INTERNATIONAL INC. Page Number : 1 of 33 TEL : 886-3-327-3456 Report Issued Date : May. 29, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : XU8TEW806UBH FCC SAR Test Report Report No. : FA370237-03 FCC SAR Test Report APPLICANT : TRENDnet, Inc. EQUIPMENT : AC600 High Gain Dual Band Wireless USB Adapter BRAND NAME : TRENDnet MODEL NAME : TEW-806UBH FCC ID : XU8TEW806UBH STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 The product was completely tested on Sep. 08, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 33 TEL : 886-3-327-3456 Report Issued Date : May. 29, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : XU8TEW806UBH FCC SAR Test Report Report No. : FA370237-03 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 4 2.1 Testing Laboratory .................................................................................................................................................. 4 2.2 Applicant ................................................................................................................................................................ 4 2.3 Manufacturer .......................................................................................................................................................... 4 2.4 Application Details .................................................................................................................................................. 4 3. General Information ...................................................................................................................................................... 5 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 5 3.2 Maximum RF output power among production units .............................................................................................. 5 3.3 Applied Standard .................................................................................................................................................... 6 3.4 Device Category and SAR Limits ........................................................................................................................... 6 3.5 Test Conditions ....................................................................................................................................................... 6 4. Specific Absorption Rate (SAR) ................................................................................................................................... 7 4.1 Introduction ............................................................................................................................................................ 7 4.2 SAR Definition ........................................................................................................................................................ 7 5. SAR Measurement System ........................................................................................................................................... 8 5.1 E-Field Probe ......................................................................................................................................................... 9 5.2 Data Acquisition Electronics (DAE) ........................................................................................................................ 9 5.3 Robot ....................................................................................................................................................................10 5.4 Measurement Server .............................................................................................................................................10 5.5 Phantom ................................................................................................................................................................ 11 5.6 Device Holder........................................................................................................................................................12 5.7 Data Storage and Evaluation ................................................................................................................................13 5.8 Test Equipment List ...............................................................................................................................................15 6. Tissue Simulating Liquids ...........................................................................................................................................16 7. System Verification Procedures .................................................................................................................................18 7.1 Purpose of System Performance check ................................................................................................................18 7.2 System Setup .........................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.09.07 01 WLAN2.4G_802.11b_Vertical Front_0.5cm_Ch6 Communication System: WIFI; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130907 Medium parameters used: f = 2437 MHz; σ = 1.912 mho/m; ε r = 54.01; ρ = 1000 kg/m 3 Ambient Temperature： 23.6 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.21, 7.21, 7.21); Calibrated: 2012.11.26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2012.11.22 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch6/Area Scan (51x181x1): Interpolated grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 1.16 W/kg Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.607 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 1.407 mW/g SAR(1 g) = 0.709 mW/g; SAR(10 g) = 0.352 mW/g Maximum value of SAR (measured) = 1.04 W/kg 0 dB = 1.04 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.09.08 02 WLAN5G Band1_802.11a 6Mbps_Vertical Back_0.5cm_Ch48 Communication System: WIFI; Frequency: 5240 MHz;Duty Cycle: 1:1 Medium: MSL_5 200_130908 Medium parameters used: f = 5240 MHz; σ = 5.359 mho/m; ε r = 48.851; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(4.63, 4.63, 4.63); Calibrated: 2012.11.26; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2012.11.22 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch48/Area Scan (51x211x1): Interpolated grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.459 W/kg Ch48/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 10.064 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.814 mW/g SAR(1 g) = 0.235 mW/g; SAR(10 g) = 0.117 mW/g Maximum value of SAR (measured) = 0.480 W/kg 0 dB = 0.480 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.09.08 03 WLAN5G Band4_802.11a 6Mbps_Horizontal Up_0.5cm_Ch157 Communication System: WIFI; Frequency: 5785 MHz;Duty Cycle: 1:1 Medium: MSL_5800_130908 Medium parameters used: f = 5785 MHz; σ = 5.83 mho/m; ε r = 47.051; ρ = 1000 kg/m 3 Ambient Temperature： 23.3 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(4.09, 4.09, 4.09); Calibrated: 2012.11.26; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2012.11.22 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch157/Area Scan (51x211x1): Interpolated grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.933 W/kg Ch157/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 14.081 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 1.342 mW/g SAR(1 g) = 0.389 mW/g; SAR(10 g) = 0.163 mW/g Maximum value of SAR (measured) = 0.849 W/kg 0 dB = 0.849 W/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.09.07 System Check_Body_2450MHz_130907 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130907 Medium parameters used: f = 2450 MHz; σ = 1.939 mho/m; ε r = 53.98; ρ = 1000 kg/m 3 Ambient Temperature： 23.6 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.21, 7.21, 7.21); Calibrated: 2012.11.26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2012.11.22 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 18.2 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 82.205 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 24.568 mW/g SAR(1 g) = 12.1 mW/g; SAR(10 g) = 5.69 mW/g Maximum value of SAR (measured) = 18.3 W/kg 0 dB = 18.3 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.09.08 System Check_Body_5200MHz_130908 DUT: Dipole 5GHz Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: MSL_5200_130908 Medium parameters used: f = 5200 MHz; σ = 5.278 mho/m; ε r = 48.936; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(4.63, 4.63, 4.63); Calibrated: 2012.11.26; -Sensor-Surface: 1.4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 2012.11.22 -Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 -Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 17.8 W/kg Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 48.009 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 30.043 mW/g SAR(1 g) = 7.52 mW/g; SAR(10 g) = 2.06 mW/g Maximum value of SAR (measured) = 18.3 W/kg 0 dB = 18.3 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.09.08 System Check_Body_5800MHz_130908 DUT: Dipole 5GHz Communication System: CW; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium: MSL_5800_130908 Medium parameters used: f = 5800 MHz; σ = 5.868 mho/m; ε r = 46.994; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.7 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(4.09, 4.09, 4.09); Calibrated: 2012.11.26; -Sensor-Surface: 1.4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 2012.11.22 -Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 -Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 17.5 W/kg Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 44.423 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 29.683 mW/g SAR(1 g) = 7.04 mW/g; SAR(10 g) = 1.93 mW/g Maximum value of SAR (measured) = 17.7 W/kg 0 dB = 17.7 W/kg

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company TRENDnet, Inc. Applicant Address 20675 Manhattan Place, Torrance, CA 90501 FCC ID XU8TEW806UBH Manufacturer’s company TRENDnet, Inc. Manufacturer Address 20675 Manhattan Place, Torrance, CA 90501 Product Name AC600 High Gain Dual Band Wireless USB Adapter Brand Name TRENDnet Model No. TEW-806UBH / TEW-806UBH/A Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Jul. 02, 2013 Final Test Date Aug. 05, 2013 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a/ac (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r01 and KDB 662911 D01 v02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR370237-03AA Report Format Version: 01 Page No. : i of ii FCC ID: XU8TEW806UBH Issued Date : Dec. 26, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................9 3.7. Table for Multiple List...........................................................................................................................................................................9 3.8. Table for Supporting Units ...................................................................................................................................................................9 3.9. Table for Parameters of Test Software Setting ...................................................................................................................................10 3.10. EUT Operation during Test .................................................................................................................................................................11 3.11. Duty Cycle ........................................................................................................................................................................................12 3.12. Test Configurations ...........................................................................................................................................................................16 4. TEST RESULT ................................................................................................................................................... 18 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................18 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................22 4.3. Power Spectral Density Measurement ..............................................................................................................................................26 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................36 4.5. Radiated Emissions Measurement ....................................................................................................................................................45 4.6. Emissions Measurement ....................................................................................................................................................................73 4.7. Antenna Requirements ...................................................................................................................................................................102 5. LIST OF MEASURING EQUIPMENTS .............................................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR370237-03 FCC ID: XU8TEW806UBH Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR370237-03 FCC ID: XU8TEW806UBH Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR370237-03 FCC ID: XU8TEW806UBH Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR370237-03 FCC ID: XU8TEW806UBH Page No. : A4 of A5 Test Configuration: 30MHz~1GHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR370237-03 FCC ID: XU8TEW806UBH Page No. : A5 of A5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW

SPORTON INTERNATIONAL INC. Page Number : D1 of D1 TEL : 886-3-327-3456 Report Issued Date : May. 29, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : XU8TEW806UBH FCC SAR Test Report Report No. : FA370237-03 Appendix D. SAR Test Setup Photos Horizontal Up, Test Separation 5 mm Horizontal Down, Test Separation 5 mm Vertical Front, Test Separation 5 mm Vertical Back, Test Separation 5 mm Tip Mode_Configuration1, Test Separation 5 mm Tip Mode_Configuration2, Test Separation 5 mm
