XU8TEW814DAPAC1200 Dual Band Wireless Access Point

TEW-814DAP User’s Guide Dual Band Wireless Access Point TRENDnet User’s Guide Table of Contents 2 © Copyright 2014 TRENDnet. All Rights Reserved. Table of ContentsProduct Overview .................................. .......................................... 4 Features .......................................... ............................................... 4 Package Content ..................................... ....................................... 4 Hardware Overview ................................... .................................... 5 Front View ........................................ ........................................ 5 Rear View ......................................... ........................................ 5 tŝƌĞůĞƐƐŽŶƐŝĚĞƌĂƟŽŶƐ .................................................. .............. 6 ŽŶŶĞĐƟŽŶWĞƌĨŽƌŵĂŶĐĞ .................................................. ........ 6 Security Checklist .................................. .................................... 6 /ŶƐƚĂůůĂƟŽŶ .................................................. .................................... 7 Connect the Power ................................. ....................................... 7 Connect the Computer .............................. .................................... 7 ŚĞĐŬƚŚĞ/ŶƐƚĂůůĂƟŽŶ .................................................. .................. 7 /ŶŝƟĂů^ĞƚƵƉ .................................................. ................................... 8 ŽŶĮŐƵƌĞƚŚĞŽŵƉƵƚĞƌ .................................................. .............. 8 Windows 7/8/8.1 ................................... .................................. 8 Windows Vista ..................................... ..................................... 8 tŝŶĚŽǁƐyWͬϮϬϬϬ .................................................. .................. 8 Setup Wizard ....................................... ........................................... 8 Log in to the Management Page ...................... .............................. 10 Access Point Mode Management Page Structure ............. ........... 11 Client Bridge/AP Repeater Mode Management Page Structure . . 11 ^ĞůĞĐƟŶŐĞǀŝĐĞDŽĚĞ .................................................. ................ 12 Access Point Mode .................................. ..................................... 12 ŽŶĮŐƵƌŝŶŐƚŚĞĞǀŝĐĞĂƐĐĐĞƐƐWŽŝŶƚ .................................. 13 hƐŝŶŐĐĐĞƐƐWŽŝŶƚDŽĚĞ ................................................... ..... 13 tŝƌĞůĞƐƐEĞƚǁŽƌŬŝŶŐĂŶĚ^ĞĐƵƌŝƚLJ .......................................... 14 ŽŶŶĞĐƚtŝƌĞůĞƐƐĞǀŝĐĞƐƚŽLJŽƵƌĐĐĞƐƐWŽŝŶƚ ...................... 17 ŽŶŶĞĐƚtŝƌĞůĞƐƐĞǀŝĐĞƐƵƐŝŶŐtW^ ..................................... 17 ŽŶĮŐƵƌĞDƵůƟƉůĞ^^/^ĞƫŶŐƐ ............................................ 18 ŽŶĮŐƵƌĞhƐĞƌ>ŝŵŝƚ^ĞƫŶŐƐ ................................................. 1 9 ĚǀĂŶĐĞĚtŝƌĞůĞƐƐ^ĞƫŶŐƐ .................................................. .. 19 Wireless Bridge (WDS) Mode ......................... .............................. 20 WůĂŶŶŝŶŐĨŽƌtŝƌĞůĞƐƐƌŝĚŐŝŶŐ ............................................... ϮϬ WƵƌĞtŝƌĞůĞƐƐƌŝĚŐĞ .................................................. ............ ϮϮ tŝƌĞůĞƐƐƌŝĚŐĞǁŝƚŚĐĐĞƐƐWŽŝŶƚDŽĚĞ ................................ Ϯκ ƌĞĂƟŶŐĂtŝƌĞůĞƐƐƌŝĚŐĞ;t^Ϳ .......................................... Ϯς ĚĚŝƟŽŶĂůt^KƉƟŽŶƐ .................................................. ....... Ϯϳ TRENDnet User’s Guide Table of Contents 3 © Copyright 2014 TRENDnet. All Rights Reserved. Client Bridge Mode ................................. ..................................... 28 ŽŶĮŐƵƌŝŶŐƚŚĞĞǀŝĐĞĂƐůŝĞŶƚƌŝĚŐĞ ................................. Ϯε hƐŝŶŐůŝĞŶƚƌŝĚŐĞDŽĚĞ .................................................. ..... Ϯε AP Repeater Mode ................................... .................................... 30 ŽŶĮŐƵƌŝŶŐƚŚĞĞǀŝĐĞĂƐWZĞƉĞĂƚĞƌ .................................. 31 hƐŝŶŐWZĞƉĞĂƚĞƌDŽĚĞ .................................................. ..... 31 ĚǀĂŶĐĞĚ^ĞƫŶŐƐ .................................................. ....................... 32 ŽŶĮŐƵƌĞD&ŝůƚĞƌ^ĞƫŶŐƐ .................................................. .... 32 Change the IP Address .............................. ................................... 33 ŽŶĮŐƵƌĞ/Wǀς^ĞƫŶŐƐ .................................................. .............. 34 ŽŶĮŐƵƌĞƚŚĞ,W^ĞƌǀĞƌ .................................................. ........ 35 Create Schedules .................................. ....................................... 36 Edit a Schedule .................................... ................................... 36 ŽŶĮŐƵƌĞŵĂŝů^ĞƫŶŐƐ .................................................. ............ 37 ŶĂďůĞWŝŶŐdĞƐƚ .................................................. ......................... 38 Maintenance ........................................ ......................................... 38 Change Login Password ............................... ................................ 38 Change the Device Name .............................. ............................... 39 ^ĞƚƚŚĞĂƚĞĂŶĚdŝŵĞ .................................................. ............... 39 ĂĐŬƵƉ^LJƐƚĞŵ^ĞƫŶŐƐ .................................................. ............. 40 Reset to Factory Defaults ........................... .................................. 41 Update System Firmware ............................. ................................ 42 ^LJƐƚĞŵZĞƚ .................................................. ........................... 42 ŽŶĮŐƵƌĞ^LJƐůŽŐ^ĞƌǀĞƌ .................................................. ............. 43 sŝĞǁ^LJƐƚĞŵ/ŶĨŽƌŵĂƟŽŶ .................................................. ........... 43 sŝĞǁƚŚĞĞǀŝĐĞ/ŶĨŽƌŵĂƟŽŶ .................................................. 43 sŝĞǁƚŚĞĂƚĂdƌĂĸĐ^ƚĂƟƐƟĐƐ ............................................... 44 View the Connected…

Text truncated - open the document above for the full version.

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 Date: 2014/6/24 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: XU8TEW814DAP To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization o the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501 Signature : ______________________________ Name and Job Title. : Wen Tsai / Sr. Product Manager E-mail : [email protected] Te l . : 310-961-5500

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 Confidentiality Request Letter Date: 2014/6/24 Federal Communications Commission Authorization and Evaluation Division FCC ID：XU8TEW814DAP Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501 Signature : _________________________________ Name and Job Title. : Wen Tsai / Sr. Product Manager E-mail : [email protected] Te l . : 310-961-5500

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 Date: June 24, 2014 Subject: Ad Hoc Mode Function Declaration To whom it may concern, We, TRENDnet, Inc. declare that the device does not support any non-US channels and country code selection in all the operational mode(s) for the following product. FCC ID: XU8TEW814DAP Regards, Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501 Signature : _________________________________ Name and Job Title. : Wen Tsai / Sr. Product Manager E-mail : [email protected] Te l . : 310-961-5500

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: June 24, 2014 Subject: FCC Application for FCC ID: XU8TEW814DAP To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures, which the report issued from Sporton International Inc.(report number: FD411604.) Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501 Signature : _________________________________ Name and Job Title. : Wen Tsai / Sr. Product Manager E-mail : [email protected] Te l . : 310-961-5500

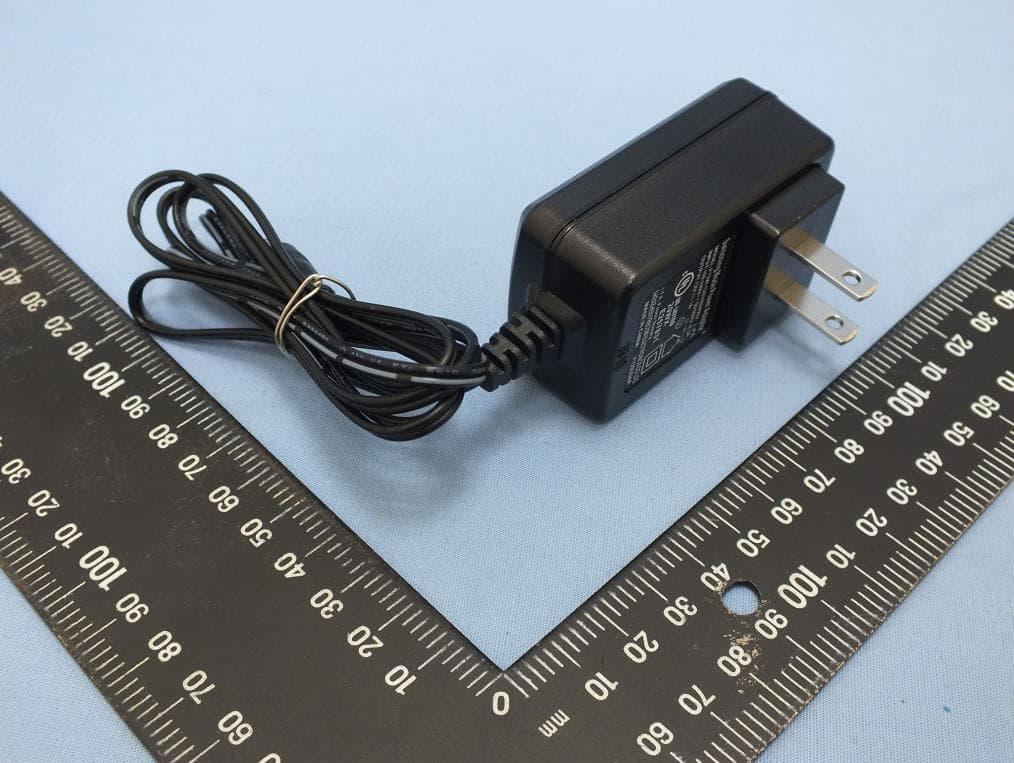

Project No.: EP411604 Page No. : 1 of 18 Photographs of EUT Project No.: EP411604 Page No. : 2 of 18 Project No.: EP411604 Page No. : 3 of 18 Project No.: EP411604 Page No. : 4 of 18 Project No.: EP411604 Page No. : 5 of 18 Project No.: EP411604 Page No. : 6 of 18

TEW-814DAP H/W:V1.0R Device Label 有1張 確認簽名 日期 產品機種 產品料號 客戶名稱 申請者 設計者 備註 2014.06.23 TRENDnet Vicki Cherry 字型:Arial/Monaco 6450814DAP1*xA1 **注意事項** 客戶序號編碼原則 S/N:C2YYWW14XXXXX C2:友勁代碼(固定) YY : 西元年份, ex~13:2013年 WW: 週數, ex~06:第六週 14: 產品別 (由客戶指定) XXXXX: 流水號 FCC ID: XU8TEW814DAP 主體貼紙必須印上F/W Version FW:v1.00 主體貼紙290546100000017 1. Wi-Fi Name/TRENDnet814_2.4GHz_NNNN (TRENDnet814_2.4GHz_為固定碼; NNNN為4 random number and characters, N可從0~9, A~Z, 例TRENDnet814_2.4GHz_1A3B) 2. Wi-Fi Key: 814W14XXXXX (814為固定碼;W14XXXXX為序號末八碼) 3. 4. Web password: 5. Management Login: http://tew-814dap 序號直接印上 半成品料號請對工單 TRENDnet指定MAC ID #為半成品規格 A規 /FCC E規 /ETSI SSID: Web username: admin admin L a b e l 尺 寸 半 徑 1 . 0 m m 半 徑 1 . 0 m m 半 徑 1 . 0 m m 3 7 . 0 0 m m 54.70 mm 4.60 mm S/N:C2YYWW14XXXXX Model: TEW-814DAP H/W:V1.0R LAN MAC WAN MAC: XXXXXXXXXXXX/# : XXXXXXXXXXXX FCC ID: XU8TEW814DAP FW:v1.00 Wi-Fi Name/SSIDTRENDnet814_2.4GHz_XXXX Wi-Fi Key: 814W14XXXXX "See Caution in Manual" : Management Login:http://tew-814dap Username: admin Password: admin Power Input: 12V 1A Label Location

Project No.: EP411604 Page No. : 7 of 18 Project No.: EP411604 Page No. : 8 of 18 Project No.: EP411604 Page No. : 9 of 18 Project No.: EP411604 Page No. : 10 of 18 Project No.: EP411604 Page No. : 11 of 18 Project No.: EP411604 Page No. : 12 of 18 Project No.: EP411604 Page No. : 13 of 18 Project No.: EP411604 Page No. : 14 of 18 Project No.: EP411604 Page No. : 15 of 18 Project No.: EP411604 Page No. : 16 of 18 Project No.: EP411604 Page No. : 17 of 18 Project No.: EP411604 Page No. : 18 of 18

FCC ID: Channel frequency ModeChannelModeChannel 136 240 344 448 5149 6153 7157 8161 9165 1038 1146 3151 4159 542 6155 7 8 9 5210 5775 VHT80 HT40 24225755 24275795 2432 2437 2442 2447 2452 24475805 24525825 2457 HT40 VHT40 5190 24275240 24625230 24325745 24375765 24425785 Frequency(MHz)Frequency(MHz) 11b 11g HT20 2412 11a HT20 VHT20 5180 24175200 24225220 DBPSK, DQPSK, CCK BPSK, QPSK, 16QAM, 64QAM,256QAM Oscillating frequency (MHz)40 Antenna typePCB antenna , 2dBi gain The device is a dual band wireless Access Point which operates at 2.4 and 5GHz band and supports IEEE 802.11 a / b / g / n / ac transmission modes. 80+80 MHz mode is not supported. This device is not capable of transmitting simultaneously in more than one Part 15 band between 5 and 6 GHz and therefore not subject to the PBA as defined in KDB 644545. XU8TEW814DAP Operational Description RF main chipRTL8197 Frequency range (MHz)2412~2462 / 5180~5240 / 5745~5825 Modulation type P 1 / 2 Data transmission is always initiated by software, which is then pass down through the MAC , through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS , PSPoll, etc) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it the turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted. P 2 / 2

Report No.: FA411604 Page : 1 of 5 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : XU8TEW814DAP Equipment : AC1200 Dual Band Wireless Access Point Model No. : TEW-814DAP Brand Name : TRENDnet Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501, USA Standard : 47 CFR FCC Part 2.1091 Received Date : Jan. 16, 2014 Tested Date : Jan. 22 ~ Jun. 25, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA411604 Page : 2 of 5 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 4 2 TEST LABORATORY INFORMATION ................................................................................................. 5 Report No.: FA411604 Page : 3 of 5 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA411604 Rev. 01 Initial issue Aug. 13, 2014 Report No.: FA411604 Page : 4 of 5 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 MPE EVALUATION RESULTS MPE Evaluation of Single Transmission Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 27.39 2 20 0.173 1 5180~5240 16.83 2 20 0.015 1 5745~5825 23.72 2 20 0.074 1 MPE Evaluation of Simultaneous Transmission Both of the WLAN 2.4G & 5.0G can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density MPE Evaluation = Maximum MPE of 2.4GHz + Maximum MPE of 5 GHz = 0.173 / 1 + 0.074 /1 = 0.247 CONCULSION: MPE evaluations of single and simultaneous transmission meet the requirement of standard. Report No.: FA411604 Page : 5 of 5 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR411604AN Page : 1 of 48 Report Version: Rev. 01 FCC Test Report FCC ID : XU8TEW814DAP Equipment : AC1200 Dual Band Wireless Access Point Model No. : TEW-814DAP Brand Name : TRENDnet Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501, USA Standard : 47 CFR FCC Part 15.407 Received Date : Jan. 16, 2014 Tested Date : May 16 ~ Jun. 25, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR411604AN Page : 2 of 48 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Testing Applied Standards ..................................................................................................................... 9 1.6 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Condition ................................................................................................................................. 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TRANSMITTER TEST RESULTS ........................................................................................................ 11 3.1 Conducted Emissions ........................................................................................................................... 11 3.2 Emission Bandwidth ............................................................................................................................. 14 3.3 RF Output Power .................................................................................................................................. 16 3.4 Peak Power Spectral Density ............................................................................................................... 18 3.5 Peak Excursion..................................................................................................................................... 20 3.6 Transmitter Radiated and Band Edge Emissions ................................................................................ 23 3.7 Frequency Stability ............................................................................................................................... 46 4 TEST LABORATORY INFORMATION ............................................................................................... 48 Report No.: FR411604AN Page : 3 of 48 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR411604AN Rev. 01 Initial issue Aug. 13, 2014 Report No.: FR411604AN Page : 4 of 48 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.186MHz 39.70 (Margin -14.52dB) - AV Pass 15.407(b)(1)(2)(3) 15.209 Radiated Emissions [dBuV/m at 3m]: 5150.00MHz 52.85 (Margin -1.15dB) - AV Pass 15.407(a)(1)(2)(3) Emission Bandwidth Meet the requirement of limit Pass 15.407(a)(1)(2)(3) RF Output Power Power [dBm]: 11a: 16.40 HT20: 16.44 HT40: 16.46 VHT20: 16.56 VHT40: 16.56 VHT80: 16.83 Pass 15.407(a)(1)(2)(3) Peak Power Spectral Density Meet the requirement of limit Pass 15.407(a)(6) Peak Excursion Meet the requirement of limit Pass 15.407(g) Frequency Stability Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR411604AN Page : 5 of 48 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information IEEE Std. 802.11 Frequency Range (MHz) Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS a 5150-5250 5180-5240 36-48 [4] 2 6-54 Mbps n (HT20) 5150-5250 5180-5240 36-48 [4] 2 MCS 0-15 n (HT40) 5150-5250 5190-5230 38-46 [2] 2 MCS 0-15 ac (VHT20) 5150-5250 5180-5240 36-48 [4] 2 MCS 0-8 ac (VHT40) 5150-5250 5190-5230 38-46 [2] 2 MCS 0-9 ac (VHT80) 5150-5250 5210 42 [1] 2 MCS 0-9 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n/ac uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM, 256QAM modulation. 1.1.2 Antenna Details Ant. No. Type Gain (dBi) Connector Remark 1 PCB 2 UFL --- 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 12Vdc from AC adapter 1.1.4 Accessories Accessories No. Equipment Description 1 AC Adapter Brand Name: AMIGO Model Name: AMS9-1201000FU2 Power Rating: I/P: 100-240Vac, 50-60Hz, 0.5A O/P: 12Vdc, 1.0A Power Line: 1.2m non-shielded cable w/o core 2 AC Adapter Brand Name: FRECOM Model Name: F12W-120100SPAU Power Rating: I/P: 100-240Vac, 50-60Hz, 0.3A O/P: 12Vdc, 1.0A Power Line: 1.2m non-shielded cable w/o core Report No.: FR411604A…

Text truncated - open the document above for the full version.

Report No.: FR411604 Page: : 1 of 2 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR411604 Page: : 2 of 2 Report Version: Rev. 01 Radiated Emission Test
