XU8TEW817DTRAC750 Wireless Travel Router

© Copyright 2015 TRENDnet. All Rights Reserved. TRENDnet User’s Guide Cover Page © Copyright 2015 TRENDnet. All Rights Reserved. TRENDnet User’s Guide TEW-817DTR Table of Contents Product Overview ........................................................................... 3 Package Contents .......................................................................................................... 3 Features ......................................................................................................................... 3 Product Hardware Features........................................................................................... 4 Application Diagram ...................................................................................................... 5 Creating a Network ........................................................................................................ 6 Hardware Installation .................................................................................................... 7 Basic Settings .................................................................................. 7 Access your management page ..................................................................................... 7 Network Status .............................................................................................................. 8 How to choose the type of security for your wireless network .................................... 9 Steps to improve wireless connectivity ....................................................................... 10 Router Mode Setup ....................................................................... 10 Before you Install in router mode ...................................................................... 10 Router Mode Installation ............................................................................................. 11 Wireless Settings ......................................................................................................... 14 Wireless Networking and Security ................................................. 15 Secure your wireless network ..................................................................................... 15 Connect wireless devices to your router ..................................................................... 17 Connect wireless devices using WPS ........................................................................... 17 Guest Network ............................................................................................................. 19 Parental Control ........................................................................................................... 20 Access Rule (MAC/IP Filter) ............................................................................... 20 Website Filter..................................................................................................... 21 MAC Filter (Wireless) ................................................................................................... 21 Advanced wireless settings .......................................................................................... 22 Multiple SSID...................................................................................................... 22 Advanced Settings ............................................................................................. 23 Advanced Settings ........................................................................ 24 Manually configure your Internet connection ............................................................ 24 IPv6 Settings ................................................................................................................ 24 Clone a MAC address ................................................................................................... 25 Change your router IP address .................................................................................... 26 Set up the DHCP server on your router ....................................................................... 26 Set up DHCP reservation ............................................................................................. 27 Enable/disable UPnP on your router ........................................................................... 28 Enable/disable Application Layer Gateways (ALG) ...................................................... 28 Allow/deny multicast streaming.................................................................................. 29 Identify your network on the Internet ........................................................................ 29 Set your router date and time ..................................................................................... 29 Create schedules ......................................................................................................... 30 Access Control (IP Protocol Filter) ............................................................................... 31 Inbound Filter .............................................................................................................. 32 Open a device on your network to the Internet .......................................................... 33 DMZ ................................................................................................................... 33 Virtual Server ..................................................................................................... 33 Special Applications ........................................................................................... 34 Gaming............................................................................................................... 35 Allow remote access to your router management page ................................... 36 Allow/deny ping requests tofrom the Internet ........................................................... 36 Add static routes .............…

Text truncated - open the document above for the full version.

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 Date: 2015/3/6 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: XU8TEW817DTR To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization o the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501 Signature : _________________________________ Name and Job Title. : Wen Tsai / Sr. Product Manager E-mail : [email protected] Te l . : 310-961-5500

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 Confidentiality Request Letter Date: 2015/3/6 Federal Communications Commission Authorization and Evaluation Division FCC ID：XU8TEW817DTR Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501 Signature : _________________________________ Name and Job Title. : Wen Tsai / Sr. Product Manager E-mail : [email protected] Te l . : 310-961-5500

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 Date: March 6, 2015 Subject: Ad Hoc Mode Function Declaration To whom it may concern, We, TRENDnet, Inc. declare that the device does not support any non-US channels and country code selection in all the operational mode(s) for the following product. FCC ID: XU8TEW817DTR Regards, Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501 Signature : _____________________________ Name and Job Title. : Wen Tsai / Sr. Product Manager E-mail : [email protected] Te l . : 310-961-5500

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: March 9, 2015 Subject: FCC Application for FCC ID: XU8TEW817DTR To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures, which the report issued from International Certification Corp. (report number: FD4N1401.) Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501 Signature : _________________________________ Name and Job Title. : Wen Tsai / Sr. Product Manager E-mail : [email protected] Tel. : 310-961-5500

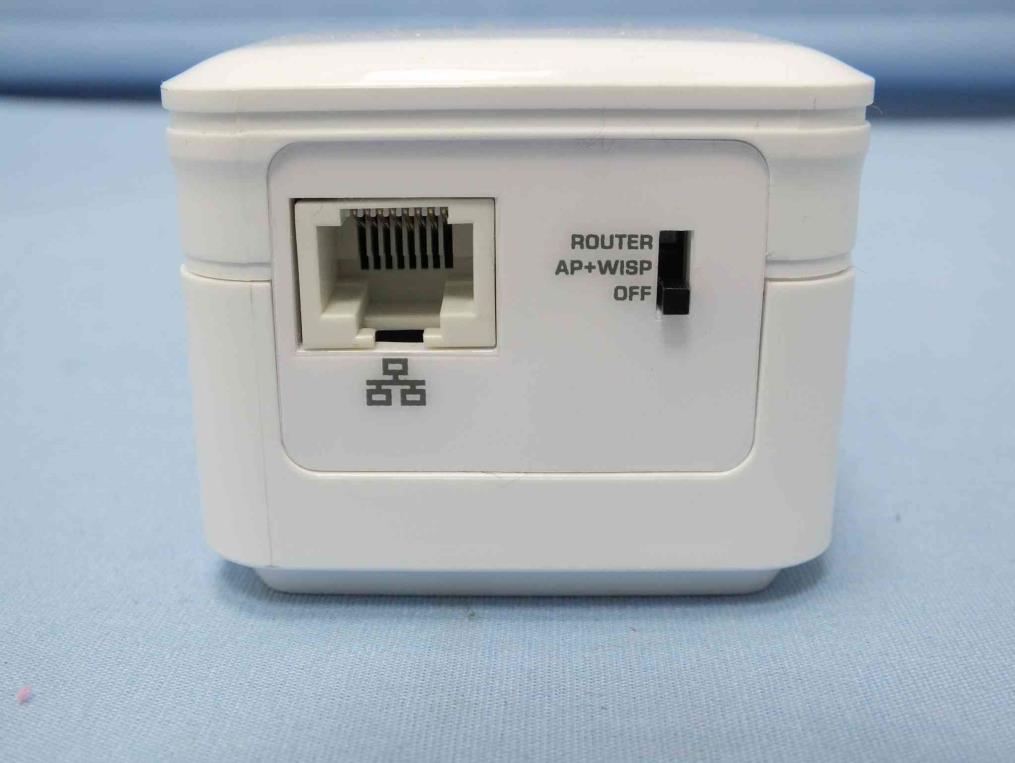

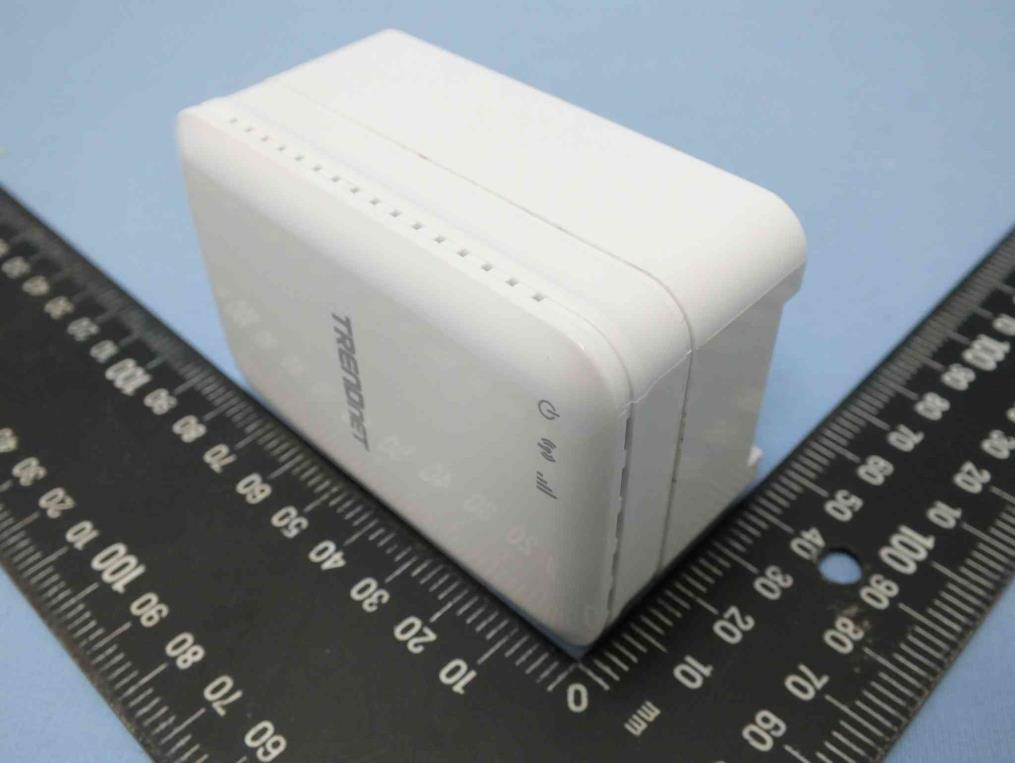

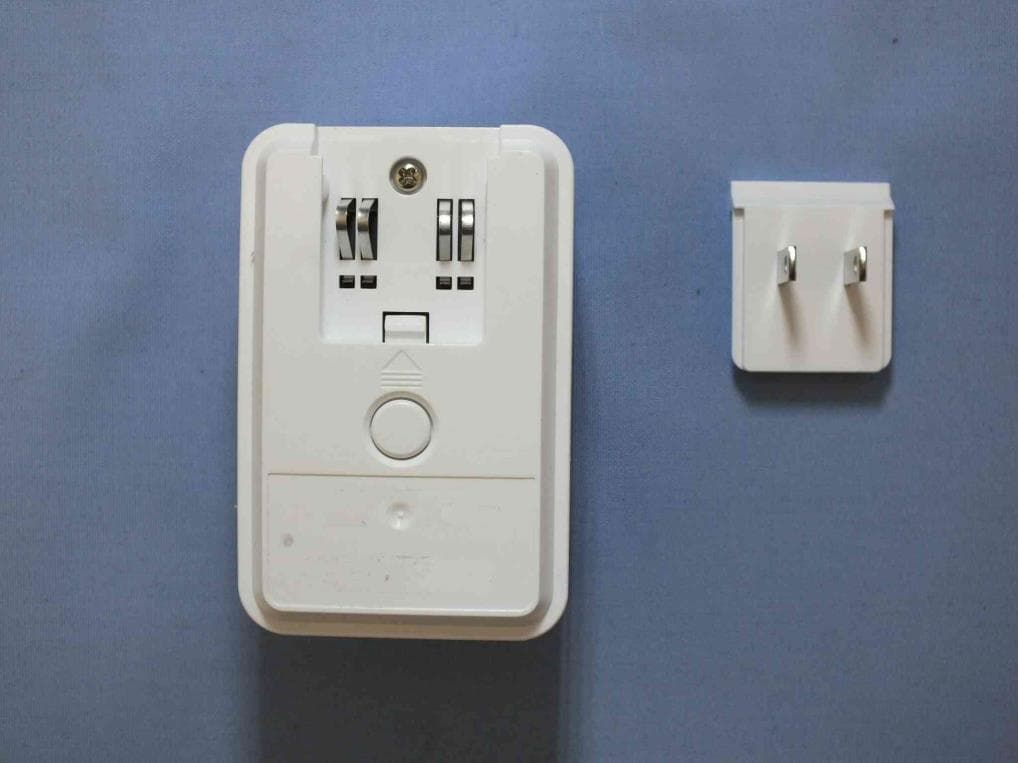

Project No.: EP4N1401 Page No. : 1 of 13 Photographs of EUT Project No.: EP4N1401 Page No. : 2 of 13 Project No.: EP4N1401 Page No. : 3 of 13

備註 日期 產品機種 產品料號 客戶名稱 申請者設計者 2015.02.10 TRENDnet 確認簽名 備註 Vicki TEW-817DTR H/W:V1.0R Cherry **注意事項** 客戶序號編碼原則 S/N:C2YYWW17XXXXX C2:友勁代碼(固定) YY : 西元年份, ex~15:2015年 WW: 週數, ex~06:第六週 17: 產品別 (由客戶指定) XXXXX: 流水號 FCC ID: XU8TEW817DTR 主體貼紙必須印上F/W Version F/W: V1.00 S/N:XXXXXXXXXXXXX Wi-Fi Name/SSID: TRENDnet817_2.4GHz_ XXXX Wi-Fi password: 817W17XXXXX Web password: AAAAAAAA Management Login: http://tew-817dtr Web username: admin Model:TEW-817DTR/x (H/W:V1.0R F/W:V1.00) MAC:XXXXXXXXXXXX/# FCC ID:XU8TEW817DTR 1. Wi-Fi name/SSID: TRENDnet817_2.4GHz_ XXXX XXXX =4 0123456789ABCDEFGHJKLMNPQRSTUVWXYZ () 2. Wi-Fi password: 817W17XXXXX Format(817為固定碼;W17XXXXX為序號末八碼) 3. Web username:admin 4. Web password: AAAAAAAA~8 random digit (7 個隨機字元 + 1 個特殊字元) : 0123456789ABCDEFGHJKLMNPQRSTUVWXYZ(字母 I”and “O”不要用，字母大寫非小寫) : !@#$%&? 5. Management Login: http://tew-817dtr Device Label 有1張 主體貼紙29054610000001U (TRENDnet817_2.4GHz_為固定碼; 個隨機字元 字元如: 字母 I”and “O”不要用，字母大寫非小寫 例TRENDnet824_2.4GHz_1A3B) W17XXXXX 字元如 特殊字元如 Device Label 料號: 29054610000001H **Logo dimension restriction** ≧5mm ≧5mm ≧7.00mm Made in China (C) Input: 100-240VAC, 50-60Hz, 0.2A 167928 #為半成品無線規格 A規 /FCC E規,B規 /ETSI 半成品料號請對工單 TRENDnet指定MAC ID 6450T817TR1xxS1 字型:Arial/Monaco Model:TEW-817DTR/x H/W:V1.0R F/W:V1.00 Op Operation within the 5.150-5.350GHz frequency range is restricted to indoor use only “See Caution in Manual" Label Location

Project No.: EP4N1401 Page No. : 4 of 13 Project No.: EP4N1401 Page No. : 5 of 13 Project No.: EP4N1401 Page No. : 6 of 13 Project No.: EP4N1401 Page No. : 7 of 13 Project No.: EP4N1401 Page No. : 8 of 13 Project No.: EP4N1401 Page No. : 9 of 13 Project No.: EP4N1401 Page No. : 10 of 13 Project No.: EP4N1401 Page No. : 11 of 13 Project No.: EP4N1401 Page No. : 12 of 13 Project No.: EP4N1401 Page No. : 13 of 13

FCC ID: XU8TEW817DTR P 1 / 2 Operational Description The device is a AC750 wireless Travel router which operates at 2.4 GHz and 5 GHz band and supports IEEE 802.11a/b/g/n/ac transmission modes. The device supports 2TX MIMO function to provide high speed transmission rate and WPS function to connect with other devices more easily. RF main chip MT7620AH / MT7610E Frequency range (MHz) 2412~2462 / 5180 ~ 5240 / 5745~5825 Modulation type DBPSK, DQPSK, CCK BPSK, QPSK, 16QAM, 64QAM, 256QAM Oscillating frequency (MHz) 25 / 40 Antenna type PIFA 2dBi gain @ 2.4GHz 3dBi gain @ 5GHz TX MIMO 2TX MIMO Channel and frequency 802.11 b / g / n HT20 802.11n HT40 Channel Freq.(MHz) Channel Freq.(MHz) 1 2412 3 2422 2 2417 4 2427 3 2422 5 2432 4 2427 6 2437 5 2432 7 2442 6 2437 8 2447 7 2442 9 2452 8 2447 9 2452 10 2457 11 2462 FCC ID: XU8TEW817DTR P 2 / 2 Channel and frequency 802.11 a / HT20 / VHT20 802.11n HT40 / VHT 40 Channel Freq.(MHz) Channel Freq.(MHz) 36 5180 38 5190 40 5200 46 5230 44 5220 151 5755 48 5240 159 5795 149 5745 VHT80 153 5765 42 5210 157 5785 155 5775 161 5805 165 5825 Data transmission is always initiated by software, which is then pass down through the MAC , through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS , PSPoll, etc) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it the turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: FA4N1401 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : XU8TEW817DTR Equipment : AC750 Wireless Travel Router Model No. : TEW-817DTR Brand Name : TRENDnet Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501, USA Standard : 47 CFR FCC Part 2.1091 Received Date : Sep. 04, 2014 Tested Date : Sep. 04 ~ Dec. 05, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA4N1401 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA4N1401 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA4N1401 Rev. 01 Initial issue Mar. 06, 2015 Report No.: FA4N1401 Page : 4 of 6 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance Report No.: FA4N1401 Page : 5 of 6 Report Version: Rev. 01 1.3 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 23.72 2 20 0.074 1 5180~5240 20.12 3 20 0.041 1 5745~5825 20.25 3 20 0.042 1 MPE Evaluation of Simultaneous Transmission 2.4 and 5GHz can transmit at the same time, MPE evaluation is as below formula PD1 / Limit1 + PD2 / Limit 2 + ..... < 1, PD = Power density MPE Evaluation = Maximum MPE of 2.4GHz + Maximum MPE of 5 GHz = 0.074 / 1 + 0.042 / 1 = 0.116 < 1 Conclusion MPE evaluations of single and simultaneous transmission meet the requirement of standard. Report No.: FA4N1401 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR4N1401AC Page : 1 of 62 Report Version: Rev. 02 FCC Test Report FCC ID : XU8TEW817DTR Equipment : AC750 Wireless Travel Router Model No. : TEW-817DTR Brand Name : TRENDnet Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501, USA Standard : 47 CFR FCC Part 15.247 Received Date : Sep. 04, 2014 Tested Date : Sep. 04 ~ Sep. 10, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR4N1401AC Page : 2 of 62 Report Version: Rev. 02 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Test Standards ....................................................................................................................................... 9 1.6 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Condition ................................................................................................................................. 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TRANSMITTER TEST RESULTS ........................................................................................................ 11 3.1 Conducted Emissions ........................................................................................................................... 11 3.2 6dB and Occupied Bandwidth .............................................................................................................. 14 3.3 RF Output Power .................................................................................................................................. 17 3.4 Power Spectral Density ........................................................................................................................ 19 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 21 3.6 Emissions in Non-Restricted Frequency Bands ................................................................................... 49 4 TEST LABORATORY INFORMATION ............................................................................................... 62 Report No.: FR4N1401AC Page : 3 of 62 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FR4N1401AC Rev. 01 Initial issue Mar. 06, 2015 FR4N1401AC Rev. 02 Removed model of antenna. (Page 5) Mar. 27, 2015 Report No.: FR4N1401AC Page : 4 of 62 Report Version: Rev. 02 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.532MHz 42.87 (Margin -3.13dB) - AV Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 2483.50MHz 52.99 (Margin -1.01dB) – AV 2390.00MHz 52.99 (Margin -1.01dB) – AV Pass 15.247(b)(3) Maximum Output Power Max Power [dBm]: 28.44 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR4N1401AC Page : 5 of 62 Report Version: Rev. 02 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11] 1 NOTE 4 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11] 1 NOTE 4 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 MCS 0-15 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 MCS 0-15 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. Note 4: 802.11b/g is transmitting signal through chain 0 only. 1.1.2 Antenna Details Ant. No. Type Connector Operating Frequencies (MHz) / Antenna Gain (dBi) 2400~2483.5 5150~5250 5250~5350 5470~5725 5725~5850 1 PIFA N/A 2 3 3 3 3 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 100-240Vac 1.1.4 Accessories N/A Report No.: FR4N1401AC Page : 6 of 62 Report Version: Rev. 02 1.1.5 Channel List Frequency band (MHz) 2400~2483.5 802.11 b / g / n HT20 802.11n HT40 Channel Frequency(MHz) Channel Frequency(MHz) 1 2412 3 2422 2 2417 4 2427 3 2422 5 2432 4 2427 6 2437 5 2432 7 2442 6 2437 8 2447 7 2442 9 2452 8 2447 --- --- 9 2452 --- --- 10 2457 --- --- 11 2462 --- --- 1.1.6 Test Tool and Duty Cycle Test Tool MT7620, V1.0.6.0 Duty Cycle and Duty Factor Mode Duty cycle (%) Duty factor (dB) 11b 100.00% 0.00 11g 99.93% 0.00 HT20 99.63% 0.02 HT40 98.26% 0.08 Report No.: FR4N1401AC …

Text truncated - open the document above for the full version.

Report No.: FR4N1401 Page : 1 of 17 Report Version: Rev. 02 FCC Co-Location Test Report FCC ID : XU8TEW817DTR Equipment : AC750 Wireless Travel Router Model No. : TEW-817DTR Brand Name : TRENDnet Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501, USA Standard : 47 CFR FCC Part 15.247 47 CFR FCC Part 15.407 Received Date : Sep. 04, 2014 Tested Date : Sep. 10, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR4N1401 Page : 2 of 17 Report Version: Rev. 02 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 The Equipment List ................................................................................................................................ 7 1.3 Test Standards ....................................................................................................................................... 8 1.4 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION ....................................................................................................................... 9 2.1 Testing Condition ................................................................................................................................... 9 2.2 The Worst Test Modes and Channel Details ......................................................................................... 9 3 TRANSMITTER TEST RESULTS ........................................................................................................ 10 3.1 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 10 4 TEST LABORATORY INFORMATION ............................................................................................... 17 Report No.: FR4N1401 Page : 3 of 17 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FR4N1401 Rev. 01 Initial issue Mar. 06, 2015 FR4N1401 Rev. 02 Removed model of antenna. (Page 5) Mar. 27, 2015 Report No.: FR4N1401 Page : 4 of 17 Report Version: Rev. 02 Summary of Test Results FCC Rules Test Items Measured Result 15.247(d) 15.407(b) 15.209 Radiated Emissions [dBuV/m at 3m]: 31.85MHz 35.72 (Margin -4.28dB) – PK Pass Report No.: FR4N1401 Page : 5 of 17 Report Version: Rev. 02 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11] 1 NOTE 4 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11] 1 NOTE 4 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 MCS 0-15 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 MCS 0-15 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. Note 4: 802.11b/g is transmitting signal through chain 0 only. . RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5150-5250 a 5180-5240 36-48 [4] 1 6-54 Mbps 5150-5250 n (HT20) 5180-5240 36-48 [4] 1 MCS 0-7 5150-5250 n (HT40) 5190-5230 38-46 [2] 1 MCS 0-7 5150-5250 ac (VHT20) 5180-5240 36-48 [4] 1 MCS 0-8 5150-5250 ac (VHT40) 5190-5230 38-46 [2] 1 MCS 0-9 5150-5250 ac (VHT80) 5210 42 [1] 1 MCS 0-9 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n/ac uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM, 256QAM modulation. RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5725-5850 a 5745-5825 149-165 [5] 1 6-54 Mbps 5725-5850 n (HT20) 5745-5825 149-165 [5] 1 MCS 0-7 5725-5850 n (HT40) 5755-5795 151-159 [2] 1 MCS 0-7 5725-5850 ac (VHT20) 5745-5825 149-165 [5] 1 MCS 0-8 5725-5850 ac (VHT40) 5755-5795 151-159 [2] 1 MCS 0-9 5725-5850 ac (VHT80) 5775 155 [1] 1 MCS 0-9 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n/ac uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM, 256QAM modulation. Report No.: FR4N1401 Page : 6 of 17 Report Version: Rev. 02 1.1.2 Antenna Details Ant. No. Type Connector Operating Frequencies (MHz) / Antenna Gain (dBi) 2400~2483.5 5150~5250 5250~5350 5470~5725 5725~5850 1 PIFA N/A 2 3 3 3 3 1.1.3 Accessories N/A Report No.: FR4N1401 Page : 7 of 17 Report Version: Rev. 02 1.2 The Equipment List Test Item Radiated Emission Test Site 966 chamber1 / (03CH01-WS) Test Date Sep. 10, 2014 Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until Spectrum Analyzer R&S FSV40 101498 Jan. 25, 2014 Jan. 24, 2015 Receiver R&S ESR3 101658 Jan. 10, 2014 Jan. 09, 2015 Bilog Antenna SCHWARZBECK VULB9168 VULB9168-522 Jan. 03, 2014 Jan. 02, 2015 Horn Antenna 1G-18G SCHWARZBECK BBHA 9120 D BBHA 9120 D 1096 Feb. 13, 2014 Feb. 12, 2015 Horn Antenna 18G-40G SCHWARZBECK BBHA 9170 BBHA 9170517 Dec. 27, 2013 Dec. 26, 2014 Amplifier Burgeon BPA-530 100219 Nov. 22, 2013 Nov. 21, 2014 Preamplifier Agilent 83017A MY39501308 Dec. 16, 2013 Dec. 15, 2014 Preamplifier EMC EMC184045B 980192 Aug. 26, 2014 Aug…

Text truncated - open the document above for the full version.

Report No.: FR4N1401 Page: : 1 of 2 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR4N1401 Page: : 2 of 2 Report Version: Rev. 01 Radiated Emission Test
